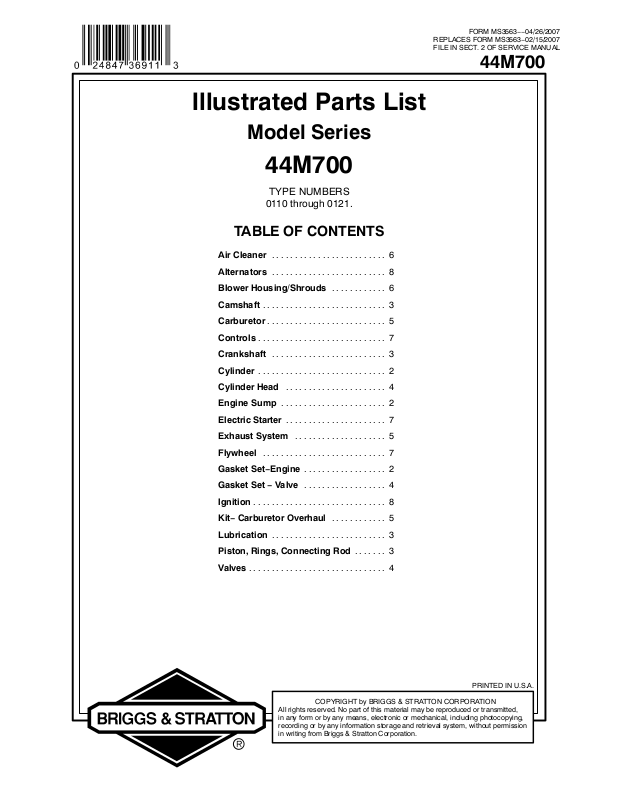

Page 1
Illustrated Parts List
Model Series
44M700
TYPE NUMBERS
0110 through 0121.
TABLE OF CONTENTS
Air Cleaner 6. . . . . . . . . . . . . . . . . . . . . . . . .
Alternators 8. . . . . . . . . . . . . . . . . . . . . . . . .
Blower Housing/Shrouds 6. . . . . . . . . . . .
Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Carburetor 5. . . . . . . . . . . . . . . . . . . . . . . . . .
Controls 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head 4. . . . . . . . . . . . . . . . . . . . . .
Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .
Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .
Exhaust System 5. . . . . . . . . . . . . . . . . . . .
Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .
Gasket Set−Engine 2. . . . . . . . . . . . . . . . . .
Gasket Set − Valve 4. . . . . . . . . . . . . . . . . .
Ignition 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Kit− Carburetor Overhaul 5. . . . . . . . . . . .
Lubrication 3. . . . . . . . . . . . . . . . . . . . . . . . .
Piston, Rings, Connecting Rod 3. . . . . . .
Valves 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACES FORM MS3563−02/15/2007
FILE IN SECT. 2 OF SERVICE MANUAL
FORM MS3563−−04/26/2007
44M700
PRINTED IN U.S.A.
All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.
COPYRIGHT by BRIGGS & STRATTON CORPORATION
Page 2
44M700
Ú
Ú
1
2
3
1058 OPERATOR’S MANUAL
1330 REPAIR MANUAL
358A ENGINE GASKET SET
3
51A
7
718
718
10
8
11
252
250
12
9
524
691
842
868
9
883
4
1017
15
691
239
12
552
1024
20
1035
22
415
1024A
1013
1027
20
943
1022
163
965
943
750
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−2 Assemblies include all parts shown in frames. 04/26/2007
2
Page 3
25
847
525
44M700
523
842
287
26
28
27
27
29
524
32
16
24
46
45
146
741
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−3 Assemblies include all parts shown in frames. 04/26/2007
3
Page 4
44M700
5
42
798
1100
13
35
1029
36
383
1022
337
192
883
33
7
34
868
163
617
45
5A
33
1095 VALVE GASKET SET
7
883
868
883
1022
1026
1026A
635
1023
1022
1023A
1022
914
34
868
7
617
1022
1029
192
36
35
1100
42
798
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−4 Assemblies include all parts shown in frames. 04/26/2007
4

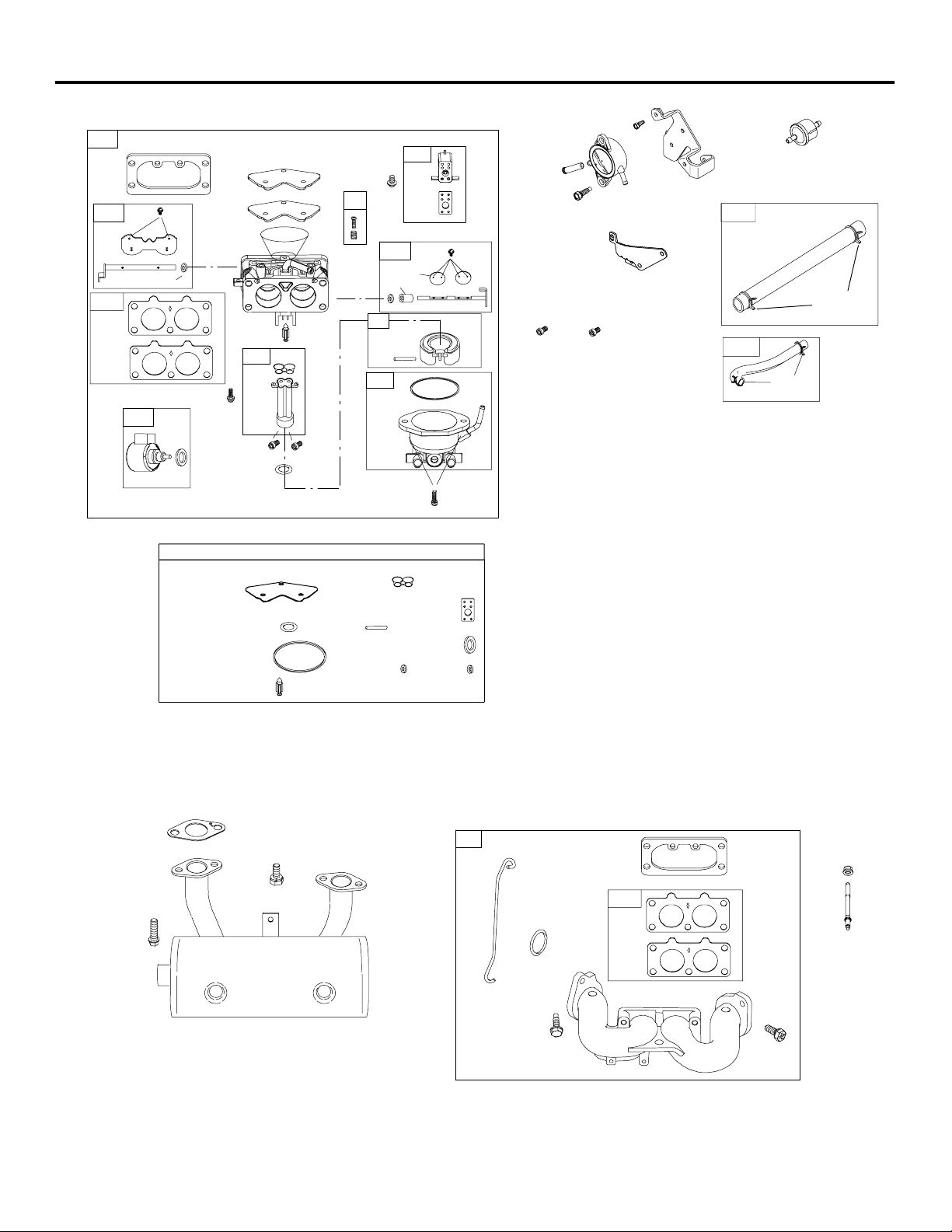

Page 5
125
163
141
108
51A
231
947
633
276
1126
672
418
117A
105
135
1124
1123
R − L
44M700
788
628
387
142
118A
918
385
788A
118
1128
98
L − R
133
117
104
975
131
987
137
150
95
130
1127
240
187A
601
187E
601
613
300
883
121 CARBURETOR OVERHAUL KIT
672
1123
137
105
613A
1124
104
987
150
276
633
50
212
617
163
51A
654
53
929
54
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−5 Assemblies include all parts shown in frames. 04/26/2007
5

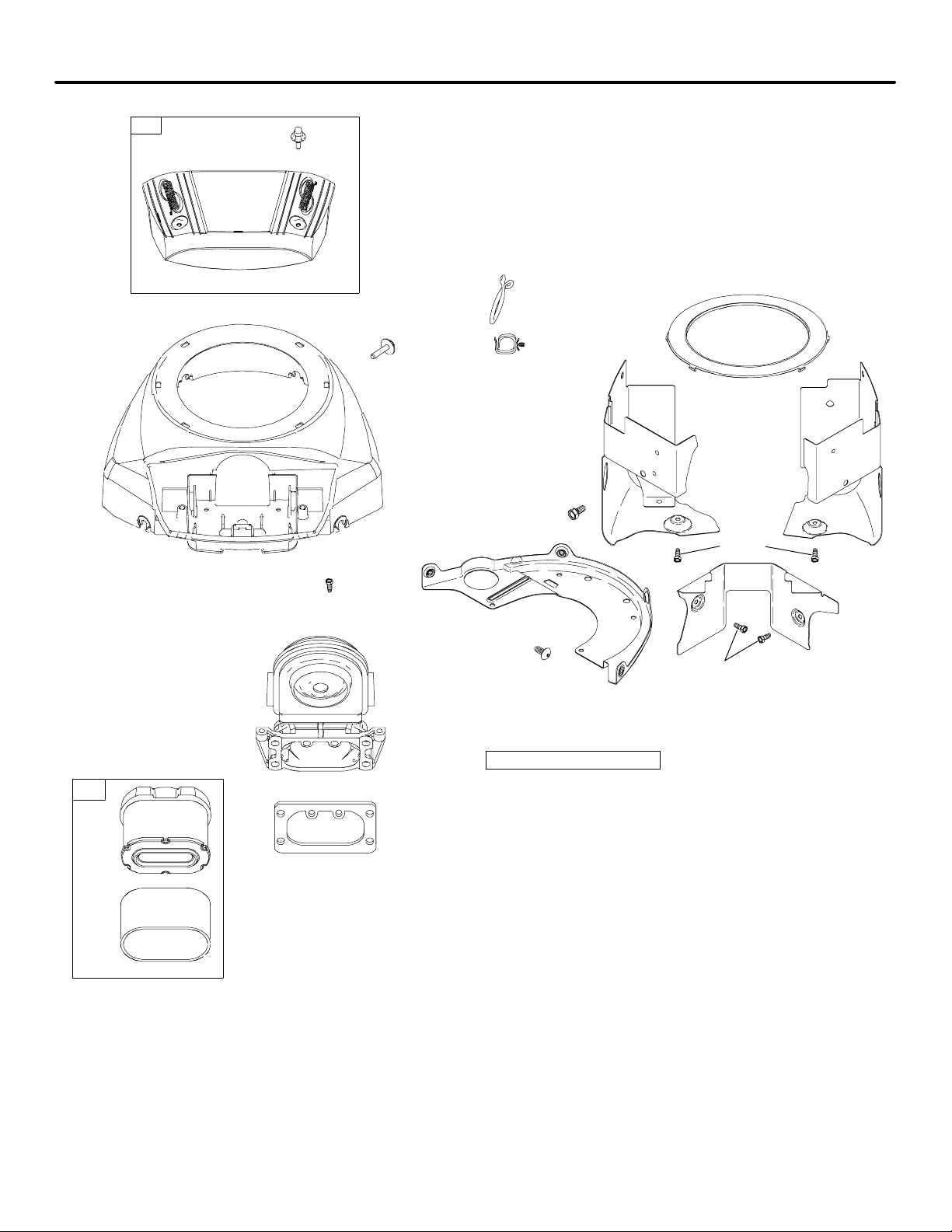

Page 6
44M700
304
968
467
305
729
703
447
865
1040
865A
447A
445B
967B
431
163
305B
573
865B
405A
447A
1036 EMISSIONS LABEL
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−6 Assemblies include all parts shown in frames. 04/26/2007
6

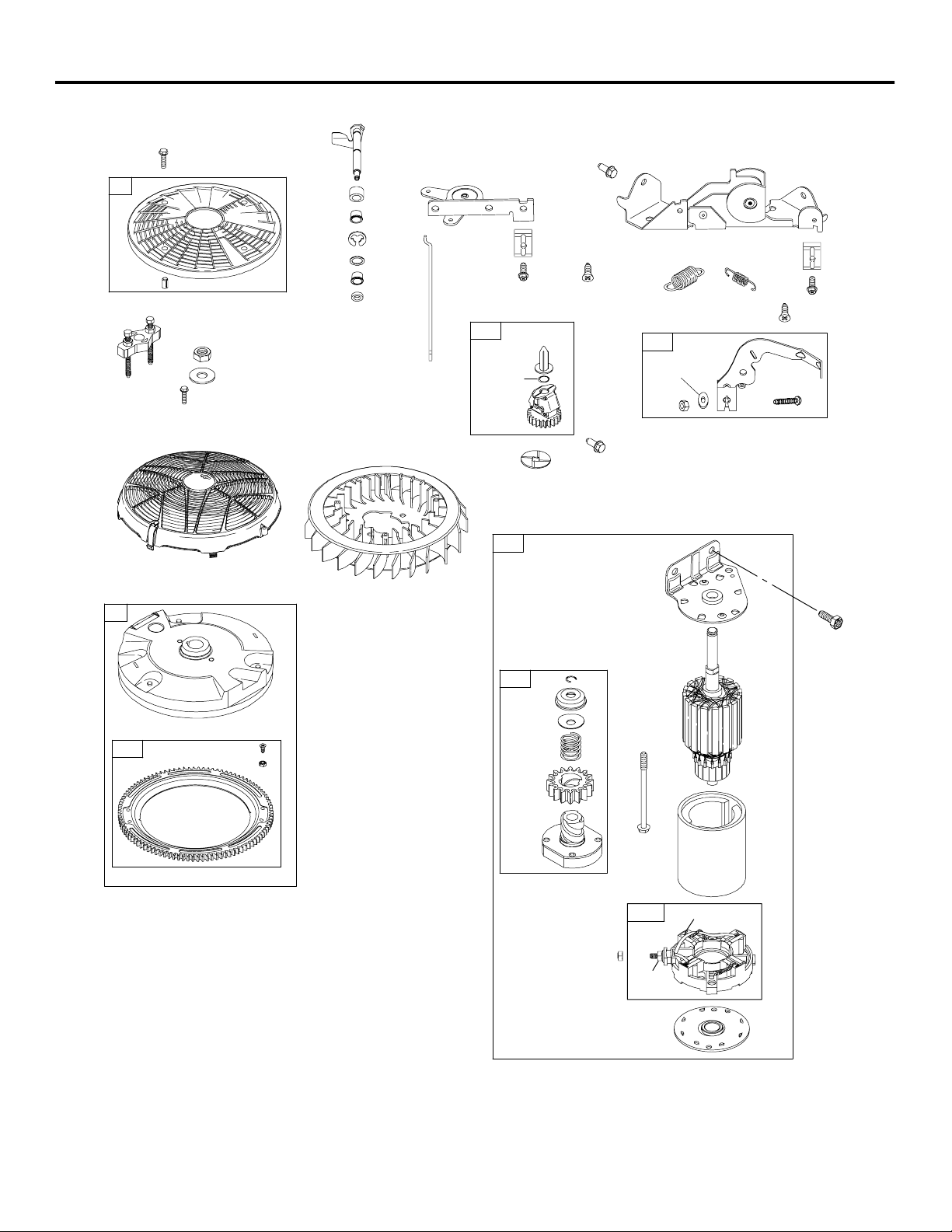

Page 7
44M700
363
930
73
74
668
1070
332
75
552A
552A
1005
616
552
742
404
691
213
216
219
265
267
220
309
615
267A
188
188
222
209
227
505
278
211
265
267
267A
562
23
726
695
165
510
783
513
1051
579
310
544
803
1090
797
801
697
311
802
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−7 Assemblies include all parts shown in frames. 04/26/2007
7

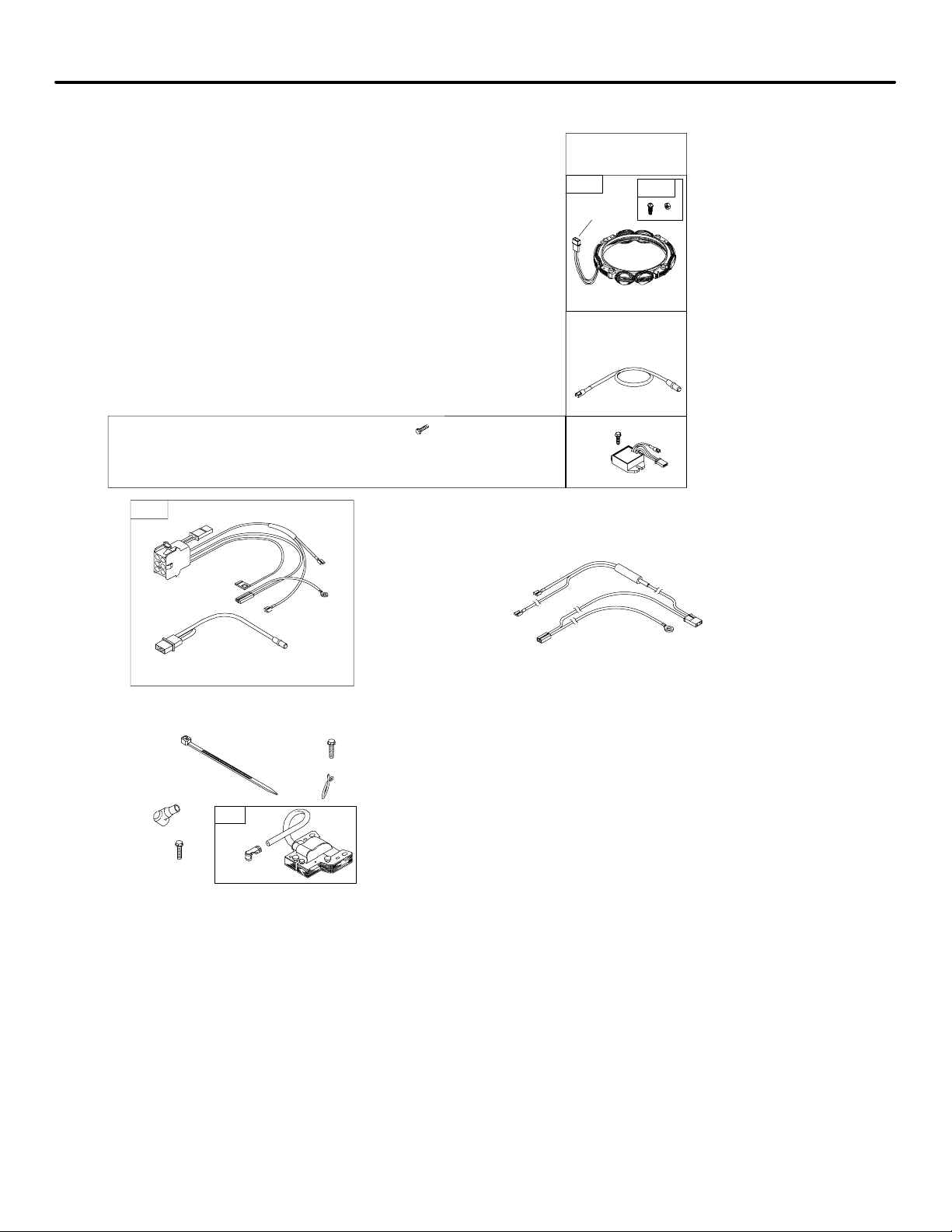

Page 8
44M700
10 − 16 AMP
NOTE: All stators use a No. mounting screw.
NOTE: The proper flywheel part number and/or the alternator magnet size will
determine the alternator type or output. See repair instruction manual
for additional information.
789B
1119
474B
877B
578A
526B
501B
1059
635
334
789A
1054
333
851
789D
1119
729
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−8 Assemblies include all parts shown in frames. 04/26/2007
8
Page 9
44M700
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 699753 Cylinder Assembly
2 499585 Kit−Bushing/Seal
(Magneto Side)
3 K391086s Seal−Oil
(Magneto Side)
4 699747 Sump−Engine
5 792299 Head−Cylinder
(Cylinder 1)
5A 792300 Head−Cylinder
(Cylinder 2)
7 K
Δ693997 Gasket−Cylinder Head
8 792185 Breather Assembly
9 K690937 Gasket−Breather
10 691108 Screw
(Breather Assembly)
11 792184 Tube−Breather
12 K697227 Gasket−Crankcase
13 791130 Screw
(Cylinder Head)
15 690946 Plug−Oil Drain
16 699700 Crankshaft
20 K791892 Seal−Oil
(PTO Side)
22 694966 Screw
(Crankcase
Cover/Sump)
23 691053 Flywheel
24 222698s Key−Flywheel
25 792117 Piston Assembly
(Standard)
−−−−−− Note −−−−−−
792144 Piston
Assembly
(.020” Oversize)
26 792026 Ring Set
(Standard)
−−−−−− Note −−−−−−
792073 Ring Set
(.020” Oversize)
27 690975 Lock−Piston Pin
28 690229 Pin−Piston
(Standard)
29 699699 Rod−Connecting
(Standard)
32 690976 Screw
(Connecting Rod)
33 697576 Valve−Exhaust
34 792200 Valve−Intake
35 694865 Spring−Valve
(Intake)
36 694865 Spring−
(Exhaust)
42 499586 Keeper−Valve
45 690977 Tappet−Valve
46 792555 Camshaft
50 695241 Manifold−Intake
51A K791677 Gasket−Intake
53 690951 Stud
(Carburetor)
54 699816 Screw
(Intake Manifold)
73 494439 Screen−Rotating
74 698425 Screw
(Rotating Screen)
75 691056 Washer
(Flywheel)
95 690718 Screw
(Throttle Valve)
98 699721 Kit−Idle Speed
104 D694918 Pin−Float Hinge
105 D698537 Valve−Float Needle
108 699723 Valve−Choke
117 792296 Jet−Main
(Standard)
(Left)(Nikki)
117A 842627 Jet−Main
(Standard)
(Right)(Nikki)
118 699457 Jet−Main
(High Altitude)
(Left)(Nikki)
118A 699733 Jet−Main
(High Altitude)
(Right)(Nikki)
121 792455 Kit−Carburetor
Overhaul
Valve
125 792295 Carburetor
130 690993 Valve−Throttle
131 499805 Kit−Throttle Shaft
133 D699724
135 D699729 Tube−Fuel Transfer
137 D690994 Gasket−Float Bowl
141 699722 Kit−Choke Shaft
142 D699726 Nozzle−Carburetor
146 690979 Key−Timing
150 D690995 Gasket−Nozzle
Δ691001 Gasket−Air Cleaner
163 K
165 693148 Nut
187A 791766 Line−Fuel
187E 791801 Line−Fuel
188 691108 Screw
192 690083 Adjuster−Rocker Arm
209 793343 Spring−Governor
Float−Carburetor
(Ring Gear)
(Length 15”)(Cut to
Required Length)
(Molded)
(Control Bracket)
(Purple)
(Used After Code Date
06081400).
Used on Type No(s).
0110.
−−−−−− Note −−−−−−
793340
Spring−Governor
(Orange)
(Used After Code Date
06081400).
Used on Type No(s).
0113.
698071
Spring−Governor
(White)
(Used Before Code
Date 06081500).
Used on Type No(s).
0110, 0113.
793343
Spring−Governor
(Purple)
Used on Type No(s).
0115, 0118, 0119,
0121.
K Included in Engine Gasket Set−Ref. No.358.
D Included in Carburetor Overhaul Kit−Ref. No. 121.
Δ Included in Valve Gasket Set−Ref. No 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−9 Assemblies include all parts shown in frames. 04/26/2007
9
Page 10
44M700
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
211 691019 Spring−Governed Idle
212 695238 Link−Throttle
213 691021 Bracket−Choke
Control
216 691022 Link−Choke
219 793338 Gear−Governor
(Used After Code Date
06081400).
−−−−−− Note −−−−−−
698231
Gear−Governor
(Used Before Code
Date 06081500).
220 690412 Washer
(Governor Gear)
222 698761 Bracket−Control
227 792492 Lever−Governor
Control
231 690718 Screw
(Choke Valve)
239 792028 Switch−Oil Pressure
−−−−−− Note −−−−−−
697049 Switch−Oil
Pressure
Used on Type No(s).
0118.
240 695666 Filter−Fuel
250 690957 Retainer−Breather
252 690956 Collector−Oil
265 691024 Clamp−Casing
267 691044 Screw
(Casing Clamp)
267A 695134 Screw
(Casing Clamp)
Used on Type No(s).
0115, 0118, 0119.
276 KD695410 Washer−Sealing
278 792651 Washer
(Governor Control
Lever)
287 691108 Screw
(Dipstick Tube)
300 696226 Muffler
304 792301 Housing−Blower
305 691005 Screw
(Blower Housing)
(21/32” Long)
305B 790690 Screw
(Blower Housing to
Intake Elbow)
(11/16” Long)
309 499521 Motor−Starter
310 691263 Screw
(Starter Motor)
311 497608 Brush Set
332 691059 Nut
(Flywheel)
333 691060 Armature−Magneto
334 691061 Screw
(Magneto Armature)
337 491055s Plug−Spark
Used on Type No(s).
0110, 0115, 0119.
−−−−−− Note −−−−−−
793541 Plug−Spark
Used on Type No(s).
0113.
792015 Plug−Spark
Used on Type No(s).
0118.
691043 Plug−Spark
Used on Type No(s).
0121.
358A 694012 Gasket Set−Engine
363 19203 Puller−Flywheel
383 19374s Wrench−Spark Plug
K Included in Engine Gasket Set−Ref. No.358.
D Included in Carburetor Overhaul Kit−Ref. No. 121.
Δ Included in Valve Gasket Set−Ref. No 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−10 Assemblies include all parts shown in frames. 04/26/2007
10
Page 11
44M700
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
385 691108 Screw
(Fuel Pump)
387 808656 Pump−Fuel
404 690442 Washer
(Governor Crank)
405A 697820 Screw
(Back Plate)
415 690283 Plug
(Engine Sump)
418 690999 Plate−Carburetor
431 792297 Elbow−Intake
445B 792105 Filter−Air Cleaner
Cartridge
447 691003 Screw
(Air Guide Cover)
447A 691108 Screw
(Air Guide Cover)
467 790697 Knob−Air Cleaner
(1” Long)
474B 696458 Alternator
(10−16 Amp Circuit)
501B 691185 Regulator
505 691029 Nut
(Governor Control
Lever)
510 696541 Drive−Starter
513 692024 Clutch−Drive
523 691036 Dipstick
524 K691032 Seal−Dipstick Tube
525 691037 Tube−Dipstick
526B 691108 Screw
(Regulator)
544 Armature−Starter
(Serviced By 499521
Starter Only)
552 690552 Bushing−Governor
Crank
552A 690553 Bushing−Governor
Crank
562 690311 Bolt
(Governor Control
Lever)
573 790444 Plate−Back
578A 691208 Wire Assembly
579 691029 Nut
(Starter Cable)
601 691038 Clamp−Hose
613 690341 Screw
(Muffler)
613A 690297 Screw
(Muffler)
615 698290 Retainer−Governor
Shaft
616 691045 Crank−Governor
617 697891 Seal−O Ring
(Intake Manifold)
628 691108 Screw
(Fuel Pump Bracket)
(Used Before Code
Date 0607800).
633 D690998 Seal−Choke/Throttle
Shaft
635 66538s Boot−Spark Plug
654 690958 Nut
(Carburetor)
668 691500 Spacer
672 D690234 Gasket−Carburetor
Plate
691 K790574 Seal−Governor Shaft
695 693149 Screw
(Ring Gear)
697 690372 Screw
(Drive Cap)
703 691010 Clip
718 690959 Pin−Locating
726 499612 Gear−Ring
729 694123 Clip−Wire
741 690980 Gear−Timing
742 690328 Retainer−E Ring
750 696999 Screw
(Oil Pump Cover)
783 695708 Gear−Pinion
788 691039 Bracket−Fuel Pump
(Used Before Code
Date 06072800).
788A 793145 Bracket−Fuel Pump
(Used After Code Date
06072700).
789A 790544 Harness−Wiring
789B 698330 Harness−Wiring
789D 691220 Harness−Wiring
797 693167 Nut
(Brush Retainer)
798 697890 Screw
(Rocker Arm)
801 691283 Cap−Drive
802 691286 Cap−End
803 Housing−Starter
(Serviced By 499521
Starter Only)
842 K691031 Seal−O Ring
(Dipstick Tube)
847 499602 Dipstick/Tube
Assembly
851 493880s Terminal−Spark Plug
865 691012 Cover−Air Guide
(Cylinder 1)
865A 793205 Cover−Air Guide
(Cylinder 2)
865B 792286 Cover−Air Guide
(Valley)
868 K
Δ690968 Seal−Valve
877B 399916 Wire/Connector−
Alternator
883 KΔ690970 Gasket−Exhaust
914 691127 Screw
(Rocker Cover)
918 793147 Hose−Vacuum
(Used After Code Date
060727600).
−−−−−− Note −−−−−−
694000 Hose−Vacuum
(Used Before Code
Date 06072800).
929 695239 Screw
(Choke Control
Bracket)
930 794277 Guard−Rewind
943 K690589 Seal−O Ring
(Oil Pump Cover)
947 841546 Solenoid−Fuel
965 499613 Cover−Oil Pump
967B 792303 Filter−Pre Cleaner
968 792289 Cover−Air Cleaner
975 791232 Bowl−Float
987 D691000 Seal−Throttle Shaft
1005 791236 Fan−Flywheel
1013 690954 Nipple−Oil Filter
1017 690770 Screen−Oil Pump
1022 K
Δ690971 Gasket−Rocker Cover
1023 793146 Cover−Rocker
(Cylinder 1)
(Used After Code Date
06072700).
−−−−−− Note −−−−−−
499599 Cover−Rocker
(Cylinder 1)
(Used Before Code
Date 06072800).
1023A 499600 Cover−Rocker
(Cylinder 2)
K Included in Engine Gasket Set−Ref. No.358.
D Included in Carburetor Overhaul Kit−Ref. No. 121.
Δ Included in Valve Gasket Set−Ref. No 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−11 Assemblies include all parts shown in frames. 04/26/2007
11
Page 12
44M700
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1024 499054 Pump−Oil
(Used Before Code
Date 07022600).
1024A 794416 Pump−Oil
(Used After Code Date
07022500).
1026 690981 Rod−Push
(Steel)
1026A 690982 Rod−Push
(Aluminum)
1027 696854 Filter−Oil
1029 690972 Arm−Rocker
1035 691042 Shaft−Pump
(Used Before Code
Date 07022600).
1036 Label−Emissions
(Available from a
Briggs and Stratton
authorized Service
Dealer)
1040 791237 Plate−Trim
1051 691265 Ring−Retaining
1054 280275 Tie−Cable
1058 277103 Operator’s Manual
1059 698516 Kit−Screw/Washer
1070 690372 Screw
(Flywheel Fan)
1090 691293 Retainer−Brush
1095 694013 Gasket Set−Valve
1100 791959 Pivot−Rocker Arm
1119 691183 Screw
(Alternator)
1123 D841653 Seal−O Ring
(Solenoid Retainer)
1124 D690988 Seal−O Ring
(Fuel Transfer Tube)
1126 690991 Screw
(Fuel Transfer Tube)
1127 695407 Screw
(Float Bowl)
1128 690990 Screw
(Carburetor Nozzle)
1330 273521 Repair Manual
K Included in Engine Gasket Set−Ref. No.358.
D Included in Carburetor Overhaul Kit−Ref. No. 121.
Δ Included in Valve Gasket Set−Ref. No 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
3563−12 Assemblies include all parts shown in frames. 04/26/2007
12
Loading...
