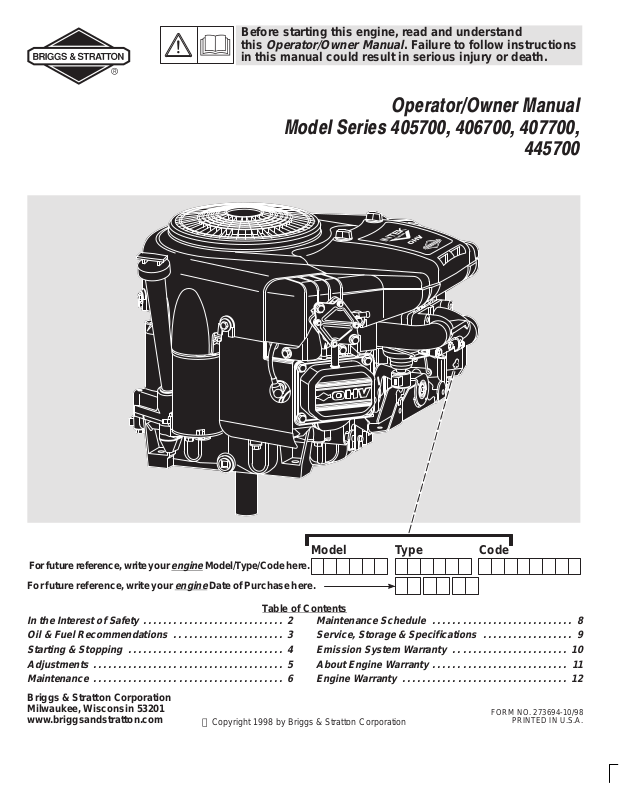

Page 1
Before starting this engine, read and understand
Operator/Owner Manual
this
. Failure to follow instructions
in this manual could result in serious injury or death.
For future reference, write your
For future reference, write your
In the Interest of Safety 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil & Fuel Recommendations 3. . . . . . . . . . . . . . . . . . . . . .
Starting & Stopping 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Briggs & Stratton Corporation
Milwaukee, Wisconsin 53201
www.briggsandstratton.com
engine
engine
Model/T ype/Code here.
Date of Purchase here.
Table of Contents
Copyright 1998 by Briggs & Stratton Corporation
Model Type Code
Maintenance Schedule 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service, Storage & Specifications 9. . . . . . . . . . . . . . . . . .
Emission System Warranty 10. . . . . . . . . . . . . . . . . . . . . . .
About Engine Warranty 11. . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Warranty 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FORM NO. 273694-10/98
PRINTED IN U.S.A.
Page 2
Maintenance, replacement or repair of the emission control devices and systems may be performed by any nonroad engine repair establishment or individual. However, to obtain no charge repairs under the terms and provisions of the
Briggs & Stratton warranty statement, any service or emission control part repair or replacement must be performed by a
factory authorized dealer.
In the Interest of Safety
This safety alert symbol indicates that this message
involves personal safety. Words danger, warning
and caution indicate degree of hazard. Death,
personal injury and/or property damage may occur
unless instructions are followed carefully.
The Briggs & Stratton engine you bought with your equipment is made of the finest material in a state-of-the-art manufacturing
facility . Please understand that Briggs & Stratton sells engines to original equipment manufacturers. It also sells to others in the
distribution chain who may sell to the ultimate consumer, an equipment manufacturer , another distributor or a dealer . As a result,
Briggs & Stratton does not necessarily know the application on which the engine will be placed. For that reason, you should
carefully read and understand the operating instructions of the equipment on which your engine is placed before you operate it.
You should also understand that there are equipment applications for which Briggs & Stratton does not approve the use of its
engines. Briggs & Stratton engines are not to be used on vehicles with less than 4 wheels. They include motor bikes, aircraft
products and All T errain V ehicles. Moreover, Briggs & Stratton does not approve of its engines being used in competitive events .
F0R THA T REASON, BRIGGS & STRATTON ENGINES ARE NOT AUTHORIZED FOR ANY OF THESE APPLICATIONS. Failure to follow this warning could result in death, serious injury (including paralysis) or property damage.
DO NOT run engine in an enclosed area.
(Exhaust gases contain carbon monoxide, an
odorless and deadly poison.)
DO NOT remove fuel tank cap nor fill fuel tank while
engine is hot or running. DO NOT refuel indoors or in
an unventilated area. (Allow engine to cool 2 min utes before refueling.)
DO NOT place hands or feet near moving or rotating parts.
DO NOT store, spill, or use gasoline near an open flame, nor
near an appliance like a stove, furnace, or water heater that
uses a pilot light or can create a spark.
DO NOT refuel indoors or in an unventilated area.
DO NOT operate or tip engine/equipment at such a severe
angle that causes gasoline spillage.
DO NOT operate engine if gasoline is spilled or when smell of
gasoline is present or other explosive conditions exist. (Move
equipment away from spill and avoid any ignition until gasoline
has evaporated.)
DO NOT transport engine with fuel in tank or fuel shut-off
valve open.
DO NOT choke carburetor to stop engine, especially in an enclosed vehicle. (Whenever possible, gradually reduce engine
speed before stopping.)
DO NOT tamper with governor springs, links or other parts to
increase engine speed. (Run engine at speed set for equipment
manufacturer.)
✔ PULL starter cord slowly until resistance is felt. Then pull
cord rapidly to avoid kickback and prevent hand or arm injury.
✔ PREVENT ACCIDENTAL STARTING by removing spark
plug wire from spark plug when servicing engine or equipment. Disconnect negative wire from battery terminal if
equipped with electric starting system.
✔ REMOVE blower housing periodically and clean engine.
Keep cylinder fins and governor parts free of dirt, grass
and other debris which can affect engine speed.
✔ USE fresh gasoline. Stale fuel can gum carburetor and
cause leakage.
✔ CHECK fuel lines and fittings frequently for cracks or
International
Symbols
Safety Alert - Read
Owner’s Manual
DO NOT check for spark with spark plug removed. (Use an
approved tester.)
DO NOT crank engine with spark plug removed. (If engine is
flooded, place throttle in FAST and crank until engine starts.)
DO NOT strike flywheel with a hammer or hard object as this
may cause flywheel to shatter in operation. (T o remove flywheel,
use Briggs & Stratton approved tools only.)
DO NOT operate engine without a muffler . (Inspect periodically
and replace if worn or leaking. If engine is equipped with muffler deflector, inspect periodically and replace if necessary. Replacement parts must be same as on original equipment.)
DO NOT operate engine with an accumulation of grass,
leaves or other combustible material in muffler area.
DO NOT use this engine on any forest covered, brush covered, or grass covered unimproved land unless a spark arrester is installed on muffler . The spark arrester must be maintained in working order by the owner and/or operator. In the
State of California the above is required by law (Section 4442
of the California Public Resources Code). Other states may
have similar laws. Federal laws apply on federal lands.
DO NOT touch hot muffler , cylinder, or fins which can cause
burns.
DO NOT start engine with air cleaner or air cleaner cover re moved (or cover over carburetor air intake, if Sno/Gard engine).
DO NOT attempt to start engine with cutting blade loose or removed. (Blade must be tight, otherwise a kickback may occur.)
✔ Use only Genuine Briggs & Stratton Parts or their
On Off Stop
You are not ready to operate this engine if you
have not read and understood the following
safety items. Read this entire owner’s manual and
the operating instructions of the equipment this
engine powers.
leaks. Replace if necessary.
equivalent. The use of replacement parts which are
not of equivalent quality may damage the engine.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects, or other reproductive harm.
Fuel
Shutoff
Fuel
Choke
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
2
Page 3
Oil & Fuel Recommendations
Oil
This engine is shipped from Briggs & Stratton without
Before starting engine
, check oil level as shown below.
oil.
Change and add oil according to chart below. Do not over-fill.
Use a high quality detergent oil classified “For Service
SF, SG, SH,” such as Briggs & Stratton “warranty certified”
SAE 30 oil, Part No. 100005 or 100028. Use no special additives with recommended oils. Do not mix oil with gasoline.
SAE Viscosity Grades
**
*
20 40 60 80 100
-20 0
°F
°C -30
STAR TING TEMPERATURE RANGE ANTICIP ATED BEFORE NEXT OIL CHANGE
* Air cooled engines run hotter than automotive engines. The use of
multi-viscosity oil such as (10W-30, etc.) in ambient temperatures
above 40° F (4°C) will result in higher than normal oil consumption.
If multi-viscosity oil is used, check the oil level more frequently to
prevent any possible engine damage due to lack of lubrication.
** Use of SAE 30 oil below 40° F (4° C) will result in hard starting
and possible engine damage due to inadequate lubrication.
-20 -10 0 10 20 30 40
32
Check oil level before starting engine.
Add oil as shown below.
Oil capacity is about 1-7/8 qts (60 ozs or 1.8 ltrs) without
oil
filter.
Oil capacity is about 2 qts (64 ozs or 1.9 ltrs) with oil filter.
Note: Oil capacity will be greater if engine is equipped with
remote
oil filter.
After filling with or changing oil, start and run engine at idle for
30 seconds. Shut engine off. Wait 30 seconds and check oil
level. Add oil, if required, to bring level to Full mark on dipstick.
Fuel
Use clean, fresh, regular unleaded gasoline with a minimum
of 85 octane. Do not mix oil with gasoline. Fresh fuel prevents
gum from forming in fuel system or on essential carburetor
parts. Purchase fuel in quantity that can be used within 30
days. In countries other than the U.S.A., leaded gasoline may
be used if commercially available and unleaded is unavailable.
We recommend the use of Briggs & Stratton Gasoline Additive.
(See your Authorized Briggs & Stratton Service Dealer for
Part No. 5041 or the single-use pouch.) See storage instructions, on page 9.
Note: Some fuels, called oxygenated or reformulated
gasolines, are gasolines blended with alcohols or ethers.
Excessive amounts of these blends can damage the fuel
system or cause performance problems. Do not use gasoline
which contains Methanol. If any undesirable operating
symptoms occur, use gasoline with a lower percentage of
alcohol or ether.
Do not over-fill fuel tank. Allow space for fuel expansion.
5
4
3
6
1. Spark plug wire
2. Oil drain plug
3. 12V electric starter
4. Oil fill/Dipstick
5. Rotating screen
6. Air cleaner
7. Fuel pump
2
13
1
7
8
Place engine level.
Clean around oil fill.
Remove dipstick.
Wipe with clean cloth.
Tighten dipstick.
Remove & check.
12
11
8. Blower housing
9. Oil filter
0. Valve cover
1. Intake manifold
Fill to FULL mark on dipstick.
Pour oil slowly.
Recheck oil level and add if required.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
Tighten dipstick be-
fore starting engine.
2. Carburetor
3. Engine Model Type Code
xxxxxx xxxx xx xxxxxxxx
3
10
9
Page 4
Starting & Stopping
Choke operation/engine warm-up
This is a low emissions engine which operates differently from
previously built engines. It is designed for maximum performance and life if operated with the choke fully open (in RUN)
and throttle fully open (in FAST). To open the choke fully
requires an engine warm-up period of several seconds to
several minutes, depending on the temperature.
After starting engine, first open the choke (toward RUN) until
the engine just begins to run smoothly . Then open the choke in
small steps, allowing the engine to accept small changes in
speed and load, until the choke is fully open (in RUN).
During engine warm-up, the equipment can be operated.
To obtain best starting results
Store and fuel lawn machine in level position.
Start lawn mower on hard surface or over previously cut grass.
Do not use a pressurized starting fluid. Starting fluid is
flammable. Severe engine damage or fire may occur.
A warm engine requires less choking than a cold engine.
Starting in cold weather:
Use the correct oil for the starting temperature expected.
De-clutch all possible external loads.
Set speed control at part throttle position.
A warm battery has more starting capacity than a cold battery .
Do not use gasoline left over from summer. Use fresh winter
grade gasoline which has higher volatility to improve starting.
Start engine
Always keep hands and feet clear of mower blade or
other rotating machinery.
Electric starter
Turn key to START or press starter button. Repeat if neces-
sary with throttle control in FAST position. Operate engine in
FAST position.
Note: If equipment manufacturer has supplied battery, charge it
before trying to start engine, as equipment manufacturer recommends. Use short starting cycles (15 secs. per min.) to prolong
starter life. Extended cranking can damage starter motor.
PRESS
BUTTON
Typical starter switches
If engine is equipped with battery for electric starter,
do not operate engine with battery disconnected.
If engine runs low on oil, an oil pressure switch (if engine is
equipped) will either activate a warning light. (Read the operating instructions supplied by the equipment manufacturer to
determine which way your engine is equipped.) See oil pressure
on page 6 for oil filling instructions.
Before starting engine
Open fuel shut-off valve, if engine is equipped.
Move choke control to CHOKE or START position.
Note: Choke must fully close. If engine does not start, see
control adjustments on page 5.
Move throttle control to RUN or FAST position.
PULL OUT TO CHOKE
Typical throttle and choke controls
Stop engine
Do not move choke control to CHOKE position to stop engine.
Backfire or engine damage may occur. Move throttle control
to SLOW position, then to STOP or turn key to OFF. Always
remove key from switch when equipment is not in use or left
unattended.
When transporting engine, close fuel shut-off valve (if
equipped) to prevent fuel leakage.
Typical stop switches
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
4
Page 5
Adjustments
Control adjustments
WIRE
To prevent accidental starting when
adjusting controls, remove spark plug
wires from spark plugs and disconnect
battery at negative terminal.
To adjust choke control:
Remove air cleaner. Move choke control to CHOKE or
START position. Carburetor choke should be completely
closed. If not, loosen casing clamp screw. Then pull casing,
wire and engine choke lever in direction of arrow to end of
travel. Tighten casing clamp screw. Replace air cleaner.
PULL
TO CHOKE
WIRE AND
CASING
Carburetor adjustments
The manufacturer of the equipment on which this
engine is installed specifies top speed at which the
engine will be operated. DO NOT EXCEED this speed.
Air cleaner and air cleaner cover must be assembled to
carburetor before starting engine.
The carburetor on this engine is low emission. It is not adjustable, except for idle speed. Governed idle speed is 1750 rpm,
set at the factory.
Adjustments
If idle speed does require adjusting, start engine and warm up
approximately 5 minutes before adjusting. With engine
running, place throttle control in SLOW position. Rotate
carburetor throttle lever against the idle speed screw and hold
it. Turn idle speed screw to obtain 1500 rpm. Release carburetor throttle lever. Move throttle control to FAST position.
Engine should accelerate smoothly.
IDLE SPEED
SCREW
SCREW
Choke control adjustment
To adjust throttle control:
Remove air cleaner. Move throttle control to FAST position.
Swivel should be against throttle stop. If not, loosen casing
clamp screw. Pull casing and wire in direction shown by arrow
until swivel rotates against throttle stop. Tighten casing clamp
screw.
THROTTLE STOP
CASING
SWIVEL
CLAMP
SCREW
Throttle control adjustment
CARBURETOR
THROTTLE
LEVER
Carburetor adjustments
Note: Engines operated at approximately 3000 to 5000 feet
(900 to 1500 meters) or above sea level may require a high
altitude carburetor air bleed. If erratic performance is
observed, contact a Briggs & Stratton Authorized Service
Dealer for a high altitude carburetor air bleed.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
5
Page 6

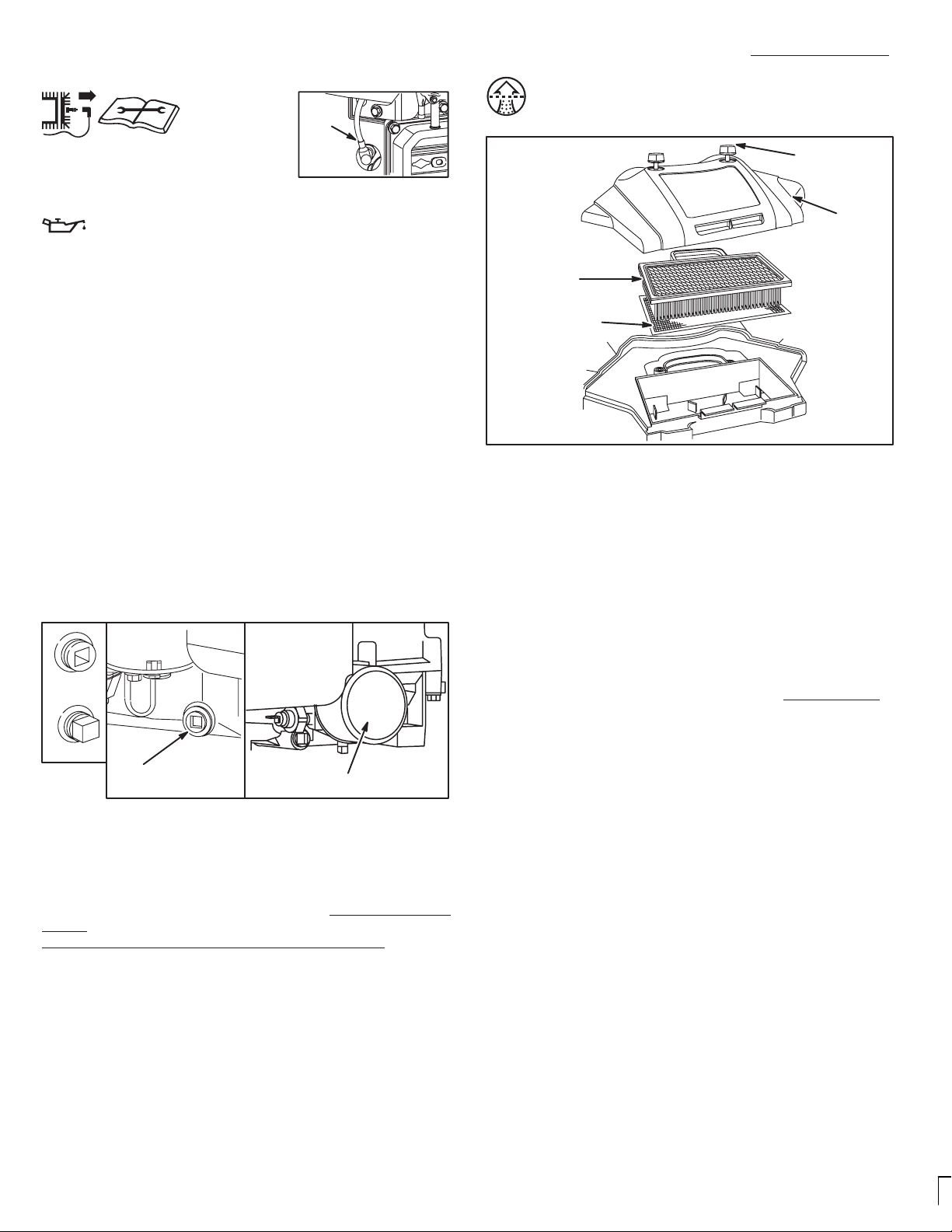

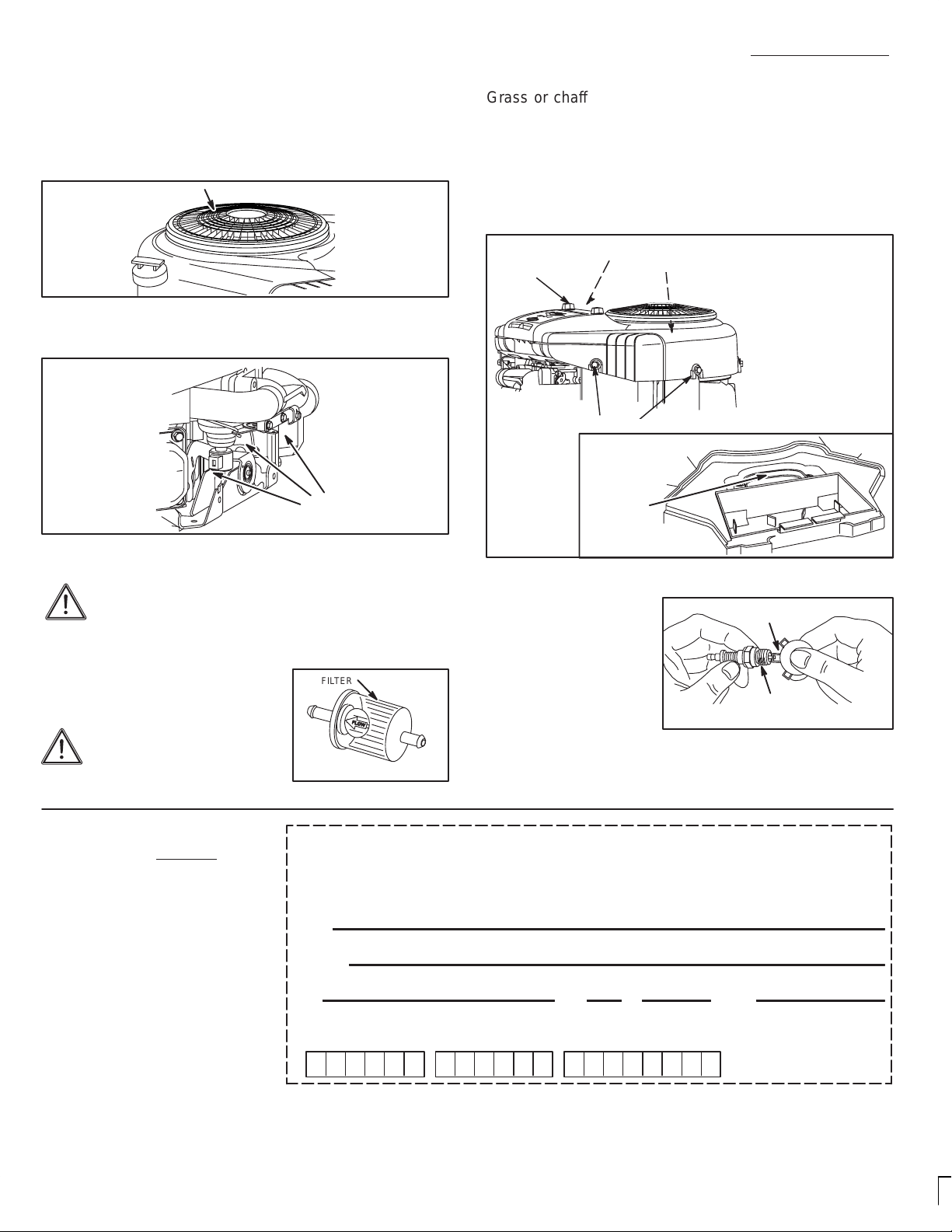

Maintenance
See Maintenance Schedule, page 8. Follow the hourly or calendar intervals, whichever occur first.
Note that more frequent service is required when operating in adverse conditions.
Air cleaner
WIRE
To prevent accidental starting when
servicing engine or equipment, remove
spark plug wires from spark plugs and
disconnect battery at negative terminal.
Oil
Check oil level regularly.
Be sure correct oil level is maintained. Check every 8 hours or
daily, before starting engine. See check oil level on page 3.
Change oil (Follow Maintenance Schedule.)
Change oil after first 8 hours of operation. Remove drain plug
and drain oil while engine is warm. Replace drain plug. Remove
dip sti ck or oil cap a nd refill with new oil of recommended grade
(see chart, page 3). Start and run engine at idle for
30 seconds. Stop engine. Wait 30 seconds and re-check oil
level. Add oil to bring level to FULL mark on dipstick, if required.
Note: Change oil after every 50 hours of operation. Change oil
every 25 hours if engine is operated under heavy load or in
high ambient temperatures.
Change oil filter (Follow
Maintenance Schedule.)
Replace oil filter after every 100 hours of operation. Drain
engine oil and replace with fresh oil. Before installing new
filter, lightly oil filter gasket with fresh, clean oil. Screw filter on
by hand until gasket contacts oil filter adapter. Tighten 1/2 to
3/4 turn more. Start and run engine at idle to check for leaks.
Stop engine. Re-check oil level. Add oil if required.
KNOBS
COVER
CARTRIDGE
PART NO. 499486
FOAM PRE–CLEANER
PART NO. 273638
Dual element air cleaner
1. Remove knobs and cover.
2. Lift out cartridge and foam pre-cleaner.
To service pre-cleaner, wash in liquid detergent and water.
Squeeze dry in a clean cloth. Saturate in engine oil. Squeeze
in clean, absorbent cloth to remove all EXCESS oil. Replace if
very dirty or damaged.
T o service cartridge, clean by tapping gently on a flat surface.
Do not oil cartridge. Replace if very dirty or damaged.
3/8” SQUARE
Note: Do not use petroleum solvents, e.g., kerosene, which will
cause the cartridge to deteriorate. Do not use pressurized air
clean cartridge. Pressurized air can damage the cartridge.
PIPE
T ypical
drain
plugs
OIL DRAIN
PLUG
OIL FILTER
P/N SEE PAGE 8
Oil filterOil drain
3. Reinstall pre-cleaner (mesh side up) and cartridge.
4. Replace cover and knobs.
Oil Pressure
2
If oil pressure drops below 4-6 psi (.2-.4 kg/cm
), an oil pressure
switch (if engine is equipped) will either activate a warning
device or stop the engine. Check oil level with dipstick. If oil level
is between ADD and FULL mark on dipstick, Do not try to restart
engine. Contact an Authorized Briggs & Stratton Service Dealer.
Do not operate engine until oil pressure is corrected.
If oil level is below ADD mark on dipstick, add oil to bring level
to FULL mark. Restart engine and check oil pressure. If
pressure is normal, continue to operate engine.
Note: Oil pressure gauge, if engine is equipped, is supplied
by manufacturer of equipment.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
6
to
Page 7
Maintenance
See Maintenance Schedule, page 8. Follow the hourly or calendar intervals, whichever occur first.
Note that more frequent service is required when operating in adverse conditions.
Keep engine and parts clean.
With a brush or cloth, remove grass, chaff or debris from rotating screen daily or more often if needed to prevent engine
damage caused by overheating. Do not clean with a forceful
spray of water because water could contaminate fuel system.
ROTATING SCREEN
Rotating screen
To assure smooth operation, keep governor linkage, springs
and controls free of debris.
CLEAN
Linkage, springs & controls
Keep muffler area clean and muffler in working order.
Daily or more often, before running engine, clean muffler area to remove all grass and combustible debris.
If engine muffler is equipped with spark arrester
screen, remove for cleaning and inspection. Replace if
damaged or plugged.
Replace in-line fuel filter. See an
FILTER
Authorized Briggs & Stratton Service
Dealer for correct replacement.
Drain fuel tank or close fuel
shut-off valve before replacing
fuel filter.
PART NO. 493629
Fuel filter
Grass or chaff may clog the air cooling system, especially
after prolonged operation cutting tall, dry grass. Remove rotaing screen, air cleaner cover and blower housing. To prevent
debris from entering carburetor, it is important to cover the
carburetor air intake located above and behind carburetor
(inset) when cleaning cooling system. Clean debris and dirt
from flywheel and cylinder cooling fins and cylinder shields to
prevent overheating and engine damage.
CLEAN AREAS UNDER
AIR CLEANER
KNOBS
BLOWER HOUSING
OF ALL DEBRIS
SCREWS
CARBURETOR
AIR INTAKE
Air cooling system
Replace or clean spark
plugs. Do not blast clean.
.030” (0.76 mm)
WIRE GAGE
Clean by scraping or wire
brushing and washing
with a commercial solvent.
Use only Briggs & Stratton Spark T ester , Part No.
19368, to check for spark.
RESISTOR
PART NO. 491055
Spark plug
Note: In some areas, local law requires using resistor spark plugs
to suppress ignition signals. If this engine was originally equipped
with resistor spark plugs, use same type for replacement.
See any Authorized Briggs & Stratton
Service Dealer. Insist on Genuine
Briggs & Stratton parts! Non-original
parts may not perform as well and
Fill in both sides, clip and return to:
Briggs & Stratton Corporation
P.O. Box 1144
Milwaukee, WI 53201-1144 U.S.A.
273694
may void your warranty.
To obtain a complete Parts List of
Genuine Briggs & Stratton Parts for
your engine, fill in both sides of this
order form carefully. We cannot fill
your order without the correct
Engine Model/Type/Code. (Please
allow 3 to 4 weeks for delivery.)
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
Y our Engine
Model
Type
Code
7
Page 8

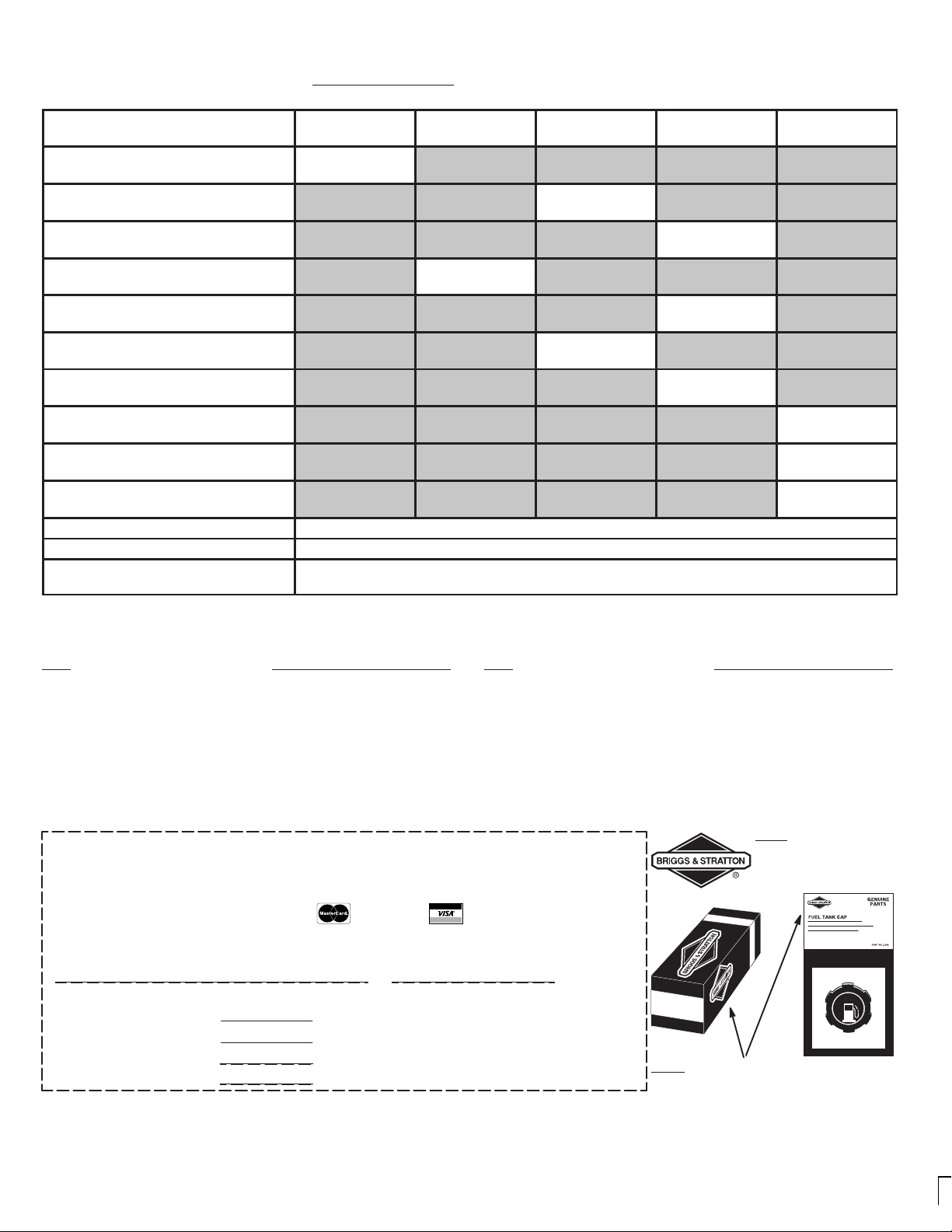

Maintenance Schedule
Follow the hourly or calendar intervals, whichever occur first.
More frequent service is required when operating in adverse conditions noted below.
Maintenance Operation
Every 8 Hours
or Daily
25 Hours or
Every Season
50 Hours or
Every Season
100 Hours or
Every Season
273694
Yearly
Check oil level
Change oil ♦
Change oil filter ♦
Service air cleaner pre-cleaner
Service air cleaner cartridge
Inspect spark arrester,
if equipped
Clean cooling system
Replace spark plugs
Replace in-line fuel filter
Check valve clearance
Note 1: Change oil every 25 hours when operating under heavy load or in high temperatures.
Note 2:
Note 1
Note 2
Note 2
Note 2
♦ Change oil after first 8 hours, then after every 50 hours or every season.
Clean more often under dusty conditions or when airborne debris is present.
Replace air cleaner parts, if very dirty.
Briggs & Stratton Part Numbers of some
Genuine Briggs & Stratton Parts:
Part Briggs & Stratton Part No.
Air cleaner cartridge 499486. . . . . . . . . . . . . . . . . . . . . . . . . .
Air cleaner pre-cleaner 273638. . . . . . . . . . . . . . . . . . . . . . . .
Resistor spark plug (Champion RC12YC) 491055. . . . . . .
Spark plug elbow 805529. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark plug wrench 19374. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark tester 19368. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Payment Method:
Fill in both sides of this order form carefully
Check or money order enclosed payable to
Briggs & Stratton Corporation in the amount of $________
Please charge my MasterCard VISA
__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
SIGNATURE (REQUIRED FOR CREDIT CARD ORDERS EXPIRATION DATE
CREDIT CARD NUMBER
Parts List $2.00
Shipping & Handling $1.50
**Add State Sales Tax
Total
Add sales tax if you live in any of the following states:
Briggs & Stratton Part Numbers of some
Genuine Briggs & Stratton Parts:
Part Briggs & Stratton Part No.
Oil 100005 or 100028. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil filter 492932 or 5049. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel filter 493629. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas additive 5041. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Genuine Briggs
Only
& Stratton Parts
have the Briggs &
(U.S. Dollars, please)
Stratton logo!
Look for Briggs & Stratton logo
stamped on part and/or package!
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
8
Page 9
Service, Storage & Specifications
For service
See an Authorized Briggs & Stratton Service Dealer. Each
one carries a stock of Genuine Briggs & Stratton Parts and is
equipped with special service tools. Trained mechanics
assure expert repair service on all Briggs & Stratton engines.
Only dealers advertising as “Authorized Briggs & Stratton”
are required to meet Briggs & Stratton standards.
When you purchase equipment powered by a
Briggs & Stratton engine, you are assured of
highly skilled, reliable service at more than
30,000 Authorized Service Dealers worldwide,
including more than 2,700 Master Service
Technicians. Look for these signs wherever
Briggs & Stratton service is offered.
Y ou may locate your nearest Authorized Briggs &
Stratton Service Dealer in the “Yellow Pages”
directory under “Engines, Gasoline” or “Gasoline
Engines,” or “Lawn Mowers” or similar category .
Or log on to our dealer locator map on our web site
www.briggsandstratton.com
Note: Walking fingers logo and “Yellow Pages” are registered
trademarks in various jurisdictions.
The illustrated shop manual shown here
includes “Theories of Operation,” common specifications and detailed information covering adjustment, tune-up and
repair of Briggs & Stratton V-T win cylinder
OHV , 4 cycle engines. It is available from
an Authorized Briggs & Stratton Service
Dealer or you can order it from the factory .
Write:
Briggs & Stratton Corporation
Attn: Service Division
P. O. Box 1144
Milwaukee, WI 53201
Part No. 273521
Storage instructions
Engines stored over 30 days need to be protected or drained
of fuel to prevent gum from forming in fuel system or on
essential carburetor parts.
1. For engine protection, we recommend use of
Briggs & Stratton Gasoline Additive, Part No.
5041, available from an Authorized Briggs &
Stratton Service Dealer. Mix Additive with
fuel in fuel tank or storage container. Run
engine for a short time to circulate Additive
through carburetor. Engine and fuel can be
P/N 5041
Your Service Dealer has single-use
pouches of Gasoline Additive available.
Note: If engine is operating on oxygenated or reformulated
gasoline (gasoline blended with an alcohol or an ether),
remove all fuel from tank and run engine until it stops from
lack of fuel. If engine is stored with gasoline in fuel tank, we
recommend the use of Gasoline additive, Part No. 5041.
2. While engine is still warm, drain oil from crankcase
(see page 6). Refill with fresh oil of recommended grade
(see chart page 3).
3. Remove spark plugs and pour about 1 oz (30 ml) of
engine oil into cylinders. Replace spark plugs and crank
slowly to distribute oil.
4. Clean dirt and chaff from cylinders, cylinder head fins, blower
housing, rotating screen and muffler area (see page 7).
5. Store in a clean and dry area, but NOT near a stove,
furnace or water heater which uses a pilot light or any
device that can create a spark.
stored up to 24 months.
General information
This is a twin cylinder, overhead valve, air cooled engine. SAE
standards apply to all drilled/tapped holes and fasteners on this
engine except the rocker arm screws which are ISO metric.
On mobile equipment, this engine will operate satisfactorily at
any angle at which operator and equipment can function safely.
Model Series 405700, 406700, 407700
Bore 2.97 in. (75.44 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2.89 in. (73.4 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 40.0 cu. in. (656 cc). . . . . . . . . . . . . . . . . . . . . .
Torque (Max.) 33.0 ft. lbs. @ 2400 rpm. . . . . . . . . . . . . . . . . .
Model Series 445700
Bore 3.12 in. (79.25 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2.89 in. (73.4 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 44.2 cu. in. (725 cc). . . . . . . . . . . . . . . . . . . . . .
Torque (Max.) 36.0 ft. lbs. @ 2400 rpm. . . . . . . . . . . . . . . . . .
and the United States Environmental Protection Agency (U.S. EPA)
Emission Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations)
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
Note: For practical operation, the horsepower loading should
not exceed 85% of rated horsepower. Engine power will
decrease 3-1/2% for each 1,000 feet (300 meters) above sea
level and 1% for each 10° F (5.6° C) above 77° F (25° C).
Tune-up specifications
Armature air gap is .008-.012 in. (.20-.30 mm)
Spark plug gap is .030 in. (.76 mm)
Valve clearance is:
Intake* .004-.006 in. (.10-.15 mm). . . . . . . . . . . . . . . . . . . . . .
Exhaust* .004-.006 in. (.10-.15 mm). . . . . . . . . . . . . . . . . . . .
* Check when engine is cold.
9
Page 10
Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB)
In the interest of the environment, B&S engines that meet strict emission requirements are labeled, “This engine conforms to 1995 - 1998
California emission regulations for ULGE engines and U.S. EPA
Phase I regulations for small non-road engines.”
EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE
TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN 1995
AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND
TO CERTIFIED MODEL YEAR 1997 AND LATER ENGINES
WHICH ARE PURCHASED AND USED ELSEWHERE IN THE
UNITED STATES.
273694
California and United States Emission Control Defects Warranty Statement
CARB, U.S. EPA and B&S are pleased to explain the Emission Control System Warranty on your 1996 and later utility or lawn and garden equipment (ULGE) engine. In California, new ULGE engines
produced on or after August 1, 1995 must be designed, built and
equipped to meet the State’s stringent anti-smog standards. Elsewhere in the United States, new non-road, spark-ignition engines
certified for model year 1997 and later, must meet similar standards
set forth by the U.S. EPA. B&S must warrant the emission control
there has been no abuse, neglect or improper maintenance of your
ULGE engine.
Y our emission control system includes parts such as the carburetor ,
air cleaner, ignition system, muf fler and catalytic converter. Also included may be connectors and other emission related assemblies.
Where a warrantable condition exists, B&S will repair your ULGE engine at no cost to you including diagnosis, parts and labor.
system on your engine for the periods of time listed below, provided
Briggs & Stratton Emission Control Defects Warranty Coverage
ULGE engines are warranted relative to emission control parts defects for a period of two years, subject to provisions set forth below. If
any covered part on your engine is defective, the part will be repaired
or replaced by B&S.
Owner’s Warranty Responsibilities
As the ULGE engine owner, you are responsible for the performance
of the required maintenance listed in your Operator/Owner Manual.
B&S recommends that you retain all your receipts covering maintenance on your ULGE engine, but B&S cannot deny warranty solely
for the lack of receipts or for your failure to ensure the performance of
all scheduled maintenance.
As the ULGE engine owner, you should however be aware that B&S
may deny you warranty coverage if your ULGE engine or a part has
failed due to abuse, neglect, improper maintenance or unapproved
modifications.
You are responsible for presenting your ULGE engine to an Authorized B&S Service Dealer as soon as a problem exists. The undisputed warranty repairs should be completed in a reasonable amount
of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact a B&S Service Representative at
1-414-259-5262.
The emission warranty is a defects warranty . Defects are judged on
normal engine performance. The warranty is not related to an in-use
emission test.
Briggs & Stratton Emission Control Defects Warranty Provisions
The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the B&S engine warranty
for non-regulated engines found in the Operator/Owner Manual.
1. Warranted Parts
Coverage under this warranty extends only to the parts listed be-
low (the emission control systems parts) to the extent these
parts were present on the engine purchased.
a. Fuel Metering System
• Cold start enrichment system (soft choke)
• Carburetor and internal parts
• Fuel Pump
b. Air Induction System
• Air cleaner
• Intake manifold
c. Ignition System
• Spark plug(s)
• Magneto ignition system
d. Catalyst System
• Catalytic converter
• Exhaust manifold
• Air injection system or pulse valve
e. Miscellaneous Items Used in Above Systems
• V acuum, temperature, position, time sensitive valves
and switches
• Connectors and assemblies
2. Length of Coverage
B&S warrants to the initial owner and each subsequent purchaser
that the Warranted Parts shall be free from defects in materials
and workmanship which caused the failure of the Warranted
Parts for a period of two years from the date the engine is delivered to a retail purchaser.
3. No Charge
Repair or replacement of any Warranted Part will be performed
at no charge to the owner, including diagnostic labor which leads
to the determination that a Warranted Part is defective, if the
diagnostic work is performed at an Authorized B&S Service
Dealer. For emissions warranty service contact your nearest Authorized B&S Service Dealer as listed in the “Y ellow Pages” under “Engines, Gasoline,” “Gasoline Engines,” “Lawn Mowers,”
or similar category .
4. Claims and Coverage Exclusions
Warranty claims shall be filed in accordance with the provisions
of the B&S Engine Warranty Policy . W arranty coverage shall be
excluded for failures of Warranted Parts which are not original
B&S parts or because of abuse, neglect or improper maintenance as set forth in the B&S Engine Warranty Policy . B&S is not
liable to cover failures of Warranted Parts caused by the use of
add-on, non-original, or modified parts.
5. Maintenance
Any Warranted Part which is not scheduled for replacement as
required maintenance or which is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be
warranted as to defects for the warranty period. Any Warranted
Part which is scheduled for replacement as required maintenance shall be warranted as to defects only for the period of time
up to the first scheduled replacement for that part. Any replacement part that is equivalent in performance and durability may
be used in the performance of any maintenance or repairs. The
owner is responsible for the performance of all required maintenance, as defined in the B&S Operator/Owner Manual.
6. Consequential Coverage
Coverage hereunder shall extend to the failure of any engine
components caused by the failure of any Warranted Part still under warranty.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
10
Page 11
About your engine warranty: (see back cover for statement of LIMITED WARRANTY).
Briggs & Stratton welcomes warranty repair and apologizes
to you for being inconvenienced. Any Authorized Service
Dealer may perform warranty repairs. Most warranty repairs
are handled routinely, but sometimes requests for warranty
service may not be appropriate. For example, warranty would
not apply if engine damage occurred because of misuse, lack
of routine maintenance, shipping, handling, warehousing or
improper installation. Similarly, warranty is void if the serial
number of the engine has been removed or the engine has
been altered or modified.
If a customer differs with the decision of the Service Dealer, an
investigation will be made to determine whether the warranty
applies. Ask the Service Dealer to submit all supporting facts to
his Distributor or the Factory for review. If the Distributor or the
Factory decides that the claim is justified, the customer will be
fully reimbursed for those items that are defective. To avoid
misunderstanding which might occur between the customer
and the Dealer, listed below are some of the causes of engine
failure that the warranty does not cover.
Improper maintenance:
The life of an engine depends upon the conditions under
which it operates, and the care it receives. Some applications,
such as tillers, pumps and rotary mowers, are very often used
in dusty or dirty conditions, which can cause what appears to
be premature wear. Such wear, when caused by dirt, dust,
spark plug cleaning grit, or other abrasive material that has
entered the engine because of improper maintenance, is not
covered by warranty.
This warranty covers engine related defective material
and/or workmanship only
, and not replacement or refund
of the equipment to which the engine may be mounted.
Nor does the warranty extend to repairs required because of:
4. Parts which are scored or broken because an engine was
operated with insufficient or contaminated lubricating oil,
or an incorrect grade of lubricating oil (check oil level daily
or after every 8 hours of operation. Refill when necessary
and change at recommended intervals.) Read “Owner’s
Manual.”
5. Repair or adjustment of associated parts or assemblies
such as clutches, transmissions, remote controls, etc.,
which are not manufactured by Briggs & Stratton.
6. Damage or wear to parts caused by dirt, which entered
the engine because of improper air cleaner maintenance,
re-assembly , or use of a non-original air cleaner element
or cartridge. (At recommended intervals, clean and re-oil
the Oil-Foam
element or the foam pre-cleaner, and re-
place the cartridge.) Read “Owner’s Manual.”
7. Parts damaged by overspeeding, or overheating caused
by grass, debris, or dirt, which plugs or clogs the cooling
fins, or flywheel area, or damage caused by operating the
engine in a confined area without sufficient ventilation.
(Clean fins on the cylinder, cylinder head and flywheel at
recommended intervals.) Read “Owner’s Manual.”
8. Engine or equipment parts broken by excessive vibration
caused by a loose engine mounting, loose cutter blades,
unbalanced blades or loose or unbalanced impellers, improper attachment of equipment to engine crankshaft,
overspeeding or other abuse in operation.
9. A bent or broken crankshaft, caused by striking a solid object with the cutter blade of a rotary lawn mower, or excessive v-belt tightness.
10.Routine tune-up or adjustment of the engine.
11. Engine or engine component failure, i.e., combustion
chamber, valves, valve seats, valve guides, or burned
starter motor windings, caused by the use of alternate
fuels such as, liquified petroleum, natural gas, altered
gasolines, etc.
1. PROBLEMS CAUSED BY PARTS THAT ARE NOT
ORIGINAL BRIGGS & STRATTON PARTS.
2. Equipment controls or installations that prevent starting,
cause unsatisfactory engine performance, or shorten engine life. (Contact equipment manufacturer.)
3. Leaking carburetors, clogged fuel pipes, sticking valves,
or other damage, caused by using contaminated or stale
fuel. (Use clean, fresh, lead-free gasoline and Briggs &
Stratton gasoline stabilizer, Part No. 5041.)
Briggs & Stratton Engines Are Made Under One Or More Of The Following Patents: Design D-247,177 (Other Patents Pending)
5,642,701
5,606,948
5,548,955
5,546,901
5,503,125
5,497,679
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
5,320,795
5,271,363
5,269,713
5,265,700
5,243,878
5,235,943
5,197,425
5,197,422
5,191,864
5,188,069
5,186,142
5,138,996
5,105,331
5,086,890
5,070,829
5,058,544
5,040,644
5,040,503
Warranty is available only through service dealers which
have been authorized by Briggs & Stratton Corporation.
Your nearest Authorized Service Dealer is listed in the
“Yellow Pages” of your telephone directory under “Engines, Gasoline” or “Gasoline Engines,” “Lawn Mowers,” or similar category.
5,009,208
4,996,956
4,995,357
4,977,879
4,971,219
4,895,1 19
11
4,875,448
4,819,593
4,719,682
4,694,792
4,633,556
4,630,498
4,522,080
4,520,288
4,453,507
4,430,984
4,355,253
4,270,509
DES. 309,458
DES. 309,457
DES. 308,872
DES. 308,871
Page 12
BRIGGS & STRA TT ON ENGINE OWNER WARRANTY POLICY
effective July 1, 1998
Replaces all undated Warranties and all Warranties
dated before July 1, 1998
LIMITED WARRANTY
“Briggs & Stratton Corporation will repair or replace, free of charge, any part, or parts of the engine that are defective in
material or workmanship or both. Transportation charges on parts submitted for repair or replacement under this W arranty
must be borne by purchaser. This warranty is ef fective for the time periods and subject to the conditions provided for in this
policy . For warranty service contact your nearest Authorized Service Dealer as listed in the ‘Yellow Pages ’ under ‘Engines,
Gasoline,’ ‘Gasoline Engines,’ ‘Lawn Mowers’ or similar category. THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LA W ANY AND ALL IMPLIED
WARRANTIES ARE EXCLUDED. LIABILITY FOR CONSEQUENTIAL DAMAGES UNDER ANY AND ALL W ARRANTIES
ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LA W. Some states do not allow limitations on how
long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.”
Briggs & Stratton Corporation
F. P. Stratton, Jr.
Chairman and Chief Executive Officer
WARRANTY PERIOD
WITHIN U.S.A. AND CANADA OUTSIDE U.S.A. AND CANADA
ENGINES
All Vanguard engines.
All Diamond Plus, Industrial Plus, I/C
engines and sleeve bore Intek series.
CONSUMER
USE*
2 year – engine } / Lifetime** – Magnetron ignition
2 year 1 year
Quantum and Diamond Power. 2 year 90 days
COMMERCIAL
USE*
CONSUMER
USE*
2 year }
{2 year {}
COMMERCIAL
USE*
1 year
90 days
All standard engines and Kool Bore Intek series
installed on lawn mowers, riders, edgers,
chippers, shredders, tillers, fun carts, and all
2 year 90 days 1 year 90 days
Sno/Gard engines.
All other standard engines and Classic series. 1 year 90 days 1 year 90 days
* For purposes of this warranty policy, “consumer use” means personal residential household use by the original retail consumer.
“Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once an engine
has experienced commercial use, it shall thereafter be considered as a commercial use engine for purposes of this warranty.
Engines used in competitive racing or on commercial or rental tracks are not warrantied.
** Lifetime limited warranty of the Magnetron ignition covers parts and labor for the first five (5) years from the date of purchase;
thereafter only parts. “Lifetime” means lifetime of the engine in the hands of the original purchaser.
{ One (1) year in Australia, New Zealand, Middle East and Africa.
} One (1) year in India.
NO WARRANTY REGISTRATION CARD IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON ENGINES.
YOU MUST SAVE THE PURCHASE RECEIPT. A PROOF OF PURCHASE DATE WILL BE REQUIRED TO OBTAIN WARRANTY.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
12
Loading...
