Home Generator Systems
Illustrated Parts List
Model
040212
Manual No. 194689A Rev. B (05/01/2008)
12000 Rated Watts
Home Generator System
Page 2
Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
2 BRIGGSandSTRATTON.COM
Exploded View - Main Unit
Page 3
Item Part # Description
1 T201381GS BASE, Mounting
2 198899GS MOUNT, Vibration
3 24910GS HHS, Trilobular 5/16 - 18 x 1/2
4 194683GS SOLENOID, Gas Fuel
5 194829GS FITTING, Coupling
6 194830GS REGULATOR
7 195936GS BRACKET, Mounting Solenoid
8 202382GS FITTING, 1/2 Flare 3/8 - 18 NPT
9 * HHCS, M8 - 1.25 x 12
10 * HHCS, M6 - 1.0 x 30
11 * WASHER, 1/4 Lock
12 * NUT, M6 - 1.0
13 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2
14 194818GS BATTERY
15 198593BGS WIRE-A, Red
16 198913GS KIT, Battery Hardware
17 185939VGS WIRE-A, Black
18 * HHCS, M8 1.25 x 16
19 201824GS BRACKET, Muffler Mounting Base
20 * WASHER, Flat 5/16 - M8
23 1723165SM HOSE, Oil Drain
24 186649GS DECAL, Oil Drain
25 * HHCS, 5/16 - 18 x 1
26 * NUT, 5/16 - 18
27 * WASHER, Lock 5/16 - M8
28 * HHCS, 5/16 - 24 x 3/4 SEMS
29 * HHCS, 1/4 - 20 x 1
30 * HHCS, 5/16 -18 x 1 - 3/4
31 198897GS BRACKET, Alternator Support
32 200013GS PLATE, Blocking Air, Alternator
33 194005GS NUT, 1/4 - 20 Flange, Nylok
34 * WASHER, Shakeproof Ext. M6-1/4
35 186790HGS WIRE, Ground
36 * WASHER, Lock, M10
37 * NUT, Hex, M10 - 1.5
38 * HHCS, 1/4 - 20 x 3/4
39 198896GS BRACKET, Engine Mounting
40 201817GS DUCT, Air
41 199999GS PTHS, #6 x 1/2"
42 * WASHER, Lock 3/8
43 * HHCS, 3/8 - 16 x 1-1/4
44 186790CGS WIRE
45 186206GS PLATE, Switch Oil Temp
46 * NUT, Hex 1/4 - 20
47 * WASHER, M6, Flat 1/4
48 * HHCS, M10 - 1.5
Item Part # Description
49 B4260GS DISK, Engine Air
50 805247 SCREW
51 NSP ASSY, Alternator (see page 6)
52 40976GS SHCS, M8 - 1.25 x 20
53 193506GS DECAL, Caution Hot Surface
54 806425 GASKET
55 198758GS MUFFLER
56 194681GS BASE, Muffler Box
57 198928GS KIT, Insulation, Muffler Base
58 56893GS CRIMPTITE, 10 - 24 x 1/2
59 201281GS ASSY, Bulkhead, Alt End w/
Insulation
60 198929GS KIT, Insulation, Muffler Box
61 194682GS COLLECTOR, Muffler Box
62 194680GS BOX, Muffler Top
63 192445GS SCREW. 10 - 32 x 5/8
64 * PPHMS, 4-40 x 0.19
65 * WASHER, Lock #4
66 186205GS SWITCH, Oil Temp
67 198593CGS WIRE-A
68 691656 SOLENOID/BRACKET
70 205397GS DECAL, Requirements, Fuel
900 § ENGINE
901 843293 FUEL HOSE
902 843438 CLAMP
Parts Not Illustrated
199327GS MANUAL, Install
194689GS MANUAL, Operator’s
276343 MANUAL, Engine
199016GS KIT, Manual/Accessory HGS
198811GS PAINT, Touchup, Silver 1/2 oz Bottle
B3518GS CAP, Funnel Oil Bottle
202295GS HOSE, Flex
198866GS KIT, Led Remote
198918GS KIT, Decals, Service
Optional Accessories
199475GS PAINT, Touchup, Spray, Sliver, 12oz
6030 KIT, Cold Weather (Includes Battery
and Oil Warmers)
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
Illustrated Parts List - Main Unit
3
Page 4
4 BRIGGSandSTRATTON.COM
Exploded View - Enclosure
Page 5
Item Part # Description
1 197275GS PAD, Mounting w/ Holes
2 T201381GS BASE, Mounting
3 198915GS ASSY, Bulkhead, Engine End
. . . . . . . Bulkhead, Engine End
. . . . . . . Decal, Fuel Inlet
. . . . . . . Seal, Foam
. . . . . . . Seal, Foam Engine Air
. . . . . . . Bushing, 1-1/2
. . . . . . . Bushing, 1-3/8
. . . . . . . Plug, Dome 1-1/2
. . . . . . . Pin, Hinges with Hardware
4 198891GS ASSY, Door, Engine End
. . . . . . . Weldment, Door Engine End
. . . . . . . Insulations
. . . . . . . Barrel, Hinges with Hardware
5 198910GS ASSY, Duct, Engine Air
. . . . . . . Decals
. . . . . . . Lug, Ground Connect w/Hardware
. . . . . . . Bracket, Mounting Breaker
w/Hardware
6 198917GS ASSY, Support, Rail
. . . . . . . Support Rail Engine End
. . . . . . . Seal, Foam
. . . . . . . Decal, Rainproof
7 B4300GS HHS, Trilobular, 1/4-20 x 1/2
8 186173GS BUSHING, Snap, 1-3/8"
9 197493GS BUSHING, Snap, 1-1/2"
10 198461GS PLUG, Dome, 1-1/2"
11 * HHCS, 3/8 - 16 x 1
12 * WASHER, Flat, 3/8 - M10
13 * WASHER, Lock 3/8
14 * NUT, 3/8 - 16
15 198892GS ASSY, Door
. . . . . . . Weldment Door
. . . . . . . Insulation
. . . . . . . Barrel Hinges with Hardware
. . . . . . . Decals
Item Part # Description
16 194819GS SEAL, Foam, Engine Air
17 203303GS INSULATION, Engine Door, Bottom
18 195733GS MOUNT, Tie Wrap
19 195935GS DUCT, Rubber Alternator
20 198825GS ADAPTER, Alternator
21 198893GS ASSY, Roof/Siderails
. . . . . . . Weldment Roof/Siderails
. . . . . . . Insulation
22 201281GS ASSY, Bulkhead, Alternator End
. . . . . . . Decal, Caution Hot Muffler
. . . . . . . Seal, Foam
. . . . . . . Pin, Hinges with Hardware
. . . . . . . Bracket, Muffler
23 200409GS DECAL, Caution Hot Muffler
24 194679GS COVER, Air Intake Alternator
25 198926GS ASSY, Vent, Exhaust
26 B1797GS CLIP, Tree
27 198927GS ASSY., Vent, Alternator
28 198888GS SEAL, Foam
29 194694GS COVER, Air Intake Engine
30 203302GS INSULATION, Engine Door, Top
31 197312GS SEAL, Foam
32 196397GS INSULATION, Front/Rear Door
33 195597GS INSULATION, Roof
35 198460GS PLUG, Dome
36 192940GS RETAINER, Hose
38 198890GS KIT, Door, Hinge
39 194828GS SET, Latch Key
40 198889GS KIT, Door Latch
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Illustrated Parts List - Enclosure
5
Page 6
Item Part # Description
1 192970GS BRACKET, Drive End
2 192973GS SCREEN, Protection
3 B4908GS BOLT, Shaft Stay
4 * SCREW, Socket Head Cap
5 192969GS FRAME and Stator
6 192962GS PLUG, Rubber Grid
7 192966GS GRID
9 192967GS BOX, Terminal Lid
10 192968GS TERMINAL BOARD
11 * WASHER, Flat, #10 - M5
12 * NUT, 10 - 32
13 192974GS CAPACITOR
Item Part # Description
14 * PPHMC, 10 - 32 x 3/4
15 192972GS DIODE
16 192971GS ROTOR
17 * SCREW, M8 x 1.25 x 35mm
18 * WASHER, Shakeproof, Ext M6 - 1/4
19 * NUT, 1/4 - 20
20 206897GS FAN
21 206927GS RING, Fixing
22 206594GS BEARING
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Exploded View & Illustrated Parts List - Alternator
6 BRIGGSandSTRATTON.COM
Page 7
Item Part # Description

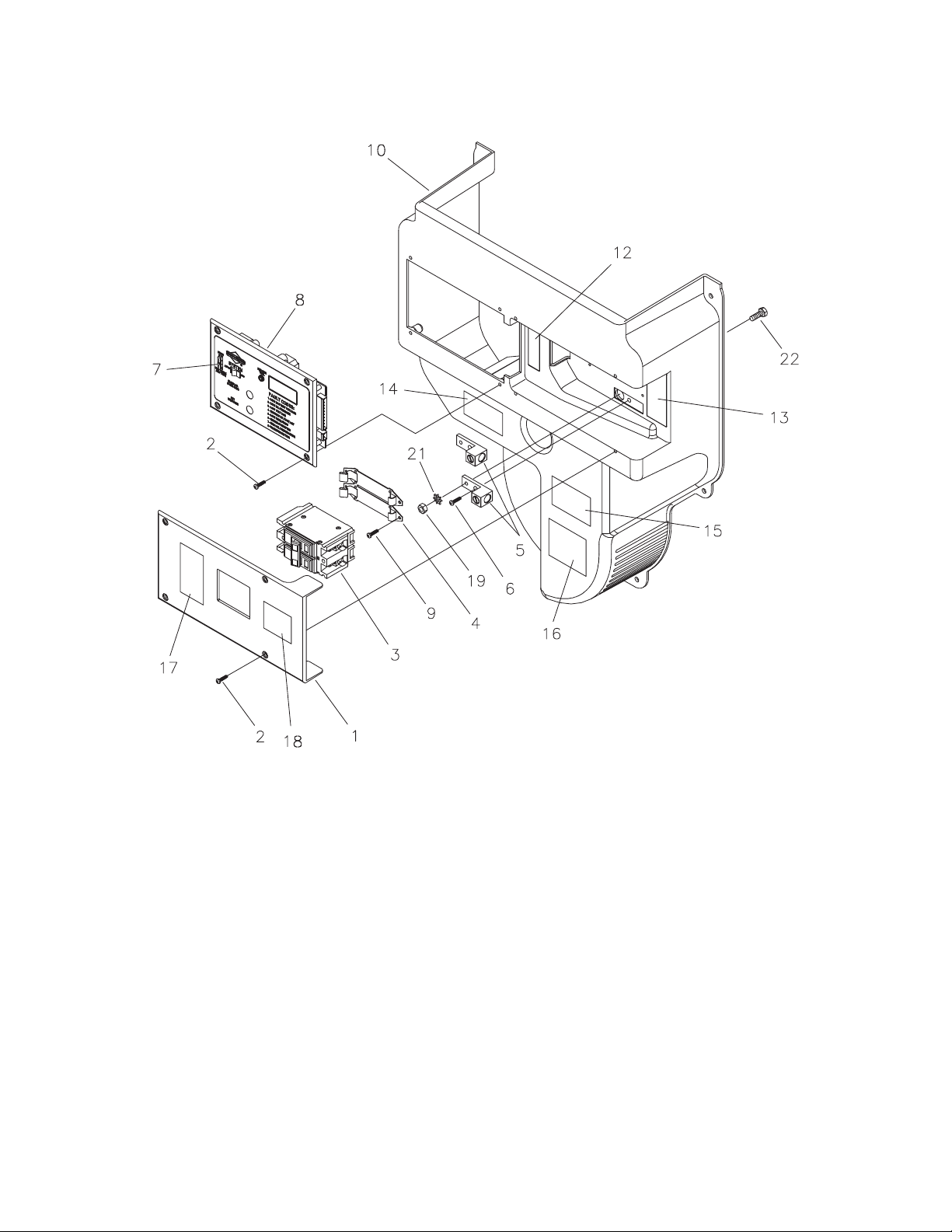

1 198911GS ASSY, Cover, Circuit Breaker w/
Decals
2 * SCREW, 10 x 0.62, Plastite
3 201089GS BREAKER, Circuit 60A, 2P
4 192770GS BRACKET, Mounting Breaker
5 199011GS LUG, Ground Connect
6 191991GS BOLT, 1/4-10 x 1, Plastite
7 198573GS FUSE, Auto Type 15 Amp
8 196655GS ASSY, Control Panel
9 197492GS SCREW, PT, M4 - 1.79 x 16.0
10 198910GS ASSY, Duct, Engine Air w/ Decals
12 198549GS DECAL, Terminal Block
13 198550GS DECAL, Ground, Neutral
14 205393GS DECAL, Warning, Outdoor Install
15 193297GS DECAL, Caution, Standby
Item Part # Description
16 205392GS DECAL, Warning, Auto Start
17 205394GS DECAL, Caution, Electric Shock
18 205395GS DECAL, Warning Shock
19 * NUT, 1/4 - 20
21 * WASHER, Shakeproof, Ext M6 1/4
22 * HHCS, 1/4 - 20 x 3/4
Parts Not Illustrated
201090GS HARNESS, Wire, CTL Board to
Engine/Alternator
198517GS HARNESS, Wire, E1 & E2 Sensing
198515GS CONNECTOR, Terminal, 2 Pin
198516GS CONNECTOR, Terminal, 10 Pin
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Exploded View & Illustrated Parts List - Control Panel
7
