Page 1
Illustrated Parts List
Les Parties Illustrées Enumèrent
Las Partes Ilustradas Listan
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Vous avez des questions? Vous n'avez pas
besoin d'aller loin pour trouver de l'aide!
Call: Home Standby Helpline
Llamada: Línea Directa de Reserva de Hogar
Appelez: Ligne Directe de Secours À la Maison
1-800-743-4115 M-F 8-5 CT
BRIGGSandSTRATTON.COM
Manual No. 202828GS Rev. A (10/15/07)
20000Rated Watts
Home Generator System
Model / Modelo / Modèle
040211
Page 2
SCHEMATIC
2
UNIT SCHEMATIC DIAGRAM
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
WIRING DIAGRAM
3
UNIT WIRING DIAGRAM
Page 4
EXPLODED VIEW
4
UNIT EXPLODED VIEW
Page 5
PARTS LIST
5
UNIT PARTS LIST
Item Part # Description
1 T203030GS BASE, Mounting
2 187594GS MOUNT, Vibration
3 24910GS HHS, Trilobular 5/16 - 18 x 1/2
4 194683GS SOLENOID, Gas Fuel
5 194829GS FITTING, Coupling
6 194830GS REGULATOR
7 195936GS BRACKET, Mounting Solenoid
8 202382GS FITTING, 3/4 Flare to 3/8 NPT
9 * HHCS, M6 - 1.0 x 16
10 * HHCS, M6 - 1.0 x 30
11 * WASHER, 1/4 Lock
12 * NUT, M6 - 1.0
13 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2
14 194818GS BATTERY
15 185939UGS WIRE-A, Black
16 198913GS KIT, Battery Hardware
17 198593DGS WIRE-A, Red
18 202958GS TUBE, Air Cleaner
19 B4995GS HHS, Trilobular, 1/4-20 x 7/8
20 * WASHER, Flat 5/16 - M8
21 204025GS VALVE, Oil Drain
22 48031JGS CLAMP, Hose Band
23 186430GS HOSE, Oil Drain
24 186649GS DECAL, Oil Drain
25 * HHCS, 5/16 - 18 x 2.5 Full Thread
26 * NUT, 5/16 - 18
27 * WASHER, Lock 5/16 - M8
28 186790CGS WIRE
29 * HHCS, 5/16 - 18 x 2" Lg
30 * HHCS, M12 - 1.75 x 35
31 * WASHER, M12
32 B194685GS SUPPORT, Eng/Alt, Black
33 202922GS SCREEN
34 * WASHER, Shakeproof Ext. M6-1/4
35 185939WGS WIRE, Ground
36 * WASHER, 3/8 Lock
37 * WASHER, Flat, 3/8 - M10
38 * HHCS, 3/8 - 16 x 1
39 B198896GS BRACKET, Mounting Alt, Black
40 202761GS DUCT, Air
41 * SCREW, M5.8 x 10, Taptite
42 * WASHER, Lock 3/8
43 * SHCS, 3/8 - 16 x 1-1/4
44 * HHCS, 5/16 - 18 x 3/4
45 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2
46 * PPHMS, 4-40 x 0.19
Item Part # Description
47 * WASHER, Lock #4
48 186205GS SWITCH, Oil Temp
49 194699GS PLATE, Switch Oil Temp
50 809743 SCREW
51 NSP ASSY, Alt (see pages 10 & 11)
52 692062 SCREW
53 193506GS DECAL, Caution Hot Surface
54 809872 GASKET
55 202885GS MUFFLER
56 202884GS BASE, Muffler Box
57 203533GS KIT, Insulation, Muffler Box Base
58 56893GS CRIMPTITE, 10 - 24 x 1/2
59 202985GS ASSY, Bulkhead, Alt End w/Insulation
60 203534GS KIT, Insulation, Muffler Box Top
61 194682GS COLLECTOR, Muffler Box
62 202883GS BOX, Muffler Top
63 192445GS SCREW. 10 - 32 x 5/8
64 * WASHER, M6 Shakeproof
70 202896GS DECAL, Requirements, Fuel
900 § ENGINE
901 843644 FUEL HOSE
902 843438 CLAMP
Parts Not Illustrated
202826GS MANUAL, Install
202827GS MANUAL, Operator’s
MS3483 MANUAL, Engine
202814GS KIT, Manual/Accessory, HGS
199475GS PAINT, Touchup, Spray, Sliver, 12oz
198811GS PAINT, Touchup, Bottle, Metallic
Sliver 1/2 oz
B3518GS CAP, Funnel Oil Bottle
202295GS HOSE, Flex
198866GS KIT, Led Remote
202828GS MANUAL, IPL
203434GS KIT, Decals, Service
Optional Accessories
6030 KIT, Cold Weather (Includes Battery
and Oil Warmers)
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
Page 6
EXPLODED VIEW
6

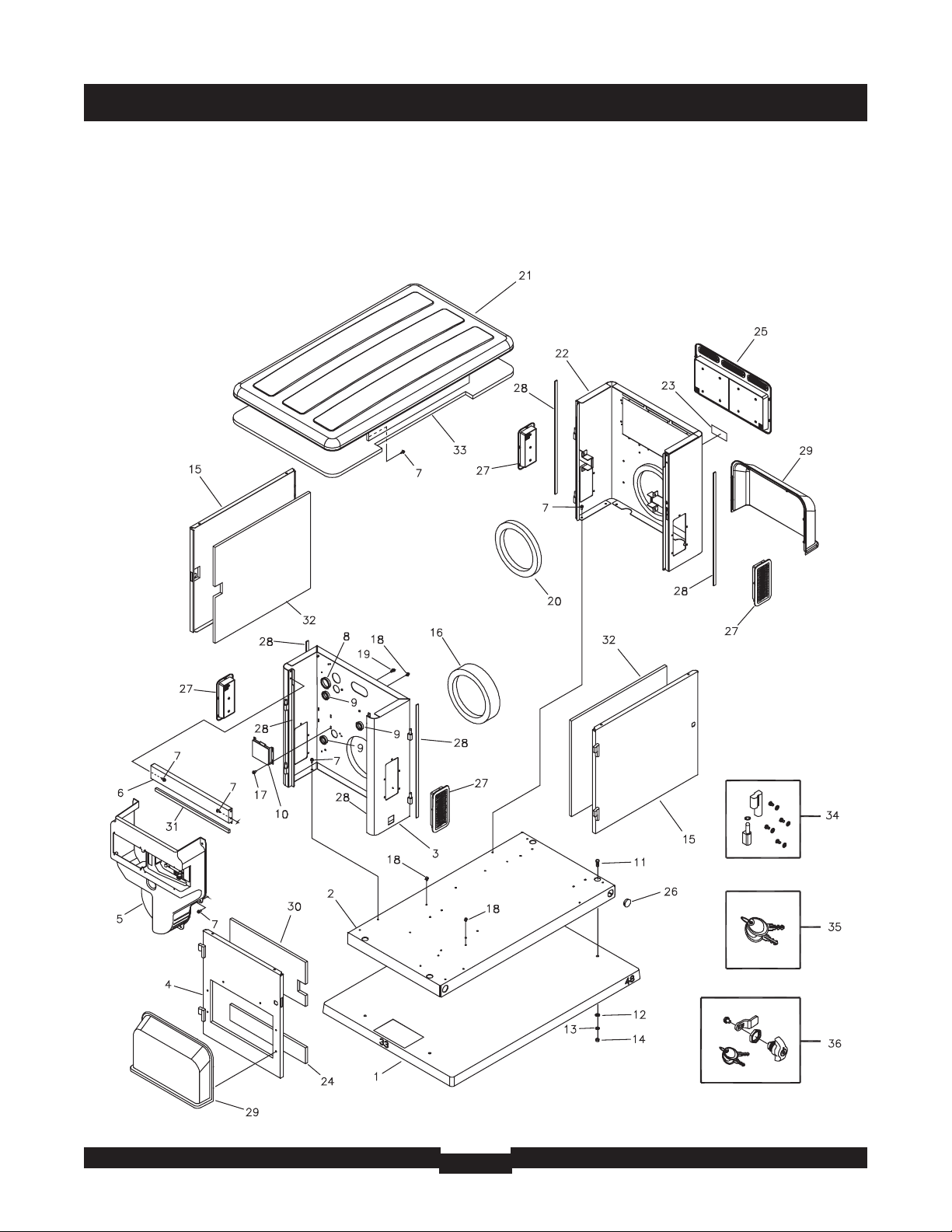

ENCLOSURE EXPLODED VIEW
Page 7
PARTS LIST
7
ENCLOSURE PARTS LIST
Item Part # Description
1 197275GS PAD, Mounting w/Holes
2 T203030GS BASE, Mounting
3 202987GS ASSY, Bulkhead, Eng End
. . . . . . . Bulkhead, Eng End
. . . . . . . Decal, Fuel Inlet
. . . . . . . Seal, Foam
. . . . . . . Seal, Foam Engine Air
. . . . . . . Bushing, 1-1/2
. . . . . . . Bushing, 1-3/8
. . . . . . . Plug, Dome 1-1/2
. . . . . . . Pin, Hinges with Hardware
4 198891GS ASSY, Door, Eng. End
. . . . . . . Weldment, Door Eng End
. . . . . . . Insulation
. . . . . . . Barrel, Hinges with Hardware
5 198910GS ASSY, Duct, Engine Air
. . . . . . . Decals
. . . . . . . Lug, Ground Connect w/Hardware
. . . . . . . Bracket, Mounting Breaker
w/Hardware
6 198917GS ASSY, Support, Rail
. . . . . . . Support Rail Eng. End
. . . . . . . Seal, Foam
. . . . . . . Decal, Rainproof
7 B4300GS HHS, Trilobular, 1/4-20 x 1/2
8 203015GS BUSHING, Snap, 2"
9 197493GS BUSHING, Snap, 1-1/2"
10 198338GS REGULATOR, Voltage
11 * HHCS, 3/8 - 16 x 1
12 * WASHER, Flat, 3/8 - M10
13 * WASHER, Lock 3/8
14 * NUT, 3/8 - 16
15 198892GS ASSY, Door
. . . . . . . Weldment Door
. . . . . . . Insulation
. . . . . . . Barrel Hinges with Hardware
. . . . . . . Decals
Item Part # Description
16 202956GS SEAL, Foam, Engine Air
17 192778GS HHS, Trilobular, #8-32 x 1/2
18 195733GS MOUNT, Tie Wrap
19 192940GS RETAINER, Hose
20 202957GS SEAL, Foam, Alt Inlet
21 198893GS ASSY, Roof/Siderails
. . . . . . . Weldment Roof/Siderails
. . . . . . . Insulation
22 202985GS ASSY, Bulkhead, Alt End
. . . . . . . Decal, Caution Hot Muffler
. . . . . . . Seal, Foam
. . . . . . . Seal, Foam Alt Inlet
. . . . . . . Pin, Hinges with Hardware
. . . . . . . Bracket, Muffler
23 77816AGS DECAL, Caution Hot Muffler
24 203303GS INSULATION, Engine Door, Bottom
25 198926GS ASSY, Vent, Exhaust
26 198460GS PLUG, Dome
27 198927GS ASSY., Vent, Alt.
28 198888GS SEAL, Foam
29 194694GS COVER, Air Intake Engine
30 203302GS INSULATION, Engine Door, Top
31 197312GS SEAL, Foam
32 196397GS INSULATION, Front/Rear Door
33 195597GS INSULATION, Roof
34 198890GS KIT, Door, Hinge
35 194828GS SET, Latch Key
36 198889GS KIT, Door Latch
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Page 8
8
EXPLODED VIEW
8

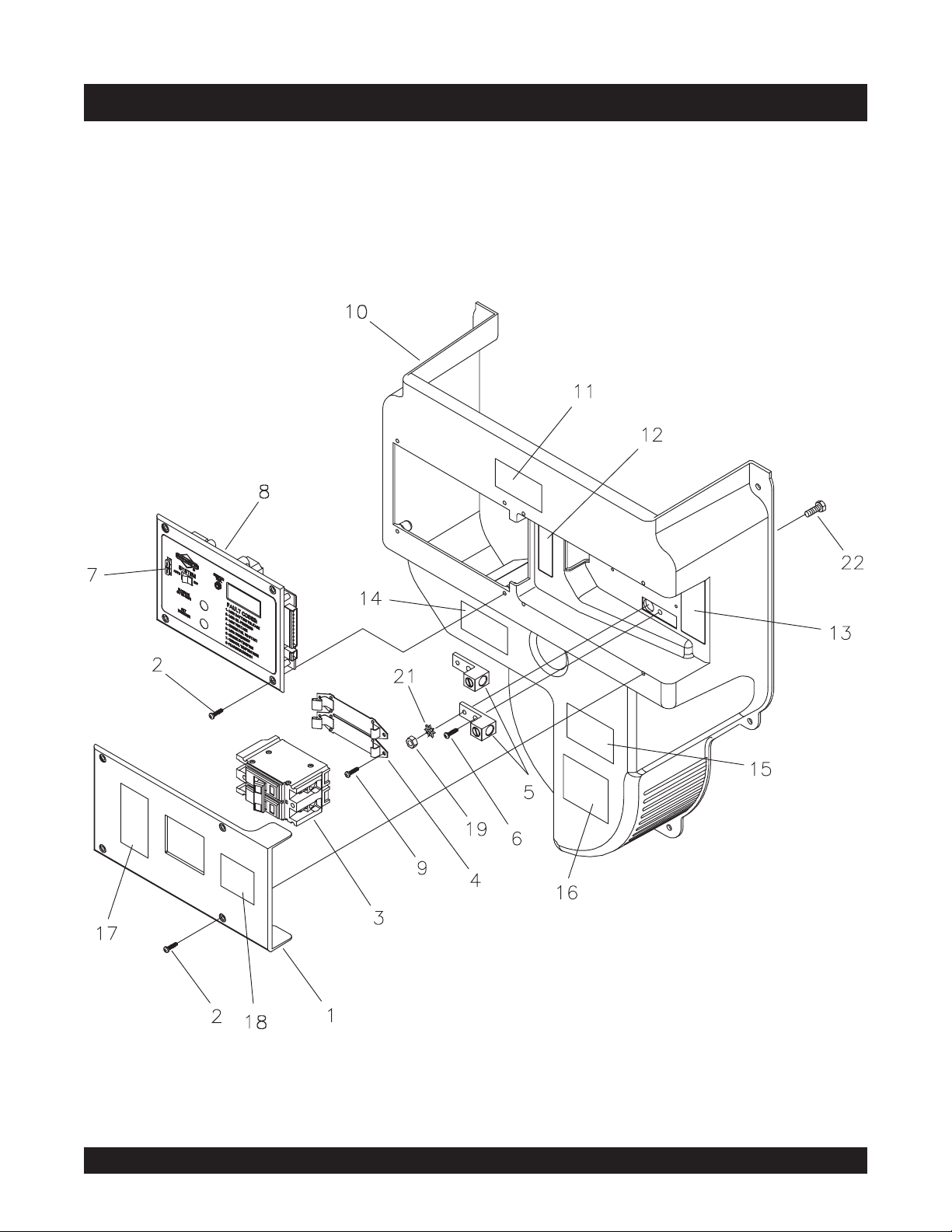

CONTROL PANEL EXPLODED VIEW
Page 9
9
PARTS LIST
9
CONTROL PANEL PARTS LIST
Item Part # Description
1 198911GS ASSY, Cover, Circuit Breaker w/ Decals
2 * SCREW, 10 x 0.62, Plastite
3 202593GS BREAKER, Circuit 100A, 2P
4 192770GS BRACKET, Mounting Breaker
5 199011GS LUG, Ground Connect
6 191991GS BOLT, 1/4-10 x 1, Plastite
7 198573GS FUSE, Auto Type 15 Amp
8 196655GS ASSEMBLY, Control Panel
9 197492GS SCREW, PT, M4 - 1.79 x 16.0
10 198910GS ASSY, Duct, Engine Air w/ Decals
11 B5082AGS DECAL, Danger High Voltage
12 198549GS DECAL, Terminal Block
13 198550GS DECAL, Ground, Neutral
14 186647GS DECAL, Warning, Outdoor Install
15 193297GS DECAL, Caution, Standby
16 186646GS DECAL, Warning, Auto Start
17 186645GS DECAL, Caution, Electric Shock
18 190992GS DECAL, Warning Shock
19 * NUT, 1/4 - 20
21 * WASHER, Shakeproof, Ext M6 1/4
22 * HHCS, 1/4 - 20 x 3/4
Parts Not Illustrated
202882GS HARNESS, Wire, CTL Board to Eng/Alt
198517GS HARNESS, Wire, E1 & E2 Sensing
203020GS HARNESS, AVR
198515GS CONNECTOR, Terminal, 2 Pin
198516GS CONNECTOR, Terminal, 10 Pin
* - Items without part numbers are common fasteners and are available at your local hardware store.
Page 10
10
EXPLODED VIEW
10

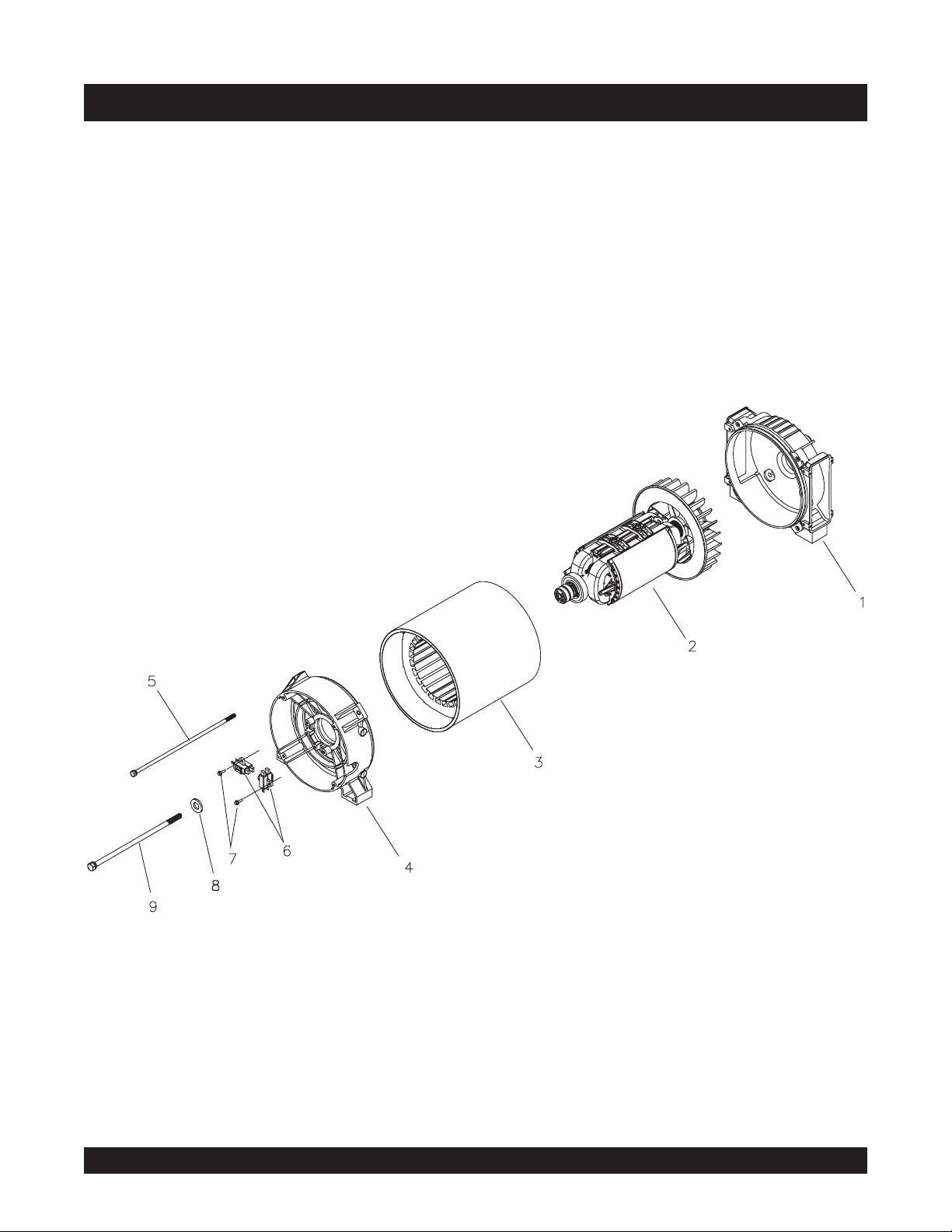

ALTERNATOR EXPLODED VIEW
Page 11
11
Item Part # Description
1 195235GS ADAPTER, Mounting, Alternator
2 199252GS ASSY, Rotor
3 199254GS STATOR
4 195234GS RBC
5 197177GS HEX HEAD, SEM Screw
6 66386GS ASSY, Holder, Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 203200GS WASHER, 3/8" SAE
9 200442GS BOLT, 3/8 - 24 x 15.20"
PARTS LIST
ALTERNATOR PARTS LIST
Page 12
1122
12
SPECIFICATIONS
12
NOTES
SPECIFICATIONS
Generator
Rated Maximum Power (LP*) . . . 20.0 kW
Rated Maximum Load Current:
at 240 Volts . . . . . . . . . . . . . . . 83.3 Amps
at 120 Volts . . . . . . . . . . . . . . . 166.6 Amps
Rated AC Voltage . . . . . . . . . . . . . 120/240 Volts
Rated Frequency . . . . . . . . . . . . . 60 Hz at 3600 rpm
Phase. . . . . . . . . . . . . . . . . . . . . . Single Phase
Power Factor . . . . . . . . . . . . . . . . 1.0
Normal Operating Range. . . . . . -20°F (-28.8°C) to 104°F (40°C)
Output Sound Level. . . . . . . . . . 68 dB(A) at 23 ft. (7 m) at normal load
Shipping Weight . . . . . . . . . . . . 613 lbs.
* Natural gas rating will depend on specific fuel but typical derates are
between 10 to 20% off the LP gas rating.
