5500 Watt Portable Generator
Illustrated Parts List
030424 Manual No. 206494A Revision - (02/19/2008)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Page 2
Exploded Views and Parts Lists
EXPLODED VIEW - MAIN UNIT
Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
2 BRIGGSandSTRATTON.COM
Page 3
Exploded Views and Parts Lists
Item Part # Description
1 206767GS KIT, Cradle (Includes #20 & 31)
2 194150GS KIT, Vibration, Mount, 45°
3 67989GS NUT, M8 Flange Serrated
4 190220GS HOUSING, Engine Adapter
5 NSP ASSY, Alternator (see page 5)
6 * NUT, Hex M8 - 1.25
7 195398GS TPHMS, M8 - 1.25 x 35
8 96796GS WASHER, 8.4 x 22.2 x 3
9 * WASHER, Lock 5/16 - M8
10 * SBHCS, 3/8-16 x 1.0 Lg.
11 187365FGS HHCS, 5/16-24 x 7.44
12 * HHCS, M8 - 1.25 x 25
13 198165GS KIT, Handle
14 189009GS BRACKET, Muffler
15 695398 GASKET, Exhaust
16 * HHCS, M6 - 1.0 x 12 w/LW
17 189008GS MUFFLER
18 * SCREW, 5/16 - 18 x 7/8"
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground, Green
21 194153GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
23 B2153GS SCREW, 12 - 14 x 7/8, Self Drill
24 197424GS SHIELD, Heat
25 191190GS CAP
26 74908GS SCREW, M5-0.8 x 10, Taptite
31 196830GS DECAL, Exhaust Warning
34 195422GS COVER, RBC with Cap
35 791745 KIT, Fuel Hose (cut to fit)
37 56893GS CRIMPTITE, 10-24 x 1/2
Item Part # Description
40 199433GS KIT, Fuel Tank Hardware w/U-Clips
199284GS U-CLIPS, (Optional Accessory)
41 192980GS KIT, Valve, Fuel Tank
44 193668GS ASSY, Tank, Fuel, 5 Gallon Service
(Includes #’s 41, 50, 51, 52, 53 &
55)
45 B4363GS CAP, Fuel Gauge
48 195373GS WIRE, Ground
50 188333GS DECAL, Gas Fill
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
55 197798GS DECAL, Shut-Off, Fuel
58 201575GS ASSY, Control Panel
59 * NUT, Palnut, 3/16"
900 § ENGINE
Parts Not Illustrated
206494GS MANUAL, Operator’s
204088GS BOTTLE, Oil
206766GS KIT, Decals, Service
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
PARTS LIST - MAIN UNIT
3
Page 4
Exploded Views and Parts Lists

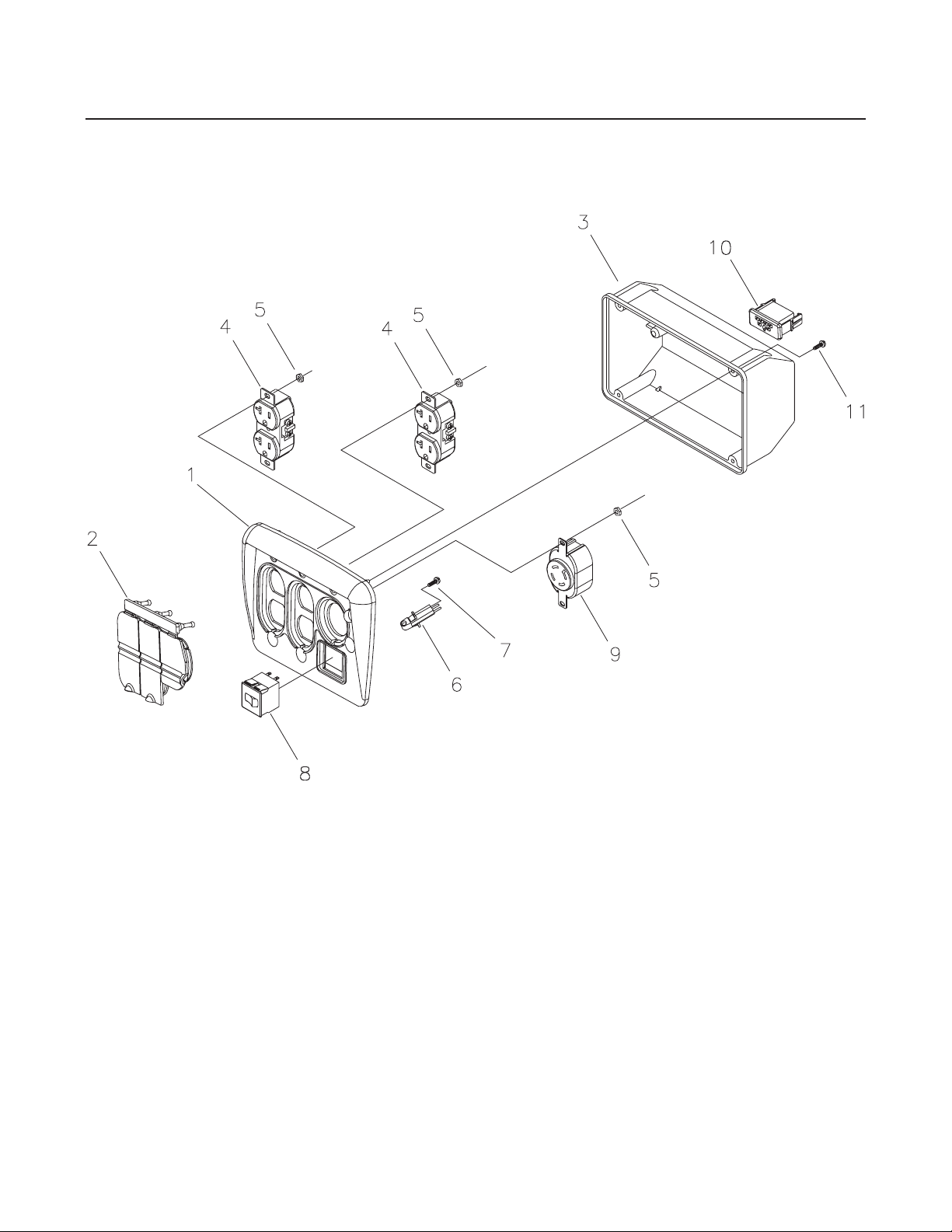

CONTROL PANEL EXPLODED VIEW & PARTS LIST
Item Part # Description
1 201571GS PANEL, Control
2 197472GS COVER, Outlet Flip
3 201572GS COVER, Back Panel
4 197731GS OUTLET, 120V, 15/20A Duplex
5 189164GS NUT, 3/16 Pal
6 202951GS MODULE, Led
7 * SCREW, 3 x 6, Tapping
8 202030GS BREAKER, Circuit, 20A
191481GS BOOT, Breaker Circuit (not shown)
9 43437GS OUTLET, 120/240V, 30A
10 201678GS HOUSING, Receptacle, 6 Pin
11 * PPPHS, M3 - 0.5 x 12
* - Items without part numbers are common fasteners and are
available at your local hardware store.
4 BRIGGSandSTRATTON.COM
Page 5
Exploded Views and Parts Lists
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 190032GS ASSY., Rotor (Includes Item 8)
3 206562GS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308HGS HHCS, M6 - 1.0 x 140 SEMS
6 91825GS ASSY., Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 65791GS BEARING
9 81917GS PIN, Roll, 4mm x 10

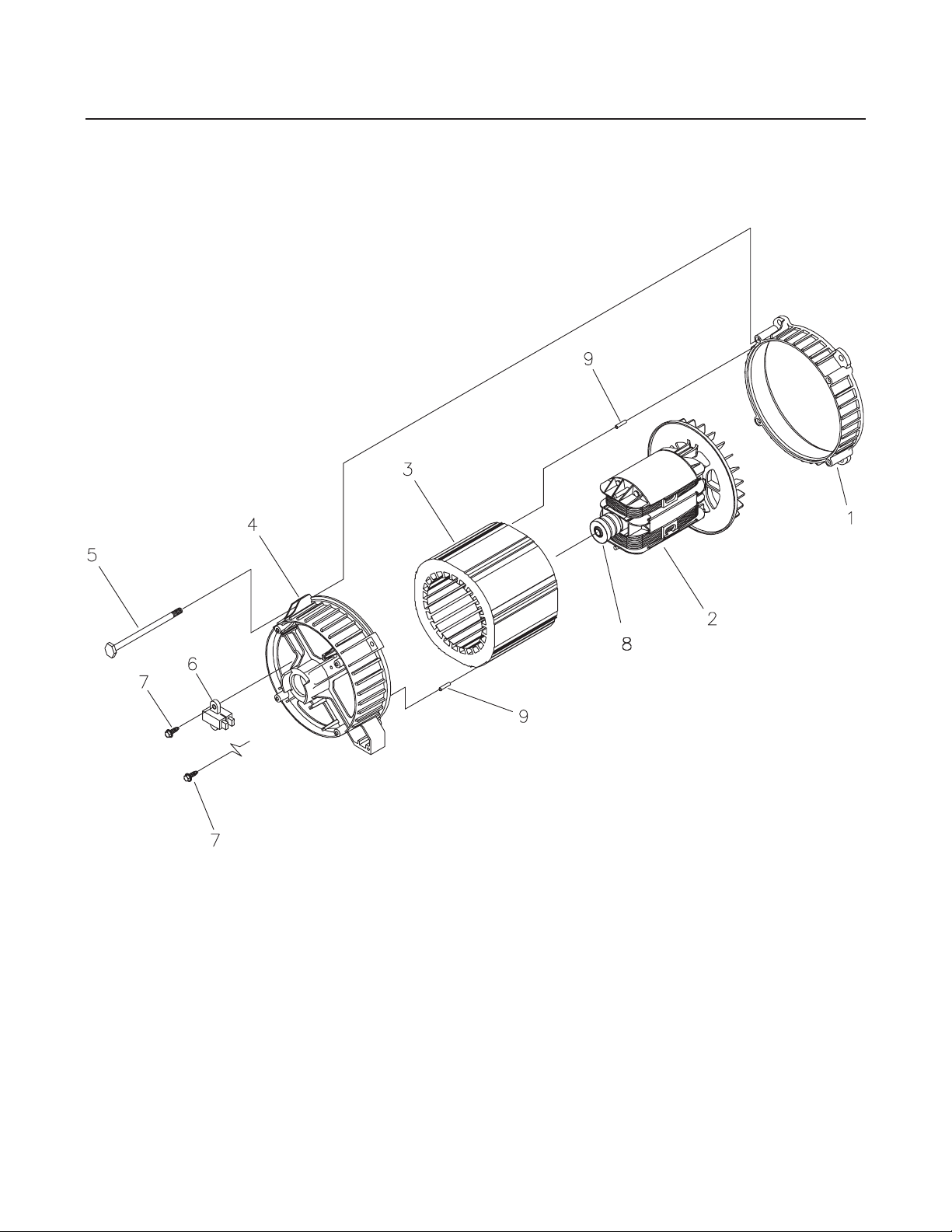

ALTERNATOR EXPLODED VIEW & PARTS LIST
5
Page 6
Exploded Views and Parts Lists

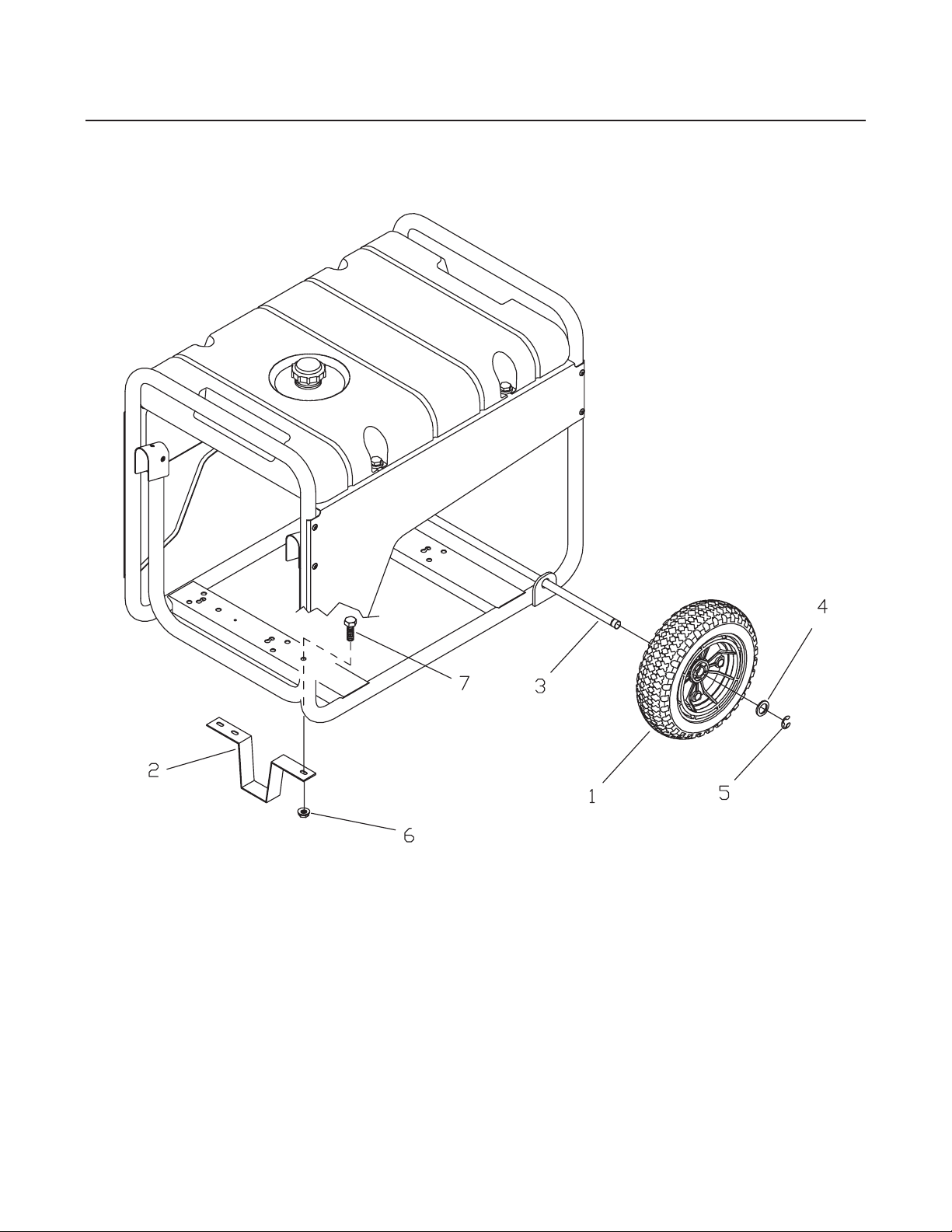

WHEEL KIT EXPLODED VIEW & PARTS LIST
Item Part # Description
1 196517GS WHEEL
2 B1764GS SUPPORT, Wheel Kit
3 191267HGS AXLE
4 * WASHER, 5/8"
5 191265GS E-RING
6 67989GS NUT, M8 - Flange Serrated
7 * HHCS, M8 - 1.25 x 16
Items Not Illustrated
197594GS SUBKIT, Hardware
* - Items without part numbers are common fasteners and are
available at your local hardware store.
6 BRIGGSandSTRATTON.COM
