Page 1
030384
(10000W)
Illustrated Parts List
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Manual No. 200079A Revision - (12/19/2007)
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Generator Helpline
Llame: Línea Directa del Generador
1-800-743-4115 M-F 8-5 CT
BRIGGSandSTRATTON.COM
Page 2
10000W Portable Generator
2
EXPLODED VIEW - MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
10000W Portable Generator
3
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 M200968GS KIT, Cradle (Includes Items 20, 31 & 55)
2 38353GS MOUNT, Vibration
3 56893GS CRIMPTITE, 10-24 x 1/2
4 190220GS ADAPTER, Engine
5 NSP ASSY., Alternator (see page 5)
6 * NUT, Hex, M8 - 1.25
7 62265GS GROMMET
8 96796GS WASHER, 8.4 x 22.2 x 3
9 194208GS KIT, Alt to Heat Shield Hardware
10 190274BGS SBHCS, 3/8-16 x 1"
11 187365DGS HHCS 5/16-24 x 10.28
12 189302SGS ASM WIRE, #16, Red
13 * HHCS, M8 - 1.25 x 16
14 * WASHER, Shakeproof, Ext. 5/16
15 * WASHER, Shakeproof, Ext. M6
16 M77304GS SUPPORT, Engine
17 75246GS TAPTITE, 3/8 - 16 x 1-1/4
18 195404GS ASSY, Stepper Motor
19 J93074GS SUPPORT, Heatshield
20 B4986GS DECAL, Ground
21 194155GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
23 86292GS SCREW, 10 - 16 x 3/4, Self Drill
24 194951GS ASSY., Heat Shield
25 191190GS CAP
26 74908GS TAPTITE, M5 - 0.8 x 10
27 * HHCS, M8 - 1.25 x 20
28 * WASHER, 5/16 M8 Lock
29 * HHCS, M8-1.25 x 25
30 194543GS KIT, Throttle Linkage Hardware
31 200310GS DECAL, Exhaust Warning
32 * NUT, 1/4 - 20
33 * WASHER, 1/4 Lock
34 195422GS COVER, RBC Plastic w/ Cap
35 791745 KIT, Hose, Fuel
36 201348GS ASSY, Jack Coaxial
37 B2153GS SCREW, Self Driller, 12-14 x 7/8
38 192376GS SCREW, 12 - 24 x 1/2 Thread Forming
39 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2
40 198221GS KIT, Fuel Tank Hardware (Includes Qty 4)
41 193272GS VALVE, Fuel
42 192351GS LUG, 1/4
43 691656 SOLENOID
44 202954GS ASSY., Tank Fuel (Includes Items 41, 50,
51, 52, 56 & 65)
45 189135GS CAP, Tank Fuel
46 B4135GS PIN, Handle Release
47 77395GS LOCKNUT, M6
48 195373GS WIRE, Ground
49 95920GS LINKAGE, Stepper Motor to Bell Crank
50 188333GS DECAL, Instruction, Fuel
51 194984GS DECAL, Warning
52 94480GS DECAL, Operating Instructions
Item Part # Description
53 194034GS KIT, Folddown Handle Hardware
54 95349GS PLATE, Adjust
55 197797GS DECAL, Fuel Shutoff
56 202997GS DECAL, Warning, CO
57 189759GS KIT, Fuel Valve Repair
58 200326GS ASSY. Control Panel
59 * WASHER, Ext #10, Shakeproof
60 193512GS SUPPORT, Tray Battery
61 95348GS BRACKET, Bell Crank
62 95921GS LINKAGE, Bell Crank to Throttle
63 96717GS SPRING
64 198871HGS ASM WIRE, #13, Red
65 192724GS GAUGE, Gas
66 87799GS SWITCH, Rocker
67 90388GS SCREW, M6-1 x 12, Taptite
68 195680GS TRAY, Battery
69 193043GS BATTERY
70 * HHCS, M6 -1.0 x 12
71 * HHCS, 3/8 - 16 x 3/4
72 * WASHER, 3/8, Lock
73 * NUT, 3/8 - 16
74 193347GS KIT, Hardware Battery
75 280623 TUBING, Fuel line
76 185939TGS ASM WIRE, #55 Black
78 189302RGS ASM WIRE, #13 Red
85 B193200GS ASSY,. Fold Down Handle
86 198669GS GRIP, Handle
900 § ENGINE
Parts Not Illustrated
200079GS MANUAL, Operator’s
BB3061GS BOTTLE, Oil
BB3061BGS BOTTLE, Oil
B4177GS CHARGER, Battery
B4767GS COVER, Storage
202179GS DECAL, Family, CA EVP
202950GS KIT, Decal Service
43438GS PLUG, 120/240V, 30A 4P
100523GS PLUG, 125V, 30A 3P
93568GS PLUG, 125V, 20A
65787GS CABLE, Battery Charge
690661 SCREW, Tapping Hex
392390 ARRESTER, Spark
692099 ASSY., Muffler
691513 BRACKET, Muffler
692056 SCREW
690898 CLAMP, Muffler
692539 SCREW
* - Items without part numbers are common fasteners and are
available at your local hardware store.
§ - Contact Engine Manufacturer
Page 4
10000W Portable Generator
4

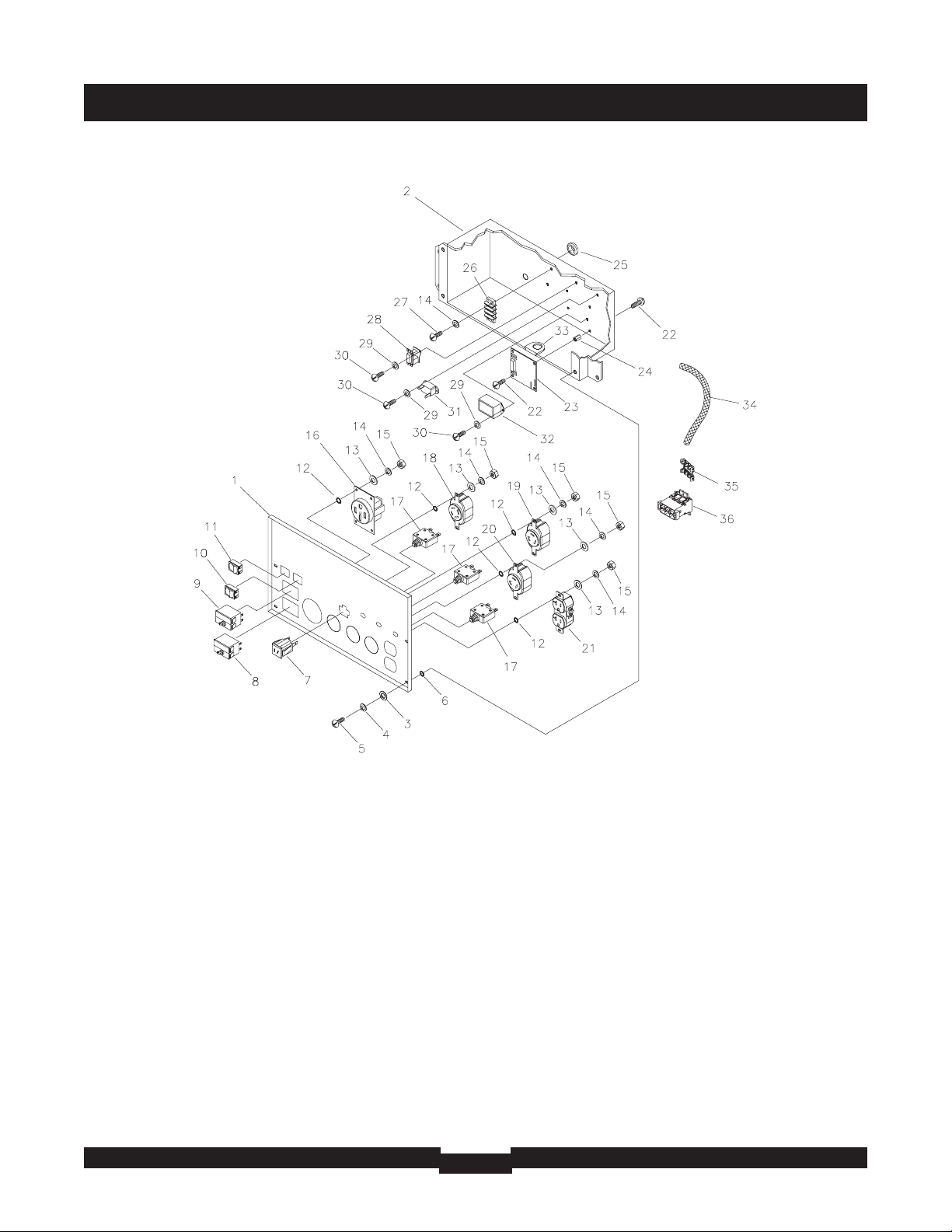

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 M199022GS PANEL, Control
2 201864GS BOX, Control Panel
3 * WASHER, Flat, #10 - M5
4 * LOCKWASHER, M5
5 * PPHMS, M5 - 0.8 x 12
6 * WASHER, M6 - 1/4, Int. Shakeproof
7 90418GS OUTLET, 12V DC Snap
8 191480BGS BREAKER, Circuit, 40A, 2P
9 191480AGS BREAKER, Circuit, 30A, 2P
10 82538GS SWITCH, Rocker
11 78653GS SWITCH, Eng, Run-Stop
12 * WASHER, Shakeproof, Int. #8
13 * WASHER, Flat, M4
14 * LOCKWASHER, M4
15 * NUT, M4 - 0.7
16 B4262GS RECEPTICLE
17 75207GS BREAKER, Circuit, 20A W/hardware
18 43437GS OUTLET, 120/240V, 30A
19 68868GS OUTLET, 120V, 30A
20 74190GS OUTLET, 120V, 20A
Item Part # Description
21 68759GS OUTLET, 120V, 20A, Duplex
22 * PHTS, 6 - 32 x 3/8"
23 195406GS ASSY, PCB, Control, Stepper Motor
24 64525GS STANDOFF, Hex, 3/4"
25 62265GS GROMMET
26 92953GS TERMINAL, Block
27 * PPHMS, M4 - 0.7 x 20
28 84028GS TRANSFORMER, Idle Control
29 * LOCKWASHER, M3
30 * PHMS, M3 - 0.5 x 10
31 87962GS BREAKER, Circuit, 10A, 12V
32 77314GS THERMAL, Relay
33 188632GS BOOT, Rubber Wire Outlet
34 194273GS TUBING
35 199532GS STRIP, Dual Row, TPA, 6 Circuit
36 199528GS PLUG, Dual Row, Housing, 6 Circuit
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Page 5
10000W Portable Generator
5

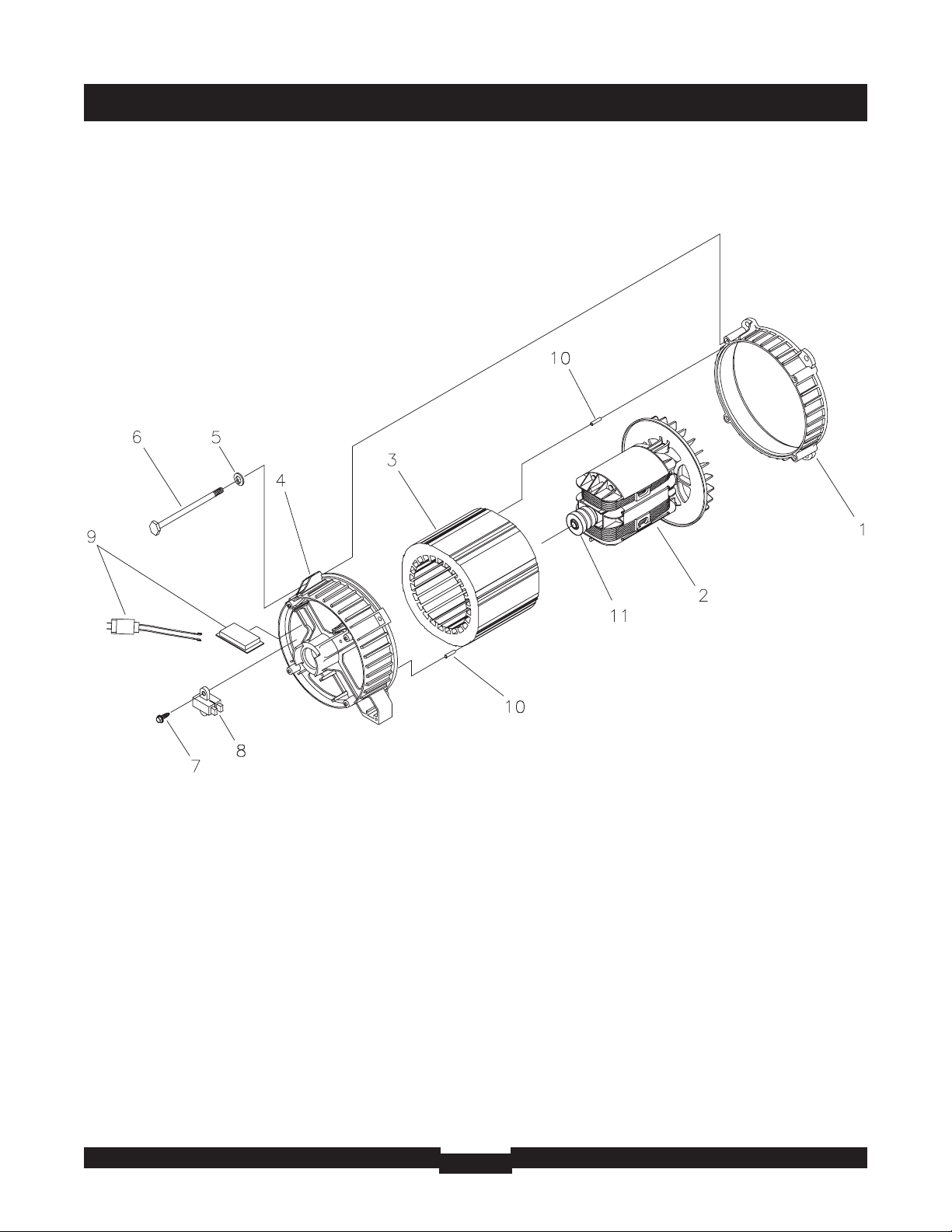

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 191952GS ASSY, Rotor (Includes Item 11)
3 191953GS STATOR
4 193336GS RBC, (with O-Ring p/n 189197GS)
5 * WASHER, 1/4-M6 Lock
6 66449KGS BOLT, M6 - 1.0 x 200
7 66849GS TAPTITE, M5 - 0.8 x 16
8 66386GS ASSY, Holder, Brush
9 202165GS KIT, AVR & Boost
10 81917GS PIN, Roll, 4mm x 10
11 65791GS BEARING
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Page 6
10000W Portable Generator
6

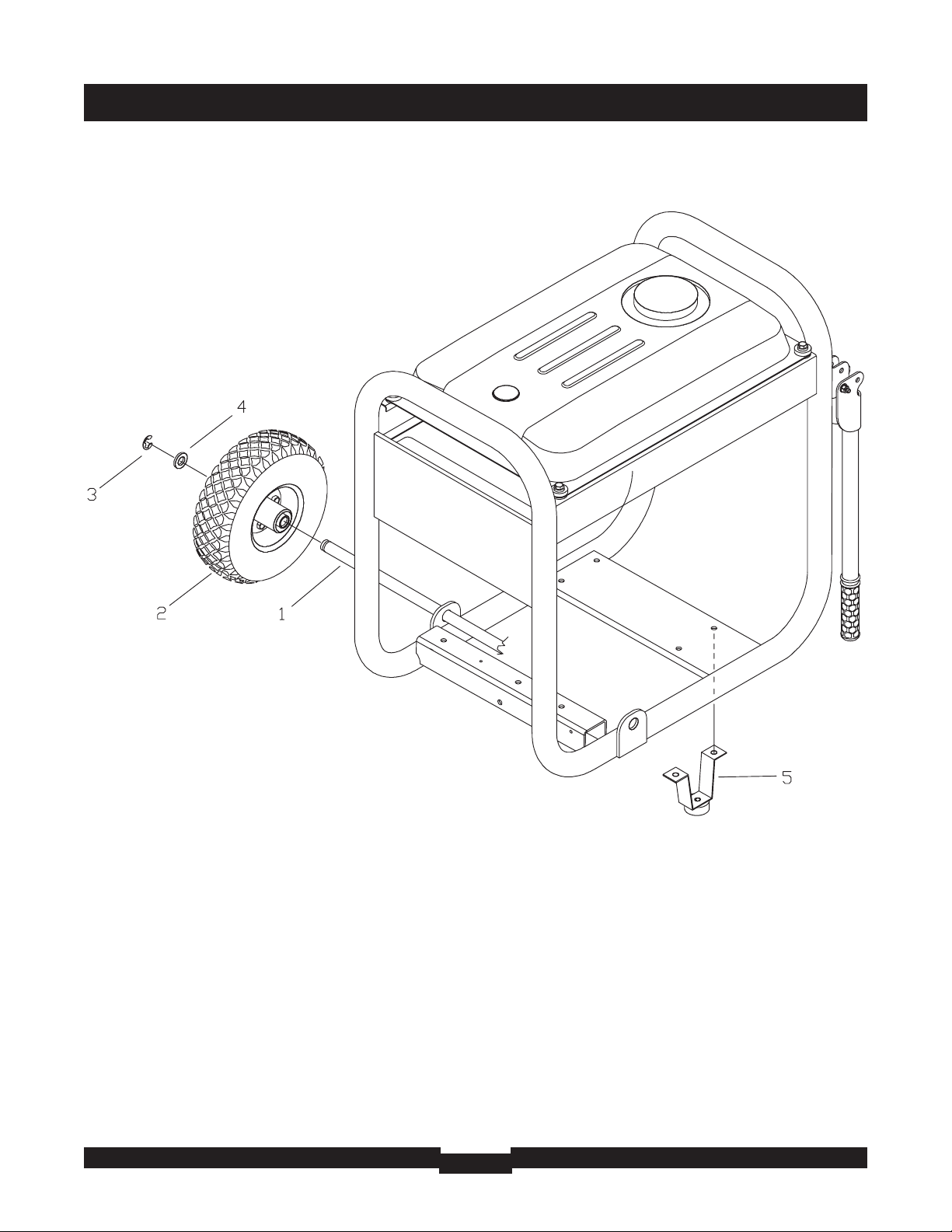

EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part # Description
1 191267JGS AXLE, 5/8" x 25.59"
2 B4966GS WHEEL
3 191265GS E-RING, 5/8
4 * WASHER, 5/8
5 200914GS ASSY, Leg, Support w/Vib Mount
Parts Not Illustrated
200913GS KIT, Hardware, Wheel
* - Items without part numbers are common fasteners and are
available at your local hardware store.
