5000 Watt Portable Generator
Illustrated Parts List
030380 Manual No. 206590A Revision - (03/11/2008)
This generator is rated and certified to be compliant with CSA (Canadian Standards
Association) standard C22.2 No. 100-04 (motors and generators).
Page 2
EXPLODED VIEW - MAIN UNIT
Exploded Views and Parts Lists
Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
2 BRIGGSandSTRATTON.COM
Page 3
Item Part # Description
1 206822GS ASSY, Cradle (Includes #’s 20, 31 &
53)
2 194150GS KIT, Vibration, Mount, 45°
3 67989GS NUT, M8 Flange Serrated
4 190220GS HOUSING, Engine Adapter
5 NSP ASSY, Alt (see page 4)
6 * NUT, Hex M8 - 1.25
7 * TPHMS, M8 - 1.25 x 35
8 96796GS WASHER, 8.4 x 22.2 x 3
9 198611GS PPHS, 1/4-20 x .05 Trilobular
10 190274BGS SBHCS, 3/8 - 16 x 1
11 47480GS HHCS, 5/16-24 x 7
12 * HHCS, M8 - 1.25 x 25
13 198763GS KIT, Handle
14 189009GS BRACKET, Muffler
15 695398 GASKET, Exhaust
16 * HHCS, M6 - 1.0 x 12 w/LW
17 189008GS MUFFLER
18 * SHCS, M8 - 1.25 x 20
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground, Green
21 194153GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
23 B2153GS SCREW, 12 - 14 x 7/8, Self Drill
24 197424GS SHIELD, Heat
25 191190GS CAP
26 74908GS SCREW, M5-0.8 x 10, Taptite
27 199228GS INSULATION
28 198700GS KIT, Battery Tray w/Insulation
29 199156GS INSULATION
30 199157GS INSULATION
31 200310GS DECAL, Exhaust Warning
32 * WASHER, Lock 5/16 - M8
33 187117GS STUD, Double
34 195422GS COVER, RBC, Plastic with Cap
35 791745 KIT, Fuel Hose, w/Clamps
36 * WASHER, Lock, 1/4
37 56893GS CRIMPTITE, 10-24 x 1/2
38 * NUT, 1/4-20
39 * WASHER, Shakeproof, Ext. M6 1/4
Item Part # Description
40 199433GS KIT, Fuel Tank Hardware w/U-Clips
199284GS U-CLIPS, (Optional Accessory)
41 192980GS KIT, Valve, Fuel Tank
42 * WASHER, M6 Lock
43 691656 SOLENOID
44 200814GS ASSY., Tank, Fuel (Includes items
41, 50, 51, 52, 54 & 55)
45 B4363GS CAP, Fuel Gauge
47 * NUT, Hex, M6 - 1.0
48 195373GS WIRE, Ground
49 185931KGS WIRE
50 188333GS DECAL, Gas Fill
51 194984GS DECAL, Danger
52 94480GS DECAL, Start Instructions
53 200311GS DECAL, Neutral Bonded
54 202997GS DECAL, CO Warning
55 197798GS DECAL, Shut-Off, Fuel
58 201575GS ASSY, Control Panel
59 * NUT, Palnut, 3/16"
60 198871EGS WIRE
68 199150GS KIT, Battery Cover w/Insulation
69 198711GS BATTERY
70 87799GS SWITCH, Rocker
71 198925GS ASSY, Jack Coaxial
72 198871LGS WIRE
73 198871KGS WIRE
76 185931LGS WIRE, Battery Negative
78 185931JGS WIRE, Battery Positive
900 § ENGINE
Parts Not Illustrated
206590GS MANUAL, Operator’s
B4177GS CHARGER, Battery
BB3061BGS OIL BOTTLE
206818GS KIT, Decals, Service
§ - Contact Engine Manufacturer
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Exploded Views and Parts Lists
PARTS LIST - MAIN UNIT
3
Page 4
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 204105GS ASSY., Rotor (Includes Item 8)
3 203936GS STATOR
4 186060GS RBC, with O-Ring (p/n 189197)
5 86308CGS HHCS, M6 - 1.0 x 130 SEMS
6 91825GS ASSY, Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 65791GS BEARING
9 91551GS PIN, Groove
4 BRIGGSandSTRATTON.COM

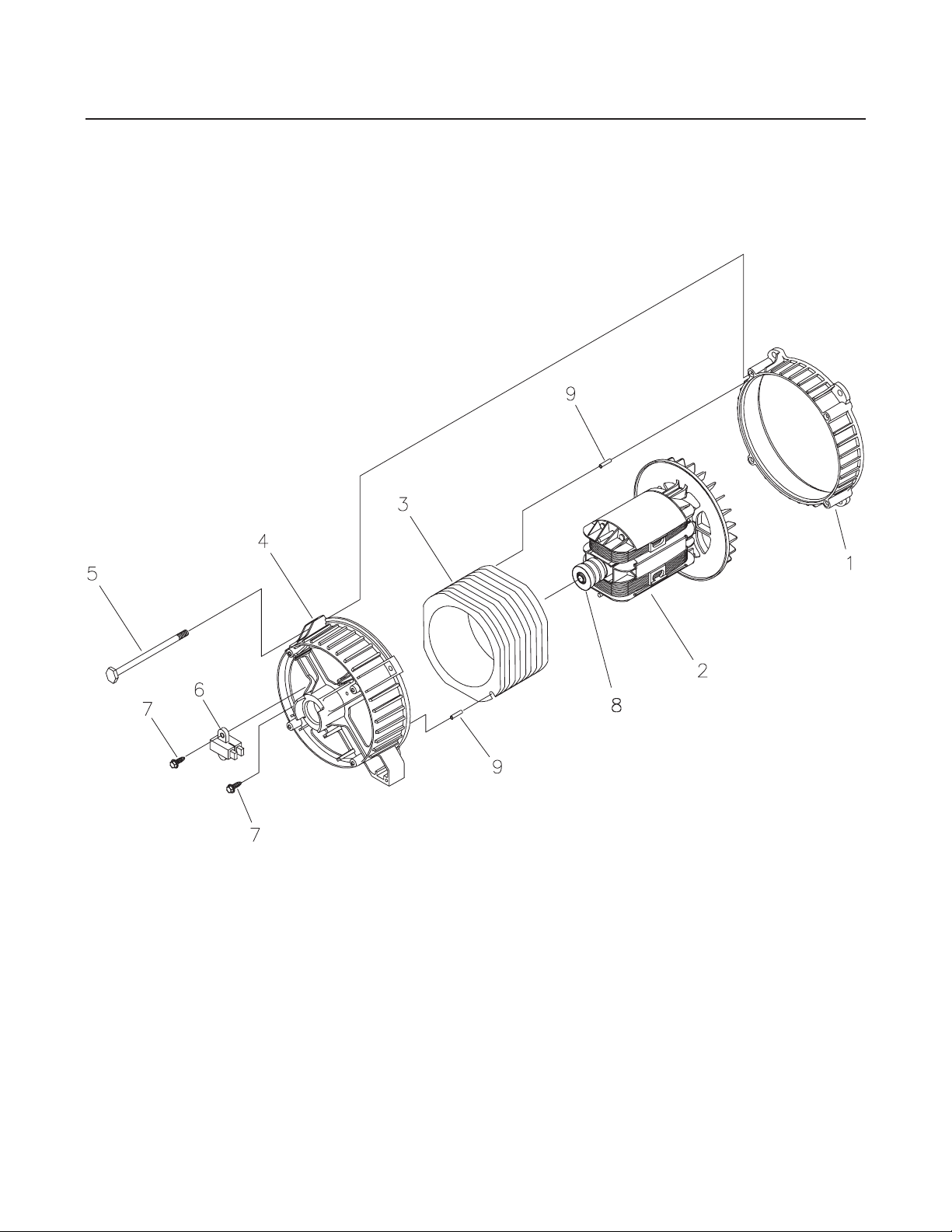

ALTERNATOR EXPLODED VIEW & PARTS LIST
Exploded Views and Parts Lists
Page 5

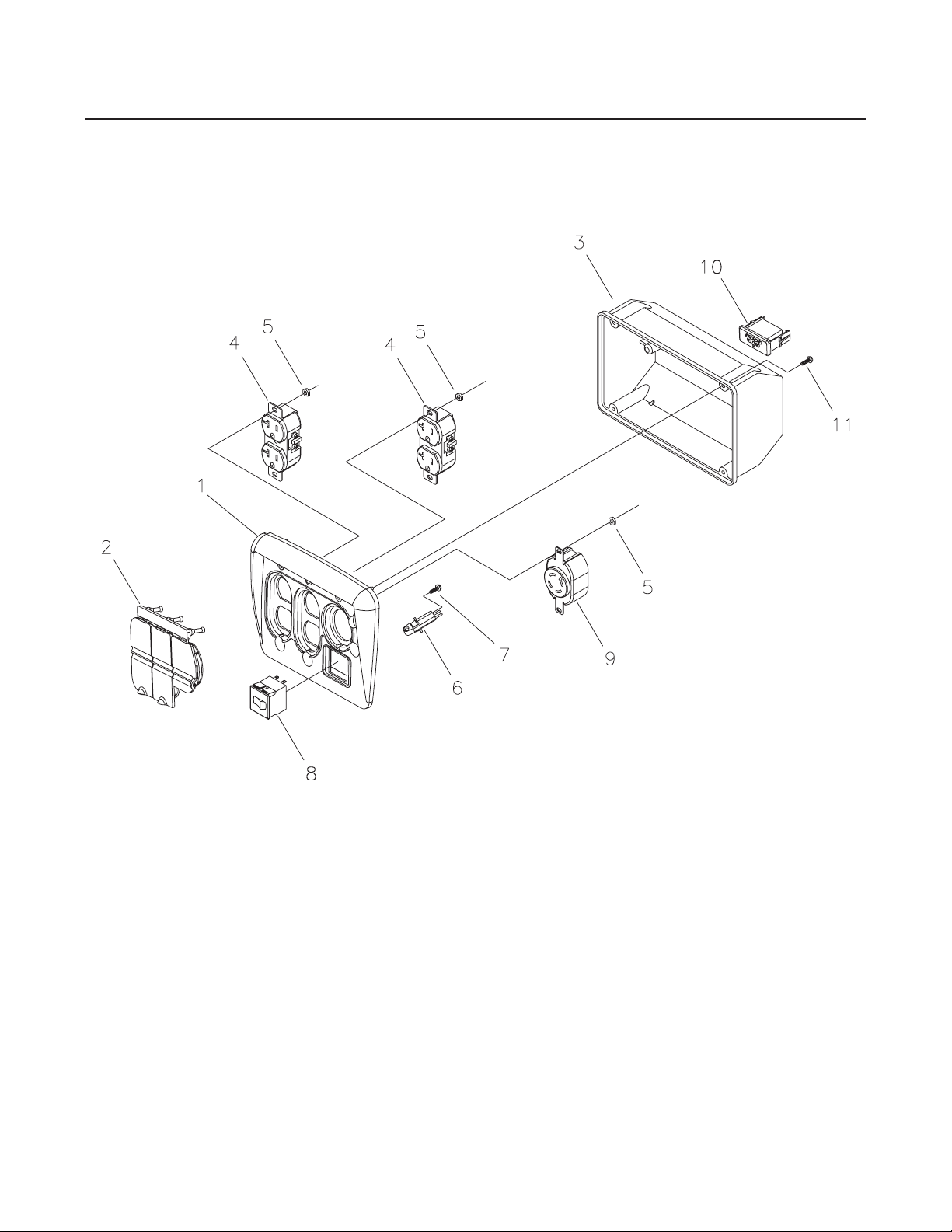

CONTROL PANEL EXPLODED VIEW & PARTS LIST
Item Part # Description
1 201571GS PANEL, Control
2 197472GS COVER, Outlet Flip
3 201572GS COVER, Back Panel
4 197731GS OUTLET, 120V, 15/20A Duplex
5 189164GS NUT, 3/16 Pal
6 202951GS MODULE, Led
7 * SCREW, 3 x 6, Tapping
8 202030GS BREAKER, Circuit, 20A
191481GS BOOT, Breaker Circuit (not shown)
9 43437GS OUTLET, 120/240V, 30A
10 201678GS HOUSING, Receptacle, 6 Pin
11 * PPPHS, M3 - 0.5 x 12
* - Items without part numbers are common fasteners and are
available at your local hardware store.
Exploded Views and Parts Lists
5
Page 6
Item Part # Description
1 196517GS WHEEL
2 B1764GS SUPPORT, Wheel Kit
3 191267HGS AXLE
4 * WASHER, 5/8"
5 191265GS E-RING
6 67989GS NUT, M8 - Flange Serrated
7 * HHCS, M8 - 1.25 x 16
Parts Not Illustrated
197594GS SUBKIT, Hardware
* - Items without part numbers are common fasteners and are
available at your local hardware store.

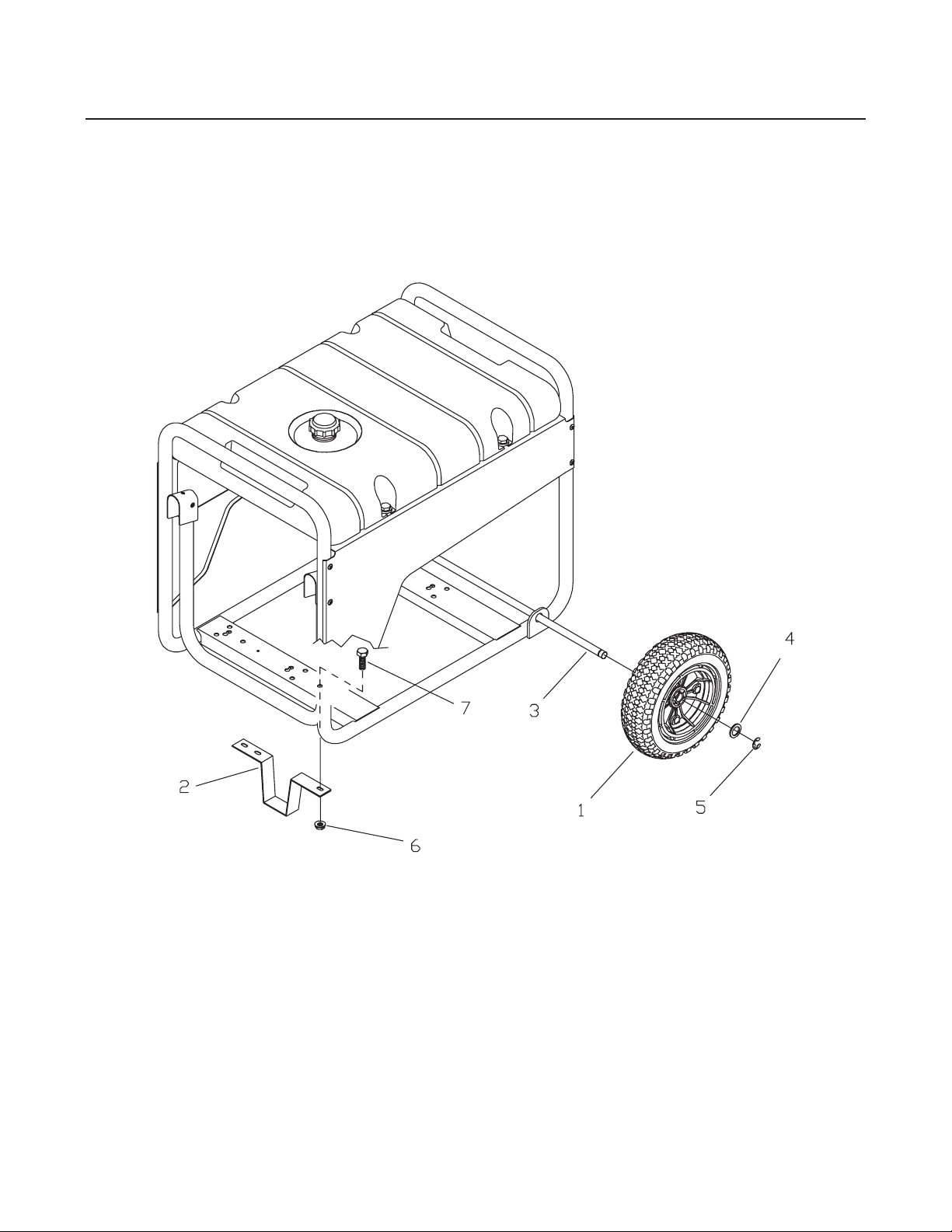

WHEEL KIT EXPLODED VIEW & PARTS LIST
Exploded Views and Parts Lists
6 BRIGGSandSTRATTON.COM
