Page 1
Manual No. 199910A Rev. B (06/22/2006)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
PowerBOSS™ is a trademark of Briggs & Stratton Power Products.
PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.
Model / Modelo
030220
(7000W)
Illustrated Parts List
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Generator Helpline / Llamada: Generador Helpline
1-800-743-4115 M-F 8-5 CT
Page 2
2
PowerBOSS™ 7000W Portable Generator EXPLODED VIEW

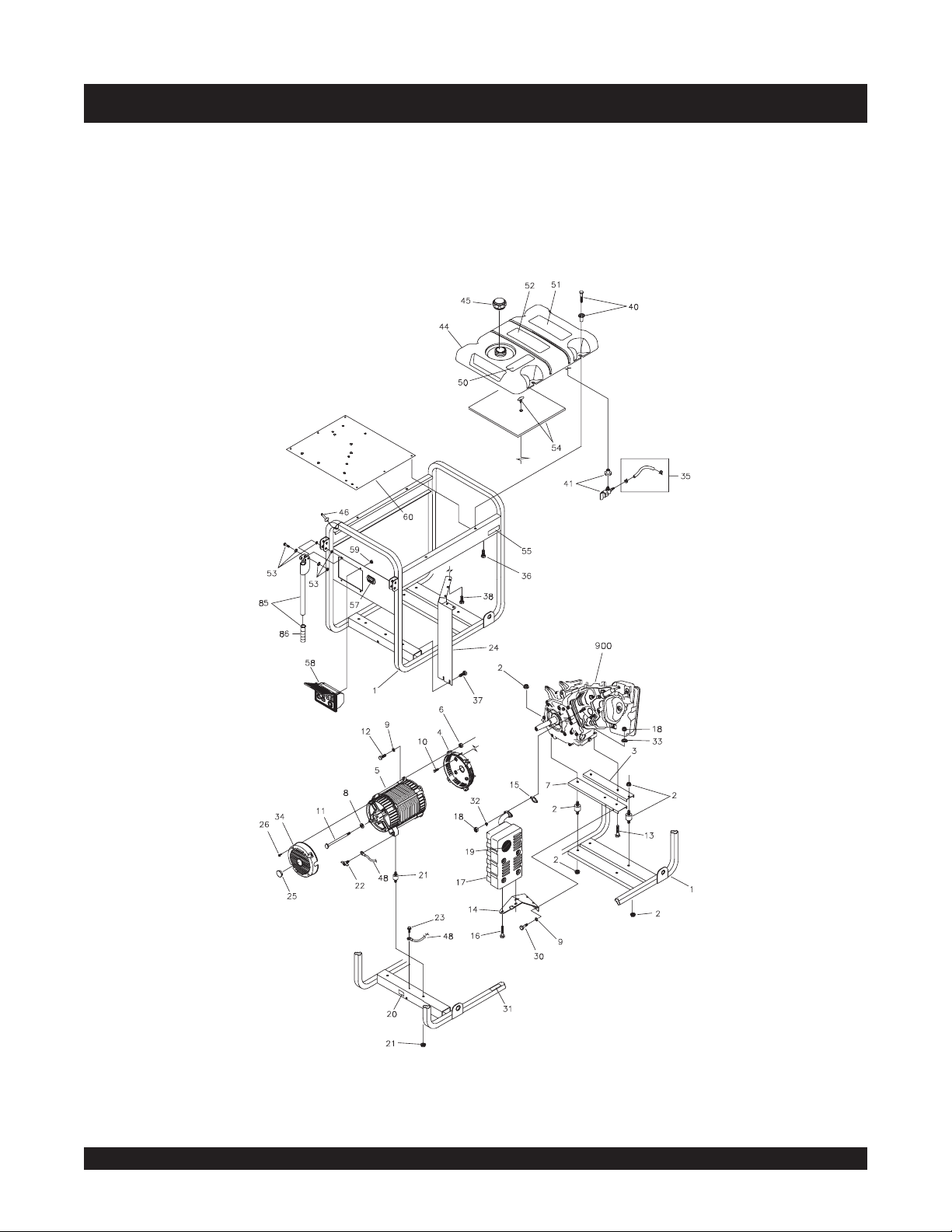

EXPLODED VIEW - MAIN UNIT
Copyright © 2006 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
3
PARTS LIST 7000W Portable Generator PowerBOSS™
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 B200077GS KIT, Cradle
2 196400GS KIT,Vibration Mount
3 B92531GS BRACKET, Support Engine
4 190220GS ADAPTER, Engine
5 NSP ASSY,Alternator (see page 4)
6 * NUT, Hex M8 1.25
7 B92731GS BRACKET, Support Eng/Muffler
8 96796GS WASHER
9 * WASHER, Lock 5/16 M8
10 190274DGS SBHC, 3/8-16 x 7/8"
11 73068GS HHCS, 5/16 - 24 x 8-7/8
12 * HHCS, M8 - 1.25 x 25
13 * HHCS, M8 - 1.25 x 40
14 193048GS BRACKET, Muffler
15 NSP GASKET, Exhaust
16 * HHCS, M6 - 1.0 x 12
17 192569GS MUFFLER
18 67989GS NUT, M8 Flange Serrated
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground
21 195625GS KIT,Vibration Mount
22 86494GS SCREW,Wing M6 - 1.0 x 16
23 86292GS SCREW, 10 - 16 x 3/4, Self Drill
24 194390GS ASSY, Heat Shield
25 191190GS CAP
26 74908GS TAPTITE, M5 - 0.8 x 10
30 * HHCS, 5/16 - 18 x 3/4
31 196830GS DECAL, Caution Hot Muffler
32 31579GS SPACER
33 * WASHER, .34 x 1 x 10GA
34 195422GS COVER, RBC Plastic with Cap
35 791745 KIT, Hose, Fuel (cut to fit)
36 192376GS SCREW, 12 - 24 x 1/2 Thread
Forming
37 56893GS CRIMPTITE, 10-24 x 1/2
38 B2153GS SCREW, Self Driller, 12-14 x 7/8
40 194398GS KIT, Fuel Tank Hardware (Includes
Qty 4)
Item Part # Description
41 192980GS VALVE, Fuel
44 194217GS ASSY,Tank Fuel (Includes Items 41,
50, 51 & 52)
45 B4363GS CAP,Tank Fuel
46 B4135GS PIN,Handle Release
48 195373GS WIRE, Ground
50 188333GS DECAL, Instruction Fuel Level
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
53 194034GS KIT, Folddown Handle Hardware
54 194448GS KIT, Insulation w/ Clip
55 197798GS DECAL, Fuel Shutoff
57 198245GS METER, Hour
58 200062GS ASSY, Control Panel (see page 5)
59 189164GS PALNUT, 3/16
60 195537GS HEATSHEILD
85 B193200GS ASSY, Fold Down Handle (Includes
Item 86)
86 198669GS GRIP, Handle
900 § ENGINE
Parts Not Illustrated
199910GS MANUAL, Operator’s
199384GS DECAL, Family CA, EVP
194274GS HARNESS,Wire, Power Gen
199119GS HARNESS, Monitor Load
BB3061BGS BOTTLE, Oil
200286GS KIT, Decal Service
Optional Accessories
100031 STABILIZER, Fuel
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
Page 4
4
PowerBOSS™ 7000W Portable Generator EXPLODED VIEW

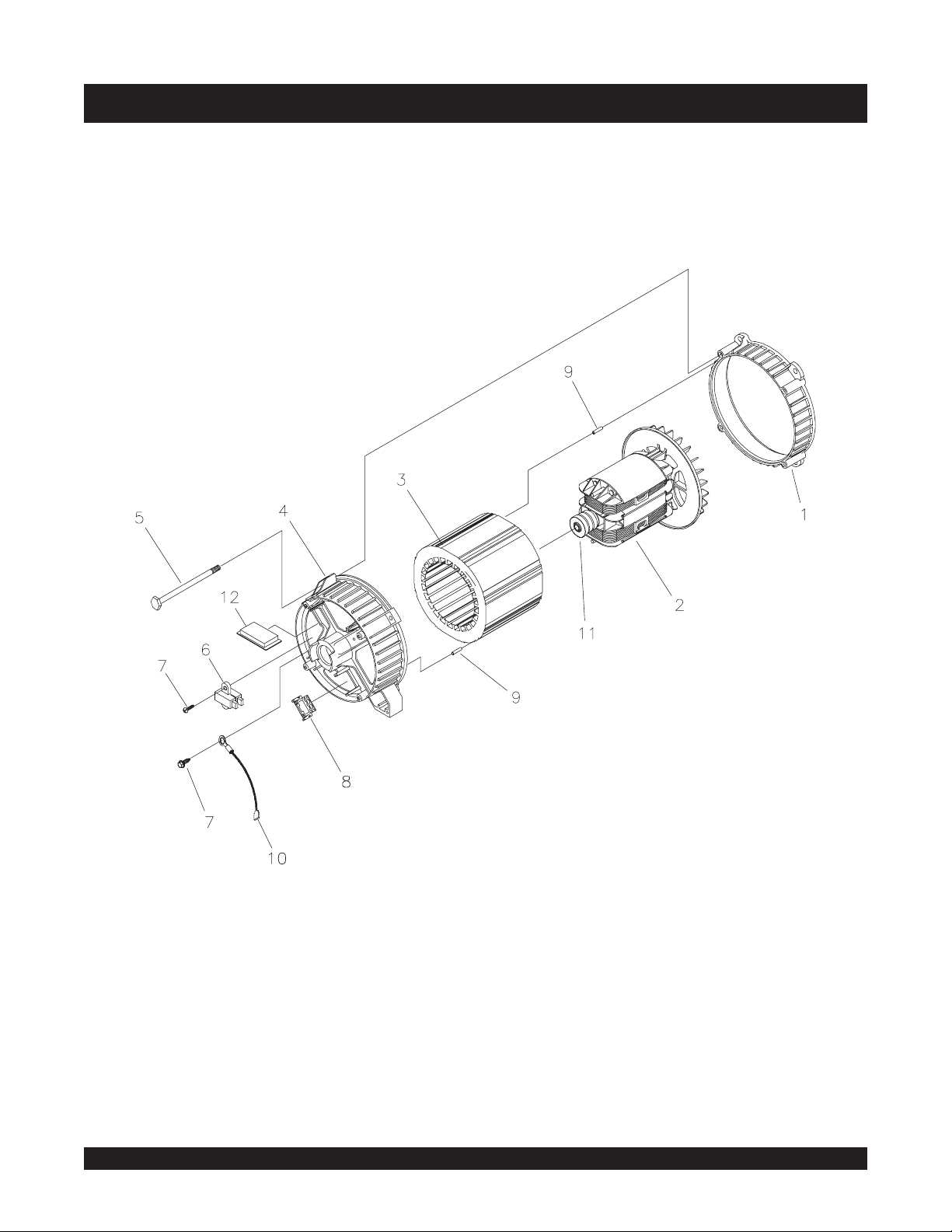

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting,Alternator
2 195616GS ROTOR (Includes Item 11)
3 196706AGS STATOR
4 193336GS RBC, (with O-Ring p/n 189197GS)
5 86308KGS HHCS, M6 - 1.0 x 140 SEMS
6 66386GS ASSY, Holder, Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193428AGS ASSY,Wire, Ground
11 65791GS BEARING
12 189769GS REGULATOR,VLTG,AVR
Page 5
5
PowerBOSS™ 7000W Portable Generator EXPLODED VIEW & PARTS LIST

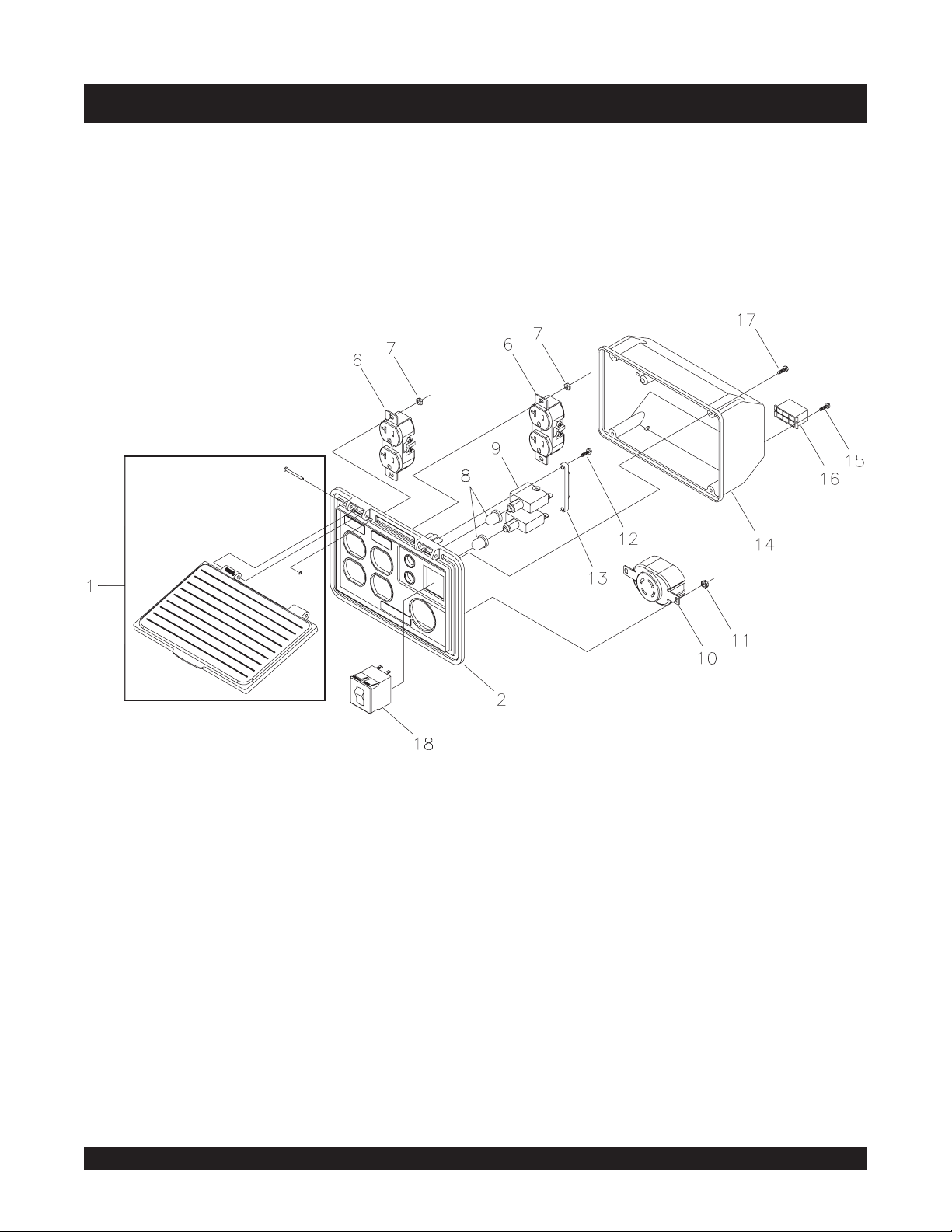

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 195112GS ASSY, Control Lid Panel
2 192273CGS CONTROL PANEL, Compact
6 68759GS OUTLET, 120V, 20A, Duplex
7 * NUT, Palnut, Pushnut, 5/32
8 84198GS CAP, Circuit Breaker
9 75207GS CIRCUIT BREAKER
10 43437GS OUTLET, 120/240V Locking, 30A
11 * NUT, Palnut, Pushnut, 3/16
12 * PPHMS, 3.5 x 18
13 93857GS BAR, Retaining
14 188890GS BOX, Rear Cover
15 82308GS SCREW,Tapping, STC 3 x 18
16 22694GS HOUSING, Receptacle
17 192241GS SCREW,Tapping, 3.5 x 14
18 191479GS BREAKER, 30A
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Page 6

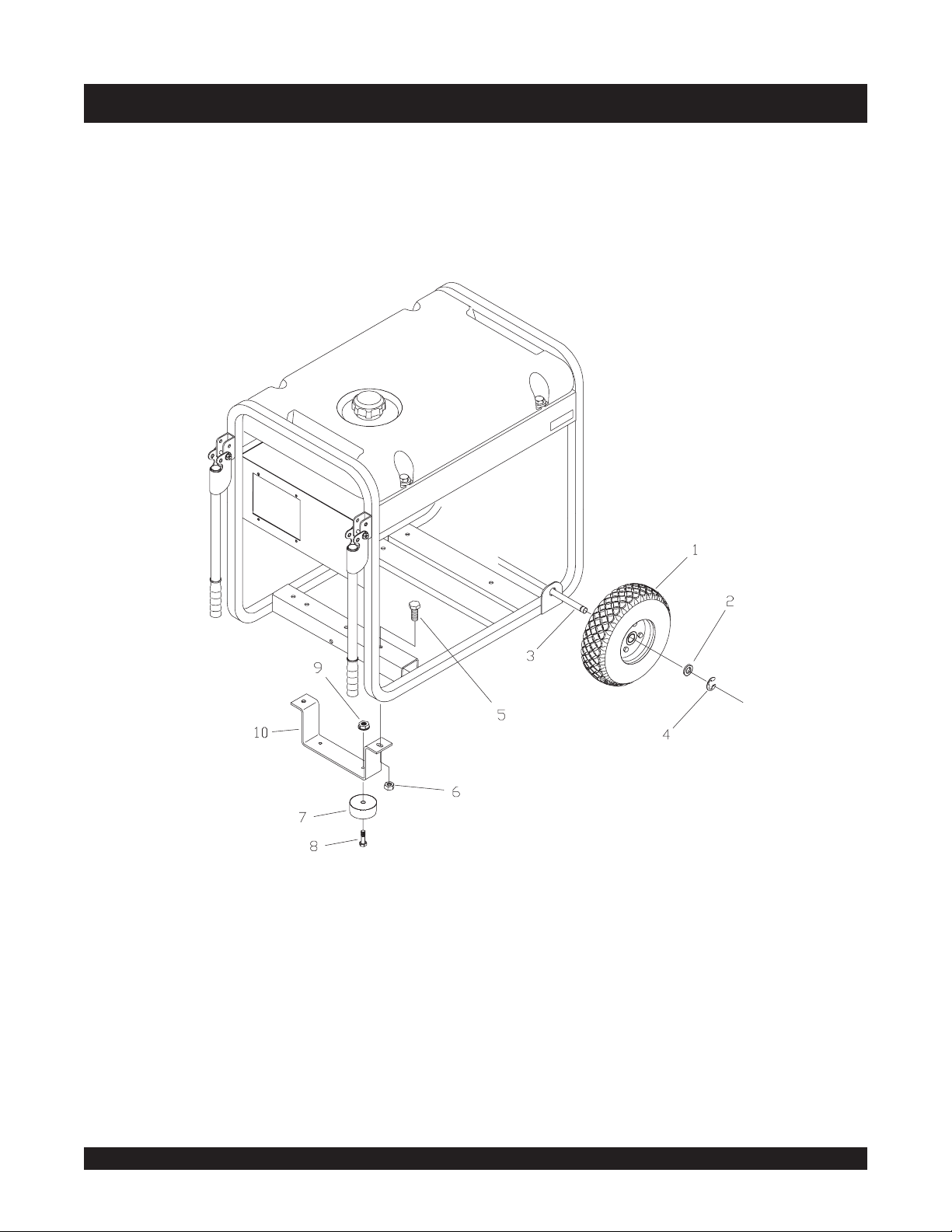

EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part # Description
1 B4966GS WHEEL
2 * WASHER, 5/8"
3 191267RGS AXLE, 5/8"
4 191265GS E-RING
5 * HHCS, M8 1.25 x 20
6 52858GS NUT, M8 - 1.25, Lock
7 87841GS MOUNT,Vibration
8 * HHCS, 1/4 - 20 x 1
9 192432GS NUT, 1/4 - 20 Lock Serrated
10 195686GS ASSY, Support (Includes Item 7)
* - Items without part numbers are common fasteners and
are available at your local hardware store.
PowerBOSS™ 7000W Portable Generator EXPLODED VIEW
6
