Page 1
Illustrated Parts List
Questions?
Help is just a moment away!
Find your Briggs and Stratton
distributor in our distributor
locator map at
www.briggsandstratton.com
or contact your local Briggs and
Stratton dealer for further
information.
Perguntas?
O auxílio está a poucos passos!
Procure o fornecedor de serviços
authrizados mais próximo em nosso
mapa de fornecedores em
www.briggsandstratton.com
ou entre em contato com seu
representante local da Briggs &
Stratton para obter mais
informações.
Preguntas?
La ayuda es justa un momento lejos!
Encuentre su Briggs y Stratton
distribuidor en nuestro mapa del
localizador de distribuidor en
www.briggsandstratton.com
o avise su Briggs y Stratton el
comerciante local para la información
adicional.
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Manual No. 196382A
Revision B (06/20/2007)
Model
030218
Page 2
3500 Watt Portable Generator
2
EXPLODED VIEW - MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
3500 Watt Portable Generator
3
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 M194779GS KIT, Cradle (Includes 20, 31 & 55)
2 194150GS MOUNT, Vibration
3 67989GS NUT, M8 Flange Serrated
4 186058AGS HOUSING, Engine Adapter
5 NSP ASSY, Alternator (see page 4)
6 * NUT, Hex, M8 - 1.25
7 195398GS TPHMS, M8 - 1.25 x 35
8 96796GS WASHER, 8.4 x 22.2 x 3
9 * WASHER, 5/16 - M8 Lock
10 * HHCS, 5/16-24 x 3/4, SEMS
11 24823GS HHCS, 5/16-24 x 7-7/8" Lg
12 * HHCS, M8 - 1.25 x 25
13 * HHCS, M6 - 1.0 x 12
14 191785GS BRACKET, Muffler
15 697815 GASKET, Exhaust
17 188301GS MUFFLER
18 * SHCS, M6 - 1.0 x 20
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground
21 194153GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
23 86292GS SCREW, 10-16 x 3/4, Self Drill
24 191790GS SHIELD, Heat
25 191190GS CAP
26 74908GS TAPTITE, M5-0.8 x 10 Lg
31 191436GS DECAL, Caution Hot Muffler
34 195422GS COVER, RBC, Plastic w/Cap
35 195207GS KIT, Hose Formed
37 B2153GS HHCS, 12 - 14 x 7/8" Self Driller
40 194398GS KIT, Fuel Tank Hardware (Includes
Qty 4)
Item Part # Description
41 192980GS KIT, Valve, Tank Fuel Service
44 197553GS ASSY., Tank, Fuel Service (Includes
Items 41, 50, 51, 52 & 53)
45 B4363GS GAUGE, Fuel
48 195373GS WIRE, Ground
50 191437GS DECAL, Fuel Level
51 197157GS DECAL, Warning
52 189235GS DECAL, Operating Instructions
53 202997GS DECAL, Warning, CO
55 197798GS DECAL, Fuel Shut Off
58 196796GS ASSY, Control Panel
59 * NUT, Palnut
900 § ENGINE
Parts Not Illustrated
196382GS MANUAL, Operator’s
43483GS PLUG, 250V, 20Amp
MS3790 MANUAL, Engine
202180GS DECAL, Family, CA, EVP
197554GS KIT, Decals Service
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
Page 4
3500 Watt Portable Generator
4

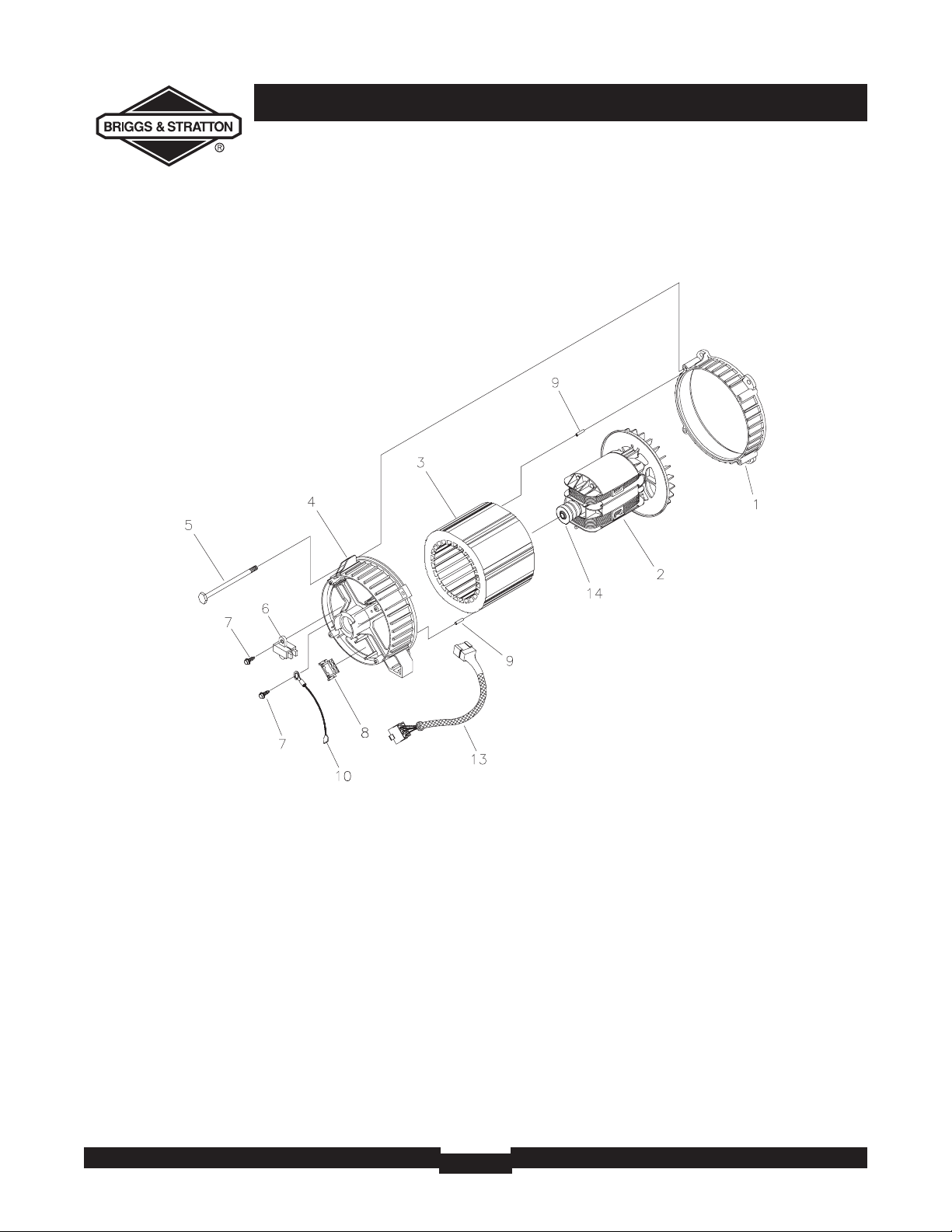

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 191685GS ROTOR
3 191686AGS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308GS HHCS, M6 - 1.0 x 115 SEMS
6 91825GS ASSEMBLY, Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193428AGS ASSY, Wire, Ground
13 194274GS HARNESS, Wire, Power
14 65791GS BEARING
Page 5
3500 Watt Portable Generator
5

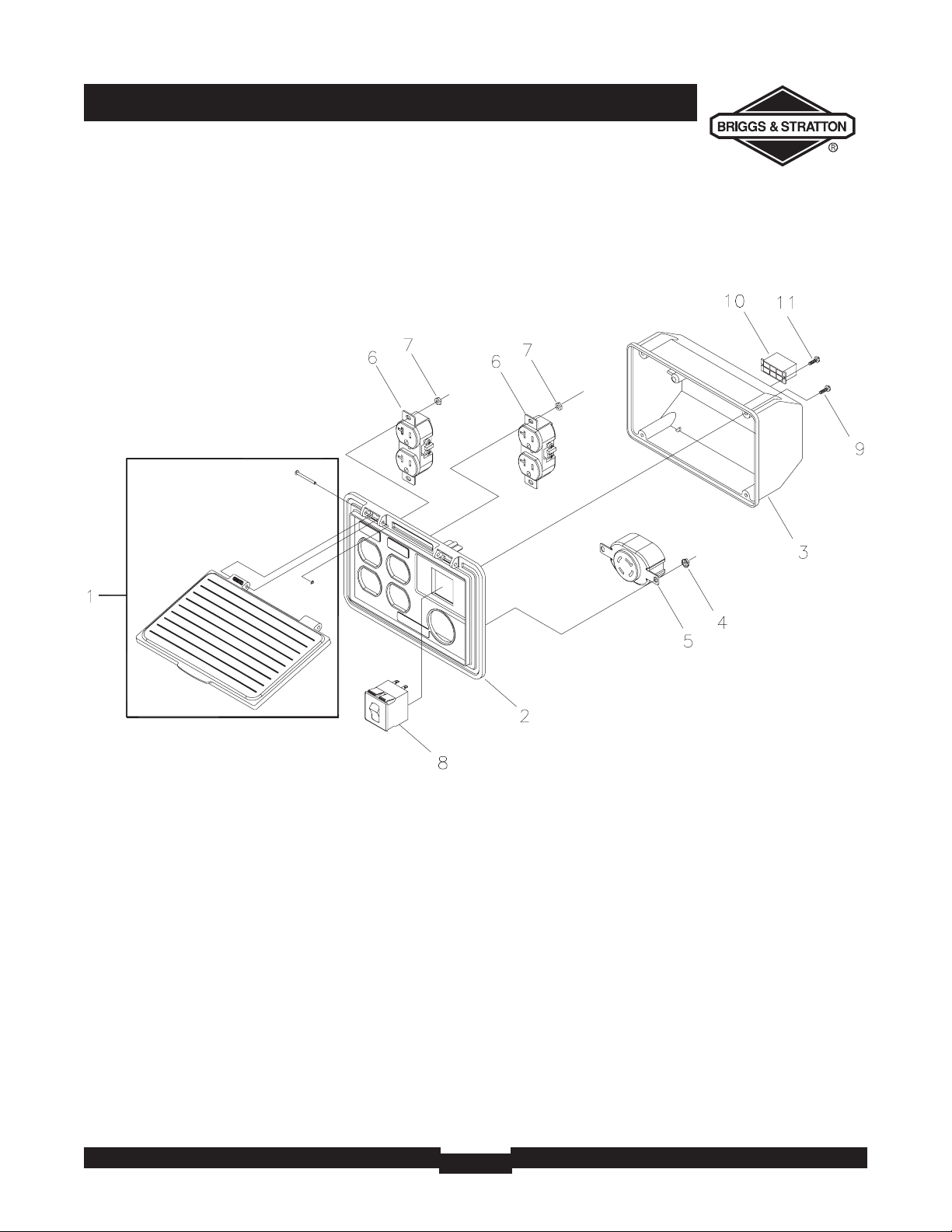

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 195112GS ASSY, Control Lid Panel
2 196506CGS CONTROL PANEL, Compact
3 192274GS BOX, Rear Cover
4 * NUT, Palnut, Pushnut, 3/16
5 68867GS OUTLET, 120/240V Locking, 20A
6 63025GS OUTLET, 120V, 15A, Duplex
7 * NUT, Palnut, Pushnut, 5/32
8 191479CGS BREAKER, 15, 2P
9 192241GS SCREW, Tapping, 3.5 x 14
10 22694GS HOUSING, Receptacle
11 82308GS SCREW, Tapping, STC 3 x 18
* - Items without part numbers are common fasteners and are
available at your local hardware store.
