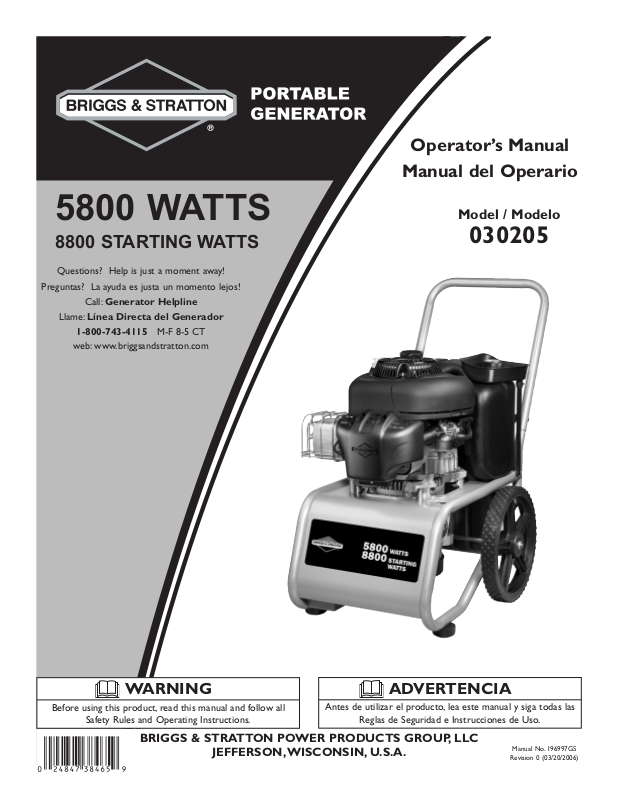

Model / Modelo

030205

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

web: www.briggsandstratton.com

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

5800 WATTS

8800 STARTING WATTS

Manual No. 196997GS

Revision 0 (03/20/2006)

Operator’s Manual

Manual del Operario

Before using this product, read this manual and follow all

Safety Rules and Operating Instructions.

WARNING

Antes de utilizar el producto, lea este manual y siga todas las

Reglas de Seguridad e Instrucciones de Uso.

ADVERTENCIA

SAFETY RULES

TABLE OF CONTENTS

Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Features and Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

EQUIPMENT

DESCRIPTION

Read this manual carefully and become familiar with your generator. Know its applications,its limitations and any hazards involved.

This generator is an engine–driven, revolving field, alternating current (AC) generator. It was designed to supply electrical power for operating compatible electrical lighting, appliances, tools and motor loads.The generator’s revolving field is driven at about 3,600 rpm by a singlecylinder engine.

CAUTION! DO NOT exceed the generator’s

wattage/amperage capacity. See “Don’t Overload Generator”.

Every effort has been made to ensure that information in this manual is accurate and current. However, we reserve the right to change, alter or otherwise improve the product and this document at any time without prior notice.

The Emission Control System for this generator is warranted for standards set by the Environmental Protection Agency and the California Air Resources Board. For warranty information refer to the engine operator’s manual.

SAFETY RULES

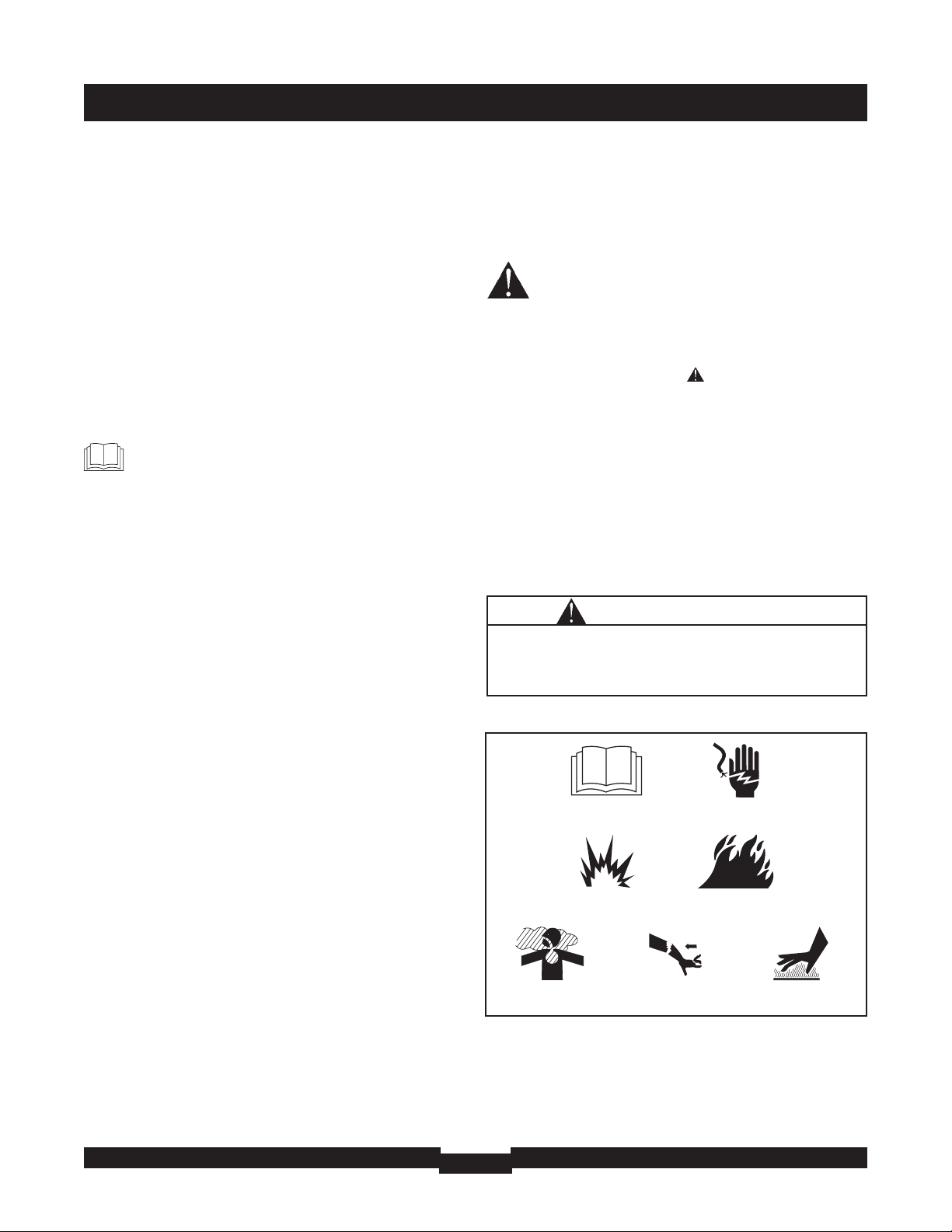

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION,WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided,might result in minor or moderate injury. CAUTION, when used without the alert symbol, indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.

Hazard Symbols and Meanings

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

WARNING

SAVE THESE INSTRUCTIONS

Copyright © 2006 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC.

Fire

Explosion

Toxic Fumes

Hot Surface

Electrical Shock

Kickback

Operator’s Manual

SAFETY RULES

• This generator does not meet U. S. Coast Guard Regulation 33CFR-183 and should not be used on marine applications.

• Failure to use the appropriate U. S. Coast Guard approved generator could result in death or serious injury and/or property damage.

WARNING

• When using generator for backup power, notify utility company. Use approved transfer equipment to isolate generator from electric utility.

• Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as metal decking or steel work.

• DO NOT touch bare wires or receptacles.

• DO NOT use generator with electrical cords which are worn, frayed, bare or otherwise damaged.

• DO NOT operate generator in the rain or wet weather.

• DO NOT handle generator or electrical cords while standing in water, while barefoot,or while hands or feet are wet.

• DO NOT allow unqualified persons or children to operate or service generator.

Generator produces powerful voltage. Failure to isolate generator from power utility

can result in death or injury to electric utility workers due to backfeed of electrical energy.

WARNING

• Operate generator ONLY outdoors.

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.

• DO NOT operate generator inside any building or enclosure (even if doors or windows are open),including the generator compartment of a recreational vehicle (RV).

Running generator gives off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

WARNING

WHEN ADDING OR DRAINING FUEL

• Turn generator OFF and let it cool at least 2 minutes before removing fuel cap.Loosen cap slowly to relieve pressure in tank.

• Fill or drain fuel tank outdoors.

• DO NOT overfill tank.Allow space for fuel expansion.

• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.

• DO NOT light a cigarette or smoke.

WHEN STARTING EQUIPMENT

• Ensure spark plug, muffler, fuel cap and air cleaner are in place.

• DO NOT crank engine with spark plug removed.

• Wait for spilled fuel to evaporate before starting engine.

WHEN OPERATING EQUIPMENT

• DO NOT tip engine or equipment at angle which causes fuel to spill.

• This generator is not for use in mobile equipment or marine applications.

WHEN TRANSPORTING OR REPAIRING EQUIPMENT

• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.

• Disconnect spark plug wire.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

• Store away from furnaces,stoves, water heaters, clothes dryers or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WARNING

• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.

• NEVER start or stop engine with electrical devices plugged in and turned on.

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

WARNING

SAFETY RULES

• DO NOT tamper with governed speed. Generator supplies correct rated frequency and voltage when running at governed speed.

• DO NOT modify generator in any way.

Excessively high operating speeds increase risk of injury and damage to generator.

Excessively low speeds impose a heavy load.

CAUTION

• See “Don’t Overload Generator”.

• Start generator and let engine stabilize before connecting electrical loads.

• Connect electrical loads in OFF position, then turn ON for operation.

• Turn electrical loads OFF and disconnect from generator before stopping generator.

Exceeding generators wattage/amperage capacity can damage generator and/or electrical devices connected to it.

CAUTION

• Use generator only for intended uses.

• If you have questions about intended use, ask dealer or call 1-800-743-4115.

• Operate generator only on level surfaces.

• DO NOT expose generator to excessive moisture, dust, dirt, or corrosive vapors.

• DO NOT insert any objects through cooling slots.

• If connected devices overheat, turn them off and disconnect them from generator.

• Shut off generator if:

-electrical output is lost;

-equipment sparks, smokes, or emits flames;

-unit vibrates excessively.

Improper treatment of generator can damage it and shorten its life.

CAUTION

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR GENERATOR

• Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.

• DO NOT check for spark with spark plug removed.

Unintentional sparking can result in fire or electric shock.

WARNING

• DO NOT touch hot surfaces and avoid hot exhaust gases.

• Allow equipment to cool before touching.

• Keep at least 5 ft. (152 cm) clearance on all sides of generator including overhead.

• Code of Federal Regulation (CFR) Title 36 Parks, Forests,and Public Property require equipment powered by an internal combustion engine to have a spark arrester, maintained in effective working order, complying to USDA Forest service standard 5100-1C or later revision. In the State of California a spark arrester is required under section 4442 of the California Public resources code. Other states may have similar laws.

Running engines produce heat.Temperature of muffler and nearby areas can reach or exceed 150°F (65°C).

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles,

structures or damage fuel tank causing a fire.

WARNING

FEATURES AND CONTROLS

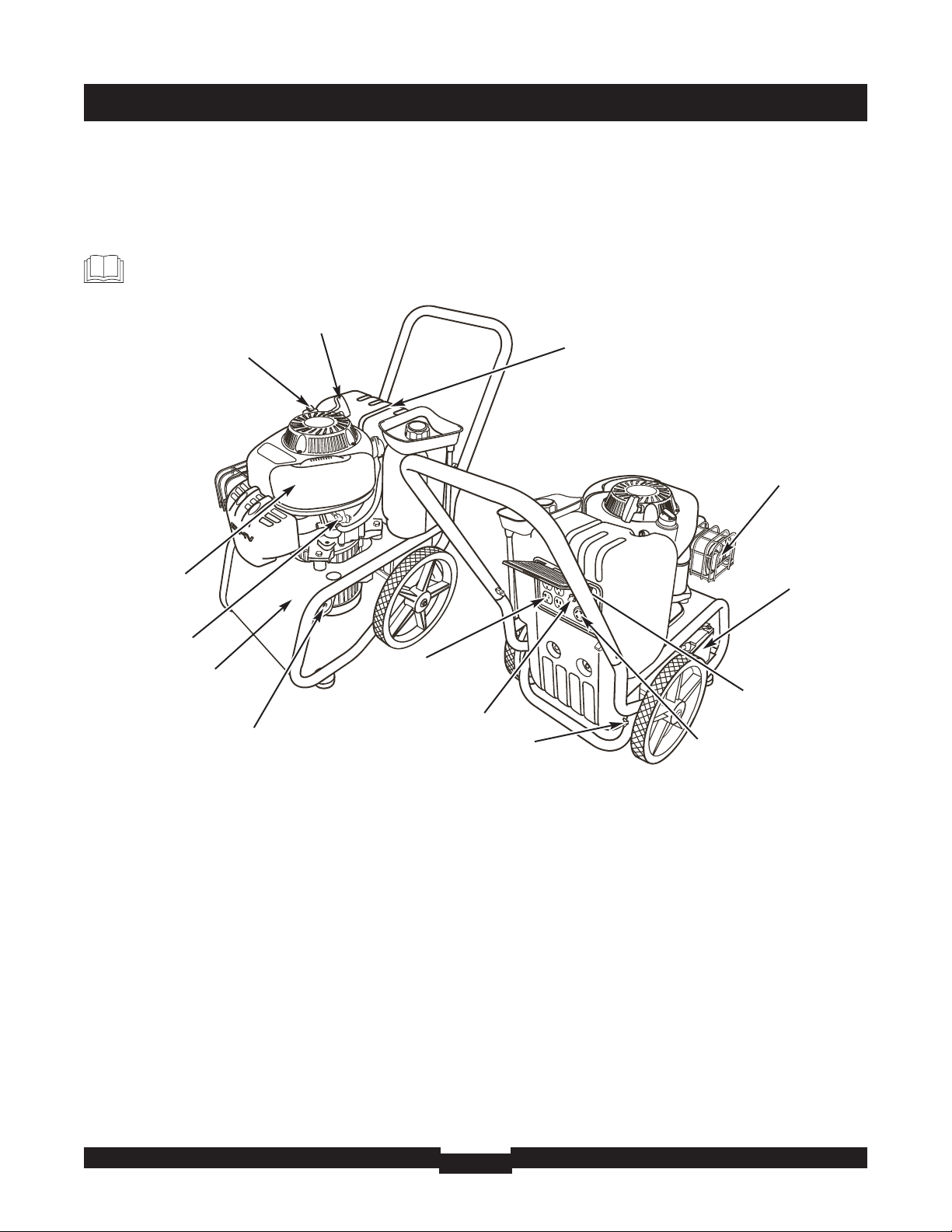

KNOW YOUR GENERATOR

Read this operator’s manual and safety rules before operating your generator.

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

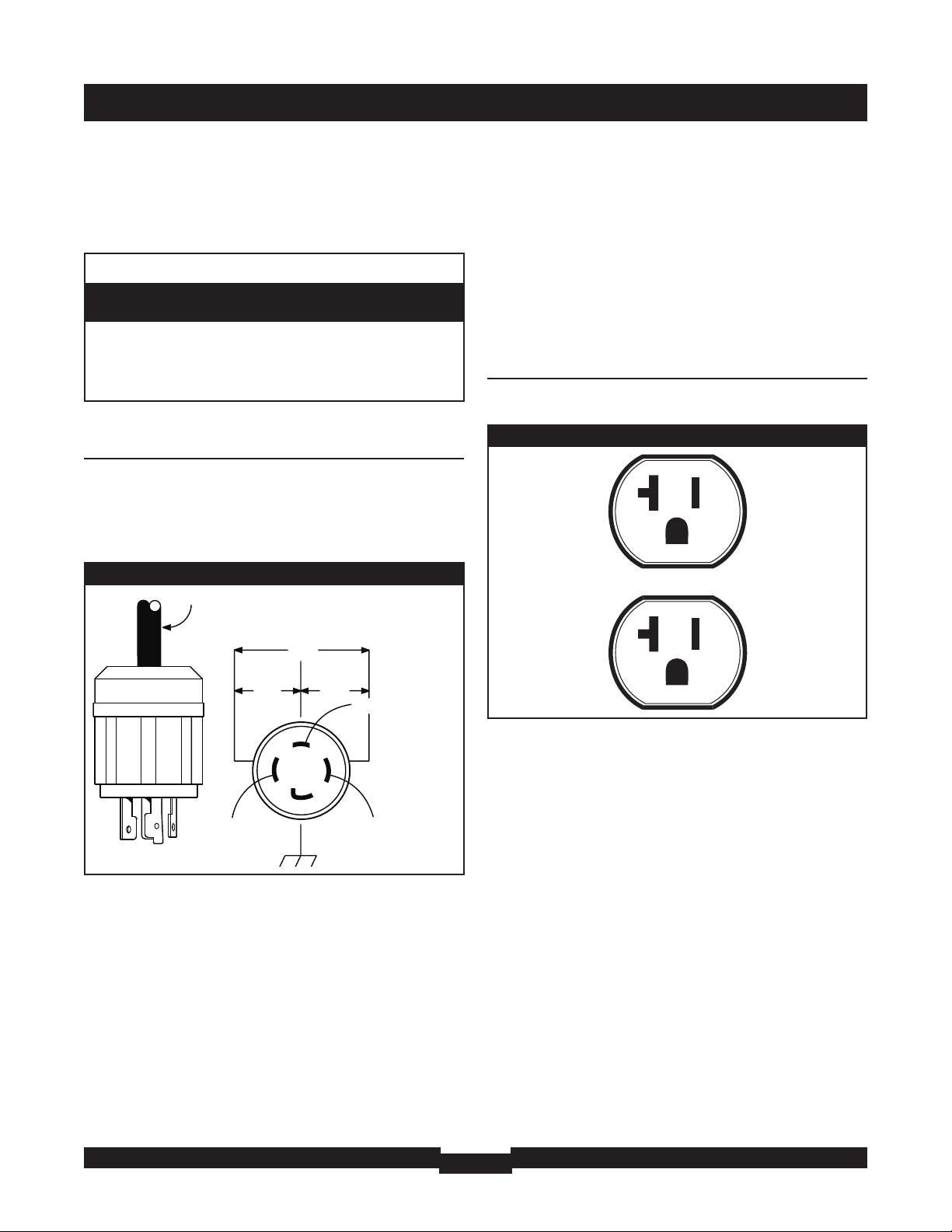

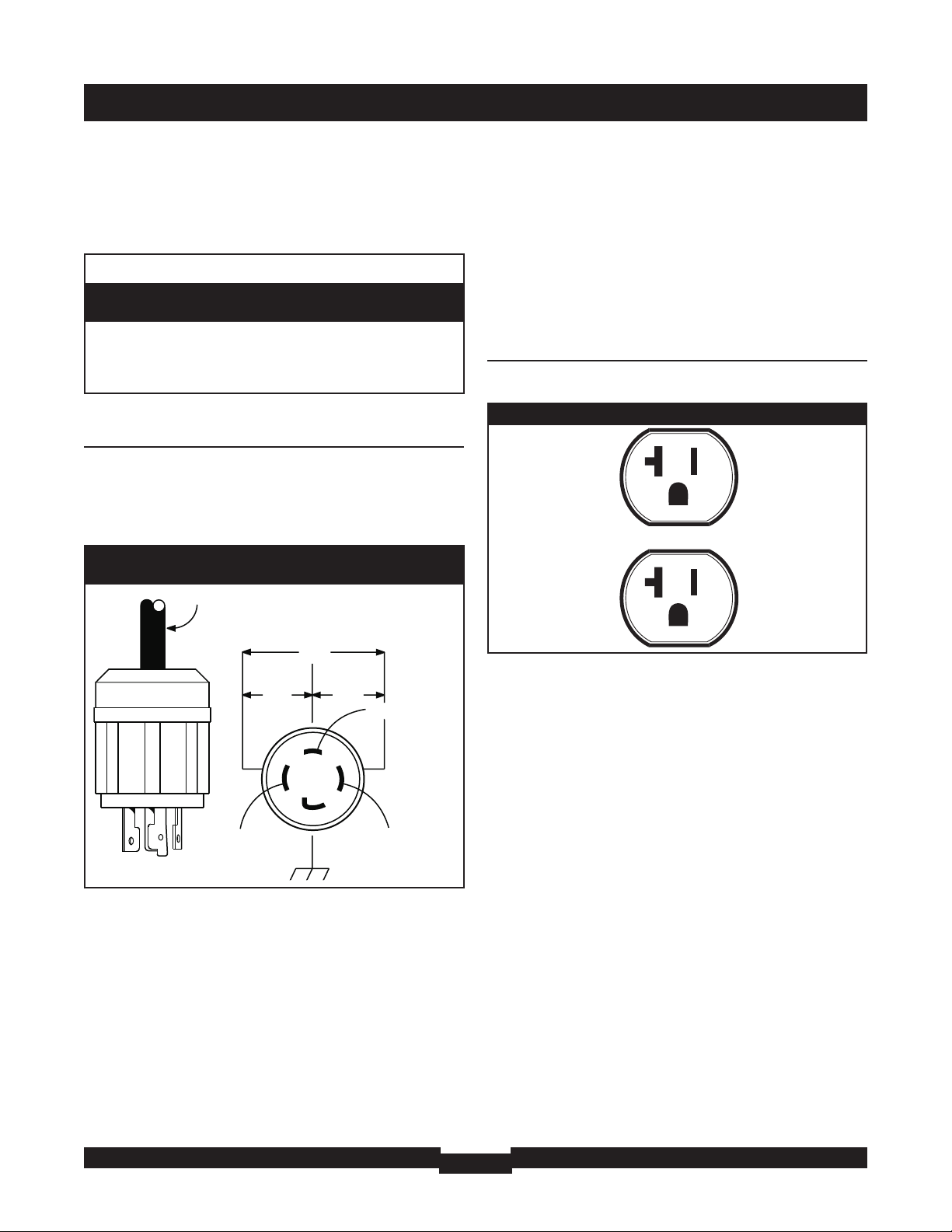

120 Volt AC, 20 Amp Duplex Receptacles — May be used to supply electrical power for the operation of 120 Volt AC, 20 Amp, single phase, 60 Hz electrical lighting, appliance, tool and motor loads.

120/240 Volt AC, 30 Amp Locking Receptacle — May be used to supply electrical power for the operation of 120 and/or 240 Volt AC, 30 Amp, single phase, 60 Hz electrical lighting, appliance, tool and motor loads.

Air Cleaner — Protects engine by filtering dust and debris out of intake air.

Battery — 12 Volt DC sealed battery provides power to start the engine.

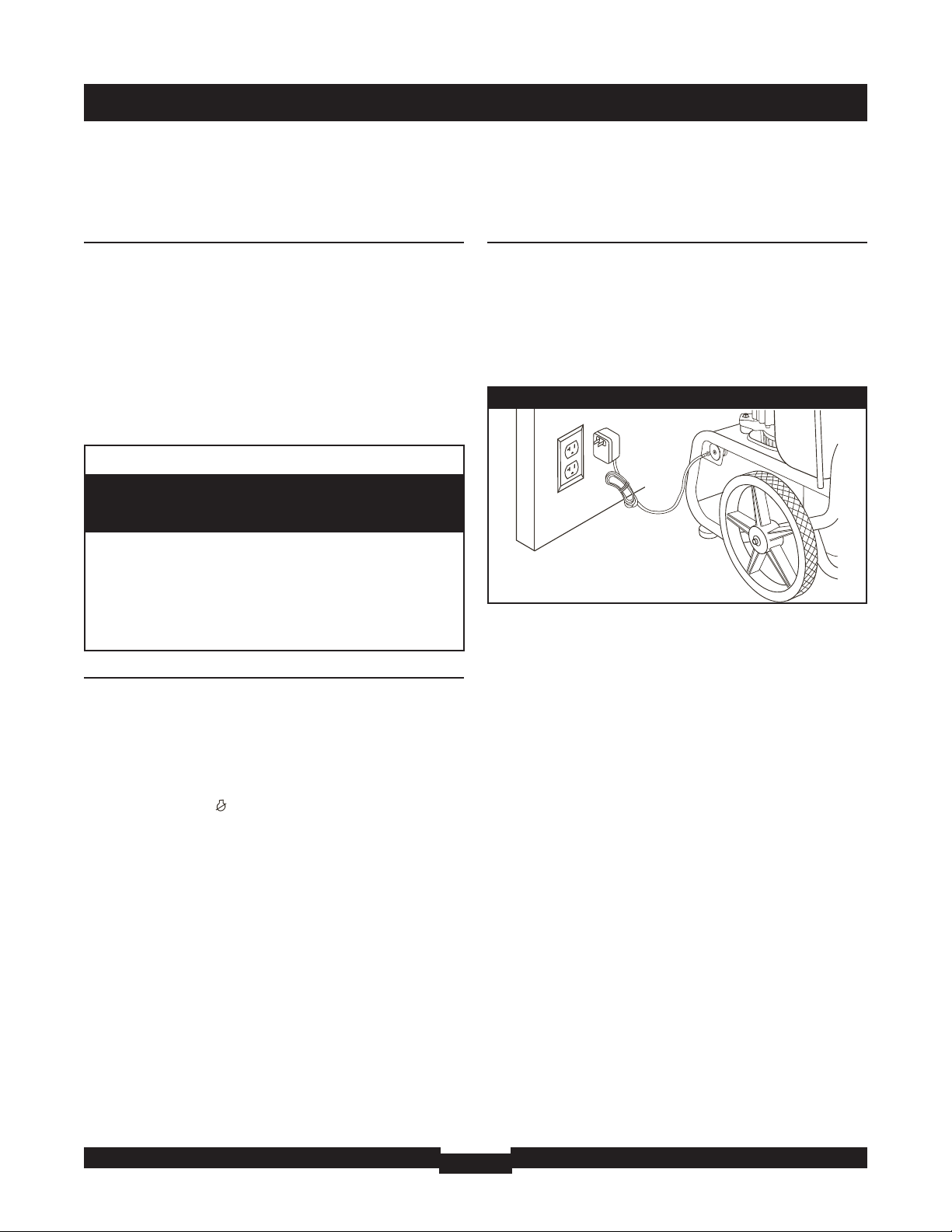

Battery Float Charger Jack — Use battery float charger to keep the starting battery charged and ready for use.

Choke Lever — Used when starting a cold engine. Circuit Breakers (AC) — The 120 Volt AC, 20A duplex

receptacles are provided with "push to reset" circuit breakers to protect the generator against electrical overload.

Data Tag – Provides model, revision and serial number of generator. Please have these readily available if calling for assistance.

Fuel Tank — Capacity of seven (7) U.S. gallons. Grounding Fastener — Consult your local agency having

jurisdiction for grounding requirements in your area.

Ignition Switch — Turn key to start and stop the engine. Oil Fill Cap — Add oil to engine here. Recoil Starter — Used to start the engine manually. Rocker Switch Circuit Breaker — The 120/240 Volt

AC, 30A locking receptacle is provided with a rocker switch circuit breaker to protect the generator against electrical overload.This switch also controls all receptacles.

Spark Arrester Muffler — Exhaust muffler lowers engine noise and is equipped with a spark arrester screen.

Choke Lever

Spark Arrester Muffler

Ignition Switch Battery Float Charger Jack

Grounding Fastener

Air Cleaner

Fuel Tank

Oil Fill Cap

Data Tag

Battery

Recoil Starter

120 Volt AC, 20 Amp Duplex Receptacles

Rocker Switch Circuit Breaker

120/240 Volt AC, 30 Amp Locking Receptacle

Circuit Breakers (AC)

ASSEMBLY

Your generator requires some assembly and is ready for use after it has been properly serviced with the recommended oil and fuel.

If you have any problems with the assembly of your generator, please call the generator helpline at 1-800-743-4115. If calling for assistance, please have the

model, revision,and serial number from the data tag available. See “Know Your Generator” for data tag location.

Unpacking the Generator

1. Set the carton on a rigid flat surface.

2. Remove everything from carton except generator.

3. Open carton completely by cutting each corner from top to bottom.

4. Leave generator on carton to install handle.

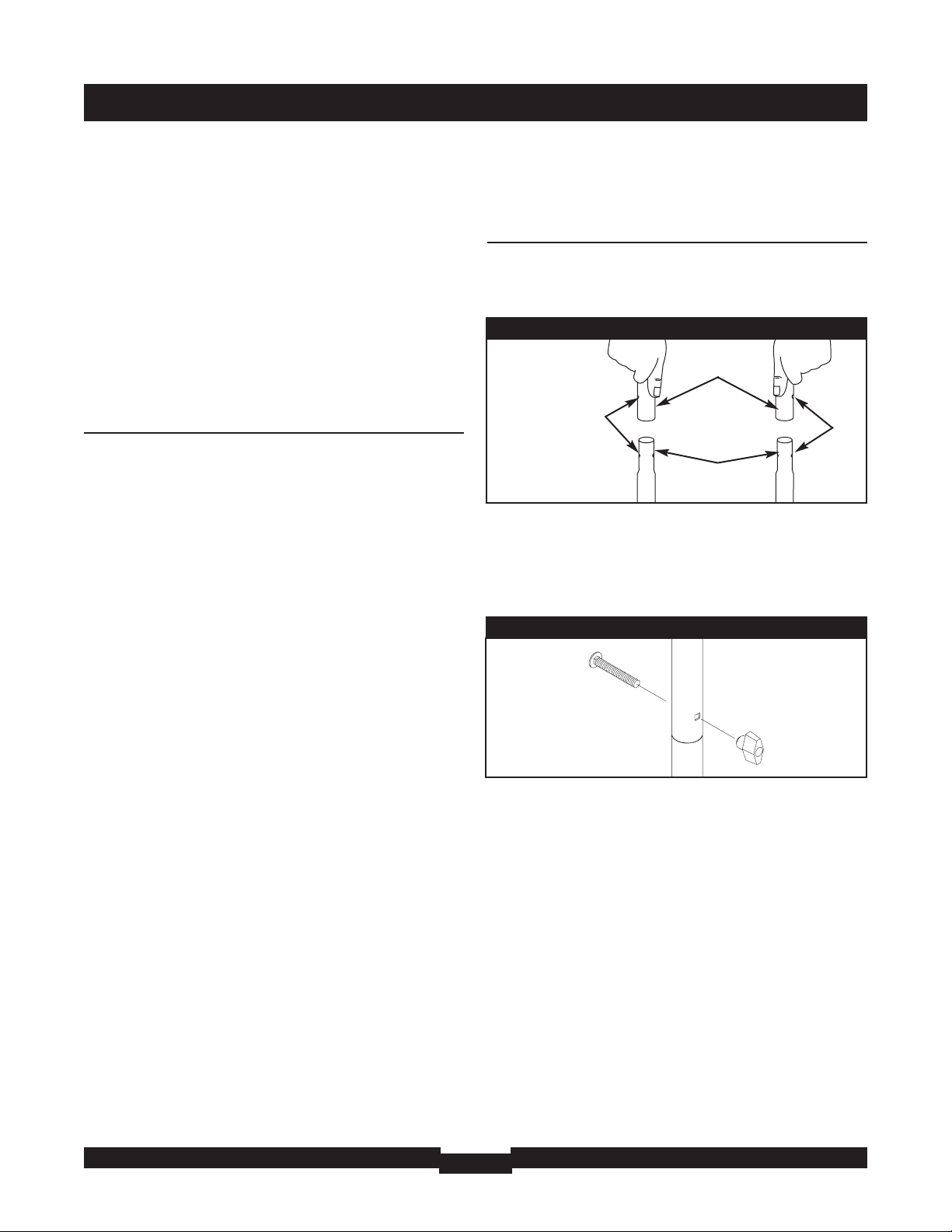

Attach Handle to Unit

1. Place handle assembly onto handle supports connected to main unit. Make sure holes in handle align with holes on handle supports (Figure 1).

NOTE: It may be necessary to move the handle supports from side to side in order to align the handle so it will slide over the handle supports.

2. Insert carriage bolts through holes from outside of the unit and attach a plastic knob from inside of unit (Figure 2).Tighten by hand.

Align Holes

Handle

Supports

Figure 1 — Attach Handle to Base

Figure 2 — Secure Handle

ASSEMBLY

BEFORE STARTING THE

ENGINE

Engine Oil

This engine is shipped from the factory filled with the recommended oil (API SJ or higher SAE 30). Before starting the engine, check oil level and ensure that engine is serviced as described in the engine operator’s manual.

Oil Considerations

Your generator is equipped with an engine that has been pre-run at the factory and does not require the traditional “break-in” procedure.

NOTE:The generator assembly rotates on a prelubricated and sealed ball bearing that requires no additional lubrication for the life of the bearing.

Add Fuel

NOTE:This gasoline engine is certified to operate on

gasoline. Exhaust Emission Control System: EM (Engine Modifications).

1. Use clean, fresh, regular UNLEADED gasoline with a minimum of 85 octane. DO NOT use fuel which contains Methanol. DO NOT mix oil with fuel.

2. Clean area around fuel fill cap, remove cap.

3. Slowly add regular unleaded fuel to fuel tank. Be careful not to overfill.Allow about 2.25" of tank space for fuel expansion (Figure 3).

4. Install fuel cap and wait for any spilled fuel to evaporate.

CAUTION

• Refer to engine operator’s manual for oil fill information.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

Any attempt to crank or start the engine before it has been properly filled with the recommended oil will result in equipment failure.

WHEN ADDING FUEL

• Turn generator OFF and let it cool at least 2 minutes before removing fuel cap.Loosen cap slowly to relieve pressure in tank.

• Fill fuel tank outdoors.

• DO NOT overfill tank.Allow space for fuel expansion.

• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.

• DO NOT light a cigarette or smoke.

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WARNING

Fuel

Tank

2.25” Air Space

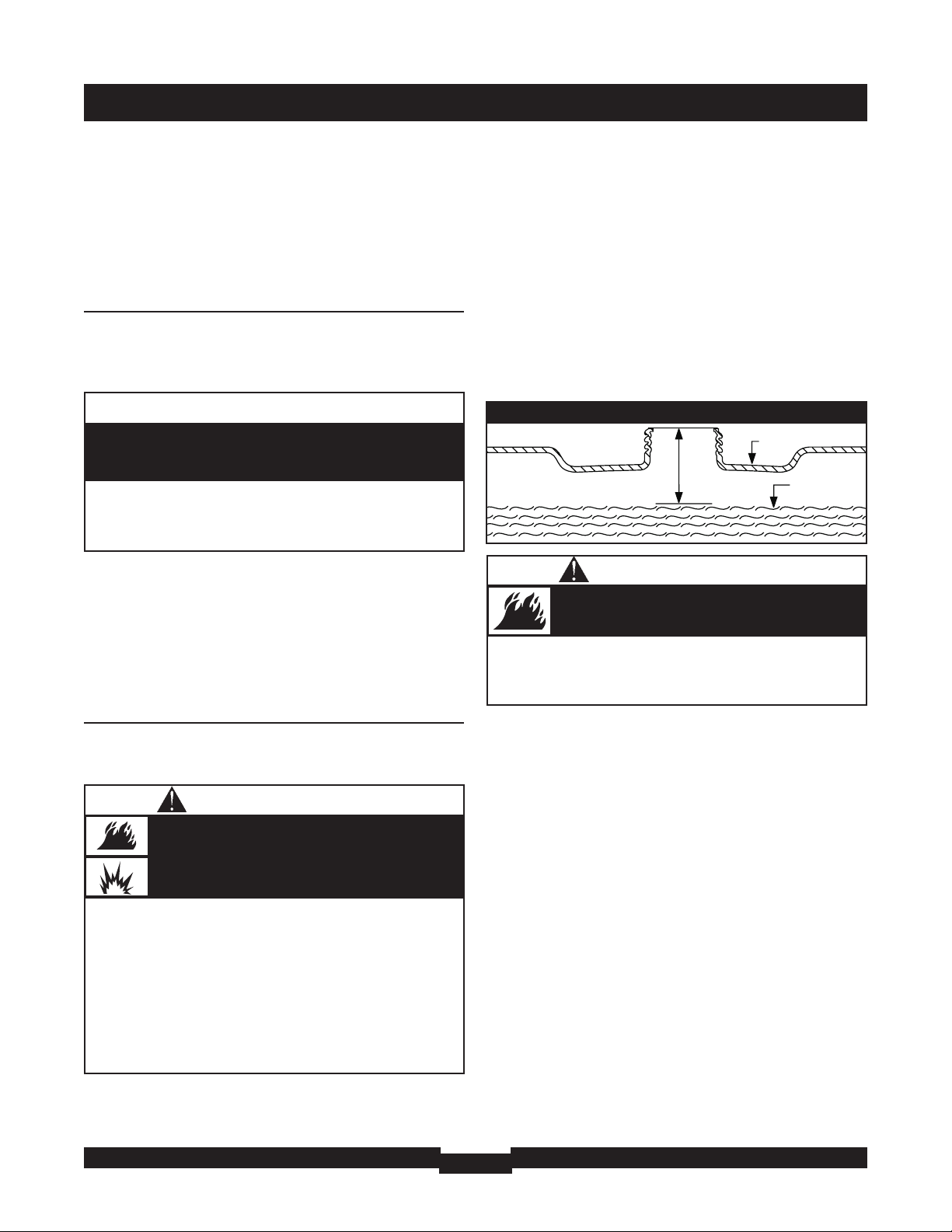

Figure 3 - Fuel Expansion

• Replace “1.5” with “2.25” fuel fill level given in engine manual.

• Failure to follow this instruction may cause fuel to overexpand and spill from tank.

Fill tank to approximately 2.25” below top of neck to allow for fuel expansion.

WARNING

OPERATION

USING THE GENERATOR

System Ground

The generator has a system ground that connects the generator frame components to the ground terminals on the AC output receptacles.The system ground is connected to the AC neutral wire (the neutral is bonded to the generator frame).

Special Requirements

There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.

• In some areas, generators are required to be registered with local utility companies.

• If the generator is used at a construction site, there may be additional regulations which must be observed.

Connecting to a Building’s Electrical

System

Connections for standby power to a building’s electrical system must be made by a qualified electrician.The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.

Generator Location

Generator Clearance

Place generator in a well ventilated area, which will allow for removal of deadly exhaust gas. DO NOT place generator where exhaust gas could accumulate and enter inside or be drawn into a potentially occupied building. Ensure exhaust gas is kept away from any windows, doors, ventilation intakes or other openings that can allow exhaust gas to collect in a confined area (Figure 4). Prevailing winds and air currents should be taken into consideration when positioning generator.

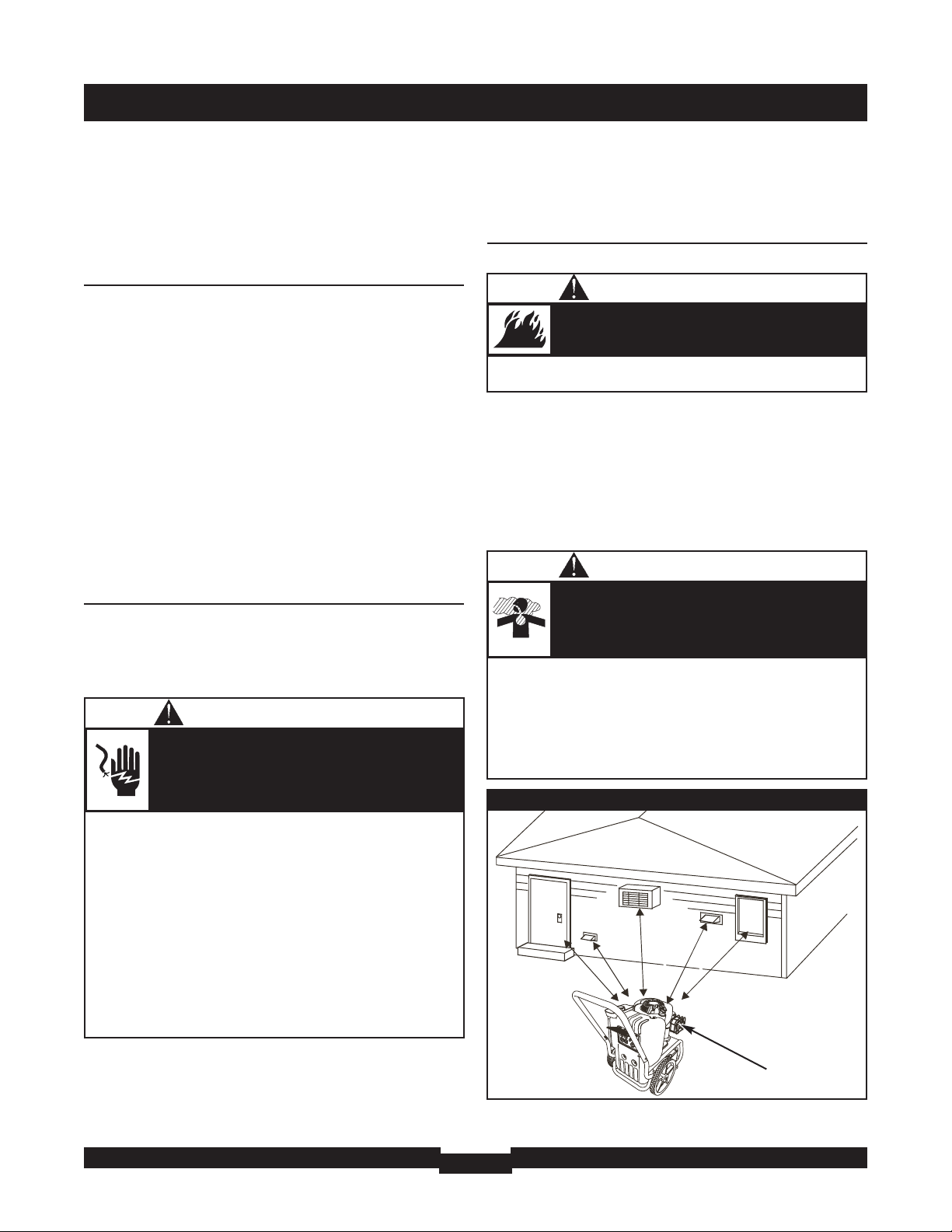

Figure 4 — Generator Clearance

Exhaust Port

• When using generator for backup power, notify utility company. Use approved transfer equipment to isolate generator from electric utility.

• Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area, such as metal decking or steel work.

• DO NOT touch bare wires or receptacles.

• DO NOT use generator with electrical cords which are worn, frayed, bare or otherwise damaged.

• DO NOT operate generator in the rain or wet weather.

• DO NOT handle generator or electrical cords while standing in water, while barefoot,or while hands or feet are wet.

• DO NOT allow unqualified persons or children to operate or service generator.

Generator produces powerful voltage. Failure to isolate generator from power utility

can result in death or injury to electric utility workers due to backfeed of electrical energy.

WARNING

• Keep at least 5 ft. (152 cm) clearance on all sides of generator including overhead.

Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

WARNING

• Operate generator ONLY outdoors.

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings.

• DO NOT operate generator inside any building or enclosure (even if doors or windows are open),including the generator compartment of a recreational vehicle (RV).

Running generator gives off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

WARNING

OPERATION

OPERATING THE

GENERATOR

Starting the Engine

IMPORTANT:Always unplug the battery float charger

before starting the generator. Disconnect all electrical loads from the generator. Follow

start instruction steps in numerical order:

1. Make sure unit is on a level surface. 2A. For electric starting, follow start instructions given

in engine operator’s manual, insert ignition key in ignition switch on generator and turn to “Start” ( ) position (Figure 5). Release key to “Run” ( ) position when engine has started.

IMPORTANT:To prolong the life of starter components, DO NOT hold key in “Start” ( ) position for more than 15 seconds, and pause for 1 minute.

NOTE: If battery is discharged, use manual starting instructions.

2B. For manual starting, insert ignition key in ignition

switch on generator and turn to “Run” ( ) position. Follow start instructions given in engine operator’s manual.

IMPORTANT:When manually starting engine, initial starting attempt may require multiple pulls.

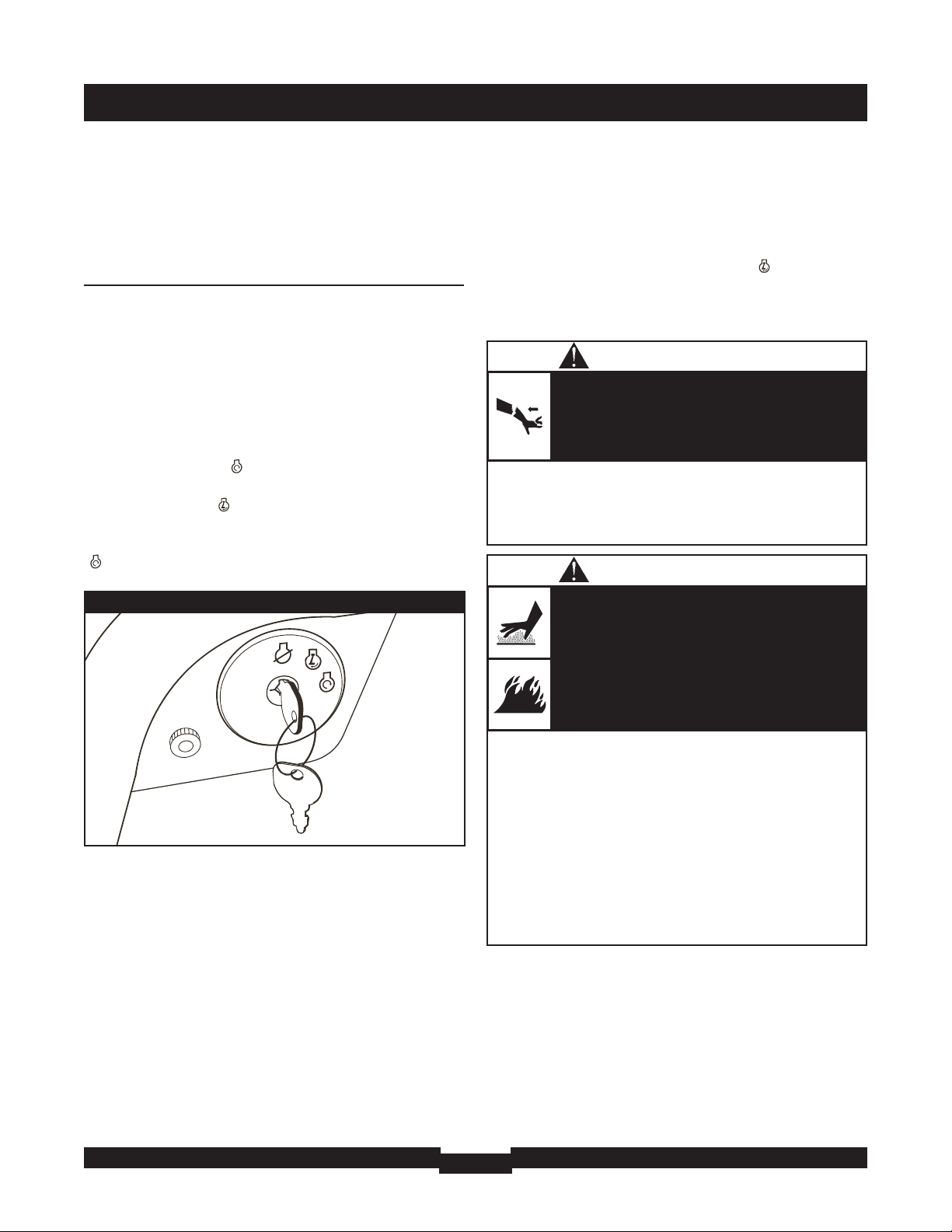

Figure 5 — Ignition Switch

• DO NOT touch hot surfaces and avoid hot exhaust gases.

• Allow equipment to cool before touching.

• Keep at least 5 ft. (152 cm) clearance on all sides of generator including overhead.

Running engines produce heat.Temperature of muffler and nearby areas can reach or exceed 150°F (65°C).

Severe burns can occur on contact. Exhaust heat/gases can ignite combustibles,

structures or damage fuel tank causing a fire.

WARNING

• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.

• NEVER start or stop engine with electrical devices plugged in and turned on.

Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could result.

WARNING

OPERATION

Connecting Electrical Loads

• Let engine stabilize and warm up for a few minutes after starting.

• Plug in and turn on the desired 120 and/or 240 Volt AC, single phase, 60 Hz electrical loads.

• DO NOT connect 240 Volt loads to the 120 Volt receptacles.

• DO NOT connect 3–phase loads to the generator.

• DO NOT connect 50 Hz loads to the generator.

• DO NOT OVERLOAD GENERATOR. See “Don’t Overload Generator”.

Stopping the Engine

1. Unplug all electrical loads from generator panel

receptacles. NEVER start or stop engine with electrical devices plugged in and turned on.

2. Let engine run at no-load for several minutes to

stabilize internal temperatures of engine and generator.

3. Turn key in start switch to “Stop” ( ) position.

4. Remove key and store out of reach of children.

How to Use the Battery Charger

Use battery float charger jack to keep the starting battery charged and ready for use. Battery charging should be done in a dry location, such as inside a garage.

1. Plug charger into unit’s “Battery Float Charger” jack, which is located on the ignition switch panel (Figure 6). Plug battery charger into a 120 Volt AC wall receptacle.

2. Unplug charger from unit and wall outlet when generator is being started and while in operation.

3. Keep charger plugged in when generator is not in use to prolong battery life.The charger has a built in float equalizer and will not overcharge battery, even when plugged in for an extended period of time.

IMPORTANT: See “Battery Maintenance” on page 14 for additional information.

Figure 6 — Battery Charger Jack

• See “Don’t Overload Generator”.

• Start generator and let engine stabilize before connecting electrical loads.

• Connect electrical loads in OFF position, then turn ON for operation.

• Turn electrical loads OFF and disconnect from generator before stopping generator.

Exceeding generators wattage/amperage capacity can damage generator and/or electrical devices connected to it.

CAUTION

+ 22 hidden pages
