Page 1
Manual No. 194083A Rev. 1 (08/12/2005)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
PowerBOSS™ is a trademark of Briggs & Stratton Power Products.
PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.
Model / Modelo
030201
Illustrated Parts List
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Generator Helpline / Llamada: Generador Helpline
1-800-743-4115 M-F 8-5 CT
Page 2
2
PowerBOSS™ 6200W Portable Generator EXPLODED VIEW
EXPLODED VIEW - MAIN UNIT
Copyright © 2005 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
3
PARTS LIST 6200W Portable Generator PowerBOSS™
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 B194100GS CRADLE
2 194218GS KIT, Mount,Vibration
3 B92531GS SUPPORT, Engine
4 190220GS HOUSING, Engine Adapter
5 194151GS KIT,Adapter Mounting Hardware
6 NSP ASSY,Alternator (see page 5)
7 B190723GS SUPPORT, Eng/Muffler
8 96796GS WASHER, M8 Flat
9 194219GS KIT, Mount,Vibration
10 190274DGS SBHCS, 3/8-16 x 7/8"
11 187365FGS HHCS, 5/16-24 x 7.44
12 189160GS NUT, 5/16-18 Serrated Flange
13 * HHCS, 5/16-18 x 1-3/4"
14 194506GS KIT, Muffler Brckt w/ Hardware
15 710250 GASKET, Muffler
16 * WASHER, Flat
17 B4206GS MUFFLER
18 67989GS NUT, M8 Flange Serrated
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground
21 194153GS KIT, Mount,Vibration
22 86494GS SCREW,Wing M6 - 1.0 x 16
23 86292GS SCREW, 10 - 16 x 3/4, Self Drill
24 194390GS SHIELD, Heat
25 191190GS CAP
26 74908GS TAPTITE, M5-0.8 x 10
31 196830GS DECAL, Hot Muffler
33 194274GS HARNESS,Wire, Power
34 195422GS COVER, Bearing Carrier with Cap
Item Part # Description
35 194265GS KIT, Fuel Hose w/ Clamps
37 192376GS SCREW, 12-24 x 1/2 THD Forming
38 56893GS SCREW, 10 - 24 x 1/2, Crimptite
40 194398GS KIT, Hardware Fuel Tank
41 192980GS KIT,Valve, Fuel
44 194217GS ASSY,Tank, Fuel (Includes Items 41,
50, 51 & 52)
45 B4363GS CAP, Fuel
48 195373GS WIRE, Ground
50 188333GS DECAL, Instructions, Fuel Level
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
54 194448GS KIT, Insulation with Clip
55 197798GS DECAL, Fuel Shut-off
58 191757GS ASSY, Control Panel (see page 4)
59 * PALNUT, 3/16"
60 194389GS SHIELD, Heat
900 § ENGINE
Parts Not Illustrated
MS6669 MANUAL, Operating
194083GS MANUAL, Owners
BB3061GS OIL BOTTLE
194220GS KIT, Decals
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
Page 4
4
PowerBOSS™ 6200W Portable Generator EXPLODED VIEW & PARTS LIST

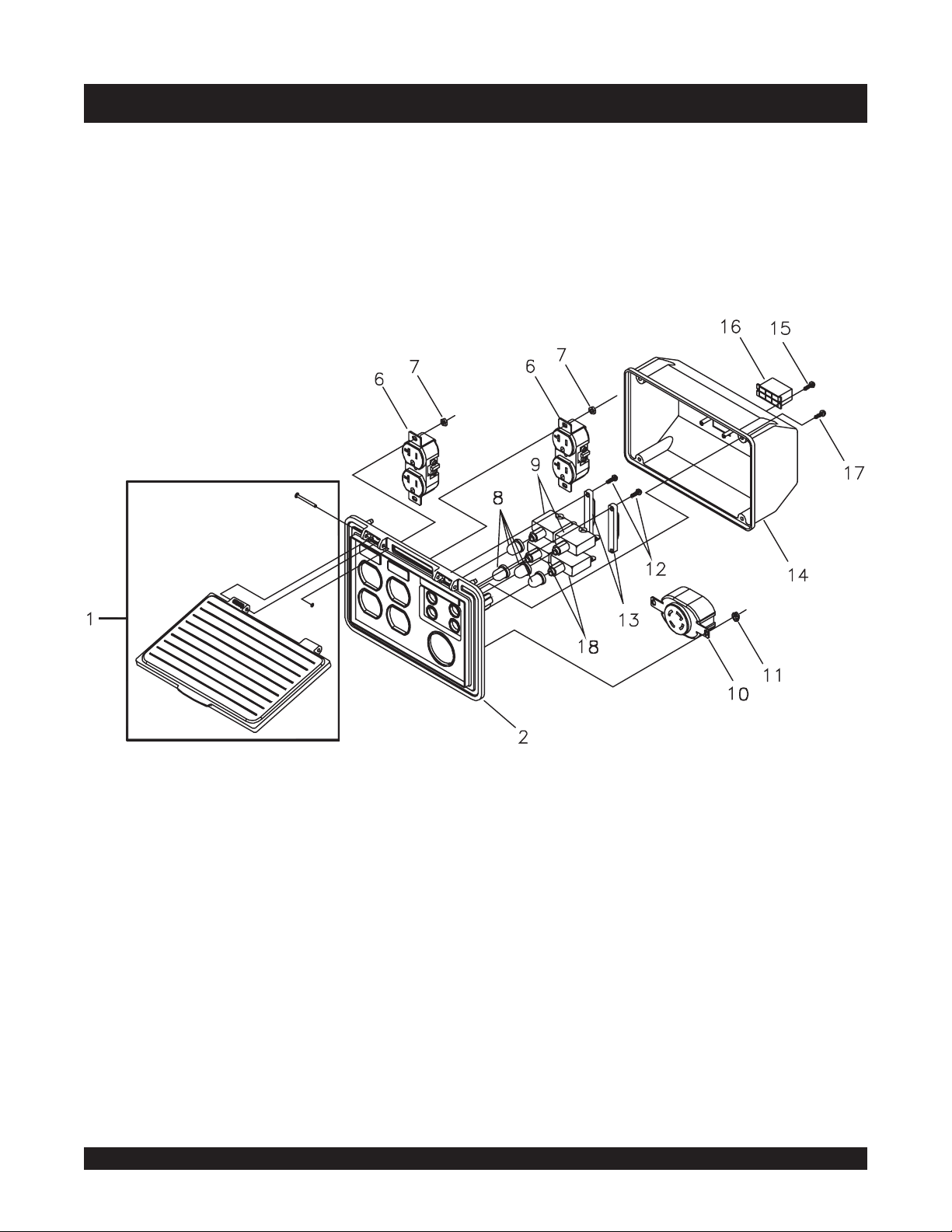

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 195112GS KIT, Control Panel Lid
2 191450GS CONTROL PANEL, Compact
6 68759GS OUTLET, 120V, 20A, Duplex
7 * NUT, Palnut, 5/32
8 84198GS CAP, Breaker, Circuit
9 75207AGS BREAKER, Circuit
10 43437GS OUTLET, 120/240V Locking, 30A
11 * NUT, Palnut, 3/16
12 * PPPHS, M3- 0.5 x 18
13 93857GS BAR, Retaining
14 188890GS COVER, Back, Control Panel
15 82308GS SCREW,Tapping, STC 3 x 18
16 22694GS HOUSING, Receptacle
17 192241GS SCREW,Tapping, 3.5 x 14
18 75207PGS BREAKER, Circuit
* - Items without part numbers are common fasteners and
are available at your local hardware store.
Page 5
5
EXPLODED VIEW & PARTS LIST 6200W Portable Generator PowerBOSS™

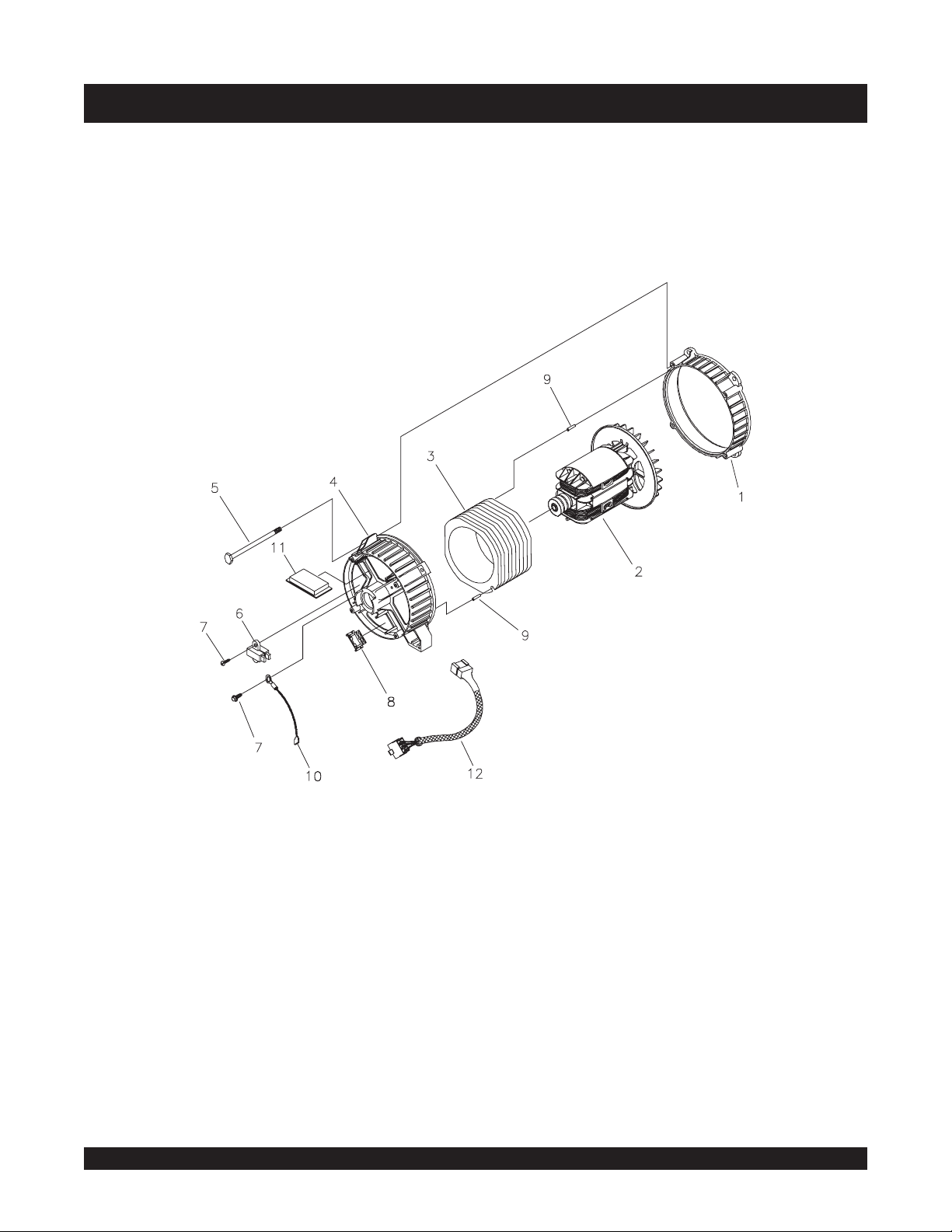

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting,Alternator
2 191876GS ROTOR
3 194006AGS STATOR
4 186060GS RBC, (with O-Ring, p/n 189197GS)
5 86308HGS HHCS, M6 - 1.0 x 140 SEMS
6 66386GS ASSY, Holder, Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193428AGS ASSY,Wire, Ground
11 189769GS REGULATOR,Voltage,AVR
12 194274GS HARNESS,Wire, Power
Page 6
6
PowerBOSS™ 6200W Portable Generator EXPLODED VIEW & PARTS LIST

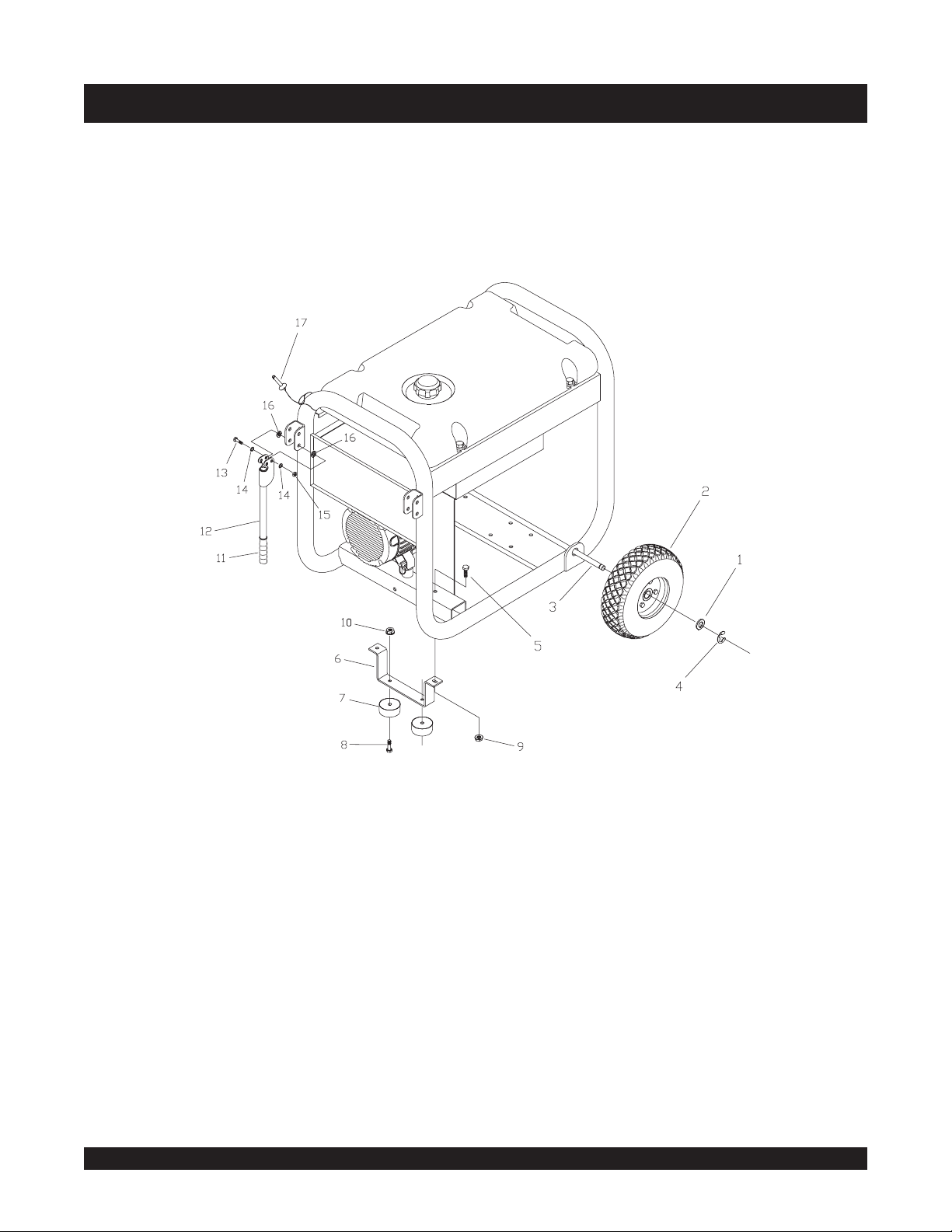

EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part # Description
1 * WASHER
2 B4966GS WHEEL
3 191267KGS AXLE, 5/8" x 24.80"
4 191265GS E-RING
5 * HHCS, M8 - 1.25 x 20 Lg.
6 B89595GS BRACKET, Support, Unit
7 87841GS MOUNT,Vibe Donut Type
8 * HHCS, 1/4 - 20 x 3/4 Lg.
9 67989GS NUT, M8 Flange Serrated
10 194005GS NUT, 1/4 - 20 Flange Nylok
11 189718GS GRIP, Handle
12 B193200GS ASSY, Handle (Includes Item 11)
13 * HHCS, M8 - 1.25 x 45 Lg.
14 * WASHER, Flat, 5/16 - M8
15 * NUT, M8 Nylok
16 * WASHER, Nylon
17 B4135GS PIN,with Lanyard
* - Items without part numbers are common fasteners and
are available at your local hardware store.
