Briggs & Stratton 217900 User Manual

REPLACES FORM MS−5708−11/02/2007

Illustrated Parts List

Model Series

217900

TYPE NUMBER

0015 through 0141.

TABLE OF CONTENTS

Air Cleaner 6. . . . . . . . . . . . . . . . . . . . . . . . .

Alternator 9. . . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing 6. . . . . . . . . . . . . . . . . . . . .

Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 5. . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 4. . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 6. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Supply 8. . . . . . . . . . . . . . . . . . . . . . . . .

Gasket Set − Engine 4. . . . . . . . . . . . . . . . .

Gasket Set − Valve 4. . . . . . . . . . . . . . . . . .

Intake Manifold 4. . . . . . . . . . . . . . . . . . . . .

Ignition 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kit − Carburetor Overhaul 5. . . . . . . . . . . .

Lubrication 3. . . . . . . . . . . . . . . . . . . . . . . . .

Operator’s Manual 2. . . . . . . . . . . . . . . . . .

Piston, Rings, Connecting Rod 3. . . . . . .

Rewind Starter 7. . . . . . . . . . . . . . . . . . . . . .

Valves 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warning Label 2. . . . . . . . . . . . . . . . . . . . . .

FORM MS−5708−03/03/2008

FILE IN SECT. 2 OF SERVICE MANUAL

217900

PRINTED IN U.S.A.

All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.

COPYRIGHT by BRIGGS & STRATTON CORPORATION

217900

1058 OPERATOR’S MANUAL

1

2

3

1319 WARNING LABEL

REQUIRED when replacing parts
with warning labels affixed.

11

10

584

9

1264

1263

552

691

850

306

307

15

22

718

4

12

20

1024

965

943

1024A

4A

12

1017

20

415

1027

239

750

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−2 Assemblies include all parts shown in frames. 03/03/2008

2

217900

847

523

842

525

25

26

24

27

29

28

146

16

27

32

46

45

524

357

758

757

741

43

1270

759

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−3 Assemblies include all parts shown in frames. 03/03/2008

3

217900

13

45

1026

850

914

1023

635

383

1022

337

705

5

192

1029

14

1034

830

1022

883

50

51A

617

238

34

42

36

33

42

617

42

35

51

654

53

50B

617

7

51A

51

868

51

1095 VALVE GASKET SET

7

51

868

1022

54

186

358 ENGINE GASKET SET

3

12

7

20

51

524

9

51A

617

691

842

868

883

943

1022

1266

1266A

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−4 Assemblies include all parts shown in frames. 03/03/2008

4

217900

131

130

95

987

93

51

LMT / PART
NUMBER
LOCATIONS

975

137

142

133

105

104

106

141

127

98

634

692

108

231

94

1091

143

125A

131A

130A

95A

987A

51

133A

975A

141A

137A

634A

105A

104A

108A

117

118

98A

94A

1091

127A

135A

137A

276

950

121 CARBURETOR OVERHAUL KIT

51

93

95

977 CARBURETOR GASKET SET

51

104

105

106

127

137

WALBRO

137

142

276

276

634

987

1266

1266A

1127

121A CARBURETOR OVERHAUL KIT

137A137A137A137A

51

105A

51A

127A

617

137A137A137A137A

95A

104A

977A CARBURETOR GASKET SET

51

NIKKI

634A

987A

1266

1266A

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−5 Assemblies include all parts shown in frames. 03/03/2008

5

217900

1036 EMISSIONS LABEL

305A

305

304

431

1266

1266A

643

967

1040

1267

1040A

445

968

864

883

823

676

677

300A

883

613B

676A

677

81

613

300G

883

613A

81

613

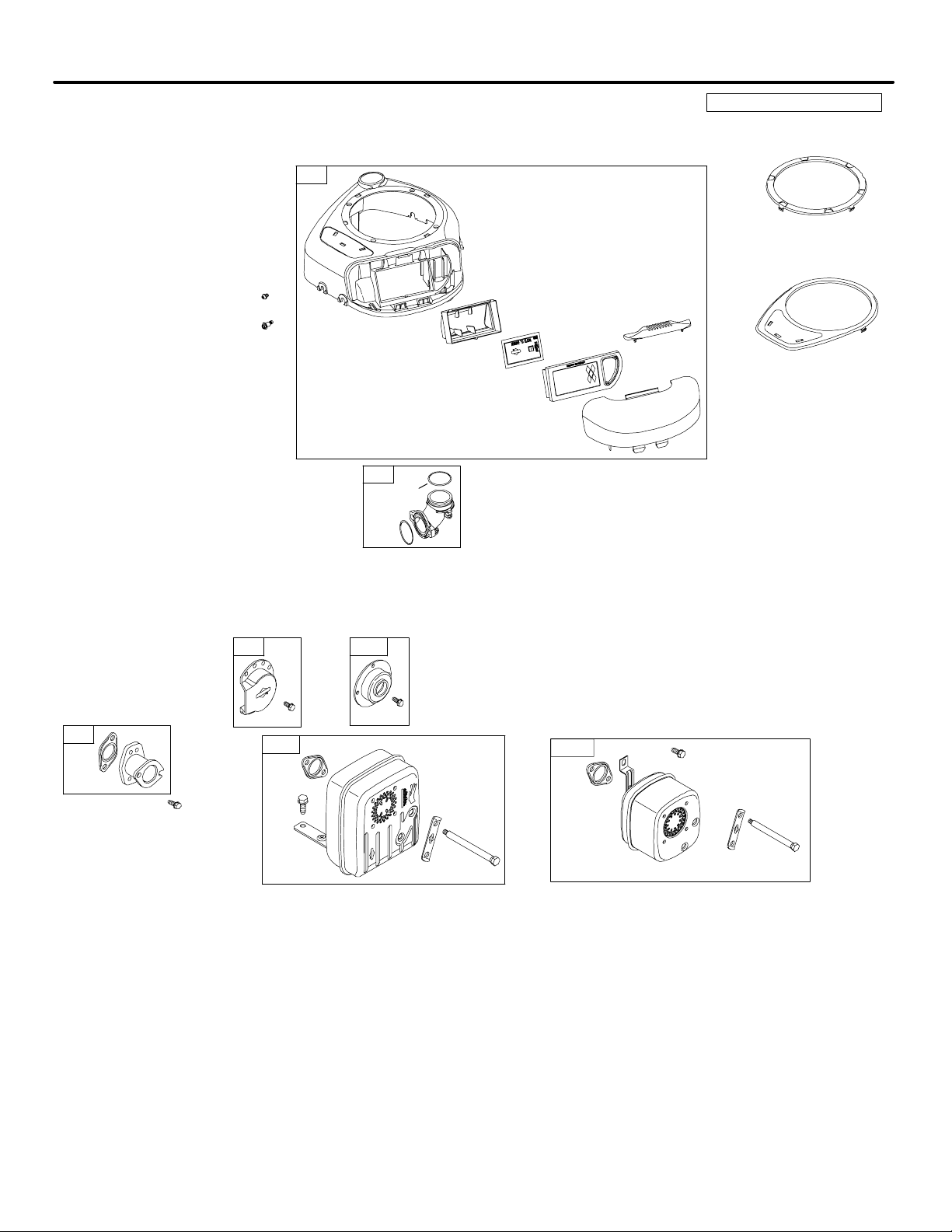

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−6 Assemblies include all parts shown in frames. 03/03/2008

6

73

217900

74

1005B

309

1051

510

1070

37A

801

544

363

729A

697

78A

1005A

23

23A

1044

455

1051

783

415A

73A

1070A

1005

608

65

55

58

57

60

783

513

579

803

1090

797

802

310

311

37

78

56

459

456

689

597

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−7 Assemblies include all parts shown in frames. 03/03/2008

7

217900

187

601

187B

187C

918

601

601

601

187A

958

601

527

601A

387

972

385

957

385A

387A

240

788

187B

240A

387A

385

601

521

1054

356

356A

356B

356C

729

269

268

616

271

404

270

614

216A

202

227

562

232

216

505

222

209

203

188

621

205

507

265

520

267

359

373

687

334

333

851

843

688

689A

1136

261

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−8 Assemblies include all parts shown in frames. 03/03/2008

8

217900

DUAL

CIRCUIT

474B 474C

877

NOTE: All stators use a No. mounting screw.
NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual
for additional information.

1059 1059

878

5 − 9 AMP

877B

526A

501A

1119

10 − 16 AMP

474D

877C

578578

526B

1059

501D

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−9 Assemblies include all parts shown in frames. 03/03/2008

9

217900

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697377 Cylinder Assembly
2 399265 Kit−Bushing/Seal

(Magneto Side)

3 K391086S Seal−Oil

(Magneto Side)

4 697106 Sump−Engine

4A 697188 Sump−Engine

Used on Type No(s).
0112, 0118, 0122.

5 792964 Head−Cylinder
7KΔ273280S Gasket−Cylinder Head
9 K697109 Gasket−Breather

(Used Before Code
Date 07071900).
(After Date Code Use
Liquid Sealant
Reference 850)

10 697157 Screw

(Breather Assembly)

11 794683 Tube−Breather

(Used After Code Date

07071800).

−−−−−− Note −−−−−−
697113 Tube−Breather

(Used Before Code
Date 07071900).

12 K697110 Gasket−Crankcase

(.015” Thick)
(Standard)

13 690360 Screw

(Cylinder Head)

14 790560 Stud

(Cylinder Head)

15 690946 Plug−Oil Drain

(3/8” Standard)

16 697390 Crankshaft
20 K791892 Seal−Oil

(PTO Side)

22 692125 Screw

(Crankcase
Cover/Sump)

23 698281 Flywheel

Used on Type No(s).
0025, 0028, 0112,
0118, 0128, 0133,

0135.

−−−−−− Note −−−−−−
698282 Flywheel

Used on Type No(s).

0122.
693557 Flywheel
Used on Type No(s).
0019, 0116, 0123.
693556 Flywheel
Used on Type No(s).
0125, 0140, 0141.

23A 693555 Flywheel

Used on Type No(s).
0015, 0020, 0117,
0119, 0124, 0127.

−−−−−− Note −−−−−−
698283 Flywheel

Used on Type No(s).
0016, 0134.

24 222698S Key−Flywheel
25 792305 Piston Assembly

(Standard)

−−−−−− Note −−−−−−
792728 Piston

Assembly
(.020” Oversize)

26 792306 Ring Set

(Standard)

−−−−−− Note −−−−−−
792643 Ring Set

(.020” Oversize)

27 698469 Lock−Piston Pin

(Used After Code Date

02100300).

−−−−−− Note −−−−−−
698138 Lock−Piston

Pin
(Used Before Code
Date 02100400).

28 697099 Pin−Piston
29 791633 Rod−Connecting

(Standard)

−−−−−− Note −−−−−−
697262 Rod−

Connecting
(.020” Undersize)
(Used Before Code
Date 05040400).

32 791118 Screw

(Connecting Rod)

33 791934 Valve−Exhaust

(Used After Code Date

06120300).

−−−−−− Note −−−−−−
695760 Valve−Exhaust

(Used Before Code
Date 06120400).

34 791935 Valve−Intake

(Used After Code Date

06120300).

−−−−−− Note −−−−−−
695761 Valve−Exhaust

(Used Before Code
Date 06120400).

35 691279 Spring−Valve

(Intake)

36 691279 Spring−Valve

(Exhaust)

37 697352 Guard−

37A 697626 Guard−Flywheel

(Electric Start)
Used on Type No(s).
0015, 0016, 0020,
0117, 0119, 0124,
0127, 0134.

42 499586 Keeper−Valve
43 691968 Slinger−Governor/Oil
45 690564 Tappet−Valve
46 793880 Camshaft
50 697361 Manifold−Intake

50B 795756 Manifold−Intake

Used on Type No(s).
0015G1, 0016G1,
0019G1, 0025G1.

51KΔD

z692137 Gasket−Intake

51AKΔDz791312 Gasket−Intake

Flywheel

K Included in Engine Gasket Set−Ref. No. 358.
D Included in Carburetor Overhaul Kit−Ref. No. 121 or 121A.

z Included in Carburetor Gasket Set−Ref. No. 977 or 977A.

Δ Included in Valve Gasket Set−Ref. No. 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−10 Assemblies include all parts shown in frames. 03/03/2008

10

217900

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

53 690227 Stud

(Carburetor)

54 691148 Screw

(Intake Manifold)

55 695130 Housing−Rewind

Starter

56 695129 Pulley−Starter
57 695131 Spring−Rewind Starter
58 695132 Rope−Starter

−−−−−− Note −−−−−−
790415 Rope−Starter

Used on Type No(s).

0117.

60 494212 Grip−Starter Rope
65 690759 Screw

(Rewind Starter)
(Used After Code Date

07040800).

−−−−−− Note −−−−−−
697725 Screw

(Rewind Starter)
(Used Before Code
Date 07040900).

73 697133 Screen−Rotating

(Used Before Code
Date 07040900).

73A 794437 Screen−Rotating

(Used After Code Date

07040800).

74 697897 Screw

(Rotating Screen)
(Used Before Code
Date 07040900).

78 691003 Screw

(Flywheel Guard)

78A 690364 Screw

(Flywheel Guard)
Used on Type No(s).
0015, 0016, 0020,
0117, 0119, 0124,
0127, 0134.

81 691178 Lock−Muffler Screw
93 D690602 Bushing−Throttle Shaft
94 498030 Kit−Idle Mixture

(Walbro)

94A 695425 Kit−Idle Mixture

(Nikki)

95 D691636 Screw

(Throttle Valve)
(Walbro)

95A D690718 Screw

(Throttle Valve)(Nikki)

98 495800 Kit

98A 695408 Kit−Idle Speed

104 D690525 Pin−Float Hinge

104A D694918 Pin−Float Hinge

105 D231855S Valve−Float Needle

105A D696136 Valve−Float Needle

106 D690577 Seat−Inlet

108 691227 Valve−Choke

108A 698773 Valve−Choke

117 D794352 Jet−Main

118 791405 Jet−Main

121 790031 Kit−Carburetor

121A 698787 Kit−Carburetor

125A 794653 Carburetor

127 D694524 Plug−Welch

127A D690727 Plug−Welch

−Idle Speed

(Walbro)

(Nikki)

(Walbro)

(Nikki)

(Walbro)

(Nikki)

(Walbro)(Gravity Feed)

−−−−−− Note −−−−−−

D691780 Seat−Inlet
(Walbro)(Pump Feed)

(Walbro)

(Nikki)

(Standard)

(High Altitude)

Overhaul
(Walbro)

Overhaul
(Nikki)

(Nikki)(Gravity Feed)
Used on Type No(s).
0015, 0016, 0019,
0025, 0118, 0119,
0133, 0140, 0141.

−−−−−− Note −−−−−−
791266 Carburetor

(Nikki)(Pump Feed)
Used on Type No(s).
0020, 0028, 0112,
0116, 0117, 0122,
0123, 0124, 0125,
0127, 0128, 0134,

0135.

(Walbro)

(Nikki)

130 790024 Valve−Throttle

(Walbro)

130A 698774 Valve−Throttle

(Nikki)

131 790901 Kit−Throttle Shaft

(Walbro)

131A 698776 Kit−Throttle Shaft

(Nikki)

133 494381 Float−Carburetor

(Walbro)

133A 694914 Float−Carburetor

(Nikki)

135A 698780 Tube−Fuel Transfer

(Nikki)(Gravity Feed)

−−−−−− Note −−−−−−
792022 Tube−Fuel

Transfer
(Nikki)(Pump Feed)

z281165s Gasket−Float Bowl

137D

(Walbro)

137A D

141A 698778 Kit−Choke Shaft

187A 791806 Line−Fuel

187B 791766 Line−Fuel

187C 791745 Line−Fuel

z698781 Gasket−Float Bowl

(Nikki)

141 790902 Kit−Choke Shaft

(Walbro)

(Nikki)

142 D790025 Nozzle−Carburetor

(Standard)(Walbro)

143 790028 Nozzle−Carburetor

(High Altitude)(Walbro)

146 691639 Key−Timing
186 794873 Connector−Hose
187 791805 Line−Fuel

(Formed)(10−1/4
Inches Long)(Cut to
Required Length)

(Formed)(21 Inches
Long)(Cut To Required
Length)

(15 Inches Long)(Cut
To Required Length)

(23 Inches Long)(Cut
To Required Length)

188 691693 Screw

(Control Bracket)

192 691986 Adjuster−Rocker Arm
202 691841 Link−Mechanical

Governor

K Included in Engine Gasket Set−Ref. No. 358.
D Included in Carburetor Overhaul Kit−Ref. No. 121 or 121A.

z Included in Carburetor Gasket Set−Ref. No. 977 or 977A.

Δ Included in Valve Gasket Set−Ref. No. 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−11 Assemblies include all parts shown in frames. 03/03/2008

11

217900

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

203 691381 Crank−Bell

Used on Type No(s).
0028, 0116, 0117.

205 691693 Screw

(Bell Crank)
Used on Type No(s).
0028, 0116, 0117.

209 792813 Spring−Governor

Used on Type No(s).
0015, 0016, 0019,
0020, 0025, 0028,
0112, 0117, 0118,
0122, 0123, 0124,
0125, 0127, 0128,
0133, 0134, 0135,
0140, 0141.

−−−−−− Note −−−−−−
792602 Spring−

Governor
Used on Type No(s).

0116.
691795 Spring−
Governor
Used on Type No(s).

0119.

216 691840 Link−Choke

216A 691281 Link−Choke

Used on Type No(s).
0028, 0116, 0117.

222 694042 Bracket−Control
227 691374 Lever−Governor

Control

231 691636 Screw

(Choke Valve)

232 691842 Spring−Governor Link
238 691843 Cap−Valve
239 491657S Switch−Oil Pressure

Used on Type No(s).

0122.

240 394358s Filter−Fuel

(White, 75 Microns)
Used on Type No(s).
0015, 0016, 0019,
0025, 0118, 0119,
0133, 0140, 0141.

240A 691035 Filter−Fuel

(Includes Paper
Element With A 40
Micron Rating)
Used on Type No(s).
0020, 0028, 0112,
0116, 0117, 0122,
0123, 0124, 0125,
0127, 0128, 0134,

0135.

261 697176 Screw

(Control Slide)
Used on Type No(s).

0134.

265 691024 Clamp−Casing
267 794904 Screw

(Casing Clamp)

268 691025 Casing−Control Wire

(Cut To Required
Length)

269 691026 Wire−Control

(Cut To Required
Length)

270 691027 Nut

(Control Wire Casing)

271 691028
276 D

z692255 Washer−Sealing

300A 697349 Muffler

300G 697048 Muffler

304 698473 Housing−Blower

305 697102 Screw

305A 697103 Screw

306 697359 Shield−Cylinder
307 691003 Screw

309 693551 Motor−Starter

310 690323 Screw

311 497608 Brush Set
333 795315 Armature−Magneto

Lever−Control

Used on Type No(s).
0116, 0117, 0119,

0122.

Used on Type No(s).
0015, 0016, 0019,
0020, 0025, 0028,
0112, 0118, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

(Black)

−−−−−− Note −−−−−−
699085 Housing−

Blower
(Red)

(Blower Housing)

(Blower Housing)

(Cylinder Shield)

Used on Type No(s).
0019, 0025, 0028,
0112, 0116, 0118,
0122, 0123, 0125,
0128, 0133, 0135,
0140, 0141.

(Starter Motor)

334 691061 Screw

(Magneto Armature)

337 491055S Plug−Spark

−−−−−− Note −−−−−−
691043 Plug−Spark

Used on Type No(s).
0112, 0116, 0117,
0118, 0119.

356 697397 Wire−Stop

Used on Type No(s).
0015, 0016, 0019,
0020, 0025, 0028,
0112, 0118, 0119.

356A 398808 Wire−Stop

Used on Type No(s).
0116, 0117, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

356B 697089 Wire−Stop

Used on Type No(s).
0122, 0125, 0140,

0141.

356C 399222 Wire−Stop

Used on Type No(s).

0134.

357 691483 Key−Drive Pulley

Used on Type No(s).

0119.

358 697151 Gasket Set−Engine
359 691077 Washer

(Ground Terminal)
Used on Type No(s).
0116, 0117, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

363 19203 Puller−Flywheel
373 691612 Nut

(Ground Terminal)
Used on Type No(s).
0116, 0117, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

383 89838S Wrench−Spark Plug

K Included in Engine Gasket Set−Ref. No. 358.
D Included in Carburetor Overhaul Kit−Ref. No. 121 or 121A.

z Included in Carburetor Gasket Set−Ref. No. 977 or 977A.

Δ Included in Valve Gasket Set−Ref. No. 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−12 Assemblies include all parts shown in frames. 03/03/2008

12

217900

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

385 694476 Screw

(Fuel Pump)
Used on Type No(s).
0112, 0122, 0123,
0124, 0125, 0127,
0128, 0134, 0135.

385A 690297 Screw

(Fuel Pump)
Used on Type No(s).
0020, 0028, 0112,
0116, 0117, 0119,
0122, 0123, 0124,
0125, 0127, 0128,
0134, 0135.

387 697090 Pump−Fuel

(Includes Mounting
Bracket)
Used on Type No(s).
0112, 0122, 0123,
0124, 0125, 0127,
0128, 0134, 0135.

387A 808656 Pump−Fuel

Used on Type No(s).
0020, 0028, 0112,
0116, 0117, 0122,
0123, 0124, 0125,
0127, 0128, 0134,

0135.

404 691691 Washer

(Governor Crank)

415 690283 Plug

(Sump)
Used on Type No(s).
0112, 0118.

415A 794129 Plug

(Cover/Retainer)
(Used After Code Date

07040800).

431 697122 Elbow−Intake
445 698413 Filter−Air Cleaner

Cartridge
(Non Washable)

455 695113 Cup−Flywheel

Used on Type No(s).
0015, 0016, 0019,
0020, 0116, 0117,
0119, 0123, 0124,
0125, 0127, 0134,

0135.

456 695128 Plate−Pawl Friction
459 281505S Pawl−Ratchet

474B 696459 Alternator

(Dual Circuit)
Used on Type No(s).
0019, 0025, 0028,
0112, 0116, 0118,
0123, 0128, 0133,

0135.

474C 696457 Alternator

(5 To 9 Amp
Regulated)
Used on Type No(s).
0125, 0140, 0141.

474D 696458 Alternator

(10 To 16 Amp
Regulated)
Used on Type No(s).

0122.

501A 691188 Regulator

Used on Type No(s).
0125, 0140, 0141.

501D 691185 Regulator

Used on Type No(s).

0122.

505 691251 Nut

(Governor Control
Lever)

507 691972 Insulator

Used on Type No(s).
0116, 0117, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

510 693699 Drive−Starter
513 692024 Clutch−Drive
520 691084 Terminal−Ground

Used on Type No(s).
0116, 0117, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

521 690581 Shield−Cable

Used on Type No(s).
0112, 0118.

523 699908 Dipstick
524 K691032 Seal−Dipstick Tube

525 697085 Tube−Dipstick

Used on Type No(s).
0020, 0028, 0112,
0116, 0117, 0122,
0123, 0124, 0125,
0127, 0128, 0134,

0135.

−−−−−− Note −−−−−−
697184 Tube−Dipstick

Used on Type No(s).
0015, 0016, 0019,
0025, 0118, 0119,
0133, 0140, 0141.

526A 697088 Screw

(Regulator)
Used on Type No(s).
0125, 0140, 0141.

526B 697348 Screw

(Regulator)

527 792167 Clamp−Tube

Used on Type No(s).
0020, 0028, 0116,
0117, 0123, 0124,
0125, 0127, 0128,
0134, 0135.

544 692034 Armature−Starter
552 697144 Bushing−Governor

Crank

562 691119 Bolt

(Governor Control
Lever)

578 692306 Wire Assembly

Used on Type No(s).
0122, 0125.

579 691029 Nut

(Starter Cable)

584 794682 Cover−Breather

Passage
(Used After Code Date

07071800).
(Use With Liquid
Sealant Reference

850)

−−−−−− Note −−−−−−
697112 Cover−

Breather Passage
(Used Before Code
Date 07071900).

K Included in Engine Gasket Set−Ref. No. 358.
D Included in Carburetor Overhaul Kit−Ref. No. 121 or 121A.

z Included in Carburetor Gasket Set−Ref. No. 977 or 977A.

Δ Included in Valve Gasket Set−Ref. No. 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−13 Assemblies include all parts shown in frames. 03/03/2008

13

217900

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

597 691696 Screw

(Pawl Friction Plate)

601 791850 Clamp−Hose

(Zinc Plate)(Spring
Wire)

601A 691038 Clamp−Hose

(Black)(Spring Steel)

608 695058 Starter−Rewind

Used on Type No(s).
0015, 0016, 0019,
0020, 0116, 0119,
0123, 0124, 0125,
0127, 0134, 0135.

−−−−−− Note −−−−−−
790416 Starter−

Rewind
Used on Type No(s).

0117.

613 691416 Screw

(Muffler)

613A 691678 Screw

(Muffler)

613B 690297 Screw

(Muffler)

614 691620 Pin−Cotter
616 692012 Crank−Governor
617 KD692138 Seal−O Ring

(Intake Manifold)

621 692310 Switch−Stop

Used on Type No(s).
0116, 0117, 0123,
0124, 0125, 0127,
0128, 0133, 0134,
0135, 0140, 0141.

634 D690802 Spring/Seal Assembly

(Walbro)

634A D698779 Spring/Seal Assembly

(Nikki)

635 691909 Boot−Spark Plug
643 697155 Retainer−Air Filter
654 690958 Nut

(Carburetor)

676 393761 Deflector−Muffler

(Side Out)
Used on Type No(s).
0015, 0016, 0019,
0020, 0025, 0028,
0116, 0117, 0118,
0122, 0123, 0124,
0125, 0127, 0128,
0133, 0134, 0135,
0140, 0141.

676A 396903 Deflector−Muffler

(Direct Out)
Used on Type No(s).

0112.

677 690661 Screw

(Muffler Deflector)

687 697175 Slide−Control

Used on Type No(s).

0134.

688 690395 Cap−Friction

Used on Type No(s).

0134.

689 691855 Spring−Friction

689A 690529 Spring−Friction

Used on Type No(s).

0134.

691 K692407 Seal−Governor Shaft
692 691301 Spring−Detent

Used on Type No(s).
0112, 0116, 0117.

697 690372 Screw

(Drive Cap)

705 790561 Nut

(Fuel Tank)

718 690959 Pin−Locating
729 691335 Clip−Wire

(Wire Retainer)

729A 691224 Clip−Wire

(Starter Motor)

741 697128 Gear−Timing
750 790832 Screw

(Oil Pump Cover)

757 697607 Link−Counterweight
758 697391 Counterweight
759 697392 Pin−Counterweight
783 693713 Gear−Pinion
788 699347 Bracket−Fuel Pump

Used on Type No(s).
0020, 0028, 0116,

0117.

797 693167 Nut

(Brush Retainer)

801 691283 Cap−Drive
802 691286 Cap−End
803 Housing−Starter

(Not Serviced
Separately, Order
Starter Motor 693551)

823 698941 Screw

(Muffler Adapter)

830 691095 Stud−Rocker Arm
842

K691031 Seal−O Ring

(Dipstick Tube)

843 697158 Sleeve−Lever

Used on Type No(s).

0134.

847 790443 Dipstick/Tube

Assembly
Used on Type No(s).
0020, 0028, 0112,
0116, 0117, 0122,
0123, 0124, 0125,
0127, 0128, 0134,

0135.

−−−−−− Note −−−−−−
790442 Dipstick/Tube

Assembly
Used on Type No(s).
0015, 0016, 0019,
0025, 0118, 0119,
0133, 0140, 0141.

850 100100 Sealant−Liquid

(Rocker Cover Gasket
and Breather Gasket)
(Used After Code Date

07071800).

851 692424 Terminal−Spark Plug
864 697346 Adapter−Muffler

Used on Type No(s).
0015, 0016, 0019,
0020, 0025, 0028,
0112, 0116, 0117,
0118, 0119, 0122,
0123, 0124, 0125,
0127, 0128, 0133,
0134, 0135, 0140,

0141.

868 KΔ690968 Seal−Valve
877 393456 Wire/Connector−

Alternator
(Dual Circuit)

877B 393537 Wire/Connector−

Alternator
(5 To 9 Amp
Regulated)

877C 399916 Wire/Connector−

Alternator
(10 To 16 Amp
Regulated)

878 398661 Harness−Alternator

(Dual Circuit)

883 K692236 Gasket−Exhaust
914 691108 Screw

(Rocker Cover)

918 791851 Hose−Vacuum
943 K690589 Seal−O Ring

(Oil Pump Cover)

K Included in Engine Gasket Set−Ref. No. 358.
D Included in Carburetor Overhaul Kit−Ref. No. 121 or 121A.

z Included in Carburetor Gasket Set−Ref. No. 977 or 977A.

Δ Included in Valve Gasket Set−Ref. No. 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−14 Assemblies include all parts shown in frames. 03/03/2008

14

217900

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

950 691657 Screw−Float Bowl

(Bottom Of Bowl)

957 792647 Cap−Fuel Tank

(Plastic)

958 698183 Valve−Fuel Shut Off

(Plastic)
Used on Type No(s).
0112, 0118, 0119,
0123, 0124, 0125,
0127, 0128, 0134,

0135.

965 499613 Cover−Oil Pump
967 697292 Filter−Pre Cleaner
968 697420 Cover−Air Cleaner

(Black)

−−−−−− Note −−−−−−
697422 Cover−Air

Cleaner
(Red)

972 792168 Tank−Fuel

(Plastic)
Used on Type No(s).
0020, 0028, 0116,
0117, 0123, 0124,
0125, 0127, 0128,
0134, 0135.

975 495933 Bowl−Float

(Walbro)

975A 698783 Bowl−Float

(Nikki)

977 690192 Gasket Set−Carburetor

(Walbro)

977A 790032 Gasket Set−Carburetor

(Nikki)

987 D691326 Seal−Throttle Shaft

(Walbro)

987A D698777 Seal−Throttle Shaft

(Nikki)

1005 794439 Fan−Flywheel

(Used After Code Date

07040800).

1005A 794440 Fan−Flywheel

(Used Before Code
Date 07040900).

1005B Fan−Flywheel

(No Longer Available)
(See Reference1005A
For Service Flywheel
Fan).

1017 690770 Screen−Oil Pump
1022K

Δ272475S Gasket−Rocker Cover

(Used Before Code
Date 07091000).
(After Date Code Use
liquid Sealant
Reference 850)

1023 791079 Cover−Rocker
1024 499054 Pump−Oil

(Used Before Code
Date 07051700).

1024A 794644 Pump−Oil

(Used After Code Date

07051600).

1026 697395 Rod−Push

(Exhaust)

−−−−−− Note −−−−−−
697394 Rod−Push

(Intake)

1027 492932S Filter−Oil
1029 691751 Arm−Rocker
1034 690822 Guide−Push Rod
1036 Label−Emissions

(Available From A
Briggs & Stratton
Authorized Dealer)

1040 698368 Plate−Trim

Used on Type No(s).
0112, 0118.

1040A 697381 Plate−Trim

Used on Type No(s).
0025, 0028, 0122,
0128, 0133, 0140,

0141.

1044 698139 Screw

(Flywheel)

1051 691265 Ring−Retaining
1054 280275 Tie−Cable

1058 276344 Manual−Operator’s

−−−−−− Note −−−−−−
MS3787 Manual−

Operator’s
Used on Type No(s).
0121, 0133, 0140.
MS3788 Manual−
Operator’s
Used on Type No(s).
0020, 0116, 0117,
0118, 0119, 0123,
0124, 0125, 0128.

1059 698516 Kit−Screw/Washer
1070 690372 Screw

(Flywheel Fan)
(Used Before Code
Date 07040900).

1070A 690363 Screw

(Flywheel Fan)
(Used After Code Date

07040800).

1090 691293 Retainer−Brush
1091 691333 Cap−Limiter
1095 691581 Gasket Set−Valve

1119 691183 Screw

(Alternator)

1127 695407 Screw

(Float Bowl)(Nikki)

1136 690278 Screw

(Control Bracket)

1263 697124 Reed−Breather
1264 697104 Screw

(Breather Reed)

1266 KD691917 Seal−O Ring

(Intake Elbow)

1266A KD697123 Seal−O Ring

(Intake Elbow)

1267 697419 Latch−Blower Housing

(Black)

−−−−−− Note −−−−−−
697424 Latch−Blower

Housing
(Red)

1270 697156 Plug−AV S

Counterweight

1319 794467 Label−Warning

K Included in Engine Gasket Set−Ref. No. 358.
D Included in Carburetor Overhaul Kit−Ref. No. 121 or 121A.

z Included in Carburetor Gasket Set−Ref. No. 977 or 977A.

Δ Included in Valve Gasket Set−Ref. No. 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5708−15 Assemblies include all parts shown in frames. 03/03/2008

15
