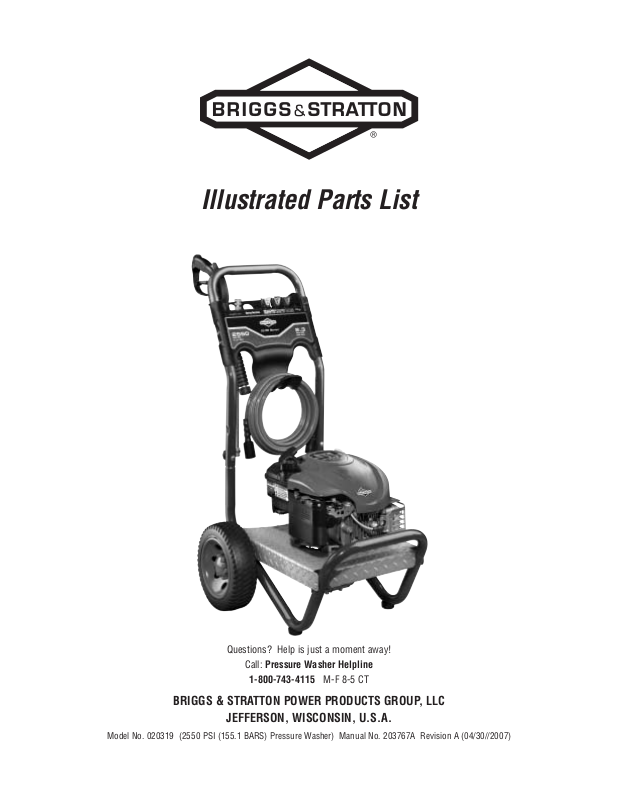

Briggs & Stratton 20319 User Manual

Model No. 020319 (2550 PSI (155.1 BARS) Pressure Washer) Manual No. 203767A Revision A (04/30//2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2 BRIGGSandSTRATTON.COM

Exploded View and Parts List — Main Unit

Item Part # Description

1 202791GS ASSY, Base
2 Y199110GS HANDLE
3 203075GS ASSY, Billboard w/Decals & Clips

195964GS Clip

30809GS Grommet
4 192529GS KIT, Pump Mounting Hardware
5 202605GS ASSY, Pump

23139GS Key

194298GS Valve, Thermal Relief
6 202483GS KIT, Wheel

201313GS Axle

200520GS CAP, Hub

192050GS E-Ring
7 202017GS HOSE
8 202181GS KIT, Nozzle

201580RGS Nozzle, Project Pro, Yellow

201580XGS Nozzle, Project Pro, Orange

201580AEGS Nozzle, Project Pro, Red

198841GS Nozzle, Plastic, Soap
9 193482GS GUN

10 200595GS EXTENSION, QC
11 B2203GS KIT, Handle Connector
12 192310GS KIT, Vibration Mount

900 § ENGINE

Items Not Illustrated:

203767GS MANUAL, Operator’s
BB3061BGS OIL BOTTLE
87815GS GOGGLES
275034 LABLE, Warning
793943 COVER, Static/Label Assy
202502GS DECAL, Eng, Shroud
194256GS KIT, Tag Warning

Optional Accessories

6039 PUMP SAVER
6048 KIT, O-Ring Maintenance

§ - Contact Engine Manufacturer
