Model No. 020305 (2200 PSI (151.7 BARS) Pressure Washer) Manual No. 203786A Revision C (05/30/2007)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Questions? Help is just a moment away!
Call: Pressure Washer Helpline
1-800-743-4115 M-F 8-5 CT
Illustrated Parts List
Page 2
2 BRIGGSandSTRATTON.COM
Exploded View and Parts List — Main Unit
tem Part # Description
1 202481GS ASSY, Base
2 J199110GS HANDLE
3 202482GS KIT, Bllbrd Assy w/Decals & Clips
195964GS Clips, Tree
30809GS Grommet
4 192649GS KIT, Pump Mounting Hardware
5 200200GS ASSY, Pump
194298GS Valve, Thermal Relief
23139GS Key
6 202483GS KIT, Wheel
201313GS Axle
200520GS Hubcap
192050GS E-Ring
7 202017GS HOSE
8 202181GS KIT, Nozzles
198841GS Nozzle, Soap
201580AEGS Nozzle, QC, Project Pro, Red
201580XGS Nozzle, QC, Project Pro, Orange
201580RGS Nozzle, QC, Project Pro, Yellow
9 B2203GS KIT, Handle Connector
10 193482GS GUN
11 200595GS EXTENSION
12 192310GS KIT, Vibration Mount
900 § ENGINE
IItems Not Illustrated:
203786 MANUAL, Operator’s
195015GS KIT, Tag/Warning Srv
BB3061BGS OIL BOTTLE
200672GS DECAL, Warning, Hearing
202243GS DECAL, Shroud
793973 ASSY, Shroud/Label
794693 LABEL, Warning
87815GS GOGGLES
Optional Accessories
6048 KIT, O-Ring Maintenance
6039 PUMP SAVER
§ - Contact Engine Manufacturer
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Page 3
3

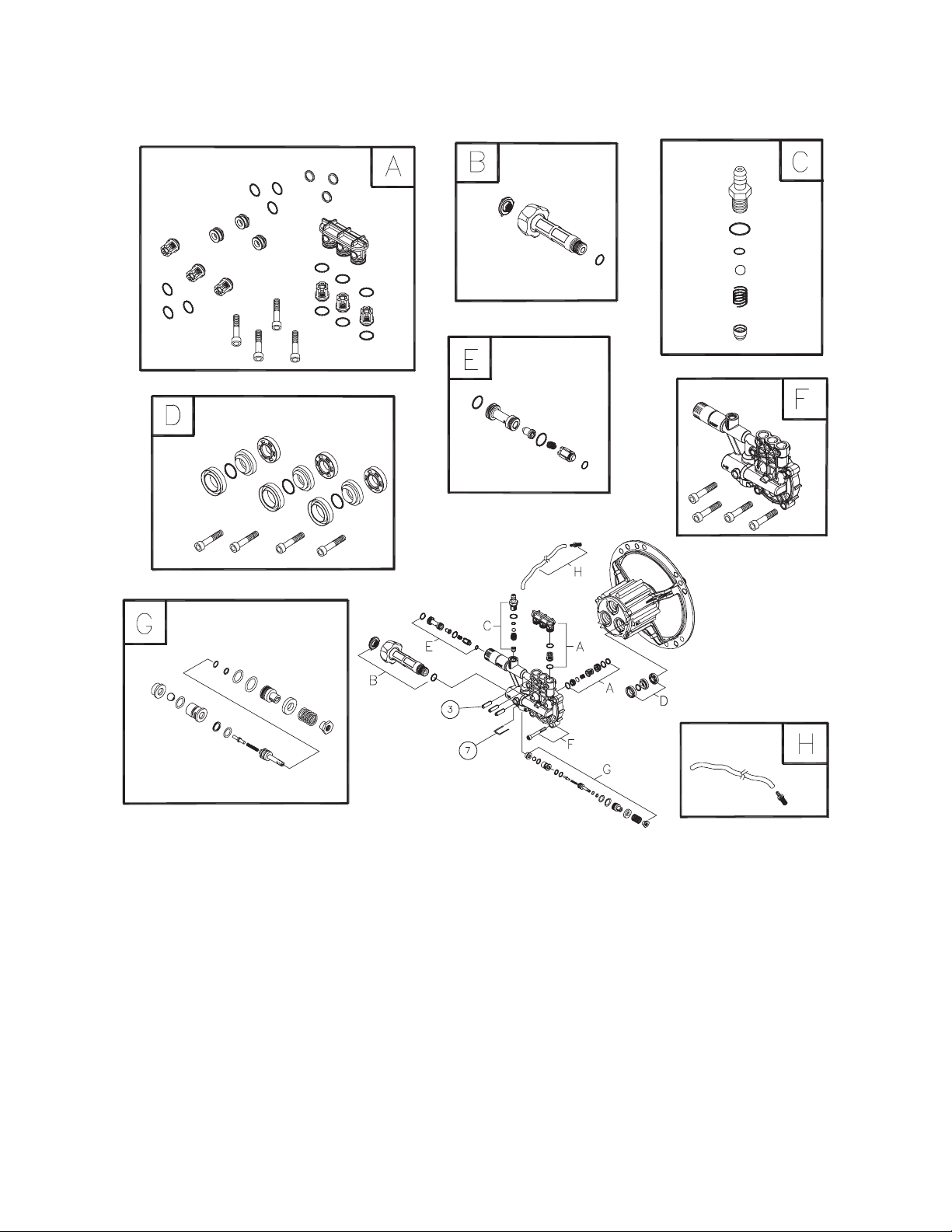

Exploded View and Parts List — Pump
IItem Part # Description
3 200274GS PLUG, Elastic
7 190578GS PIN
A 200298GS KIT, CHECK VALVES
B 200278GS KIT, WATER INLET
C 200279GS KIT, CHEMICAL INJECTION
D 200280GS KIT, HIGH PRESSURE SEALS
E 200281GS KIT. CHEM INJECT VENTURI
F 200282GS KIT, PUMP HEAD, ALUM
G 200283GS KIT, BY-PASS
H 189971GS KIT, CHEMICAL HOSE
Parts Not Illustrated
B2384GS FILTER, Inlet
NOTE: Item letters A - H are service kits and include all
parts shown within the box.
