Briggs & Stratton 20273 User Manual
Manual No. 205755A Revision A (02/25/2008)

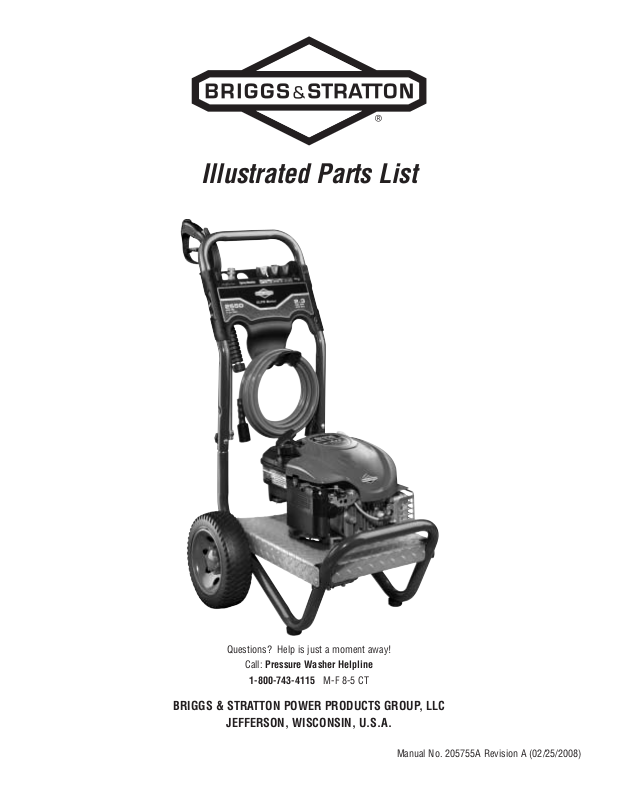

Illustrated Parts List
Questions? Help is just a moment away!
Call: Pressure Washer Helpline
1-800-743-4115 M-F 8-5 CT
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
EXPLODED VIEW AND PARTS LIST — MAIN UNIT
Item Part # Description
1 202791GS BASE, w/Mounts
2 Y199110GS HANDLE
3 203075GS ASSY, Billboard w/Decals & Clips
195964GS Clip
30809GS Grommet
4 202605GS ASSY, Pump
5 189971GS Kit, Chemical Hose
6 190593GS Kit, Chemical Injection
7 23139GS Key
8 194298GS Valve, Thermal Relief
9 190632GS Kit, Water Inlet
10 190634GS Kit, Outlet
11 B2384GS Filter
12 192529GS KIT, Pump Mounting Hardware
13 192310GS KIT, Vibration Mount
14 202181GS KIT, Nozzle
201580RGS Nozzle, Project Pro, Yellow
201580XGS Nozzle, Project Pro, Orange
201580AEGS Nozzle, Project Pro, Red
198841GS Nozzle, Plastic, Soap
15 202017GS HOSE
Item Part # Description
16 204627GS GUN
17 200595GS EXTENSION, QC
18 B2203GS KIT, Handle Connector
19 202483GS KIT, Wheel
201313GS Axle
200520GS Hubcap
192050GS E-Ring
900 § ENGINE
Parts Not Illustrated
205755GS MANUAL, Operator’s
BB3061BGS OIL BOTTLE
87815GS GOGGLES
794693 LABLE, Warning
793943 COVER, Static/Label Assy
202502GS DECAL, Eng, Shroud
194256GS KIT, Tag Warning
Optional Accessories
6039 PUMP SAVER
6048 KIT, O-Ring Maintenance
Exploded Views and Parts List
Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
2 BRIGGSandSTRATTON.COM
