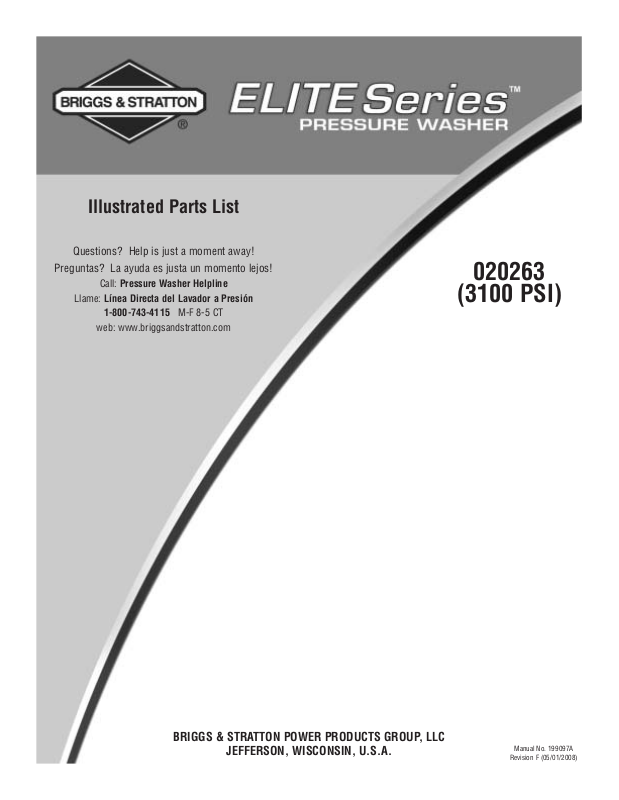

Briggs & Stratton 20263 User Manual

Illustrated Parts List

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Pressure Washer Helpline

Llame: Línea Directa del Lavador a Presión

1-800-743-4115 M-F 8-5 CT

web: www.briggsandstratton.com

020263

(3100 PSI)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Manual No. 199097A

Revision F (05/01/2008)

2

EXPLODED VIEW AND PARTS LIST

Item Part # Description

1 195951GS BASE, w/Mounts
2 203714GS HANDLE, w/Wireform
3 196721GS KIT, Billboard/Decals, w/Clips

195964GS Clip, Tree

30809GS Grommet
4 196843GS KIT, Cap Chemical
5 198347GS ASSY, Pump
6 190670GS Kit, Water Inlet
7 B2384GS Filter, Inlet
8 189971GS Kit, Chemical Hose
9 190593GS Kit, Chemical Injection

10 23139DGS Key
11 194298GS Valve, Thermal Relief
12 197968GS KIT, Chemical Hoses
13 192131GS KIT, Pump Mounting Hardware
14 185877GS HOSE
15 * HHCS, M8 - 1.25 x 40
16 * WASHER, M8 Flat
17 * NUT, M8 Lock
18 B2203GS KIT, Handle Connector
19 195190GS ASSY, Chemical Tank

192980GS Kit, Valve

20 197082GS KIT, Wheel

191265GS E-Ring

191267MGS Axle

21 192128GS KIT, Hook
22 195889GS KIT, Nozzle

198841GS Nozzle, Plastic, Soap

Item Part # Description

195842AAGS Nozzle, QC, Project Pro, Red
195842XGS Nozzle, QC, Project Pro, Orange

195842RGS Nozzle, QC, Project Pro, Yellow
23 192310GS KIT, Vibration Mount
24 196206GS GUN
25 200595GS EXTENSION, QC

900 § ENGINE

Items Not Illustrated:

199097GS MANUAL, Operator’s

MS3430 MANUAL, Engine

199409GS DECAL, Air Cleaner

196740GS DECAL, Tank Fuel

196741GS DECAL, Recoil

BB3061BGS OIL BOTTLE

87815GS GOGGLES

6048 KIT, O-Ring Maintenance

695755 KNOB, Throttle

194256GS KIT, Tag Warning, w/Clip

Optional Accessories Not Illustrated

6039 PUMP SAVER

§ - Contact Engine Manufacturer
* - Items without part numbers are common fasteners and

are available at local hardware stores.
