Briggs & Stratton 1971 User Manual

Illustrated Parts List
Las Partes ilustradas Listan

IPL No. 193449A

Revision 3 (08/25/2005)

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline - 1-800-743-4115 M-F 8-5 CT

Llamada: Generador Helpline - 1-800-743-4115 M-F 8-5 CT

web: www.briggsandtratton.com

01971

(5250W)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

5250 Watt Portable Generators

2

EXPLODED VIEW - MAIN UNIT

5250 Watt Portable Generators

3

PARTS LIST - MAIN UNIT

Item Part # Description

1 B194759GS CRADLE
2 194150GS KIT,Vibration Mount, 45°
4 190220GS HOUSING, Engine Adapter
5 NSP ASSY,Alternator (see page 4)
6 194151GS KIT, Hardware Mounting Adapter
8 96796GS WASHER

9 22695GS HOUSING, Receptacle
10 * SBHCS, 3/8-16 x 1.0 Lg.
11 47480GS HHCS, 5/16-24 x 7
12 68759GS OUTLET, 120V, 20A
13 84198GS CAP, Circuit Breaker
16 * NUT, Pal, 3/16
17 43437GS OUTLET, 120/240V, 30A
19 * NUT, Pal, 5/32
20 B4986GS DECAL, Ground, Green
21 194153GS KIT,Vibration Mount
22 * PPPHS, 3.5 x 18mm
23 194154GS KIT, Grounding Hardware
25 191427GS ADAPTER PANEL
26 * SCREW, M5 - 2.24 x 50
30 191190GS CAP
31 191436GS DECAL, Hot Muffler
32 74908GS TAPTITE, M5-0.8 x 10
33 93857GS BAR, Retaining
34 194152GS ASSY, Panel Control
35 194265GS KIT, Fuel Hose w/ Clamps

Item Part # Description

37 75207GS BREAKER, Circuit, 20A
40 194398GS KIT, Fuel Tank Hardware
41 192980GS KIT,Valve, Fuel
44 194217GS ASSY,Tank, Fuel (Includes Items 41,

50, 51 & 52)
45 90878GS CAP, Fuel
48 186790EGS WIRE, Ground
50 188333GS DECAL, Gas Fill
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
54 194448GS KIT, Insulation w/ Clip
55 191435GS DECAL, Fuel Shut-off
60 193452GS SHIELD, Heat

900 § ENGINE

Parts Not Illustrated

193449GS MANUAL, Owners
MS6669 MANUAL, Engine
BB3061BGS BOTTLE,Oil
188971GS CORD, Ext.
193552GS KIT, Decal Service
189208GS FUEL STABILIZER

* - Items without part numbers are common fasteners and
are available at local hardware stores.

§ - Contact Engine Manufacturer

5250 Watt Portable Generators

4

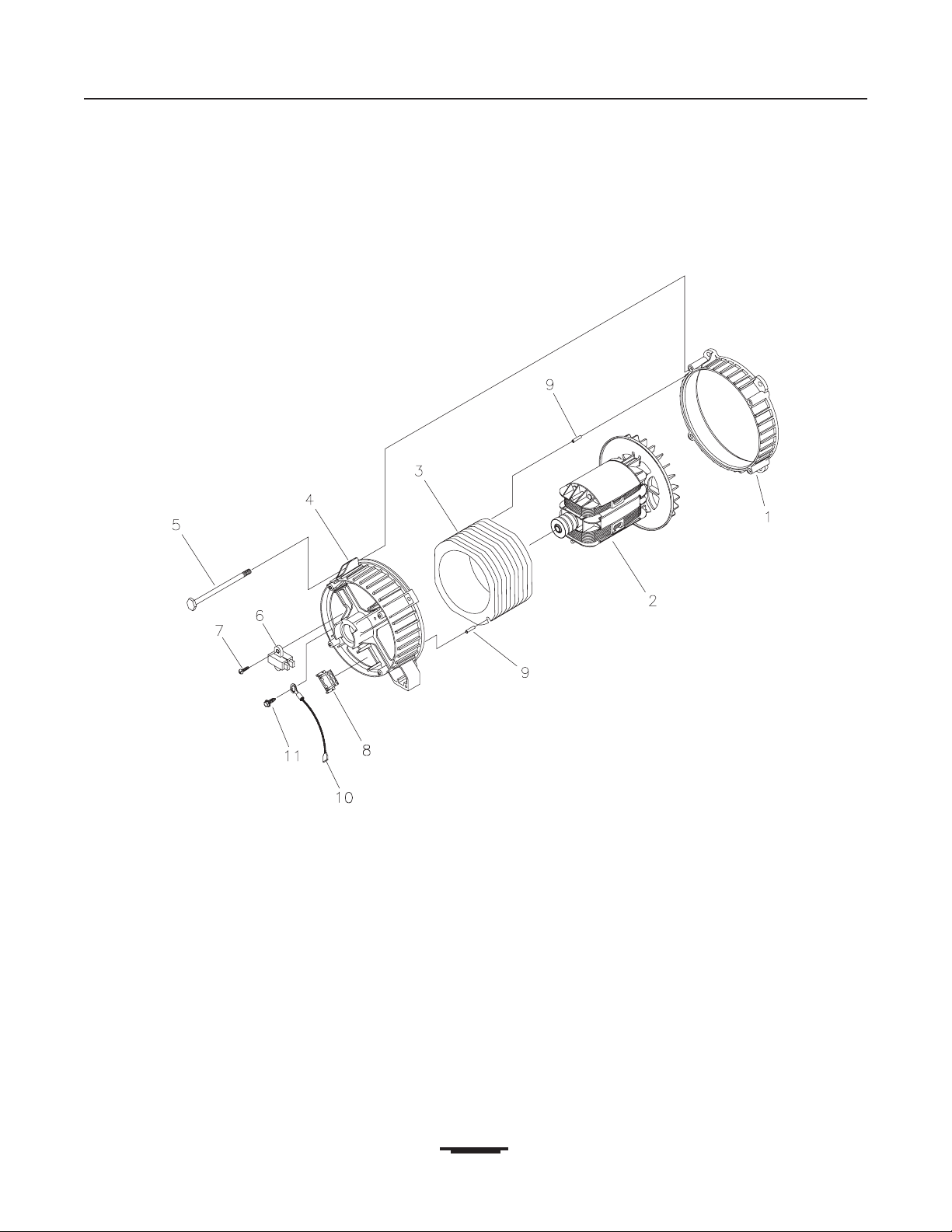

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator
2 193623GS ROTOR
3 191042AGS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308CGS SCREW
6 91825GS ASSY, Holder, Rectifier/Brush
7 66849GS SCREW
8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll
10 193428AGS ASSY,Wire, Ground
11 74908GS SCREW
