1732
OPERATOR’S
MANUAL
Signature Professional
Series Snowthrowers
1524 Models
Mfg. No. Description
1695303 P1524E, Snowthrower
1695304 P1524EX, Snowthrower (CE)
1628 Models
Mfg. No. Description
1695305 P1628E, Snowthrower
1695306 P1628EX, Snowthrower (CE)
1732 Models
Mfg. No. Description
1695307 P1732E, Snowthrower
1695308 P1732EX, Snowthrower (CE)
1738 Models
Mfg. No. Description
1695309 P1738E, Snowthrower
1695310 P1738EX, Snowthrower (CE)
1695358 P1738E, Snowthrower
1695359 P1738EX, Snowthrower (CE)
1734900
Revision 01
Rev. Date 8/2007
TP 100-4585-01-LW-SN
Table of Contents
1
CONTENTS:
Safety Rules & Information
General............................................................2
Training ............................................................4
Preparation ......................................................4
Operation.........................................................4
Children ...........................................................5
Clearing a Clogged Discharge Chute ..............5
Service, Maintenance and Storage .................5
Emissions ........................................................5
Decals..............................................................7

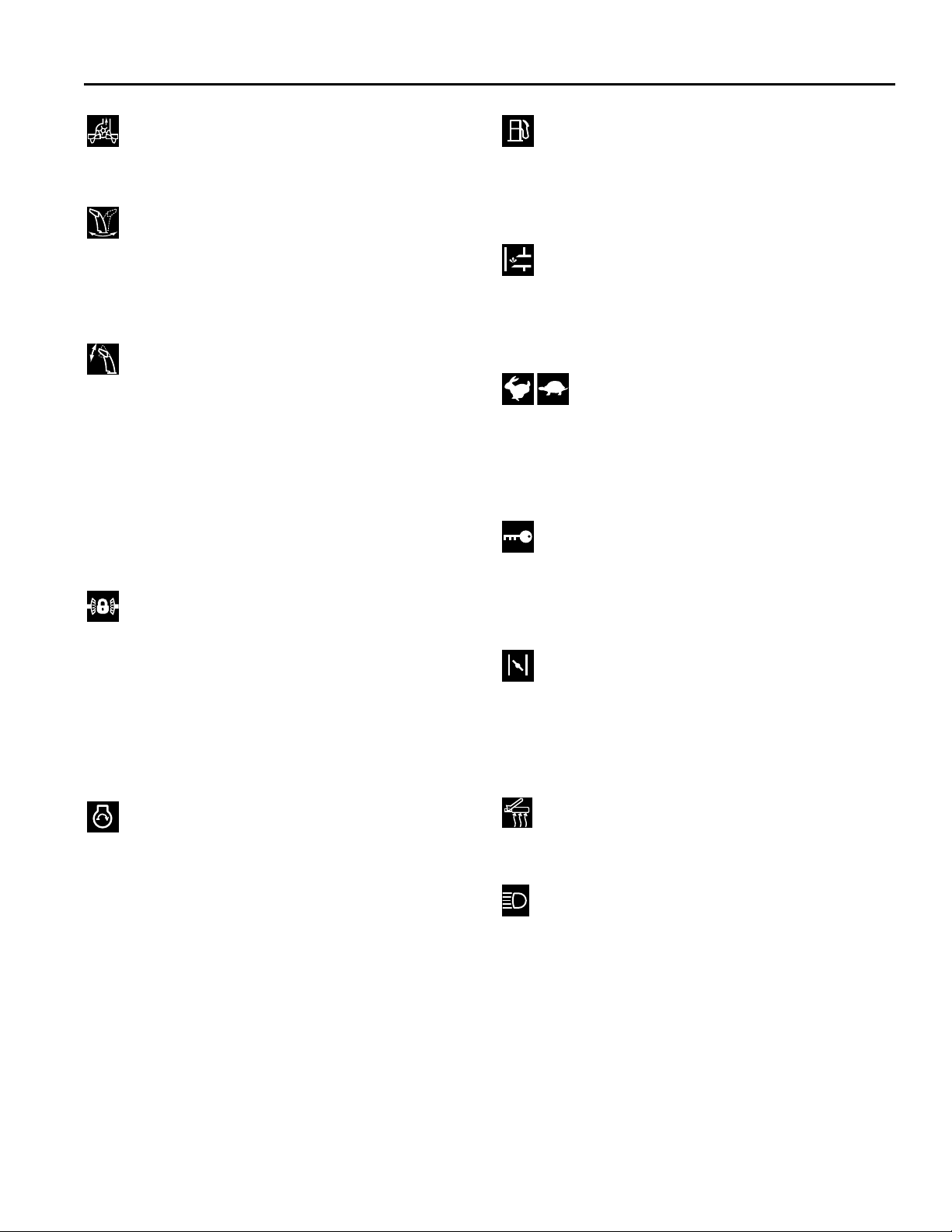

Safety Icons.....................................................8
Identification Numbers........................................9
Features, Controls & Operation

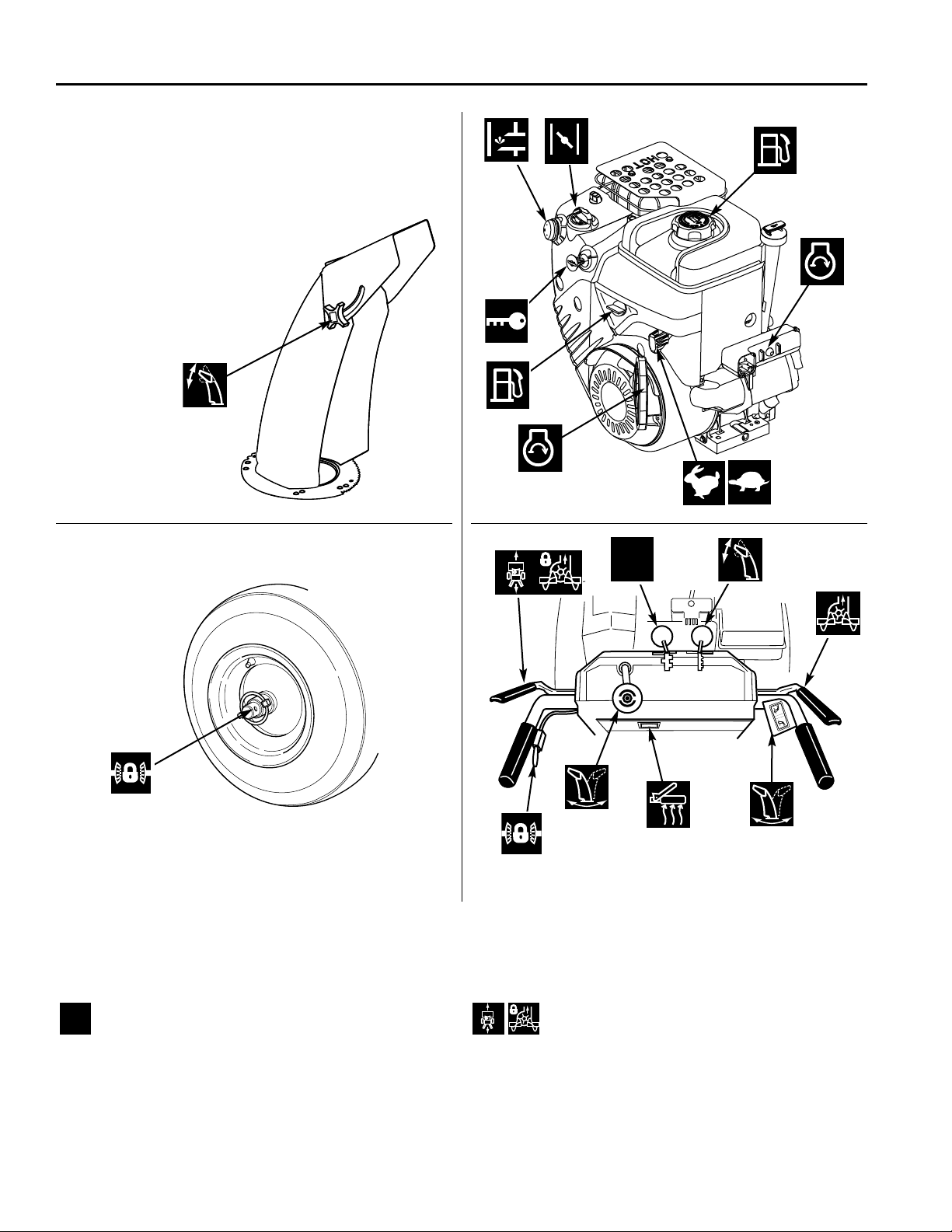

Control Locations...........................................10
General Operation
Checks Before Each Start-Up .......................12
Starting Controls............................................13
Starting the Engine ........................................14
Stopping the Engine ......................................15
Operating The Snowthrower..........................16
Clearing a Clogged Discharge Chute ............16
Ground Speed Selector .................................16
Engine Speed ................................................16
Deflector ........................................................17
Scraper Bar & Skid Shoes.............................17

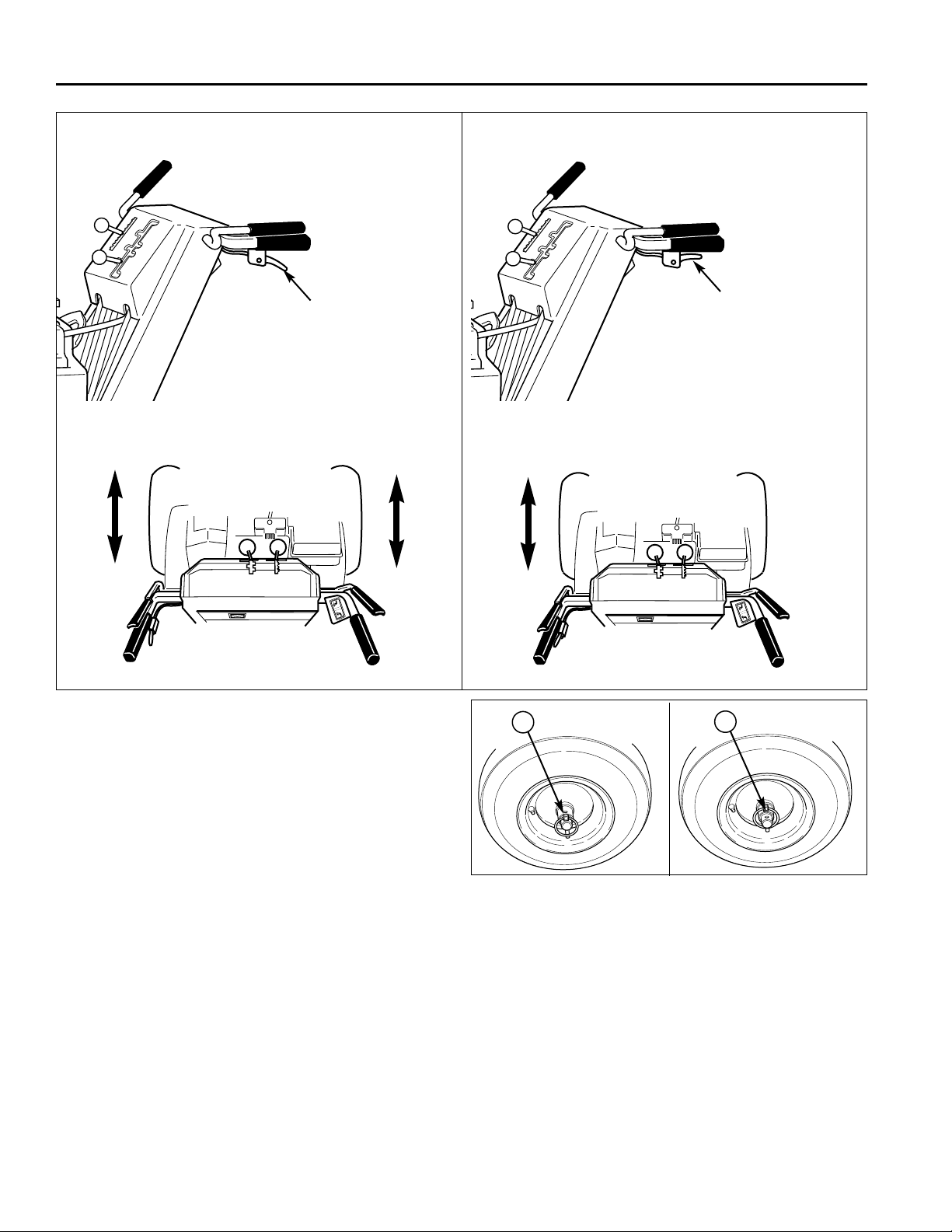

Easy-Turn and Traction Drive Lock................18
After Each Use ..............................................19
Storage ..........................................................19
Regular Maintenance
Maintenance Schedule ..................................20
Checking Tire Pressure .................................20
Auger Gear Case Lubrication ........................20
Lubrication .....................................................21
Check / Lubricate Free-Hand Linkage...........22
Lubricate Auger Shaft Assembly ...................22
Troubleshooting, Adjustments & Service
Troubleshooting .............................................23
Speed Selector Adjustment ...........................25
Auger Drive Tension ......................................25
Traction Drive Tension ...................................26
Manual Discharge Chute Adjustment ............27
Electric Discharge Chute Adjustment ............27
Easy Turn Cable Adjustment .........................28
Shear Pin Replacement.................................28
Belt Replacement ..........................................29
Specifications ....................................................31
Parts & Accessories......................................... 32
WARNING
You must read, understand and comply with all
safety and operating instructions in this manual
before attempting to set-up and operate your
snowthrower.
Failure to comply with all safety and operating
instructions can result in loss of machine control,
serious personal injury to you and /or
bystanders, and risk of equipment and property
damage. The triangle in the text signifies
important cautions or warnings which must be
followed.
WARNING
Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.
2
Safety Rules & Information
TP 600-3606-05-LW-SMA
Operating Safety
Congratulations on purchasing a superior-quality piece of lawn
and garden equipment. Our products are designed and manufactured to meet or exceed all industry standards for safety.
Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous!
Remember, you are responsible for your safety and that of
those around you.
Use common sense, and think through what you are doing. If
you are not sure that the task you are about to perform can be
safely done with the equipment you have chosen, ask a
professional: contact your local authorized dealer.
Read the Manual
The operator’s manual contains important safety information you need
to be aware of BEFORE you operate your unit as well as DURING
operation.
Safe operating techniques, an explanation of the product’s features
and controls, and maintenance information is included to help you
get the most out of your equipment investment.
Be sure to completely read the Safety Rules and Information found on
the following pages. Also completely read the Operation section.
Children
Tragic accidents can occur with children. Do not allow
them anywhere near the area of operation. Children are
often attracted to the unit and snowthrowing activity.
Never assume that children will remain where you last
saw them. If there is a risk that children may enter the
area where you are operating the unit, have another
responsible adult watch them.
DO NOT ALLOW CHILDREN TO OPERATE THIS UNIT!
This encourages them to come near the unit in the future
while it is running, and they could be seriously hurt.
They may then approach the unit when you are not
expecting it, and you may run over them.
3
Safety Rules & Information
Moving Parts
This equipment has many moving parts that can injure you or someone else.
However, if you are standing in the operator’s position, and follow all the rules in
this book, the unit is safe to operate.
The auger and impeller have spinning parts that can amputate hands and feet.
Do not allow anyone near the equipment while it is running! DO NOT clear the
discharge chute by hand. If the chute becomes plugged, stop the engine, wait for
all moving parts to stop, and clear the blockage with a clean-out tool or piece of
wood.
To help you, the operator, use this equipment safely, it is equipped with an
operator-present safety system. Do NOT attempt to alter or bypass the system.
See your dealer immediately if the system does not pass all the safety interlock
system tests found in this manual.
Thrown Objects
This unit has a spinning auger and impeller. They
pick up and throw snow and ice. Thrown debris
could seriously injure a bystander. ALWAYS direct
the discharge chute away from bystanders and property that could be damaged by frying debris. Be sure
to clean up the area to be cleared BEFORE you
start.
Do not allow anyone in the area while the unit is running! If someone does enter the area, shut the unit
off immediately until they leave.
Fuel and Maintenance
Gasoline is extremely flammable. Its vapors are also
extremely flammable and can travel to distant ignition
sources. Gasoline must only be used as a fuel, not as a
solvent or cleaner. It should never be stored any place
where its vapors can build up or travel to an ignition source
like a pilot light. Fuel belongs in an approved, plastic,
sealed gas can, or in the snowthrower fuel tank with the
cap securely closed. Spilled fuel needs to be cleaned up
immediately.
Proper maintenance is critical to the safety and performance of your unit. Be sure to perform the maintenance
procedures listed in this manual, especially periodically
testing the safety system.
4
This machine is capable to amputating hands and feet and throwing objects. Read these safety rules and
follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury
or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies
important cautions or warnings which must be followed.
Safety Rules & Information
TRAINING
1. Read, understand, and follow all instructions on the
machine and in the manuals before operating this
unit. Be thoroughly familiar with the controls and the
proper use of the equipment. Know how to stop the
unit and disengage the controls quickly.
2. Never allow children to operate the equipment.
Never allow adults to operate the equipment without
proper instruction.
3. Keep the area of operation clear of all persons, particularly small children and pets.
4. Exercise caution to avoid slipping or falling especially
when operating in reverse.
PREPARATION
1. Thoroughly inspect the area where the equipment is
to be used and remove all doormat, sleds, boards,
wires, and other foreign objects.
2. Disengage all clutches and shift into neutral before
starting engine (motor).
3. Do not operate the equipment without wearing adequate winter outer garments. Wear footwear that will
improve footing on slippery surfaces. Avoid loose fitting clothing that can get caught in moving parts.
4. Handle fuel with care; it is highly flammable.
(a) Use an approved fuel container.
(b) Never add fuel to a running engine or hot engine.
(c) Fill fuel tank outdoors with extreme care. Never fill
fuel tank indoors. Replace fuel cap securely and
wipe up spilled fuel.
(d) Never fill containers inside a vehicle or on a truck
or trailer bed with a plastic liner. Always place containers on the ground, away from your vehicle, before
filling.
(e) When practical, remove gas-powered equipment
from the truck or trailer and refuel it on the ground. If
this is not possible, then refuel such on a trailer with a
portable container, rather than from a gasoline dispenser nozzle.
(f) Keep nozzle in contact with the rim of the fuel tank
or container opening at all times, until refueling is
complete. Do not use a nozzle lock-open device.
(g) Replace gasoline cap securely and wipe up spilled
fuel.
(h) If fuel is spilled on clothing, change clothing immediately.
5. Use extension cords and receptacles as specified by
the manufacturer for all units with electric drive
motors or electric starting motors.
6. Adjust the collector housing height to clear gravel or
crushed rock surfaces.
7. Never attempt to make any adjustments while the
engine (motor) is running (except when specifically
recommended by the manufacturer).
8. Let engine (motor) and machine adjust to outdoor
temperatures before starting to clear snow.
9. Always wear safety glasses or eye shields during
operation or while performing an adjustment or repair
to protect eye from foreign objects that may be
thrown from the machine.
OPERATION
1. Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.
2. Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert for
hidden hazards or traffic.
3. After striking a foreign object, stop the engine (motor),
remove the wire from the spark plug, disconnect the
cord on electric motors, thoroughly inspect the
snowthrower for any damage, and repair the damage
before restarting and operating the snowthrower.
4. If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibration is generally a warning of trouble.
5. Stop the engine (motor) whenever you leave the
operating position, before unclogging the
collector/impeller housing or discharge guide, and
when making any repairs, adjustments, or inspections.
6. When cleaning, repairing, or inspecting make certain
the collector/impeller and all moving parts have
stopped. Disconnect the spark plug wire and keep
the wire away from the plug to prevent accidental
starting.
7. Do not run the engine indoors except for starting the
engine or for transporting the snowthrower in or out of
the building. Open the outside doors; exhaust fumes
are dangerous.
8. Exercise extreme caution when operating on slopes.
Do not attempt to clear steep slopes.
9. Never operate the snowthrower without proper
guards plates, or other safety protective devices in
place and working.
10. Never direct the discharge toward people or areas
where property damage can occur. Keep children
and others away.
11. Do not overload the machine capacity by attempting
to clear snow at too fast a rate.
12. Never operate the machine at high transport speeds
on slippery surfaces. Look behind and use care
when operating in reverse.
13. Disengage power to the collector/impeller when
snowthrower is transported or not in use.
14. Use only attachments and accessories approved by
the manufacturer of the snowthrower (such as wheel
weights, counterweights, or cabs).
15. Never operate the snowthrower without good visibility
or light. Always be sure of your footing, and keep a
firm hold on the handles. Walk, never run.
16. Never touch a hot engine or muffler.
17. Never operate the snowthrower near glass enclosures, automobiles, window wells, drop-offs, and the
like without proper adjustment of the discharge angle.
18. Never direct discharge at bystanders or allow anyone
in front of the unit.
19. Never leave a running unit unattended. Always disengage the auger and traction controls, stop engine,
and remove keys.
20. Do not operate the unit while under the influence of
alcohol or drugs.
Safety Rules & Information
5
8. Always follow the engine manual instructions for storage preparations before storing the unit for both short
and long term periods.
9. Always follow the engine manual instructions for
proper start-up procedures when returning the unit to
service.
10. Maintain or replace safety and instruction labels as
necessary.
11. Keep nuts and bolts tight and keep equipment in
good condition.
12. Never tamper with safety devices. Check their proper
operation regularly and make necessary repairs if
they are not functioning properly.
13. Components are subject to wear, damage, and deterioration. Frequently check components and replace
with manufacturer’s recommended parts, when necessary.
14. Check control operation frequently. Adjust and service as required.
15. Use only factory authorized replacement parts when
making repairs.
16. Always comply with factory specifications on all settings and adjustments.
17. Only authorized service locations should be utilized
for major service and repair requirements.
18. Never attempt to make major repairs on this unit
unless you have been properly trained. Improper service procedures can result in hazardous operation,
equipment damage and voiding of manufacturer’s
warranty.
19. Check shear bolts and other bolts at frequent intervals for proper tightness to be sure the equipment is
in safe working condition.
EMISSIONS
1. Engine exhaust from this product contains chemicals
known, in certain quantities, to cause cancer, birth
defects, or other reproductive harm.
2. If available, look for the relevant Emissions Durability
Period and Air Index information on the engine emissions label.
IGNITION SYSTEM
1. This spark ignition system complies with Canadian
ICES-002.
21. Keep in mind the operator is responsible for accidents occurring to other people or property.
22. Data indicates that operators, age 60 years and
above, are involved in a large percentage of power
equipment-related injuries. These operators should
evaluate their ability to operate the unit safely enough
to protect themselves and others from injury.
23. DO NOT wear long scarves or loose clothing that
could become entangled in moving parts.
24. Snow can hide obstacles. Make sure to remove all
obstacles from the area to be cleared.
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit
and the operating activity. Never assume that children will
remain where you last saw them.
1. Keep children out of the area and under the watchful
care of another responsible adult.
2. Be alert and turn unit off if children enter the area.
3. Never allow children to operate the unit.
4. Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
CLEARING A CLOGGED DISCHARGE
CHUTE
Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snowthrowers. Never use your hand to clean
out the discharge chute.
To clear the chute:
1. SHUT OFF THE ENGINE.
2. Wait 10 seconds to be sure the impeller blades have
stopped rotating.
3. Always use a clean out tool, not your hands.
SERVICE, MAINTENANCE, AND STORAGE
1. Check shear bolts and other bolts at frequent intervals for proper tightness to be sure the equipment is
in safe working condition.
2. Never store the machine with fuel in the fuel tank
inside a building where ignition sources are present
such as hot water and spacer heaters, or clothes dryers. Allow the engine to cool before storing in any
enclosure.
3. Always refer to the operator’s manual for important
details if the snowthrower is to be stored for an
extended period.
4. Maintain or replace safety and instruction labels as
necessary.
5. Run the machine a few minutes after throwing snow
to prevent freeze-up of the collector/impeller.
6. If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
7. Always observe safe refueling and fuel handling practices when refueling the unit after transportation or
storage.
6
7
Decals
Amputation hazard
Contact with moving parts
inside chute will cause
serious injury.
Shut off engine before
unclogging discharge chute.
Use clean-out tool, not hands!
1733057
DANGER
Part No. 1733057
Discharge Chute
Danger Decal
Part No. 1727207
Discharge Chute
Danger Decal
Part No. 1727208
Auger Danger Decal
Part No. 1726945 - WARNING / Main Dash Decal, North
American Tube Handle Models
1726947
Traction
Disengage
Traction
Engage
Free Hand
Unlocked
Easy-Turn
Drive Locked
Easy-Turn
Drive Released
Free Hand
Locked
AVOID SERIOUS INJURY OR DEATH
• Read the operator's manual for operating and safety instructions.
• Do not defeat the safety features of control. They are for your protection.
• Keep machine properly maintained and serviced with all shields, guards,
and protective devices in place.
• Never allow children to operate snowthrower.
• Keep area of operation clear of all persons, especially children.
• Always direct discharge chute so as to avoid injury to persons or damage
to property.
• Stop engine and disconnect spark plug wire before servicing the unit.
• When traction and auger controls are depressed, the Free Hand™
control is activated. This allows the auger control to be released, yet
auger rotation will continue until the Free Hand control is released.
WARNING
Auger
Disengage
Auger
Engage
Part No. 1726947 - WARNING / Main Dash Decal, North
American Channel Handle Models
Part No. 1727022 - WARNING / Main Dash Decal, CE
Tube Handle Models
Part No. 1716532
Auger Danger Decal
DECALS
This unit has been designed and manufactured to provide you with the safety and reliability you would expect
from an industry leader in outdoor power equipment.
Although reading this manual and safety instructions it
contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we
have placed several safety labels on the unit to remind
you of this important information while you are operating
your unit.
All WARNING, CAUTION, and instructional messages
on your unit should be carefully read and obeyed.
Personal bodily injury can result when these instructions
are not followed. The information is for your safety and it
is important.
The safety decals below are on your unit.
If any of these decals are lost or damaged, replace them
at once. See your local dealer for replacements.
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective, operation.
NOTE: Engine operation and safety decals are supplied
by the engine manufacturer.
NORTH AMERICAN MODEL DECALS
CE MODEL DECALS
Part No. 1722867
Lubrication Decal
(Tube Handle Models)
1727024
Part No. 1727024 - WARNING / Main Dash Decal, CE
Channel Handle Models
Part No. 1726946
Auger Control Decal
Tube Handle Models
1727023
Part No. 1727023
Auger Control Decal
Tube Handle Models
Part No. 1722867
Lubrication Decal
(Tube Handle Models)
Free Hand
Easy-Turn
Free Hand
Unlocked
Locked
Traction
Traction
Disengage
Engage
1726945
Drive
Locked
Easy-Turn
Drive
Released
• Read the operator's manual for operating and
safety instructions.
• Do not defeat the safety features of control. They
are for your protection.
• Keep machine properly maintained and serviced with
all shields, guards, and protective devices in place.
• Never allow children to operate snowthrower.
• Keep area of operation clear of all persons,
especially children.
WARNING
AVOID SERIOUS INJURY OR DEATH
• Always direct discharge chute so as to avoid
injury to persons or damage to property.
• Stop engine and disconnect spark plug wire
before servicing the unit.
• When traction and auger controls are depressed,
the Free Hand™ control is activated. This allows
the auger control to be released, yet auger
rotation will continue until the Free Hand control
is released.
Auger
Engage
Auger
Disengage
1726946
1727022
8
Decals and Safety Icons
WARNING: READ OPERATOR’S
MANUAL.
Read and understand the Operator’s
Manual before using this machine.
DANGER: THROWN OBJECTS.
This machine is capable of throwing
objects and debris. Keep bystanders
away.
WARNING: REMOVE KEY BEFORE
SERVICING.
Remove the key, disconnect spark
plug wire, and consult technical literature before performing repairs or
maintenance.
WARNING: DISMEMBERMENT.
This machine can amputate limbs.
Keep bystanders and children away
when engine is running.
DANGER: DISMEMBERMENT.
The auger can amputate limbs. Keep
hands and feet away from auger and
rotating parts.
DANGER: DISMEMBERMENT.
The impeller can amputate limbs.
Stop the engine, remove the key, and
disconnect spark plug wire before
clearing the discharge chute or performing service work. Keep hands
and feet away from impeller and rotating parts.
SAFETY ICONS
Part No. 1734786
Shift Decal - left
Part No. 1734787
Shift Decal - right
Part No. 1734789
Deflector Decal - down
Part No. 1734788
Deflector Decal - up
ALL MODEL DECALS
9
Identification Numbers
When contacting your authorized dealer for replacement parts, service, or information you MUST have
these numbers.
Record your model name/number, manufacturer’s identification numbers, and engine serial numbers in the
space provided for easy access. These numbers can be
found in the locations shown.
NOTE: For location of engine identification numbers,
refer to the engine owner’s manual.
CE Models: Place the extra copy of the identification tag
in the manual
SAMPLE
SAMPLE
North American /
CE Models
CE Models
(Only)
ENGINE REFERENCE DATA
Model Description Name/Number
Unit MFG
Number
PRODUCT REFERENCE DATA
Unit SERIAL Number
Dealer Name
Date Purchased
Engine Make
Engine Type/Spec
Engine Model
Engine Code/Serial Number
Mower Deck MFG Number
Mower Deck SERIAL
Number
CE IDENTIFICATION TAG MARKINGS
A. Manufacturer’s Identification Number
B. Manufacturer’s Serial Number
C. Power Rating in Kilowatts
D. Maximum Engine Speed in Rotations per Minute
E. Manufacturer’s Name and Address
F. Year of Manufacture
G. CE Compliance Logo
H. Mass of Unit in Kilograms
I. Guaranteed Sound Power in Decibels
Identification Numbers
A
B
C
D
E
F
G
H
I
Part No. xxxxxxx
xxxxxxxxxxxxxxx
Serial No. xxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxx
20xx
dB
kg: xxx
kW: x.xx
xxxx max
Part No. xxxxxxx
xxxxxxxxxxxxxxx
Serial No. xxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
xxx
kg: xxx
kW: x.xx
xxxx max
20xx
dB
Loading...
