Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Generator Helpline
Llame: Línea Directa del Generador
1-800-743-4115 M-F 8-5 CT
web: www.briggsandstratton.com
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Manual No. 199825A
Revision - (06/20/2007)
EXL8000
13500 STARTING WATTS
Illustrated
Parts List
Models / Modelos
030244-02
EXPLODED VIEWS AND PARTS LISTS
2
EXPLODED VIEW - MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
EXPLODED VIEWS AND PARTS LISTS
3
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 B194898GS KIT, Cradle (Includes Items 20 & 31)
2 194155GS KIT, Vibration Mount
3 B92531GS BRACKET, Support Engine
4 190220GS ADAPTER, Engine
5 NSP ASSY., Alternator (see page 5)
6 * NUT, Hex M8 - 1.25
7 B92731GS BRACKET, Support Eng/Muffler
8 96796GS WASHER, 8.4 x 22.2 x 3
9 * WASHER, Lock M8
10 190274BGS SBHC, 3/8-16 x 1"
11 47481GS HHCS, 5/16 - 24 x 10.62
12 189302LGS ASM WIRE, #16, Red
13 * HHCS, M8 1.25 x 45
14 92532GS BRACKET, Muffler
15 90239GS GASKET, Exhaust
16 * NUT, Hex M6 1.0
17 A7433GS MUFFLER
18 * SHCS, M8 - 1.25 x 20
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground
21 198222GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
23 86292GS SCREW, 10 - 16 x 3/4, Self Drill
24 194390GS ASSY., Heat Shield
25 191190GS CAP
26 74908GS TAPTITE, M5 - 0.8 x 10
27 67989GS NUT, M8 Flange Serrated
30 * HHCS, M8 - 1.25 x 25
31 196830GS DECAL, Exhaust Warning
32 * NUT, 1/4 - 20
33 * WASHER, 1/4 Lock
34 195422GS COVER, RBC Plastic with Cap
35 791745 KIT, Fuel Hose (cut to fit)
36 * HHCS, M6 1.0 x 12
37 56893GS CRIMPTITE, 10-24 x 1/2
38 B2153GS SCREW, Self Driller, 12-14 x 7/8
39 B196810GS BRACKET, Starter
40 198221GS KIT, Fuel Tank Hardware (Includes
Qty 4)
41 189133GS VALVE, Fuel
42 * HHCS, 5/16 - 18 x 3/4
43 691656 SOLENOID
44 198224GS ASSY., Tank Fuel (Includes Items 41,
50, 51, 52, 55 & 62)
45 189135GS CAP, Tank Fuel
46 B4135GS PIN, Handle Release
47 77395GS NUT, M6 Flange Lock
Item Part # Description
48 195373GS WIRE, Ground
49 192376GS SCREW, 12-24 x 1/2, Thread
Forming
50 188333GS DECAL, Instruction Fuel Level
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
53 194034GS KIT, Folddown Handle Hardware
54 194448GS KIT, Insulation w/ Clip
55 197797GS DECAL, Fuel Shutoff
56 192724GS GAUGE, Fuel
57 * HHCS, M6 - 1.0 x 12
58 201463GS ASSY. Control Panel
59 198611GS PPHS, 1/4 - 20 x 0.5
60 195537GS HEATSHEILD
61 B4300GS HHS, 1/4 - 20 x 1/2, Trilobular
62 201079GS DECAL, Warning CO
68 195680GS TRAY, Battery
69 193463GS BATTERY
70 87799GS SWITCH, Rocker On/Off
71 196626GS ASSY, Jack, Coax, DC
73 192351GS LUG, 1/4, #22/18
74 193347GS KIT, Hardware Battery
75 196627AGS WIRE-A, #13, Red
76 185939KGS ASM WIRE, #55 Black
77 196627BGS WIRE-A, #13B, Red
78 189302MGS ASM WIRE, #13 Red
81 196627EGS WIRE-A, #0, Black
85 B193200GS ASSY, Fold Down Handle
86 198669GS GRIP, Handle
99 189759GS KIT, Fuel Valve Repair
900 § ENGINE
Parts Not Illustrated
199825GS MANUAL, Operator’s
BB3061GS BOTTLE, Oil
B4177GS CHARGER, Battery
195236GS FUSE (5 Pack)
195237GS CAP, Fuse (4 Pack)
191895DGS SET, Cord
202179GS DECAL, Family, CA EVP
198220GS KIT, Decal Srv.
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
EXPLODED VIEWS AND PARTS LISTS
4
EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 198237GS PANEL, Control
2 198239GS BOX, Control Panel
3 191479GGS BREAKER, Circuit, 30A
4 198245GS METER, Hour
5 75207DGS BREAKER, Circuit, 15A
6 * WASHER, Shakeproof, Int. #8
7 94373GS OUTLET, 120V, 15A Duplex
8 43437GS OUTLET, 120/240V, 30A
9 * WASHER, Flat, M4
10 * WASHER, Lock, M4
11 * NUT, M4 - 0.7
12 198495GS SCREW, 4 x 18, Tapping
13 193095GS JUMPER, Terminal Block
Item Part # Description
14 193427GS STRIP, Terminal, 3 Pole
15 * WASHER, Flat, M5
16 * WASHER, Lock, M5
17 * NUT, M5 - 0.8
18 38057GS GROMMET
19 199532GS STRIP, Dual Row, TPA, 6 Circuit
20 199528GS PLUG, Dual Row, Housing, 6 Circuit
Parts Not Illustrated
194273GS TUBING, Fabric, Heat Shrinkable
* - Items without part numbers are common fasteners and
are available at your local hardware store.
EXPLODED VIEWS AND PARTS LISTS
5

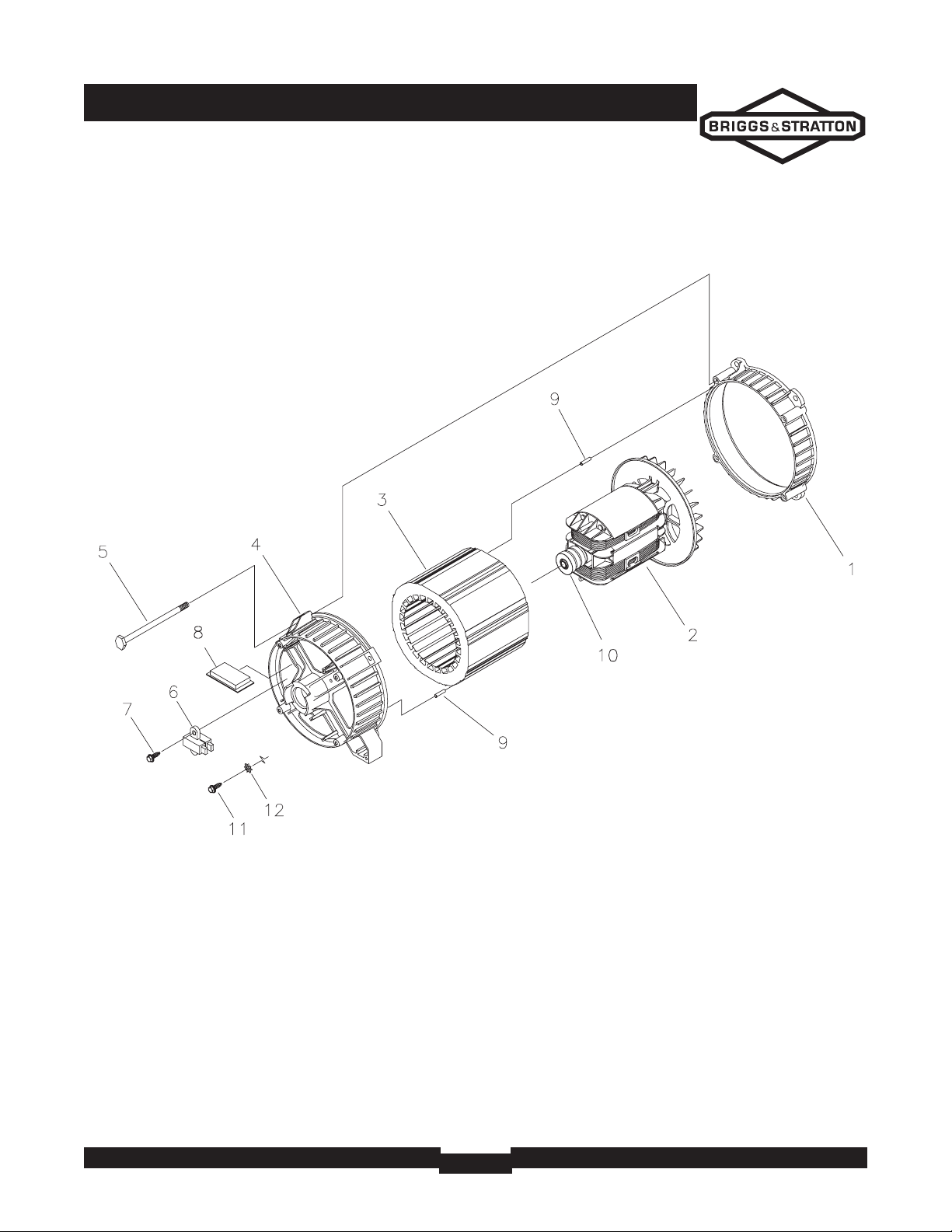

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 194773GS ASSY, Rotor (Includes Item 10)
3 200434AGS STATOR
4 193336GS RBC, (with O-Ring p/n 189197)
5 86308KGS HHCS, M6 - 1.0 x 175 SEMS
6 66386GS ASSY, Holder, Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 189769GS BOARD, Circuit, System Control
9 81917GS PIN, Roll, 4mm x 10
10 65791GS BEARING
11 74908GS SCREW, M5 .8 x 10, Taptite
12 23762GS WASHER, Shakeproof, Ext #10
EXPLODED VIEWS AND PARTS LISTS
6
EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part # Description
1 196517GS WHEEL
2 * WASHER, 5/8"
3 191267RGS AXLE, 5/8"
4 191265GS E-RING
5 * HHCS, M8 1.25 x 20
6 67989GS NUT, M8, Flange Serrated
7 77395GS NUT, M6 Flange Lock
8 198629GS ASSY, Support (Includes Item 9)
9 87841GS MOUNT, Vibration
10 * HHCS, M6 - 1.0 x 16
* - Items without part numbers are common fasteners and are
available at your local hardware store.
