Briggs & Stratton 020364-1 User Manual

Model No. 020364-1 (3400 PSI (234.4 BARS) Pressure Washer) Manual No. 206859A Revision - (04/14/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

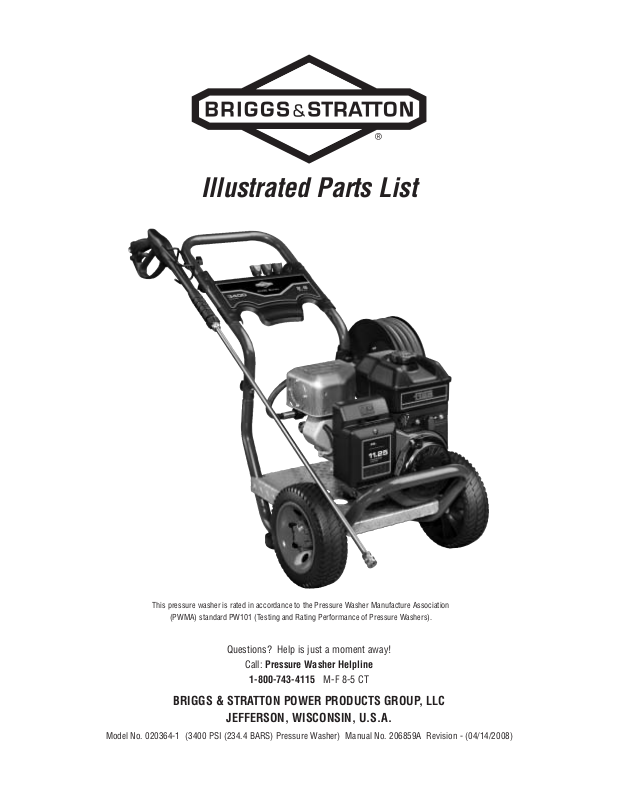

Illustrated Parts List

This pressure washer is rated in accordance to the Pressure Washer Manufacture Association

(PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).

2 BRIGGSandSTRATTON.COM

Exploded View and Parts List — Main Unit

Item Part # Description

1 202862GS ASSY, Base
2 Y201499GS HANDLE
3 202854GS KIT, Billboard/Decals, w/Clips

195964GS Clips, Tree

30809GS Grommet
4 192131GS KIT, Pump Mounting Hardware
5 203083GS KIT, Wheel

200520GS Hubcap

192050GS E-Ring
6 192796GS KIT, Chem Hose & Filter
7 192134GS KIT, Engine Mounting Hardwire
8 201661GS KIT, Gun Holder Weldment
9 202418GS HOSE, Whip

10 193814GS EXTENSION, QC
11 192553GS KIT, Vibration Mount
12 B2203GS KIT, Handle Fastening
13 202136GS ASSY, Hose Reel

203488GS Kit, Hardware, Hose Reel

14 202419GS HOSE
15 202182GS KIT, Nozzle

201580RGS Nozzle, QC, Project Pro, Yellow

201580XGS Nozzle, QC, Project Pro, Orange

201580AAGS Nozzle, QC, Project Pro, Red

198841GS Nozzle, Plastic, Soap

Item Part # Description

16 199990GS GUN
17 95457GS ADAPTER
18 194004GS KIT, Inlet, Garden Hose
19 202005GS ASSY, Pump

194298GS Valve, Thermal Relief
23139DGS Key

900 § ENGINE

Items Not Illustrated

206859GS MANUAL, Operator’s
87815GS GOGGLES
BB3061BGS OIL BOTTLE
201314GS AXLE
695755 KNOB, Throttle
202367GS KIT, Decals
194256GS KIT, Tag Warning, w/Clip

Optional Accessories

6048 KIT, O-Ring Maintenance
6039 PUMP SAVER

§ - Contact Engine Manufacturer
