Illustrated Parts List
Manual No. 194466A
Revision 0 (10/26/2004)
020215
(2450 PSI)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline - 1-800-743-4115 M-F 8-5 CT
Llame: Línea Directa del Lavador a Presión - 1-800-743-4115 M-F 8-5 CT
EXPLODED VIEW AND PARTS LIST — MAIN UNIT
Item Part # Description
1 195339GS BASE
2 B194718GS HANDLE
3 194469GS ASSY, Billboard with Decal
4 190249GS HOSE
5 192645GS KIT, Pump Mounting Hardware
6 194264GS KIT, Hook, Handle
7 192309GS KIT, Hook, Base
8 192050GS KIT, E-Ring
9 194298GS VALVE,Thermal Relief
10 188792HGS WAND,Adjustable Nozzle
Item Part # Description
11 21760GS ORIFICE
12 B3263GS GUN
13 B2203GS KIT, Handle Connector
14 192310GS KIT,Vibration Mount
15 192311GS KIT,Wheel
16 23139GS KEY
17 194216GS ASSY, Pump (see page 3)
900 § ENGINE
§ - Contact Engine Manufacturer
Items Not Illustrated:
Part # Description
194466GS MANUAL, Owner’s
MS6847 MANUAL, Engine
194256GS KIT,Tag,Warning with Clip
BB3061BGS OIL, Engine
191922GS KIT, O-RING MAINT & NZZL CLNNG
2450 PSI Pressure Washer
2
2450 PSI Pressure Washer
3

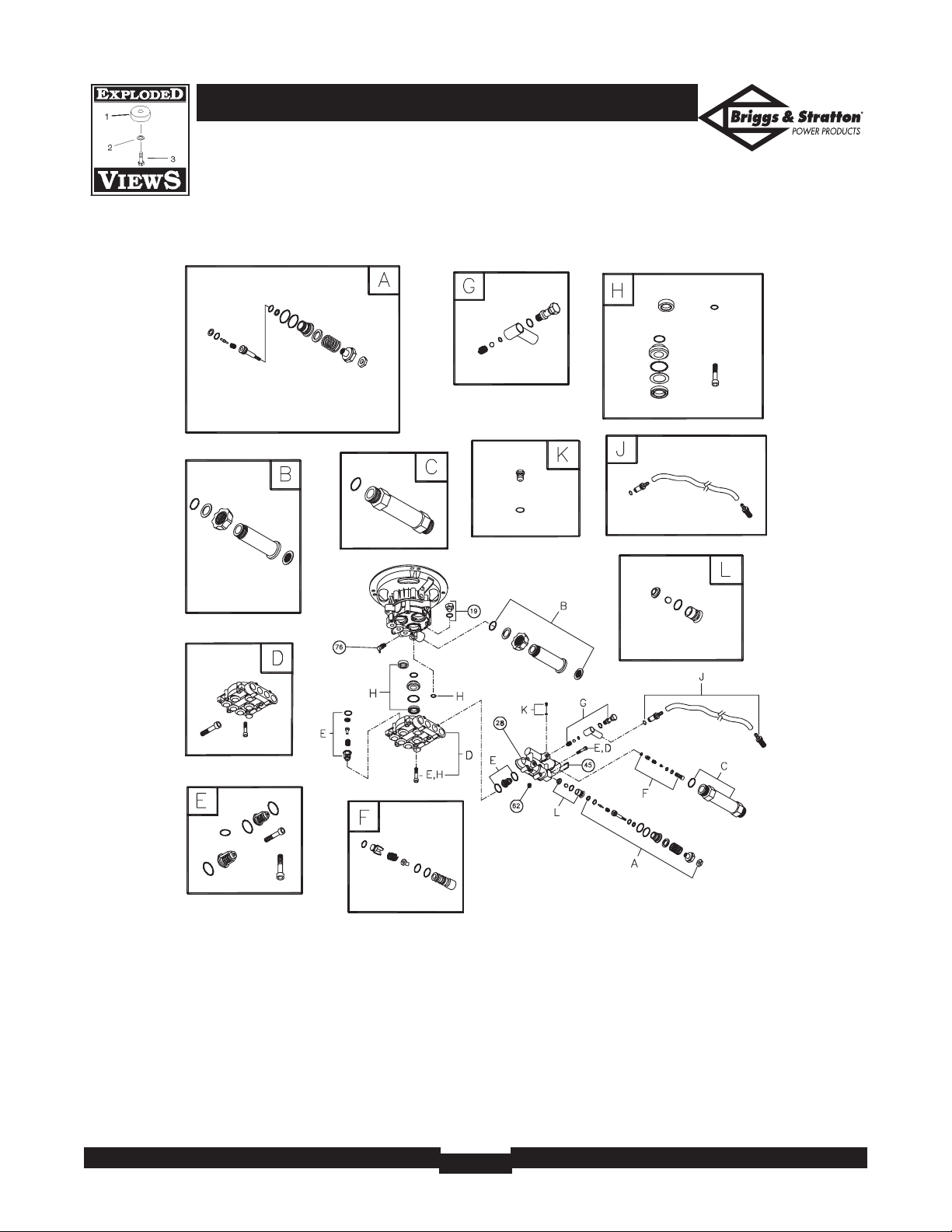

EXPLODED VIEW AND PARTS LIST — PUMP
Item Part # Description
19 190571GS CAP, Oil, 5.5 - 6.5 NM
28 190627GS MANIFOLD
45 190578GS PIN
62 190581GS CAP, 1/8
76 194298GS THERMAL RELIEF
77 190586GS OIL BOTTLE (not shown)
A 190594GS KIT, UNLOADER STEM
B 190632GS KIT,WATER INLET,ALUM
C 190634GS KIT, OUTLET,ALUM
D 193808GS KIT, HEAD BRASS
Item Part # Description
E 193806GS KIT, CHECK VALVES
F 190592GS KIT, INLET CHECK
G 190593GS KIT, CHEMICAL INJECTION
H 193807GS KIT, SEAL SET
J 189971GS KIT, CHEMICAL HOSE
K 193971GS KIT, PIPE FITTING
L 193972GS KIT, UNLOADER SEAT
NOTE: Item letters A - L are service kits and include all
parts shown within the box.
