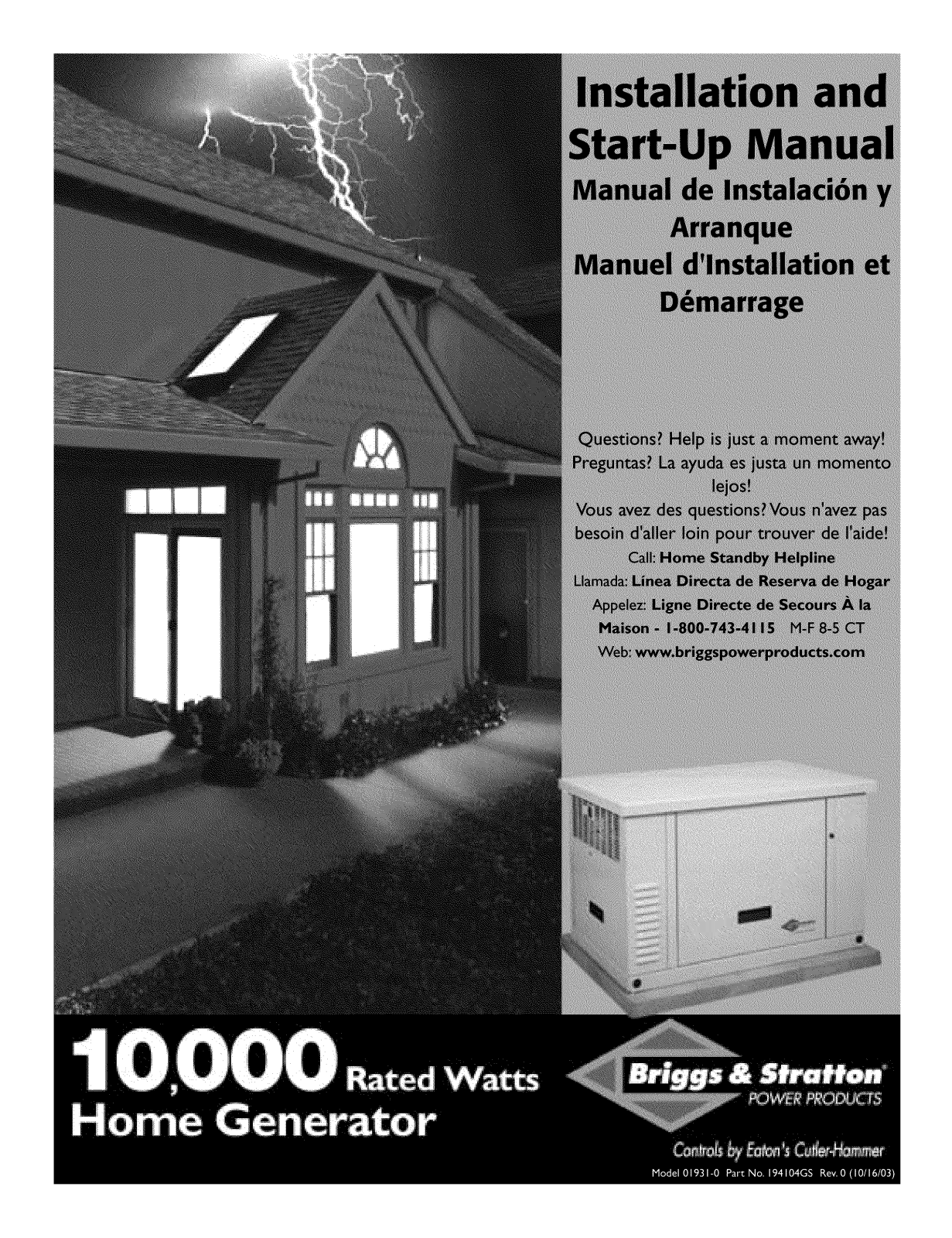

Briggs & Stratton 01931-0 Installation Guide

Briggs& Stratton Power Products Home Generator

Installation Manual

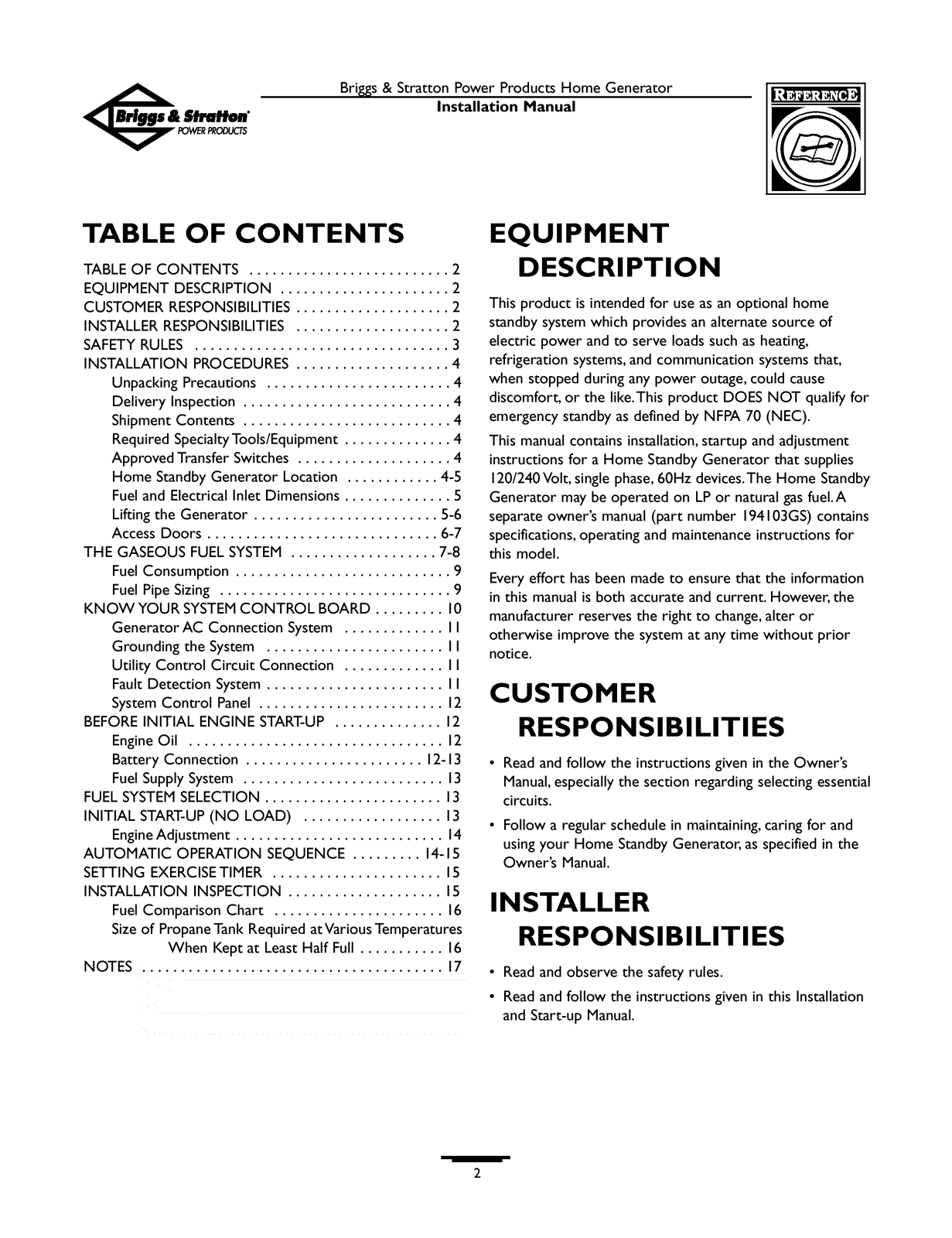

TABLE OF CONTENTS

TABLE OF CONTENTS .......................... 2

EQUIPMENT DESCRIPTION ...................... 2

CUSTOMER RESPONSIBILITIES .................... 2

INSTALLER RESPONSIBILITIES .................... 2

SAFETY RULES ................................. 3

INSTALLATION PROCEDURES .................... 4

Unpacking Precautions ........................ 4

Delivery Inspection ........................... 4

Shipment Contents ........................... 4

Required Specialty Tools/Equipment .............. 4

Approved Transfer Switches .................... 4

Home Standby Generator Location ............ 4-5

Fuel and Electrical Inlet Dimensions .............. 5

Lifting the Generator ........................ 5-6

Access Doors .............................. 6-7

THE GASEOUS FUEL SYSTEM ................... 7-8

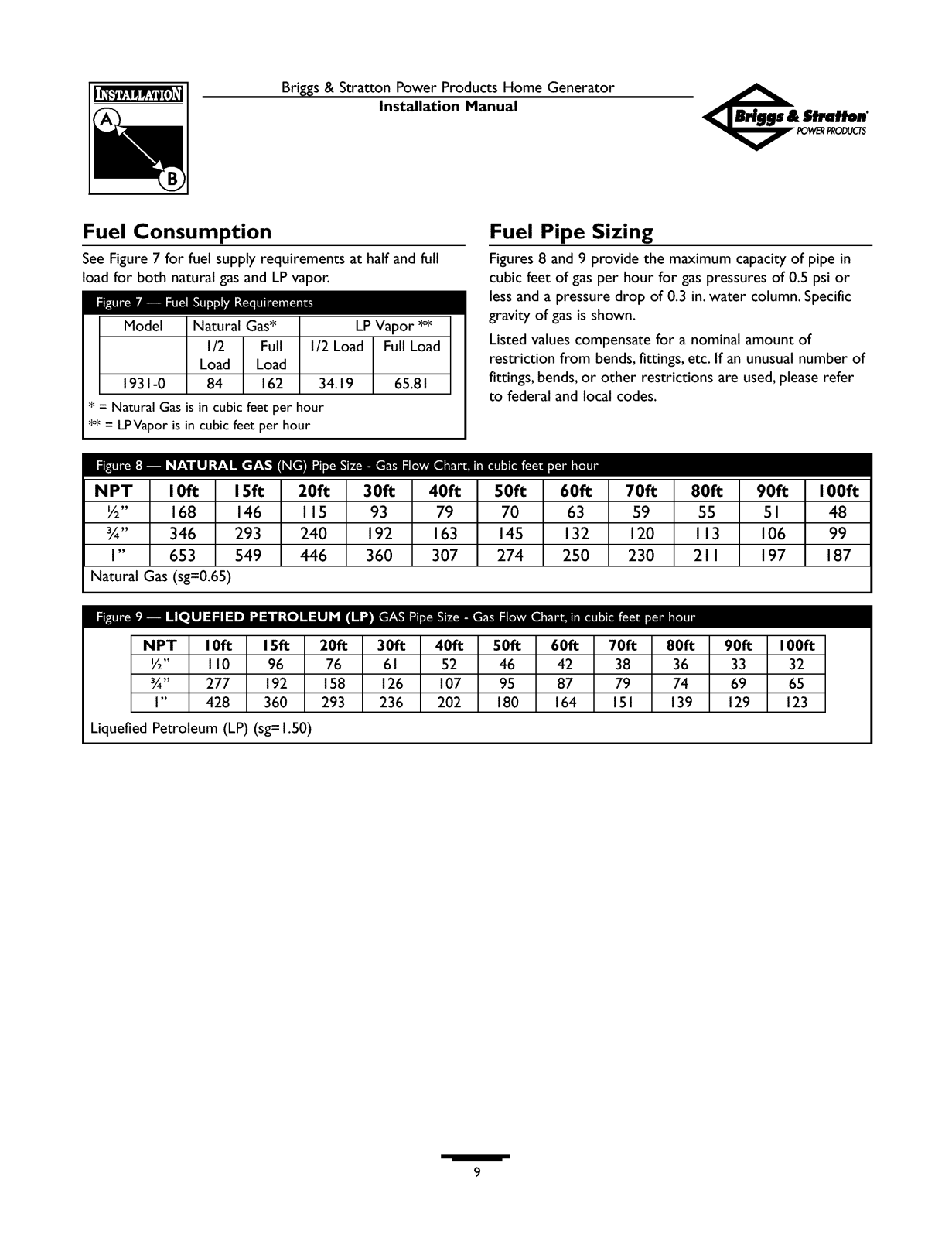

Fuel Consumption ............................ 9

Fuel Pipe Sizing .............................. 9

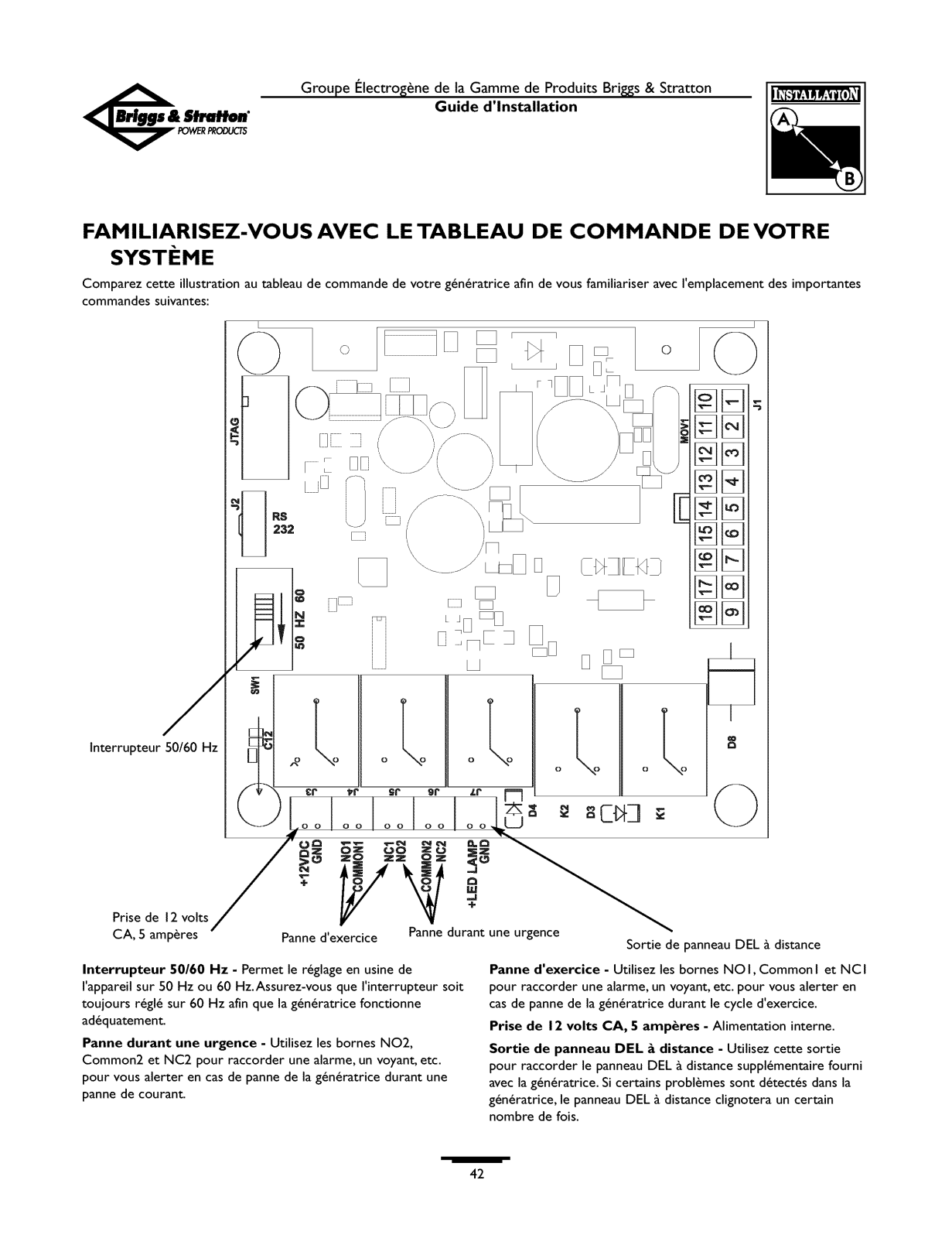

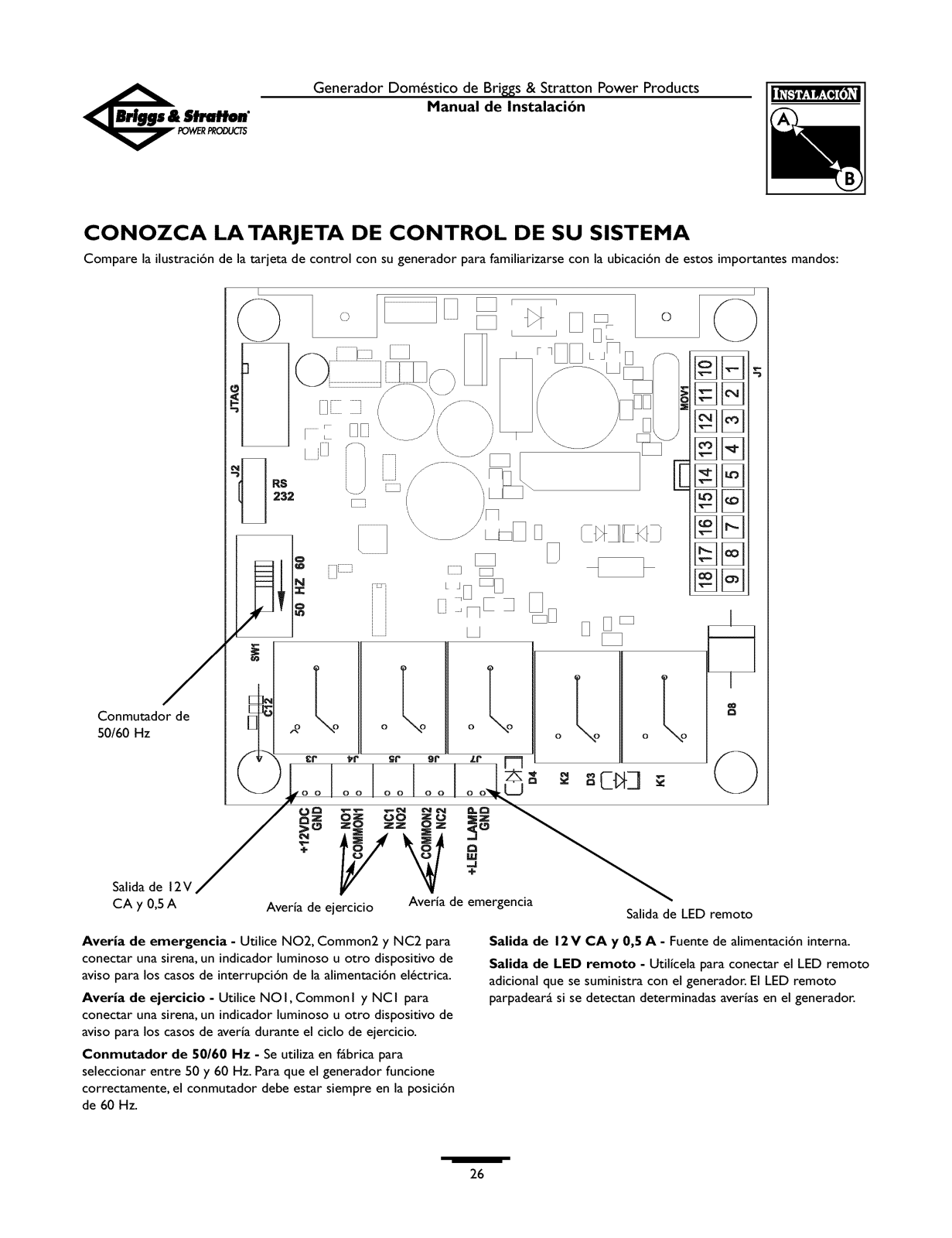

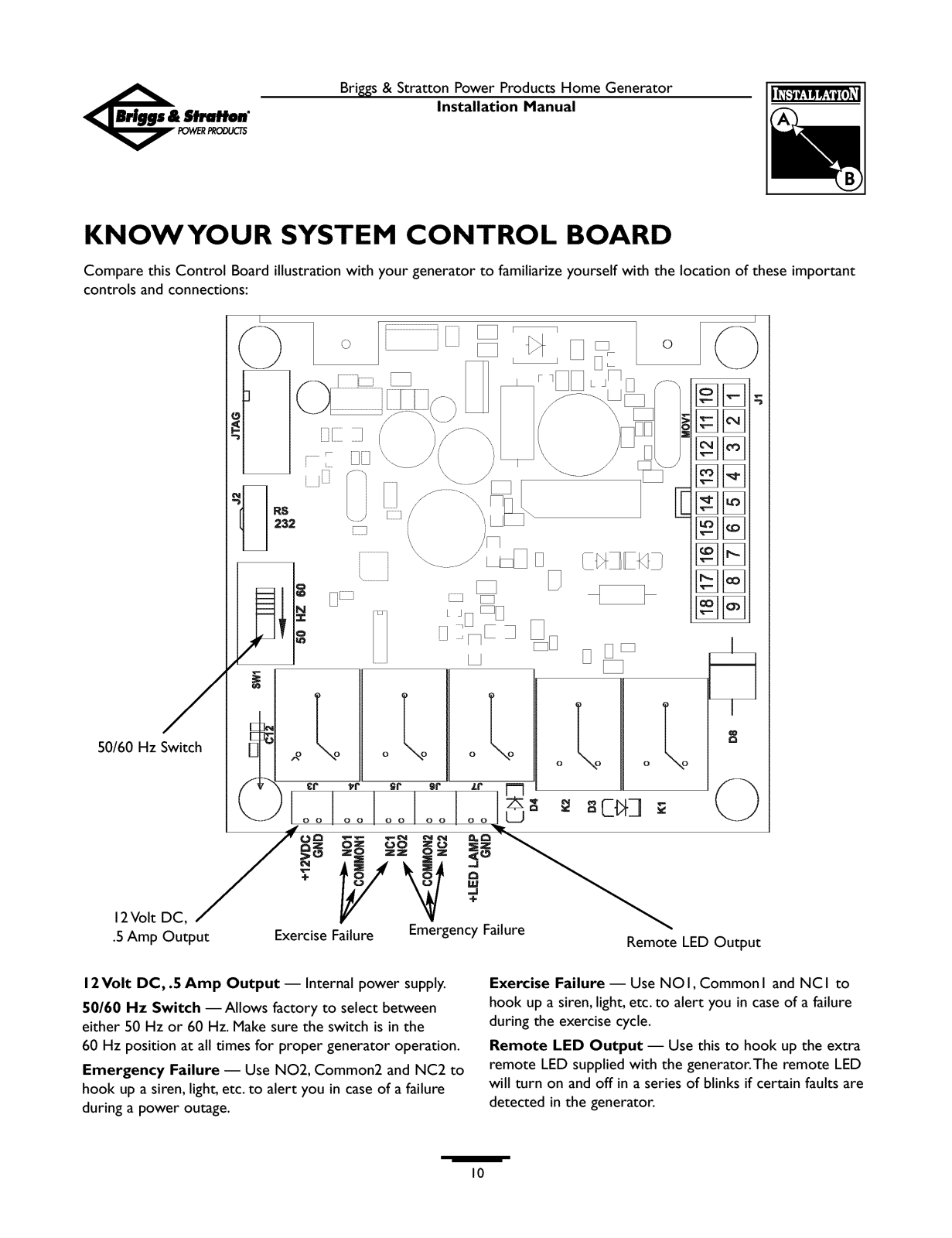

KNOW YOUR SYSTEM CONTROL BOARD ......... 10

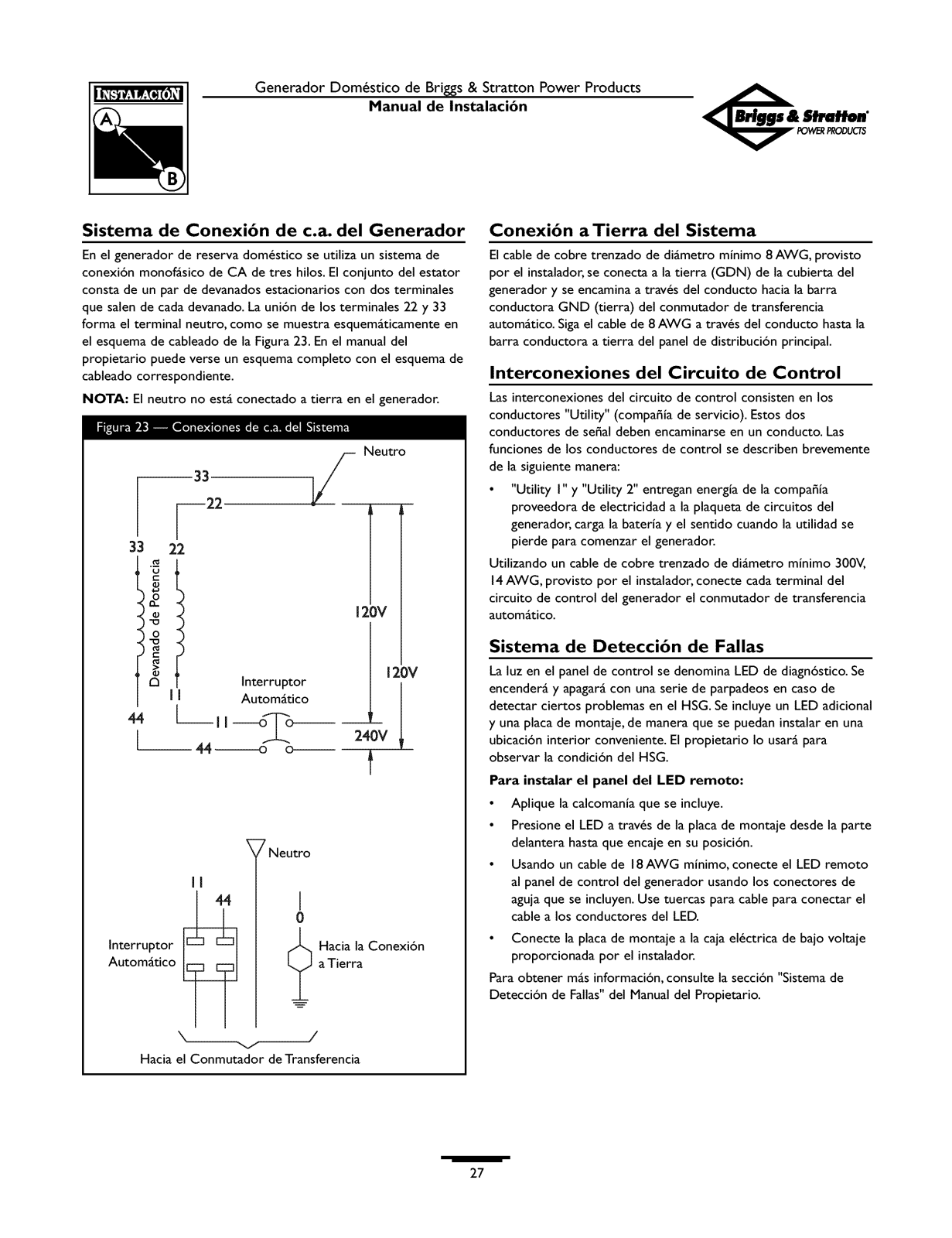

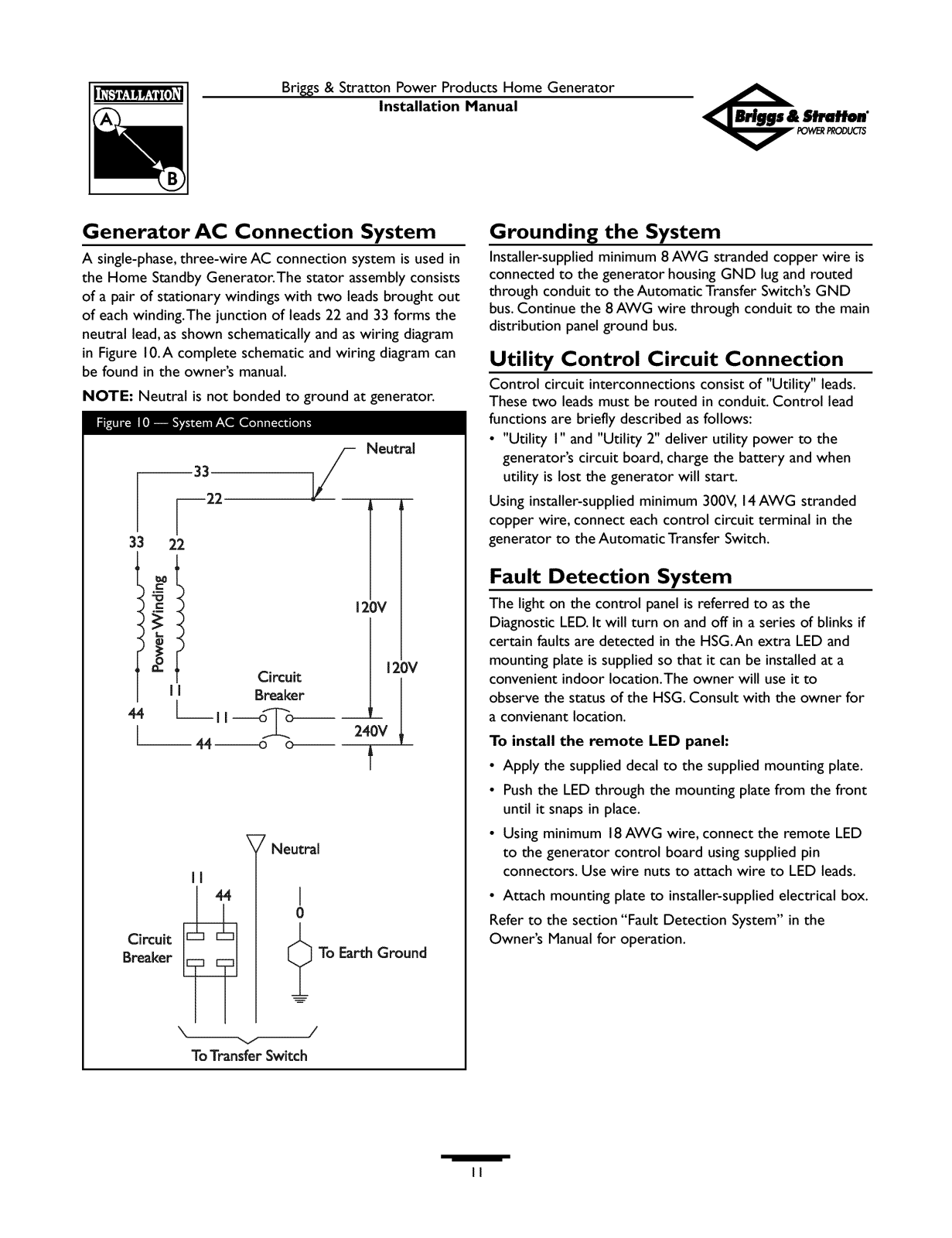

Generator AC Connection System ............. II

Grounding the System ....................... I I

Utility Control Circuit Connection ............. II

Fault Detection System ....................... II

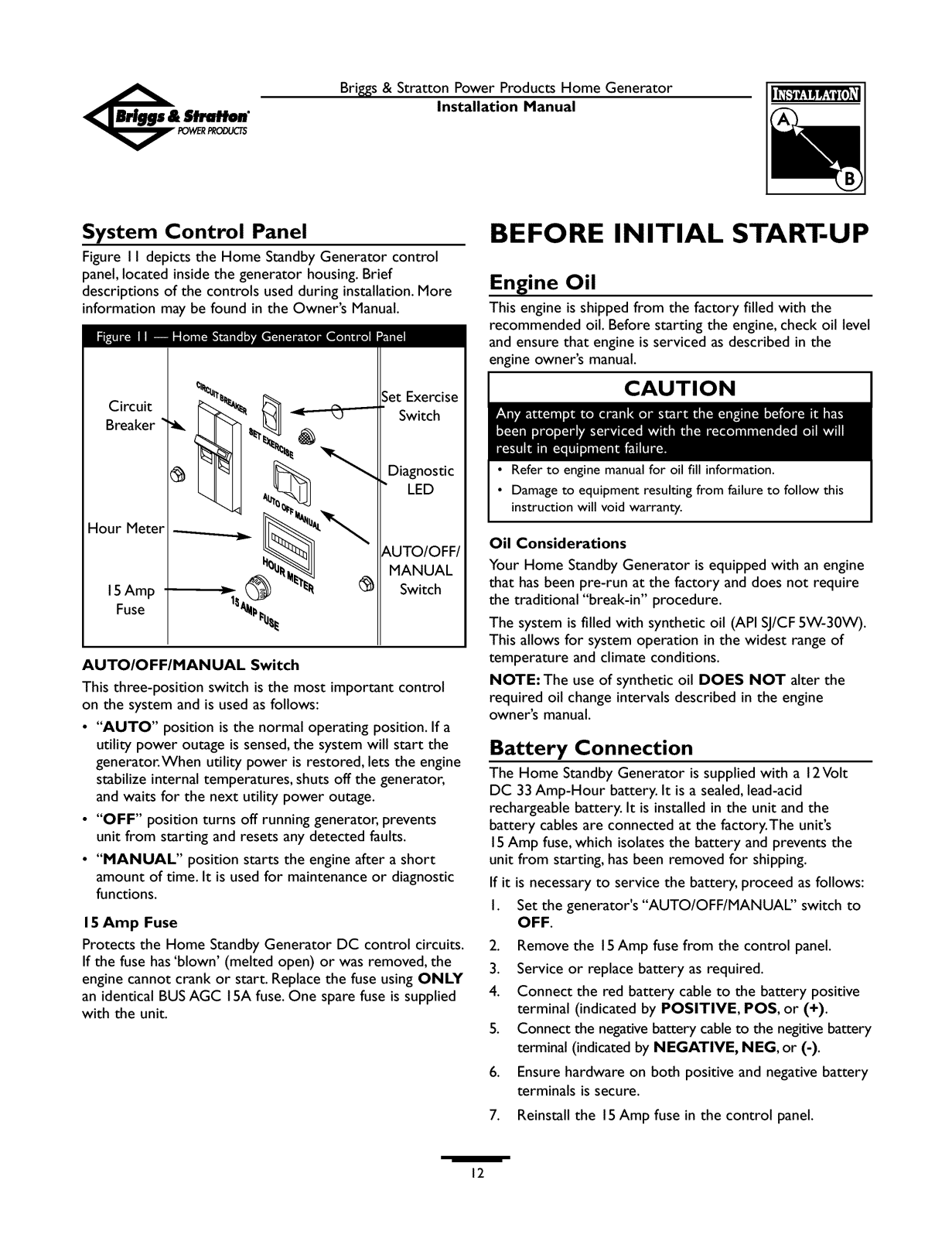

System Control Panel ........................ 12

BEFORE INITIAL ENGINE START-UP .............. 12

Engine Oil ................................. 12

Battery Connection ....................... 12-13

Fuel Supply System .......................... 13

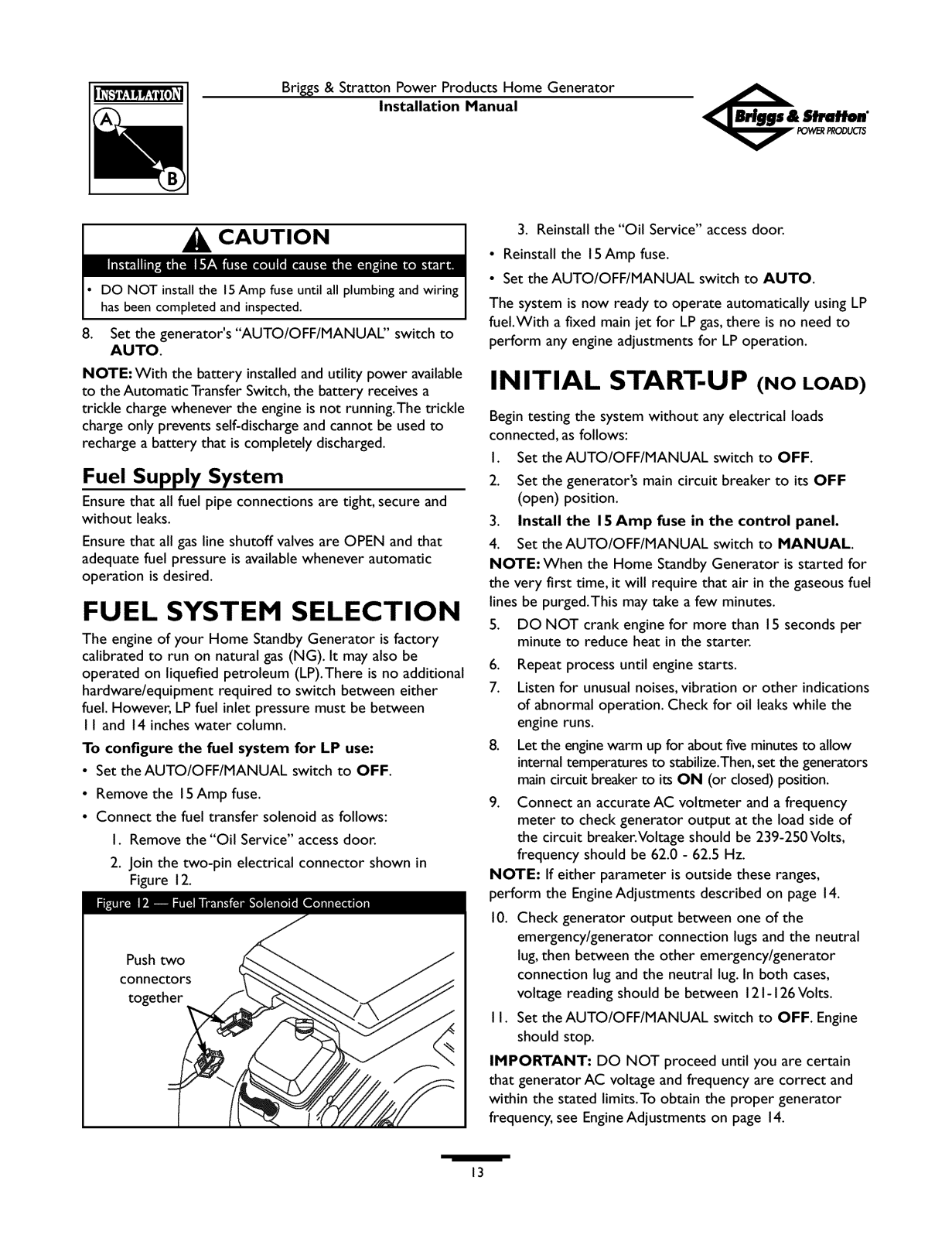

FUEL SYSTEM SELECTION ....................... 13

INITIAL START-UP (NO LOAD) .................. 13

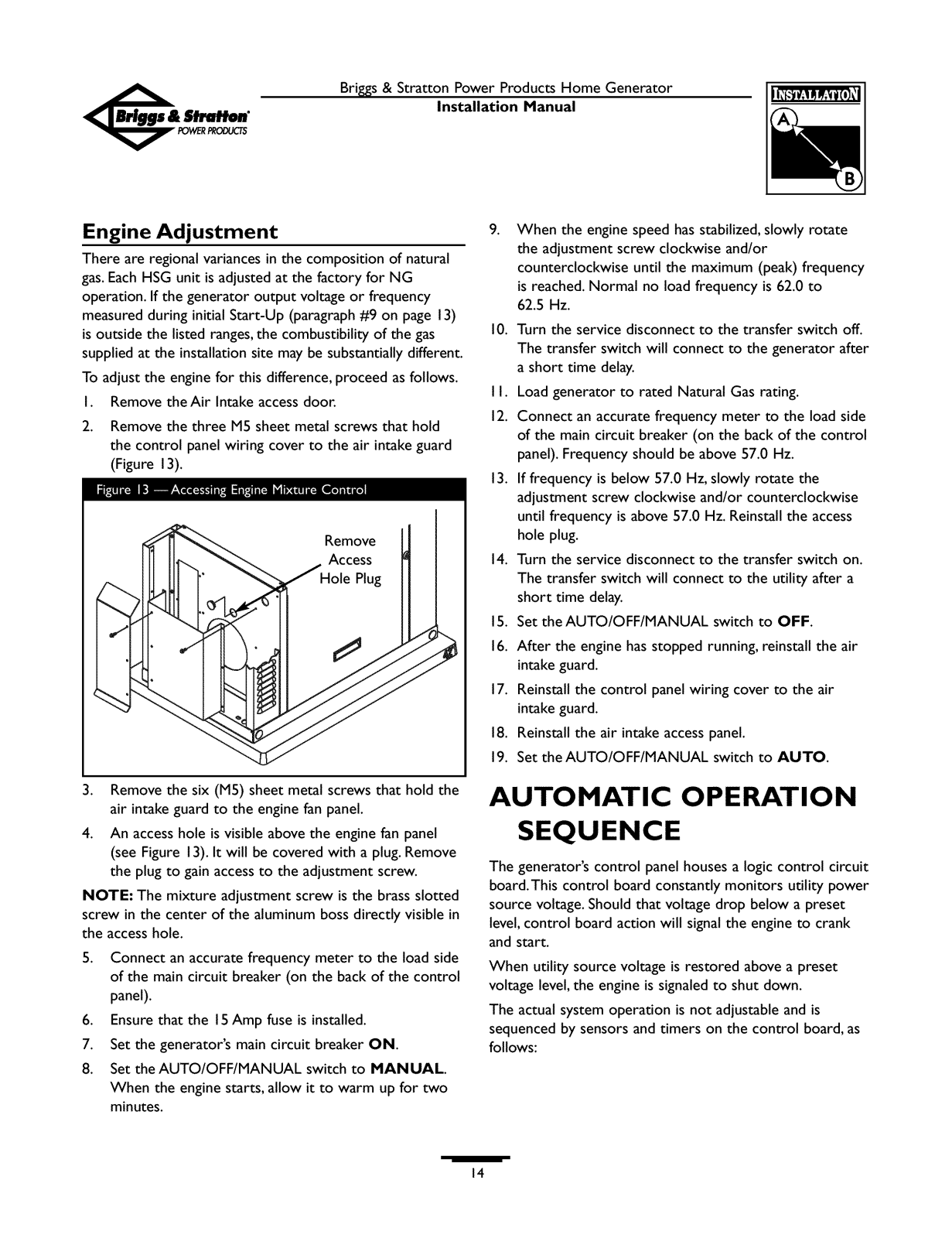

Engine Adjustment ........................... 14

AUTOMATIC OPERATION SEQUENCE ......... 14-15

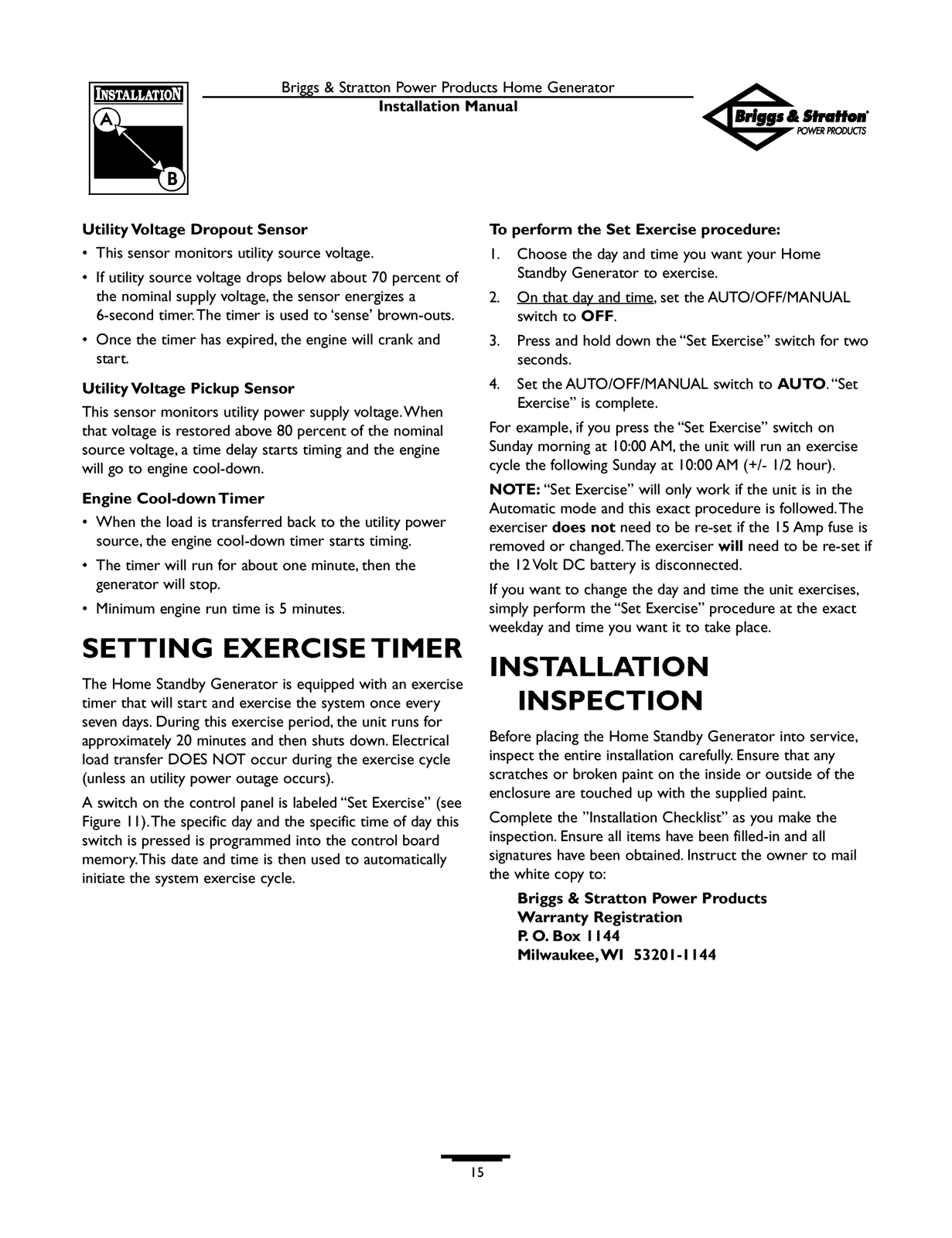

SETTING EXERCISE TIMER ...................... 15

INSTALLATION INSPECTION .................... 15

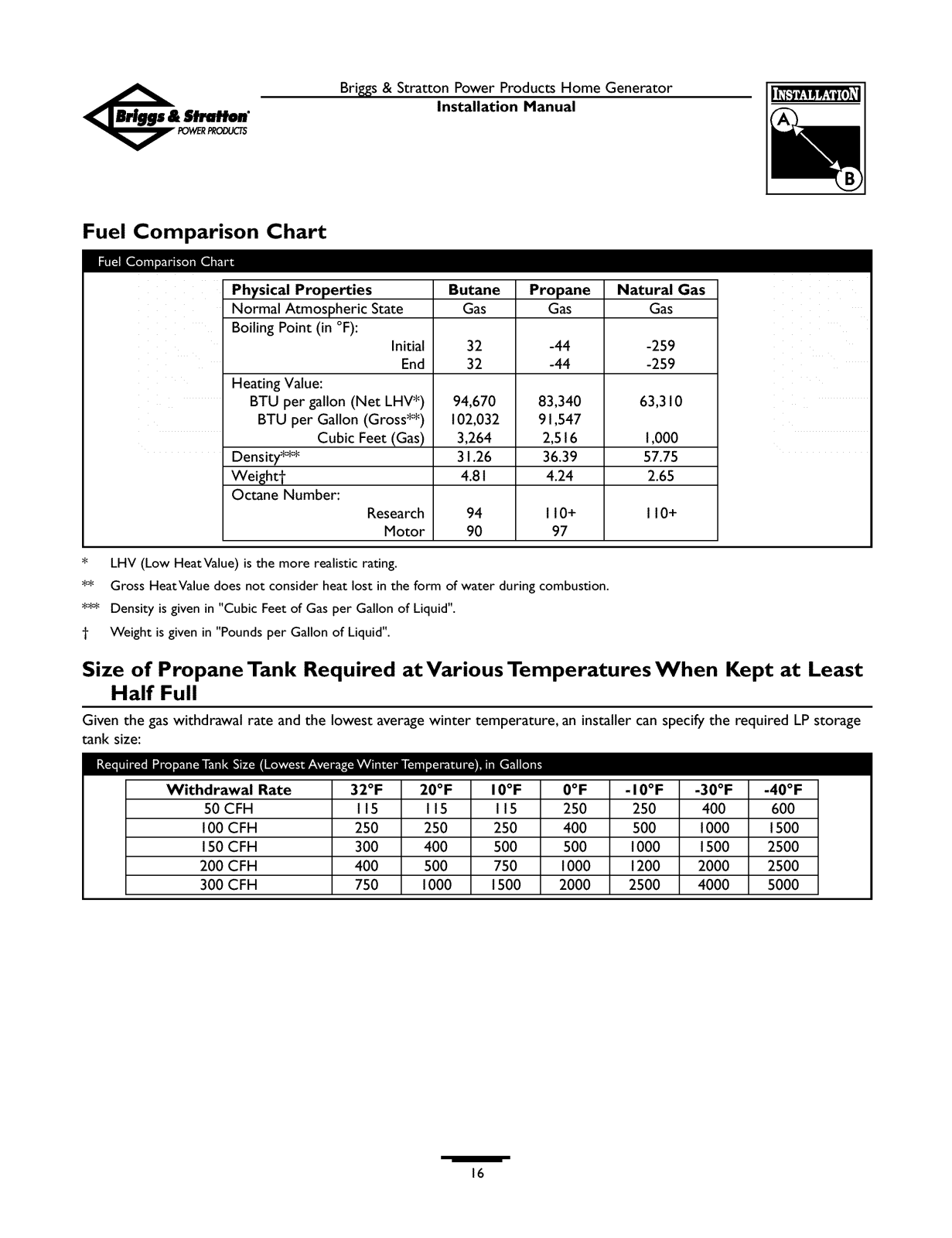

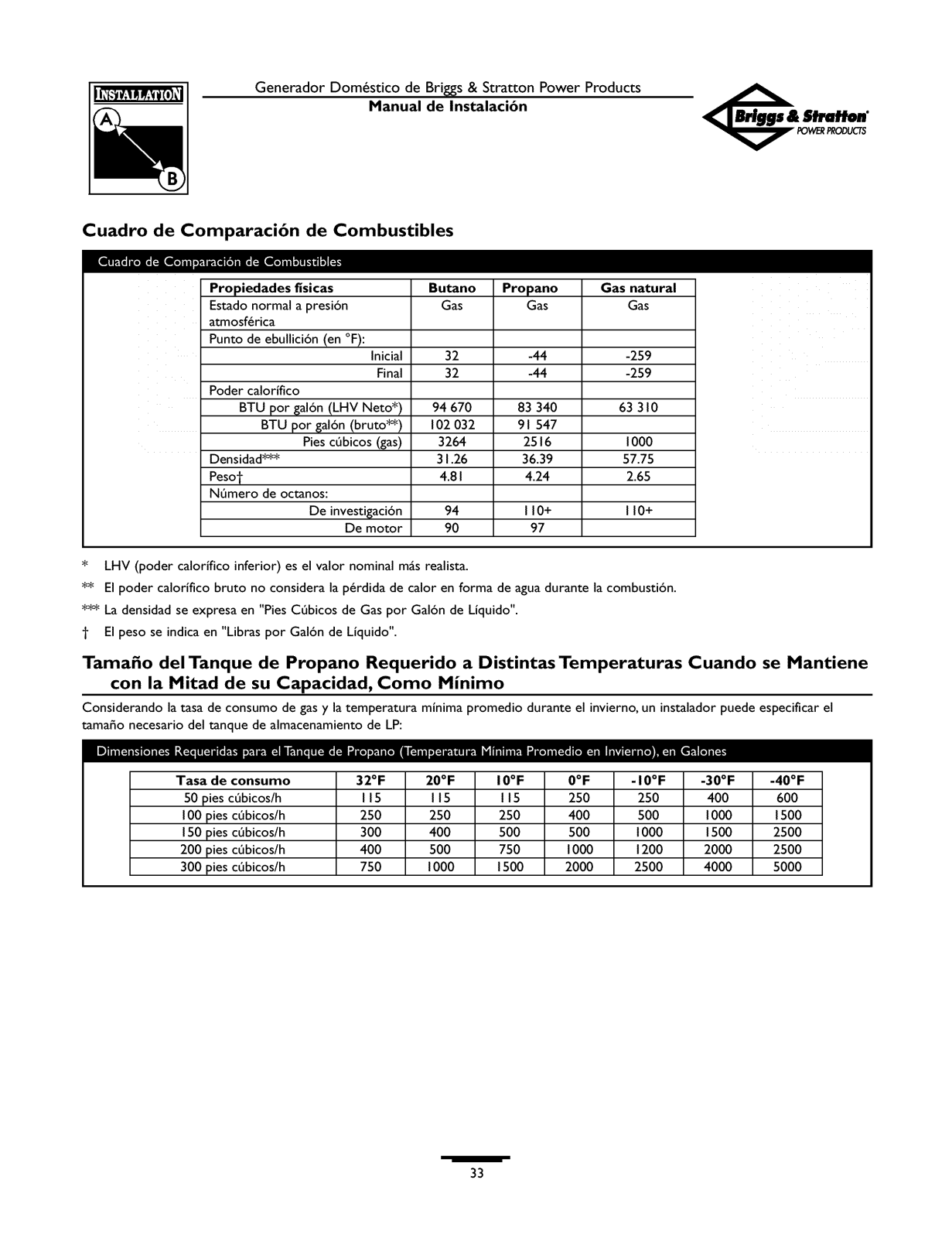

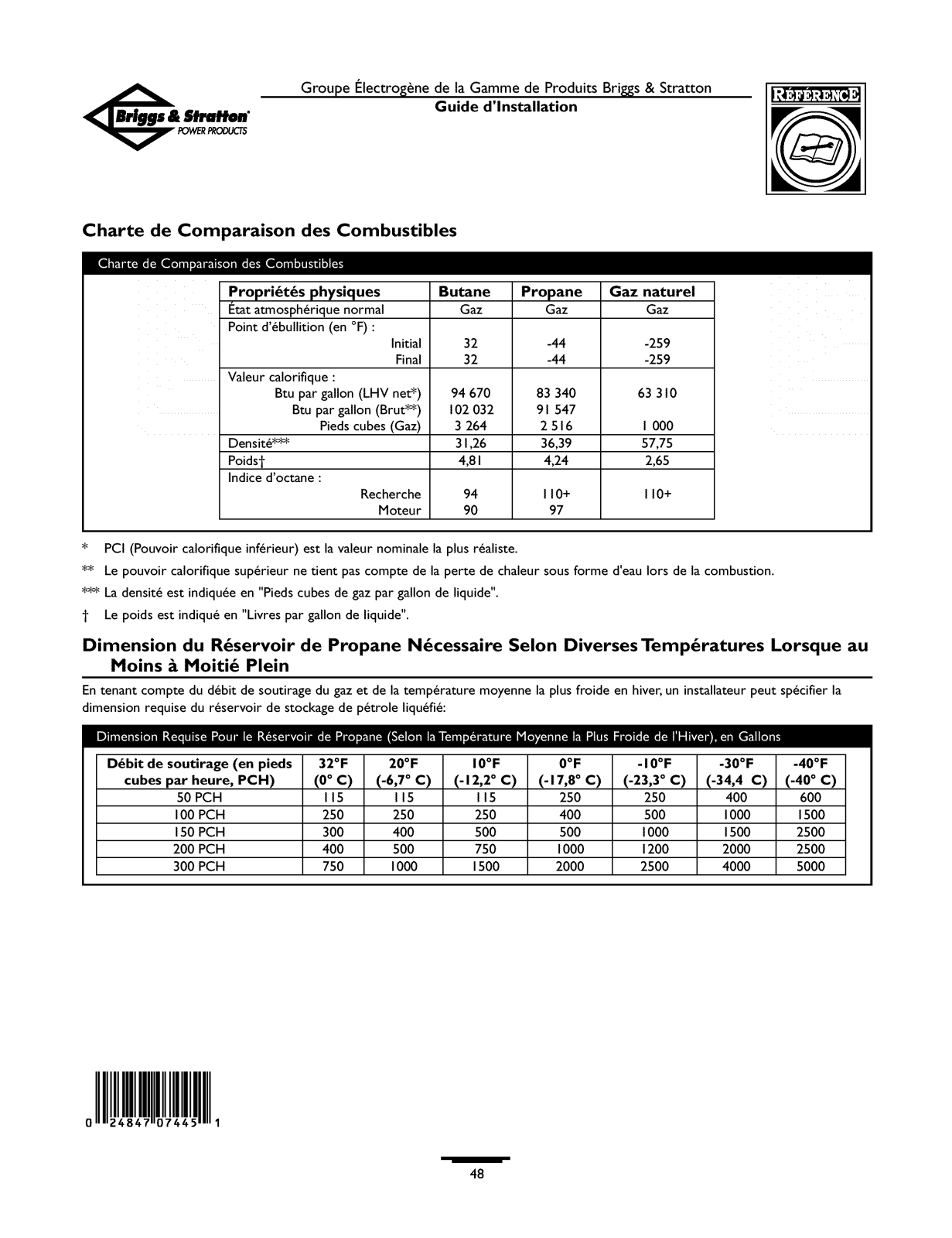

Fuel Comparison Chart ...................... 16

Size of Propane Tank Required atVarious Temperatures

When Kept at Least Half Full ........... 16

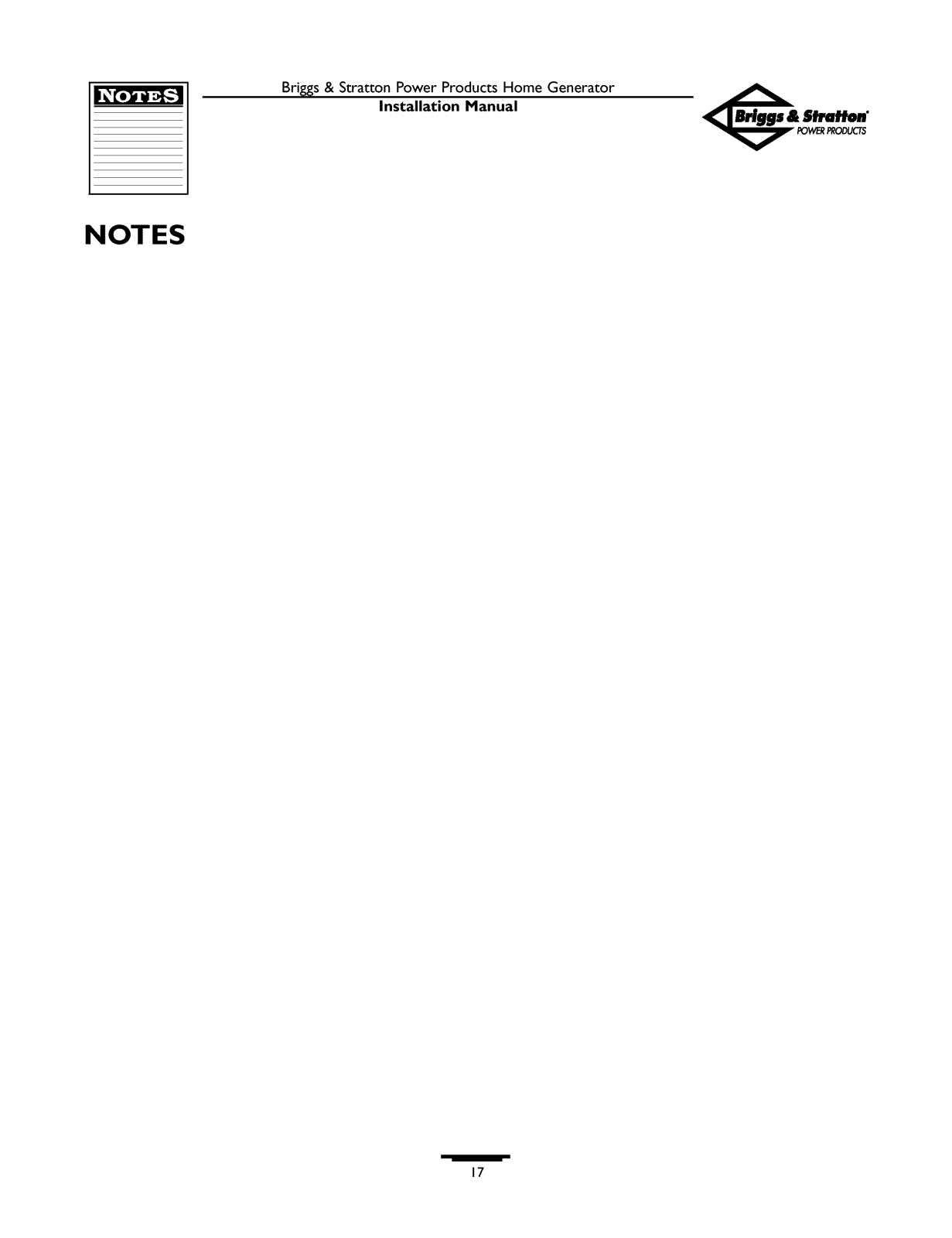

NOTES ....................................... 17

EQUIPMENT

DESCRIPTION

This product is intended for use as an optional home standby system which provides an alternate source of electric power and to serve loads such as heating, refrigeration systems, and communication systems that, when stopped during any power outage, could cause discomfort, or the like.This product DOES NOT qualify for emergency standby as defined by NFPA 70 (NEC).

This manual contains installation, startup and adjustment instructions for a Home Standby Generator that supplies

120/240Volt, single phase, 60Hz devices.The Home Standby Generator may be operated on LP or natural gas fueI.A separate owner's manual (part number 194103GS) contains specifications, operating and maintenance instructions for

this model. Every effort has been made to ensure that the information

in this manual is both accurate and current. However, the manufacturer reserves the right to change, alter or

otherwise improve the system at any time without prior notice.

CUSTOMER

RESPONSIBILITIES

Read and follow the instructions given in the Owner's Manual, especially the section regarding selecting essential

circuits. Follow a regular schedule in maintaining, caring for and

using your Home Standby Generator, as specified in the Owner's Manual.

INSTALLER

RESPONSIBILITIES

• Read and observe the safety rules.

• Read and follow the instructions given in this Installation

and Start-up Manual.

I:_;1_-_:_Je_-'l Briggs& Stratton Power ProductsHome Generator

Installation Manual

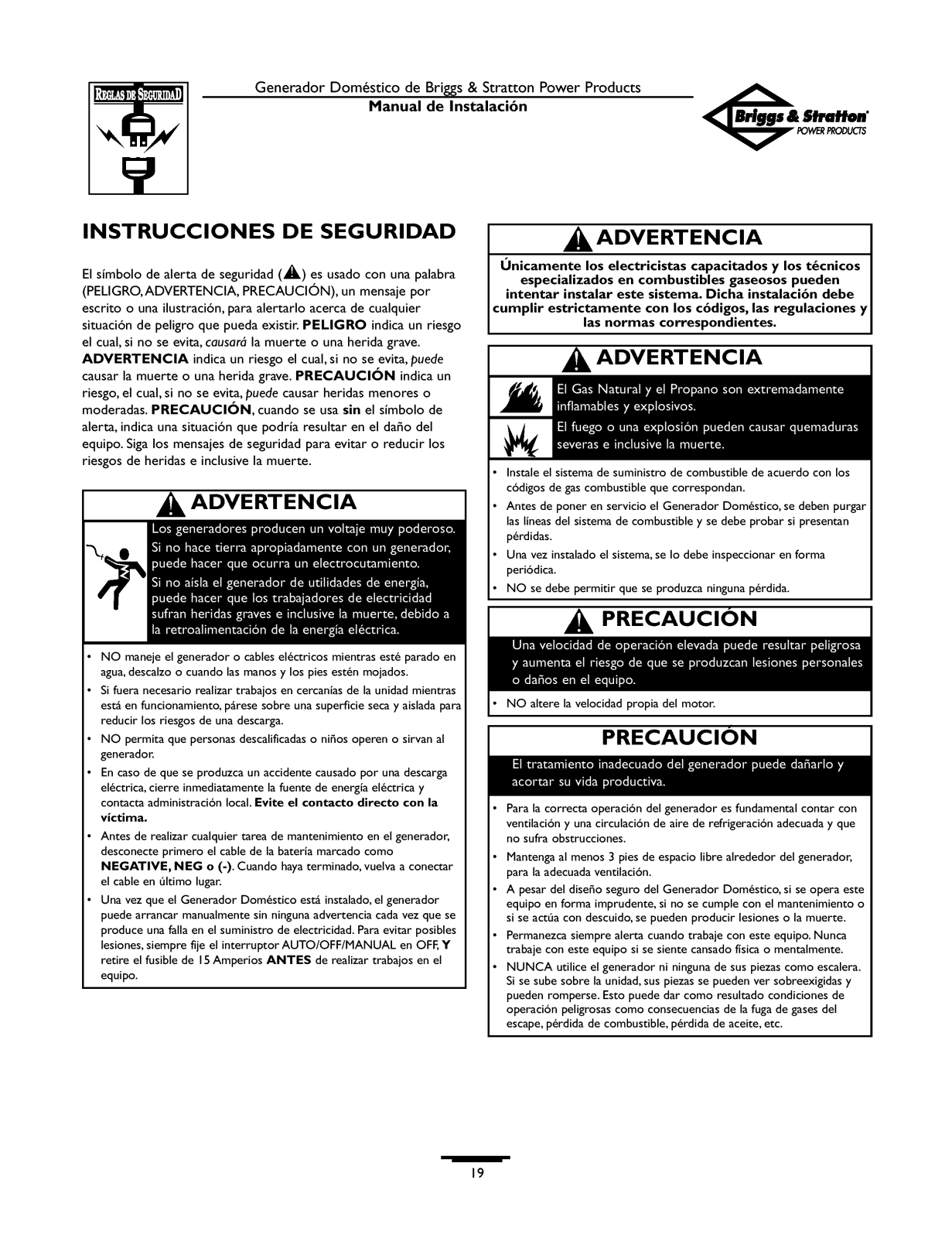

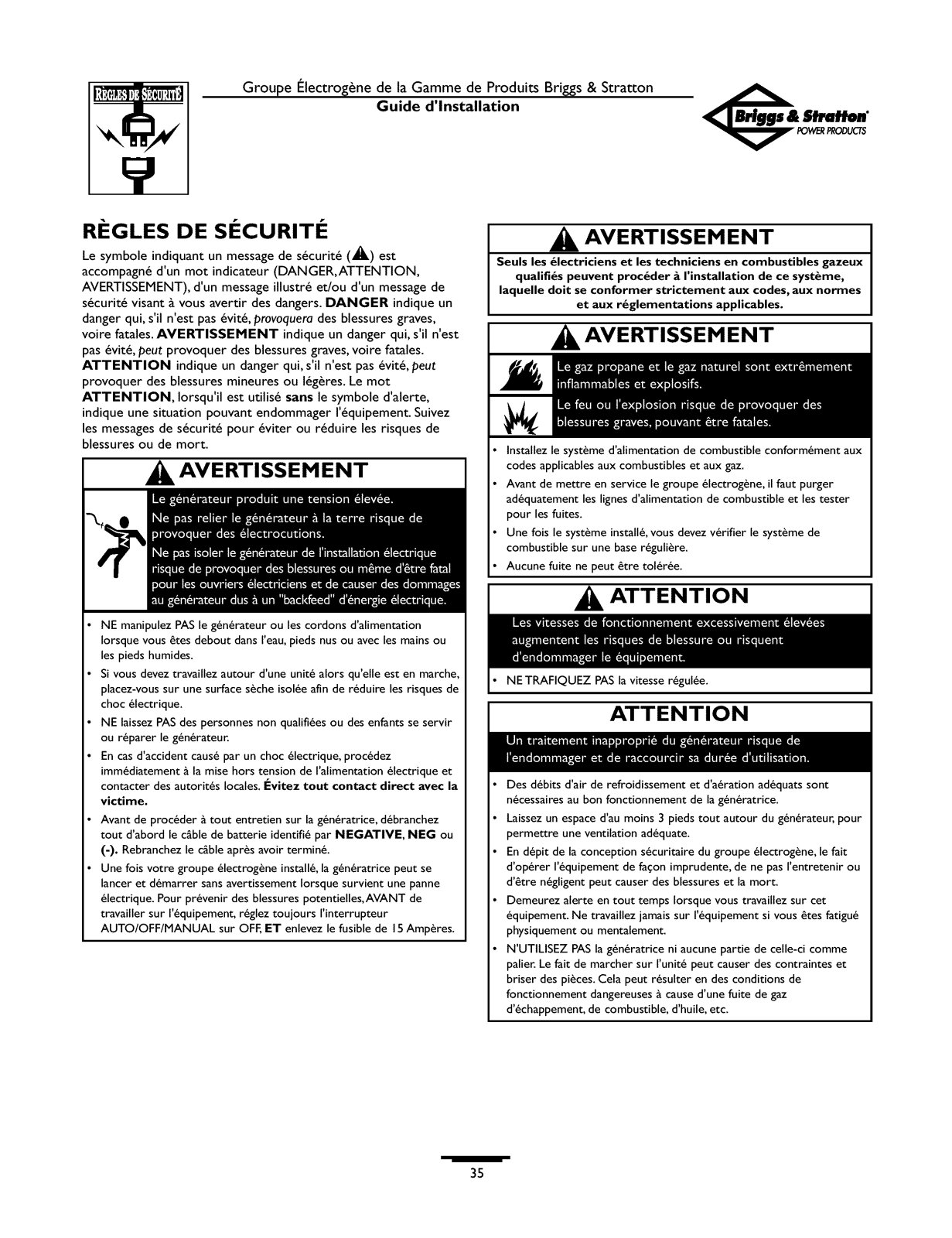

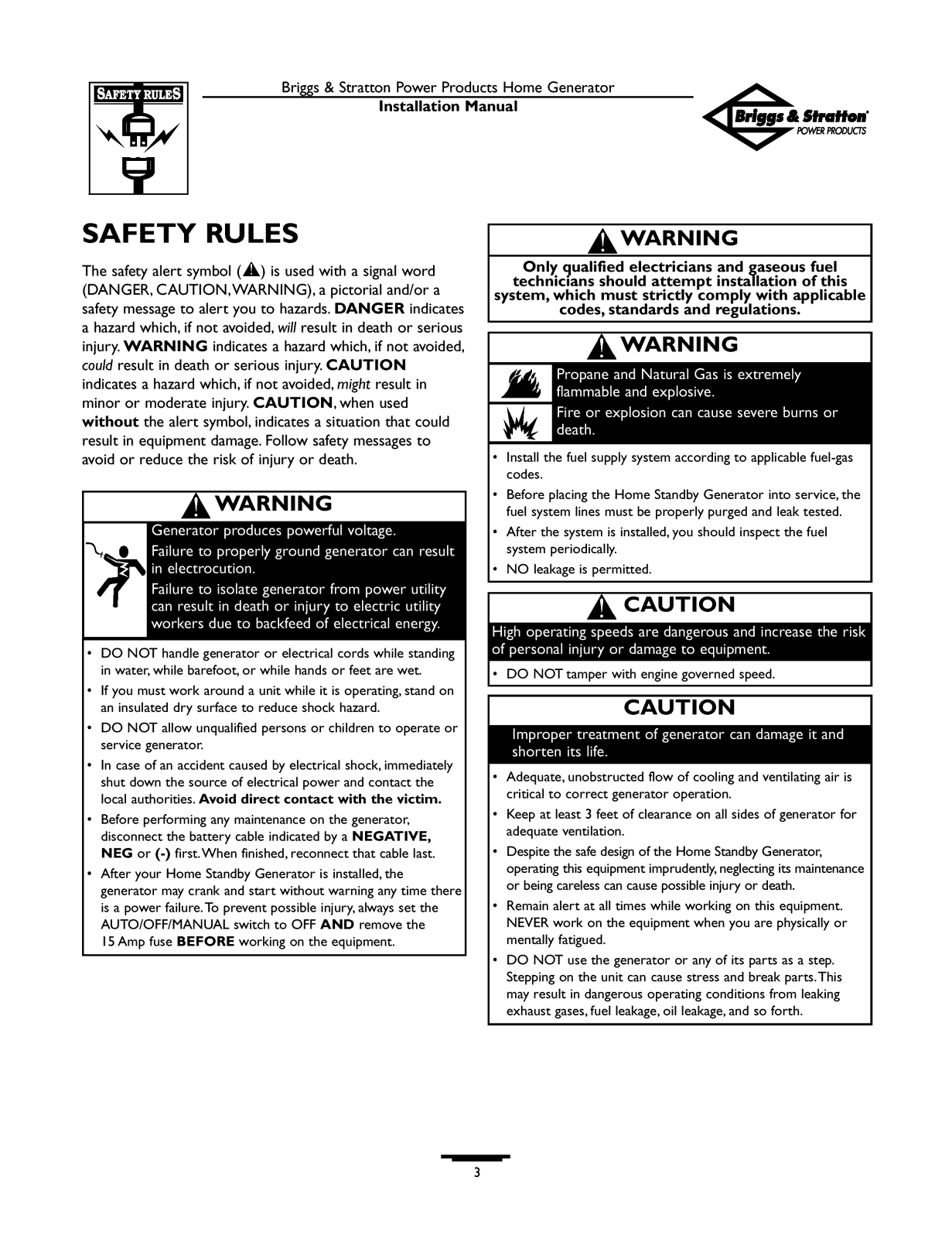

SAFETY RULES

The safety alert symbol (_IL) is used with a signal word (DANGER, CAUTION,WARNING), a pictorial and/or a safety message to alert you to hazards. DANGER indicates

a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided,

could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in

minor or moderate injury. CAUTION, when used without the alert symbol, indicates a situation that could result in equipment damage. Follow safety messages to avoid or reduce the risk of injury or death.

WARNING

• DO NOT handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet.

• If you must work around a unit while it is operating, stand on an insulated dry surface to reduce shock hazard.

• DO NOT allow unqualified persons or children to operate or service generator.

• In case of an accident caused by electrical shock, immediately shut down the source of electrical power and contact the

local authorities. Avoid direct contact with the victim.

• Before performing any maintenance on the generator, disconnect the battery cable indicated by a NEGATIVE,

NEG or (-) first.When finished, reconnect that cable last.

• After your Home Standby Generator is installed, the generator may crank and start without warning any time there

is a power failure.To prevent possible injury, always set the AUTO/OFF/MANUAL switch to OFF AND remove the

15Amp fuse BEFORE working on the equipment.

WARNING

Only qualified electricians and gaseous fuel

technicians should attempt installation of this

system, which must strictly comply with applicable

codes, standards and regulations.

WARNING

Install the fuel supply system according to applicable fuel-gas codes.

Before placing the Home Standby Generator into service, the fuel system lines must be properly purged and leak tested.

After the system is installed, you should inspect the fuel system periodically.

NO leakage is permitted.

DO NOT tamper with engine governed speed.

CAUTION

Adequate, unobstructed flow of cooling and ventilating air is critical to correct generator operation.

Keep at least 3 feet of clearance on all sides of generator for adequate ventilation.

Despite the safe design of the Home Standby Generator, operating this equipment imprudently, neglecting its maintenance or being careless can cause possible injury or death.

Remain alert at all times while working on this equipment. NEVER work on the equipment when you are physically or mentally fatigued.

DO NOT use the generator or any of its parts as a step. Stepping on the unit can cause stress and break parts.This may result in dangerous operating conditions from leaking exhaust gases,fuel leakage, oil leakage, and so forth.

Bri_s & Stratton Power Products Home Generator

Installation Manual

I I

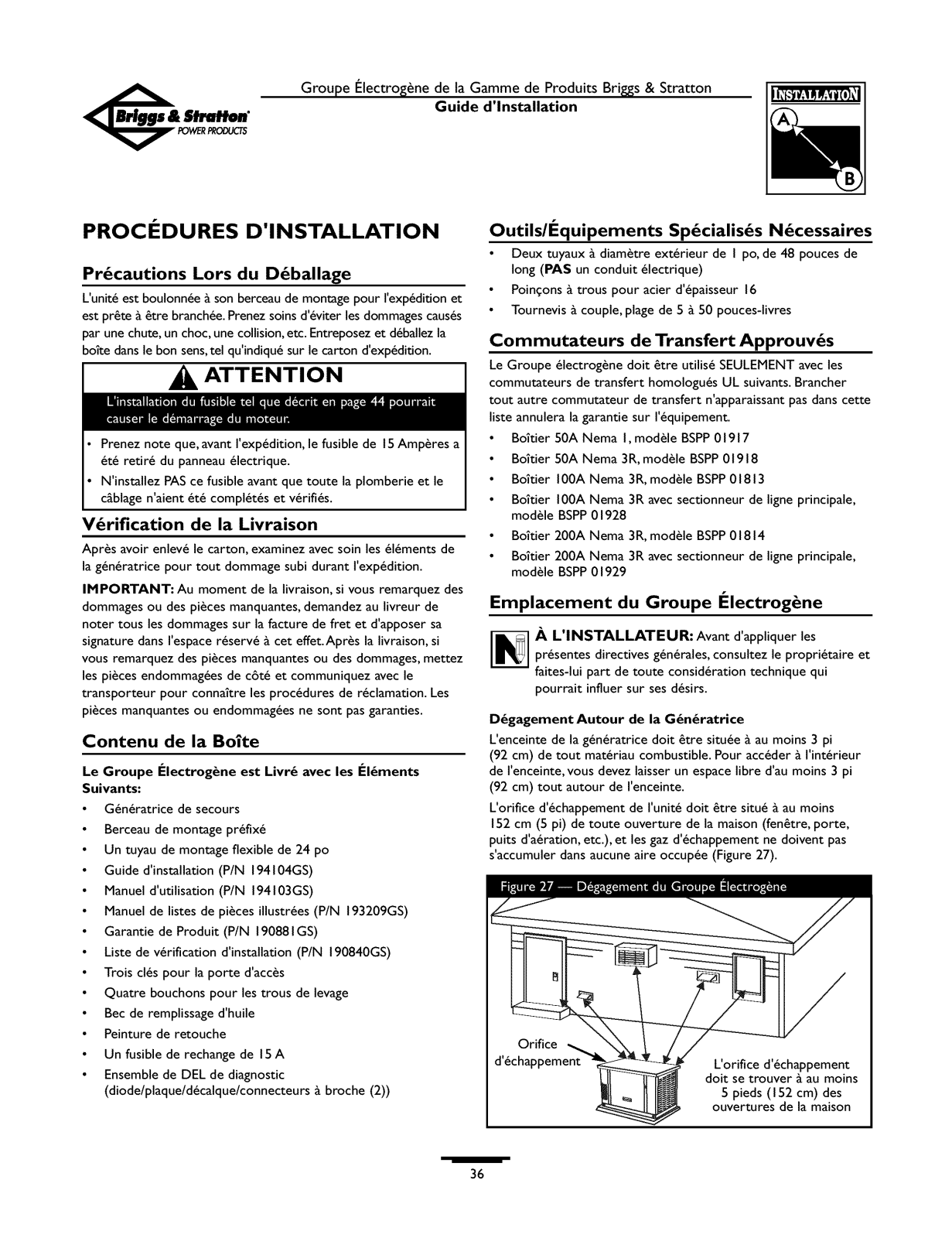

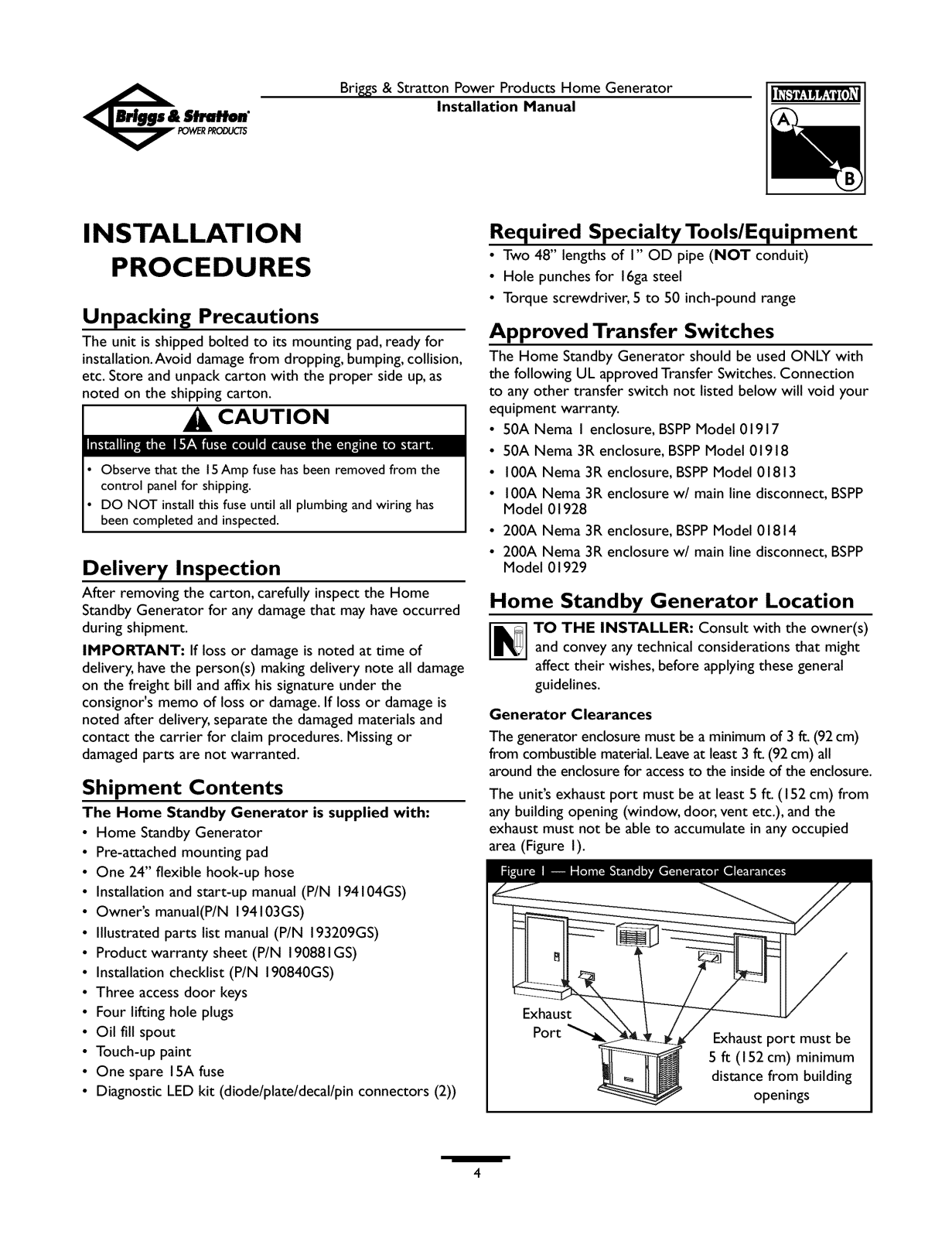

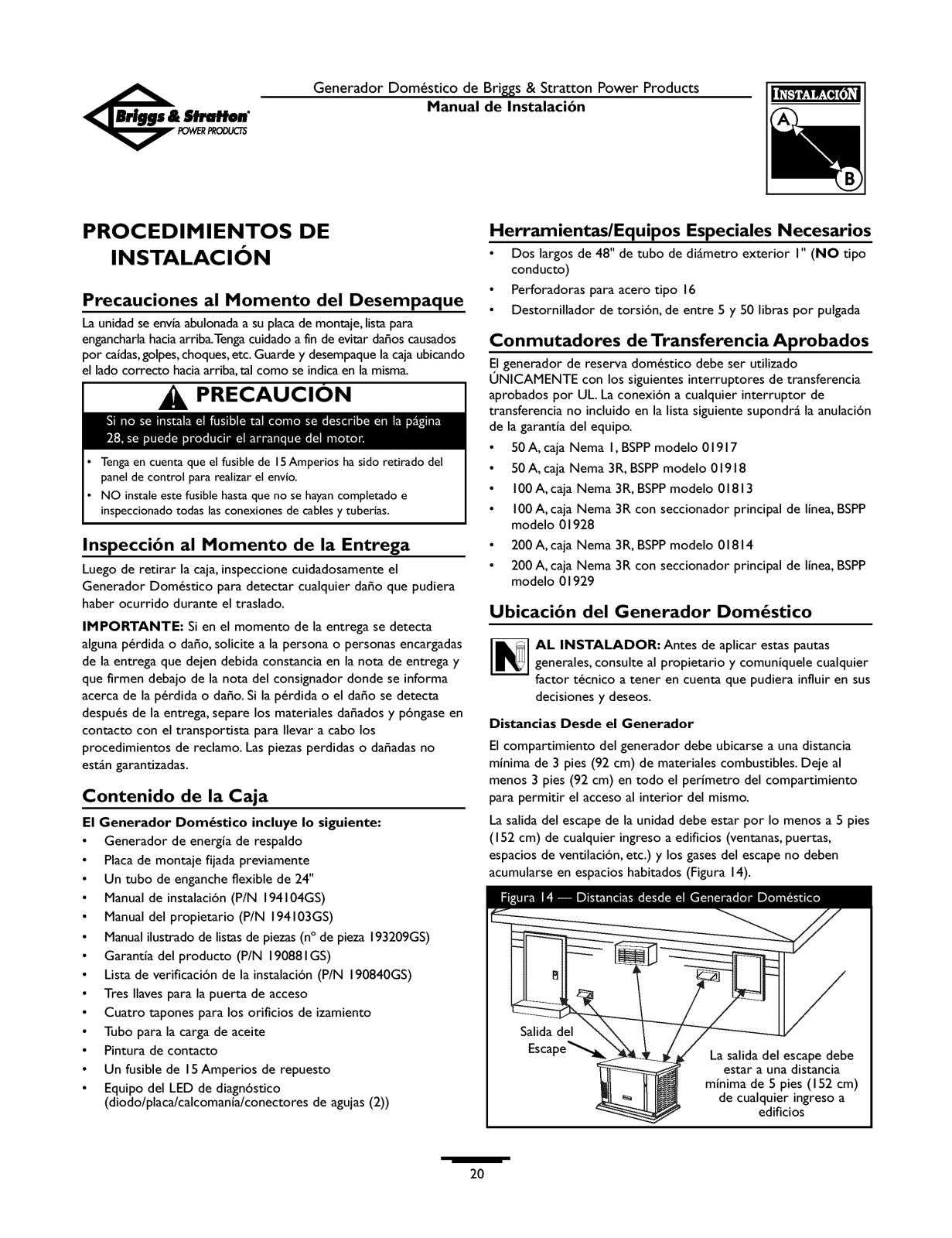

INSTALLATION

PROCEDURES

Unpacking Precautions

The unit is shipped bolted to its mounting pad, ready for installation. Avoid damage from dropping, bumping, collision, etc. Store and unpack carton with the proper side up, as noted on the shipping carton.

CAUTION

• Observe that the 15Amp fuse has been removed from the

control panel for shipping.

• DO NOT install this fuse until all plumbing and wiring has been completed and inspected.

Delivery Inspection

After removing the carton, carefully inspect the Home Standby Generator for any damage that may have occurred during shipment.

IMPORTANT: If loss or damage is noted at time of delivery, have the person(s) making delivery note all damage on the freight bill and affix his signature under the

consignor's memo of loss or damage. If loss or damage is noted after delivery, separate the damaged materials and

contact the carrier for claim procedures. Missing or damaged parts are not warranted.

Shipment Contents

The Home Standby Generator is supplied with:

• Home Standby Generator

• Pre-attached mounting pad

• One 24" flexible hook-up hose

• Installation and start-up manual (P/N 194104GS)

• Owner's manual(P/N 194103GS)

• Illustrated parts list manual (P/N 193209GS)

• Product warranty sheet (P/N 190881GS)

• Installation checklist (P/N 190840GS)

• Three access door keys

• Four lifting hole plugs

• Oil fill spout

• Touch-up paint

• One spare 15A fuse

• Diagnostic LED kit (diode/plate/decal/pin connectors (2))

Required Specialty Tools/Equipment

• Two 48" lengths of I" OD pipe (NOT conduit)

• Hole punches for 16ga steel

• Torque screwdriver, 5 to 50 inch-pound range

Approved Transfer Switches

The Home Standby Generator should be used ONLY with the following UL approved Transfer Switches. Connection to any other transfer switch not listed below will void your equipment warranty.

• 50A Nema I enclosure, BSPP Model 01917

• 50A Nema 3R enclosure, BSPP Model 01918

• 100A Nema 3R enclosure, BSPP Model 01813

• 100A Nema 3R enclosure w/main line disconnect, BSPP Model 01928

• 200A Nema 3R enclosure, BSPP Model 01814

• 200A Nema 3R enclosure w/main line disconnect, BSPP Model 01929

Home Standby Generator Location

TO THE INSTALLER: Consult with the owner(s)

and convey any technical considerations that might affect their wishes, before applying these general guidelines.

Generator Clearances

The generator enclosuremust be a minimum of 3 ft. (92cm) from combustible material.Leaveat least 3 ft. (92cm) all

around the enclosurefor accessto the insideof the enclosure.

The unit's exhaust port must be at least 5 ft. (I 52 cm) from any building opening (window, door, vent etc.), and the exhaust must not be able to accumulate in any occupied area (Figure I).

Exhaust

Exhaustport must be

5 ft (I 52 cm) minimum

distancefrom building

openings

_J Briggs & Stratton Power Products Home Generator

Installation Manual

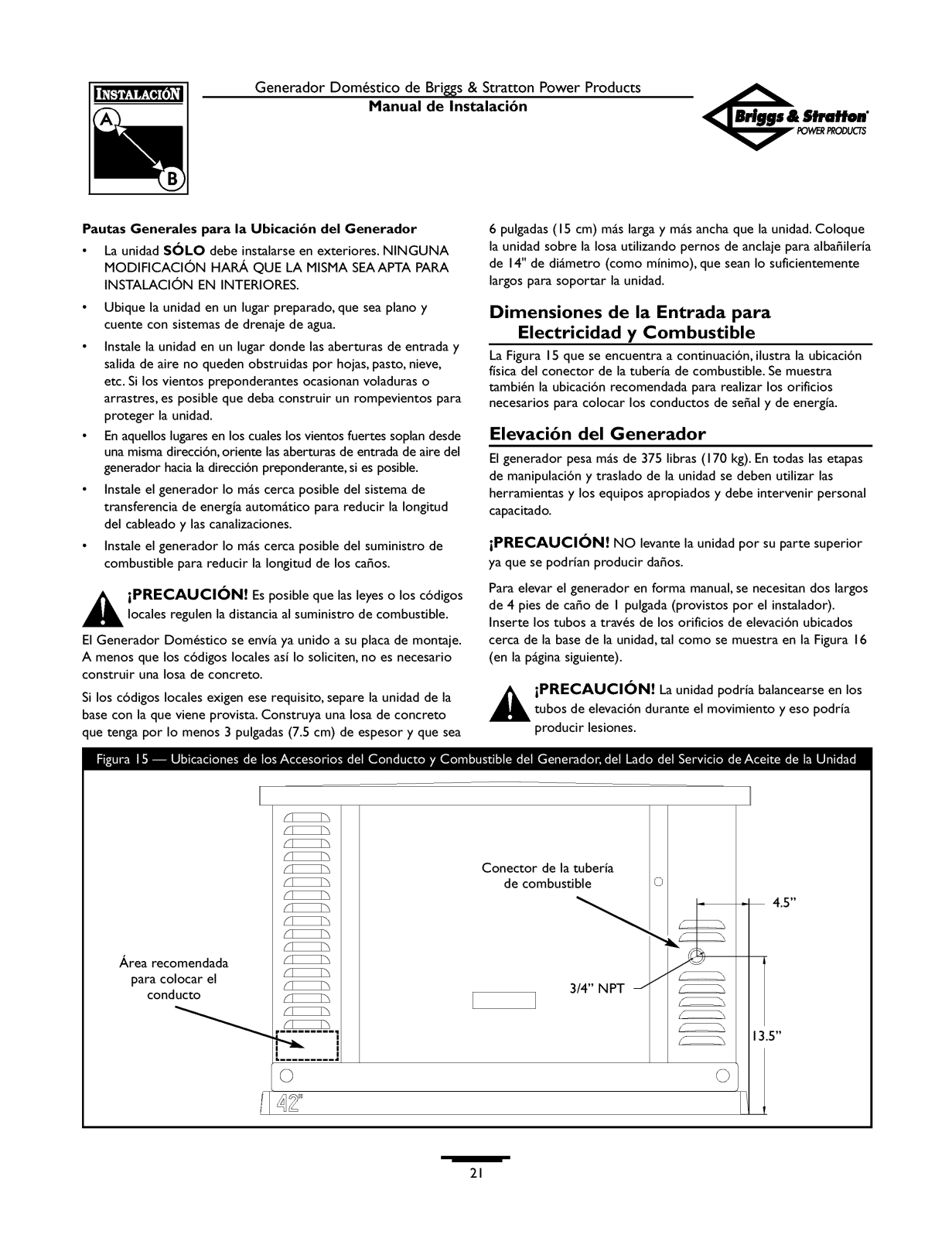

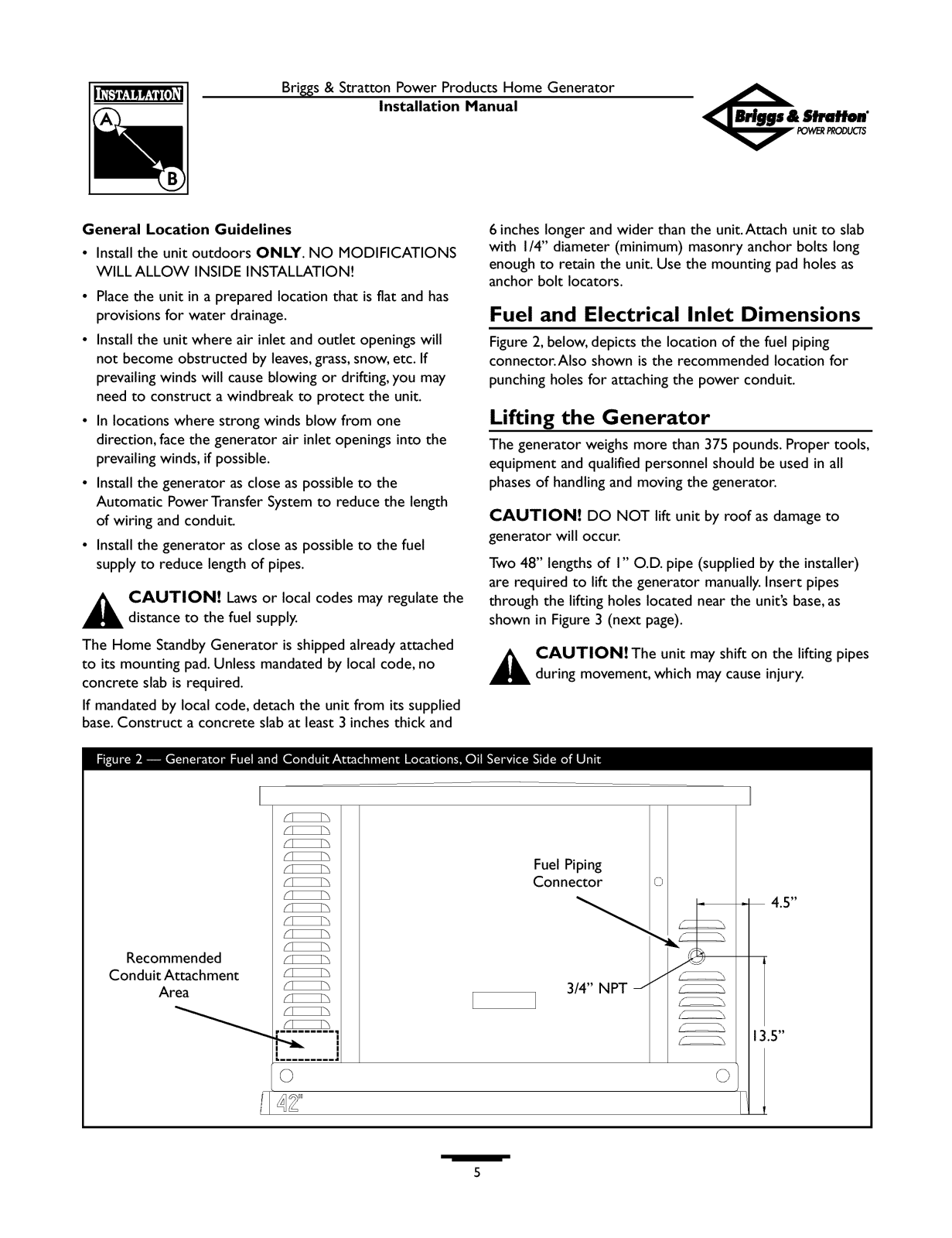

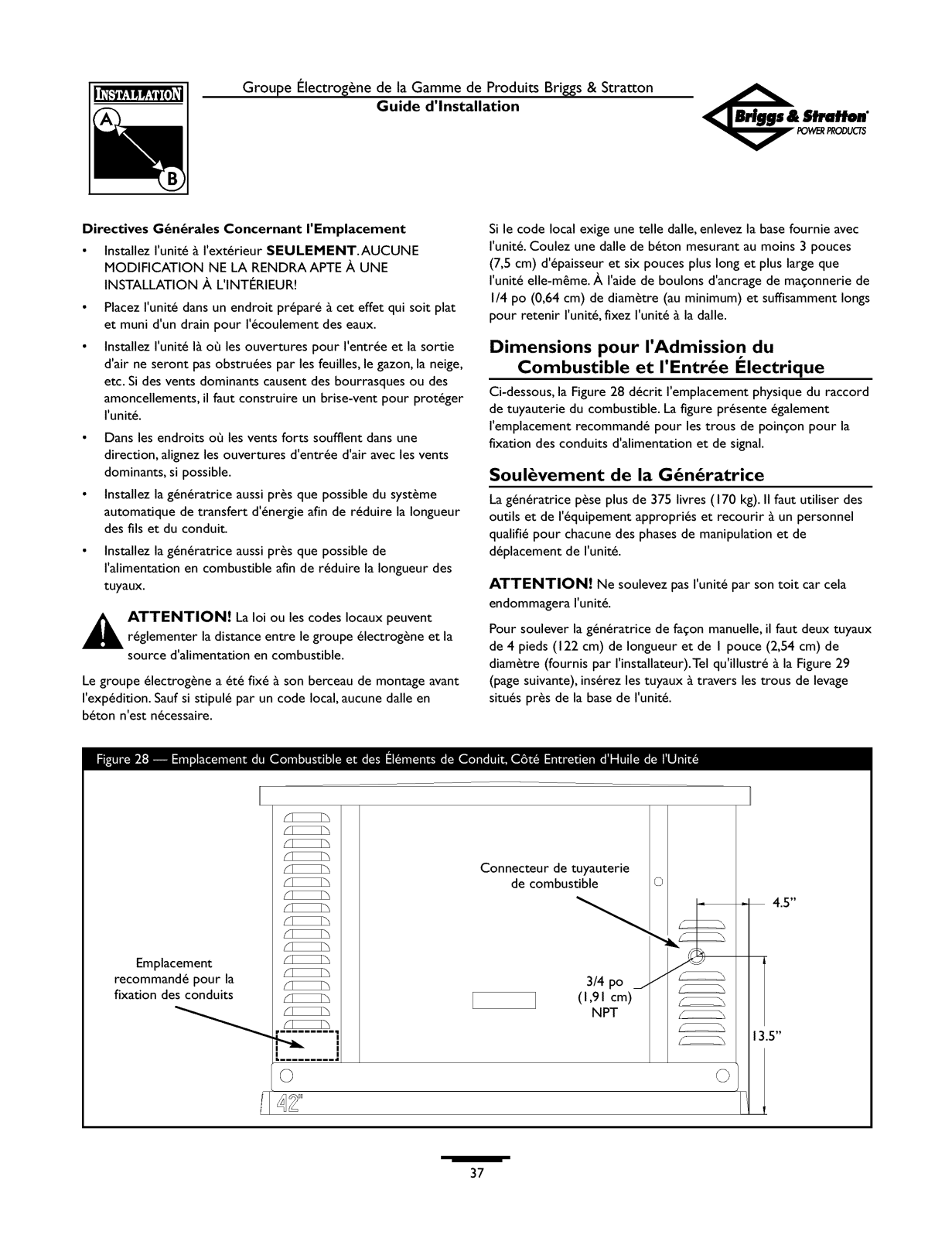

General Location Guidelines

• Install the unit outdoors ONLY. NO MODIFICATIONS

WILL ALLOW INSIDE INSTALLATION!

• Place the unit in a prepared location that is fiat and has provisions for water drainage.

• Install the unit where air inlet and outlet openings will not become obstructed by leaves, grass, snow, etc. If prevailing winds will cause blowing or drifting, you may need to construct a windbreak to protect the unit.

• In locations where strong winds blow from one direction, face the generator air inlet openings into the prevailing winds, if possible.

• Install the generator as close as possible to the Automatic Power Transfer System to reduce the length of wiring and conduit.

• Install the generator as close as possible to the fuel supply to reduce length of pipes.

_ AUTION! Laws or local codes may regulate the

distance to the fuel supply.

The Home Standby Generator is shipped already attached to its mounting pad. Unless mandated by local code, no concrete slab is required.

If mandated by local code, detach the unit from its supplied

base. Construct a concrete slab at least 3 inches thick and

6 inches longer and wider than the unit.Attach unit to slab with I/4" diameter (minimum) masonry anchor bolts long

enough to retain the unit. Use the mounting pad holes as anchor bolt Iocators.

Fuel and Electrical Inlet Dimensions

Figure 2, below, depicts the location of the fuel piping connector.Also shown is the recommended location for

punching holes for attaching the power conduit.

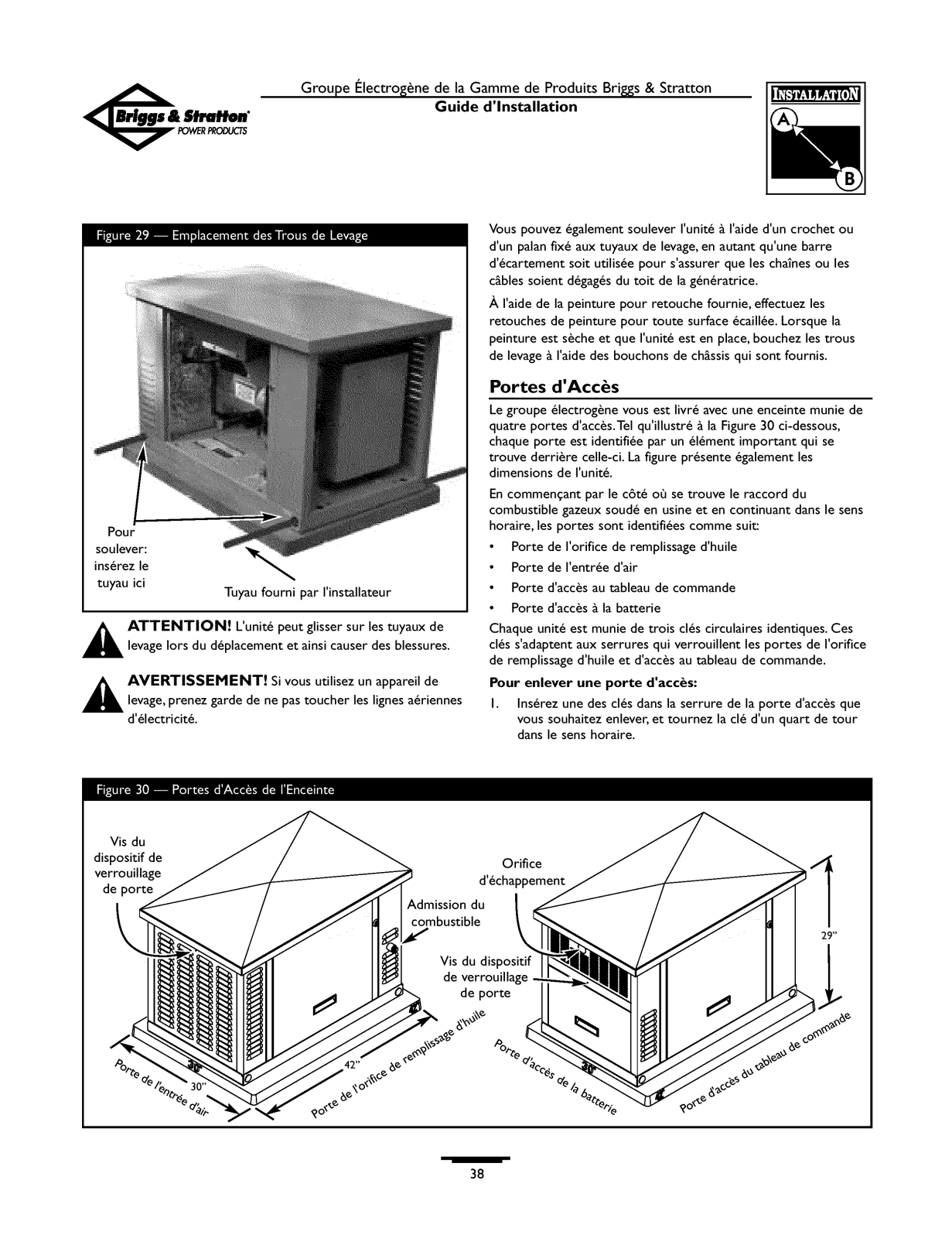

Lifting the Generator

The generator weighs more than 375 pounds. Proper tools, equipment and qualified personnel should be used in all phases of handling and moving the generator.

CAUTION! DO NOT lift unit by roof as damage to generator will occur.

Two 48" lengths of I" O.D. pipe (supplied by the installer) are required to lift the generator manually. Insert pipes through the lifting holes located near the unit's base, as shown in Figure 3 (next page).

_ AUTION! The unit may shift on the lifting pipes

during movement, which may cause injury.

Recommended

Conduit Attachment

Area

p ......... ,i

.....J

Fuel Piping

Connector I©1

-' 4.5"

--......

13.5"

To lift:

Insert

pipe

here

Brig, s & Stratton Power Products Home Generator

Installer-supplied pipe

Installation Manual

Retouch any chipped paint with supplied touch-up paint. After paint is dry, and the unit is in place, fill the lifting holes

with the supplied lifting hole plugs.

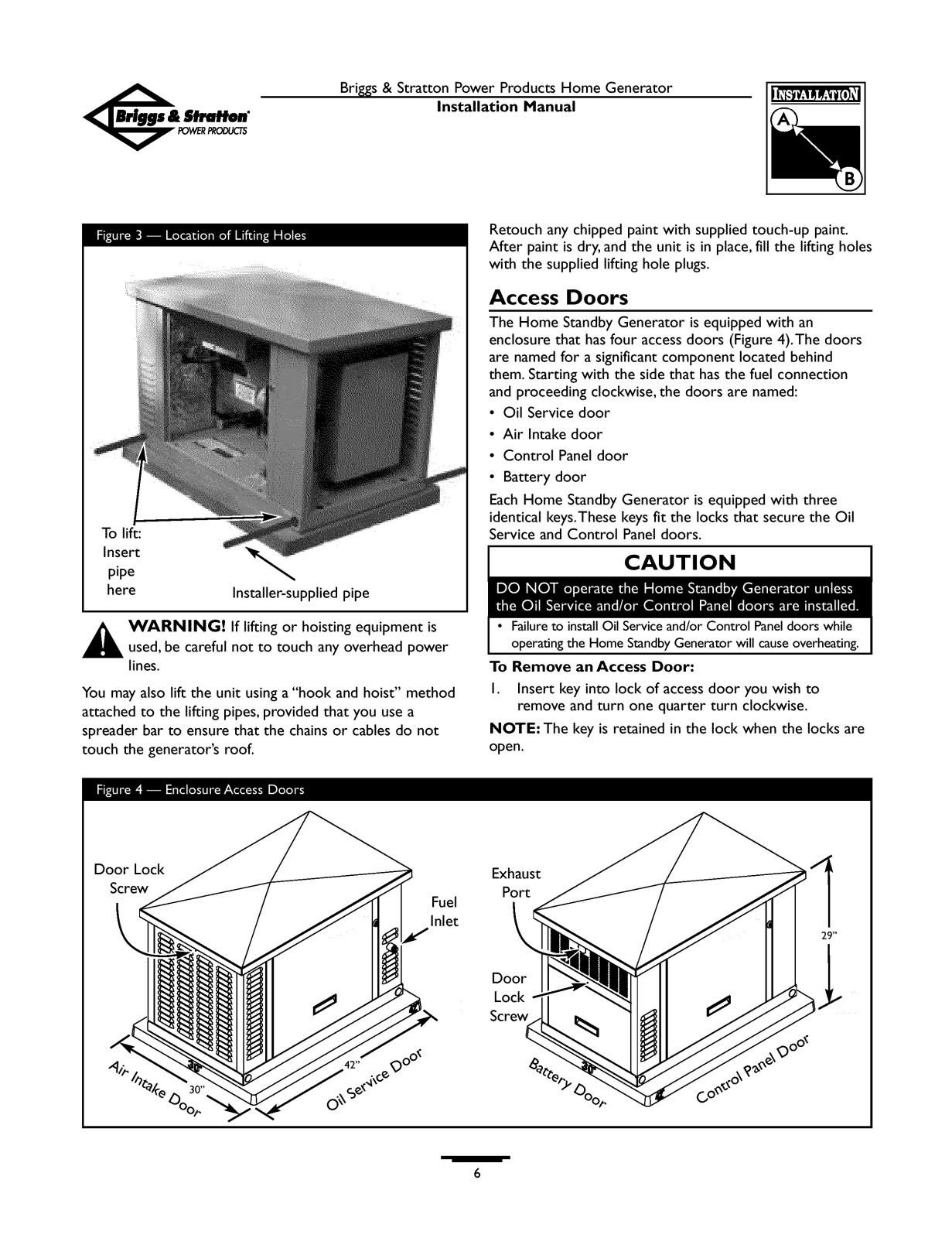

Access Doors

The Home Standby Generator is equipped with an enclosure that has four access doors (Figure 4).The doors are named for a significant component located behind them. Starting with the side that has the fuel connection and proceeding clockwise, the doors are named:

• Oil Service door

• Air Intake door

• Control Panel door

• Battery door Each Home Standby Generator is equipped with three

identical keys.These keys fit the locks that secure the Oil Service and Control Panel doors.

I CAUTION

I I

WARNING! If lifting or hoisting equipment is

used, be careful not to touch any overhead power

lines.

You may also lift the unit using a"hook and hoist" method attached to the lifting pipes, provided that you use a spreader bar to ensure that the chains or cables do not touch the generator's roof.

Door Lock

Screw

Fuel Inlet

• Failureto installOil Service and/or Control Paneldoors while operatingthe Home StandbyGenerator will causeoverheating.

To Remove an Access Door:

I. Insert key into lock of access door you wish to

remove and turn one quarter turn clockwise.

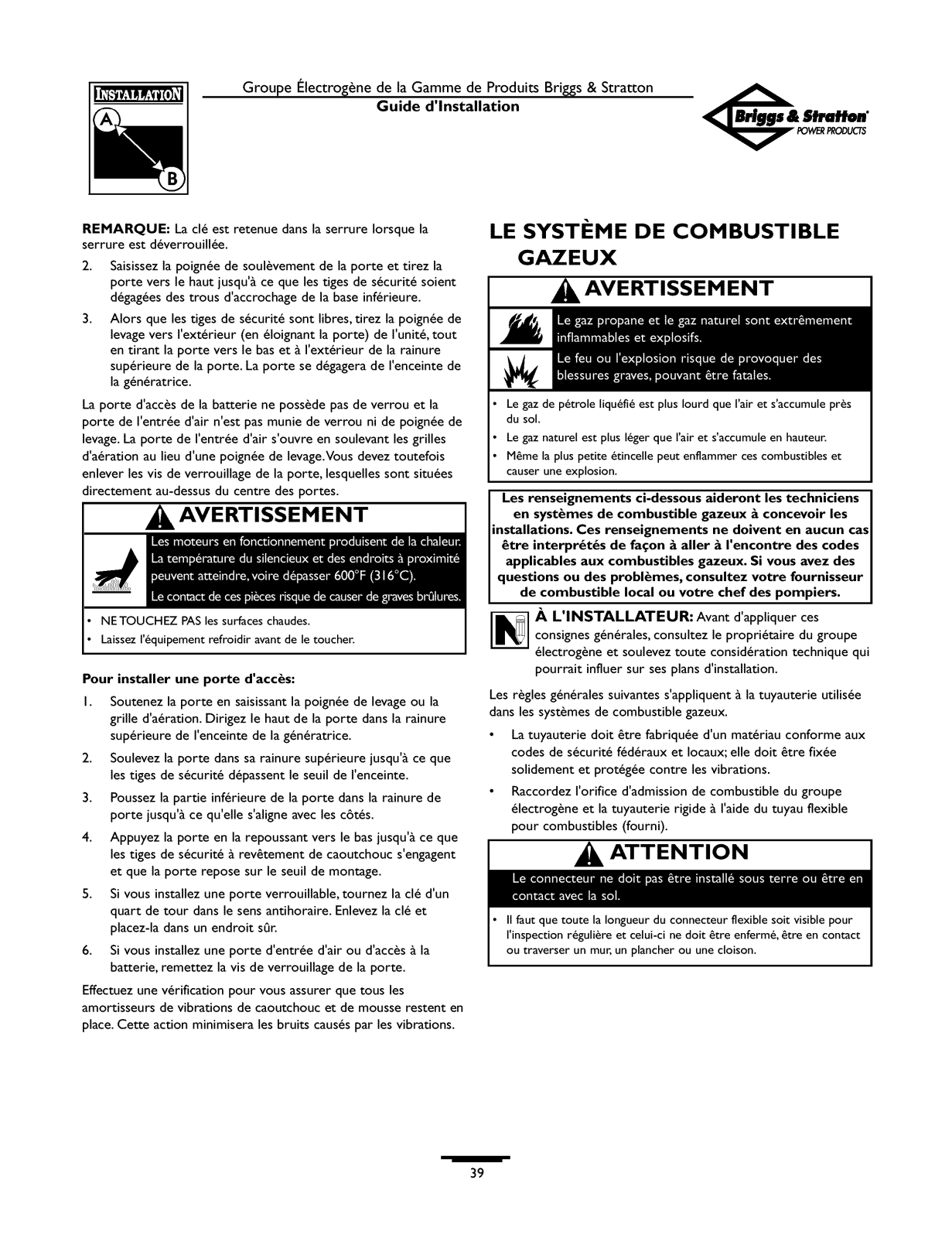

NOTE: The key is retained in the lock when the locks are open.

Port

Exhaust "/T

29"

Door

Lock I_

Screw

_1 Brigss & Stratton Power Products Home Generator

Installation Manual

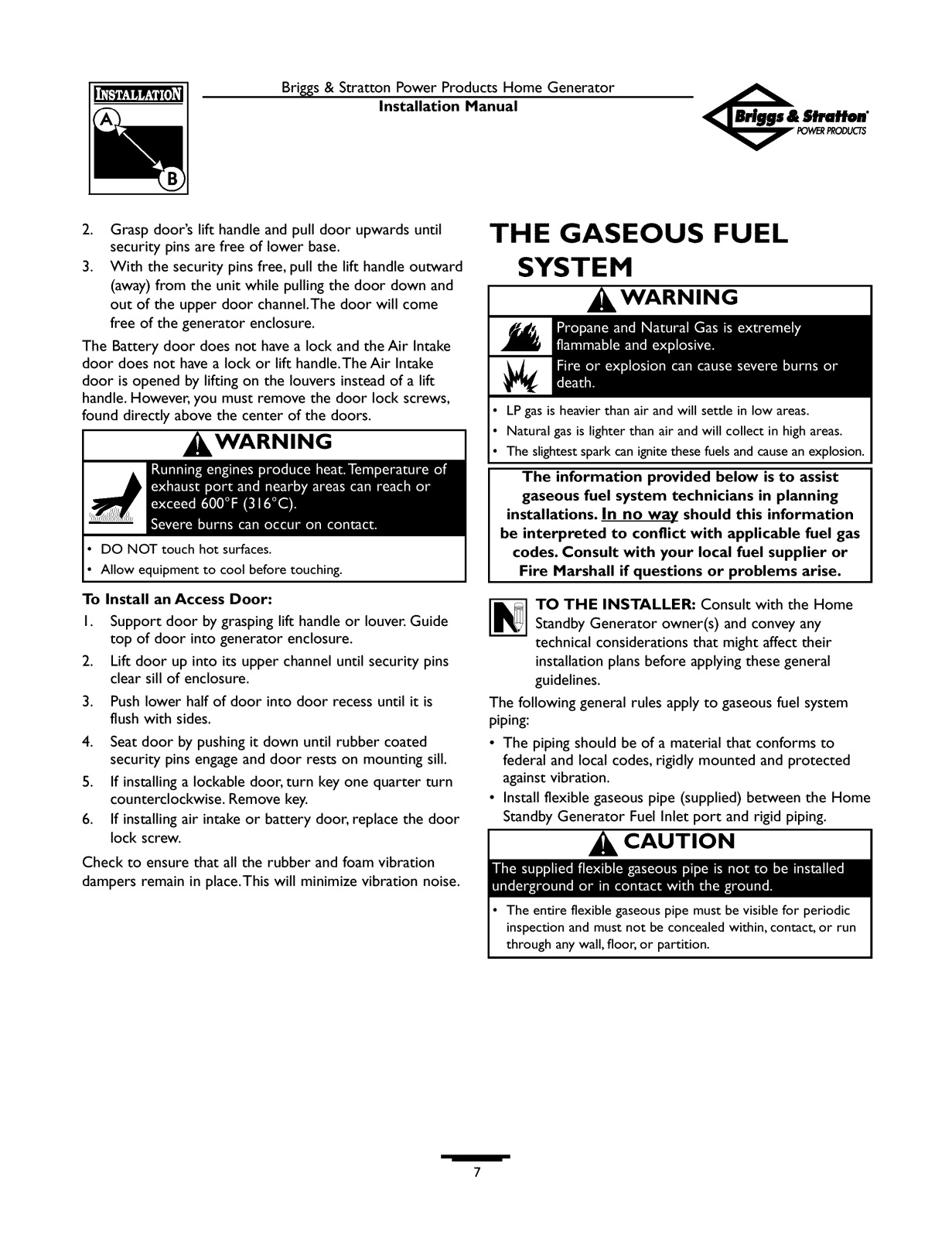

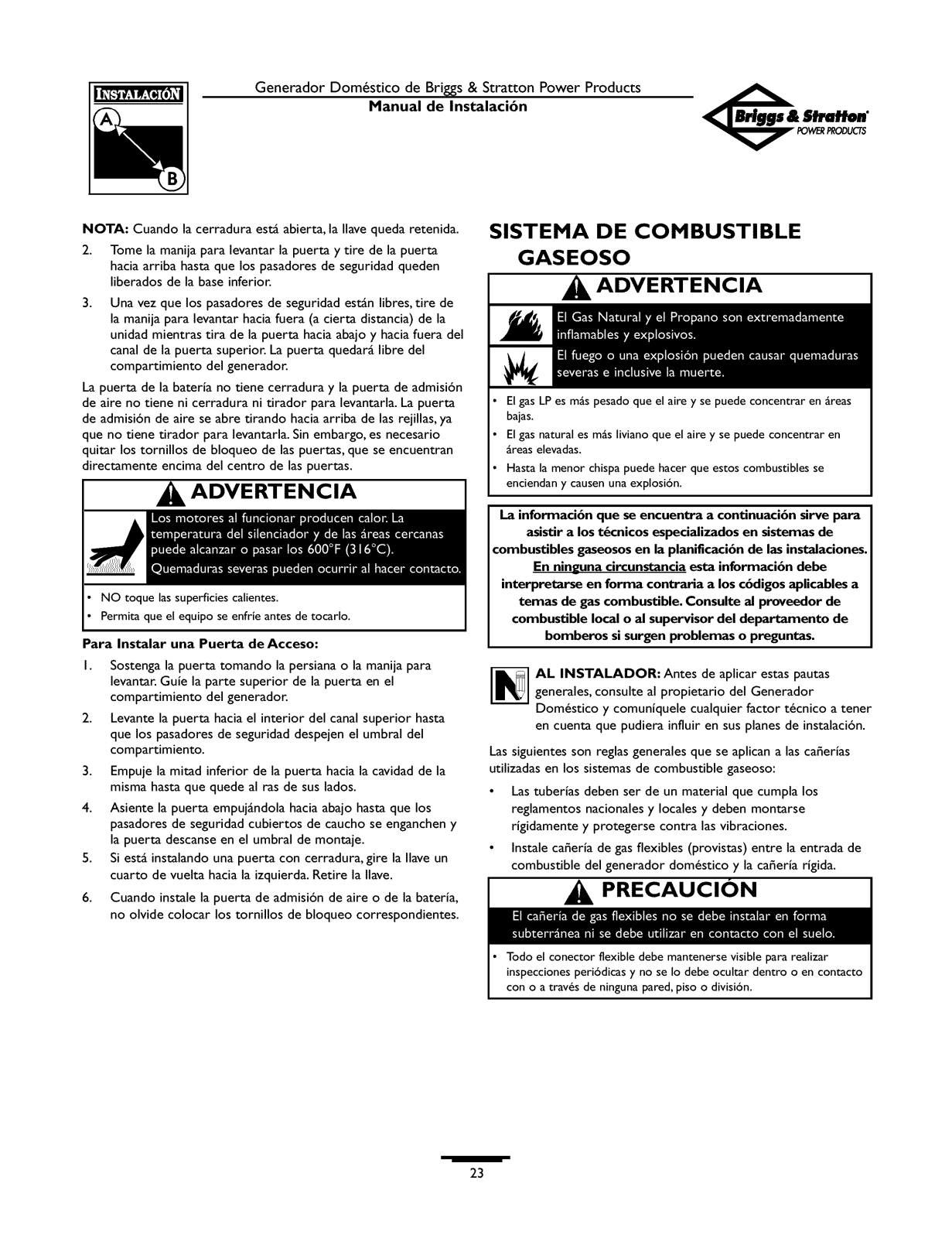

2. Grasp door's lift handle and pull door upwards until security pins are free of lower base.

3. With the security pins free, pull the lift handle outward (away) from the unit while pulling the door down and out of the upper door channel.The door will come free of the generator enclosure.

The Battery door does not have a lock and the Air Intake door does not have a lock or lift handle.The Air Intake

door is opened by lifting on the louvers instead of a lift handle. However, you must remove the door lock screws, found directly above the center of the doors.

I WARNING I

• DO NOT touch hot surfaces.

• Allow equipment to cool before touching.

To Install an Access Door:

Support door by grasping lift handle or louver. Guide top of door into generator enclosure.

Lift door up into its upper channel until security pins

clear sill of enclosure.

Push lower half of door into door recess until it is

flush with sides.

Seat door by pushing it down until rubber coated security pins engage and door rests on mounting sill.

If installing a Iockable door, turn key one quarter turn

counterclockwise. Remove key.

If installing air intake or battery door, replace the door

lock screw.

Check to ensure that all the rubber and foam vibration dampers remain in place.This will minimize vibration noise.

THE GASEOUS FUEL

SYSTEM

I WARNING I

LP gas is heavier than air and will settle in low areas. Natural gas is lighter than air and will collect in high areas.

The slightest spark can ignite these fuels and cause an explosion.

The information provided below is to assist gaseous fuel system technicians in planning

installations. In no way should this information

be interpreted to conflict with applicable fuel gas

codes. Consult with your local fuel supplier or

Fire Marshall if questions or problems arise.

TO THE INSTALLER: Consult with the Home

Standby Generator owner(s) and convey any

technical considerations that might affect their

installation plans before applying these general

guidelines.

The following general rules apply to gaseous fuel system piping:

• The piping should be of a material that conforms to federal and local codes, rigidly mounted and protected

against vibration.

• Install flexible gaseous pipe (supplied) between the Home

Standby Generator Fuel Inlet port and rigid piping.

I A CAUTION I

The entire flexible gaseous pipe must be visible for periodic inspection and must not be concealed within, contact, or run

through any wall, floor, or partition.

Bri_[s& Stratton Power Products Home Generator

Installation Manual

I I

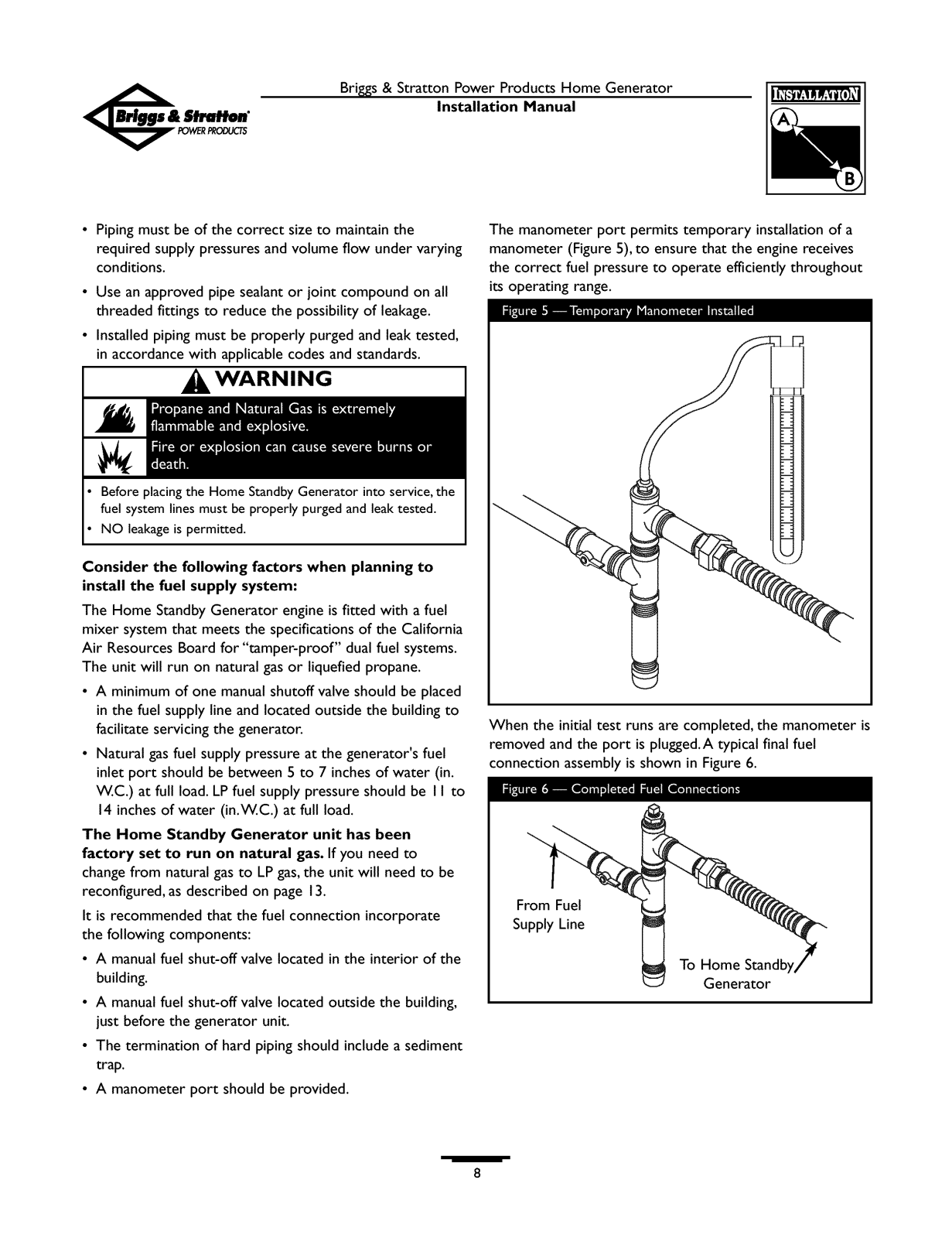

Piping must be of the correct size to maintain the required supply pressures and volume flow under varying

conditions.

• Use an approved pipe sealant or joint compound on all threaded fittings to reduce the possibility of leakage.

• Installed piping must be properly purged and leak tested, in accordance with applicable codes and standards.

• Before placing the Home Standby Generator into service, the fuel system lines must be properly purged and leak tested.

• NO leakage is permitted.

Consider the following factors when planning to install the fuel supply system:

The Home Standby Generator engine is fitted with a fuel mixer system that meets the specifications of the California Air Resources Board for "tamper-proof" dual fuel systems. The unit will run on natural gas or liquefied propane.

• A minimum of one manual shutoff valve should be placed in the fuel supply line and located outside the building to facilitate servicing the generator.

• Natural gas fuel supply pressure at the generator's fuel inlet port should be between 5 to 7 inches of water (in. W.C.) at full load. LP fuel supply pressure should be I I to

14 inches of water (in.W.C.) at full load.

The Home Standby Generator unit has been factory set to run on natural gas. If you need to

change from natural gas to LP gas,the unit will need to be reconfigured, as described on page 13.

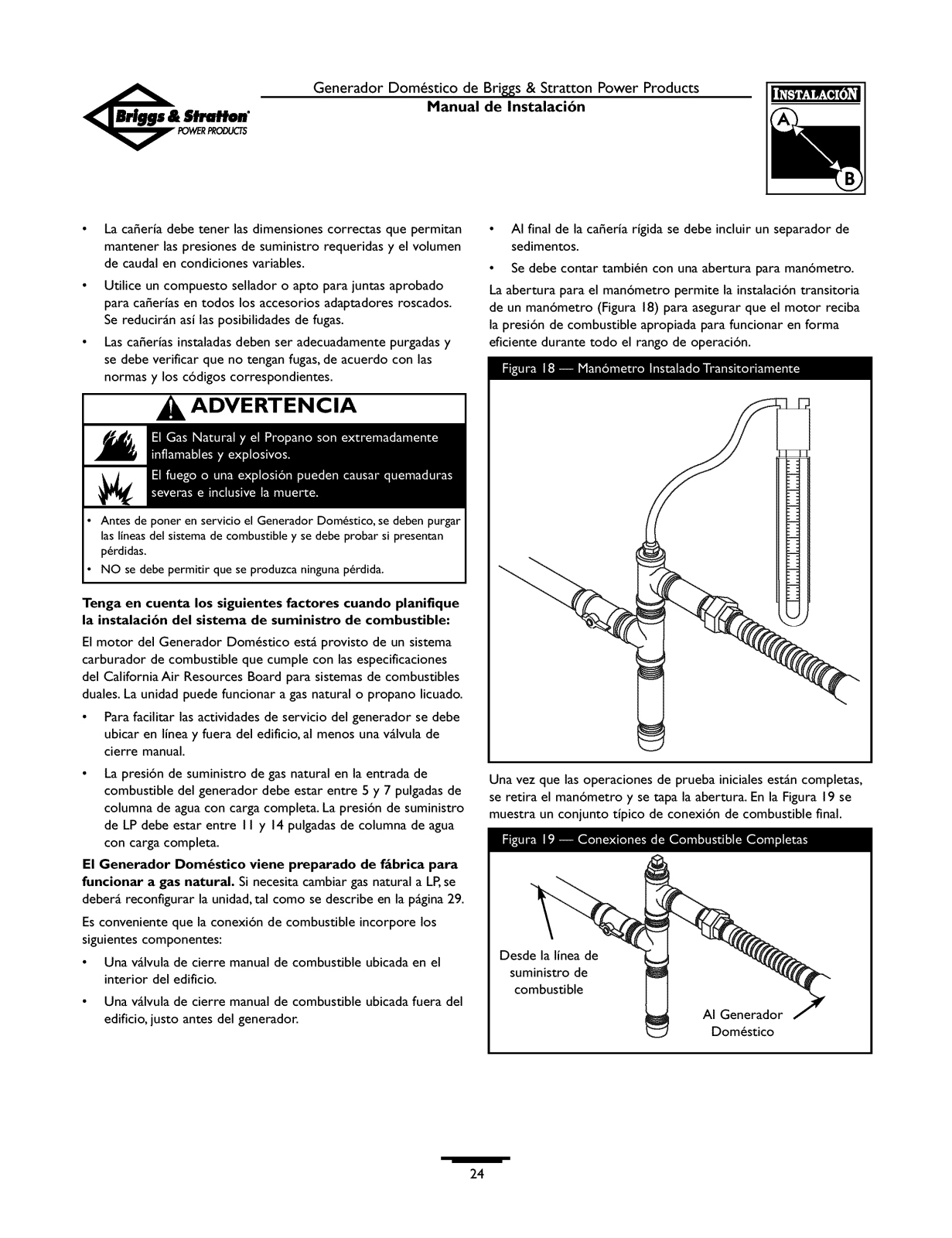

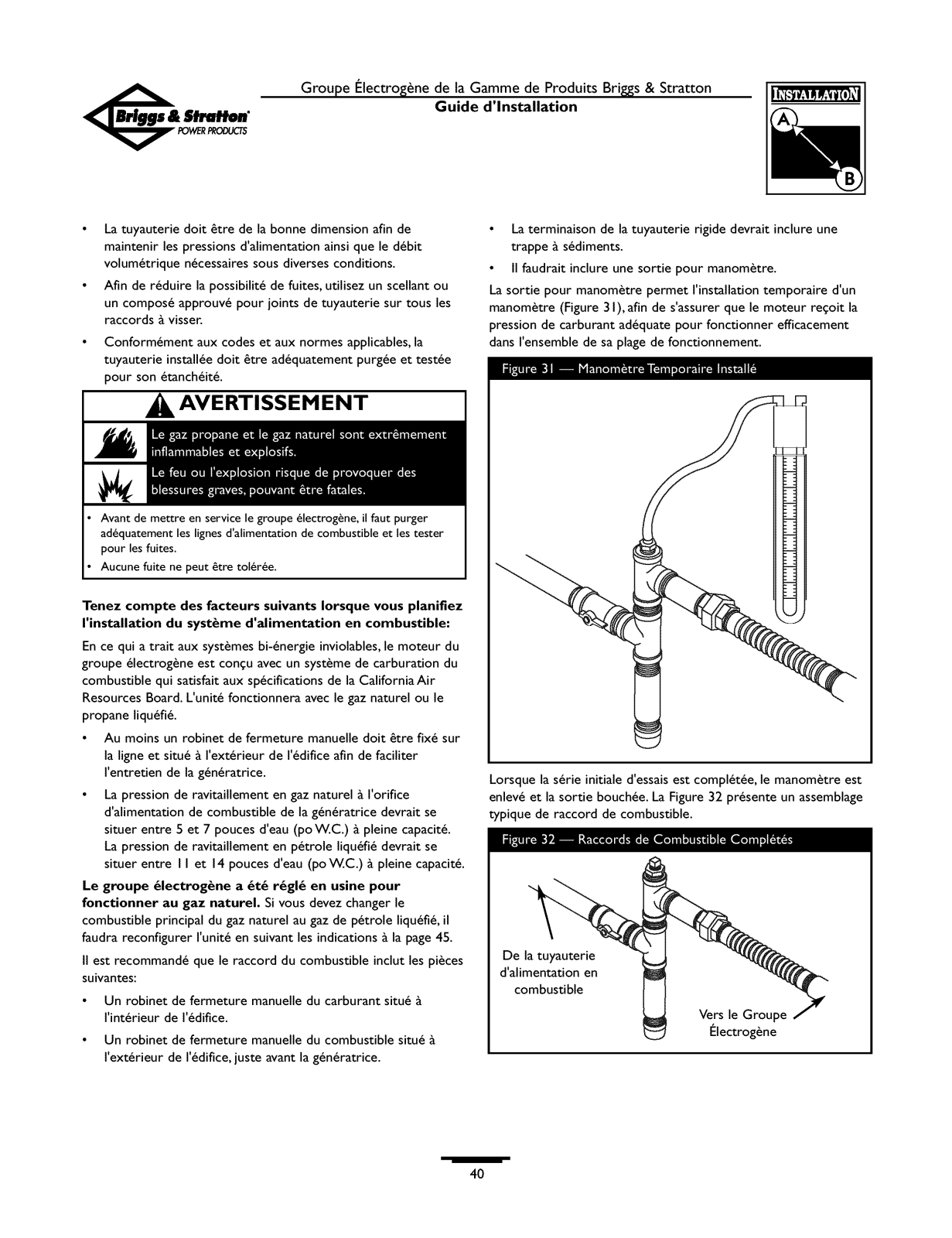

It is recommended that the fuel connection incorporate

the following components:

• A manual fuel shut-off valve located in the interior of the building.

• A manual fuel shut-off valve located outside the building, just before the generator unit.

• The termination of hard piping should include a sediment trap.

• A manometer port should be provided.

WARNING

The manometer port permits temporary installation of a manometer (Figure 5), to ensure that the engine receives the correct fuel pressure to operate efficiently throughout its operating range.

_1_1_},_!,__' "]_" ]ili_ Illk_IL_l

When the initial test runs are completed, the manometer is removed and the port is plugged.A typical final fuel connection assembly is shown in Figure 6.

From Fuel

SupplyLine

To Home

Generator

_1 Briggs & Stratton Power Products Home Generator

Installation Manual

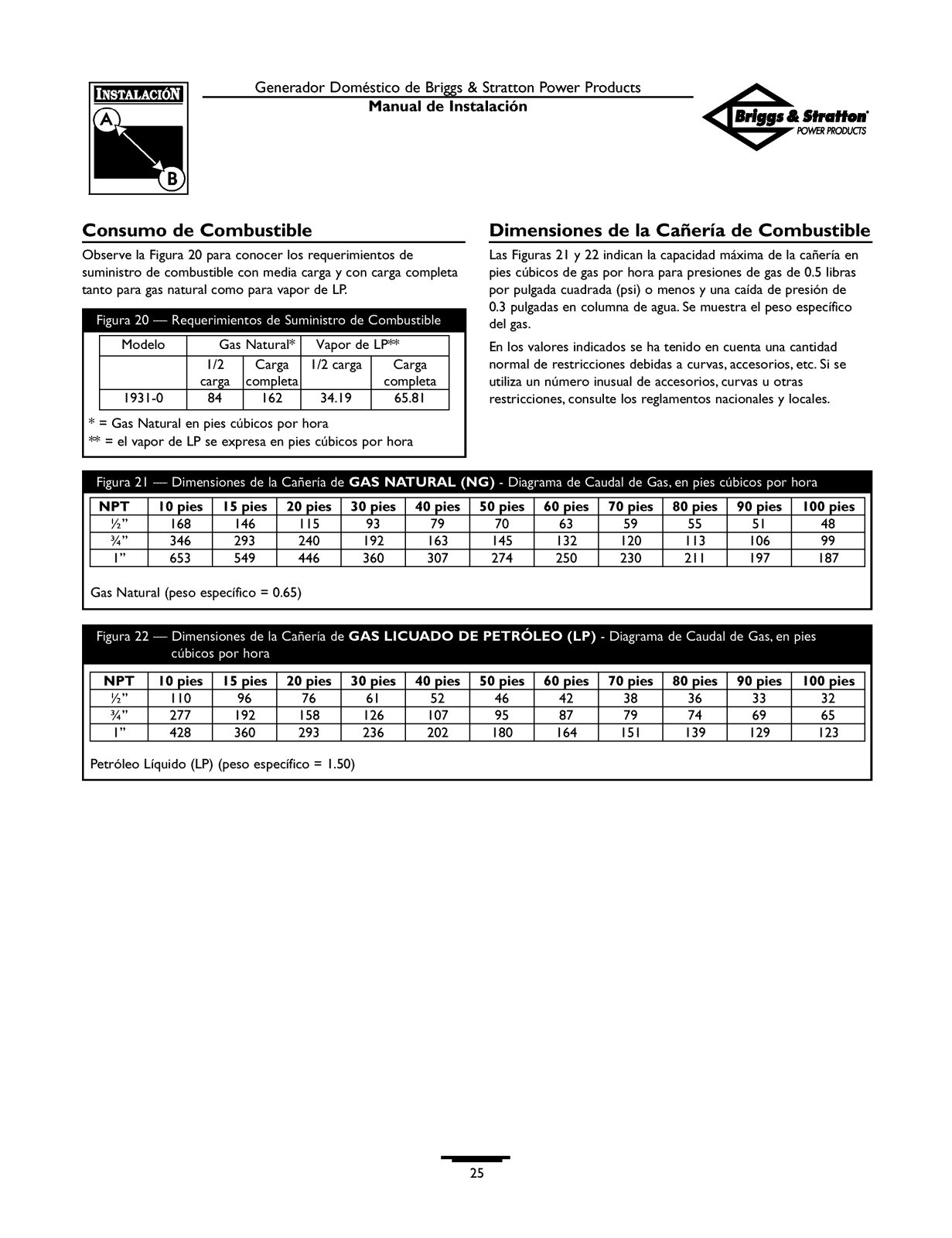

Fuel Consumption

See Figure 7 for fuel supply requirements at half and full load for both natural gas and LP vapor.

_,K_ Iv_ lalP-ll_!lcJ_'j___

Model Natural Gas* LP Vapor **

I/2 Full I/2 Load Full Load

Load Load

1931-0 84 162 34.19 65.8 I

* = Natural Gasis in cubic feet per hour ** = LPVapor is in cubic feet per hour

I Oft

Y2" 168 ¾" 346

I" 653

Natural Gas (sg=0.65)

NPT 10_ 15_

½" II0 96 ¾" 277 192

I" 428 360

15E 50E

146 115 93 79 70 293 240 192 163 145 549 446 360 307 274

20_ 30_ 40_ 50_ 60_ 70_ 80_ 90_ 100k

76 61 52 46 42 38 36 33 32

158 126 107 95 87 79 74 69 65

293 236 202 180 164 151 139 129 123

Fuel Pipe Sizing

Figures 8 and 9 provide the maximum capacity of pipe in cubic feet of gas per hour for gas pressures of 0.5 psi or less and a pressure drop of 0.3 in.water column. Specific gravity of gas is shown.

Listed values compensate for a nominal amount of restriction from bends, fittings, etc. If an unusual number of fittings, bends, or other restrictions are used, please refer

to federal and local codes.

60_

63 59 55

132 120 113

250 230 211

90_ 100_

51 48 106 99 197 187

Liquefied Petroleum (LP)(sg=l.50)

Brig,s& Stratton Power Products Home Generator

Installation Manual

I I

KNOWYOUR SYSTEM CONTROL BOARD

Compare this Control Board illustration with your generator to familiarize yourself with the location of these important controls and connections:

o [3

EiE_Z] (,\___ / \}

\ j

RS ]

232 _ {

50/60 Hz Switch o _ o o o o

/ v \ --of _r -_gr _r_

7 8 _

12Volt DC,

.5 Amp Output Exercise Failure Emergency Failure

12Volt DC, .5 Amp Output- Internal power supply.

50/60 Hz Switch --Allows factory to select between

either 50 Hz or 60 Hz. Make sure the switch is in the 60 Hz position at all times for proper generator operation.

Emergency Failure -- Use NO2, Common2 and NC2 to hook up a siren, light, etc. to alert you in case of a failure during a power outage.

Exercise Failure -- Use NO I, Common I and NC I to

hook up a siren, light, etc. to alert you in case of a failure during the exercise cycle.

Remote LED Output -- Use this to hook up the extra remote LED supplied with the generator.The remote LED

will turn on and off in a series of blinks if certain faults are detected in the generator.

Remote LED Output

_] Briggs & Stratton Power Products Home Generator

Installation Manual

WERPRODUCTS

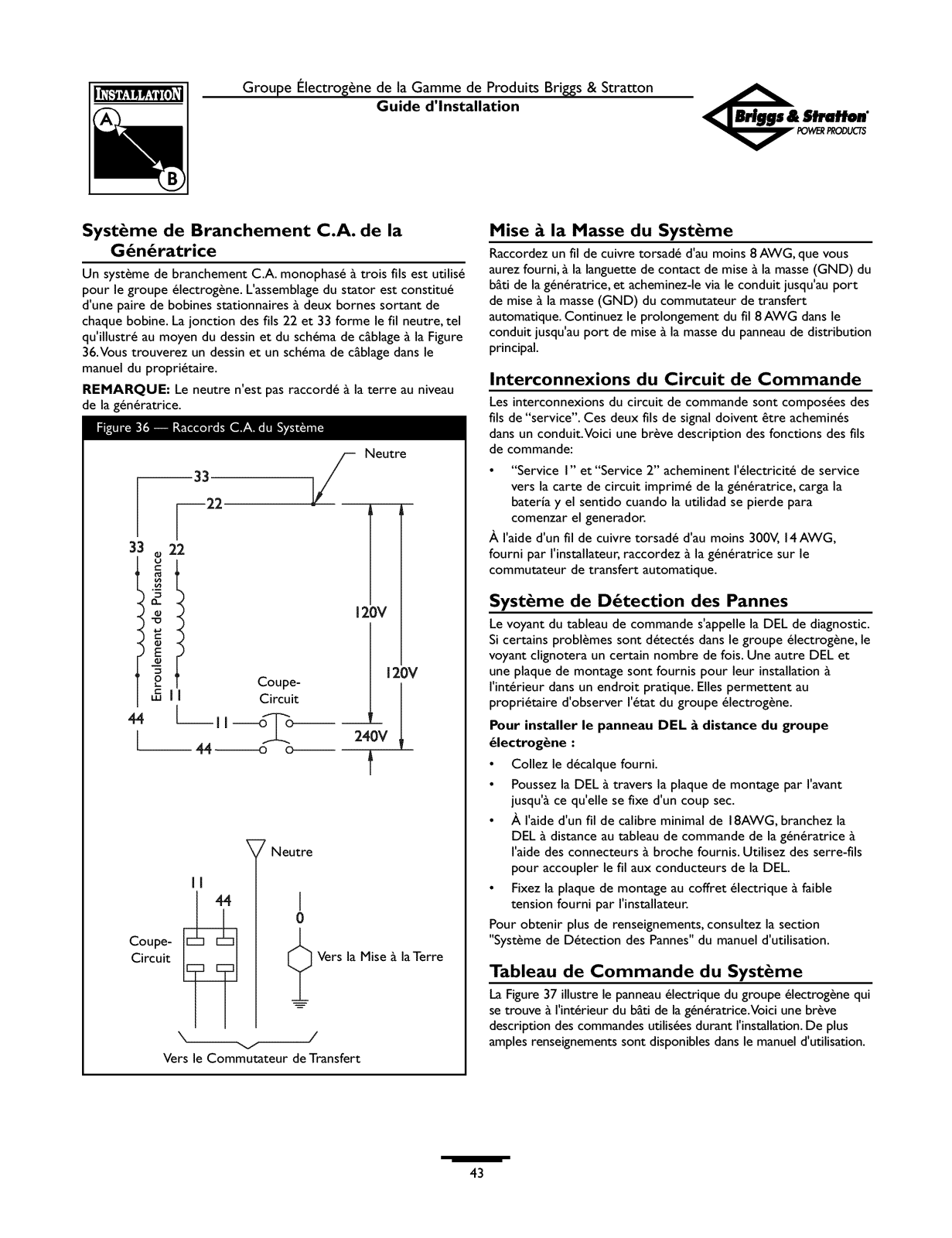

Generator AC Connection System

A single-phase, three-wire AC connection system is used in the Home Standby Generator.The stator assembly consists of a pair of stationary windings with two leads brought out of each winding.The junction of leads 22 and 33 forms the neutral lead, as shown schematically and as wiring diagram in Figure 10.A complete schematic and wiring diagram can

be found in the owner's manual.

NOTE: Neutral is not bonded to ground at generator.

_,K_ II[0]..........._TiV-,e] [o_l'_

--33

33 22

Neutral

120V

I__

--II ----o_o

44-----o o

Circuit

Breaker

120V

240V ]

7 Neutral

Breaker

Circuit I

To Earth Ground

Grounding the System

Installer-supplied minimum 8 AWG stranded copper wire is connected to the generator housing GND lug and routed through conduit to the Automatic Transfer Switch's GND bus. Continue the 8 AWG wire through conduit to the main distribution panel ground bus.

Utility Control Circuit Connection

Control circuit interconnections consist of "Utility" leads. These two leads must be routed in conduit. Control lead

functions are briefly described as follows:

• "Utility I" and "Utility 2" deliver utility power to the generator's circuit board, charge the battery and when

utility is lost the generator will start.

Using installer-supplied minimum 300V, 14AWG stranded

copper wire, connect each control circuit terminal in the generator to the Automatic Transfer Switch.

Fault Detection System

The light on the control panel is referred to as the Diagnostic LED. It will turn on and off in a series of blinks if

certain faults are detected in the HSG.An extra LED and mounting plate is supplied so that it can be installed at a

convenient indoor location.The owner will use it to observe the status of the HSG. Consult with the owner for a convienant location.

To install the remote LED panel:

• Apply the supplied decal to the supplied mounting plate.

• Push the LED through the mounting plate from the front

until it snaps in place.

• Using minimum 18AWG wire, connect the remote LED to the generator control board using supplied pin

connectors. Use wire nuts to attach wire to LED leads.

• Attach mounting plate to installer-supplied electrical box.

Refer to the section "Fault Detection System" inthe Owner's Manual for operation.

ToTransfer Switch

WERPRODUCTS

Bri_s & Stratton Power Products Home Generator

Installation Manual

I I

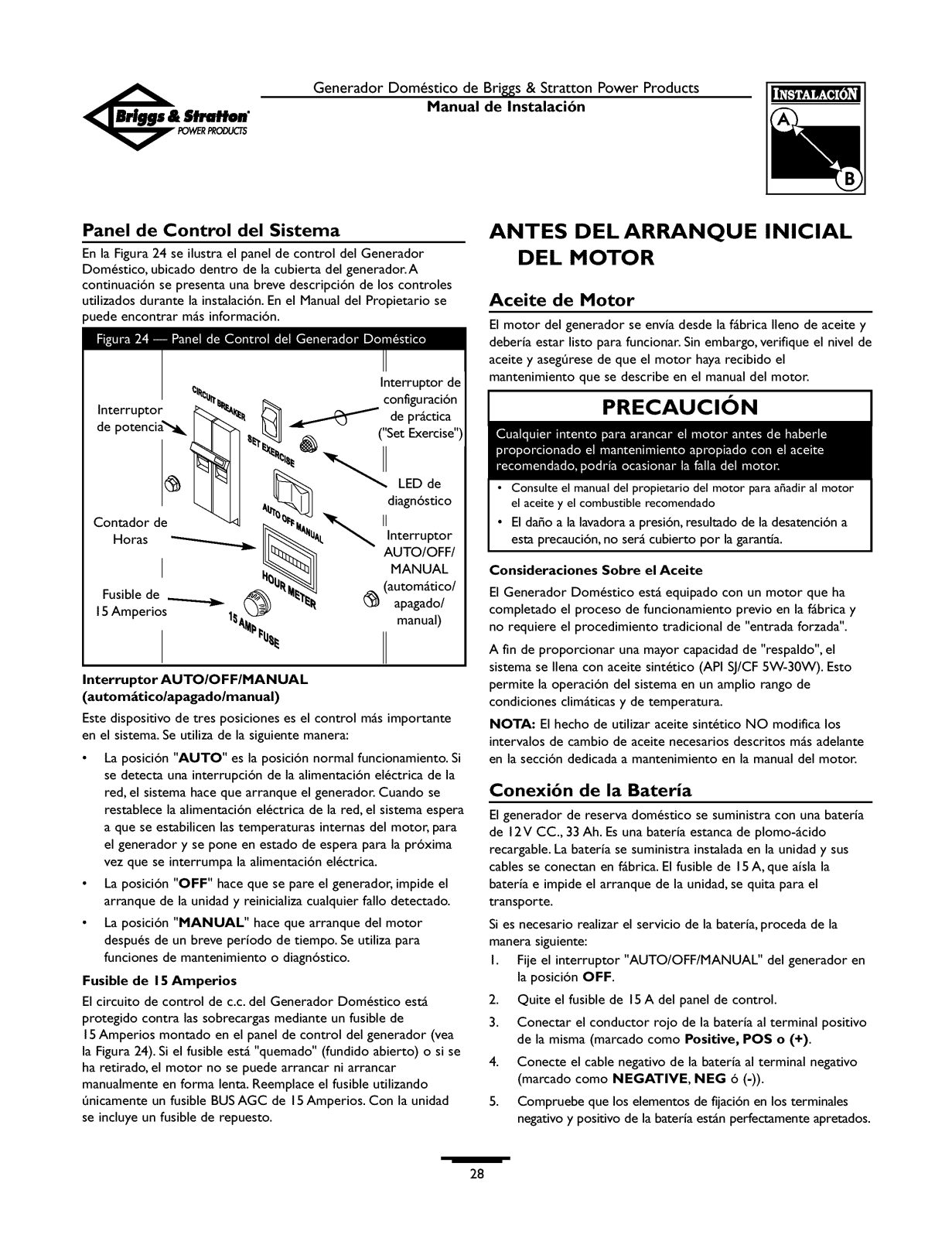

System Control Panel

Figure II depicts the Home Standby Generator control panel, located inside the generator housing. Brief descriptions of the controls used during installation. More information may be found in the Owner's Manual.

Circuit

Breaker

Hour Mete

15Amp

Fuse

AUTO/OFF/MANUAL Switch

This three-position switch is the most important control on the system and is used as follows:

• "AUTO" position is the normal operating position. If a

utility power outage is sensed, the system will start the generator.When utility power is restored, lets the engine

stabilize internal temperatures, shuts off the generator, and waits for the next utility power outage.

• "OFF" position turns off running generator, prevents

unit from starting and resets any detected faults.

• "MANUAL" position starts the engine after a short

amount of time. It is used for maintenance or diagnostic functions.

15Amp Fuse

Protects the Home StandbyGenerator DC control circuits.

If the fuse has'blown' (melted open) or was removed,the engine cannot crank or start. Replacethe fuse using ONLY an identical BUSAGC 15A fuse.One sparefuse is supplied

with the unit.

Set Exercise

Switch

Diagnostic

LED

_UTO/OFF/

MANUAL

Switch

BEFORE INITIAL START-UP

Engine Oil

This engine is shipped from the factory filled with the recommended oil. Before starting the engine, check oil level and ensure that engine is serviced as described in the engine owner's manual.

I CAUTION

• Refer to engine manual for oil fill information.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

Oil Considerations Your Home Standby Generator is equipped with an engine

that has been pre-run at the factory and does not require the traditional "break-in" procedure.

The system is filled with synthetic oil (API SJ/CF 5W-30W). This allows for system operation in the widest range of temperature and climate conditions.

NOTE: The use of synthetic oil DOES NOT alter the required oil change intervals described in the engine

owner's manual.

Battery Connection

The Home Standby Generator is supplied with a 12Volt DC 33 Amp-Hour battery. It is a sealed, lead-acid rechargeable battery. It is installed in the unit and the battery cables are connected at the factory.The unit's

15 Amp fuse, which isolates the battery and prevents the

unit from starting, has been removed for shipping. If it is necessary to service the battery, proceed as follows:

I. Set the generator's "AUTO/OFF/MANUAL" switch to

OFF.

2. Remove the 15Amp fuse from the control panel.

3. Service or replace battery as required.

4. Connect the red battery cable to the battery positive terminal (indicated by POSITIVE, POS, or (+).

5. Connect the negative battery cable to the negitive battery

terminal (indicated by NEGATIVE, NEG, or (-).

6. Ensure hardware on both positive and negative battery terminals is secure.

7. Reinstall the IS Amp fuse in the control panel.

_1 Briggs & Stratton Power Products Home Generator

Installation Manual

CAUTION

• DO NOT install the 15Amp fuse until all plumbing and wiring

has been completed and inspected.

8. Set the generator's "AUTO/OFF/MANUAL" switch to AUTO.

NOTE: With the battery installed and utility power available to the Automatic Transfer Switch, the battery receives a trickle charge whenever the engine is not running.The trickle charge only prevents self-discharge and cannot be used to recharge a battery that is completely discharged.

Fuel Supply System

Ensure that all fuel pipe connections are tight, secure and without leaks.

Ensure that all gas line shutoff valves are OPEN and that adequate fuel pressure is available whenever automatic operation is desired.

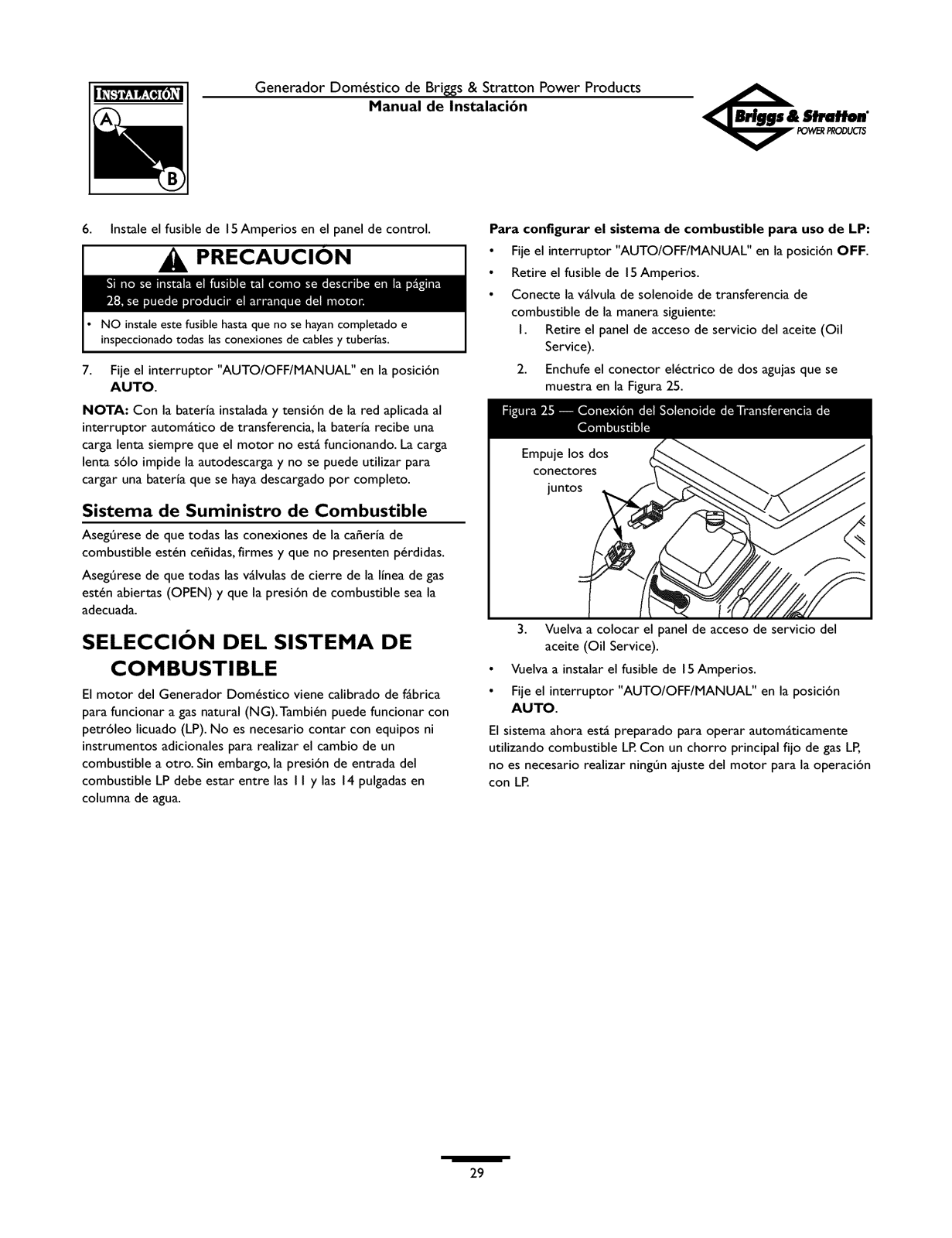

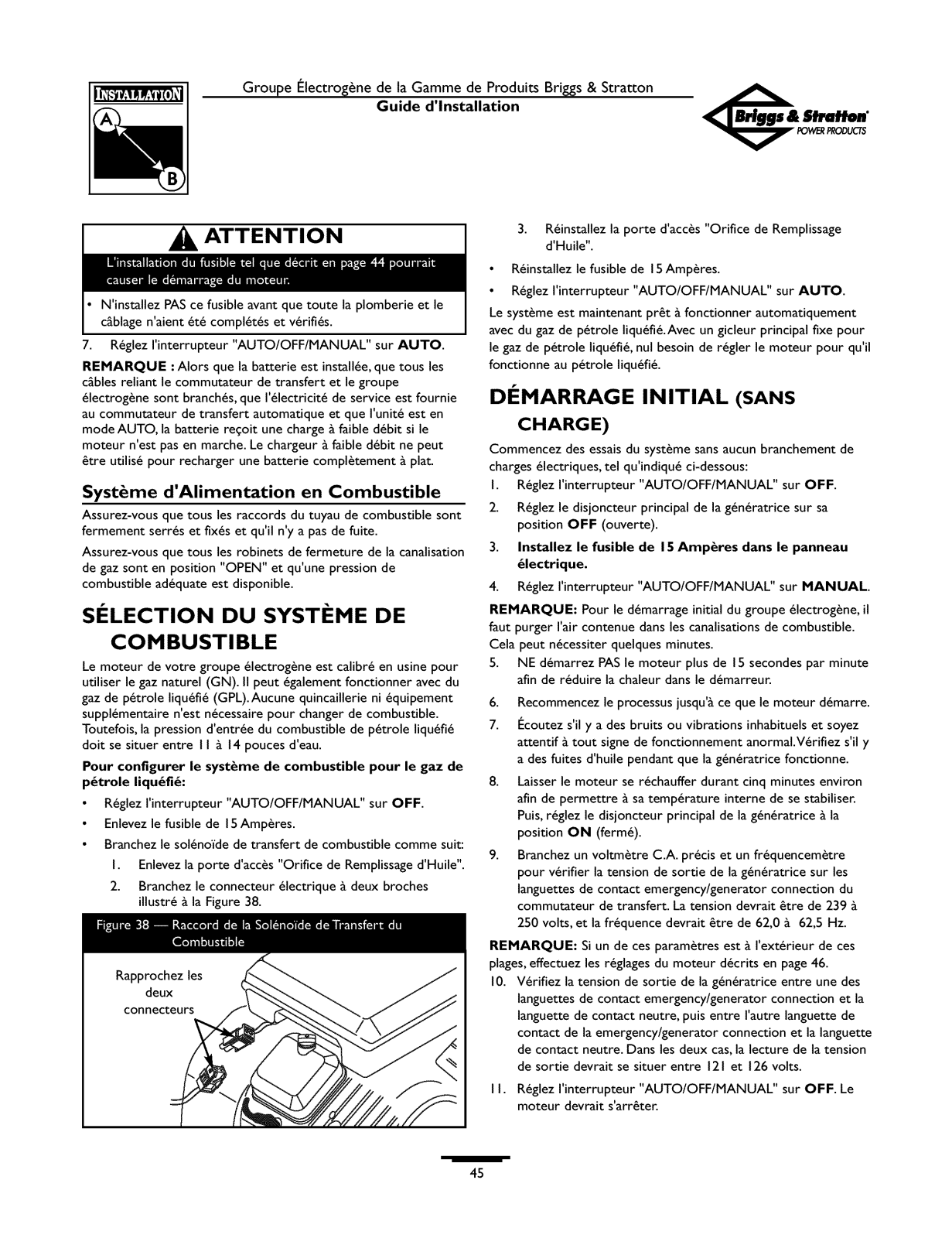

FUEL SYSTEM SELECTION

The engine of your Home Standby Generator is factory calibrated to run on natural gas (NG). It may also be operated on liquefied petroleum (LP).There is no additional hardware/equipment required to switch between either fuel. However, LP fuel inlet pressure must be between

I I and 14 inches water column.

To configure the fuel system for LP use:

• Set the AUTO/OFF/MANUAL switch to OFF.

• Remove the 15Amp fuse.

• Connect the fuel transfer solenoid as follows:

I. Remove the "Oil Service" access door.

2. Join the two-pin electrical connector shown in Figure 12.

3. Reinstall the "Oil Service" access door.

• Reinstall the 15Amp fuse.

• Set the AUTO/OFF/MANUAL switch to AUTO. The system is now ready to operate automatically using LP

fuel.With a fixed main jet for LP gas, there is no need to perform any engine adjustments for LP operation.

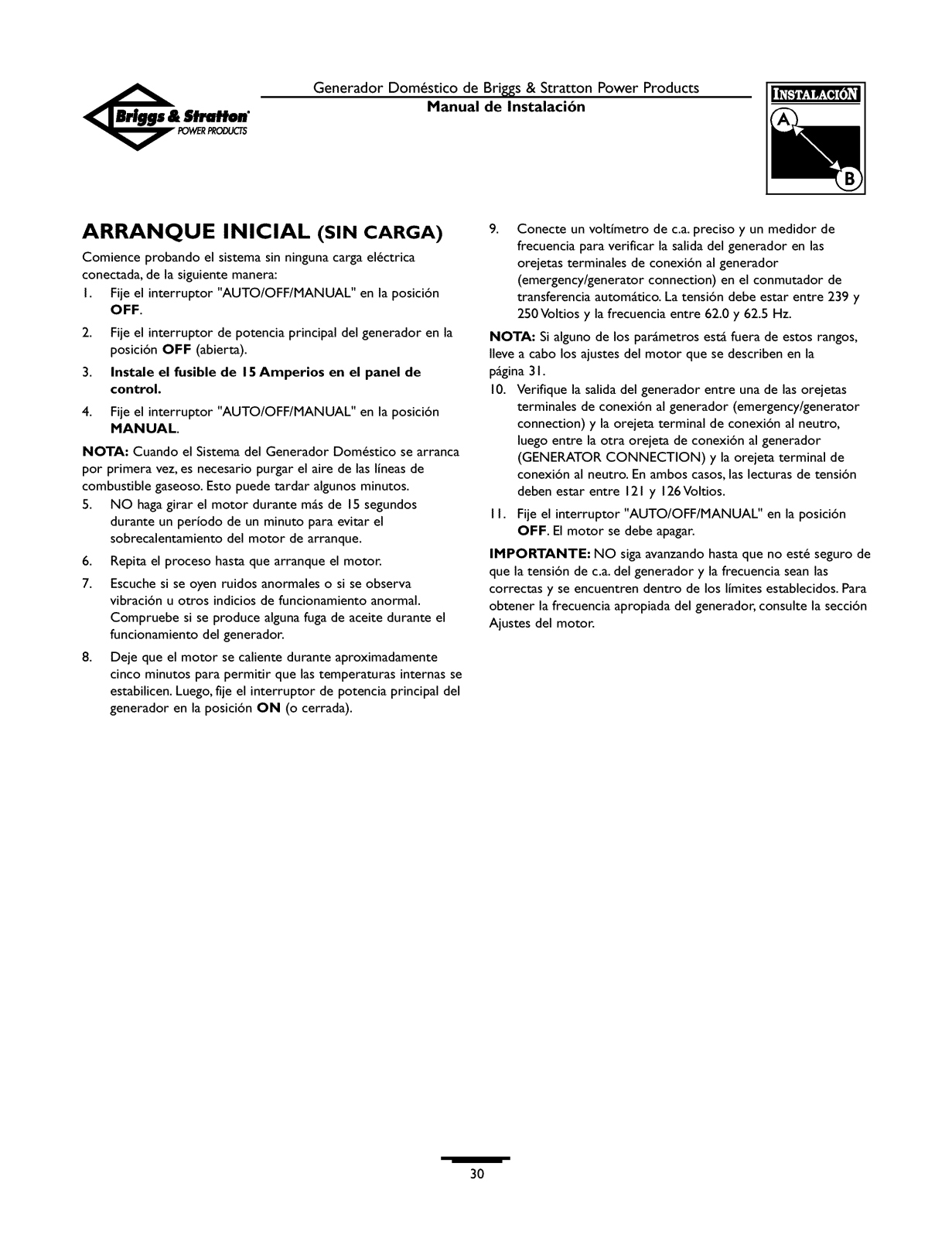

INITIAL START-UP (NO LOAD)

Begin testing the system without any electrical loads connected, as follows:

Set the AUTO/OFF/MANUAL switch to OFF.I.

Set the generator's main circuit breaker to its OFF (open) position.

3. Install the 15 Amp fuse in the control panel.

4. Set the AUTO/OFF/MANUAL switch to MANUAL. NOTE: When the Home Standby Generator is started for

the very first time, it will require that air in the gaseous fuel lines be purged.This may take a few minutes.

5. DO NOT crank engine for more than 15 seconds per minute to reduce heat in the starter.

6. Repeat process until engine starts.

7. Listen for unusual noises, vibration or other indications of abnormal operation. Check for oil leaks while the

engine runs.

8. Let the engine warm up for about five minutes to allow internal temperatures to stabilize.Then, set the generators main circuit breaker to its ON (or closed) position.

9. Connect an accurate AC voltmeter and a frequency meter to check generator output at the load side of the circuit breaker.Voltage should be 239-250 Volts,

frequency should be 62.0 - 62.5 Hz.

NOTE: If either parameter is outside these ranges, perform the Engine Adjustments described on page 14.

10. Check generator output between one of the emergency/generator connection lugs and the neutral lug, then between the other emergency/generator connection lug and the neutral lug. In both cases, voltage reading should be between 12I- 126 Volts.

I I. Set the AUTO/OFF/MANUAL switch to OFF. Engine

should stop.

IMPORTANT: DO NOT proceed until you are certain that generator AC voltage and frequency are correct and within the stated limits.To obtain the proper generator frequency, see Engine Adjustments on page 14.

Bri_s& Stratton Power Products Home Generator

Installation Manual

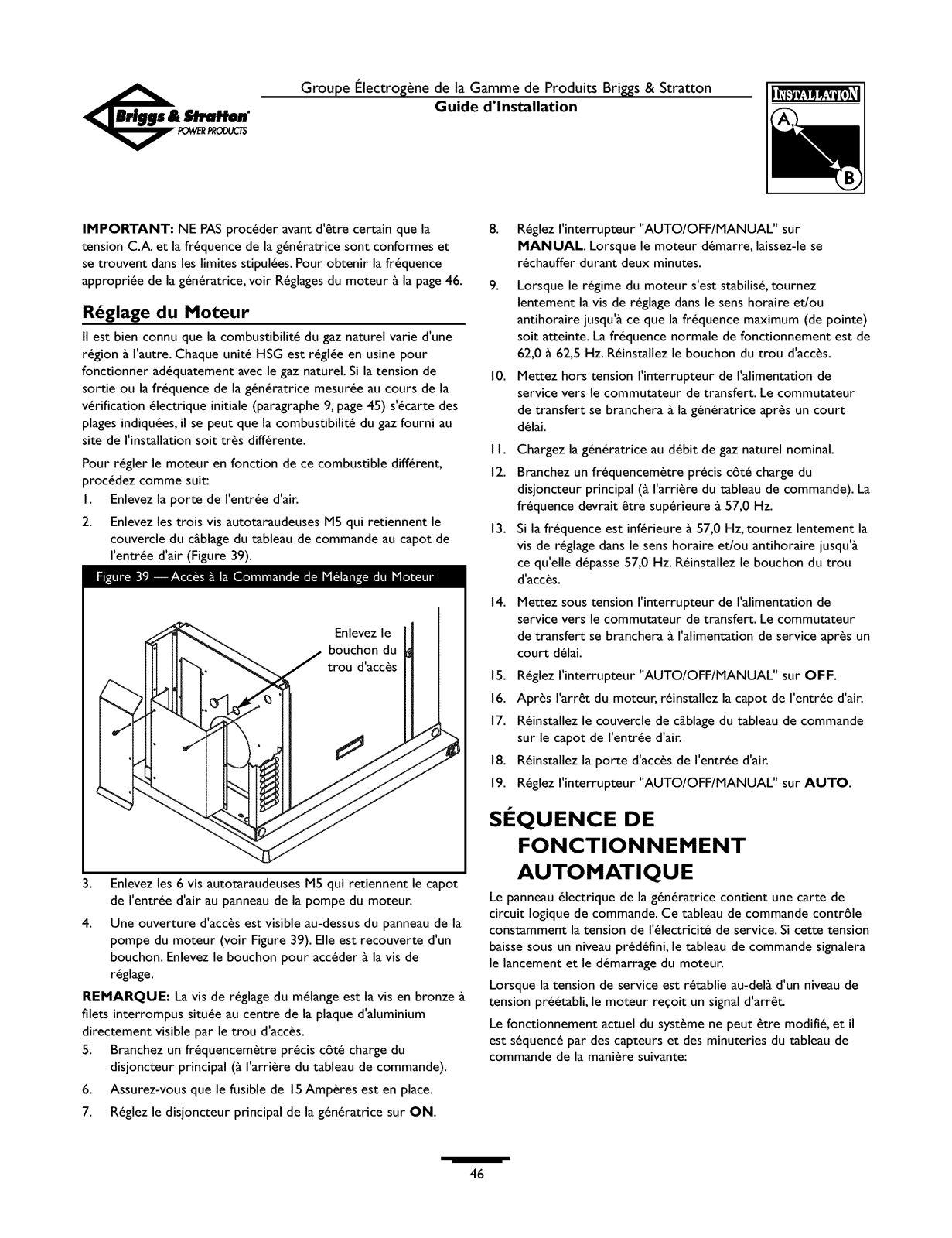

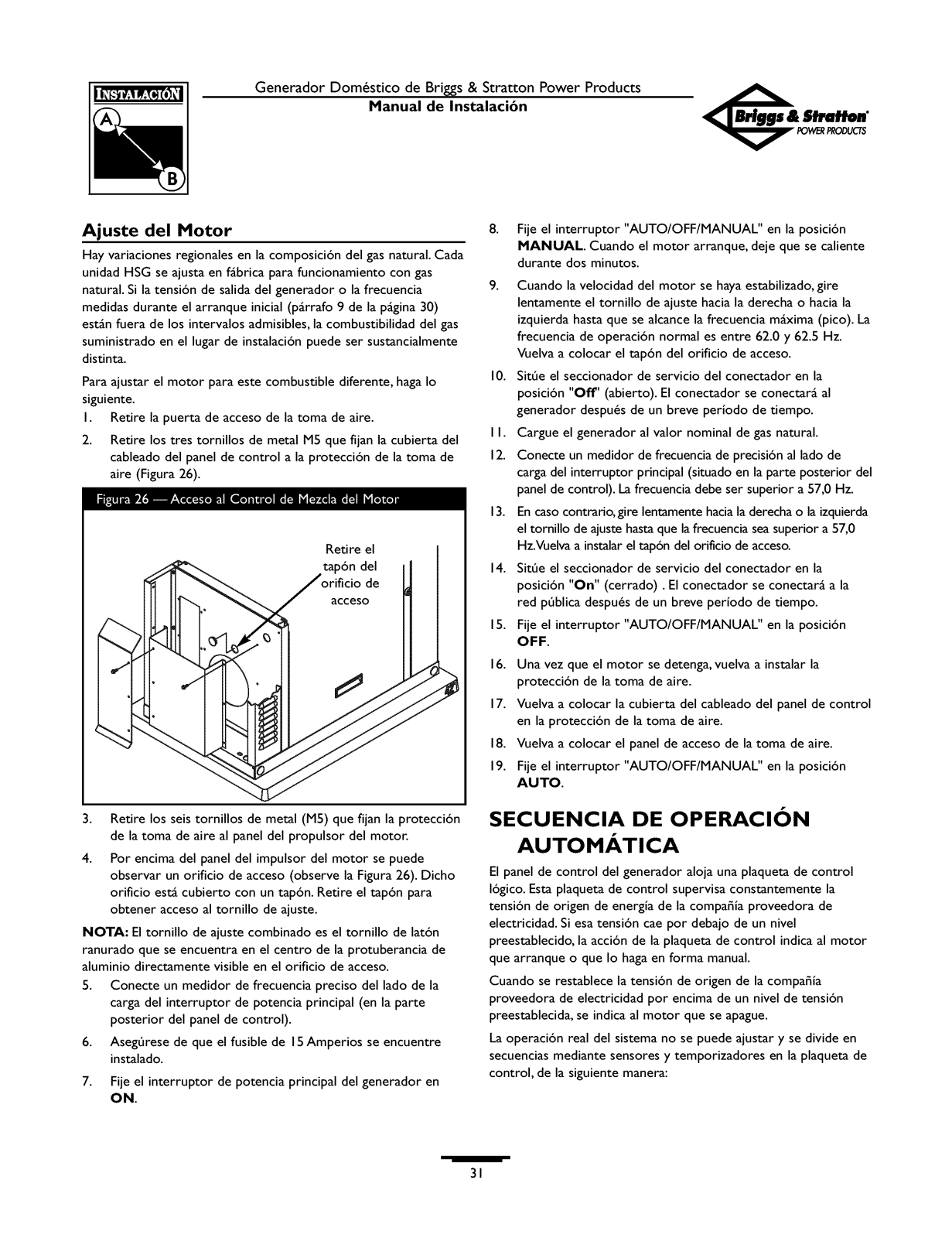

Engine Adjustment

There are regional variances in the composition of natural gas. Each HSG unit isadjusted at the factory for NG operation. If the generator output voltage or frequency measured during initial Start-Up (paragraph #9 on page 13) is outside the listed ranges, the combustibility of the gas supplied at the installation site may be substantially different.

To adjust the engine for this difference, proceed as follows.

I. Remove the Air Intake access door.

2. Remove the three M5 sheet metal screws that hold the control panel wiring cover to the air intake guard

(Figure 13).

_,_ I1_]__'--! _i_:_ lil_lll!_! _lllll_ll

Remove

Access

Plug

I I

When the engine speed has stabilized, slowly rotate

the adjustment screw clockwise and/or counterclockwise until the maximum (peak) frequency

is reached. Normal no load frequency is 62.0 to

62.5 Hz.

10. Turn the service disconnect to the transfer switch off. The transfer switch will connect to the generator after

a short time delay.

I I. Load generator to rated Natural Gas rating.

12. Connect an accurate frequency meter to the load side of the main circuit breaker (on the back of the control panel). Frequency should be above 57.0 Hz.

13. If frequency is below 57.0 Hz, slowly rotate the adjustment screw clockwise and/or counterclockwise until frequency is above 57.0 Hz. Reinstall the access hole plug.

14. Turn the service disconnect to the transfer switch on. The transfer switch will connect to the utility after a

short time delay. Set the AUTO/OFF/MANUAL switch to OFF.15.

16. After the engine has stopped running, reinstall the air intake guard.

17. Reinstall the control panel wiring cover to the air intake guard.

18. Reinstall the air intake access panel.

19. Set the AUTO/OFF/MANUAL switch to AUTO.

3. Remove the six (M5) sheet metal screws that hold the air intake guard to the engine fan panel.

4. An access hole is visible above the engine fan panel (see Figure 13). It will be covered with a plug. Remove the plug to gain access to the adjustment screw.

NOTE: The mixture adjustment screw is the brass slotted

screw in the center of the aluminum boss directly visible in the access hole.

5. Connect an accurate frequency meter to the load side of the main circuit breaker (on the back of the control panel).

6. Ensure that the 15 Amp fuse is installed.

7. Set the generator's main circuit breaker ON.

8. Set the AUTO/OFF/MANUAL switch to MANUAL. When the engine starts, allow it to warm up for two

minutes.

AUTOMATIC OPERATION

SEQUENCE

The generator's control panel houses a logic control circuit board.This control board constantly monitors utility power source voltage. Should that voltage drop below a preset level, control board action will signal the engine to crank

and start. When utility source voltage is restored above a preset

voltage level, the engine is signaled to shut down. The actual system operation is not adjustable and is

sequenced by sensors and timers on the control board, as follows:

_] Briggs & Stratton Power Products Home Generator

Installation Manual

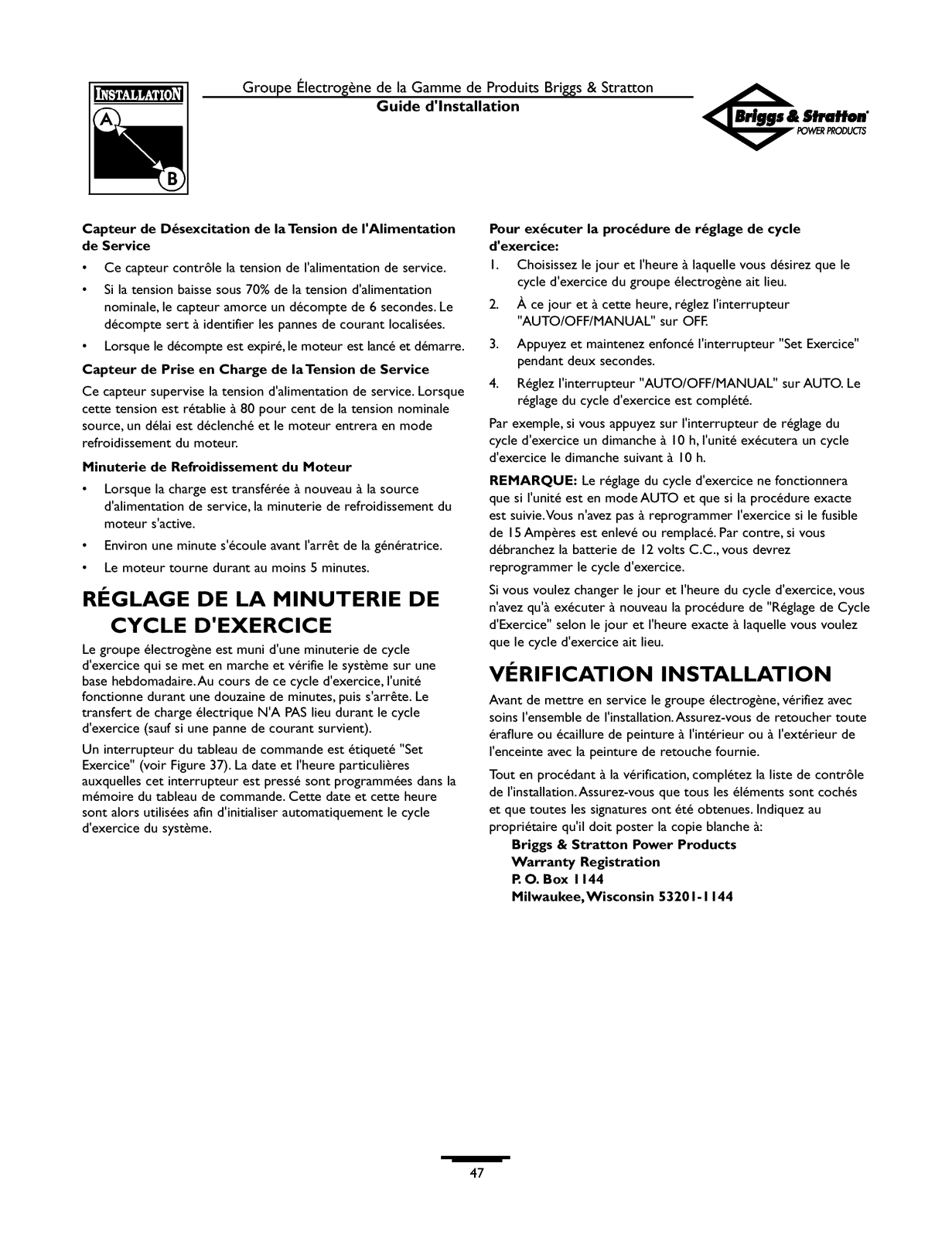

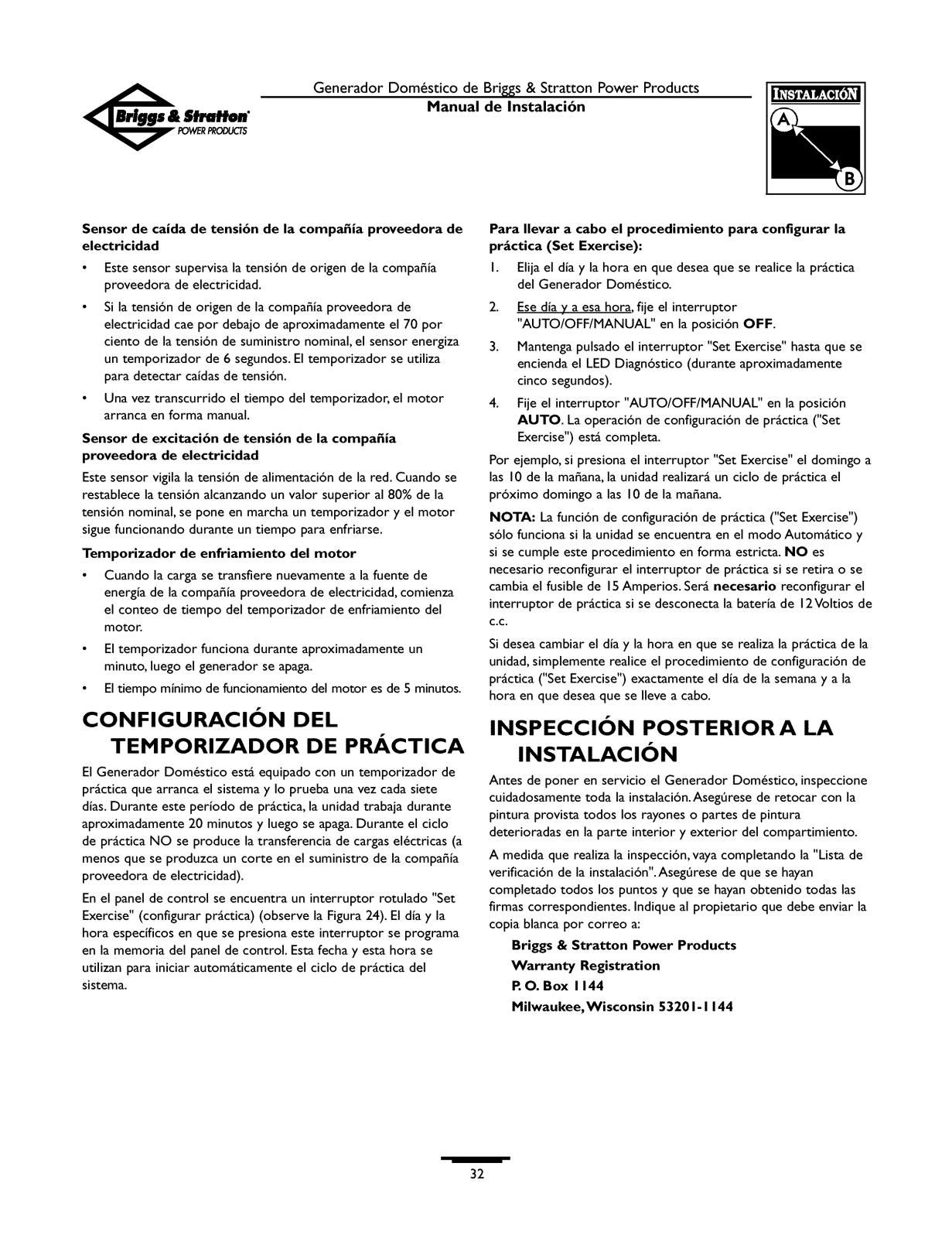

Utility Voltage Dropout Sensor

• This sensor monitors utility source voltage.

• If utility source voltage drops below about 70 percent of

the nominal supply voltage, the sensor energizes a 6-second timer.The timer is used to 'sense' brown-outs.

• Once the timer has expired, the engine will crank and

start.

Utility Voltage Pickup Sensor

This sensor monitors utility power supply voltage.When that voltage is restored above 80 percent of the nominal source voltage, a time delay starts timing and the engine will go to engine cool-down.

Engine Cool-down Timer

• When the load istransferred back to the utility power

source, the engine cool-down timer starts timing.

• The timer will run for about one minute, then the

generator will stop.

• Minimum engine run time is 5 minutes.

SETTING EXERCISE TIMER

The Home Standby Generator is equipped with an exercise

timer that will start and exercise the system once every seven days. During this exercise period, the unit runs for approximately 20 minutes and then shuts down. Electrical load transfer DOES NOT occur during the exercise cycle (unless an utility power outage occurs).

A switch on the control panel is labeled "Set Exercise" (see

Figure II).The specific day and the specific time of day this switch is pressed is programmed into the control board memory.This date and time is then used to automatically initiate the system exercise cycle.

To perform the Set Exercise procedure:

I. Choose the day and time you want your Home

Standby Generator to exercise.

2. On that day and time, set the AUTO/OFF/MANUAL switch to OFF.

3. Pressand hold down the "Set Exercise" switchfor two seconds.

4. Set the AUTO/OFF/MANUAL switch to AUTO. "Set Exercise" iscomplete.

For example, if you press the "Set Exercise" switch on Sunday morning at I0:00 AM, the unit will run an exercise cycle the following Sunday at 10:00 AM (+/- I/2 hour).

NOTE: "Set Exercise" will only work if the unit is in the Automatic mode and this exact procedure is followed.The exerciser does not need to be re-set if the 15Amp fuse is removed or changed.The exerciser will need to be re-set if the 12Volt DC battery is disconnected.

If you want to change the day and time the unit exercises, simply perform the "Set Exercise" procedure at the exact weekday and time you want it to take place.

INSTALLATION

INSPECTION

Before placing the Home Standby Generator into service, inspect the entire installation carefully. Ensure that any

scratches or broken paint on the inside or outside of the enclosure are touched up with the supplied paint.

Complete the "installation Checklist" as you make the inspection. Ensure all items have been filled-in and all signatures have been obtained. Instruct the owner to mail the white copy to:

Briggs & Stratton Power Products Warranty Registration

P. O. Box I 144 Milwaukee,WI 53201-1144

+ 33 hidden pages
