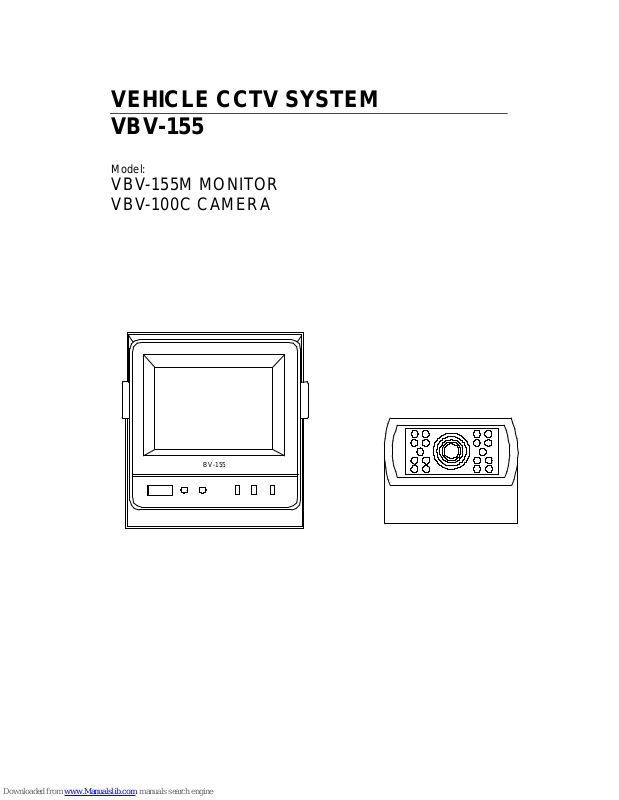

VEHICLE CCTV SYSTEM
VBV-155
Model:
VBV-155M MONITOR
VBV-100C CAMERA
BV-155
-free
manual contains
-view mirror systems, and
-view vision when installed and maintained properly.
s not intended in any way to be a substitute for careful and cautious driving.
-100C CAMERA
r
Field of view 110° Diaganol
-LED)
nd lightweight ease installation in most
- marking
-155M 5.5" CRT MONITOR
Switch
-by switch
• • Mirror/Normal selection switchDay/Night Switch
• • CE / e- marking
-100C CCD CAMERA:
Camera
Camera bracket
Attachment screws with washers
Wind deflector
-155M MONITOR:
Monitor
Snap-on sun visor
Monitor bracket
Power harness with locking connector
Range markers
Thumb screws
-20 metre cable with waterproof connector. Oil, gas
– Operations manual
E INSTALLATION
e camera will compromise the
There are potentially lethal voltages inside the monitor.
de the monitor could cause
-100C CAMERA
(see Fig. 1) to upper portion of vehicle.
t.)
-155M MONITOR
of dash, overhead or in dash) (Fig.4.)
CABLE
1. The camera-to-cable connection and the monitor pigtail are
waterproof. Be sure to position the cables properly.
2. Do not run the cable over sharp edges or corners. Do not kink
the cable. Keep the cable away from hot and rotating parts.
3. Place all excess cable in convoluted tubing.
4. Wire the cable securely.
WIRING CAMERA AND MONITOR
1. See connection diagram for connections to ignition, ground and
back up circuit. (See Fig. 6.)
2. Wiring camera: Drill a 22mm diameter hole into vehicle body
near the camera and bracket. Connect camera connector to
extension cable in vehicle. Push extra cable into vehicle (be careful
not to kink cable) and fit grommet into hole. Apply sealant around
grommet to increase resistance to water penetration.
3. Wiring Monitor: Insert extension cable into camera #1 position.
If 2 came ras are used, be sure to mark each extension cable
properly and plug second cable into camera #2 position. Bundle
excess cable together using a cable tie or vinyl tape. This will avoid
possible damage to cable during operation.
4. The red wire is connected to an ignition power source, the black
wire is connected to chassis ground, and the brown wire is
connected to the vehicles reverse light circuit.
FUNCTIONS AND OPERATION
MONITOR
1) POWER SWITCH
Press the power switch to turn the monitor on or off.
2) STANDBY LED
When the red LED is turned on, it indicates power on.
When reverse gear is selected the images picked up by camera 1
will be shown on the monitor3) CONTRAST CONTROL
The contrast can be adjusted to suit settings for “DAY/NIGHT”.4)
BRIGHT CONTROL
The brightness can be adjusted to suit settings for “DAY/NIGHT”. “.
5) CAMERA SELECTOR (CA1)
6) CAMERA SELECTOR (CA 2)
Select CA2 to view camera 2
7) NIGHT / DAY SWITCH
8) CAMERA 1
Input connection to camera extension cable.
9) Camera 2
Input connection to addition al camera extension cable.
10) VIDEO OUTPUT
Connect video output connector to a second monitor or VCR input
with a RCA phone type connector cable.
11) AUDIO OUTPUT
Connect Audio output connector to a second monitor or VCR input
with a RCA phone type connector cable.
12) EXTERNAL SPEAKER (Optional)
The monitor can be linked to an external speaker 13) MIRROR /
NORMAL SELECTION SWITCH
When the switch is in MIR position, the picture will showreverse
image.
When the switch is in NOR position, the picture will show a normal
image. * Camera 1 & Camera 2 are operated individually.
14) POWER CONNECTION:
PIN 1: Ground - Black
PIN 2: +12/24Vdc ignition - Red
PIN 3: Reverse circuit – Orange
PIN 4: Dimmer - White
CAMERA
Waterproof cable connector (See Fig. 7)
CAUTION
1. DO NOT OPEN THE CAMERA CASE. This will break the
camera’s waterproof seal. If evidence of tampering is detected, the
warranty will be considered void.
2. We do not recommend mounting the camera near the lower
area of the vehicle (e.g. bumper). This reduces the view of the
camera and increases the chance of physical damage to the
camera.
3. Use only the Inner Hexagonal screw and washers to mount the
camera.
MAINTENANCE
Remove dust and dirt with a damp soft cloth. Heavier dirt
should be removed with a damp soft cloth and mild detergent.
Do not use strong cleaning agents containing gasoline, thinner,
benzene or alcohol. These substances may damage the
exterior surface of the monitor.
CAUTION
1. Before drilling, be sure no cable or wiring is on the other
side. Be sure to drill a 22mm diameter hole only.
2. Feed as much cable as possible into vehicle and clamp
securely. This reduces the possibility of it being hooked or
snagged.
3. Keep all cables away from HOT, ROTATING and
ELECTRICALLY NOISY components.
4. To increase protection of cable, place all excess wire and
extension cable in convoluted tubing.
5. Do not twist camera cable and do not cut camera pigtail or
cable.
SPECIFICATIONS
VBV-100C CAMERA
VIDEO PICK-UP DEVICE CCD
IMAGE SIZE 1/3 inch
SYNCHRONIZATION INTERNAL
REQUIRED ILLUMINATION 0.1 Lux MINIMUM
VIDEO OUTPUT 1V (p -p), 75 ohm
OPERATING VOLTAGE 12 Vdc
POWER CONSUMPTION MAX 2.4W
(AT 12 Vdc)
RESOLUTION 420 TV LINES
OPERATION TEMP -20°C TO +70 °C
WEIGHT 0.2Kg
DIMENSION (W x H x D)mm 70 × 44 × 54
VBV-155M MONITOR
VIDEO SYSTEM CCIR
PICTURE TUBE 5.5 INCH PICTURE
PICTURE RESOLUTION 600TV LINES
POWER CONSUMPTION MAX. 1A
OPERATION TEMPERATION -10°C TO +50 °C
OPERATION VOLTAGE DC10 V ~ DC32 V
WEIGHT APPROX. 1.46Kg
DIMENSION (W x H x D)mm 154 x 143 x 190
DISCLAIMER
The use of the VBV-750 Vehicle CCTV system should not in any way be
used as a substitute for careful and cautious driving. Traffic laws and motor
safety regulatio ns must always be adhered to.
BRIGADE ELECTRONICS PLC
TEL: +44 (0) 870 744 1500
FAX: +44 (0) 870 744 1502
Email: sales@brigade-electronics.co.uk
Website: www.brigade-electronics.co.uk
NGLISH
VVBV
-
155 VEHICLE CCTV SYSTEM
BV-155
Front View
15. Power Switch (ON/Standby)
16. Standby LED
17. Contrast Control
18. Brightness Control
19. Camera 1
20. Camera 2
21. Day/Night switch
Rear View
1. Camera 1 input
2. Camera 2 input
3. Video output
4. Audio output
5. External Speaker
6. Mirror/Normal Switch
7. Power socket
§ Ground (BLACK)
§ Positive (RED)
§ Reverse (BROWN)
§
Dimmer (WHITE)
Mount camera
assembly high-
mounted. Centred.
Camera mounting
hole pattern.
Fig.1
Optional wind deflector
Fig. 2
Fig. 3
Approximately 90-degree field of
view
Back of vehicle, viewing at monitor
screen
Fig.4
Steel plate for reinforcement (recommended for secure mounting)
Monitor mounting hole pattern.
Fig. 5
To Monitor
Cable
To Monitor
RED (12 – 32V)
BLACK
(GROUND)
WHITE (DIMMER)
BROWN (REVERSE TRIGGER)
Fig. 6
Fig .7
Brigade Electronics Plc
Brigade House
The Mill, Station Road
South Darenth, Kent DA4 9BD
Tel: +44 (0) 870 744 1500
Fax: +44 (0) 870 744 1502
Email: sales@brigade -electronics.co.uk
Website: www.brigade-electronics.co.uk
