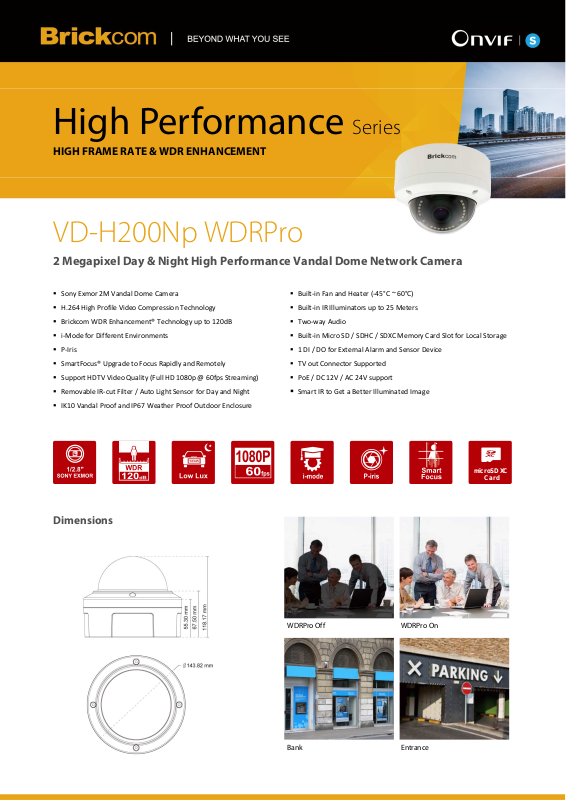

Page 1
HIGH FRAME RATE & WDR ENHANCEMENT
2 Megapixel Day & Night High Performance
Vandal Dome
Network Camera
Sony Exmor 2M
Vandal Dome
Camera
B
uilt-in Fan and Heater (
-45°C ~ 60°C)
Dimensions
High Performance
VD-H200Np WDRPro
Series
H.264 High Profile Video Compression Technology
Brickcom WDR Enhancement® Technology up to 120dB
i-Mode for Different Environments
P-Iris
SmartFocus® Upgrade to Focus Rapidly and Remotely
Support HDTV Video Quality (Full HD 1080p @ 60fps Streaming)
Removable IR-cut Filter / Auto Light Sensor for Day and Night
IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
Built-in IR Illuminators up to 25 Meters
Two-way Audio
Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
1 DI / DO for External Alarm and Sensor Device
TV out Connector Supported
PoE / DC 12V / AC 24V support
Smart IR to Get a Better Illuminated Image
microSDXC
Card
WDRPro Off WDRPro On
Bank Entrance
V1.0
Page 2
Brickcom
Audio
Audio Streaming
2-
way Audio Support
Audio Compression
G.711/AMR
Audio
Line input (Unbalanced, 1.4 Vp
-
p, 1 Vrms)
General
Communication
Ethernet :
one 10/100Mbps RJ
-45
Power Input
DC12V 1A
/ 802.3af PoE
Temperature/
Operating
Temperature:
Max. Power
8 Watts (
DC12V 1A
)
Dimension
143.82 (D) mm X 118.17(H) mm
Weight
860g/1.90lb
Housing
Weather
-
proof (IP67)
Certification
FCC/CE/IP67
Viewing System
OS: Microsoft Windows 7/Vista/XP/2000
Warranty
Limited 3 years warranty
Camera
Models
VD-
H200Np WDRPro
Hardware System
Flash: 32MB
Image Sensor
Sensor Type : 1/2.8" Sony Exmor CMOS Sensor
Lens Lens Type: Motorized Lens
Local Storage
Built-in Micro SD/SDHC/SDXC Max.64G Memory Card
Day & Night ICR
Triggered by Light
sensor, Scheduling,
Minimum
0 Lux(IR On, B/W)
IR Illuminators
Built –In IR Illuminators
up to
25m
Video
Compression
H.264 / MPEG4 / MJPEG
Video Setting
i-
Mode Image Management:
S/N Ratio
Above 50dB
Image Resolution
2M (1920 x 1080)
● (60fps)
WDR 120dB
Events and Alarm Management
Events
Motion Detection/ Schedule/ Audio Detection/ Digital
Alarm Stream/Snapshot to FTP/Email/Samba/SD
-
Card
RAM: 512MB DDR
Sensor Resolution : 2M (1920 x 1080)
| BEYOND WHAT YOU SEE
Input/ Output
/ Line output
Illumination
Streaming
P-IRIS: F1.4
Focal Length: f=2.8~12mm
View Angle: (H°/V°/D°)
(H )98°~34° /(V )52°~19° /(D) 110°~40°
Slot
Digital Input
0.0008 Lux (F1.4,B/W)
0.001 Lux (F1.4,Color)
IR LED: 20pcs
Simultaneous multiple streams
Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/120000~1s
Manual Gain Control: 1 ~ 48
Input/ Temperature Alarm/ Auto IR Focus for Day & Night
Environment
Consumption
Requirements
Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP,
RTCP, IPv6
802.3at PoE/ DC48V 0.8A
AC24V
-45°C ~ 60°C
(-49°F ~ 140°F)
Operating Humidity: 10% ~ 80%
10.5 Watts ( AC 24V )
10 Watts (802.3 af POE )
25 Watts (802.3at PoE Plus )
Vandal-proof (IK10)
Browser: Mozilla Firefox, Internet Explorer 6/7 or above,
Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
HTTP/Email Notification/ Digital Output
Camera Accessories Options
L-WM-01
Camera Bracket
POE30U V2
High Power PoE Injector
Network Equipment Options
PS-588I V2
9 port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AT
24-port 10/ 100M High Power PoE+ Web Smart Ethernet
Switch
© 2015 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.
