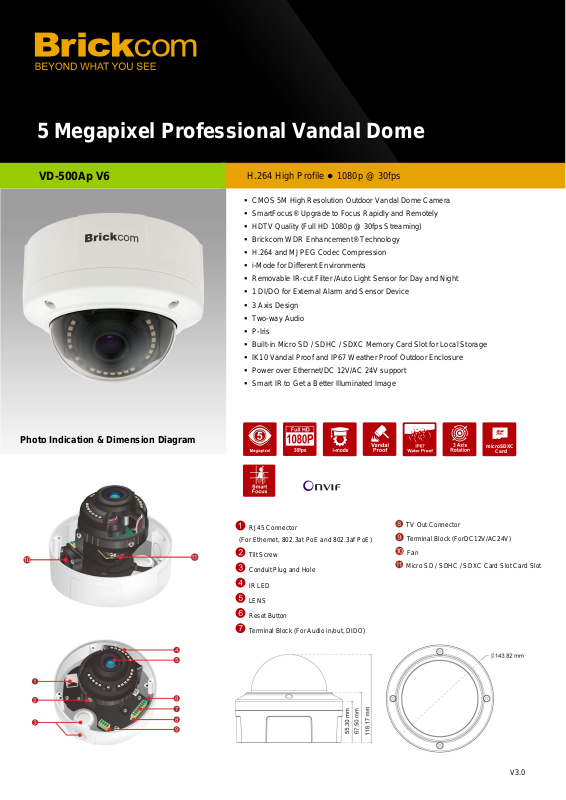

5 Megapixel Professional Vandal Dome
VD-500Ap V6

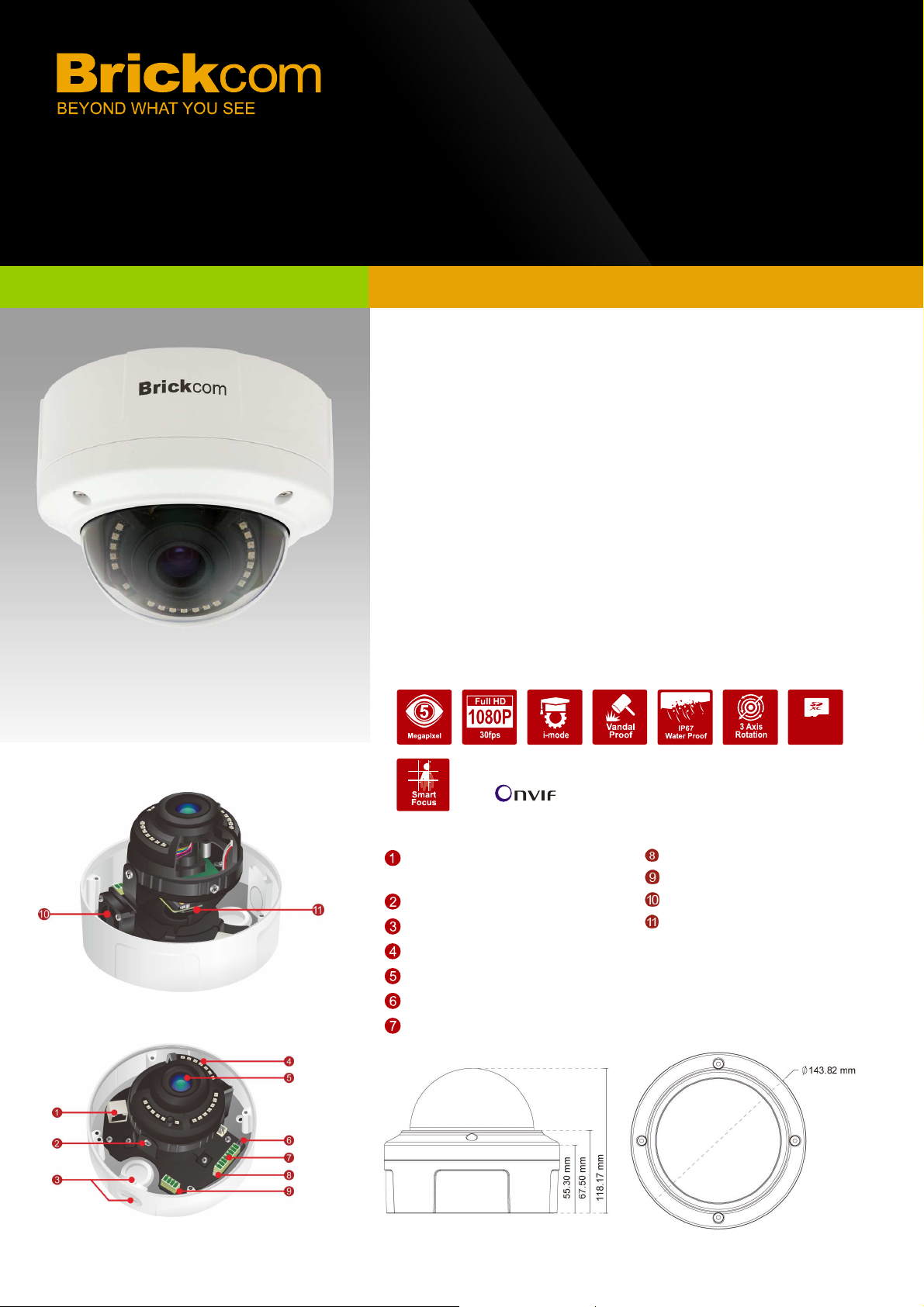

Photo Indication & Dimension Diagram
H.264 High Profile
CMOS 5M High Resolution Outdoor Vandal Dome Camera
SmartFocus® Upgrade to Focus Rapidly and Remotely
HDTV Quality (Full HD 1080p @ 30fps Streaming)
Brickcom WDR Enhancement® Technology
H.264 and MJPEG Codec Compression
i-Mode for Different Environments
Removable IR-cut Filter /Auto Light Sensor for Day and Night
1 DI/DO for External Alarm and Sensor Device
3 Axis Design
Two-way Audio
P-Iris
Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
Power over Ethernet/DC 12V/AC 24V support
Smart IR to Get a Better Illuminated Image
●
1080p @ 30fps
microSDXC
Card
RJ45 Connector
(For Ethernet, 802.3at PoE and 802.3af PoE)
Tilt Screw
Conduit Plug and Hole
IR LED
LENS
Reset Button
Terminal Block (For Audio in/out, DIDO)
TV Out Connector
Terminal Block (ForDC12V/AC24V)
Fan
Micro SD / SDHC / SDXC Card Slot Card Slot
V3.0
Page 2
Brickcom
Events and Alarm Management
Events
Alarm
Audio
Audio Streaming
Audio
Audio
General
Communication
Power Input
Temperature
/
Max. Power
Dimension
Weight
Housing
Certification
Viewing System
Warranty
Camera
Models
VD-
500Ap V6
Hardware System
Image Sensor
Lens
Local Storage
Day & Night ICR
Minimum
IR Illuminators
Video
Compression
Video Setting
S/N Ratio
Image Resolution
WDR
PoE+ Web Smart
Flash: 32MB
RAM: 256MB DDR
Sensor Type : 1/2.5" Sony Exmor CMOS Sensor
Sensor Resolution : 5M (2592 x 1944)
Lens Type: Motorized Lens
P-IRIS: F1.4
Focal Length: f=3.3~10.5mm
View Angle: (H°/V°/D°)
(H )86°~33° /(V )64°~25° /(D) 112°~41°
Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot
Illumination
Streaming
Triggered by Light sensor, Scheduling,
Digital Input
0 Lux(IR On, B/W)
0.01 Lux(F1.4,B/W)
0.02 Lux(F1.4,Color)
Built –In IR Illuminators,
effective up to 25m
IR LED: 20 PCS
H.264 / MJPEG
Simultaneous multiple streams
i-Mode Image Management:
Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/32000 s ~ 1s
Manual Gain Control: 1 ~ 48
Above 50dB
5M (2592 x 1944) ● (13fps)
60dB
| BEYOND WHAT YOU SEE
Compression
Input/ Output
Environment
Consumption
Requirements
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm/ Auto IR Focus for Day &
Night
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
2-way Audio Support
G.711/AMR
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
DC12V 1A
802.3af PoE
802.3at PoE
AC24V
Operating Temperature:
-20°C ~ 60°C
(-4°F ~ 140°F)
Operating Humidity: 10% ~ 80%
DC12V 1A
8 Watts
AC 24V10.5 Watts
802.3 af POE
10 Watts
802.3at PoE Plus
25 Watts
143.82 (D) mm X 118.17(H) mm
860g/1.90lb
Weather-proof (IP67)
Vandal-proof (IK10)
FCC/CE/IK10/IP67
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Limited 36 months warranty
