Reset Button
Micro SD/SDHC Card Slot
RJ45 Connector (for Ethernet and
PoE:802.3.af)
DC12V Connector
POE
Micro
SD/SDHC Card
DDNS Server
5 Megapixel
Vandal Dome Network Camera
▪ Most Intelligent, Compact and Affordable 5M Vandal Dome Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Wide Camera Angle Adjustment with Pan 35°, Tilt 0-90°, Rotation 180°
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Vandal-proof(IK10) with Stylish Design
▪ Cost Effective/ Full Features Camera
▪ Built-In Micro SD/SDHC Memory Card Slot
▪ Different M12 Lens for Variable Needs
▪ TV out Connector Supported
▪ Power over Ethernet (802.3af)

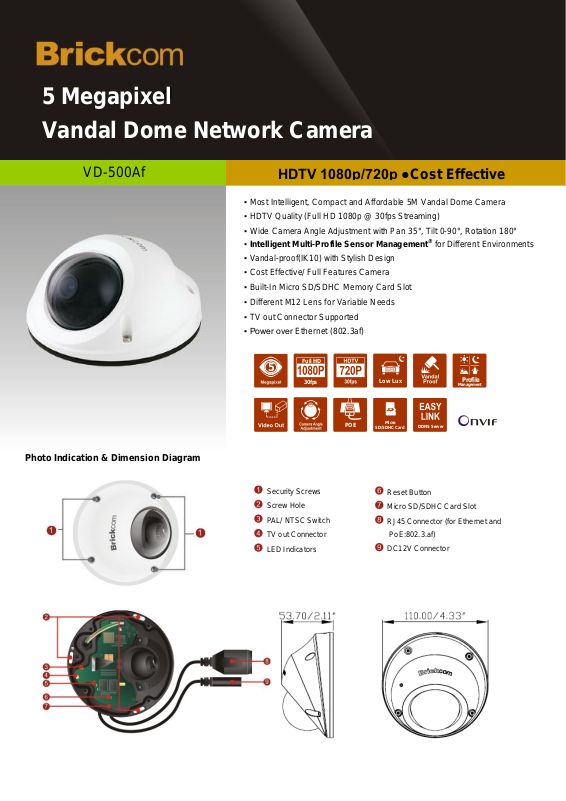

Photo Indication & Dimension Diagram
5
Full HD
30fps
Low Lux
Profile
Management
VD-500Af
HDTV 1080p/720p ●Cost Effective
Security Screws
Screw Hole
PAL/ NTSC Switch
TV out Connector
LED Indicators
d
Page 2
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2592x1944 pixel
Minimum
Illumination
1 lux (F1.6 ,B/W)
2 lux (F1.6 , Color)
Camera Angle
Adjustment
Pan ± 35°/ Tilt 0-90° / Rotation ± 180°
Local Storage
Built-in Micro SD/SDHC Memory Card Slot
Events
Motion Detection
Schedule
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
PoE 802.3af/ DC12V
Max. Power
Consumption
5.5 watts
Environment
Operating Temperature
-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
110(L) X110(W) X 53.7(H) mm
Weight
460g/1.02lb
Housing
Weather-proof (IP66)
Vandal-proof (IK10)
Certification
FCC, CE, IK10
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited One-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Sensor Management
Day/ Night / Sunset/ User 1/ User 2
Auto Exposure / Gain / White Balance Control
Manual Exposure Control:1/20000~1/5s
Manual Gain Control: 1X~32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
38.1dB
Image Resolution
5M : 2592x1944 @ 10fps
(5M supports MJPEG only)
4M : 2304x1728 @ 15fps
3M : 2048x1536 @ 18fps
2M (1080p Full HD): 1920x1080 @ 30fps
1M (720p HDTV): 1280x720@ 30fps
Lens Spec
VD-500Af
f=4mm
f=6mm
f=8mm
f=3.6mm
Lens Type
Board Lens
Board Lens
Board Lens
Board Lens
F Number
F=1.6
F=1.6
F=1.6
F=1.6
FOV(H/V/D)
90°/67°/112°
55°/40°/70°
41°/30°/52°
92°/68°/115°
Camera
General
Video
Events and Alarm Management
Product Distinction
Page 3
BNCMD-01
TV out Connector Line
LT
Lens Adjusting Tool
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
Network Equipment Options
Camera Accessories Options
Work Best With
