Page 1
Terminal Block
(For Audio in/out, DIDO)
TV Out Connector
Terminal Block (For DC12V)
Focus Control Bar
View Angel Control Bar
SD Card Slot
Terminal Block
(For Audio in/out, DIDO)
TV Out Connector
Terminal Block (For DC12V/AC24V)
Focus Control Bar
View Angel Control Bar
SD Card Slot

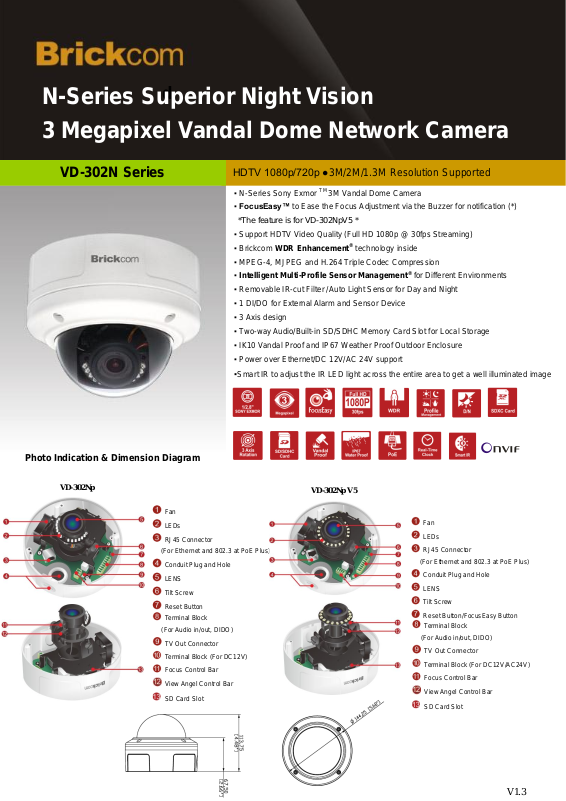

N-Series Superior Night Vision
3 Megapixel Vandal Dome Network Camera
▪ N-Series Sony Exmor
TM
3M Vandal Dome Camera
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification (*)
*The feature is for VD-302NpV5 *
▪ Support HDTV Video Quality (Full HD 1080p @ 30fps Streaming)
▪ Brickcom WDR Enhancement® technology inside
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ 3 Axis design
▪ Two-way Audio/Built-in SD/SDHC Memory Card Slot for Local Storage
▪ IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
▪ Power over Ethernet/DC 12V/AC 24V support
▪Smart IR to adjust the IR LED light across the entire area to get a well illuminated image

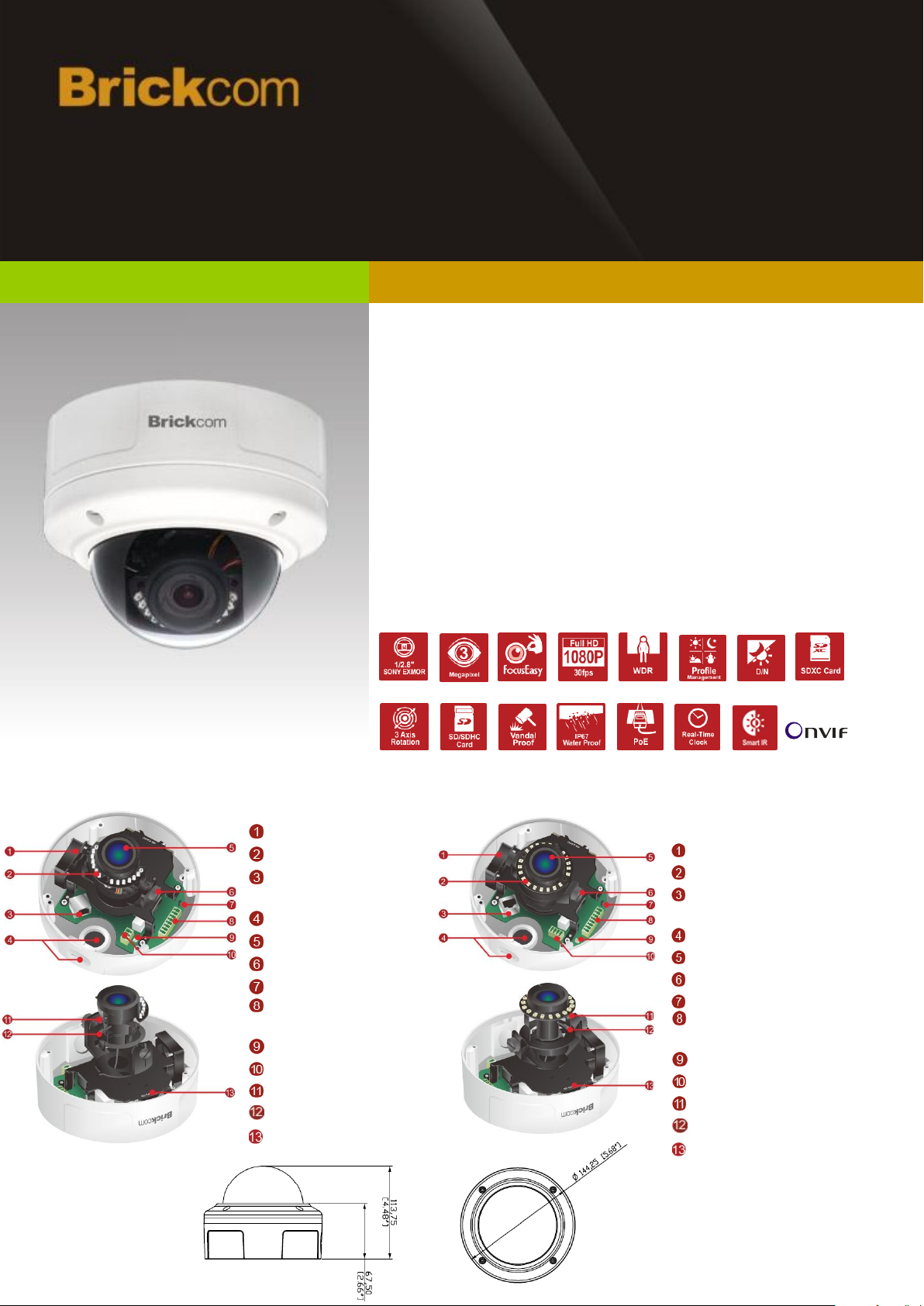

Photo Indication & Dimension Diagram
VD-302N Series
HDTV 1080p/720p ●3M/2M/1.3M Resolution Supported
VD-302Np
Fan
LEDs
RJ45 Connector
(For Ethernet and 802.3 at PoE Plus)
Conduit Plug and Hole
LENS
Tilt Screw
Reset Button
VD-302Np V5
Fan
LEDs
RJ45 Connector
(For Ethernet and 802.3 at PoE Plus)
Conduit Plug and Hole
LENS
Tilt Screw
Reset Button/FocusEasy Button
d
V1.3
Page 2
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line In/ Out
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Operating
Temperature
VD-302Np
802.3 af POE/ DC12V 1A
-20°C ~ 60°C (-4°F ~140°F)
802.3at PoE Plus(build in fan and heater):
-40°C ~ 60°C (-40°F ~140°F)
VD-302Np V5
802.3 af POE/ DC12V 1A /AC 24V:
-20°C ~ 60°C (-4°F ~140°F)
802.3at PoE Plus(build in fan and heater):
-40°C ~ 60°C (-40°F ~140°F)
Max. Power
Consumption
DC12V 1A
VD-302Np: 8 Watts
DC12V 1A/AC 24V
VD-302Np V5:10.5 Watts
802.3 af POE
VD-302Np: 10 Watts/ VD-302Np V5:12.5 Watts
802.3at PoE Plus
VD-302Np:23 Watts/ VD-302Np V5:25 Watts
Environment
Water Proof: IP67
Operating Humidity : 10% ~ 80%
Dimension
113.75 (D) mm X 144.25(H) mm
Weight
860g/1.90lb
Housing
Weather-proof (IP67)
Vandal-proof (IK10)
Certification
FCC, CE, IK10
Viewing System
Requirements
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Models
VD-302Np 3M, Vari-Focal Lens
VD-302Np V5 3M, Vari-Focal Lens, FocusEasy
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” Sony Exmor
TM
CMOS
Sensor
Sensor Resolution : 2048x1536 pixel
Minimum
Illumination
VD-302Np
0 lux (IR ON, B/W)
0.01 lux (IR OFF, B/W)
0.02 lux (F1.4, Color)
VD-302Np V5
0 lux (IR ON, B/W)
0.008 lux (IR OFF, B/W)
0.01 lux (F1.4, Color)
IR Illuminators
VD-302Np
Built -in IR Illuminators, effective up to 15 meters
IR LED: 12pcs
IR wavelength: 850nm
VD-302Np V5
Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
F No.: 1.4
Focal Length:
VD-302Np V5
f= 3mm(W)~10.5mm(T)
VD-302Np
f= 3.3mm(W)~10.5mm(T)
View Angle:
VD-302Np V5
(H): 98°~32°/ (V): 72°~24°/ (D):120°~40°
VD-302Np
(H): 84°~31°/ (V): 62°~24°/ (D):110°~38°
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Local Storage
Built-in SD/SDHC/SDXC Max.64G Memory
Card Slot
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
>50 dB
Image Resolution
3M : 2048x1536 @ 20fps
2M (Full HD): 1920x1080 @ 30fps
1M : 1280x720 @ 30fps
Events
Motion Detection/ Schedule/ Audio Detection/
Digital Input/ Temperature Alarm(*)
* VD-302Np V5 only
Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Camera
Audio
Video
Events and Alarm Management
General
V1.3
Page 3
L-WM-01
Camera Bracket
PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch
POE30U *
High Power PoE Injector
PS-7242IL-AT
24-port 10/ 100M High Power PoE+ Web
Smart Ethernet Switch
WPC *
Waterproof Connector
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.

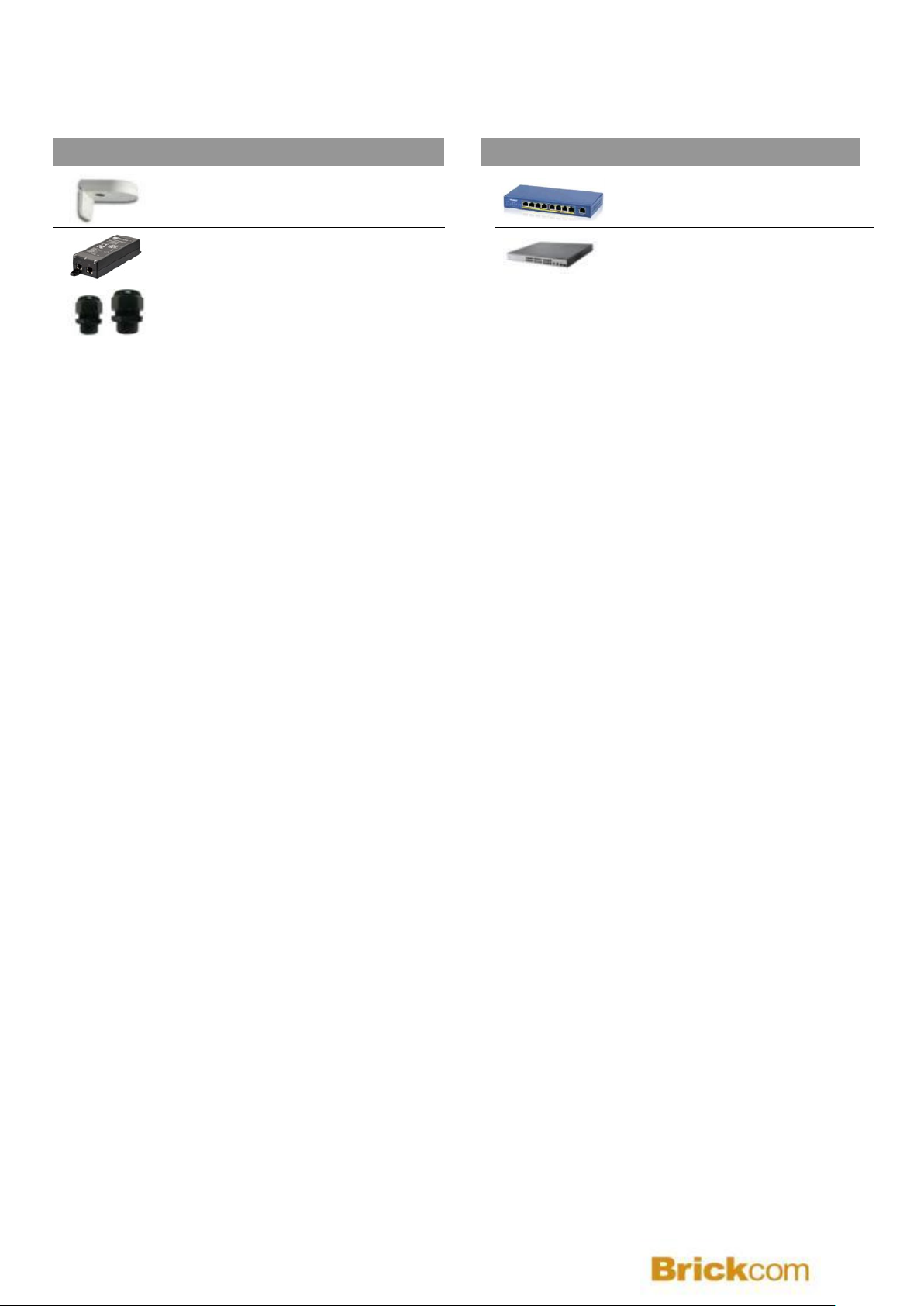

Work Best With
Camera Accessories Options
Network Equipment Options
V1.3
