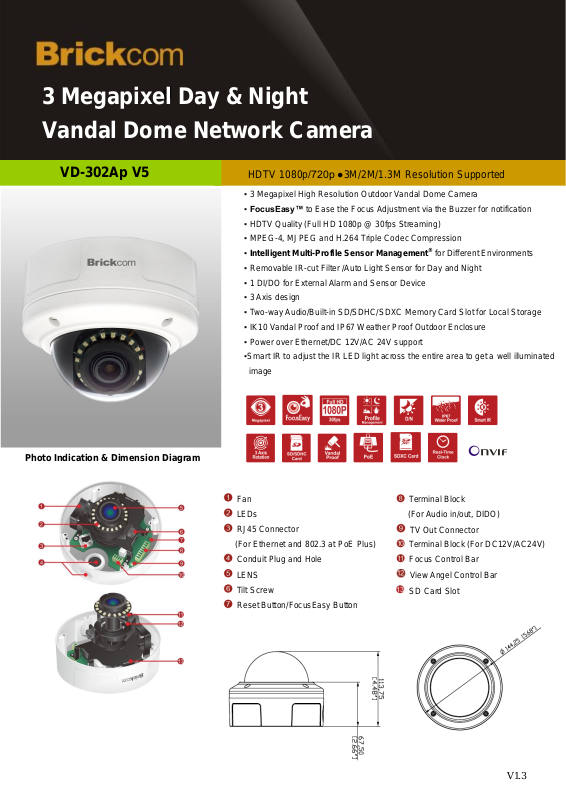

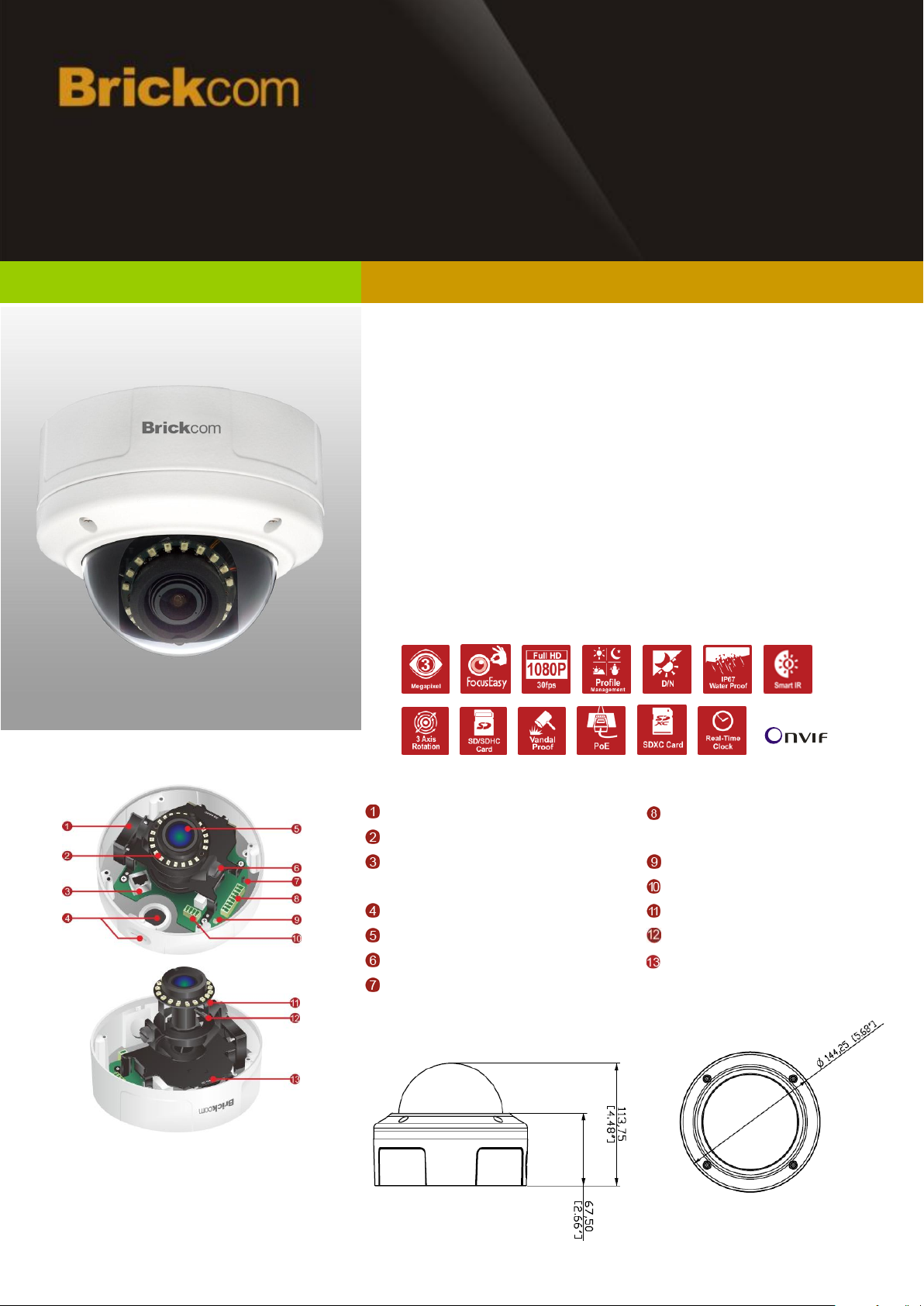

Page 1
Terminal Block
(For Audio in/out, DIDO)
TV Out Connector
Terminal Block (For DC12V/AC24V)
Focus Control Bar
View Angel Control Bar
SD Card Slot
3 Megapixel Day & Night
Vandal Dome Network Camera
▪ 3 Megapixel High Resolution Outdoor Vandal Dome Camera
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ 3 Axis design
▪ Two-way Audio/Built-in SD/SDHC/SDXC Memory Card Slot for Local Storage
▪ IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
▪ Power over Ethernet/DC 12V/AC 24V support
▪Smart IR to adjust the IR LED light across the entire area to get a well illuminated
Photo Indication & Dimension Diagram
VD-302Ap V5
HDTV 1080p/720p ●3M/2M/1.3M Resolution Supported
Fan
LEDs
RJ45 Connector
(For Ethernet and 802.3 at PoE Plus)
Conduit Plug and Hole
LENS
Tilt Screw
Reset Button/FocusEasy Button
d
V1.3

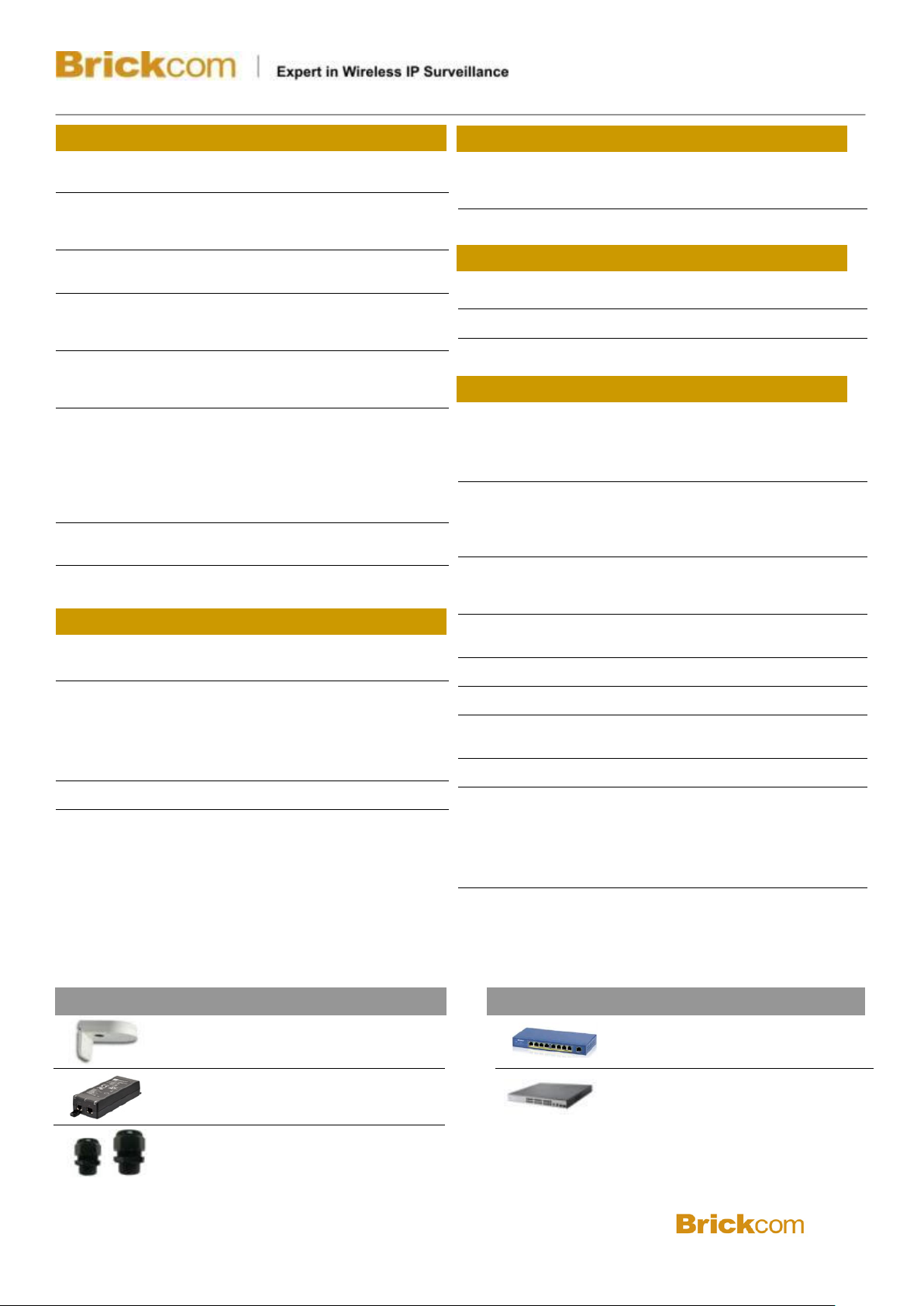

Page 2
Models
3M, Vari-Focal Lens, FocusEasy™
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution :2048x1536 pixel
Minimum
Illumination
0 lux (IR ON, B/W)
0.01lux (IR OFF, B/W)
0.02 lux (F1.4, Color)
IR Illuminators
Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
F No.: 1.4
Focal Length: f= 3.3mm(W)~10.5mm(T)
View Angle(Normal Mode):
(H): 68°~26°/ (V): 50°~20°/ (D):86°~32°
View Angle(Ultra Wide Mode):
(H): 86°~33°/ (V): 64°~22°/ (D):112°~41°
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Local Storage
Built-in SD/SDHC/SDXC Max.64G Memory Card
Slot
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
38.1 dB
Image Resolution
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @30fps
1M : 1280x720 @ 30fps
Events
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm
Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Audio
Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line In/ Out
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Operating
Temperature
802.3 af POE/ DC12V 1A /AC 24V:
-20°C ~ 60°C (-4°F ~140°F)
802.3at PoE Plus(build in fan and heater):
-40°C ~ 60°C (-40°F ~140°F)
Max. Power
Consumption
DC12V 1A/AC 24V:10.5 Watts
802.3 af POE:12.5 Watts
802.3 at POE Plus:25.5 Watts
Environment
Water Proof: IP67
Operating Humidity : 10% ~ 80%
Dimension
113.75 (D) mm X 144.25(H) mm
Weight
860g/1.90lb
Housing
Weather-proof (IP67)
Vandal-proof (IK10)
Certification
FCC, CE, IK10
Viewing System
Requirements
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 3-year warranty
L-WM-01
Camera Bracket
PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch
POE30U *
High Power PoE Injector
PS-7242IL-AT
24-port 10/ 100M High Power PoE+ Web
Smart Ethernet Switch
WPC *
Waterproof Connector
Camera
Audio
Video
Events and Alarm Management
General
Work Best With
Camera Accessories Options
Network Equipment Options
Copyright 2014 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
V1.3
