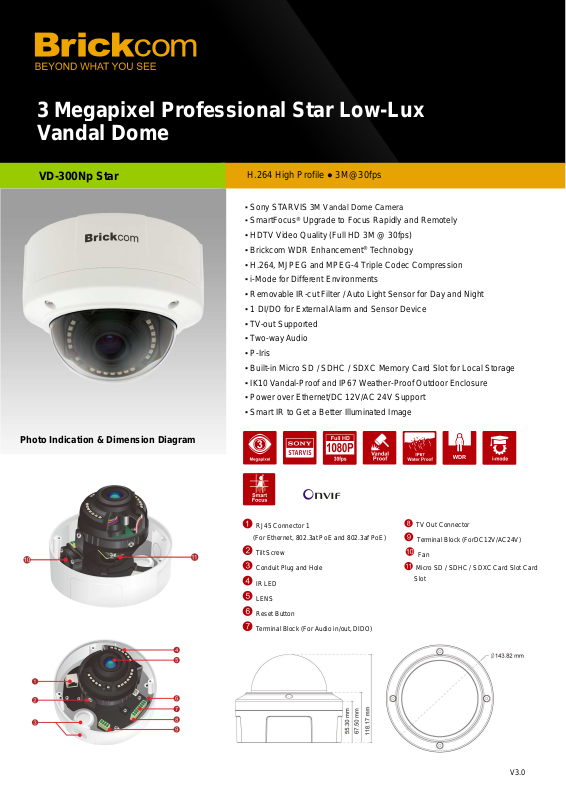

Page 1
3 M
egapixel
Pro
fessional
Star Low
-
Lux
Vandal Dome
VD-300Np Star
Photo Indication & Dimension Diagram
H.264 High Profile ● 3M@30fps
▪
Sony STARVIS
▪
SmartFocus® Upgrade to Focus Rapidly and Remotely
▪ HDTV Video Quality (Full HD 3M @ 30fps)
▪ Brickcom WDR Enhancement® Technology
▪ H.264, MJPEG and MPEG-4 Triple Codec Compression
▪ i-Mode for Different Environments
▪ Removable IR-cut Filter / Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ TV-out Supported
▪ Two-way Audio
▪ P-Iris
▪ Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
▪ IK10 Vandal-Proof and IP67 Weather-Proof Outdoor Enclosure
▪ Power over Ethernet/DC 12V/AC 24V Support
▪ Smart IR to Get a Better Illuminated Image
3M Vandal Dome Camera
RJ45 Connector 1
(For Ethernet, 802.3at PoE and 802.3af PoE)
Tilt Screw
Conduit Plug and Hole
IR LED
LENS
Reset Button
Terminal Block (For Audio in/out, DIDO)
TV Out Connector
Terminal Block (ForDC12V/AC24V)
Fan
Micro SD / SDHC / SDXC Card Slot Card
Slot
V3.0
Page 2
Brickcom
Events and Alarm Management
Events
Alarm
Audio
Audio Streaming
Audio
Audio
General
Communication
Power Input
Temperature
/
Max. Power
Dimension
Weight
Housing
Certification
Viewing System
Warranty
Camera
Models
VD-
300Np V6
Hardware System
Image Sensor
Lens
Local Storage
Day & Night ICR
Minimum
IR Illuminators
Video
Compression
Video
Setting
S/N
Ratio
Image Resolution
WDR
High Power PoE+ Web Smart
Flash: 32MB
RAM: 256MB DDR
Sensor Type : 1/2.8" Sony Exmor CMOS Sensor
Sensor Resolution : 3M (2048 x 1536)
Lens Type: Motorized Lens
P-IRIS: F1.4
Focal Length: f=2.8~12mm
View Angle: (H°/V°/D°)
(H )95°~33° /(V )68°~24° /(D) 116°~41°
Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot
Illumination
Streaming
Triggered by Light sensor, Scheduling,
Digital Input
0 Lux(IR On, B/W)
0.0005Lux(F1.4,B/W)
0.0006Lux(F1.4,Color)
Built –In IR Illuminators,
effective up to 25m
IR LED: 20 PCS
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
i-Mode Image Management:
Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/120000s ~ 1s
Manual Gain Control: 1~ 48
Above 50dB
3M (2048 x 1536) ● (30fps)
60dB
| BEYOND WHAT YOU SEE
Compression
Input/ Output
Environment
Consumption
Requirements
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm/ Auto IR Focus for Day &
Night
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
2-way Audio Support
G.711/AMR
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
DC12V 1A
802.3af PoE
802.3at PoE
AC24V
Operating Temperature:
-45°C ~ 60°C
(-49°F ~ 140°F)
Operating Humidity: 10% ~ 80%
DC12V 1A
8 Watts
AC 24V10.5 Watts
802.3 af POE
10 Watts
802.3at PoE Plus
25 Watts
143.82 (D) mm X 118.17(H) mm
860g/1.90lb
Weather-proof (IP67)
Vandal-proof (IK10)
FCC/CE/IK10/IP67
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Limited 36 months warranty
© 2015 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.
Camera Accessories Options
L-WM-01
Camera Bracket
POE30U V2
High Power PoE Injector
PS-588I V2
9 port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AT
24-port 10/ 100M
Ethernet Switch
V3.0
