Page 1
Reset Button
Micro SD/SDHC Card Slot
RJ45 Connector (for Ethernet and
PoE:802.3.af)
DC12V Connector
d
POE
Micro
SD/ SDHC Card
DDNS Server

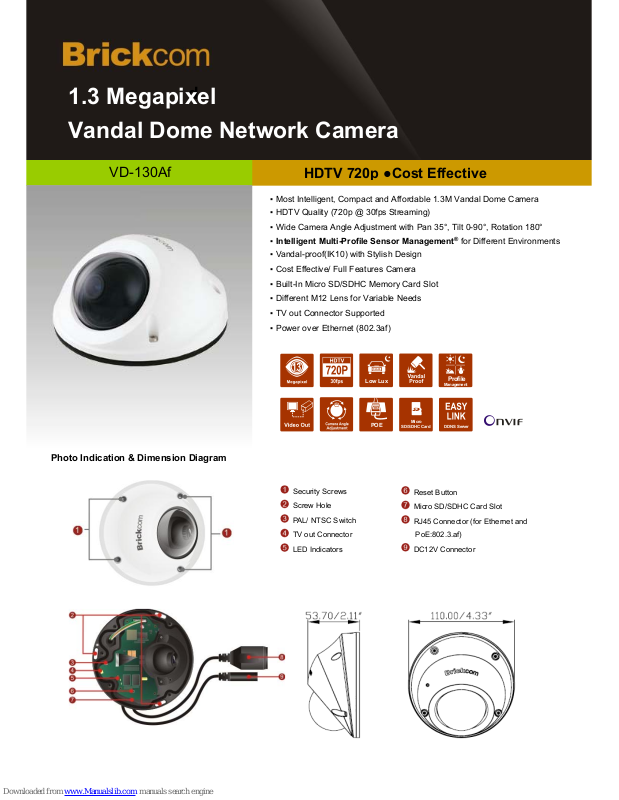

1.3 Megapixel
Vandal Dome Network Camera
▪ Most Intelligent, Compact and Affordable 1.3M Vandal Dome Camera
▪ HDTV Quality (720p @ 30fps Streaming)
▪ Wide Camera Angle Adjustment with Pan 35°, Tilt 0-90°, Rotation 180°
▪ Intelligent Multi-Profile Sensor Management
®
for Different Environments
▪ Vandal-proof(IK10) with Stylish Design
▪ Cost Effective/ Full Features Camera
▪ Built-In Micro SD/SDHC Memory Card Slot
▪ Different M12 Lens for Variable Needs
▪ TV out Connector Supported
▪ Power over Ethernet (802.3af)
Photo Indication & Dimension Diagram
Low Lux
Profile
Management
VD-130Af
HDTV 720p ●Cost Effective
Security Screws
Screw Hole
PAL/ N T SC S w i tch
TV out Connector
LED Indicators
Page 2
Hardware System CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 1280 x 1024 pixel
Minimum
Illumination
1 lux (F1.6, B/W)
2 lux (F1.6,Color)
Camera Angle
Adjustment
Pan ± 35°/ Tilt 0-90° / Rotation ± 180°
Local Storage Built-in Micro SD/SDHC Memory Card Slot
Events Motion Detection
Schedule
Alarm Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification
Communication Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input PoE 802.3af/ DC12V
Max. Power
Consumption
5.5 watts
Environment Operating Temperature
-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension 110(L) X110(W) X 53.7(H) mm
Weight 460g/1.02lb
Housing Weather-proof (IP66)
Vandal-proof (IK10)
Certification FCC, CE, IK10
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty Limited One-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting Multi-Profile Sensor Management
Day/ Night / Sunset/ User 1/ User 2
Auto Exposure / Gain / White Balance Control
Manual Exposure Control:1/20000~1/5s
Manual Gain Control: 1X~32X
Manual White Balance Control: 2000K~7000K
S/N Ratio 38.1dB
Image Resolution 1.3M : 1280 x1024 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Lens Spec
VD-130Af f=4mm f=6mm f=8mm f=2.8mm f=3.6mm
Lens Type Board Lens Board Lens Board Lens Board Lens Board Lens
F Number F=1.6 F=1.6 F=1.6 F=1.6 F=1.6
FOV(H/V/D) 50°/40°/61° 40°/22°/46° 30°/16°/34° 88°/48°/100° 67°/37°/77°
Camera
General
Events and Alarm Management
Product Distinction
Video
Page 3
BNCMD-01
TV out Connector Line
LT
Lens Adjusting Tool
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
Network Equipment Options
Camera Accessories Options
Work Best With
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
