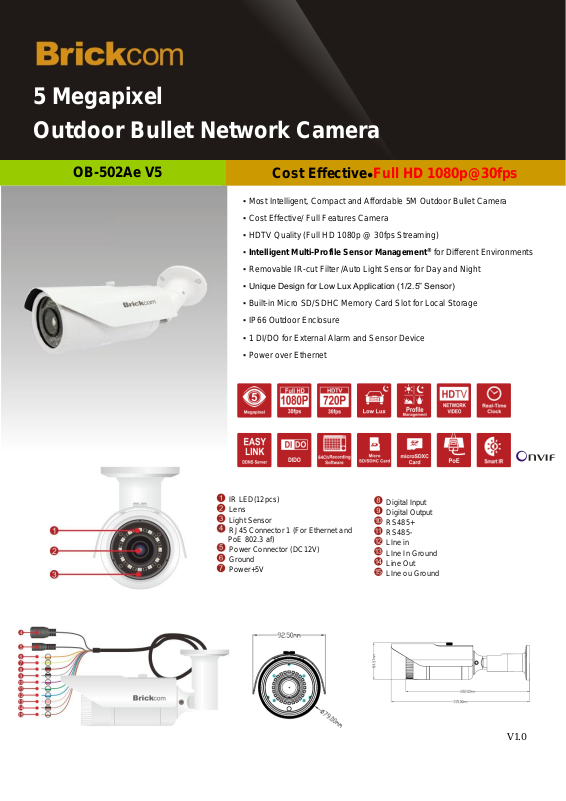

5 Megapixel
Outdoor Bullet Network Camera

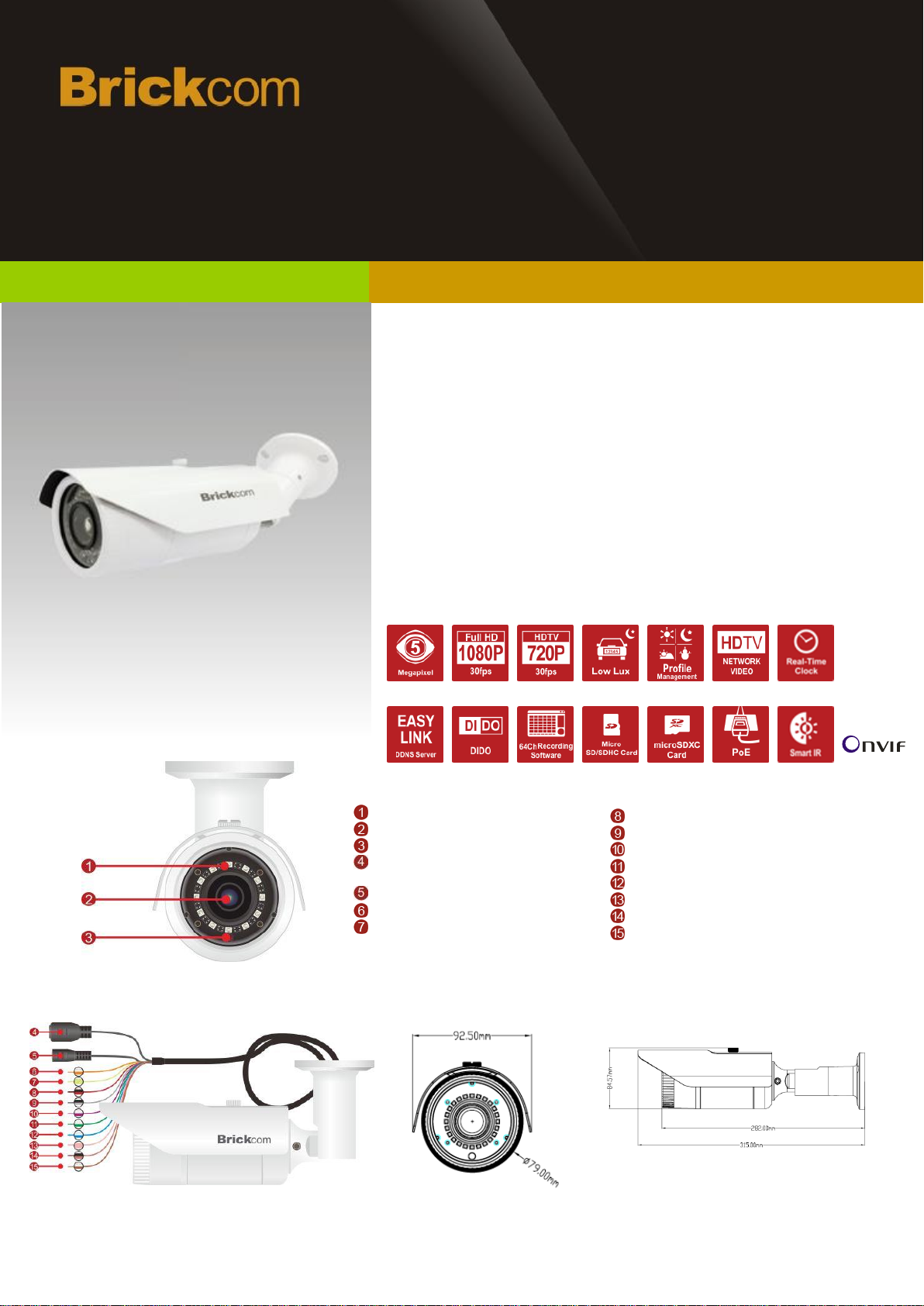

Photo Indication & Dimension Diagram
OB-502Ae V5
Cost Effective●Full HD 1080p@30fps
▪ Most Intelligent, Compact and Affordable 5M Outdoor Bullet Camera
▪ Cost Effective/ Full Features Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ Unique Design for Low Lux Application (1/2.5” Sensor)
▪ Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ IP66 Outdoor Enclosure
▪ 1 DI/DO for External Alarm and Sensor Device
▪ Power over Ethernet
IR LED(12pcs)
Lens
Light Sensor
RJ45 Connector 1 (For Ethernet and
PoE 802.3 af)
Power Connector (DC12V)
Ground
Power+5V
Digital Input
Digital Output
RS485+
RS485 LIne in
LIne In Ground
Line Out
LIne ou Ground
V1.0
Page 2
Events
Motion Detection
Digital Input
Schedule
Audio Detection
Temperature Alarm
Alarm
Stream/Snapshot to FTP/Email/Samba/ SD-Card
Activate Digital Output
HTTP/Email Notification
Audio Notification
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input
DC12V/ 1A(Power Supply)/PoE 802.3af
Max. Power
Consumption
8 watts
Environment
Operating Temperature:
-20°C ~ 50°C(-4°F ~122°F)
Operating Humidity :
10% ~ 80%
Dimension
288.6 (L) 122.9 (W) X 127.5 (H) mm
Weight
Net: 658g/1.45lb
Housing
Weather-proof IP66
Certification
FCC, CE
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000/7/8
Browser: Mozilla Firefox, Internet Explorer 7/8 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited two-year warranty
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2592x1944 pixel
Minimum
Illumination
0 lux (IR ON, B/W)
0.008 lux (IR OFF, B/W)
0.01 lux (F1.4, Color)
Lens
Focal Length: f= 3.3mm(W)~10.5mm(T)
(H):90°~33°/ (V): 65°~25°/ (D): 115°~41°
IR Illuminators
Built –In IR Illuminators, effective up to 15
meters
IR LED 12pcs (850nm)
Day and Night
Removable IR-cut Filter /Auto Light Sensor for
Day and Night
Local Storage
Built-in Micro SD/SDHC/SDXC Max.64G
Memory Card Slot
Audio Streaming
2-way Audio Support
Audio
Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line in/ Line out
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Sensor Management
Day/ Night / Sunset/ User 1/ User 2
Auto Exposure / Gain / White Balance Control
Manual Exposure Control:1/20000~1/5s
Manual Gain Control: 1X~32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
38.1dB
Image Resolution
5M : 2592x1944 @ 10fps
(5M supports MJPEG only)
4M : 2304x1728 @ 15fps
3M : 2048x1536 @ 18fps
2M (1080p Full HD): 1920x1080 @ 30fps
1M (720p HDTV): 1280x720@ 30fps
