3 Megapixel
d

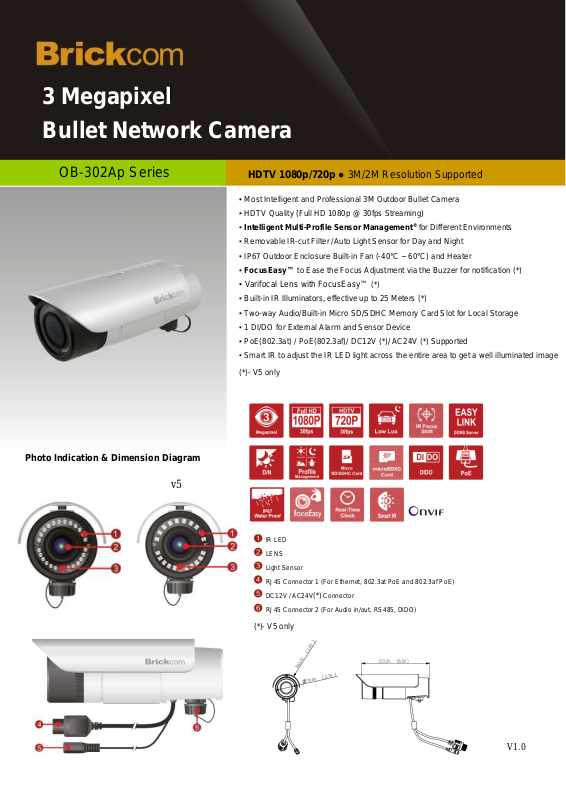

Bullet Network Camera
OB-302Ap Series
HDTV 1080p/720p ● 3M/2M Resolution Supported
▪ Most Intelligent and Professional 3M Outdoor Bullet Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ IP67 Outdoor Enclosure Built-in Fan (-40°C ~ 60°C) and Heater
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification (*)
▪ Varifocal Lens with FocusEasy™
▪ Built-in IR Illuminators, effective up to 25 Meters (*)
▪ Two-way Audio/Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device
▪ PoE(802.3at) / PoE(802.3af)/ DC12V (*)/ AC24V (*) Supported
▪ Smart IR to adjust the IR LED light across the entire area to get a well illuminated image
(*)
Photo Indication & Dimension Diagram
(*)- V5 only
IR LED
LENS
Light Sensor
RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
DC12V / AC24V
RJ45 Connector 2 (For Audio in/out, RS485, DIDO)
(*)- V5 only
(*)
Connector
V1.0
Page 2
Models
OB-302Ap
/OB-3
02Ap V5
:
Hardware
Image Sensor
Lens OB-302Ap / OB-302Ap V5
Local Storage
Day & Night
IR
Minimum
OB-302Ap / OB-302Ap:
Audio
Audio
Audio
Communication
Power Input
Power Input
/
Max. Power
OB-302Ap &
OB-302Ap V5
Dimension
Weight
OB-302Ap /OB-3
02Ap V5
Housing
Certification
Viewing System
Warranty
Compression
Video Setting
S/N Ratio
3M :
Events
Alarm
Camera
System
ICR
Illuminators
Illumination
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2048 x 1536 pixel
Focal Length: f=3.3~10.5mm
Iris: F1.4
View Angle:
Normal (H): 70°~26°/ (V): 51°~20°/ (D): 88°~32°
Ultra wide(H):107°~33°/ (V):77°~22°/ (D): 114°~41°
Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot
Triggered by Light sensor, Scheduling,
Digital Input
Built –In IR Illuminators,
OB-302Ap:
effective up to 15 meters
IR LED: 24pcs
OB-302Ap V5:
effective up to 25 meters
IR LED: 20pcs
0 Lux(IR ON ,B/W)
0.001 Lux(IR OFF ,B/W)
0.002 Lux (F1.4,Color)
Events and Alarm Management
Streaming
Resolution
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
38.1Db
2048x1536 @ 18fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Video
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm(*)
*OB-302Ap V5 Only
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
3M, Vari-Focal Lens
Audio
Streaming
Compression
Input/ Output
General
Temperature/
Environment
Consumption
Requirements
2-way Audio Support
G.711, AMR (8 kHz, Mono, PCM)
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
DC12V 1A / 802.3af PoE
802.3at PoE/ DC48V 0.8A
AC 24V
(*)
(*)- V5 only
Operating Temperature:
DC12V 1A / 802.3af PoE:
-20°C ~ 60°C (-4°F ~140°F)
802.3at PoE/ DC48V 0.8A:
(build in fan and heater):
-40°C ~ 60°C (-40°F ~140°F)
Operating Humidity: 10% ~ 80%
8.6 Watts (PoE 802.3af, IR on)
8.4 Watts (PoE 802.3at, IR on)
16.3 Watts (PoE 802.3at, IR&Heater&Fan on)
70(D) * 166(H) mm
Net: 1100 g/2.43lb
Weather-proof (IP67)
FCC, CE
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Limited 3-year warranty
V1.0
Page 3
OB-300A Series OB-302Ap
Lens Type
Wireless
(11a/b/g/n dual band WiFi)
3G/ 4G(WiMAX/LTE)
Operating Temperature;
Max. Power Consumption
-40°C ~ 60°C (DC48V 0.8A/PoE 802.3at)
Vari-Focal-Lens
- -
- -
-20°C ~ 60°C (DC12V 1A / 802.3af)
OB-302Ap V5
-20°C ~ 60°C; 8 Watts (DC12V 1A / 802.3af)
-40°C ~ 60°C;20 Watts(DC48V 0.8A/PoE 802.3at)
Vari-Focal-Lens
( FocusEasy™)
Work Best With
CI-812
Camera Bracket
GEM04-222008A
Wi-Fi Dual Band Omni Antenna
Network Equipment Options Camera Accessories Options
GEM04-222060
Wi-Fi Dual Band Antenna
POE30U
High Power PoE Injector
GEM07-15072A
3G Antenna
V1.0
