Page 1
Profile
Management
Micro
SD/SDHC Card
DDNS Server
POE

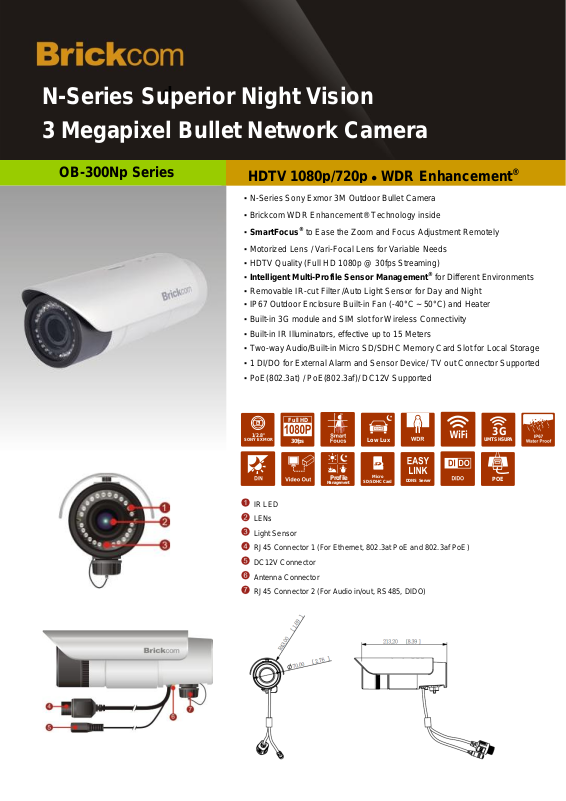

N-Series Superior Night Vision
3 Megapixel Bullet Network Camera
▪ N-Series Sony Exmor 3M Outdoor Bullet Camera
▪ Brickcom WDR Enhancement® Technology inside
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely
▪ Motorized Lens / Vari-Focal Lens for Variable Needs
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ IP67 Outdoor Enclosure Built-in Fan (-40°C ~ 50°C) and Heater
▪ Built-in 3G module and SIM slot for Wireless Connectivity
▪ Built-in IR Illuminators, effective up to 15 Meters
▪ Two-way Audio/Built-in Micro SD/SDHC Memory Card Slot for Local Storage
▪ 1 DI/DO for External Alarm and Sensor Device/ TV out Connector Supported
▪ PoE(802.3at) / PoE(802.3af)/ DC12V Supported
Photo Indication & Dimension Diagram
1/2.8"
SONY EXMOR
Full HD
30fps
Low Lux
UMTS HSUPA
3G
OB-300Np Series
HDTV 1080p/720p ● WDR Enhancement®
IR LED
LENs
Light Sensor
RJ45 Connector 1 (For Ethernet, 802.3at PoE and 802.3af PoE)
DC12V Connector
Antenna Connector
RJ45 Connector 2 (For Audio in/out, RS485, DIDO)
d
Page 2
Models
OB-302Np: 3M, Vari-Focal Lens
OB-300Np: 3M, Motorized Lens
WOB-300Np: 3M, Motorized Lens, Wireless
GOB-300Np: 3M, Motorized Lens, 3G
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” 3M Sony Exmor Megapixel
sensor
Sensor Resolution : 2048 x 1536 pixel
Lens
OB-302Np
Lens Type: Board Lens
Focal Length: f=3.3~10.5mm
Iris: F1.4
View Angle: (H): 82°~31°/ (V):60 °~24°/
(D):104°~38°
OB-300Np/WOB-300Np/GOB-300Np
Lens Type: Board Lens
Focal Length: f=2.8~10mm
Iris: F1.3
View Angle: (H): 115°~32°/ (V):90 °~24°/
(D):140°~40°
Local Storage
Built-in Micro SD/SDHC Memory Card Slot
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Minimum
Illumination
OB-302Np
Minimum illumination :0.1 Lux(F1.4,Color)
0 Lux (IR ON, B/W)
OB-300Np/WOB-300Np/GOB-300Np
Minimum illumination :0.1 Lux(F1.3,Color)
0 Lux (IR ON, B/W)
IR Illuminators
Built –In IR Illuminators, effective up to 15
meters
IR LED: 24pcs
Events
Motion Detection
Schedule
Audio Detection
Digital Input
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Communication
Ethernet : one 10/100Mbps RJ-45
IEEE 802.11a/b/g/n compliance
(WOB-300N)
HSUPA/UMTS 850/1900/2100
(GOB-300N)
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Temperature/
Environment
DC12V 1A / 802.3af PoE:
-20°C ~ 50°C (-4°F ~122°F)
802.3at PoE/ DC48V 0.8A:
(build in fan and heater):
-40°C ~ 50°C (-40°F ~122°F)
Operating Humidity: 10% ~ 80%
Max. Power
Consumption
8 watts (DC12V 1A)
20 watts (PoE 802.3af)
23 Watts(DC48V 0.8A/PoE 802.3at)
Dimension
70(D) * 166(H) mm
Weight
OB-302N/OB-300N - Net: 1100 g/2.43lb
WOB/GOB-300N - Net: 1110 g/2.45lb
Housing
Weather-proof (IP67)
Certification
FCC, CE
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control/Gain/ White Balance
Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 15X
S/N Ratio
Above 50dB
Image Resolution
3M : 2048x1536 @ 20fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Camera
General
Audio
Video
Events and Alarm Management
Page 3
CI-812
Camera Bracket
GEM04-222008A
Wi-Fi Dual Band Omni Antenna
GEM07-15072A
3G Antenna
DWRT-600N
Dual-Band Wireless N Router
GEM04-222060
Wi-Fi Dual Band Antenna
POE30U
High Power PoE Injector
Network Equipment Options
Camera Accessories Options
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
Work Best With
