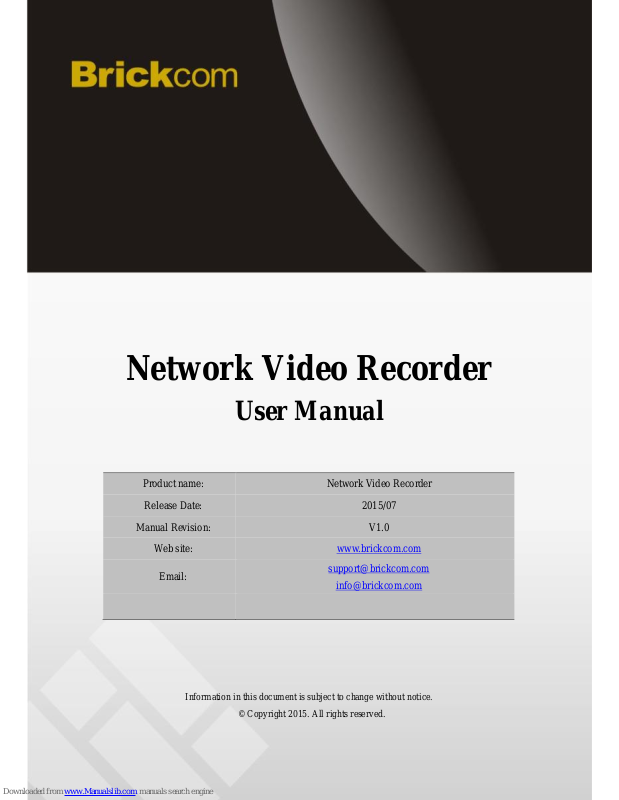

Brickcom NR-2008 User Manual

0

Network Video Recorder

User Manual

Information in this document is subject to change without notice.

© Copyright 2015. All rights reserved.

Product name:

Network Video Recorder

Release Date:

2015/07

Manual Revision:

V1.0

Web site:

www.brickcom.com

Email:

[e-mail]

[e-mail]

www.brickcom.com.tw

1

1 Important Safeguards and Warnings

Electrical safety

 All installation and operation should conform to your local electrical safety codes. We assume no liability or
responsibility for any fires or electrical shock caused by improper handling or installation.

Transportation security

 Heavy stress, violent vibration or water splash should be avoided during transportation, storage and installation.

Installation

 Keep upright. Handle with care.
 Do not apply power to the NVR before completing installation.
 Do not place objects on top of the NVR

Qualified engineers needed

 All examination and repair work should be done by qualified service engineers.
 We are not liable for any problems caused by unauthorized modifications or attempted repair.

Environment

 The NVR should be installed in a cool, dry place away from direct sunlight and inflammable or explosive
substances, etc.
 This product should be transported, stored and operated in the specified environments.

Accessories

 Be sure to use all the accessories available in the package.
 Before installation, please open the package and check all the components are included.
 Contact your local retailer if something is broken or missing in your package.

Lithium battery

 Improper battery use may result in fire, explosion, or personal injury.
 When replacing the battery, please make sure you use the same model.

www.brickcom.com.tw

2

2 Declaration

 Please prevail in kind. The manual is for reference only.
 This manual may contain inaccurate data or printing error.
 The products described in this manual may be updated at any time.
 Screenshots of the manual is not in a machine and only for display.
 If in doubt, obtaining a copy of the latest procedure or the additional document, please contact with the company's

after-sales department.

www.brickcom.com.tw

3

CONTENTS

1 Important Safeguards and Warnings................................................................................................................ 1

2 Declaration .......................................................................................................................................................... 2

3 Product Introduction .......................................................................................................................................... 5

3.1 Product Overview ......................................................................................................................................... 5

3.2 Feature .......................................................................................................................................................... 5

4 Read First ............................................................................................................................................................ 6

4.1 Front Panel ................................................................................................................................................... 6

4.2 Rear Panel .................................................................................................................................................... 8

4.3 Remote Control ............................................................................................................................................ 8

4.4 The Mouse ...................................................................................................................................................11

4.5 The Input Method ....................................................................................................................................... 12

4.6 Icon ............................................................................................................................................................. 12

5 Installation ......................................................................................................................................................... 13

5.1 Unpacking Inspection ................................................................................................................................. 13

5.2 HDD Installation ........................................................................................................................................ 13

5.3 Installation of the burner ............................................................................................................................ 14

5.4 Alarm/PTZ/Control Keyboard Interface .................................................................................................... 14

5.5 POE Connection ......................................................................................................................................... 17

6 Basic Operations Guide .................................................................................................................................... 18

6.1 Power On and Off ...................................................................................................................................... 18

6.2 Start-up wizard ........................................................................................................................................... 19

6.3 Add Device ................................................................................................................................................. 21

6.4 Log in/Log out ............................................................................................................................................ 28

6.5 Preview ....................................................................................................................................................... 28

6.6 Search ......................................................................................................................................................... 35

6.7 Record Backup ........................................................................................................................................... 40

7 Local Configuration.......................................................................................................................................... 41

7.1 The Introduction of the Main Menu ........................................................................................................... 41

7.2 CONFIGURATION ................................................................................................................................... 43

7.3 Application ................................................................................................................................................. 54

7.3 Intelligent function configuration ............................................................................................................... 59

7.4 System setting ............................................................................................................................................ 60

8 WEB Access ....................................................................................................................................................... 77

8.1 WEB Operation .......................................................................................................................................... 77

9 PC/Platform Client Access ............................................................................................................................... 84

10 Appendix......................................................................................................................................................... 84

10.1 Port Mapping ........................................................................................................................................... 84

10.2 Voice Intercom ......................................................................................................................................... 86

10.3 HDD S.M.A.R.T ...................................................................................................................................... 86

10.4 Hard disk problem ................................................................................................................................... 88

10.5 HDD Capacity Calculation ...................................................................................................................... 89

10.6 Terms ....................................................................................................................................................... 90

10.7 FAQ ........................................................................................................................................................ .90

www.brickcom.com.tw

4

11 IMS200 INTRODUCTION ........................................................................................................................... 92

11.1 SUMMARY ............................................................................................................................................. 92

11.2 RUNTIME ENVIRONMENT ................................................................................................................. 92

12 INSTALLATION ........................................................................................................................................... 94

12.1 Windows Operation system ..................................................................................................................... 94

13 LOGIN AND INTERFACES ........................................................................................................................ 96

13.1 LOGIN ..................................................................................................................................................... 96

13.2 INTERFACE ........................................................................................................................................... 97

13.3 QUICK GUIDE ..................................................................................................................................... 102

14 FUNCTIONS ................................................................................................................................................ 107

14.1 MONITOR ............................................................................................................................................ 107

14.2 QUERY ..................................................................................................................................................114

14.3 ALARM ................................................................................................................................................. 125

14.4 PTZ CONTROL .................................................................................................................................... 136

14.5 MONITOR PROJECT ........................................................................................................................... 141

14.6 EMAP .................................................................................................................................................... 144

14.7 DEVICE STATE .................................................................................................................................... 147

14.8 USE-DEFINED TOOL .......................................................................................................................... 147

14.9 DEVICE RUNNING ............................................................................................................................. 147

14.10 UPPER RIGHT ICONS ..................................................................................................................... 148

14.11 CPU & NETWORK .......................................................................................................................... 149

14.12 DATE & ALARM & LOG................................................................................................................. 150

15 SYSTEM SETTING .................................................................................................................................... 151

15.1 LOG ....................................................................................................................................................... 151

15.2 LOCAL SET .......................................................................................................................................... 152

15.3 ADMIN CONFIG .................................................................................................................................. 159

15.4 INPUT/OUTPUT .................................................................................................................................. 168

15.5 MODIFY PASSWORD ......................................................................................................................... 168

15.6 LICENSE ............................................................................................................................................... 169

16 APPENDIX A ............................................................................................................................................... 171

16.1 FAQ ....................................................................................................................................................... 171

17 VSSMobile Simple instructions .................................................................................................................. 171

17.1 Summary ............................................................................................................................................... 171

17.2 Runtime Environment ........................................................................................................................... 171

18 Installation and Operating Instructions .................................................................................................... 171

18.1 Installation ............................................................................................................................................. 171

18.2 Operating Instructions ........................................................................................................................... 172

18.3 Playback ................................................................................................................................................ 179

18.4 Media Library ...................................................................................................................................... 182

18.5 More ...................................................................................................................................................... 183

19 Feedback ....................................................................................................................................................... 183

www.brickcom.com.tw

5

3 Product Introduction

3.1 Product Overview

This series NVR is a high performance network video recorder, combined with H.264 video compression, high­capacity hard disk storage, TCP / IP transmission, embedded Linux operating system and a variety of other advanced
technologies in the electronic information industry, all those ensure that a high-quality, low bit rate video storage
characteristics, and good system stability.
This product complies with GB 20815-2006 standard video security surveillance digital video recording

promulgated by the State. At the same time, the product supports the ONVIF protocol” base on’ ONVIF ™ Core
Specification’ Version 2.2” and is compatible with the network cameras which supports ONVIF protocol.

Some of the products can enable the switching between the NVR mode and Hybrid mode “Hybrid mode supports

both analog cameras and network cameras, NVR mode only supports network cameras”. This series product support

local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu
operation, and remote management and control function. Recording, playback, monitoring, synchronization of audio
and video. Besides, the products support advanced control technology and strong network data transmission capacity.

3.2 Feature

Real-time monitoring

Have a composite video signal interface and support TV, VGA or HDMI output simultaneously.

Compression function

Use H.264 video compression standard and G.711 audio compression standard and have high definition, low code
rate of the video coding and the storage.

Recording function

Support timing, linkage alarm, motion detection, SATA hard and local hard disk, NVR data backup and network
backup.

Video playback function

www.brickcom.com.tw

6

Achieve searching videos by a variety of conditions, playback in local and network. Support multiple videos
playback, fast playing, slow playing and frame-by-frame playback. Video playback can display the exact time of
the incident. Provide time-line retrieving page for quick searching.

Camera control and alarm

Be controlled by the remote camera and equip many alarm input interfaces. Be connected to various types of alarm
devices. Dynamic detection, video loss, video block, multiple alarm output and scene lighting control can be realized.

Communication Interface

Equip USB 2.0 high-speed interface or ESATA interface and allow many backup devices. Equip standard Ethernet
interface. Plug and play in a variety of network conditions,

Network functions

Support TCP / IP, UDP, RTP / RTSP, DHCP, PPPOE, DDNS, NTP P2P etc. Support real-time network monitoring,
video playback, control and management functions; built-in WEB Server, you can directly access through a browser.

Operation Mode

Support various shortcut menu operation modes, on the front panel, remote control, mouse, etc.；Support simple
and intuitive GUI。

Intelligent analysis

Support One or Two channel Intelligent Video Analysis,，such as Face detection and perimeter analysis, Intelligent
linkage pictures storage, videos, external alarm

Intelligent Search

Data can be retrieved through the intelligent analysis of data. Such as face detection data to achieve through face

image search, or by perimeter realization event video analysis data retrieval。

4 Read First

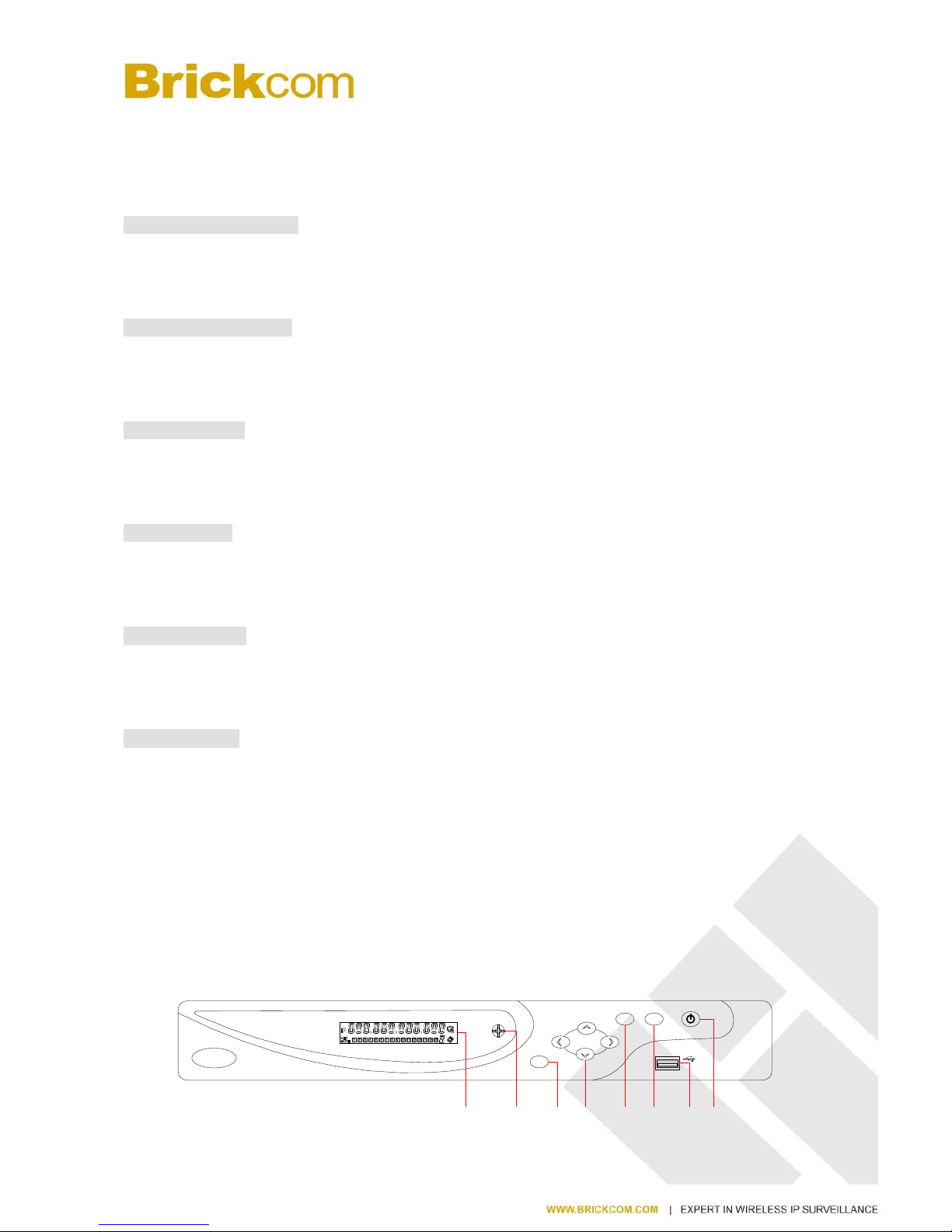

4.1 Front Panel

Fn

ESC

Enter

1 2 3 4 5 6 7 8

www.brickcom.com.tw

7

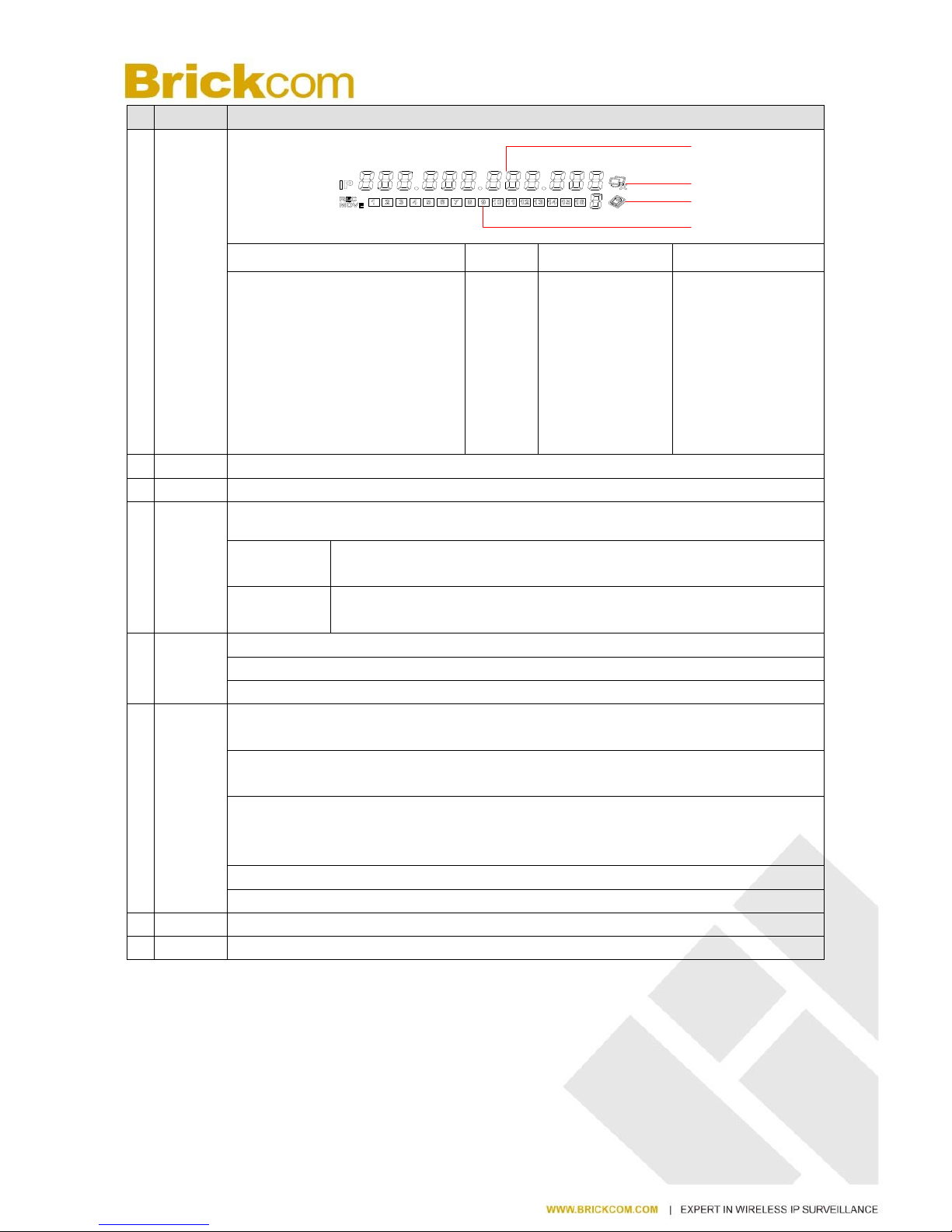

Name

Function

1

LCD

1

2
3

4

1

2 3 4

1.Display the IP address and current
time;

2.Display the external alarm channel
and show error code of the NVR
“E××”

3.display the remote address;

4.display internal temperature of the

chassis

Network
Connecti
on status

1. Display HDD

status and numbers.

2. “E” and flash

label refer HDD
error.

1. Cycling display the

recording status
(Distinguish by
“REC” and “MOVE”).

2

IR

It is to receive the signal from the remote control.

3

Esc

Go to previous menu, or cancel current operation

4

Direction

1. Shift current activated control.

Up/Down

1. Increase/decrease numeral.

2. Assistant function such as PTZ menu.

Left/Right

1. Assistant function such as PTZ menu.

2. When playback, click these buttons to control playback bar

5

Enter

1. Confirm current operation.

2. Go to default button.

3. Go to menu.

6

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image
color.

Simultaneously press the Fn key and the direction key to complete the settings with the dynamic
monitoring area.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous
character before the cursor. In text mode, click it to switch between numeral, English
character(small/capitalized) and etc.

Playback mode, click this button to switch full-screen window.

Realize other special functions.

7

USB

To connect USB storage device, USB mouse and etc.

8

Power

Power button, press this button for three seconds to boot up or shut down NVR.

www.brickcom.com.tw

8

4.2 Rear Panel

2

3

6

5 4 7

9 8 1

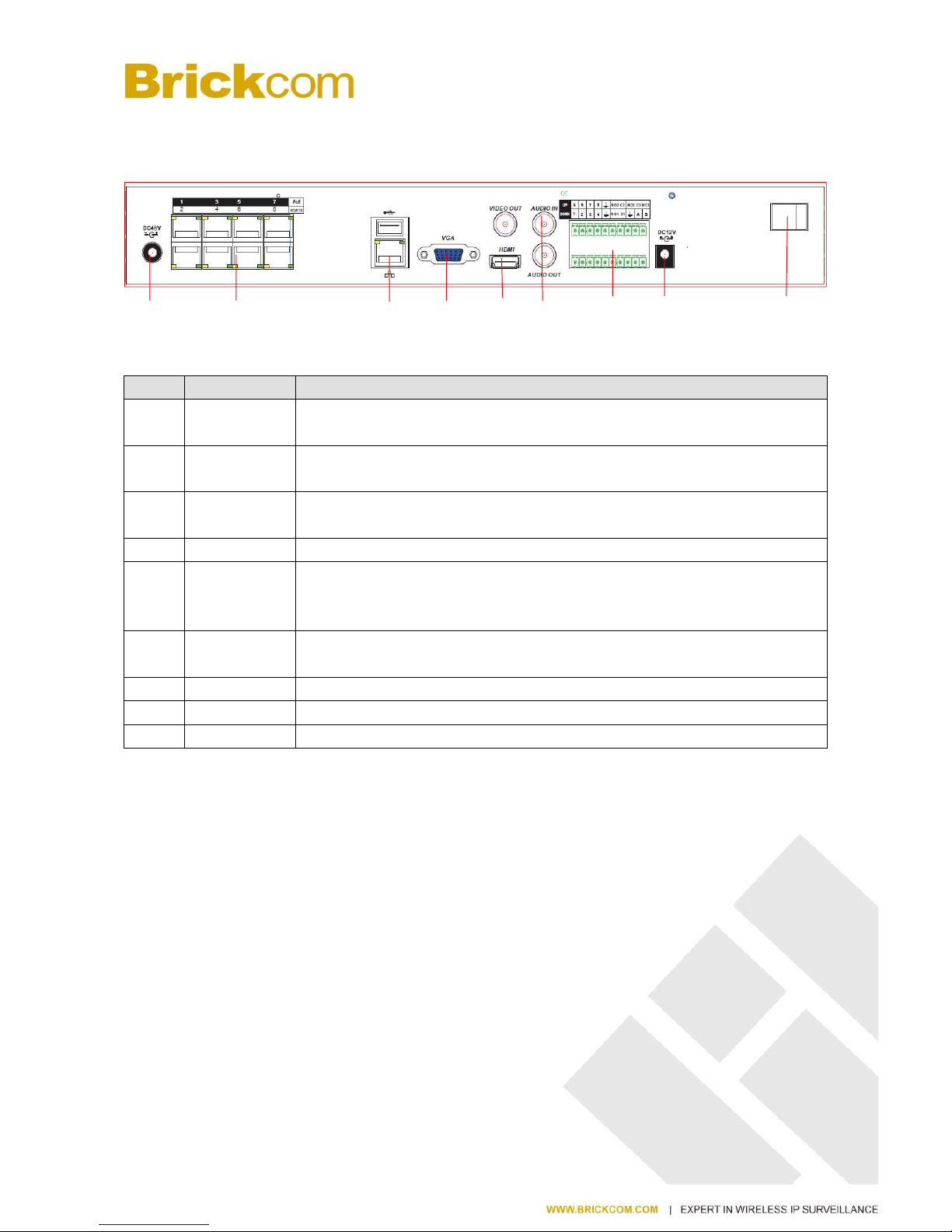

NV-2008-E NVR rear panel

No

Name

Instructions

1

Audio/Video

Out

The output interfaces of the audio signal and CVBS

2

Ethernet Port

Self-adaptive Ethernet port. Connect to the network cable. USB ports, connect to the
mouse and U-disk.

3

VGA Port

VGA video output port. Output analog video signal. It can connect to the monitor to view
analog video.

4

Power Input

12V DC power

5

The Terminals

Alarm In/Out ports.
RS-485 communication port. You can connect to the control devices such as speed dome
PTZ.

6

HDMI Port

High definition audio and video signal output port. It transmits uncompressed high
definition video and multiple-channel data to the HDMI port of the display device.

7

Power Switch

The power switch.

8

POE Ports

Built-in Switch. Support POE.

9

POE Power

48V DC power.

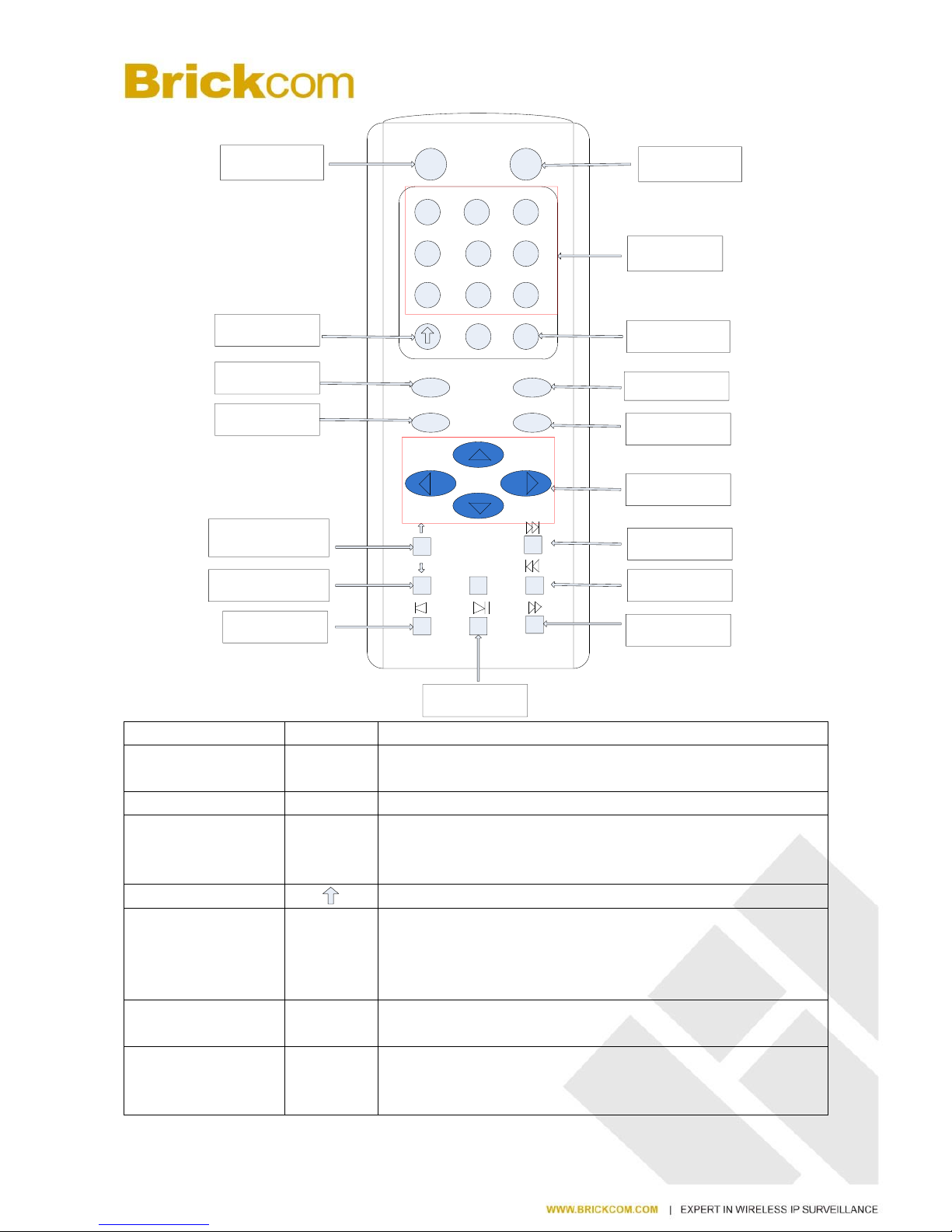

4.3 Remote Control

The remote control interface is shown as below:

www.brickcom.com.tw

9

1 2 3

4

7

Mult Add

5 6

8 9

0

-/--

ABC

DEF

GHI JKL MNO

PORS TUV WXYZ

,.

Record

Fn

Enter/Menu

Esc

■

Multiple-

window Switch

Remote

Address

Number Key

Digital

switch

Auxiliary Key

Cancel

Loop Pause

Record

Confirm/Menu

Key

Direction Keys

Previous record/

Iris-

Next

record/Iris+

Slow Play

Play/Pause

Forward

Forward 5sec

Reverse 5sec

Name

Icon

Function

Multiple-Window

Switch

Mult

Switch between multiple-window and one-window.

Remote Address

Add

Click it to input device number, so that you can control it.

Number Key

0~9

1.input numbers（in number mode）

2.input English character（in English mode）

3.switch channel（one-window mode）

Loop Pause

Pause the loop state.

Digital Switch

-/--

Enter a digital larger than 10, press two-digit number:

1. Press the tens digit;

2. Press digital switch button;

3. Press ones digit.

Record

Record

1. Start or stop record manually.

2. In PTZ interface, click this button system can go to the Preset interface.

Auxiliary Key

Fn

1. One-window monitor mode, click this button to display assistant

function: PTZ control and image color;

2. Detection areas setting(like in motion detection setup), working with Fn

www.brickcom.com.tw

10

and direction keys to realize setup;

3. In text mode, click it to delete the character before the caret(if there is

no shift on the front panel, it can switch input methods), press this button
for 1.5sec to clear all of the characters;

4. In playback mode, switch the full screen;

5. Realize other special functions.

Confirm/Menu Key

Menu/Menu

1. Confirm current operation;

2. Go to OK button;

3. Go to menu.

ESC

ESC

Go to previous menu, or cancel current operation.

Direction Key

/

1.Assistant function such as PTZ menu;

2.In monitor mode, switch between multiple-window and one-window;

3. Activate the digital input box increase or decrease the number;

4.Active pull-down menu to switch the drop-down box options;

5. Activate checkbox to change status;

6. Activate the text input box and step down carry and abdication;

7. Activate the control box to move the slider;

8. Activate display window to select the previous channel, next channel.

/

1. Shift current activated control, and then move left and right;

2. In monitor mode, switch channel;

3. Assistant function such as PTZ menu.

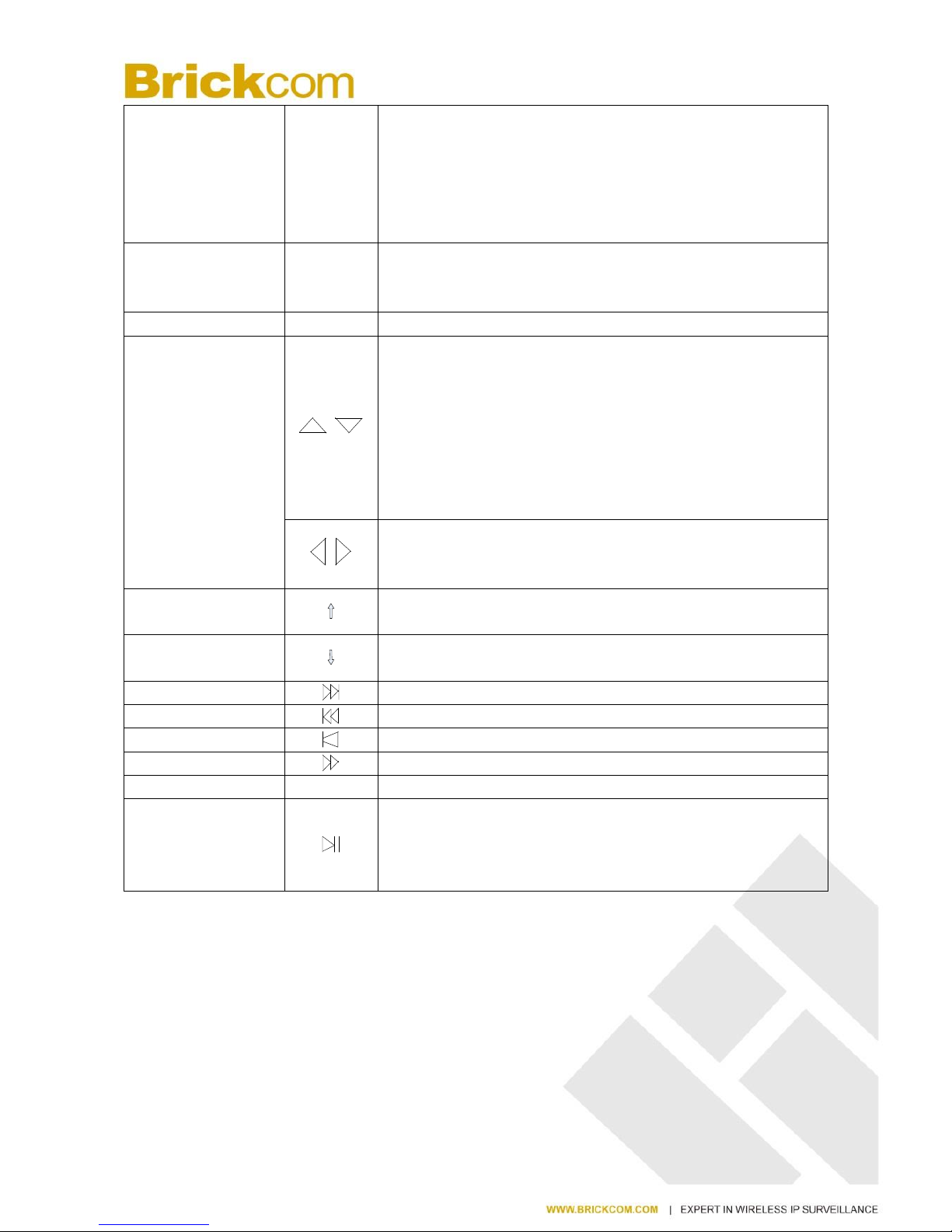

Previous record/Iris-

1.In playback mode, playback the previous video;

2. In PTZ mode, Iris-.

Next record/Iris+

1.In playback mode, playback the next video;

2. In PTZ mode, Iris+.

Forward 5sec

In playback mode, forward 5sec.

Reverse 5sec

In playback mode, reverse 5sec.

Slow Play

Multiple slow play speeds or normal playback.

Forward

Various forward speeds and normal speed playback.

Stop

■

In normal playback click this button to stop playback.

Play/Pause

1. Go to SEARCH interface;

2. In PTZ channel: ZOOM+;

3. In normal playback click this button to pause playback;

4. In pause mode, click this button to resume playback.

The procedures of controlling multiple NVR by remote control:
The NVR ID default is 8. It’s no need to reset it when control one single NVR by the remote control. If you need to
control multiple NVR, do as below:
First activate the remote control: choose controlled NVR, starts successfully, aim the remote control to control the
hard disk video recorder, press the "Add" button, input device ID) between (1-999), then press ENTER to determine
can control the corresponding number of hard disk video recorder.

www.brickcom.com.tw

11

4.4 The Mouse

In addition to front panel keys and remote control menu, the user can use at control. Insert the mouse interface into
the USB interface.

Left Click

Left click to enter the right menu or the main interface.
Left click to access the menu option.
Perform the operations instructions of the control.
Change the state of the checkbox or dynamic detection blocks.
Pop up a drop-down list when left click.
In the state of PTZ 3D control, left drag the area to achieve regional enlarging or reducing.See details zoom effect

4.1.2 PTZ control section introduction.

Double Click

Double click to play video.
Double click to make the screen full or exit.

Right Click

Right click to pop up the right menu in the real-time monitoring screen.
Exit the current interface without saving.

Turning Wheel

Turn the mouse wheel to change the value in the digital box.
Switch the option of the combination box.
Scroll back and forth to achieve the zoom function of channels and PTZ 3D.

Mouse Move

Select controls of the current coordinates to move.

Mouse Drag

Select area to detect.
Select area to shelter.
Select zooming function of PTZ control.

www.brickcom.com.tw

12

4.5 The Input Method

Capitalization and the input of Chinese. Click the mouse to complete the input.”← “represents the backspace and
“_ “represents a space.

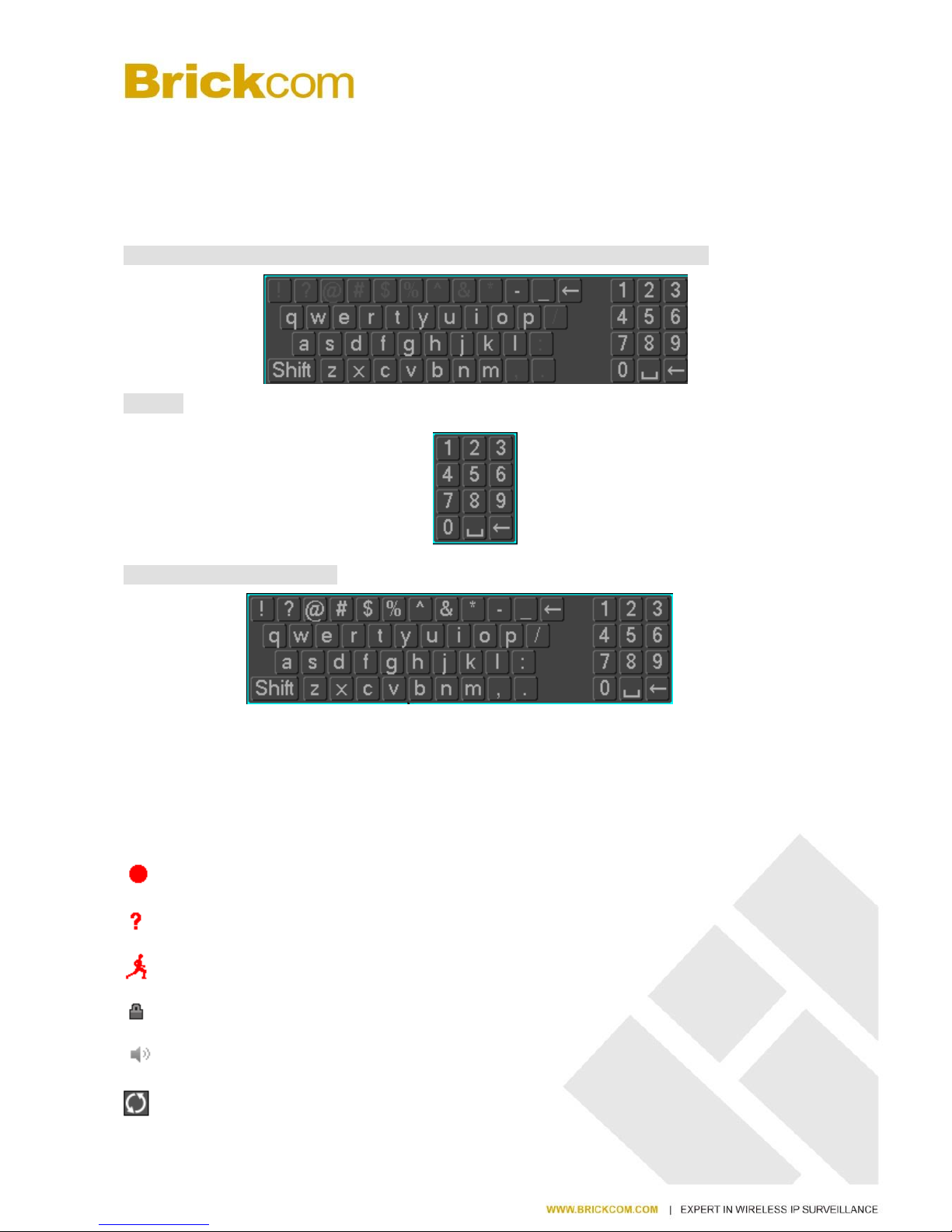

In the input box, you can select figures, symbols, English The input interface of English：

figures：

The input interface of Chinese：

4.6 Icon

4.6.1 The Screen Icons

：The channel is recording.

：The video of the channel is lost.

：Motion detection occurs.

：The channel is in monitoring and locked status.

：Adjust the level of the local audio output.

：Allow screens to round of the Tour.

www.brickcom.com.tw

13

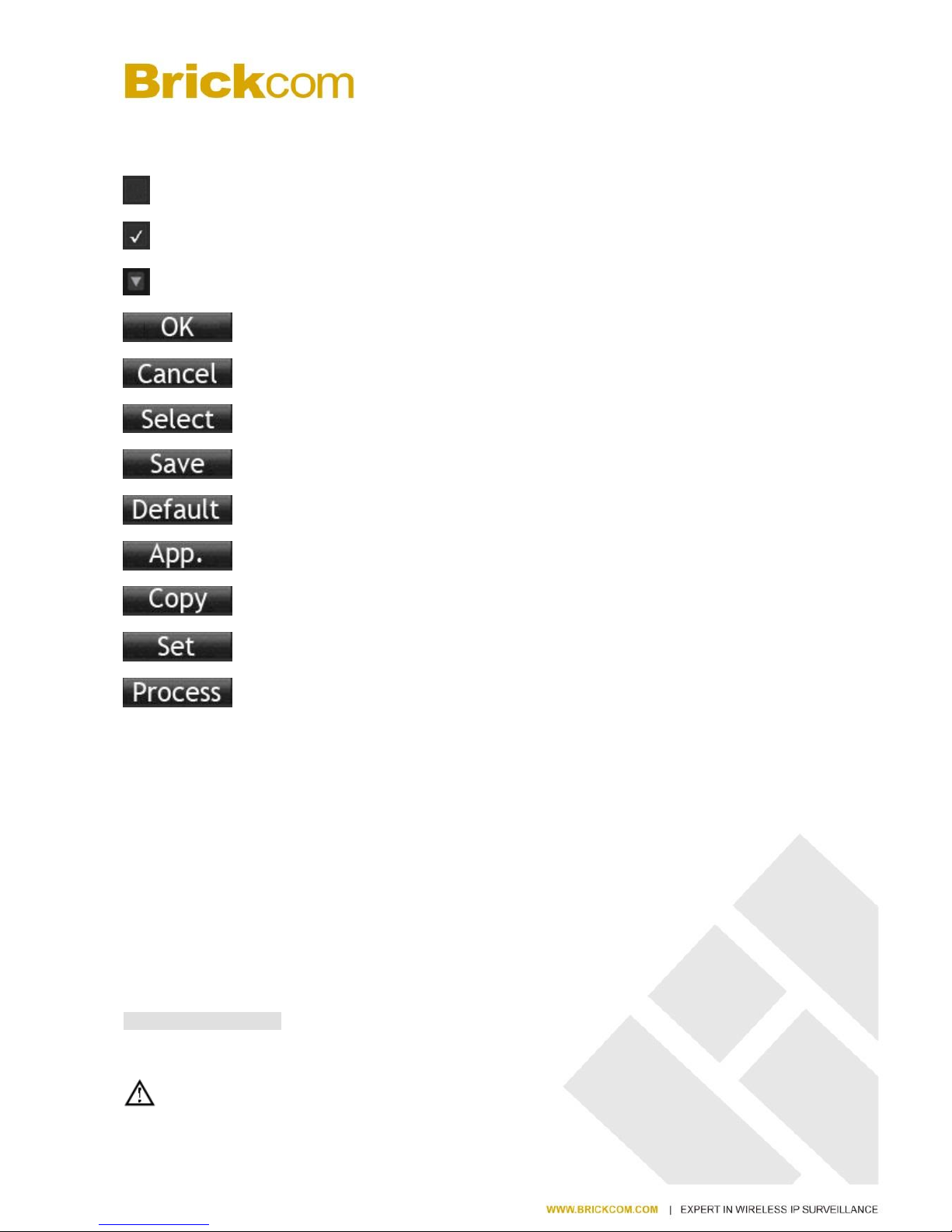

4.6.2 Operation Icons

：Not selected.

：Be selected.

：The drop - down button

：Leave the interface.

：Cancel the settings.

：Set parameters.

：Save parameters.

：Restore the factory settings.

：Apply current settings to the system.

：Copy current settings to other channels.

：Enter the configuration interface.

：Select and configure the processing operation triggered by video detection or alarm.

5 Installation

5.1 Unpacking Inspection

When you receive the product, check according to the packing list in the box.

5.2 HDD Installation

Installation Preparation

Prepare a Cross Screwdriver.

Note: HDD quantity by each model’s specifications shall be final, HDD capacity up to 64 TB.

www.brickcom.com.tw

14

Steps

Remove the metal top cover by removing two screws from the sides of the cover.
Place the hard disks on a flat table and tighten the screws.
Connect the power and the data lines to the HDD.
Reinstall the metal top cover and tighten the screws.

Caution

Only use the HDD specified by the manufacturer.
The HDD will be formatted automatically during booting and it may cause data loss.
The total duration of video data saved is decided by the HDD’s capability and the NVR’s parameters (recording
setup, encoding setup). Please refer to the form in chapter 11.5.

5.3 Installation of the burner

Installation Preparation

Prepare a Cross Screwdriver.

Steps

Unscrew the screw on the side of the chassis and open the case cover.
Use a screwdriver to remove the bracket fixed in middle of the disk.
Open the front panel door and remove the baffle inside.
Connect the burner data cable and the power cord.
Fix the chassis cover.

Caution

The installation of the built-in burner is only for specific NVR and affects disk space for installation and interfaces.

5.4 Alarm/PTZ/Control Keyboard Interface

Alarm/PTZ/Control Keyboard Interface

www.brickcom.com.tw

15

2 4 6 8 2 4 10 12 14 16
1 3 5 7 1 3 B A 9 11 13 15

UP

DOWN

1 3 2 4 1 2

No

Name

Instructions

1

Alarm Input

Connect the positive end (+) of the alarm input device to the

alarm input port (ALARM IN 1～16)

2

GND

Connect the negative end (-) of the alarm input device to the

ground

3

Alarm Output

Connect the alarm device

4

RS-485

485 communication port. They are used to control devices such

as PTZ. Please parallel connect 120TΩ between A/B cables if

there are too many PTZ decoders

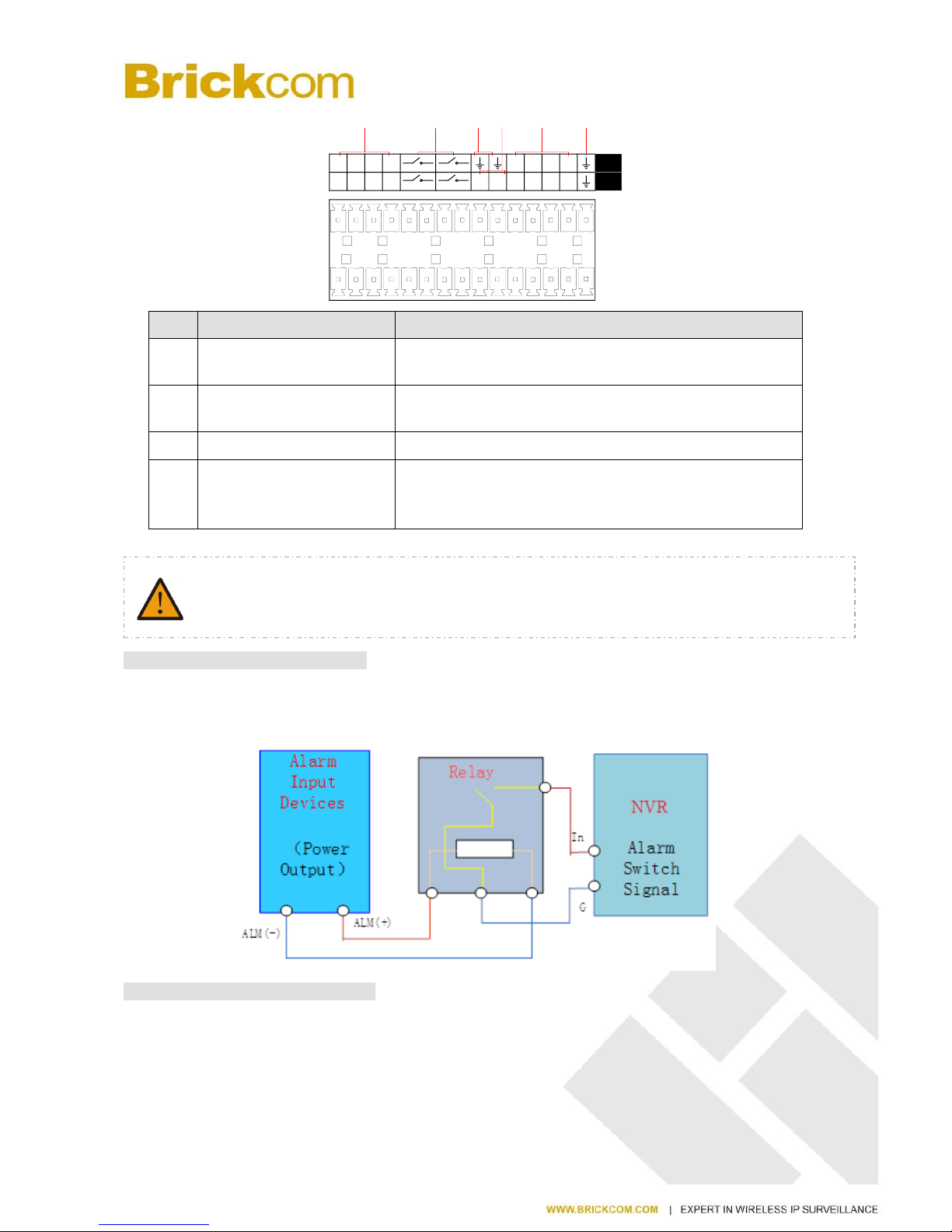

Examples of alarm input connections

The alarm input is the switch quantity input. If the alarm input signal is not switch quantity signal but voltage signal,
refer to the following connection:

Examples of alarm output connections

When the alarm output connect with DC and AC load, please refer to the connection.

 Different models support different alarm input ports. Please refer to the specifications sheet for detailed information.
 Slight difference may be found on the alarm port layout.

www.brickcom.com.tw

16

NVR

Switch
Signal
Output

G

OUT

DC

DC

Loading

G

OUT

NVR

Switch
Signal
Output

Relay

AC

AC

Loading

See details 7.2.5.

The Connection of the P/T/Z

The A, B interface of the PTZ decoder connect with A and B interfaces of the NVR’s RS-485. 120Ω resistors should
be paralleled in the remote A, B lines to reduce the distortion of the signal if a larger number of PTZs are connected.
See details 7.2.4.

Keyboard

The A, B interface of the Keyboard connect with A and B interfaces of the NVR’s RS-485 .【MAIN MENU】→

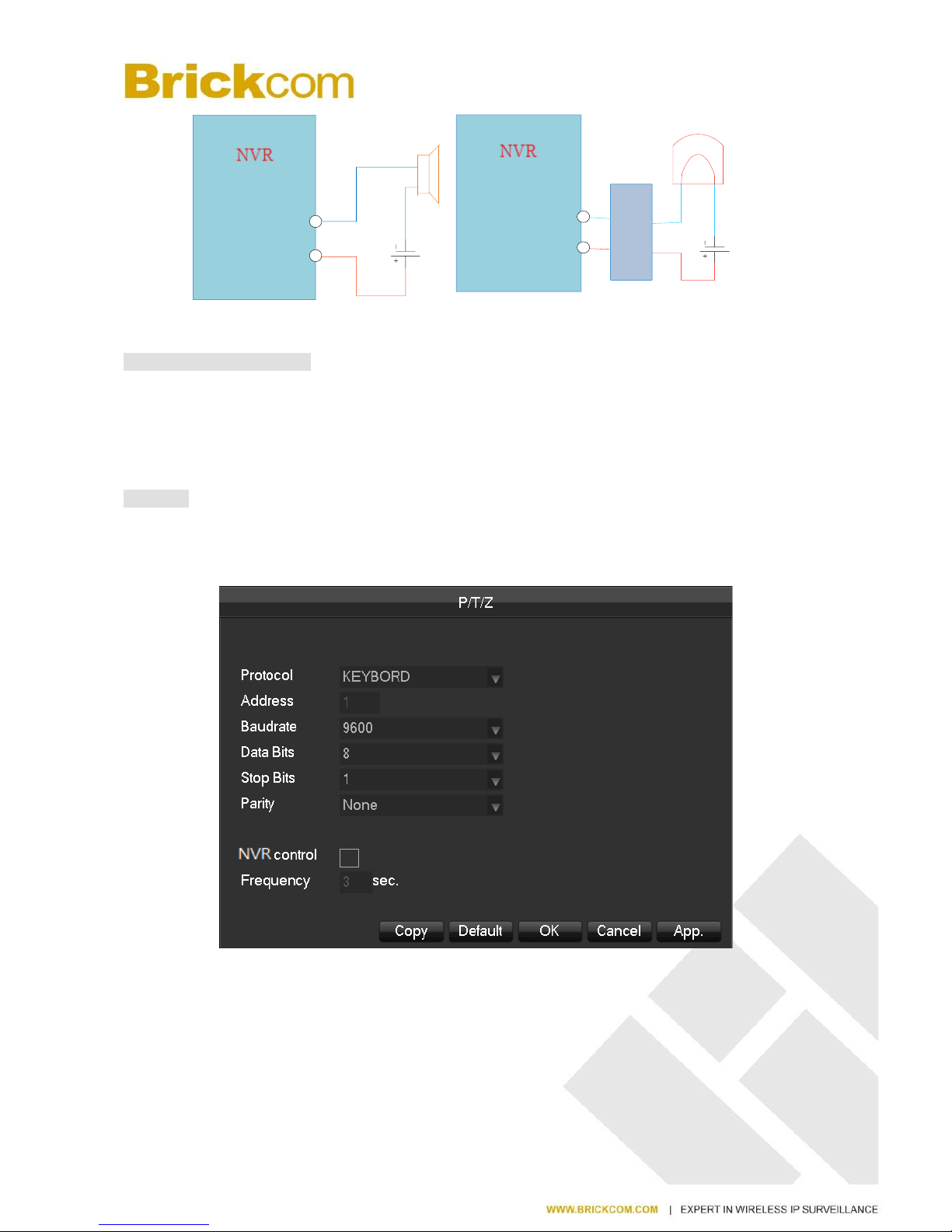

【CONFIGURATION】→【P/T/Z】，Protocol choose KEYBORAD. See below.

www.brickcom.com.tw

17

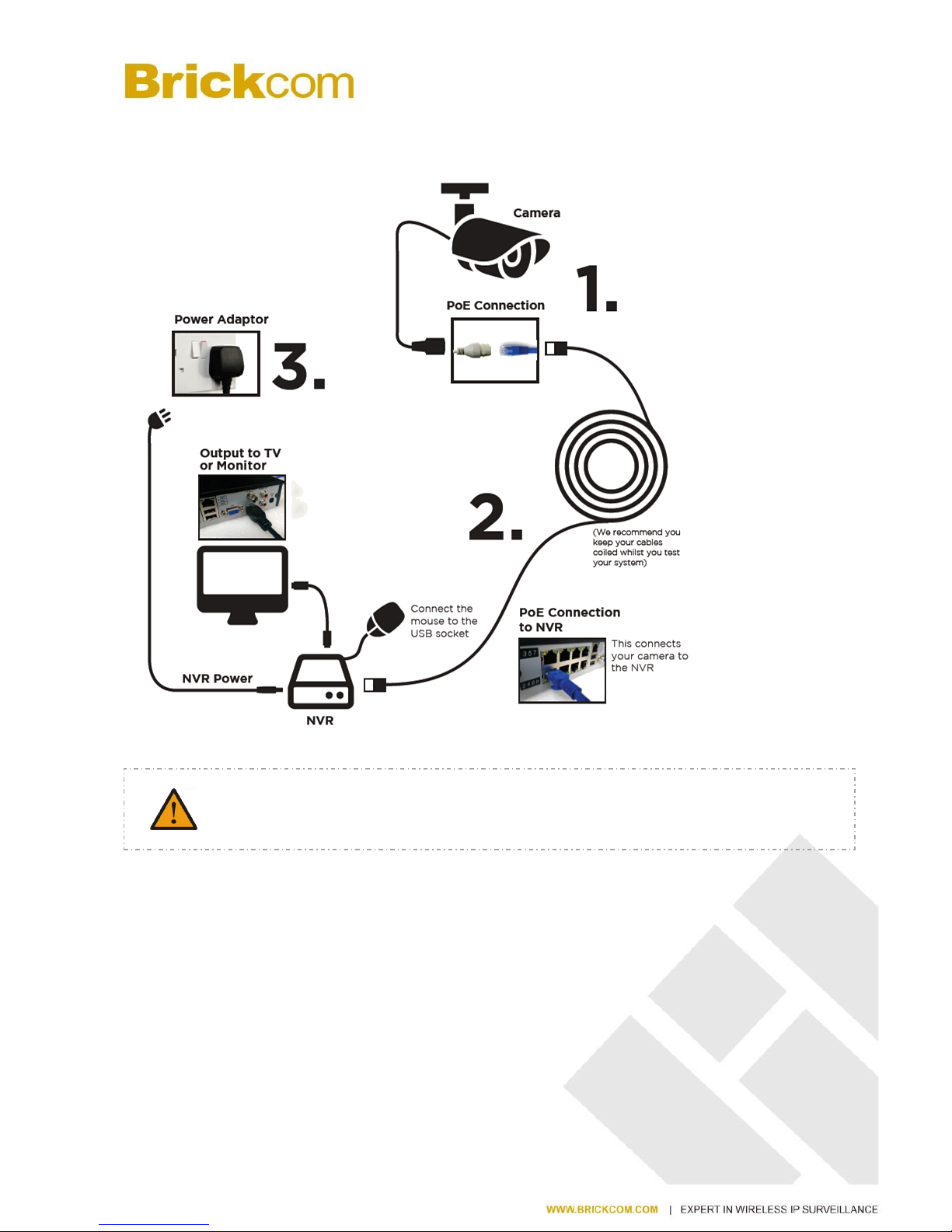

5.5 POE Connection

 Non-safe voltage 48V, please pay attention to electrical safety. Supply the NVR with the 12V DC power.
 IP Camera should support the POE.
 The theoretical distance of POE power supply should below 100 meters.

www.brickcom.com.tw

18

6 Basic Operations Guide

6.1 Power On and Off

6.1.1 Power On

Install the NVR correctly (as above) and then connect the power. The NVR LED should light up and the NVR will
boot automatically.
The NVR will then automatically detect any connected hardware (cameras, monitors, etc.), this process should last
about 30 Seconds. When this process has been completed the NVR will enter the multi-screen real-time surveillance
mode.

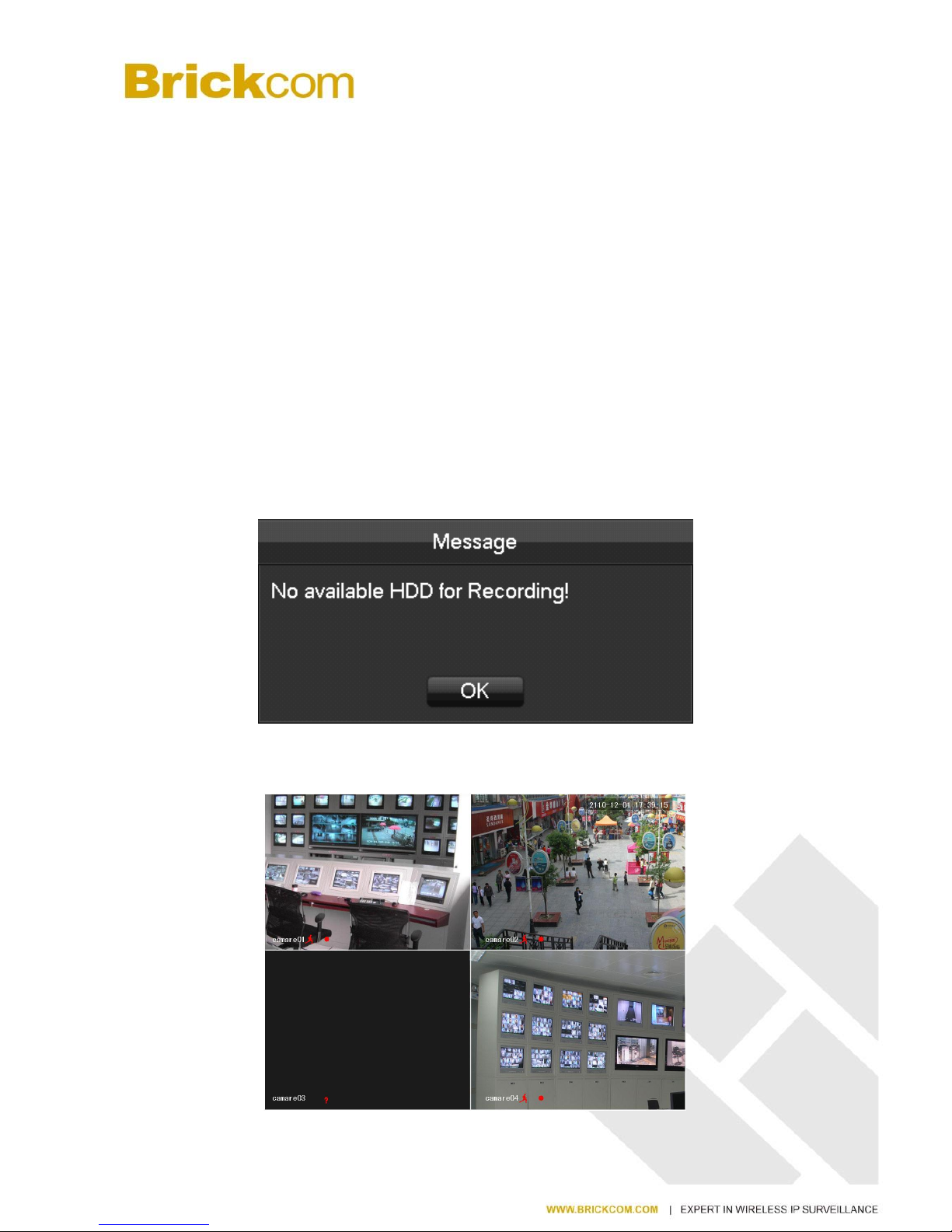

If your hard drive is not properly connected, the following message will appear on your screen.

If your hard drive is properly connected NVR start-up time is within the video recording setting time, the system
will automatically start the recording function.

www.brickcom.com.tw

19

The real-time view

Note：Please do not use any type of power supply which is different from the power supply included in this kit.

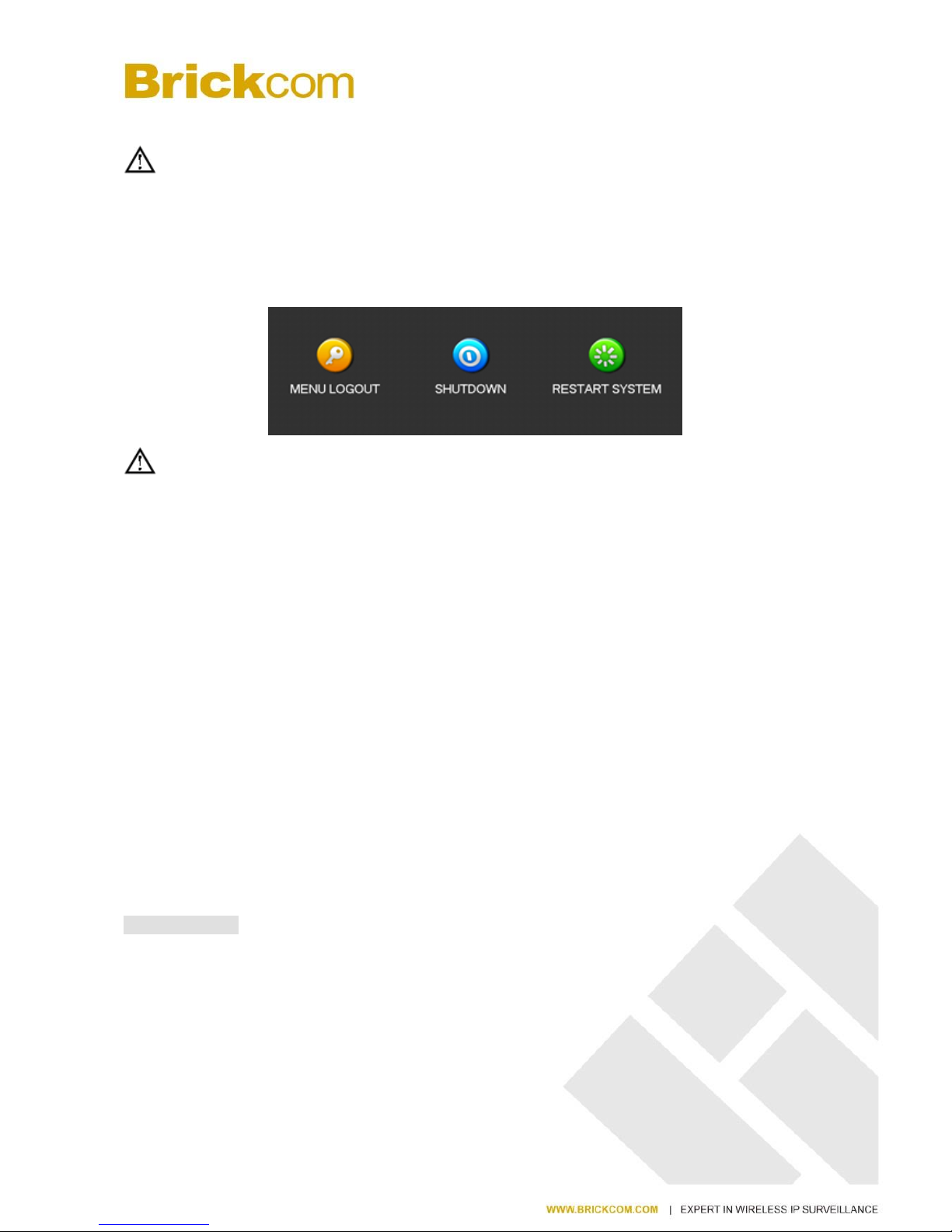

6.1.2 Power off (Shutdown)

Right mouse click →【Main Menu】→【Shutdown】

Note: Only change or attempt to reconnect the hard disk drive after shutting down the NVR.

6.1.3 Restart

Right mouse click →【Main Menu】→【Shutdown】→【Restart system】

6.1.4 Power recovery

Reboot after an outage or forceful shutdown, NVR will save the record before outage and return to the normal
operation mode.

6.2 Start-up wizard

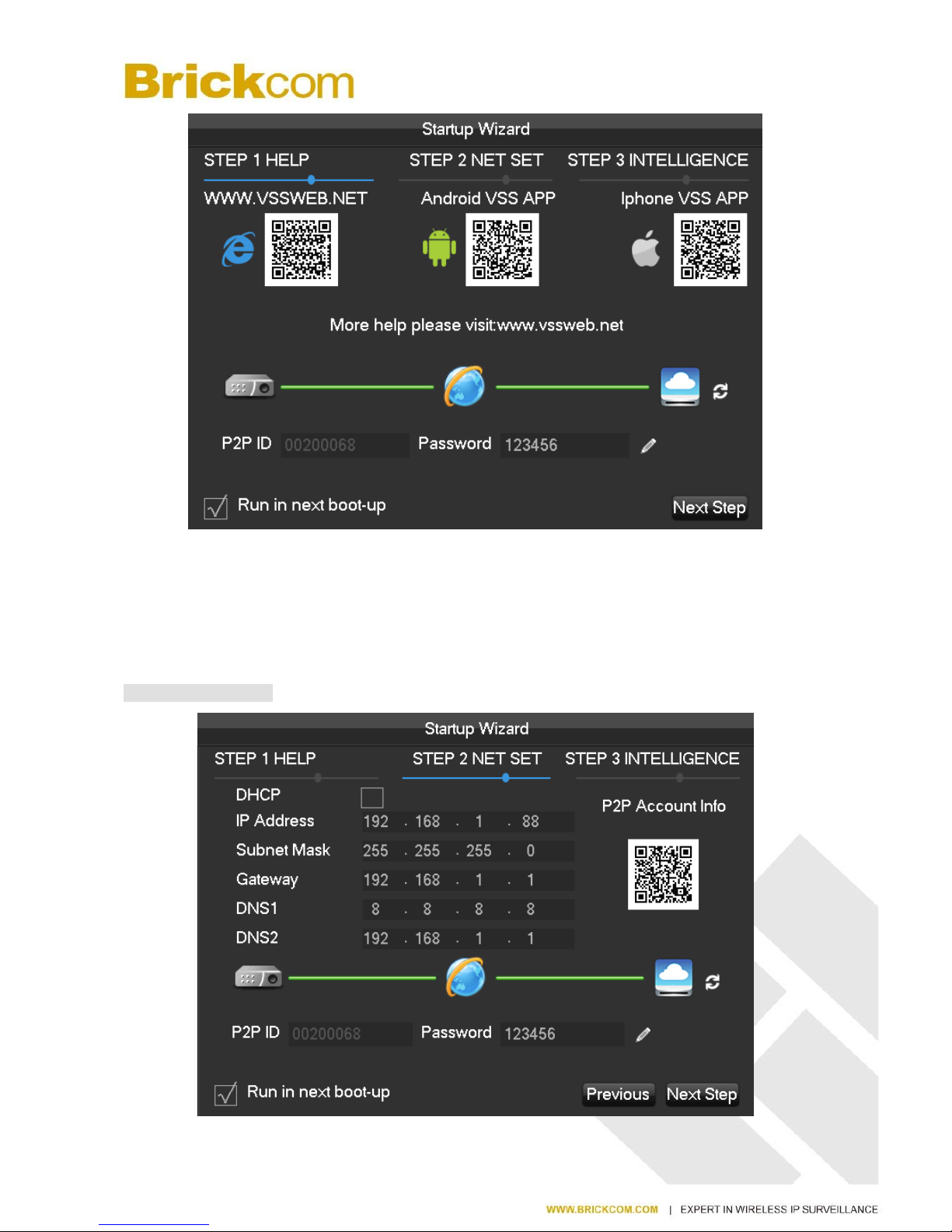

Quickly configuration, including P2P account & password setting, network configuration and intelligent mode
selection.

Help Information

www.brickcom.com.tw

20

【QR code】From left to right :Web access address, Android APP address, iphone APP address.
【Network Connection Status】The current network status.

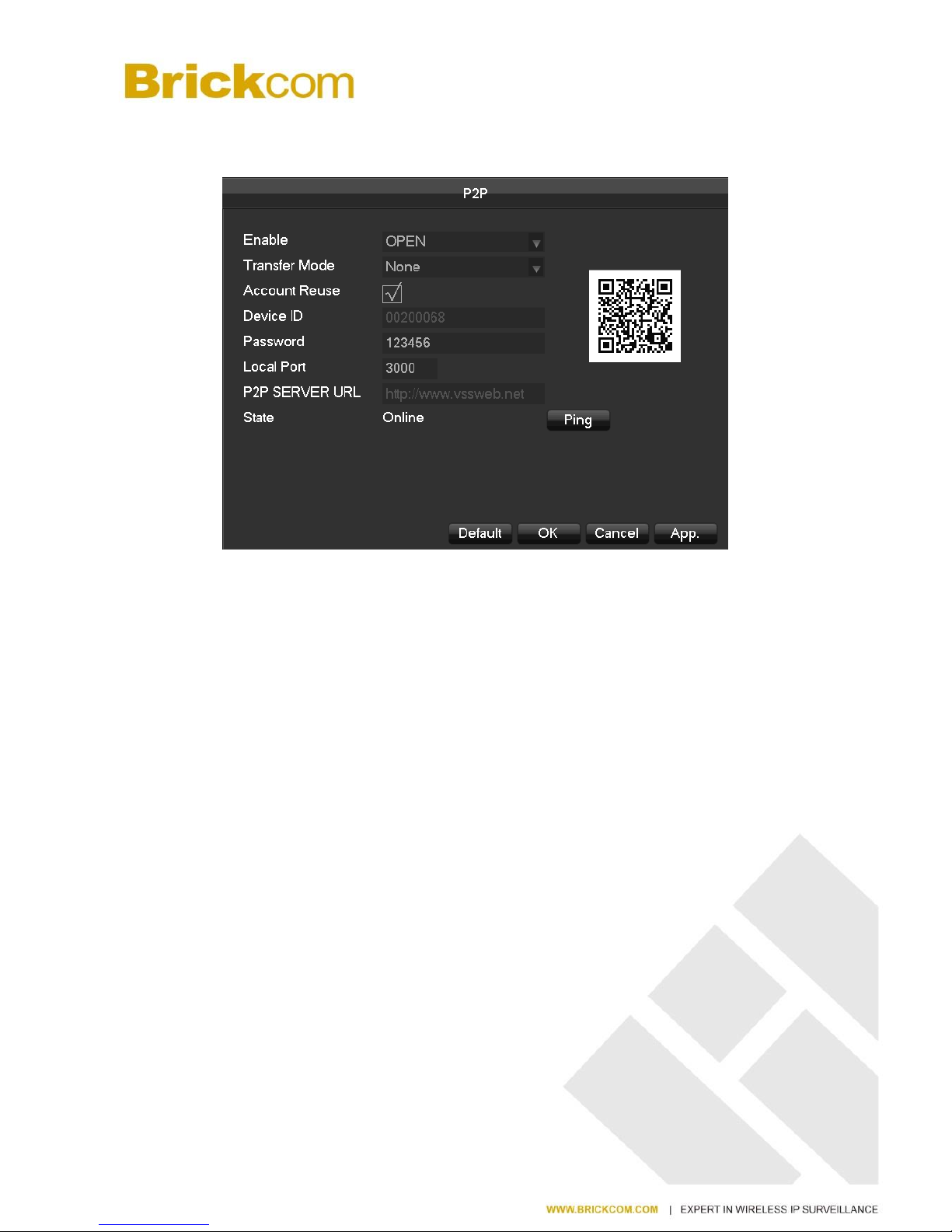

【P2P】P2P account & password setting.
【Start-up wizard】Tick Start-up wizard Enable.

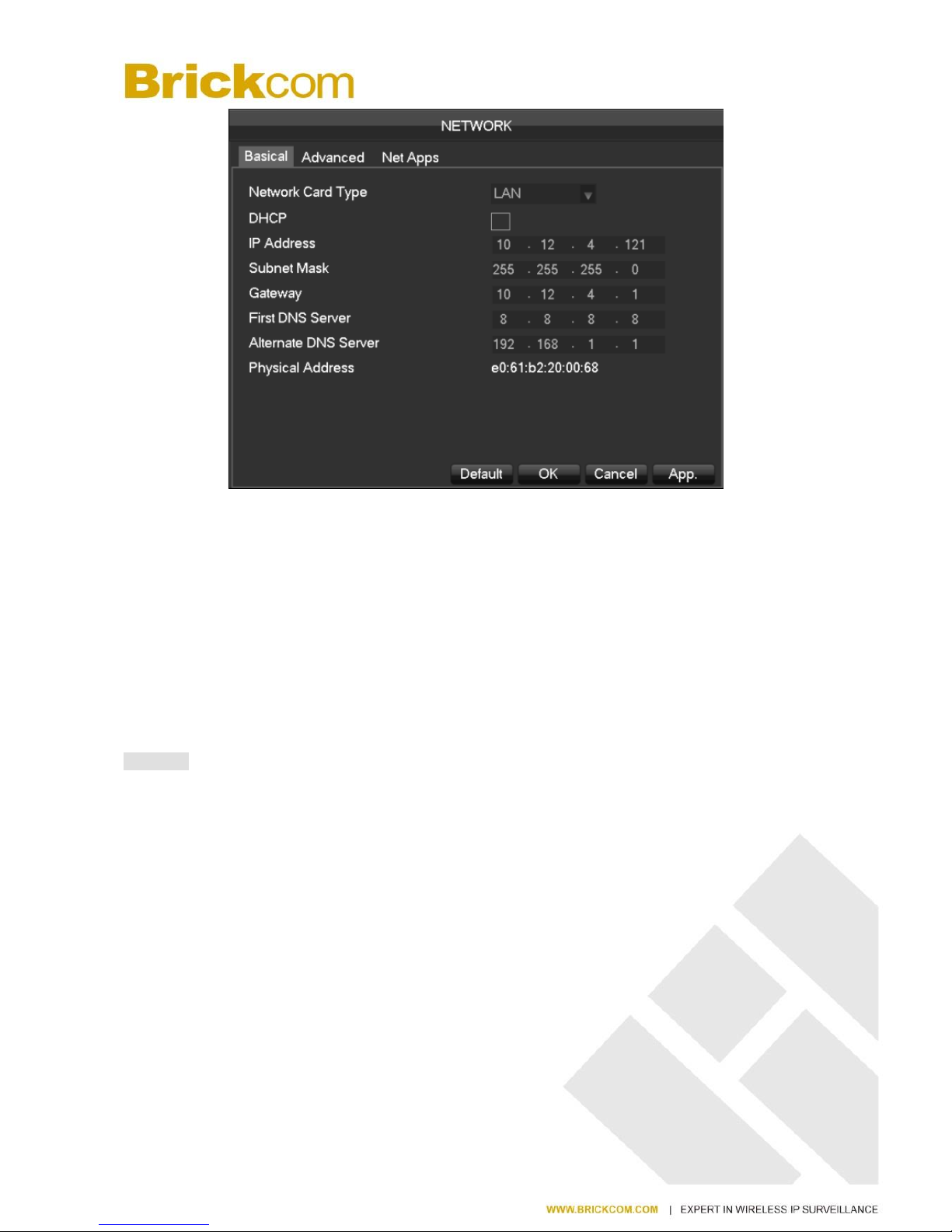

Network configuration

www.brickcom.com.tw

21

【DHCP】Tick DHCP Enable.
【IP address】Enter the number or press up & down button（）to change the IP address and【Subnet Mask】
and【Gateway】。
【First DNS Server】DNS server IP.
【Alternate DNS Server】DNS alternate IP.
【QR code】Scan it and shows P2P account, login with mobile APP.

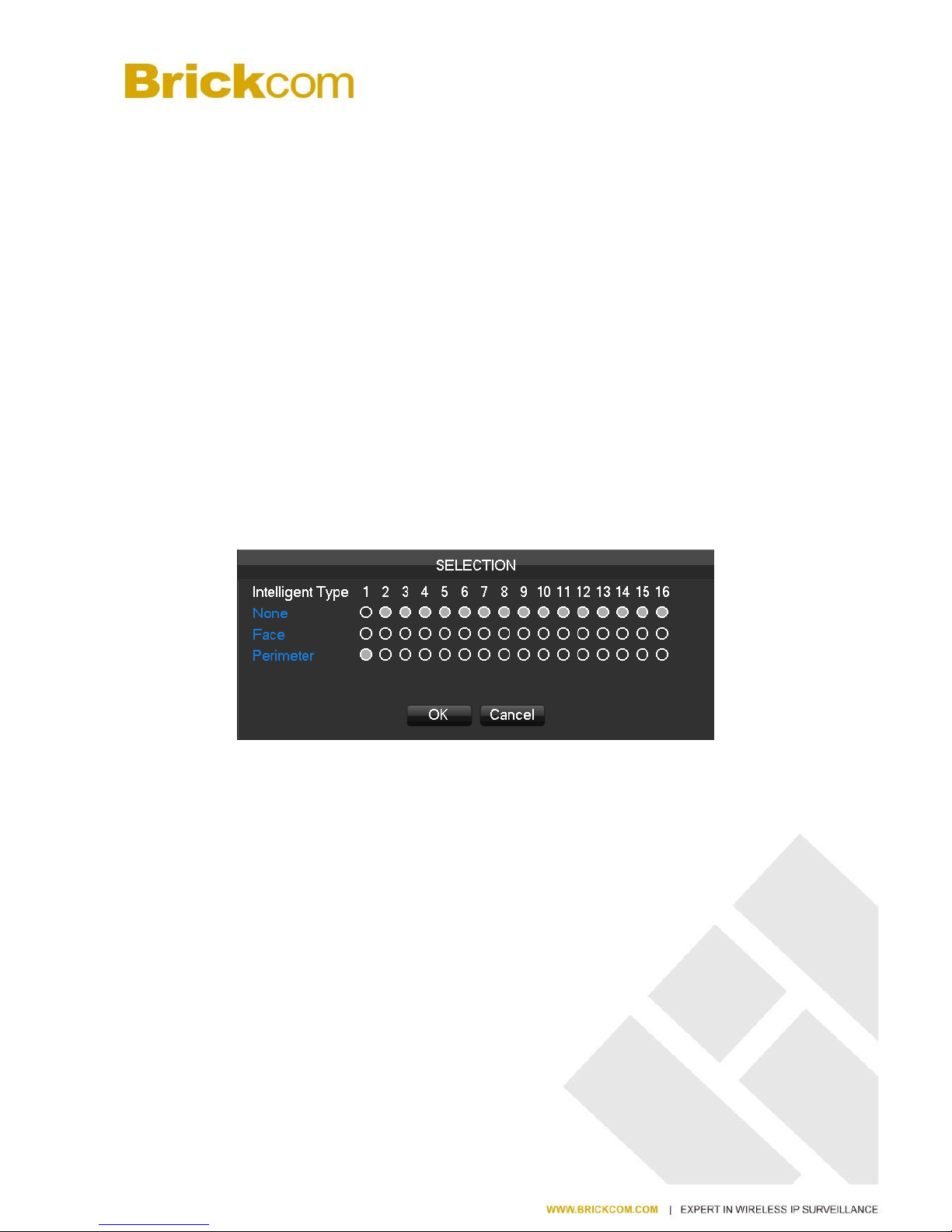

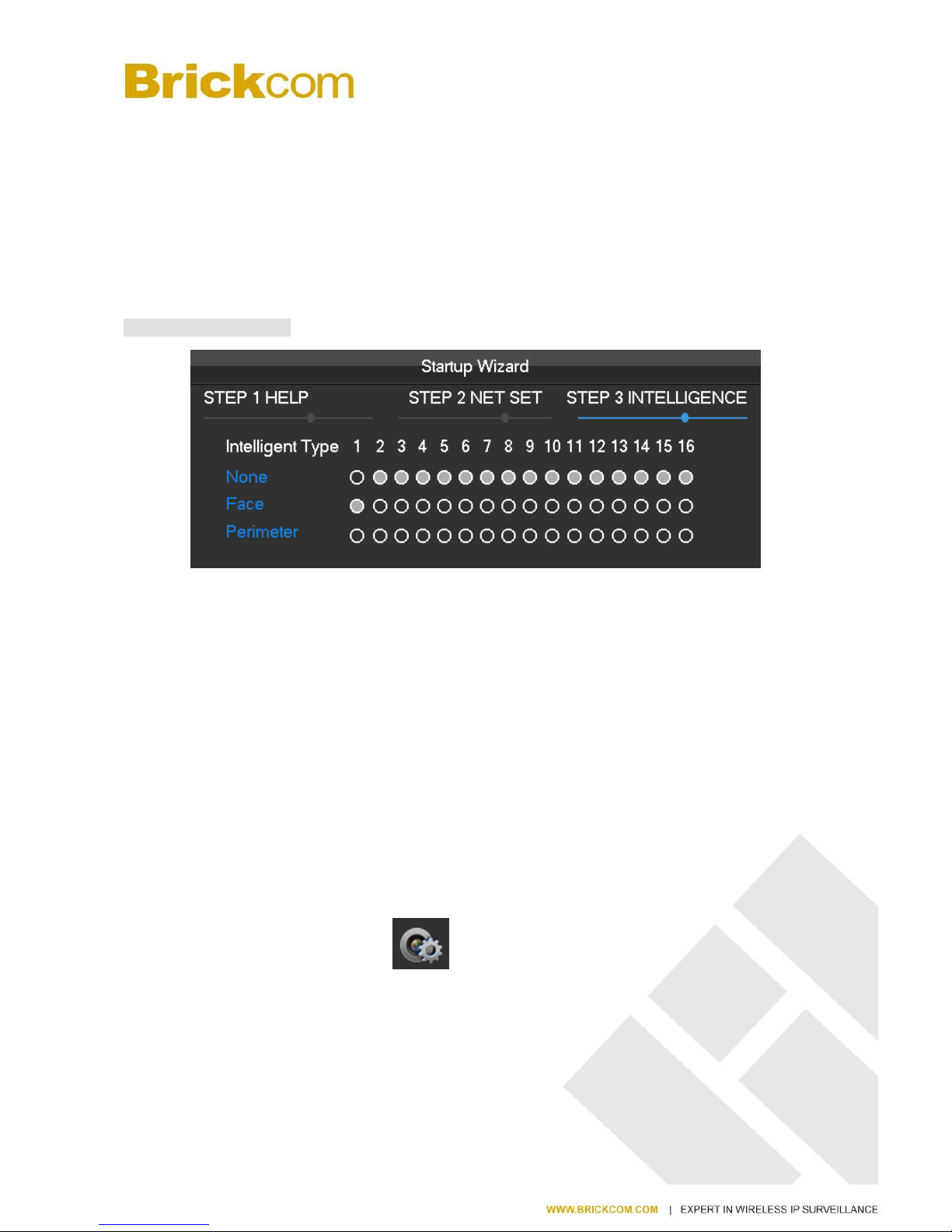

Intelligent mode selection

【Intelligent mode selection】Intelligent mode selection.

6.3 Add Device

If the device supports IPC, should be added to IPC first. We offer three ways to add. And support many different
protocols.

6.3.1 Adding Menu

There are three ways to login【NET channel Management】
1、Living preview, click the left mouse button + and login【NET channel Management】

2、Living preview，click the button below 【NET channel Management】
3、【Main Menu】→【Configuration】→【NET channel Management】。

www.brickcom.com.tw

22

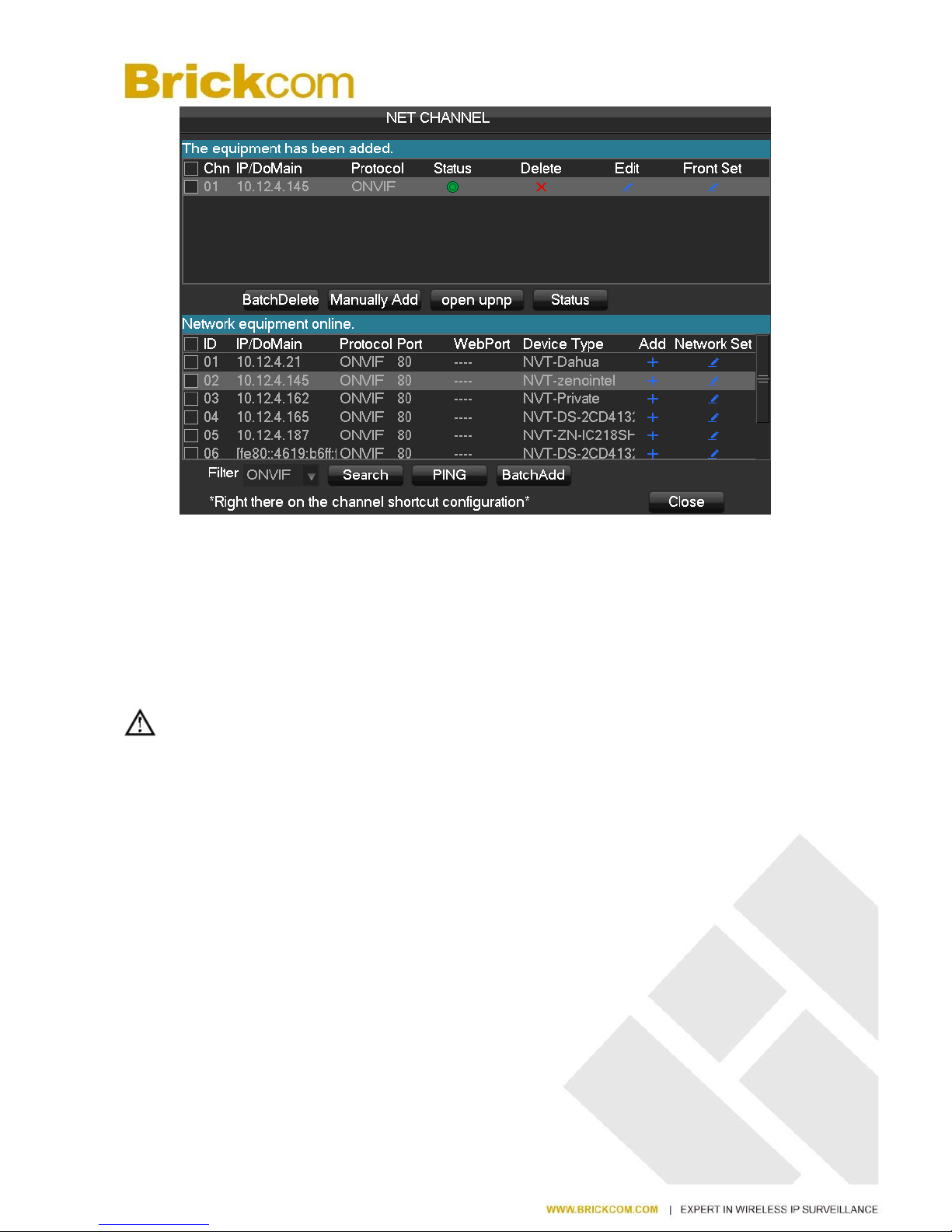

We provide three ways to add device, automatically, searching and manually add the device.

6.3.2 Automatically added

No configuration, the device is automatically added.

【Main Menu】→【Configuration】→【NET channel Management】→【Open UPNP】

Note：The device should support UPNP and should be in the same LAN.

6.3.3 Searching to Add Device

Search all the IPC can be added via internet and then choose to add. To do the following.

Enter【NET channel Management】
Click【Filter】to choose protocol
Click【Search】
Click+ to add device or Right click【Add to】choose the channel you want or tick the devices you want to add, then
click【Batch Add】。

www.brickcom.com.tw

23

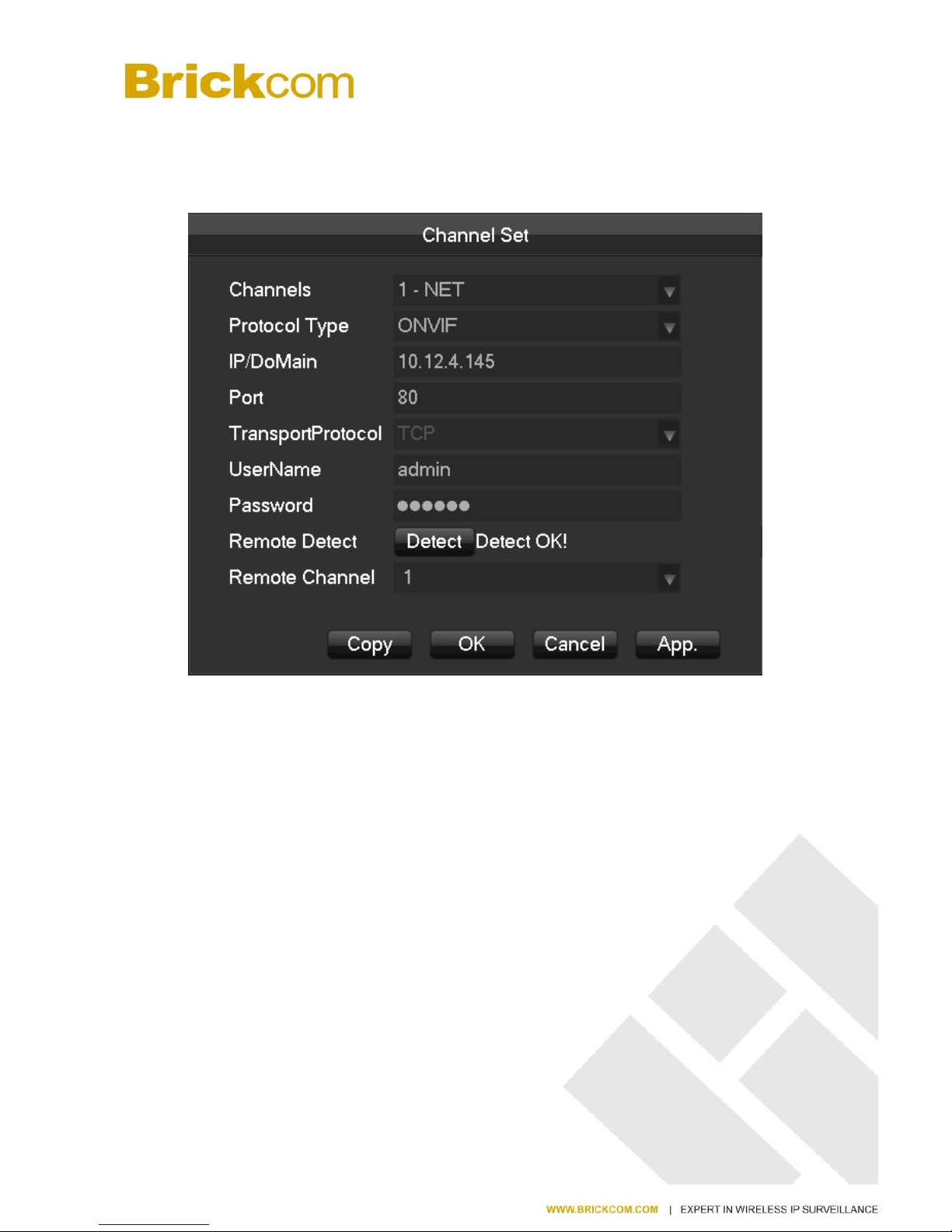

6.3.4 Add Device Manually

Enter Channel Set menu.

[Channels]Choose one channel.
[Protocol]Choose protocol supported by the device.
[IP/ Domain Name] Input front device IP address or domain name.
[Port]Input front device TCP port.
[Username] Input front device username.
[Password] Input front device password.
[Remote Detect]After completing the above settings, click detect button to check connection status.

[Remote Channel]When the front device includes multiple channels, choose one channel for it.

Click “App” button to finish.

6.3.5 Modify channel configuration

Enter Net channel Management menu.

Click “Edit” button of device.
Click “OK” button to finish.

www.brickcom.com.tw

24

6.3.6 Configure Front Device

Basic configuration, encoding configuration, snapshot, network and motion detection of front device can be set in
NVR.
Enter Net Channel Management menu.
Click “Front Set” button of device.

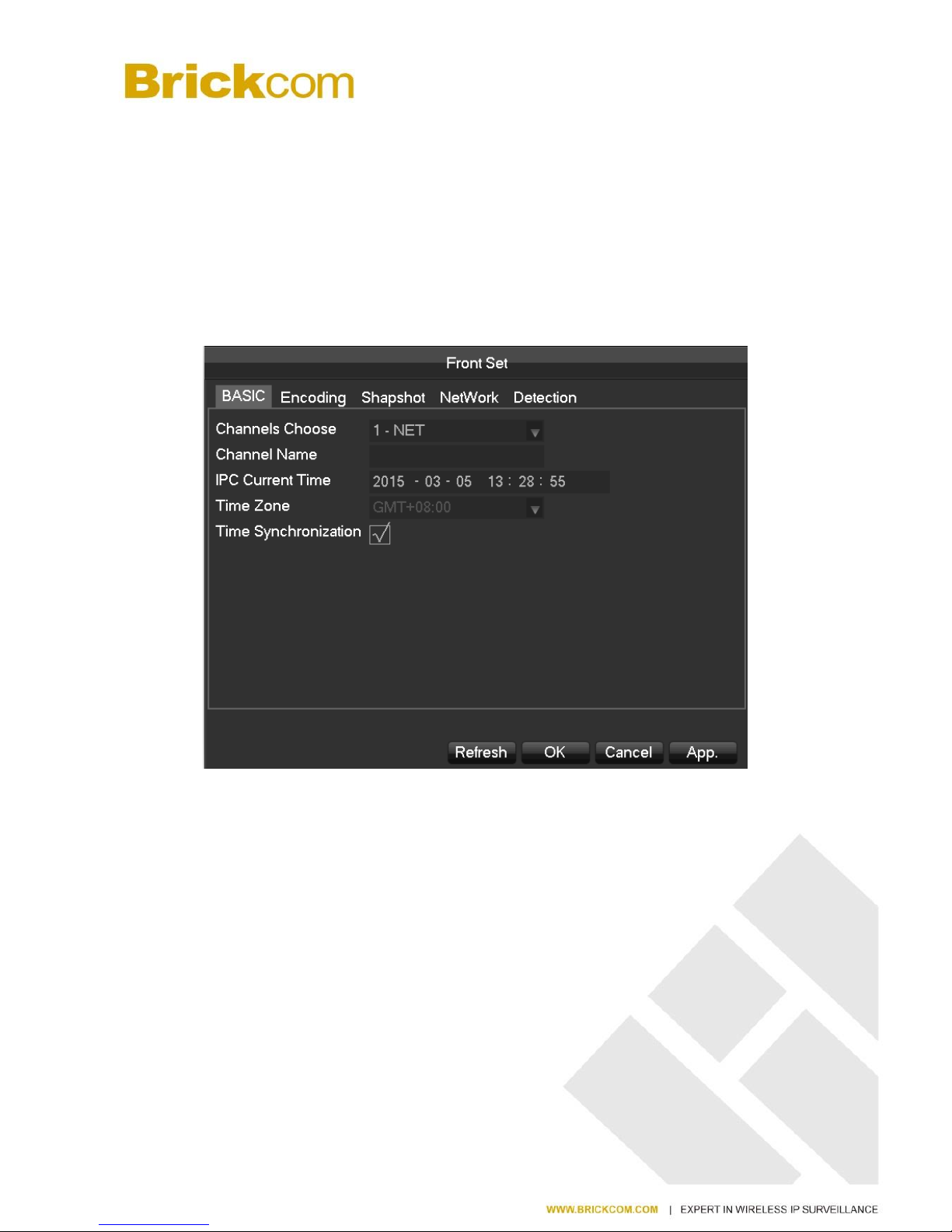

BASIC

[Channel Choose]Choose a channel.
[Channel Name]Modify current channel name.
[IPC Current Time]Set IPC tine.
[Time Zone]Set time zone.
[Time Sync]Enable IPC time sync with NVR.

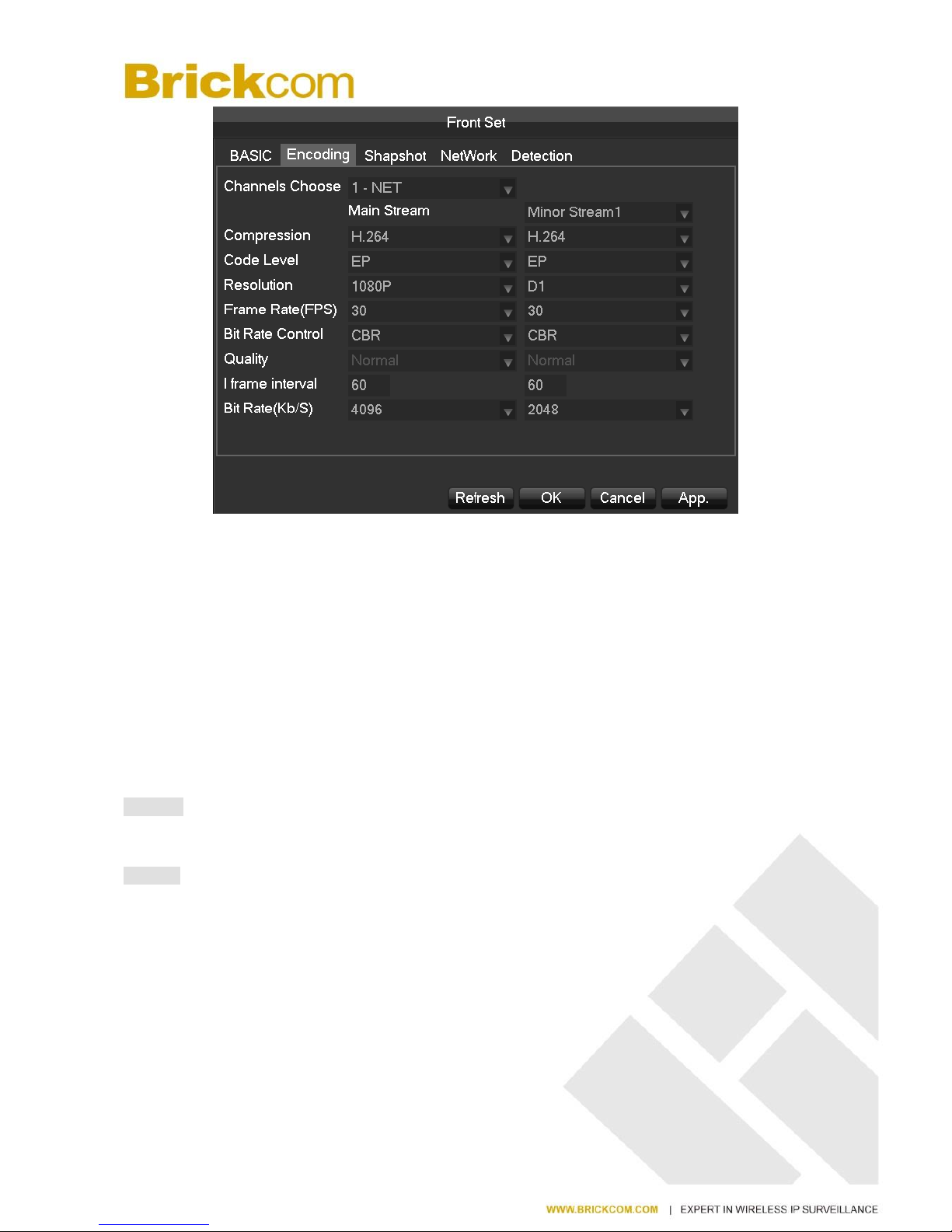

Encoding

www.brickcom.com.tw

25

[Channels Choose] Choose one channel.

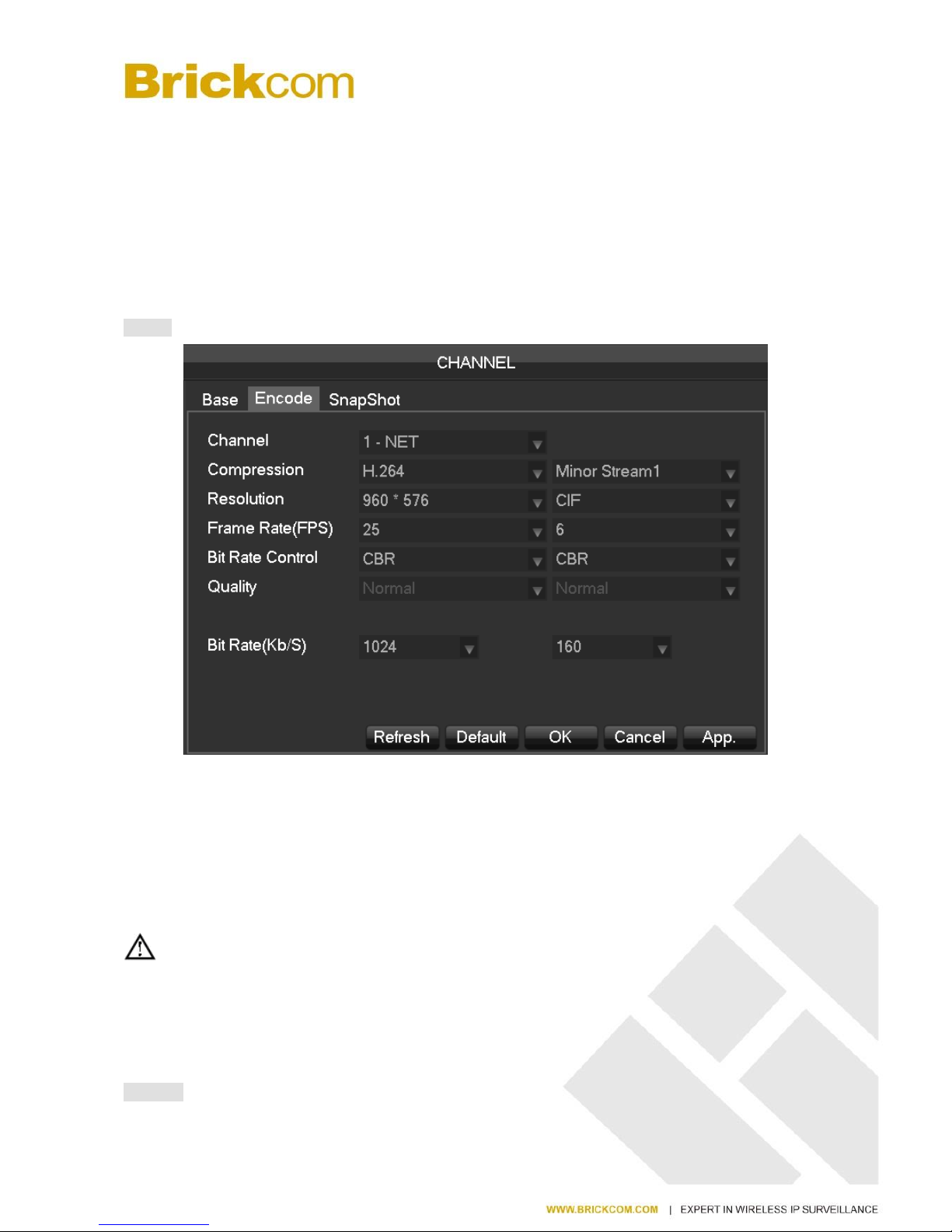

[Code Level] H.264
[Resolution] choose main resolution and sub resolution.

[Frame Rate] 1～25FPS/PAL,1～30FPS/NTSC
[Bit Rate Control] Choose CBR or VBR. When choose CBR, bit rate can be set. When choose VBR, image quality
can be set.
[I frame interval] Set interval of adjacent frames. Max is 150.
[Bit Rate] Choose 1280,1536,1792,2048,3072,4096,5120,6144,7168,8192 or set by yourself.

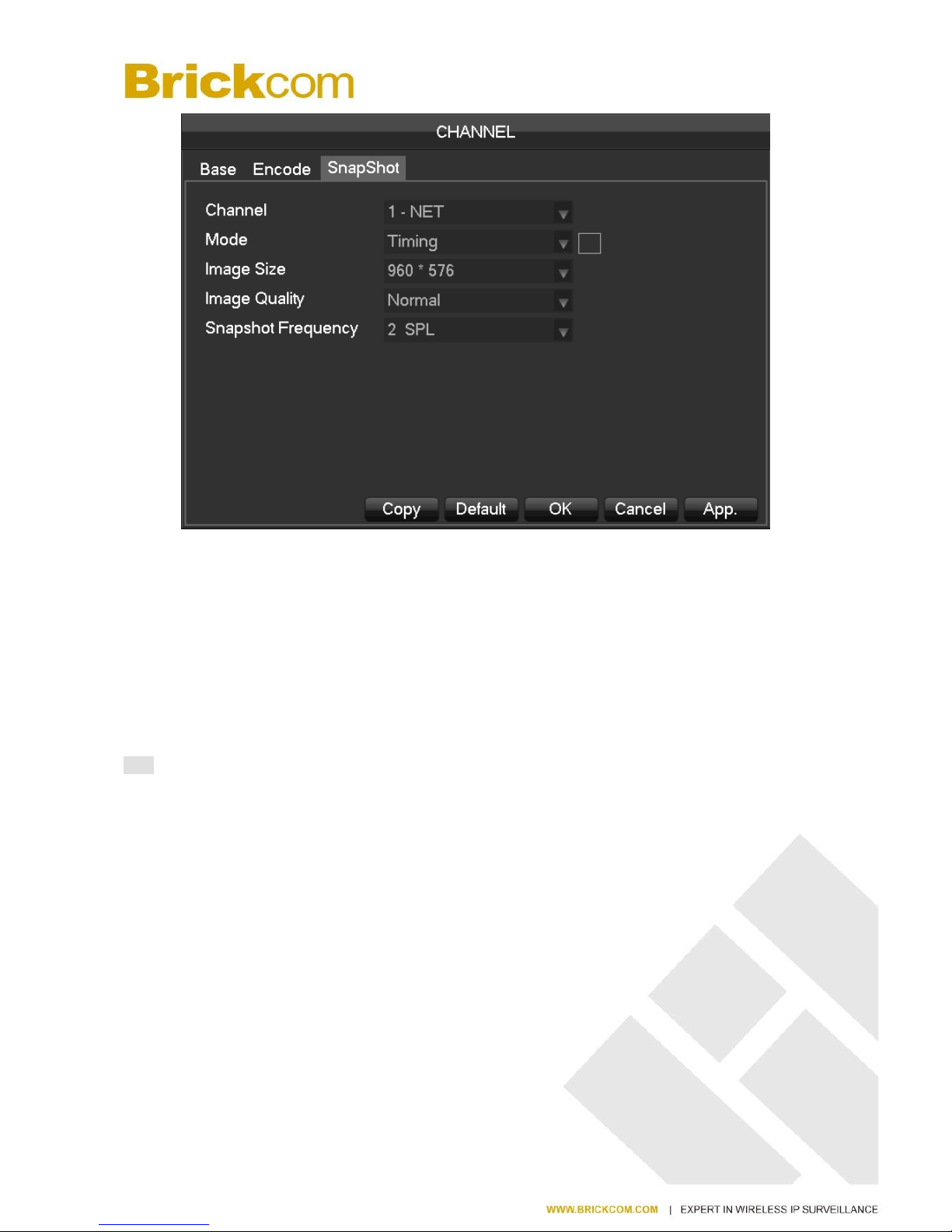

Snapshot

Refer to 7.2.1 about more details.

Network

www.brickcom.com.tw

26

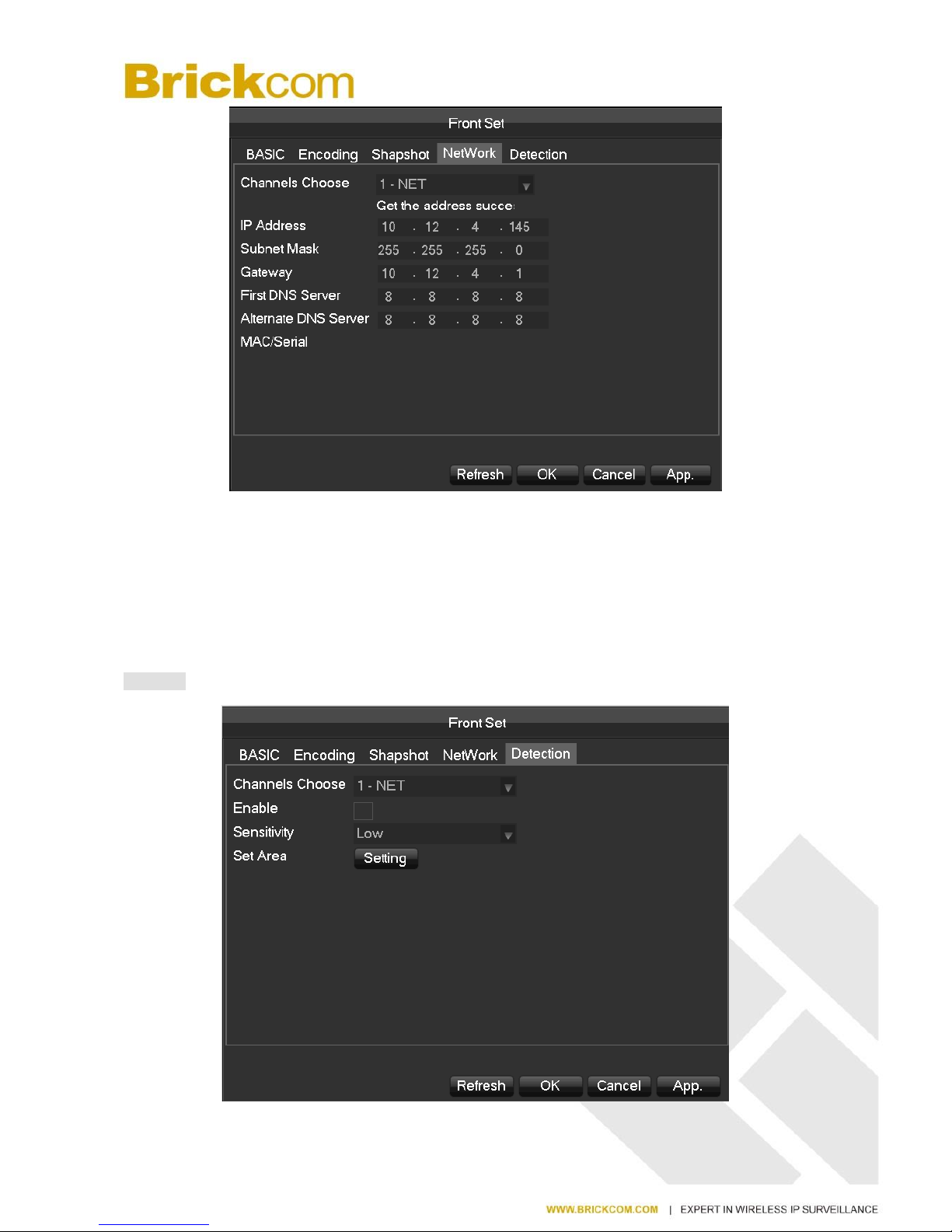

[Channels Choose] Choose one channel.
[IP Address][Subnet Mask][Gateway] Set IP address, subnet mark and gateway for the device.
[First DNS Server] Set DNS server IP address.
[Alternate DNS Server] Set standby DNS server IP address.
[MAC/Serial] Show MAC address of front device.

Detection

www.brickcom.com.tw

27

[Channels Choose] Choose one channel.

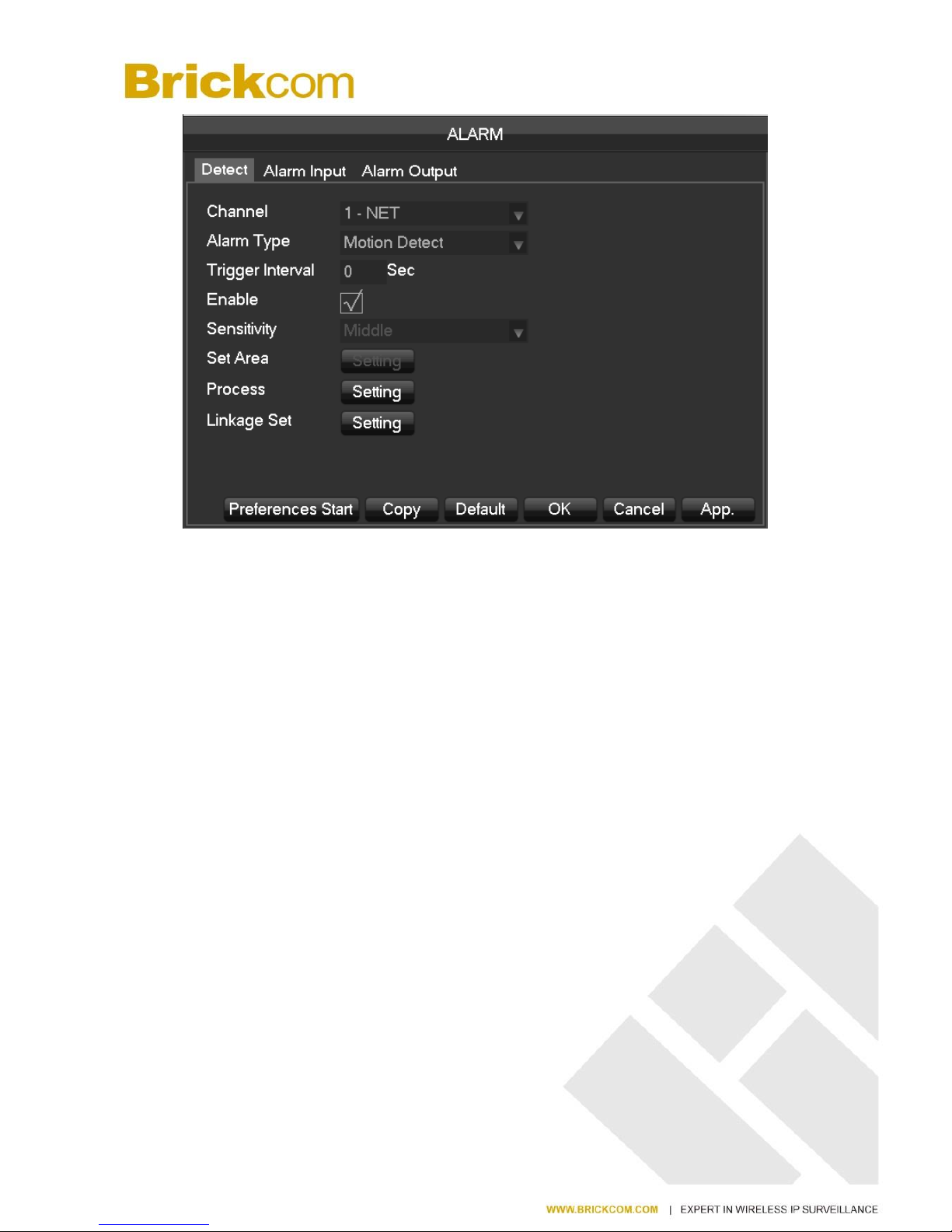

[Enable] Enable motion detect alarm or not.
[Sensitivity] Set sensitivity level for motion detection.
[Set Area] Set area for motion detection.22*18 area can be set.

:Make sure that protocol for front device supports motion detect function.All settings are for front device.

6.3.7 Delete Front Device

Enter Net Channel Management menu.
Click delete button or right click “device delete” to delete one device. Checkmark several device and click “Batch
Delete” to finish delete.

6.3.8 Others

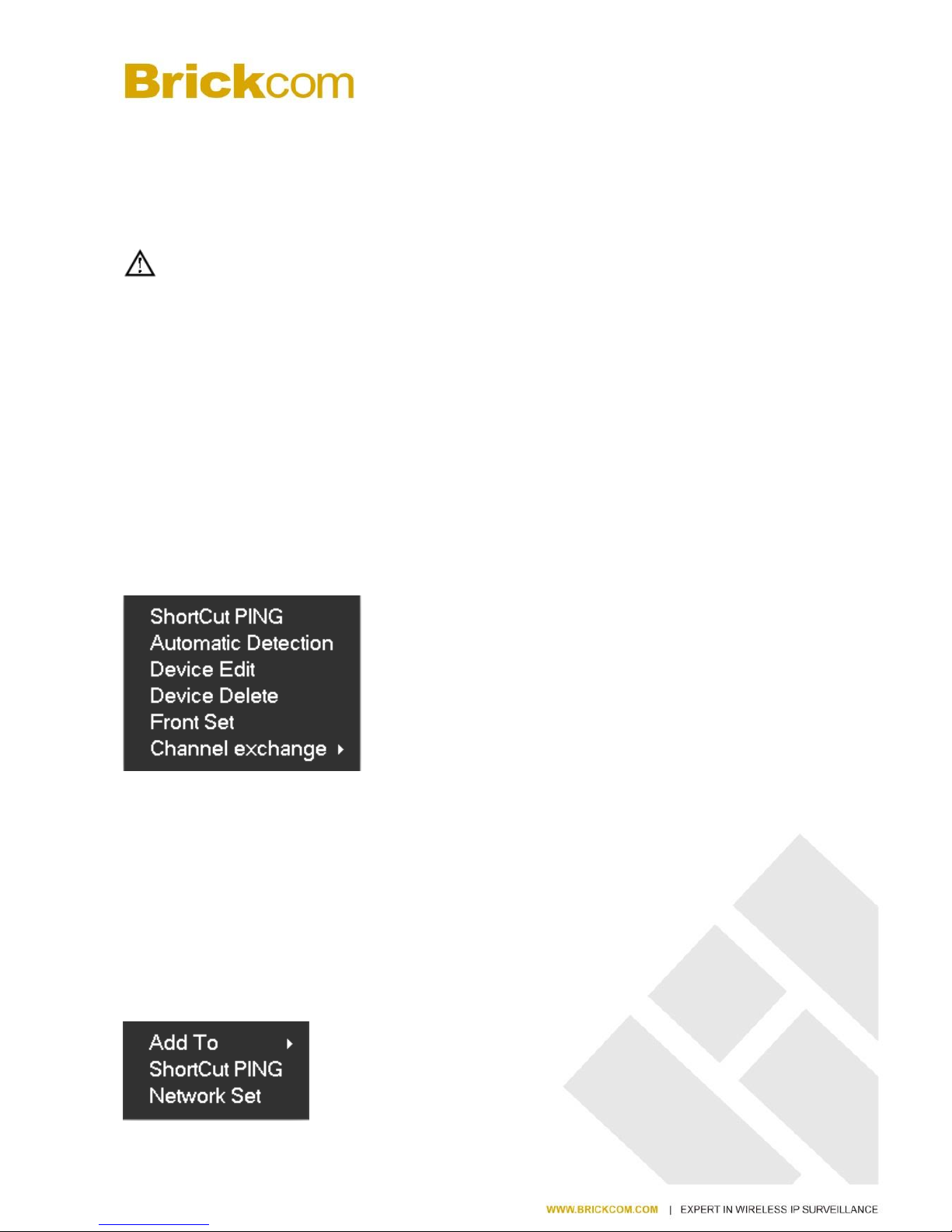

Right click in added device.

[PING] Check network status of the current channel.
[Automatic Detection] Check connection status of the current channel.
[Device Edit] Refer to 6.3.3 about more details.
[Device Delete] Delete device.
[Front Set] Refer to 6.3.4 about more details.
[Channel exchange] Exchange position of channels.
Right click device that hasn’t be add.

www.brickcom.com.tw

28

[Add To] Add device.
[PING] Check network status of the current channel.
[Network Set] Refer to 6.3.3 about more details.

6.4 Log in/Log out

Log in

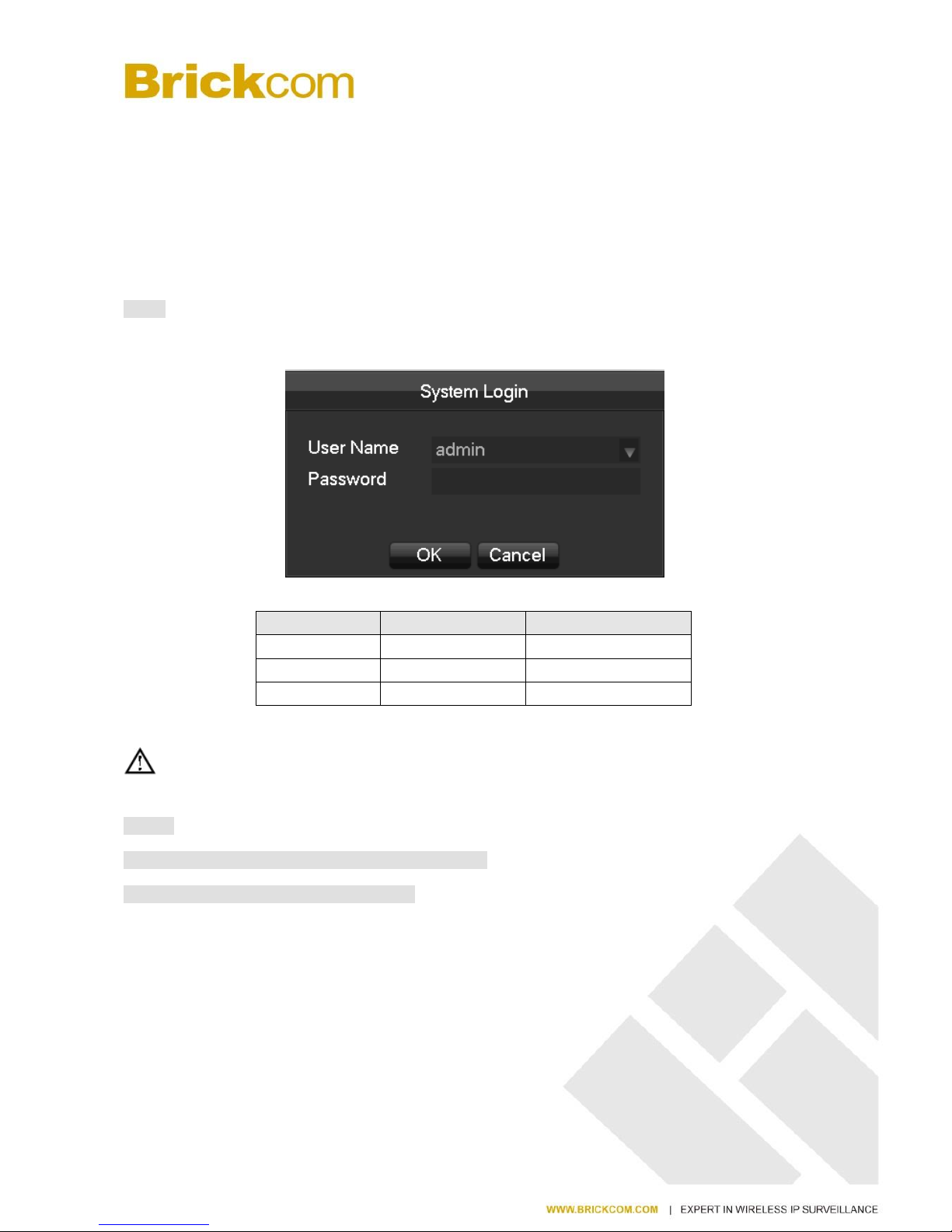

Right click to log in menu. Enter username and password.

Default users

User Type

Name

Default Password

Administrator

admin

123456

User

user

123456

Hidden

default

: If input incorrect password three times, device will sound. If input incorrect password five times, account

will be locked. For security purposes, please change the default password and the user name.

Log out

1. When over the standby time, log out automatically.

2. Enter [Main Menu]-[Shutdown]-[Log out]

6.5 Preview

6.5.1 Live Preview

In live monitoring, there are date, time, channel name, recording status and alarm status.

www.brickcom.com.tw

29

Control screen switching by front panel, remote controller and mouse.
When alarm occurs, it will show message like external alarm, video loss, video blind, motion detect, network status
and IP address conflict.

www.brickcom.com.tw

30

Quick Operation

Switch single or multiple

screens

Double left click in screen to single channel and Double left click to return

Adjust channel order

Drag the channel to the wanted position

Add device

Click [+] in one channel to enter add menu. Please refer to 6.3.2 about more

details.

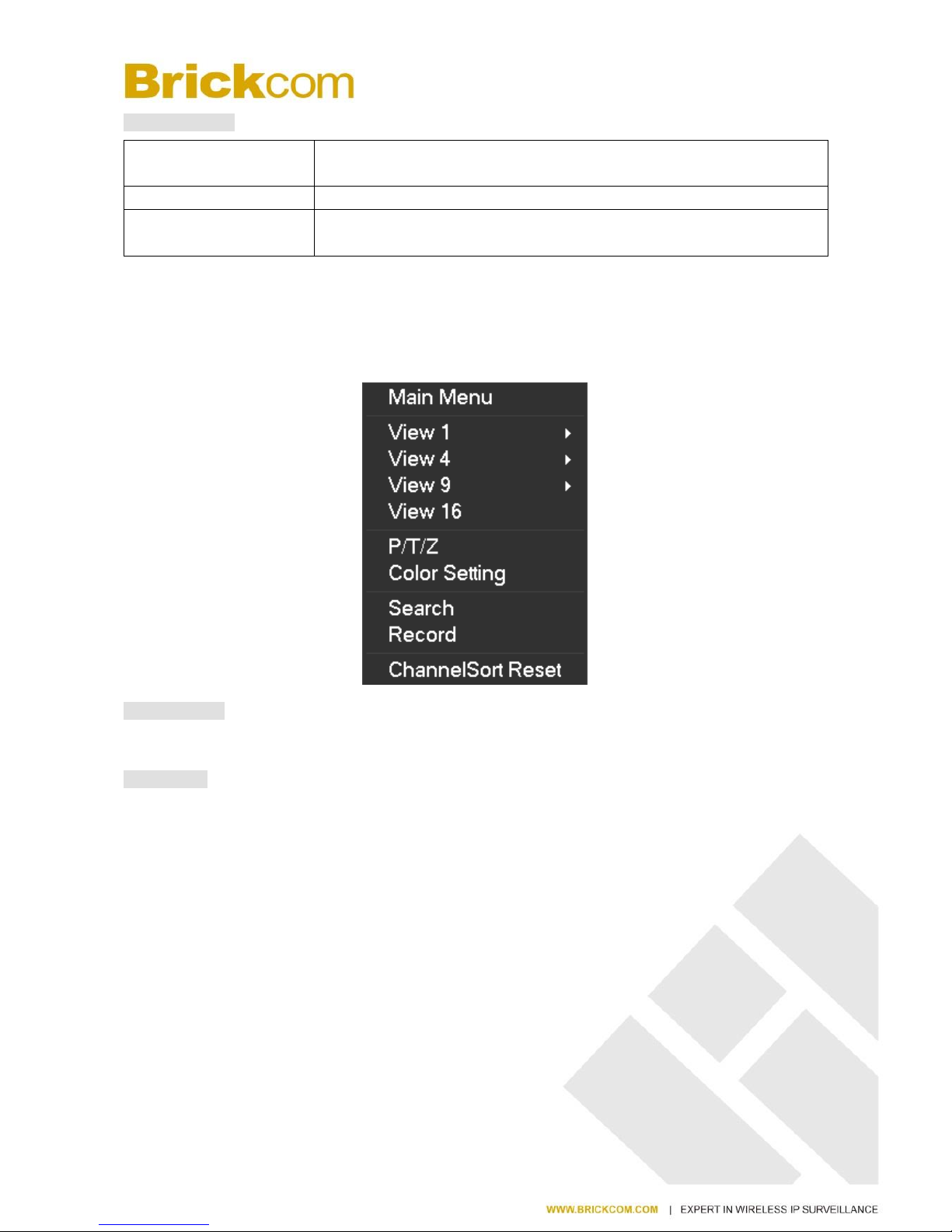

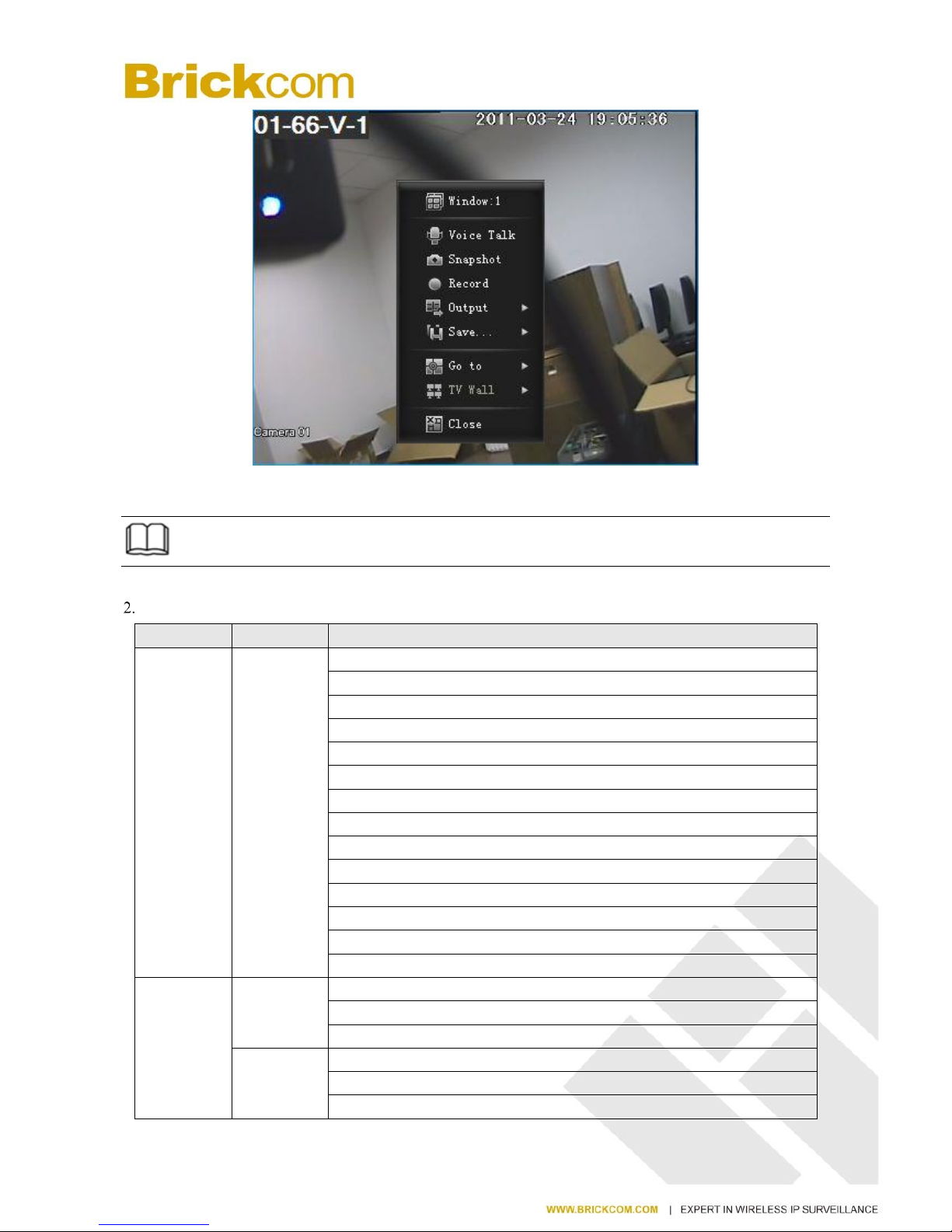

6.5.2 Right Click Menu

Enter real-time monitoring and right click menu.

Screen Division

Choose single screen, four screens, nine screens or sixteen screens to view.

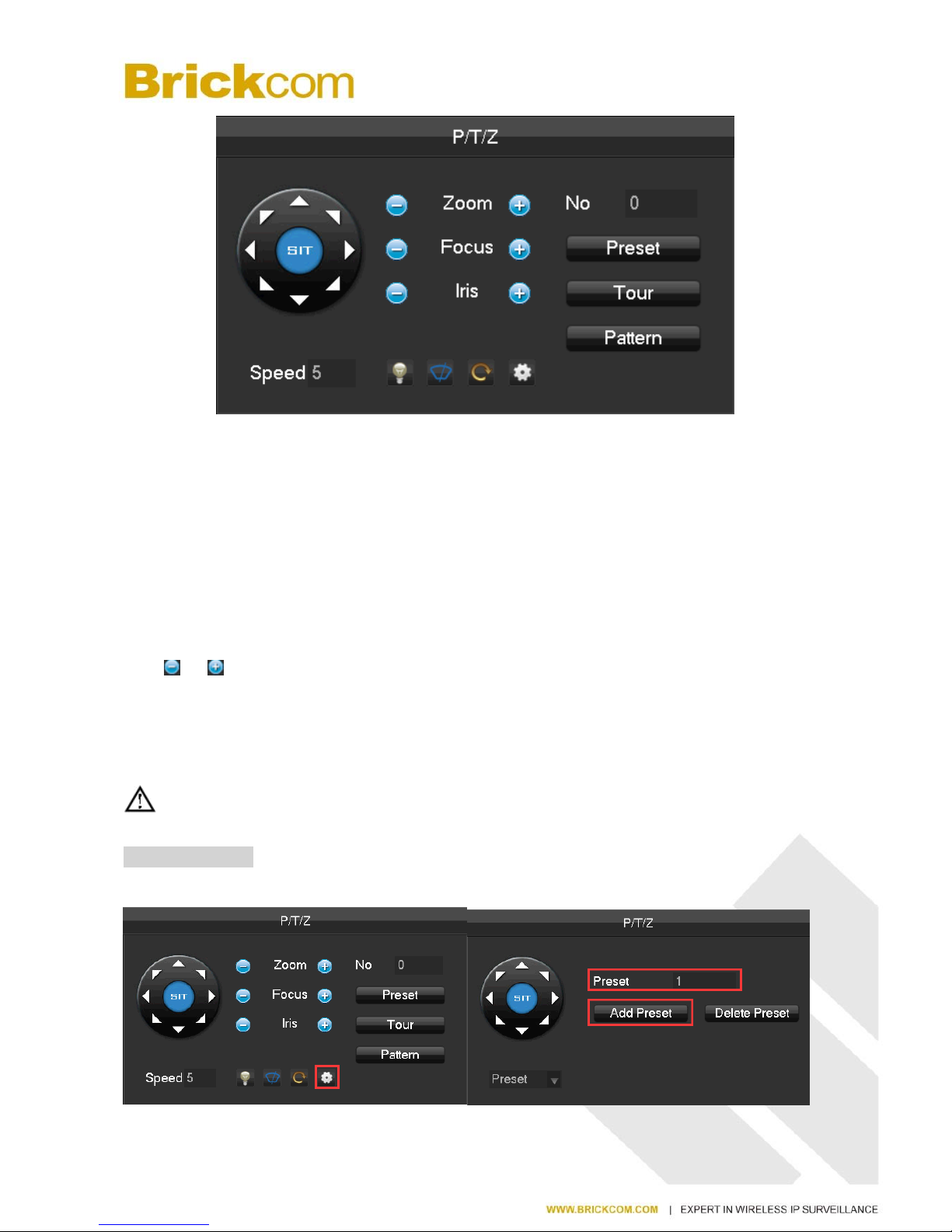

PTZ Control

Configure PTZ. Please refer to 7.2.4 and 6.3 about more details for analog camera and IP camera.
After finish configuration, click “PTZ Control” in corresponding channel to control PTZ.

www.brickcom.com.tw

31

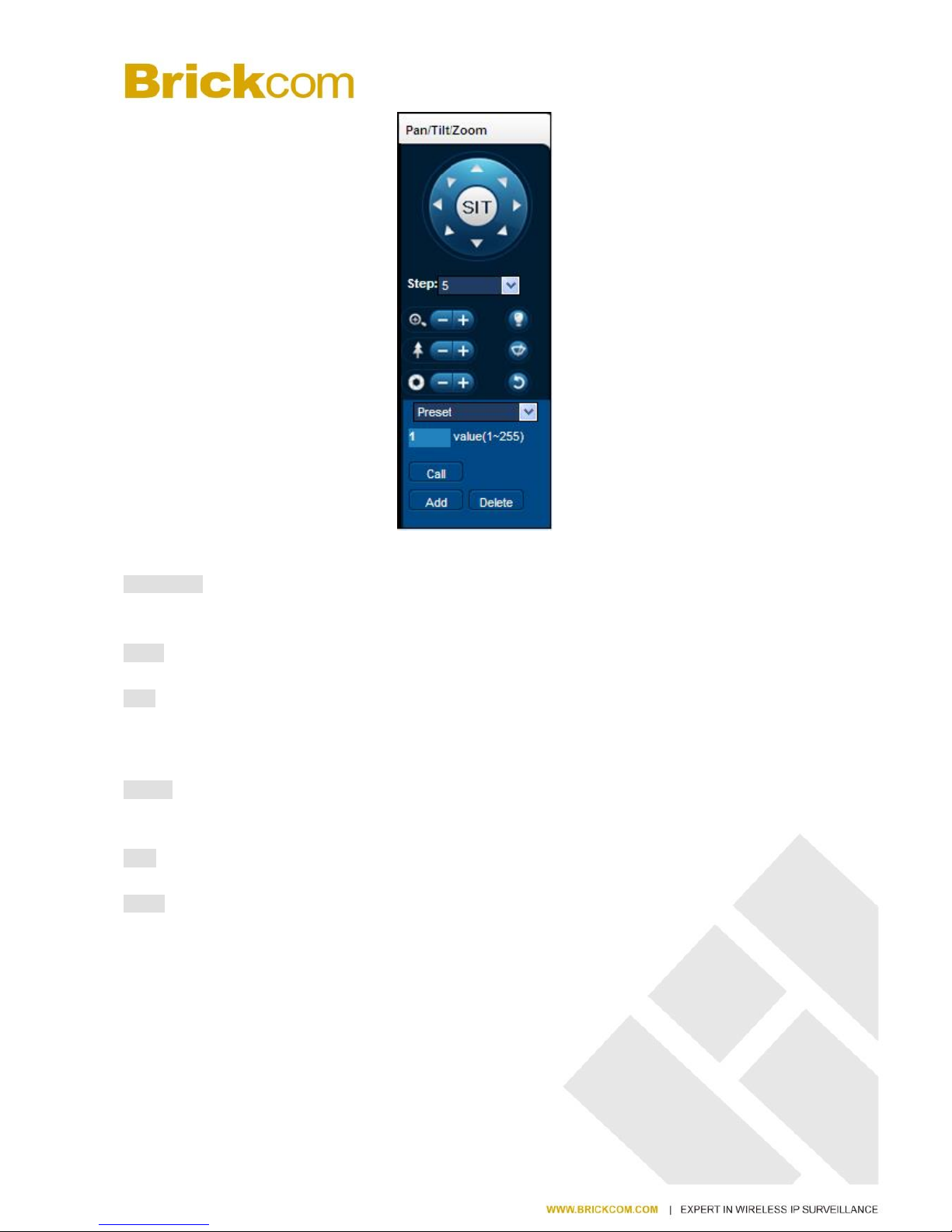

Direction, steps, zoom, focusing, iris, preset points, cruising between points, patrols, sweeping the boundary, calling
an auxiliary switch, light switch, horizontal rotation of PTZ can be controlled.

<SIT> means quick location button. Make sure that the protocol supports this function. After enter the page, click
a point in screen. PTZ will turn to the point and move the point to center of screen. Besides, It also supports 4 to 16
times zooming when drag mouse in the quick location page.

The [Step] is mainly used to control directions. The figure can be set from 1 to 8.

Click or to adjust zooming, sharpness and brightness.
PTZ can control eight directions. But front panel only can control up, down, right, and left.

[Present]Enter present figure in box and click “Present” button to call present function.
[Tour]Enter cruise figure in box and click “Cruise” button to call cruise between points function.
[Pattern]Enter patrol figure in box and click “Patrol” button to call patrol function.

:gray button means don’t support the function.

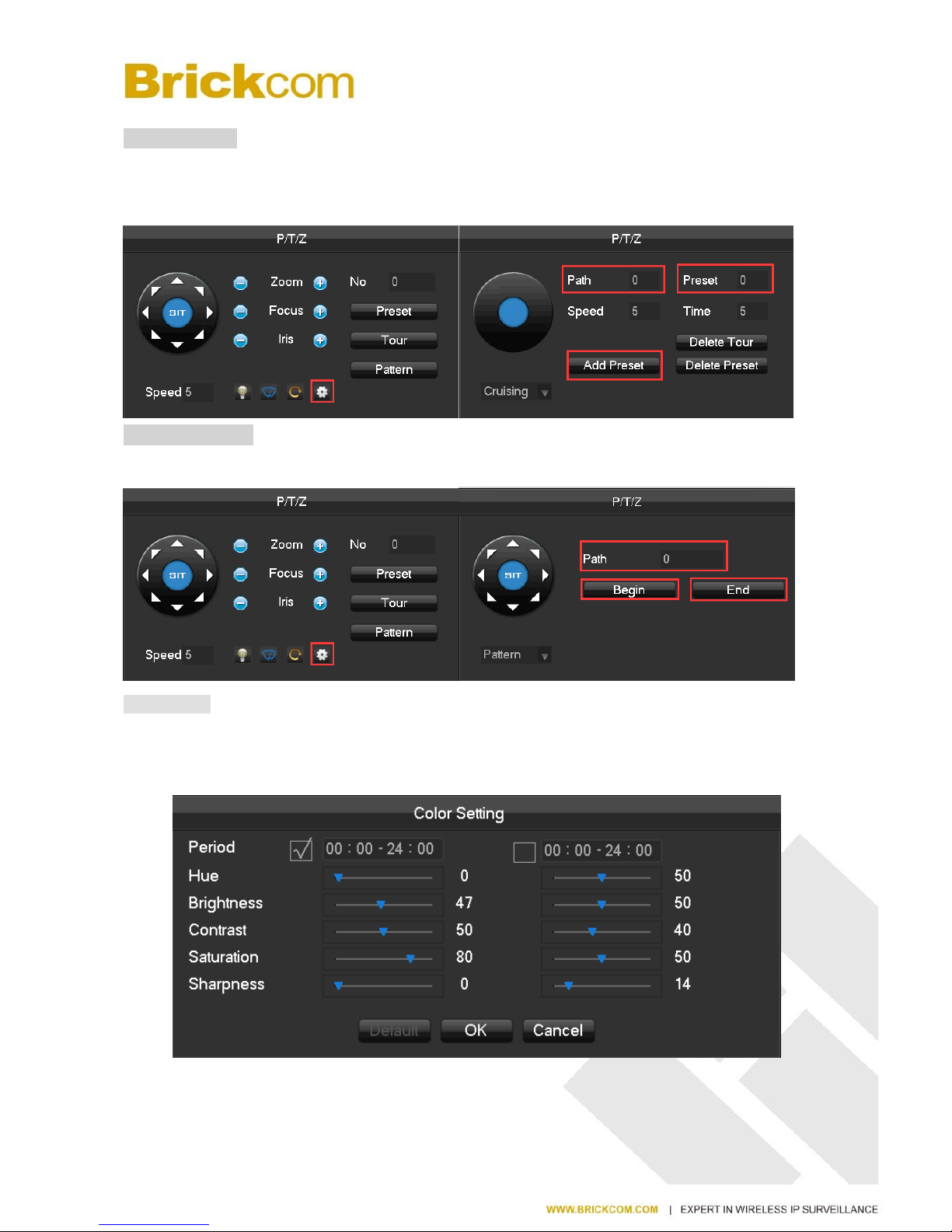

Configure [Present]

Present is for recording the next position, which is marked by a figure. Call the figure to enable present function.

www.brickcom.com.tw

32

Configure [Tour]

Tour includes several present points and is marked by a figure. When call the figure, present point will run one by
one.

Configure [Pattern]

Pattern is consisted of PTZ rotation path and is marked by a figure. Call the figure to enable patrol function.

Color Setting

Adjust the specified screen (single screen) image color hue, brightness, contrast, saturation, gain and white-level
parameters set two time periods according to the local environment difference between day and night for each
adjustment period set, the device will automatically switch to the best video quality.

【Period】Two periods can be set according to ambient light during the day and night, device will automatically

switch configuration time. Need to select the Enable box.

www.brickcom.com.tw

33

【Hue】Adjust according to image color cast
【Brightness】Visual image brightness, according to the environment, reduces or increases the brightness

of the image brightness to make the image relatively clear.

【Contrast】Adjust image of black and white in proportion, the greater ratio, the brighter image.
【Saturation】Image color purity, the greater value, the more colorful images.

Note: Different mode different function

The Video Inquiry

Refer to 6.5 Search

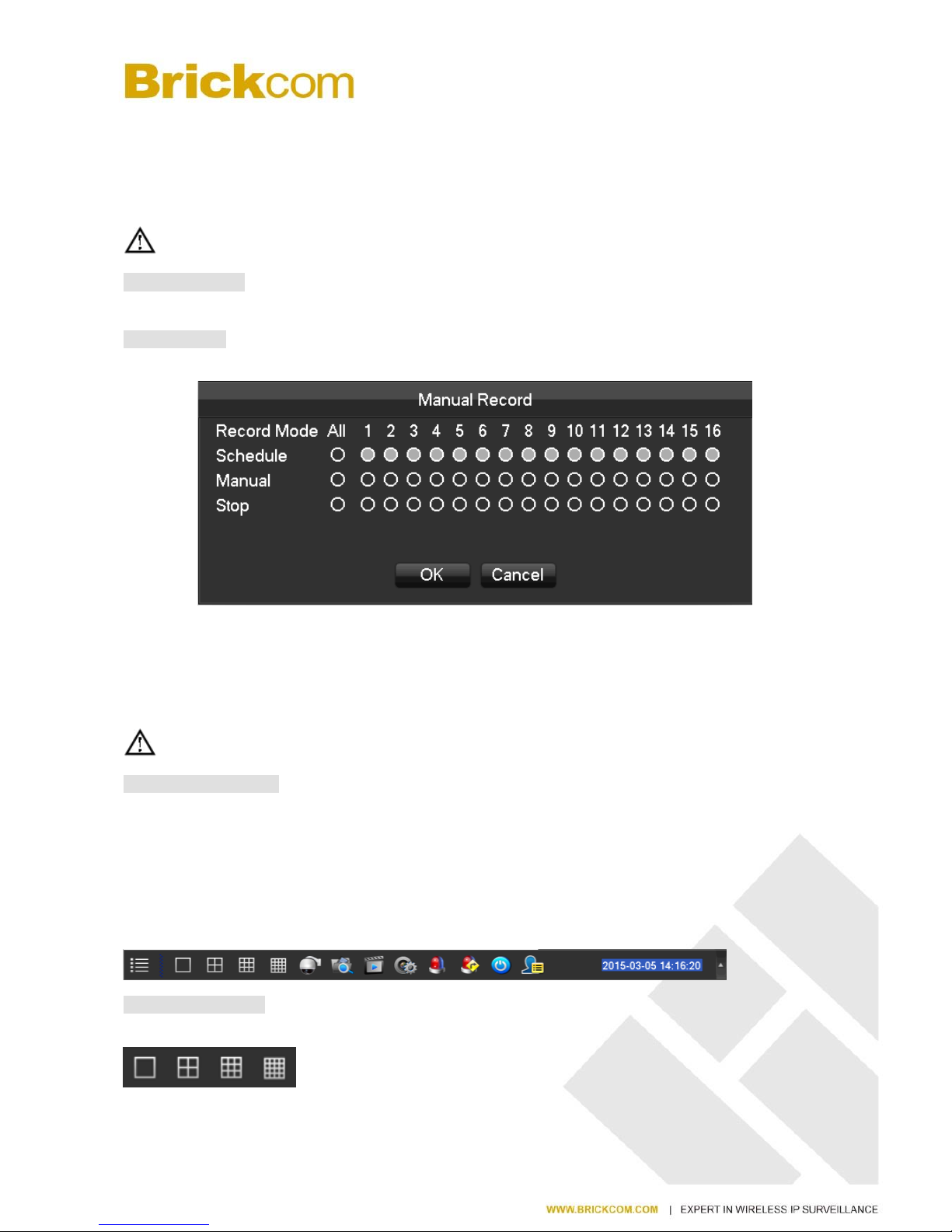

Manual Record

In real-time monitoring screen, right click and select【record】to enter the interface.

【Manual】It has the highest priority and corresponding channels will record for whole days after chosen.

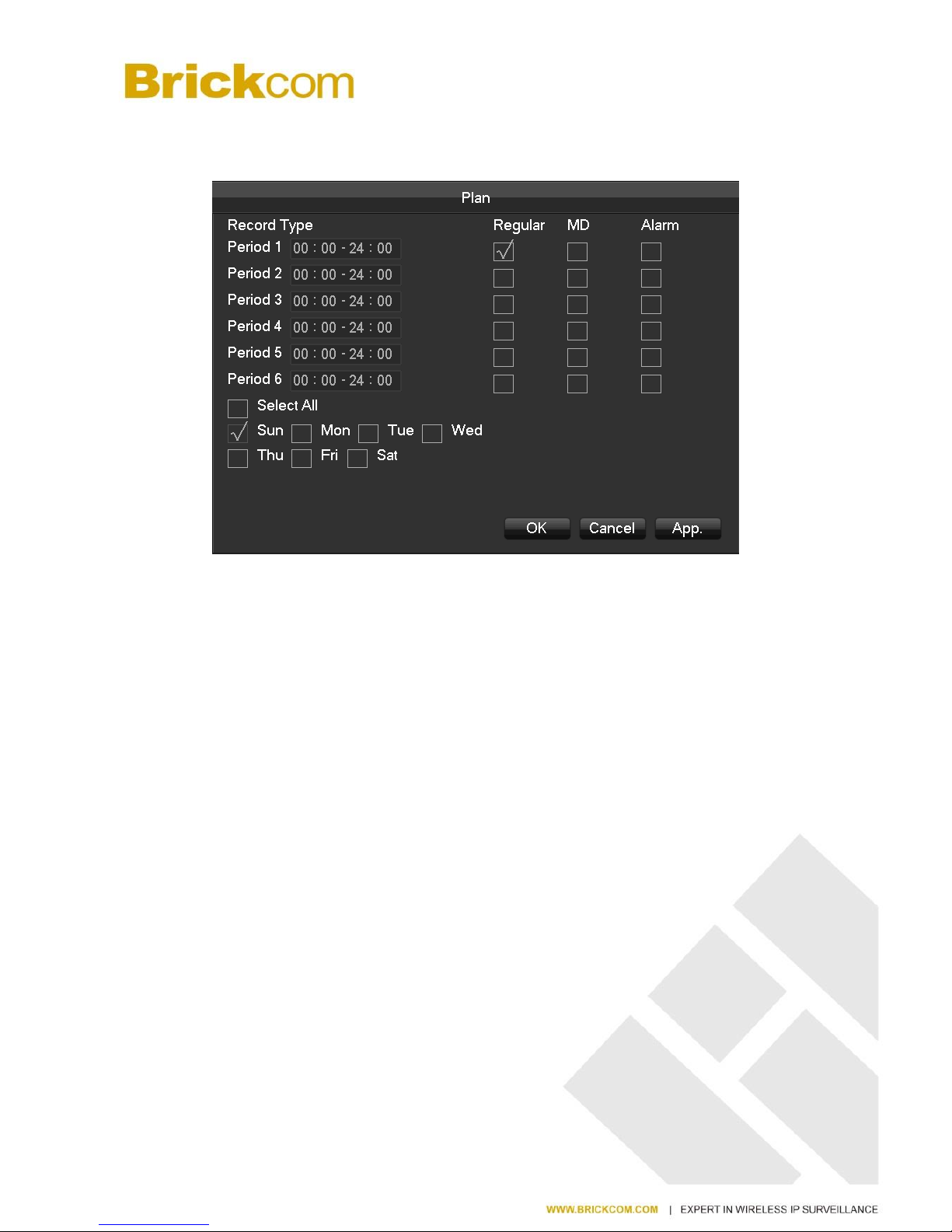

【Schedule】Record according to recoding configuration.
【Stop】Stop recording.

To change a channel state of the video, at first check the video channel state is in selected or not, then use the mouse
to click, or use 【】and【】to find the channel and use 【】and【】to switch the video channel state.

Note: Select all channel and enable can change the video state of all channels at the same time.

Reset the channel order

Click to reset the default channel order.

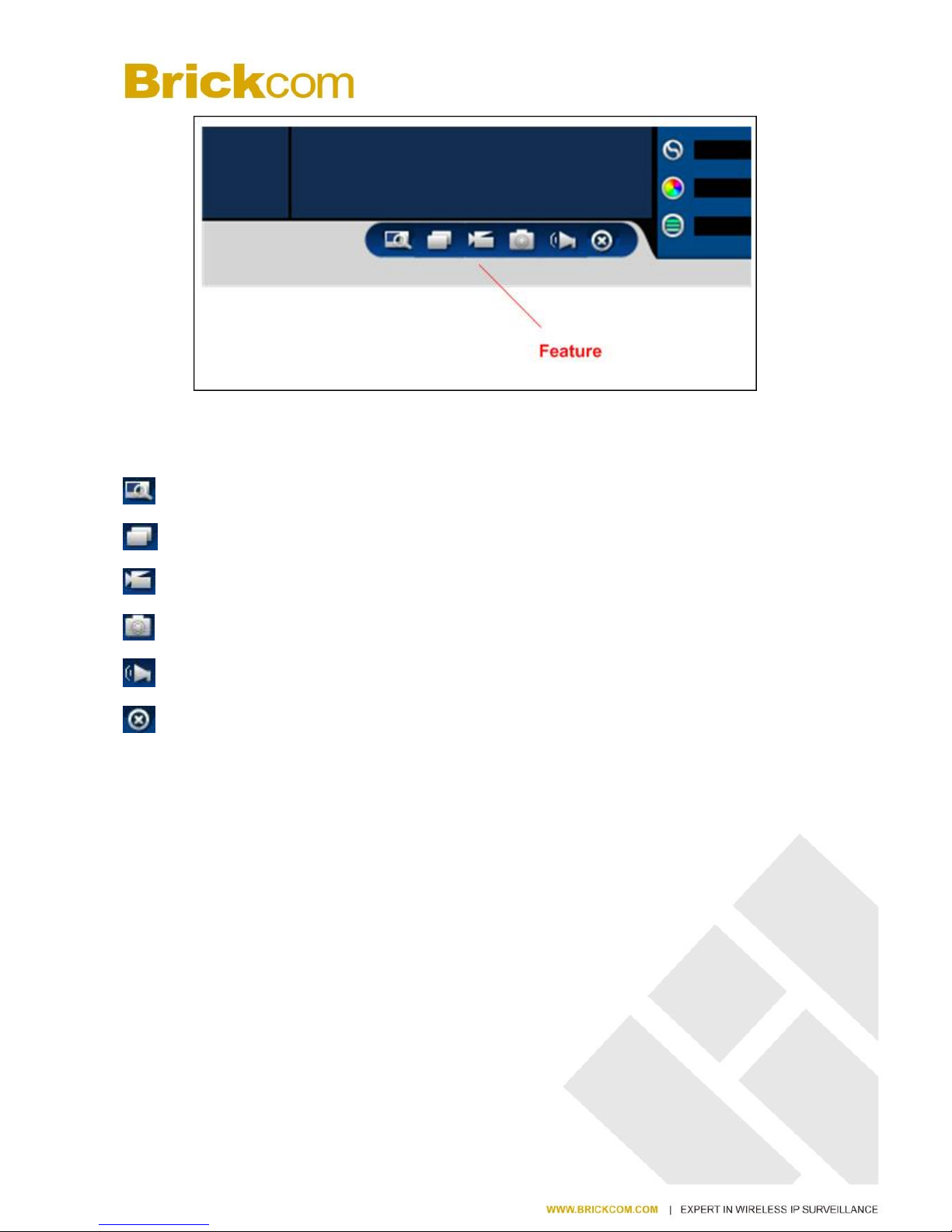

6.5.3 Task Bar

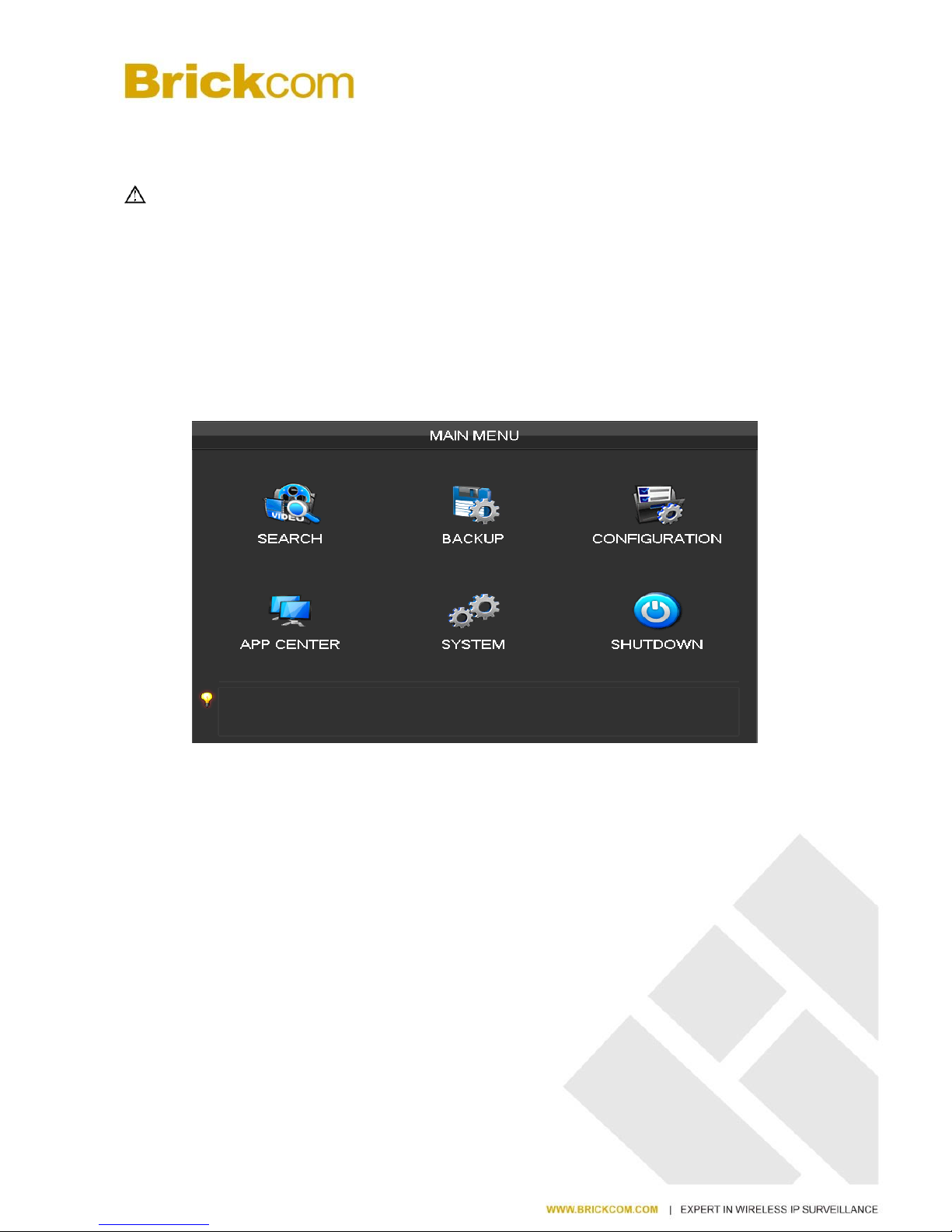

Enter from the main menu and provide some quick operation.

The Screen Switching

To implement screen switch function

Above single, four, nine and sixteen channel.

www.brickcom.com.tw

34

PTZ control

Brings up the PTZ control Menu

Refer to 6.4.2 PTZ control of the right-click menu.

Record Search

Click to select the Searching interface

Refer to 6.5 Search

Manual Record

Click to select manual record interface

Refer to 6.4.2 Manual record of the right-click menu.

NET Channel Management

Click to enter Net channel interface

Refer to 6.3

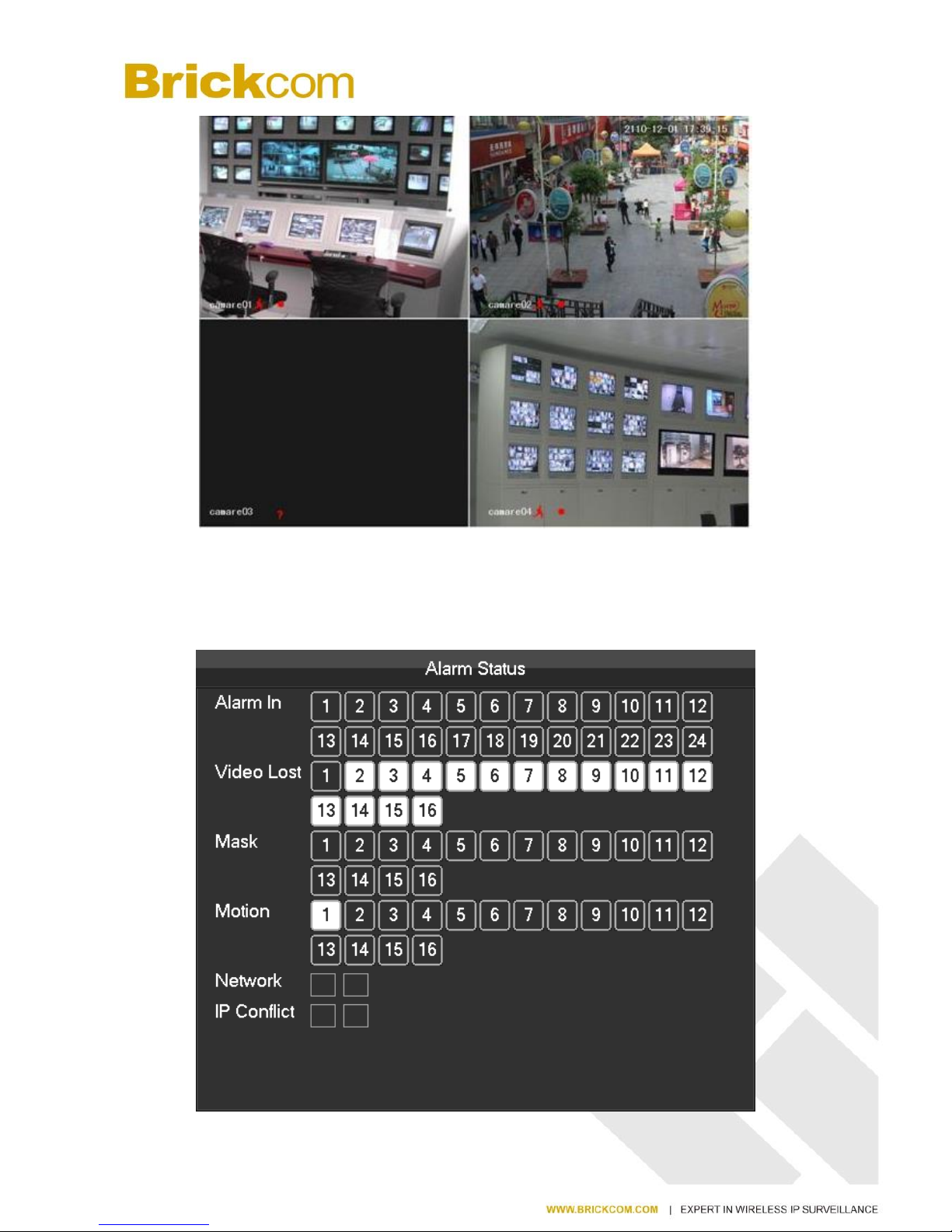

Alarm Status

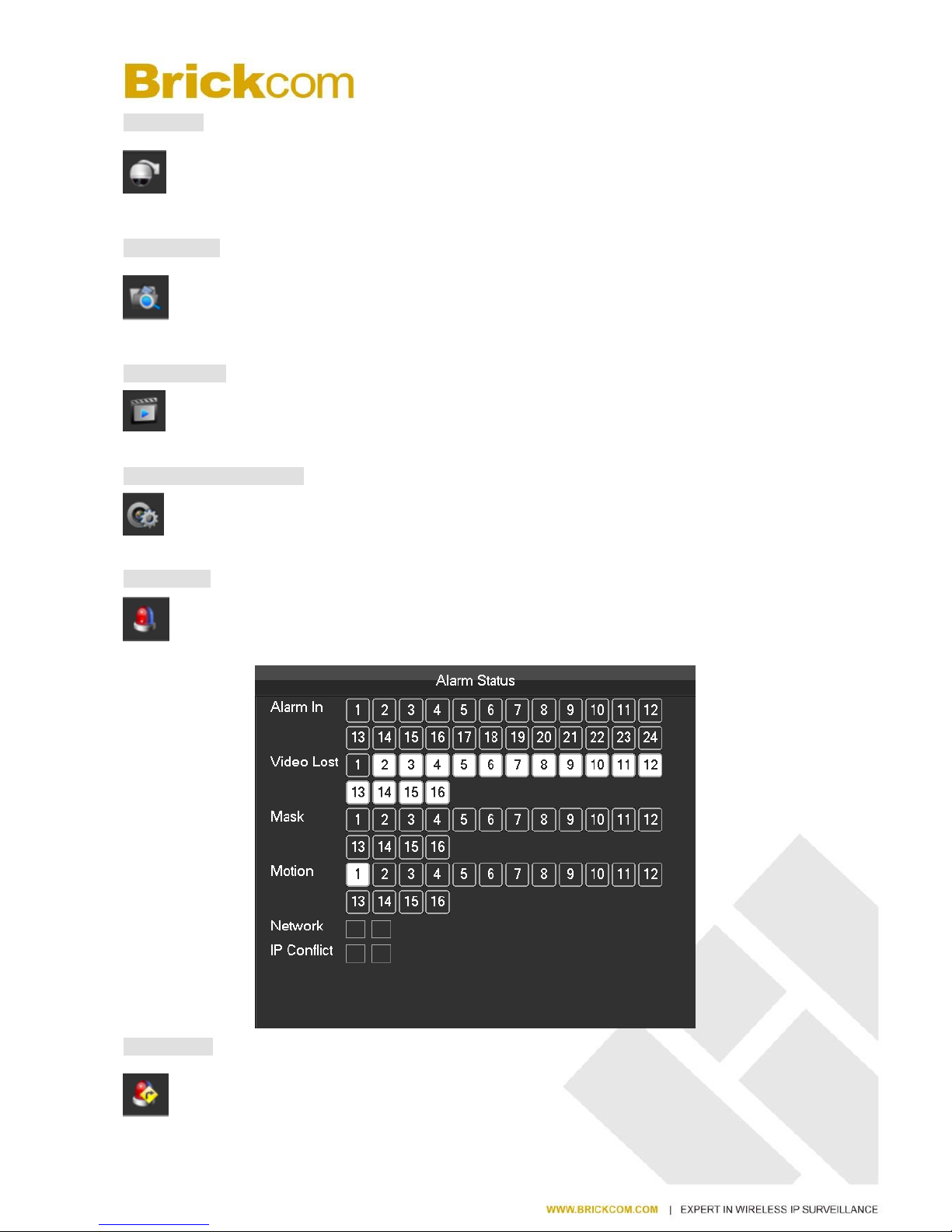

Check the recent alarm status, click to show the following alarm message

Alarm output

Alarm output menu

www.brickcom.com.tw

35

Refer to 7.2.5 Alarm output of Alarm menu

Intelligent window switch

When the system is face/perimeter analysis status, click to close the intelligent window in the right side of real-time
monitoring screen and click again to open it.

Conceal function

Color setting

Refer to 6.4.2 Color setting of the right-click menu.

Reset the channel order

Click to reset the default channel order.

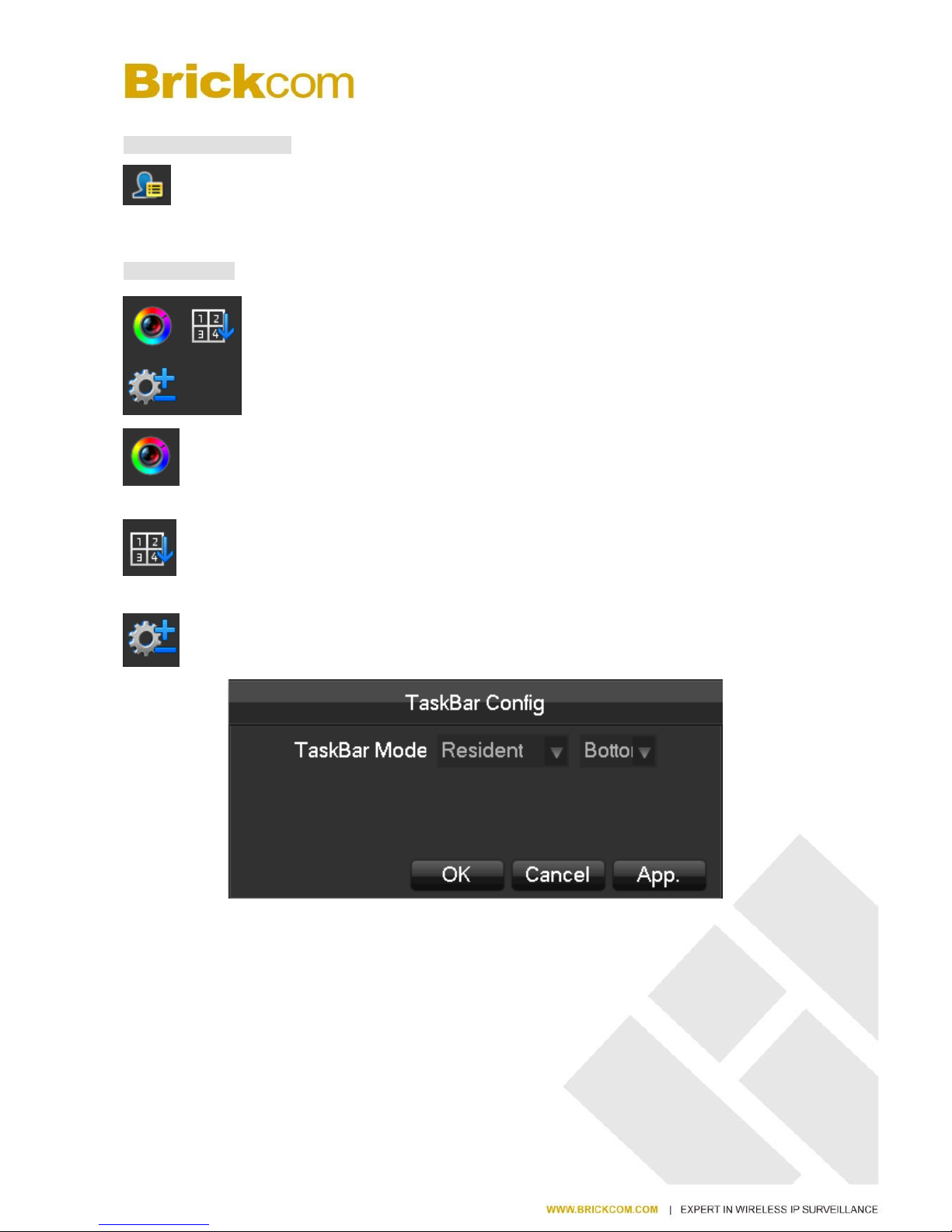

Taskbar Configuration

【Task Bar Mode】Choice of Resident or Automatically, Choice of Bottom and TOP.

6.6 Search

6.6.1 Search

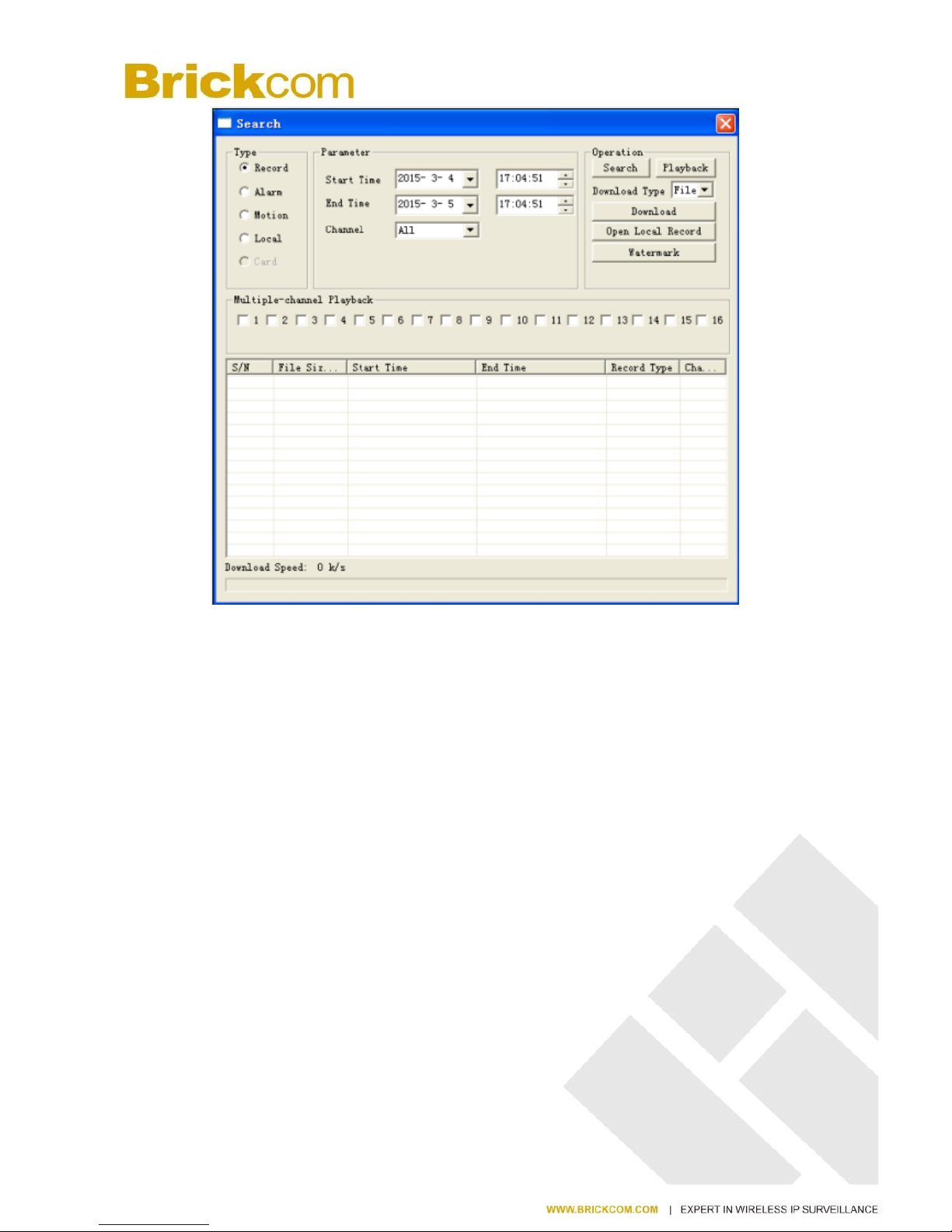

In real-time monitoring screen, right click and select【search】to enter the searching interface.

www.brickcom.com.tw

36

www.brickcom.com.tw

37

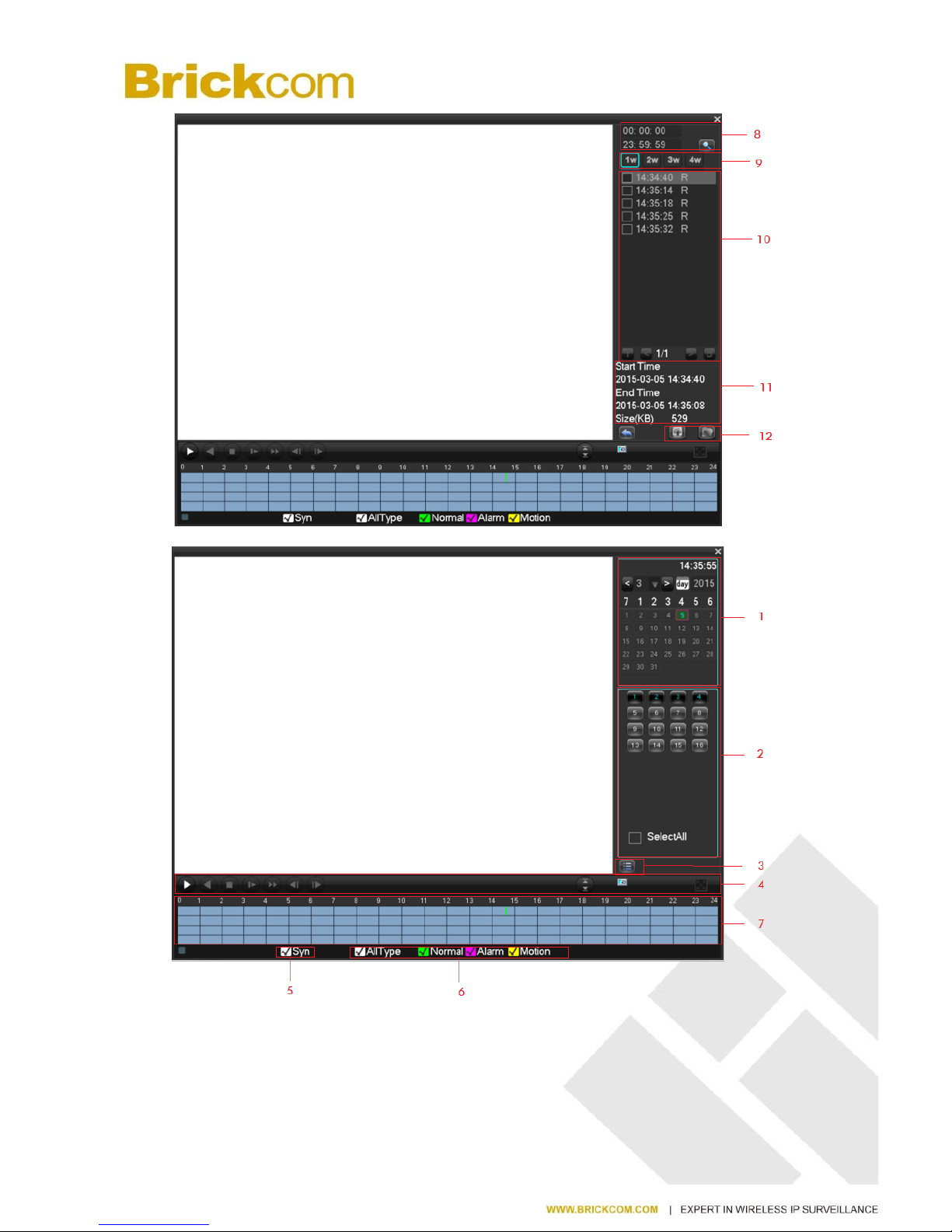

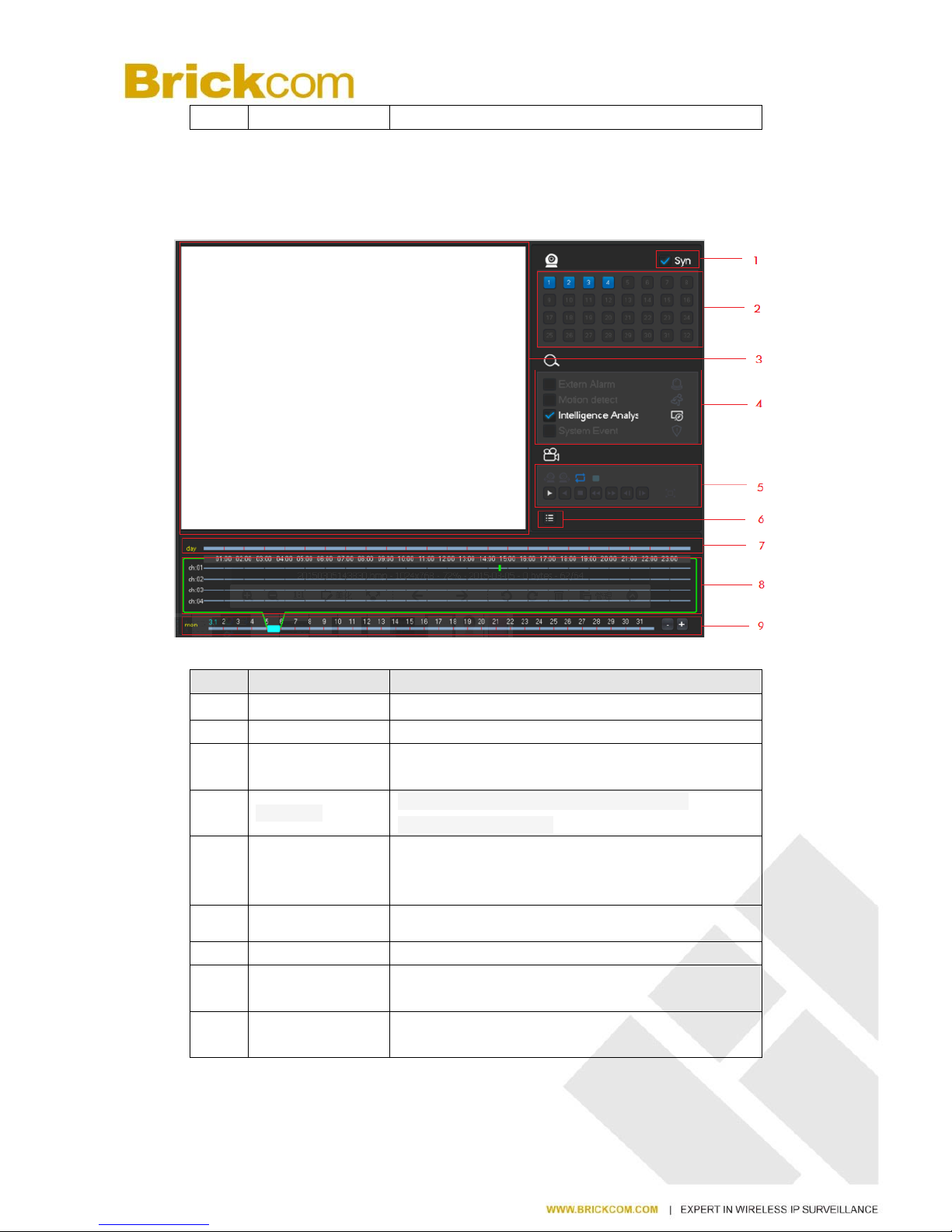

Record Search interface description:

Index

Type

Description

1

Choose the date

Select the time and date to search records.
2

Select channels

Choose the channels for querying.

3

List

Display the list of recording files.

4

Playback controls

It can achieve a full screen, circle playback, stopping /
playing, pausing, fast playing, slow playing and the
previous/next frame on a suspended state.

5

Synchronization

Achieve the playback of each channel’s record is of

synchronization in time and of consistency in operations.

6

Recoding mode

Choose searched recording mode, including All type,
Normal, Alarm, Motion detection recording.

7

Time bar

Show the status information of channels’ video recording

within one day by green, red, yellow.

8

Choose the time

Search the records based on the starting time.

9

Channel number

Select the channel number.

10

The list of records

128 video records are shown in the list.
Type: R—normal record, A—alarm record, M—motion
detection record.

11

Details of the file

Display the start time, end time, and the size of the file.

12

Backup

Choose a channel in which the record plays back.

Playback Control:

Key

Description

Remark

Video playback:
Fast-forward Key

Under playback mode, pressing this key,
you can get a variety of fast cycle switching
speeds; fast-forward button can be used as
slow-release button reverse switch key.

Actual play rate
based on version

Video playback
Slow key

Under playback mode, pressing this key,
switch cyclically support a variety of slow­release rate, slow release button can be used as
fast-forward button reverse switch key.

Play/pause
►/

Play/pause switch when slow-play

Backward:
Backward_key

Single left click backward key

To play backwards and
single click again to
stop back run under
common playback
Rewind or single-frame
playback, press the play
button ►/ to enter
the normal playback .

Manual single
frame playback

single frame playback by clicking

when common playback pause

www.brickcom.com.tw

38

Note:

1. The player playback control bar shows file playback speed, channel, time, playback progress and other information.

2. Playback speed and rewind function are related to NVR version, and please prompt on the player panel shall prevail.

6.6.2 Face Search

Index

Type

Description

1

Play windows

Play the video.

2

Play Timeline

Display the progress bar of the current event

3

Playback control

Stopping / playing, pausing, fast playing, slow playing and
the previous/next frame on a suspended state.

4

Calendar

Select the date to search records.

5

Face list

Show the all face images of the channel in the query time.

6

Channel number

Select the channel number.

7

Choose the time

Search the records based on the starting time and end time.

8

Face Statistic

Display the total number of face images and pages of the
channel in the query time.

9

Page number

Display the current page and the total number of pages.
Page up and page down.

10

Search

Click to search.

www.brickcom.com.tw

39

11

Export

Export all the face images of the current page.

6.6.3 Perimeter Search

Index

Type

Description

1

Synchronization

Playback of each channel’s of synchronization.

2

Choose channels

Select channels desired to query records.

3

Play windows

Play the video, it support most 4 channel playback at the
same time.

4

Event Type

Select the event type, including: enter/leave area,
forward/reverse cross line.

5

Playback control

It can achieve a full screen, circle playback, stopping /
playing, pausing, fast playing, slow playing and the
previous/next frame on a suspended state

6

List

Display the list of recording files.

7

Event Line

Show all the events and corresponding time.

8

Time Bar

The Scrolling up and down of the mouse can adjust time
span, click the time bar to play the video.

9

Time Line

Display the date of current time bar, click the +,-to adjust.
Support all records, year, month, week and day.

www.brickcom.com.tw

40

6.7 Record Backup

Interface description

Connect an External USB device with the USB port to backup in the “Record Backup” menu.

【Detect】Identify external USB device and display the device information.
【Backup】Tick the external device and click【Backup】to enter the backup menu .

【Cancel】delete all data in USB backup device

Backup Operations

www.brickcom.com.tw

41

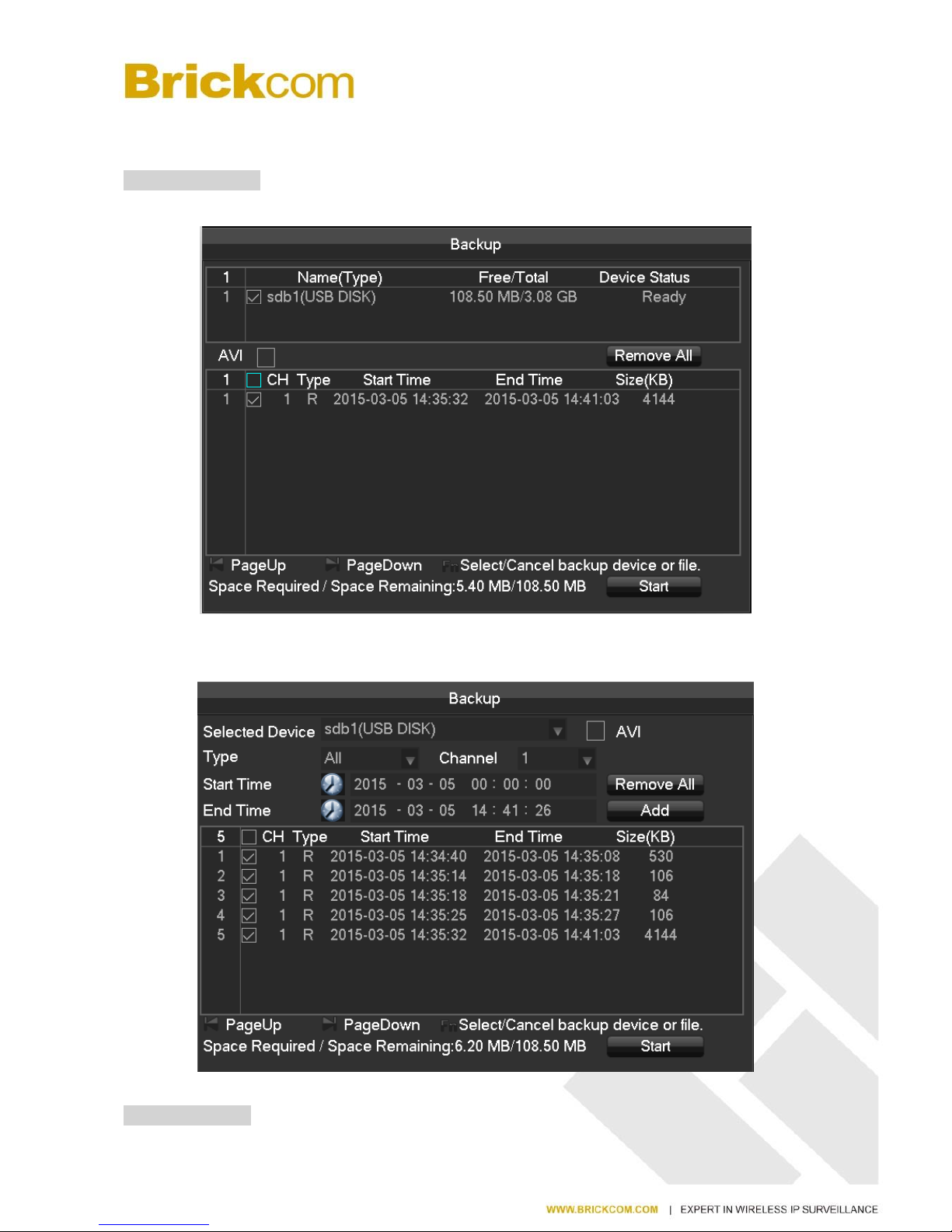

Connect an External USB device with the USB port, click【Detect】to Identify external USB device, click【Backup】
to enter the backup menu ,select the record start -stop time and click to add files in list, click【Start】to backup and
display time remaining.

Note: USB backup carry player automatically. This operation probably cause permanent data loss.

7 Local Configuration

7.1 The Introduction of the Main Menu

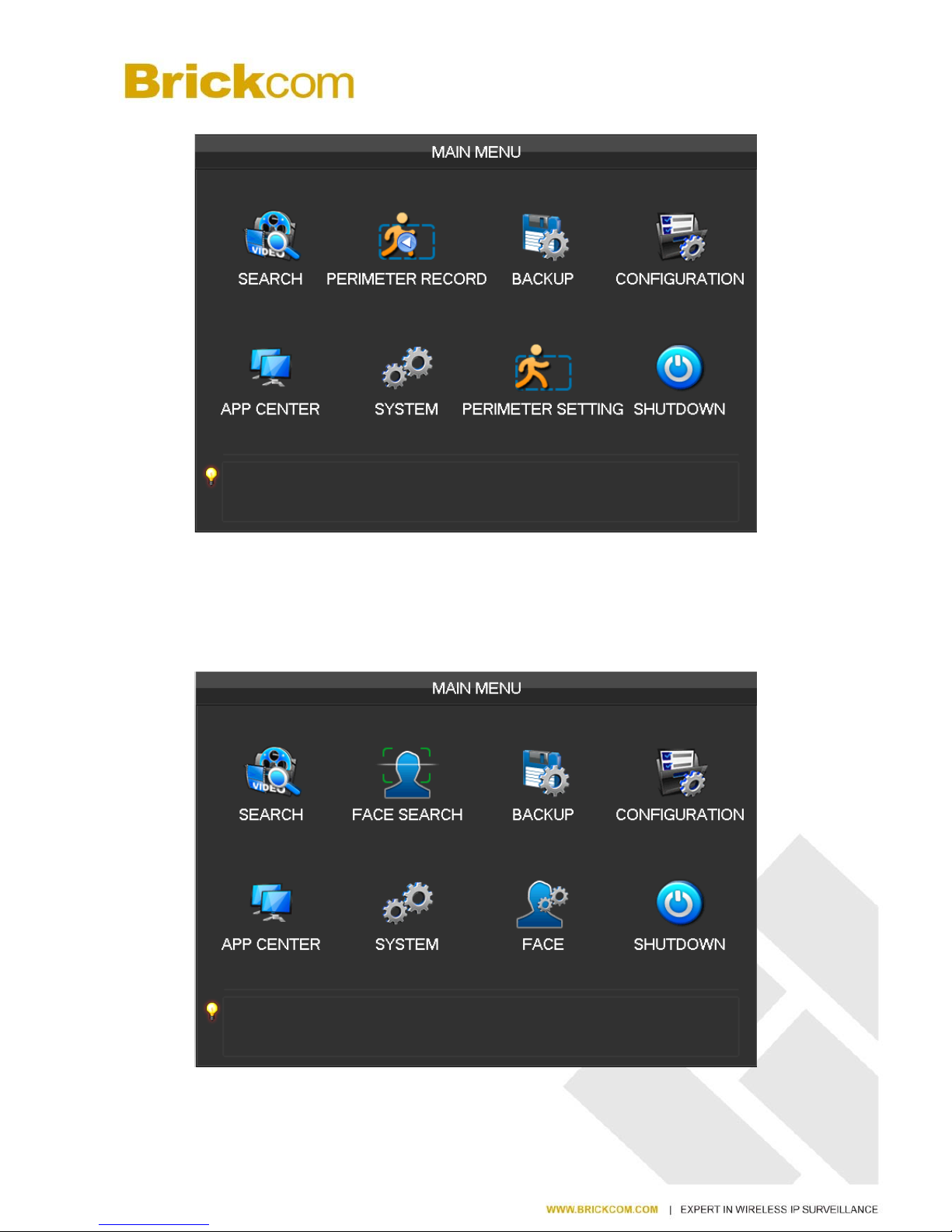

The normal main menu is shown as the following interface:

【Search】Search records by types, channels, time and playback records.
【Backup】backup management.
【Configuration】Including Net channel, Channel, Schedule, PTZ, Alarm and RS232.

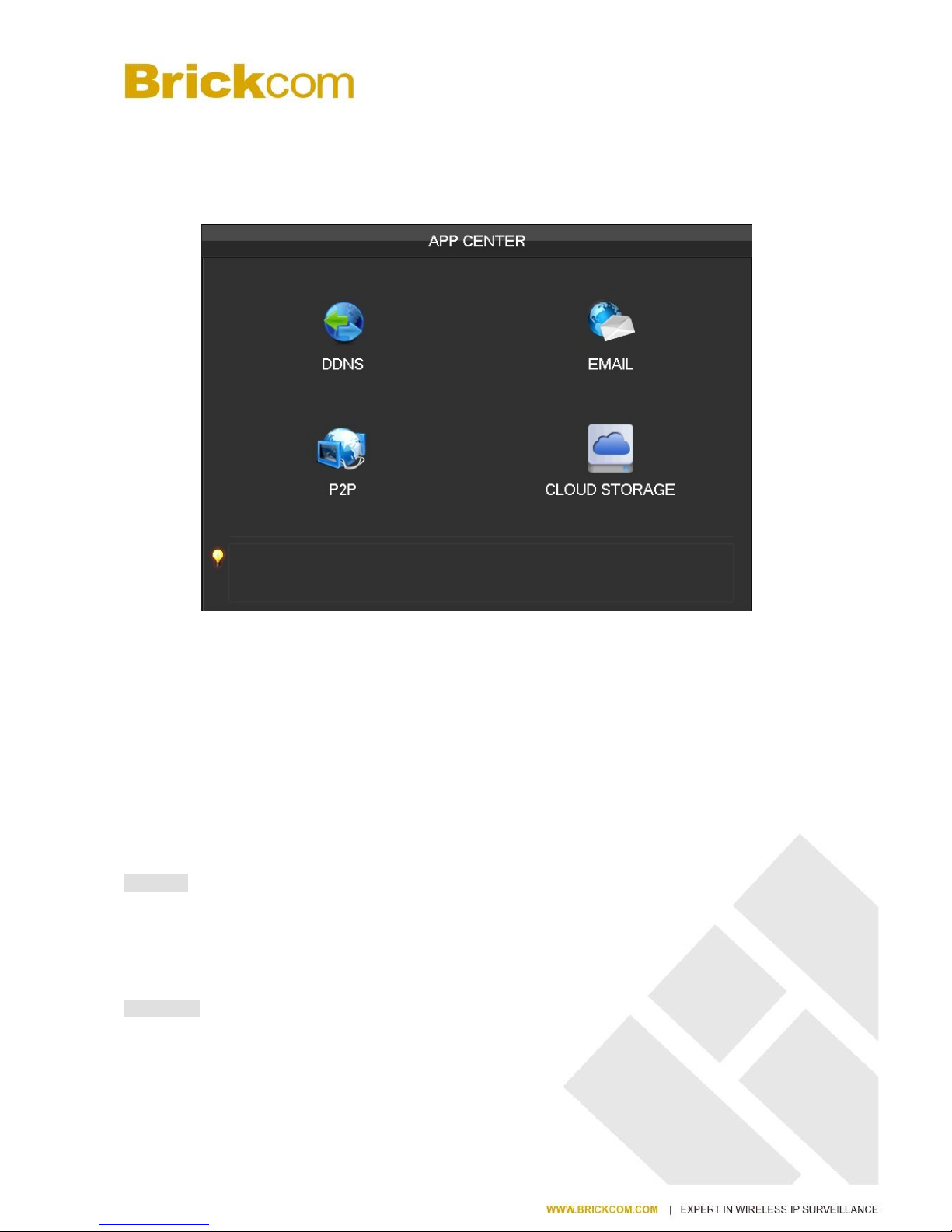

【APP Center】Set up multiple extended functions, including cloud storage, P2P, Email etc.
【System】Set basic, display, storage, abnormity, status, maintain, account and Network etc..
【Shutdown】Log off the user menu, turn off the machine, restart the system, and switch user and other operations.

www.brickcom.com.tw

42

The intelligent perimeter menu is shown as the following interface:

【Perimeter Record】Playback based on the events time bar: including external alarm, motion detection, intelligent
and system event information .
【Perimeter Setting】Rules of the perimeter and Alarm linkage configuration.

The intelligent Face menu is shown as the following interface:

【Face Search】Search the face image and video in the HDD.

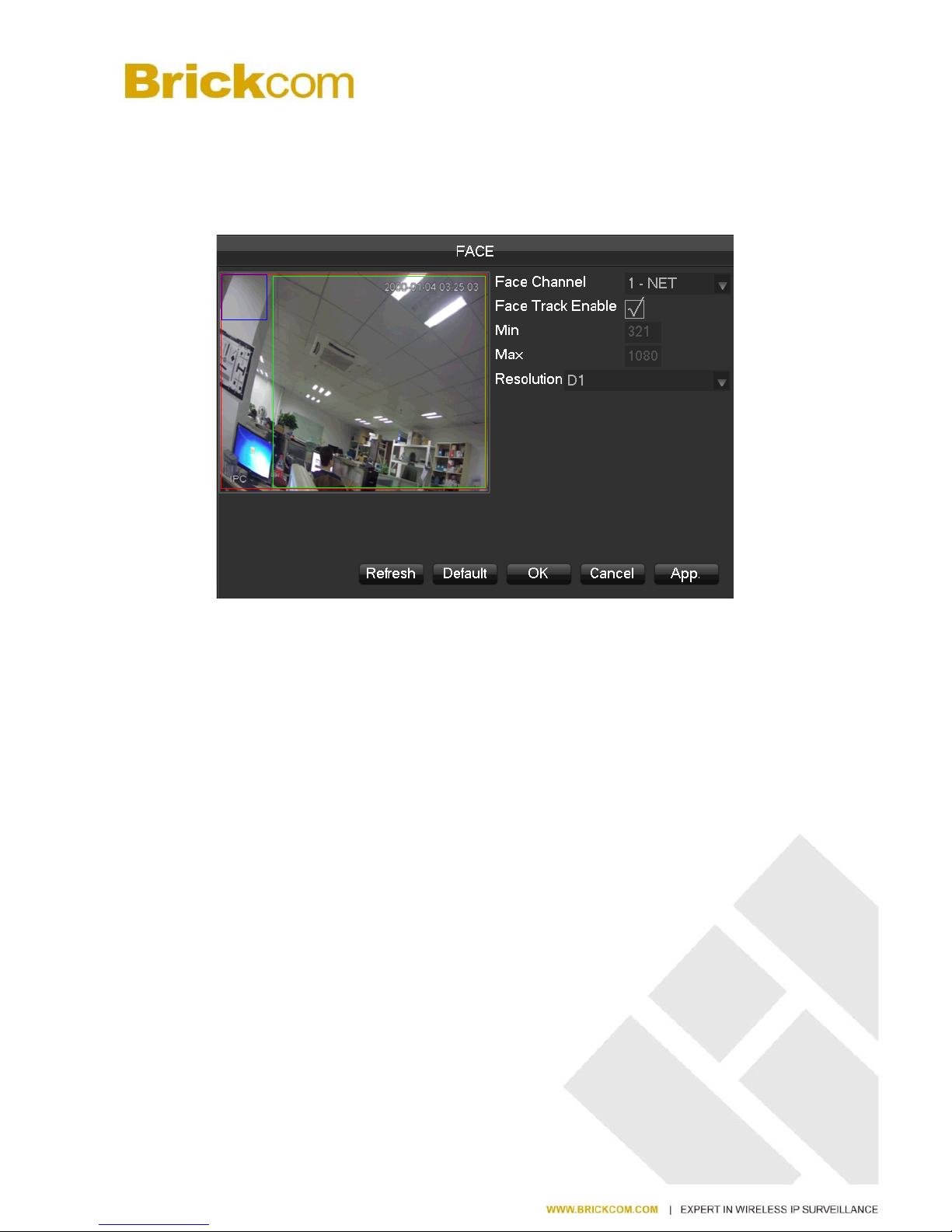

【Face 】Configure the face algorithm of the channel.

www.brickcom.com.tw

43

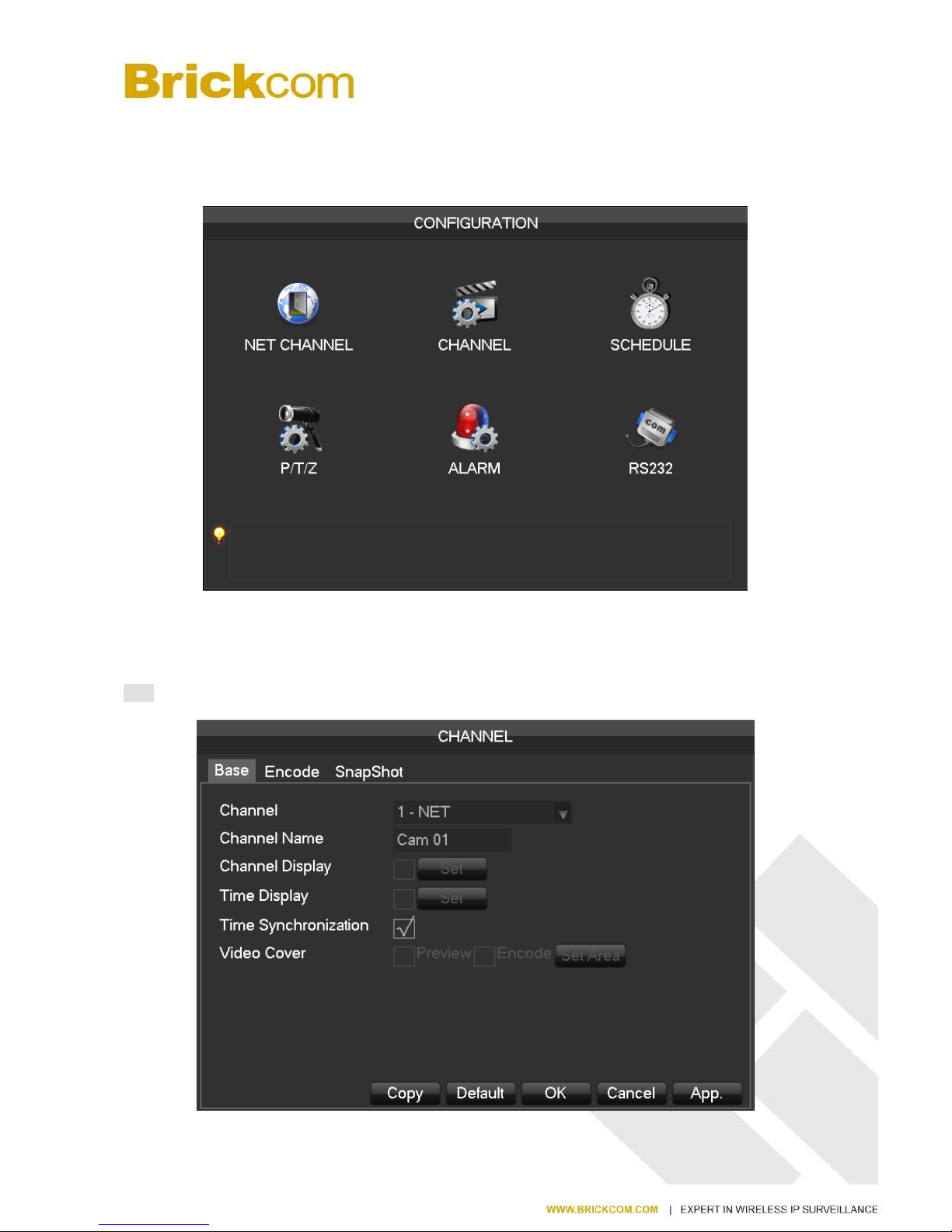

7.2 CONFIGURATION

【MAIN MENU】 left click to【CONFIGURATION】：

7.2.1 CHANNEL Setting

Base

www.brickcom.com.tw

44

【Channel】to choose the channel no. which needs setting；
【Channel Name】to set the channel name if in need；
【Channel Display】to set the channel name’s display place on the picture；
【Time Display】to set the time’s display place on the picture；
【Time Synchronization】to synchronize the time with net channel and device；
【Video Cover】to set some special area which needs special protection while preview and recording.

Encode

【Channel】to choose which channel to set;
【Compression】H.264
【Resolution】there are multiple resolution to choose for main stream. Sub steam too. Users can set the parameter

according to their needs.

【Frame Rate】PAL: 1fps-25fps; NTSC: 1fps-30fps.

Note

：

main stream, sub stream and frame rate are vary depending on devices and firmware version.

【Bit Rate Control】It includes fixed stream and variable stream. Under fixed stream, user can set encode stream,
while under variable stream, user can choose 6 class of image quality, lowest, lower, low, middle level, higher,
highest.

Snapshot

www.brickcom.com.tw

45

【Channel】Select a channel.
【Mode】Trigger: Crawl images when alarm. Click to enable the function.

【Image size】choose different resolution for snapshot.
【Image Quality】There are 6 levels of quality.

【Snapshot frequency】set highest capture rate for single channel，1s/pc 2s/pc 3s/pc 4s/pc 5s/pc 6s/pc 7s/pc 8s/pc.

7.2.2 Recording setting

Base

www.brickcom.com.tw

46

【Video mode】Record automatically, manually or not record.
【Video expiration time】The figure is between 0 to 365.
【Video package time】The figure is between 5 to 120 minutes.
【HDD full】Overwrite or stop recording.
【Channel】Select a channel.
【

Video redundancy

】

Open or close the redundant recording.

【

Prerecorded

】

The figure is between 0 to 30 seconds.

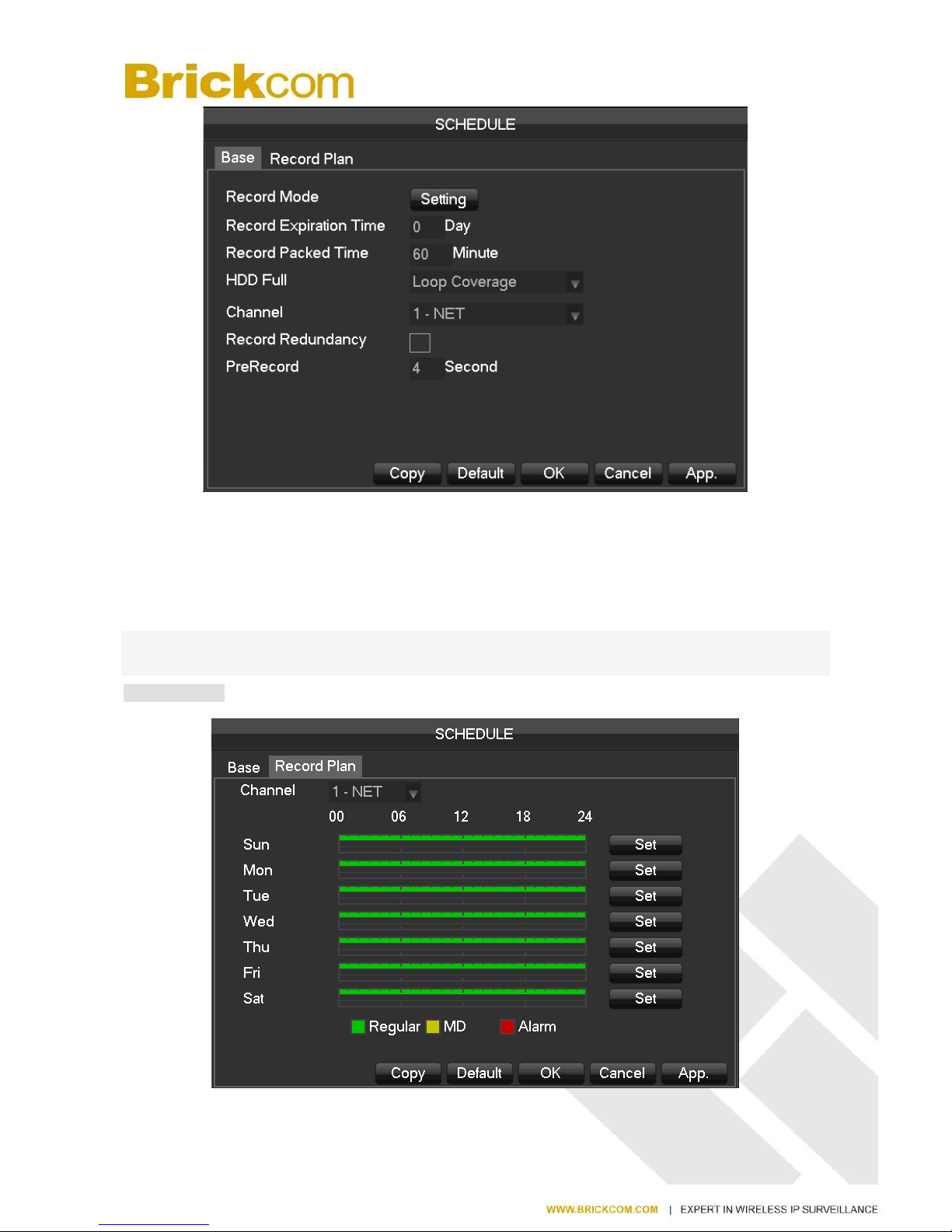

Recording plan

【Channel】select a channel. Green shows normal recording, yellow shows motion detection, and Red shows

www.brickcom.com.tw

47

Alarm. Users can set or change setting according to date. 【Copy】 copy the setting to other channels.

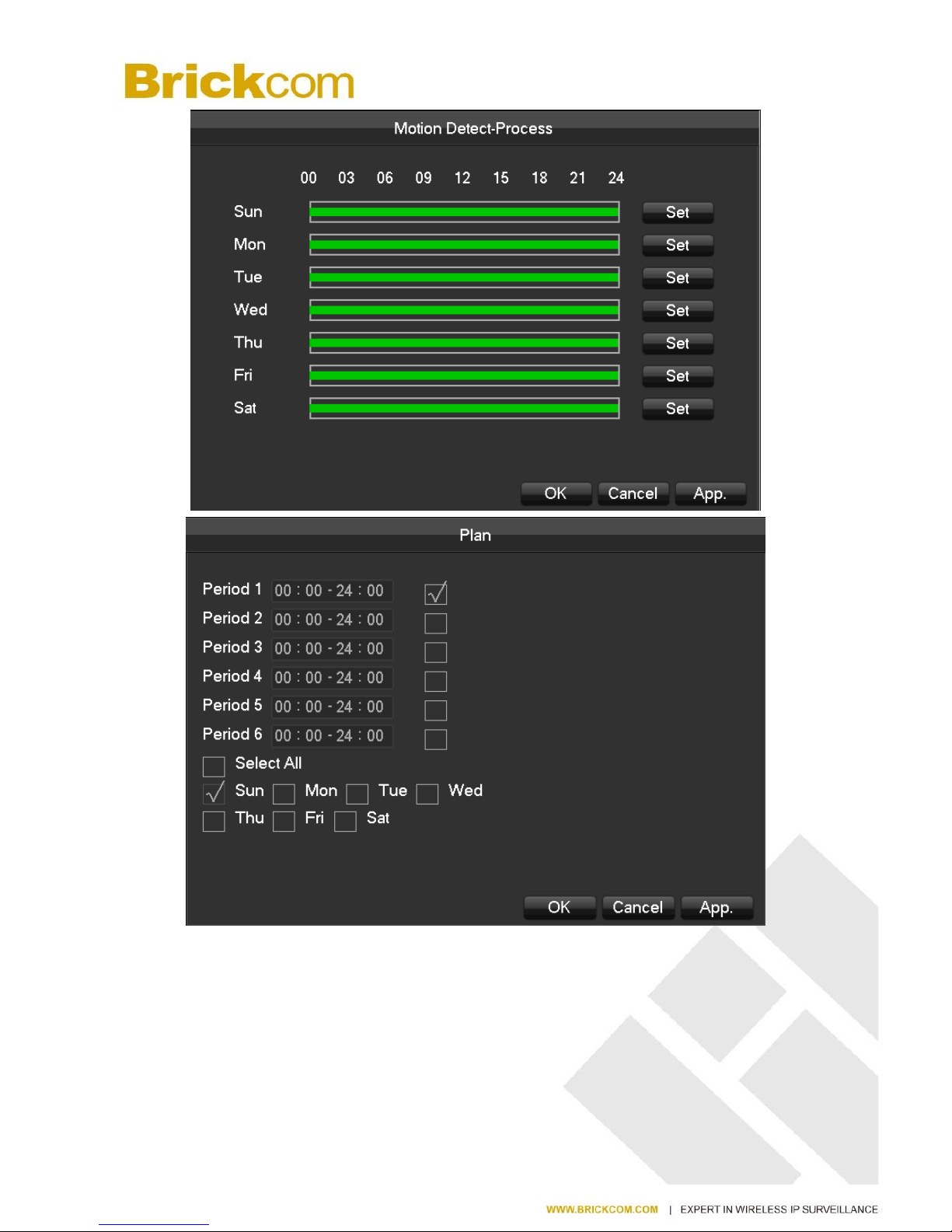

Click 【Set】 and enter into plan editing picture

【Period】set the recording period, there will be 6 period to choose;
【Regular】regular recording
【MD】motion detection recording
【Alarm】alarm recording

7.2.3 PTZ setting

User can set PTZ channel, protocol, address, baudrate etc. Please make sure the PTZ address and connection is
correct between PTZ’s A, B wire and recorder’s A, B wire.

www.brickcom.com.tw

48

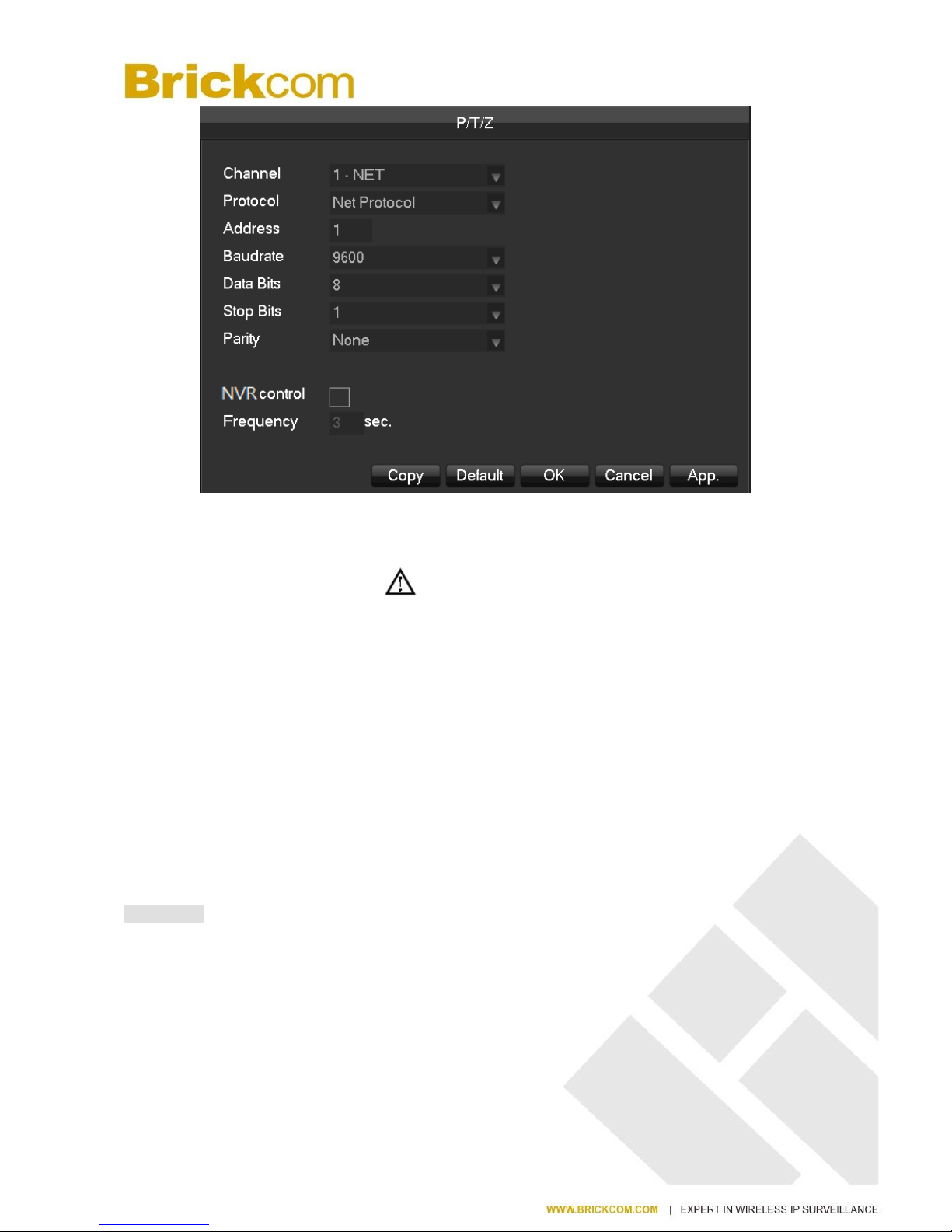

【Channel】select a channel with PTZ camera
【Protocol】select PTZ camera’s PTZ protocol(such as: PELCOD)

【Address】set address, the default is 1

（

Note：this address must be the same with PTZ, otherwise the PTZ can

not be controlled）

【Baudrate】Select the baud rate. Default is 9600.
【Data Bits】default: 8

【Stop Bits】default: 1
【Parity】default: None

【NVR control】click to enable
【Frequency】default: 3seconds, users can set any digits between 1~30 seconds

7.2.4 Alarm

Video detect

【Main menu】-【Alarm】-【Detect】, shows below:

www.brickcom.com.tw

49

【Channel】Select a channel.
【Alarm type】motion detection, video loss and video blind.

【Motion detection】detect the motion in the picture, and send alarm according to setting.
【Video loss】detect the video loss and send alarm according to setting.
【Video blind】detect the video which was covered and send alarm according to setting.
【Enable】control the alarm open and close
【Sensitivity】highest, higher, middle, low, lower, lowest
【Set area】there are totally 22*18=396 area can be set, which needs motion detection.

【Process】Set the alarming time, linkage and the handling method.

www.brickcom.com.tw

50

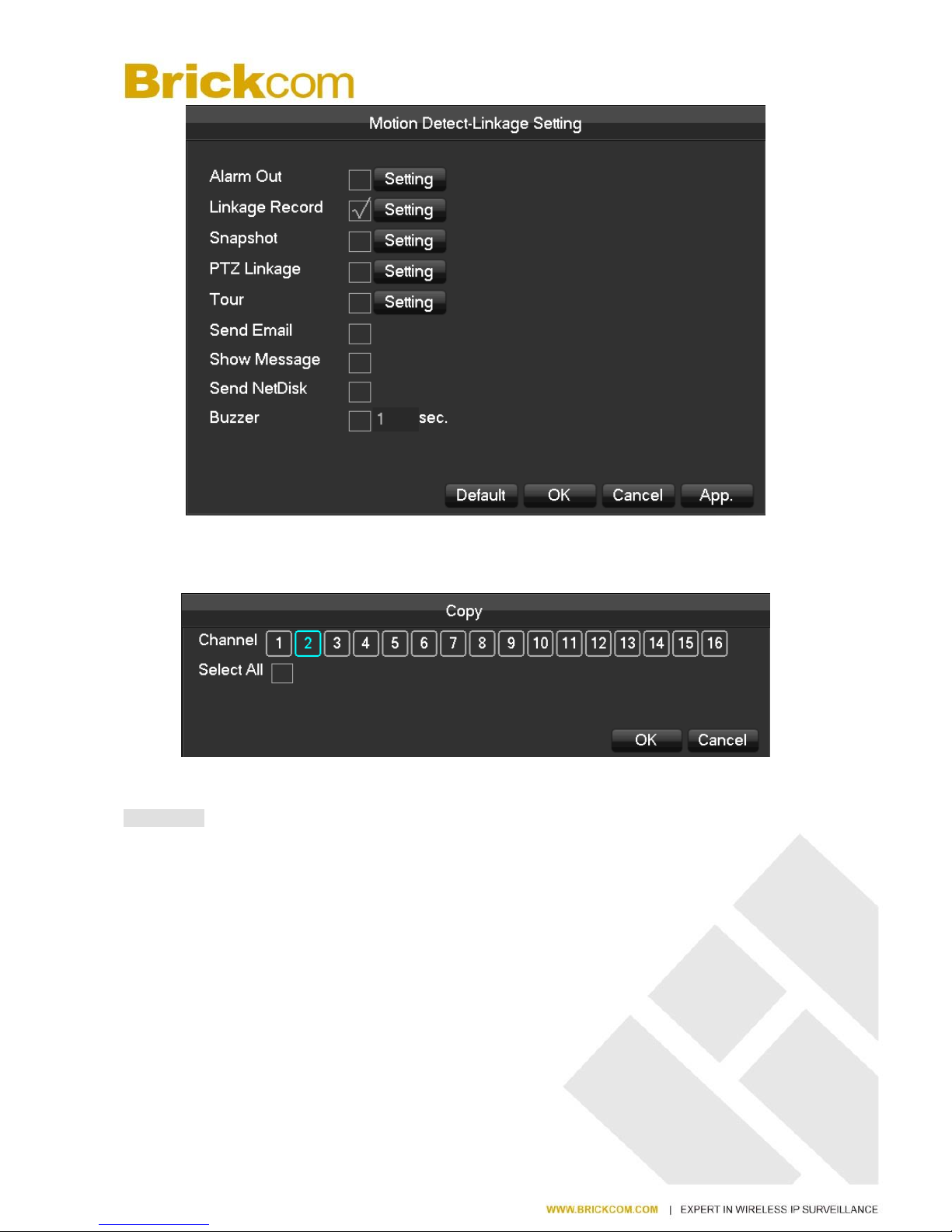

【Linkage Set】When a alarm occurs, you can set linkage of records, PTZ, touring and snapshot.

www.brickcom.com.tw

51

【Preview】 it will show a test on the current setting
【Copy】copy the setting to other channels

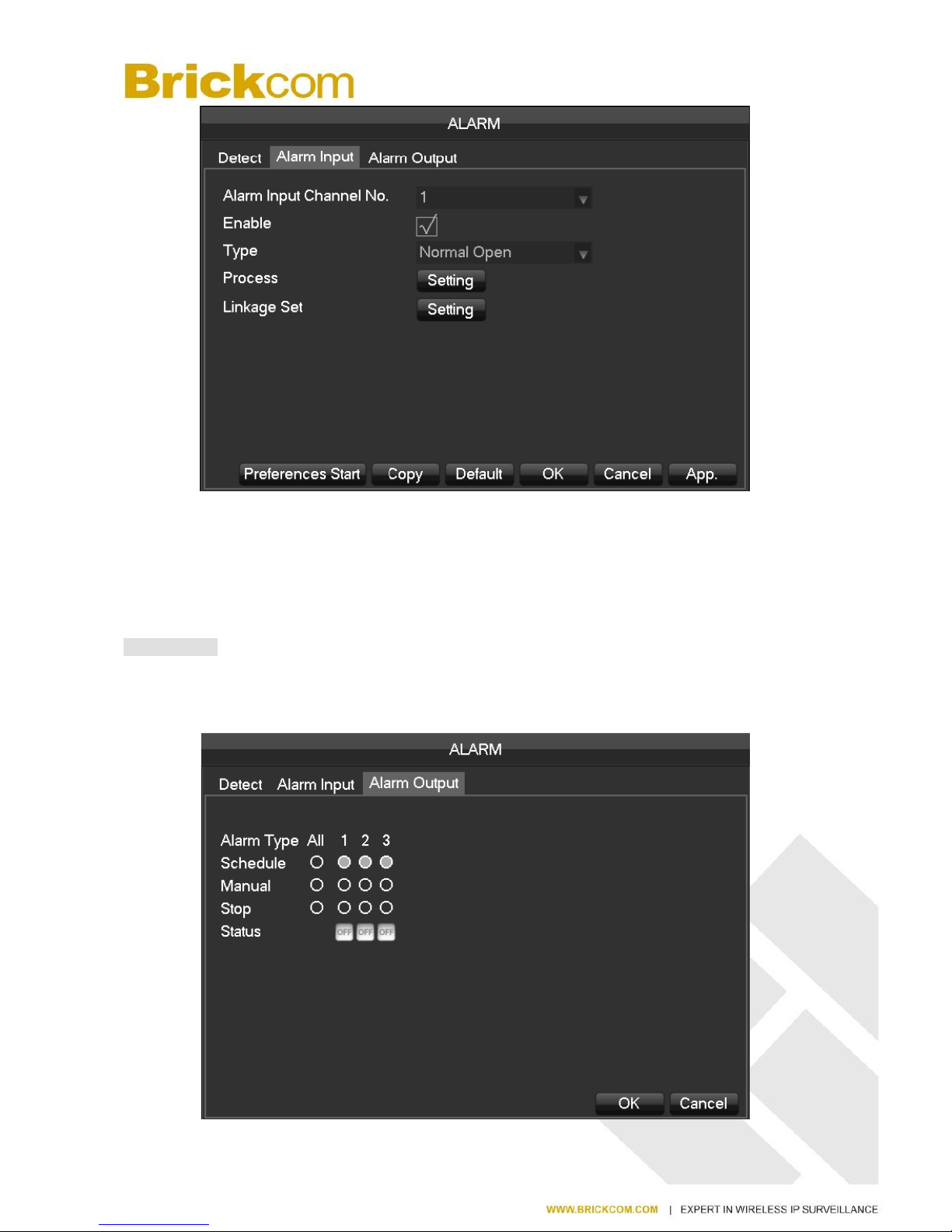

Alarm input

【Main menu】-【Alarm】-【Alarm input】

www.brickcom.com.tw

52

【Alarm input channel no】：select a channel
【Enable】：control the open and close of alarm
【Type】：choose Normal open and Normal close
【Process】、【Linkage set】：take 7.2.5 video detection as reference.

Alarm Output

On the real time preview picture, right click and choose 【Alarm output】, or enter【Main menu】-【Alarm】-

【Alarm output】

www.brickcom.com.tw

53

【Schedule】Alarm output is controlled by the device’s linkage setting.
【Manual】Alarm output is on and the status is active.

【Stop】Alarm output is off and the status is inactive.
【Status】Current status of alarm output

Note：some models do not have alarm output, please refer to some relative data sheet.

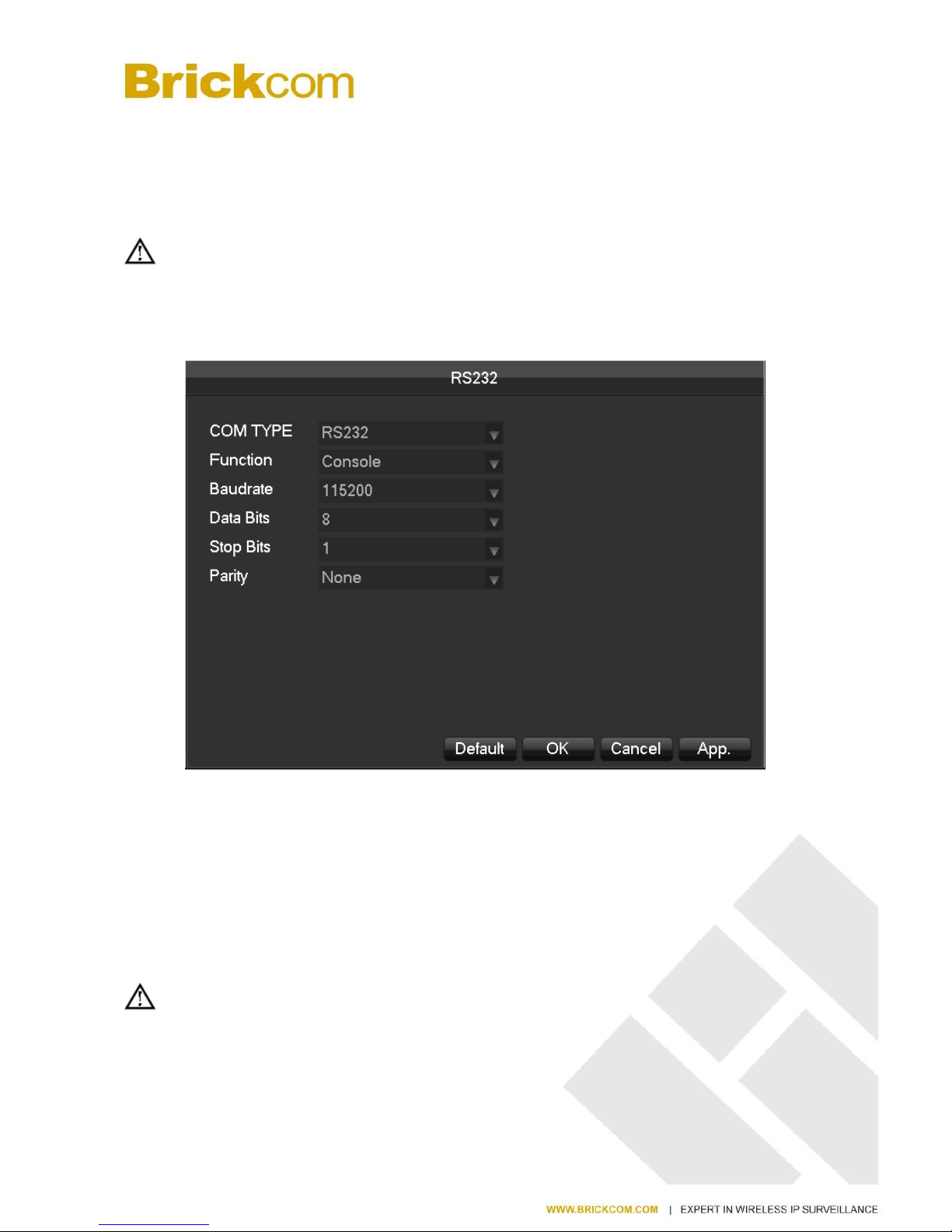

7.2.5 RS232

【Function】Select the appropriate serial protocol
【Regular】used to update firmware and adjust
【Keyboard】used specialized keyboard to control the device by serial port
【Transparent serial port】 used to transmit serial port data transparently
【Net keyboard】use specialized keyboard to control the device through network
【PTZ】 connect with matrix

Note：some models do not have RS-232 serial port, please refer to some relative data sheet.

【Baudrate】select the relative length of baud rate
【Data Bits】default: 8
【Stop Bits】default: 1

www.brickcom.com.tw

54

【Parity】default: None

7.3 Application

【DDNS】 check the device setting through domain name

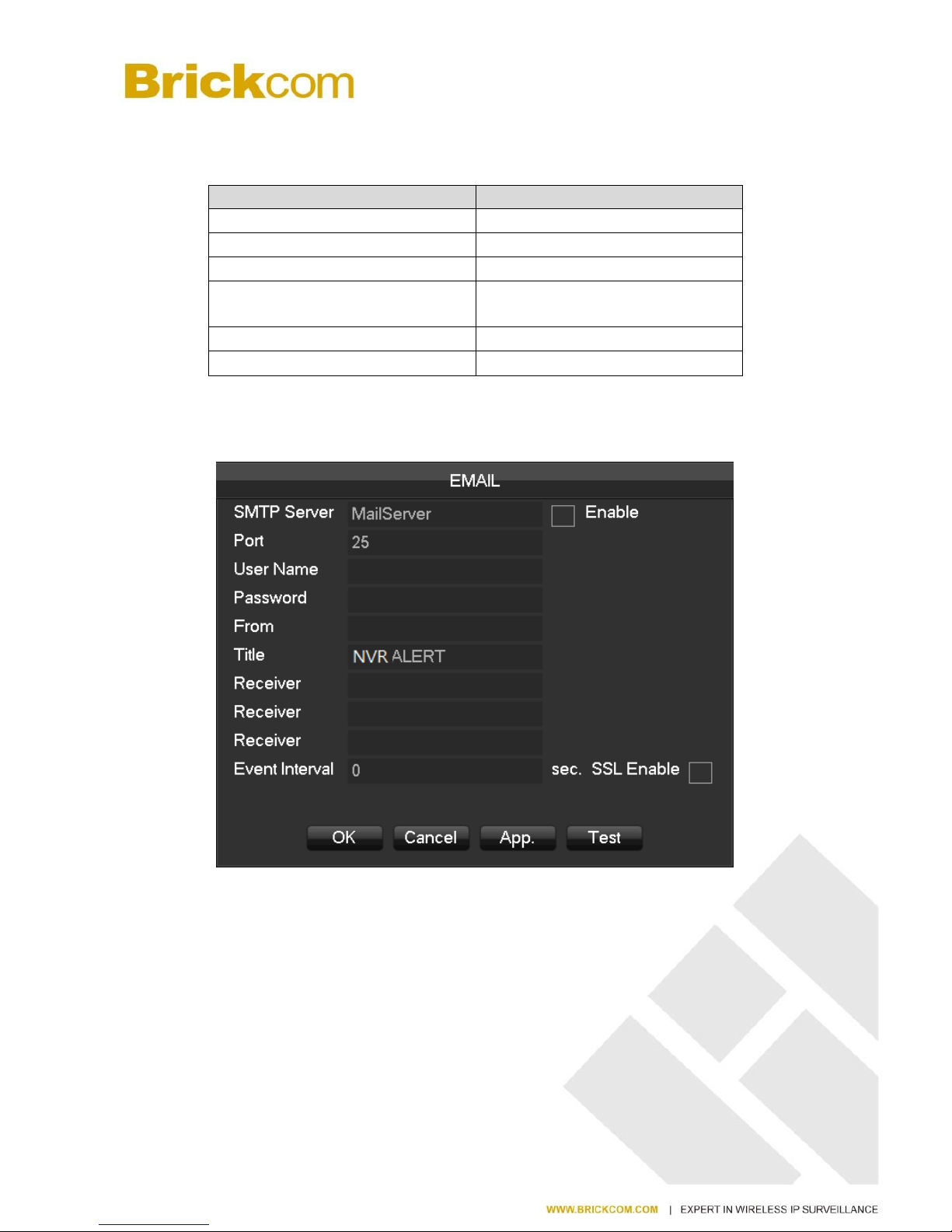

【Email】set the sender’s email SMTP server IP address, port, username, password and sender’s mail box, mail

SSL encryption.

【P2P】 setting of P2P transmission

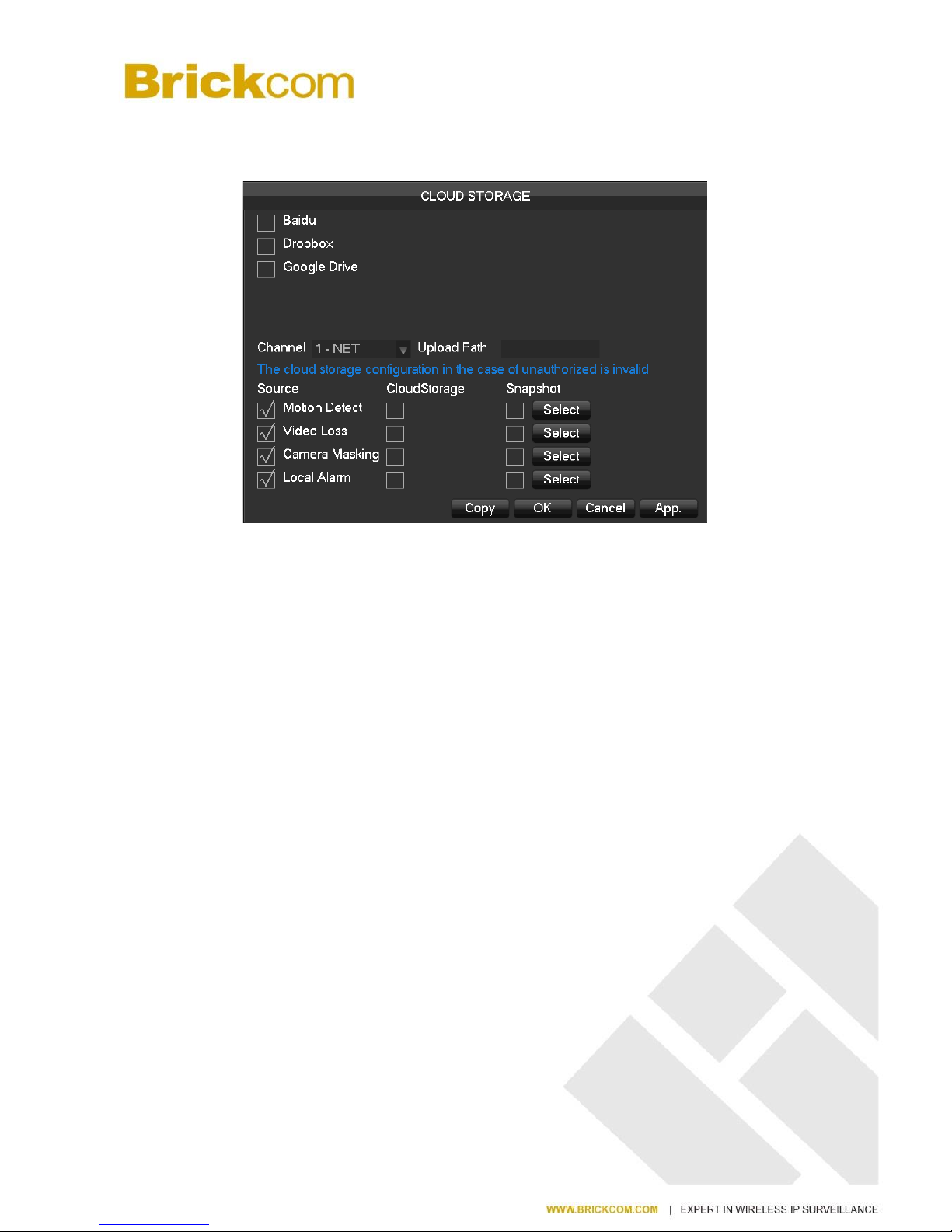

【Cloud】 bind with cloud storage service and set synchronization rule.

7.3.1 DDNS

Summary

Dynamic DNS is a kind of system which point internet domain name to variable IP. According to the rule of
internet domain name, domain name must associate with the fixed IP address. Dynamic DNS provide a fixed
Name server for the dynamic domain, and then guide the domain search to the IP address of dynamic user through
Name server, which can make the outside user connect to the dynamic user’s URL.

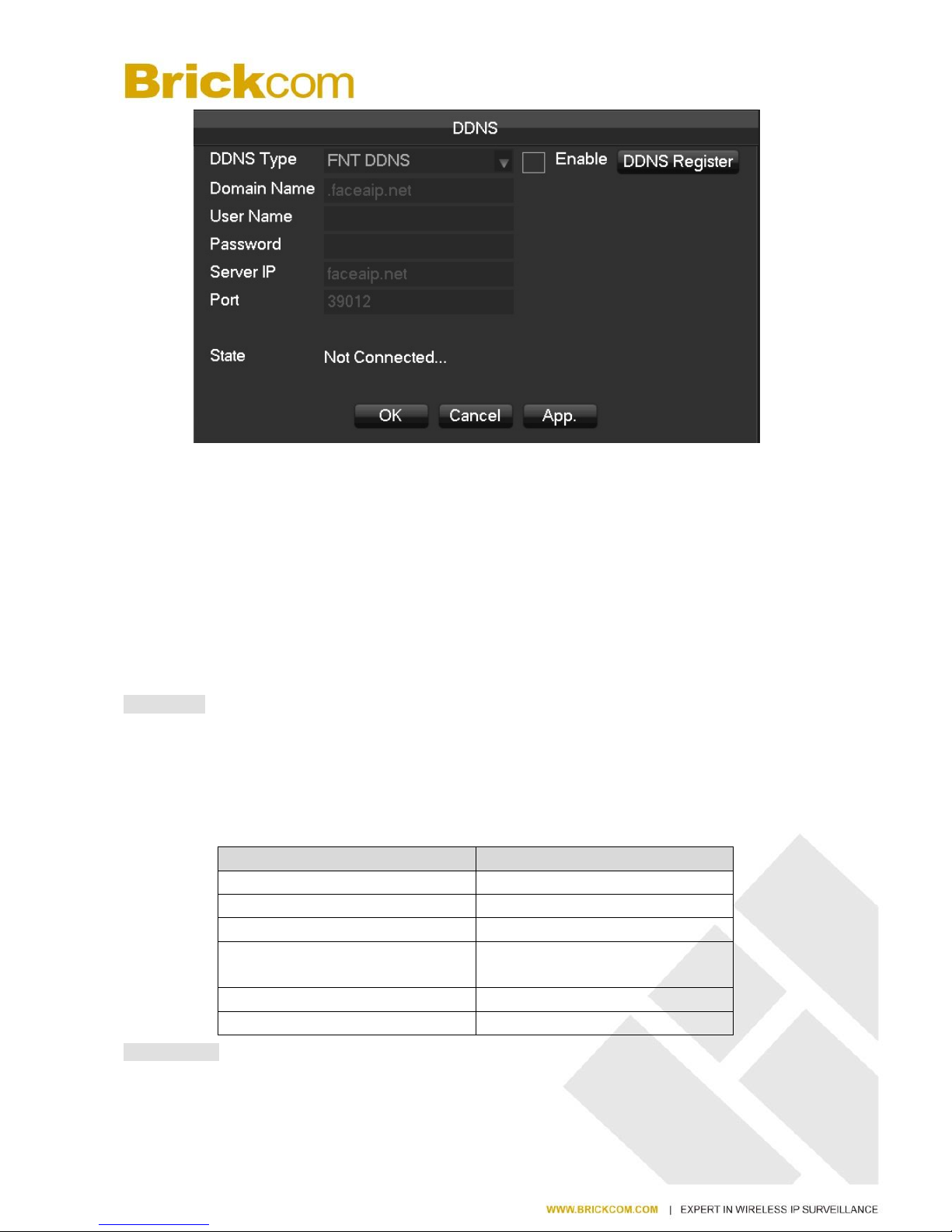

FNT DDNS

FNT DDNS is built-in professional dynamic DNS service in our network NVR. You can register directly in the
device .Specific steps are as following.

【Main menu】-【Network】-【Application】-【DDNS】，choose FNT DDNS

www.brickcom.com.tw

55

1：Select FNT DDNS and Enabled it.
2：Input one user name, there will be a domain name generated auto. Domain name = user name.faceaip.net.
3：Input the password
4：Click “Register” button. If the domain name is not registered, it will pop up a message that connect DDNS server
successfully otherwise it will prompt that the registration is failed.
Suggestion: you’d best change the DNS server in basic configuration to the router's DNS server

5：Click the “ok” button to complete the settings.

No-ip DDNS
Register

Register new account at www.no-ip.com

Embedded NVR Setting

Open 【Main Menu】→【APP Centre】→【DDNS】, choose NO-IP DDNS.
Refer to the following configuration：

Name

Configuration

DDNS type

NO-IP DDNS

Host IP

dynupdate.no-ip.com

port

80

Domain name

xxx.xxx.org（xxx：domain name

created）

User name

xxx（user name registered）

password

xxxxxx（password registered）

Dyndns DDNS
Register

Register new account at www.dyndns.com

www.brickcom.com.tw

56

Embedded NVR Setting

Open 【Main Menu】→【APP Centre】→【DDNS】, choose NO-IP DDNS.
Refer to the following configuration：

Name

Configuration

DDNS type

Dyndns DDNS

Host IP

Members.dyndns.org

port

80

Domain name

xxx.xxx.com（xxx：domain name

created）

User name

xxx（user name registered）

password

xxxxxx（password registered）

7.2.6 Email

Input sender mailbox SMTP server IP, port, username, password and address, email SSL encryption. Mail title
supports input Chinese, English words and Arabic numbers, 32 characters maximum. Support three receivers and
SSL encrypted mailboxes at most.

www.brickcom.com.tw

57

7.2.7 P2P

【Enable】Open/Close P2P function
【Transfer Mode】Network transfer strategy, choose Quality priority or Fluency priority
【Account Reuse】enable it supports multiple users log in the same device
【Device ID】display device ID
【Password】device password
【Local Port】set local port
【P2P Server URL】P2P server URL
【State】current connection state

www.brickcom.com.tw

58

7.2.8 Cloud storage

Support Baidu, Dropbox and Google Drive three kinds cloud storage.
Apply corresponding cloud storage account and bind it. User can only select one kind account.

www.brickcom.com.tw

59

7.3 Intelligent function configuration

7.3.1 Face detection configuration

【Face Track Enable】enable to open the face tracking function
【Min】blue square means the minimum face detection area. When the face is smaller than the minimum detection

area, it can’t be detected. Please set the size according to the actual usage scenarios.

【Max】green square means the maximum face detection area. When the face is bigger than the maximum detection

area, it can’t be detected. Please set the size according to the actual usage scenarios.

【Resolution】set different analysis resolution according to the front-end highest resolution. For example, if front-

end device supports 1080P, the local device can be set into 1080P, 720P, D1 or CIF resolution.

【Red Square】：red square means the detection area, once set, the device only detects this face detection area.
False positives and underreporting can be reduced effectively by setting the detection area.

www.brickcom.com.tw

60

7.3.2 Perimeter Intrusion detection configuration

No.

Configuration

Description

1

Channel selection

Choose the channel need setting

2

Rule naming

Rule naming and set the rule line color

3

Enable

Open/close the current rule

4

Capture enable

Open/close picture capture function

5

Create/delete

Create new rule/draw new line

6

Linkage setting

Linkage setting of the current rule

7

Arming/disarming

Arming/disarming setting

8

Direction setting

Detection direction setting

9

Rules list

Display all the created detection rules

7.4 System setting

7.4.1 Basic setting

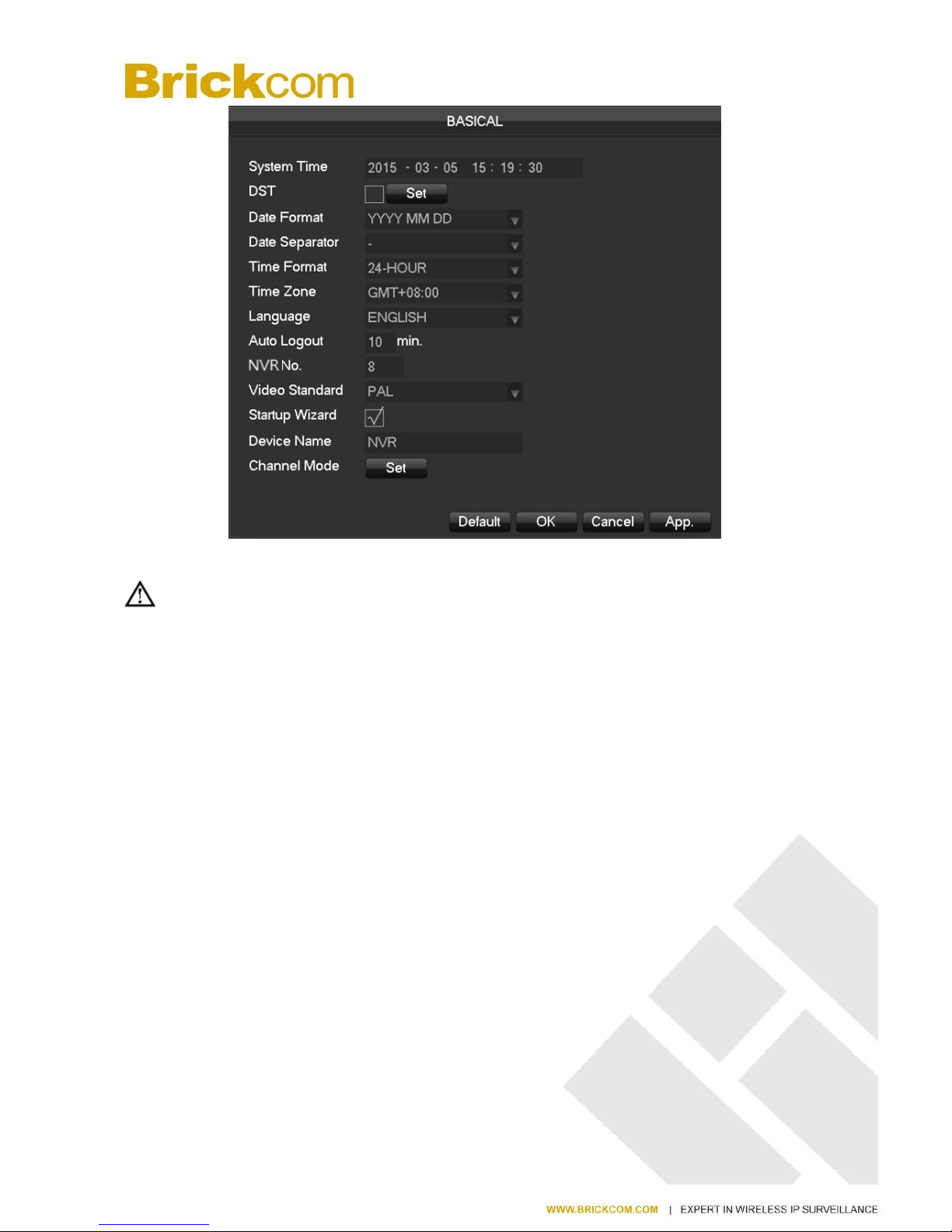

Get into the 【Basical】 menu under 【Configuration】

www.brickcom.com.tw

61

【System Time】set the HD record system time

Note:please click the”save” button to save the time after setting

【Daylight Saving Time (DST) 】Enable the function and click “Set” to enter the local DST starting and ending
time setting.

【Date Format】Modify the date display format
【Date Separator】Select the separator for date
【Time Format】24 hr. or 12 hr. display mode
【Time Zone】Select the time zone
【Language】Select language (different models have different language choice)
【Auto Logout】set menu stand-by time from 0-60 min. O min means no standby; if set a time, system will logout

auto after this period time and user need to login again.
【NVR No.】Used for a remote control or keyboard control multiple devices. Please click “Ad” button on remote
control and input the corresponding NVR number to operate.

【Video Standard】PAL/NTSC (must keep the same with the front-end camera)
【Startup Wizard】enable switch, open/close the startup wizard interface

【Device Name】used together with the push function, display this device name in the alarm message received in

iPhone.
【Channel mode】The selection of local channels and network channels.

www.brickcom.com.tw

62

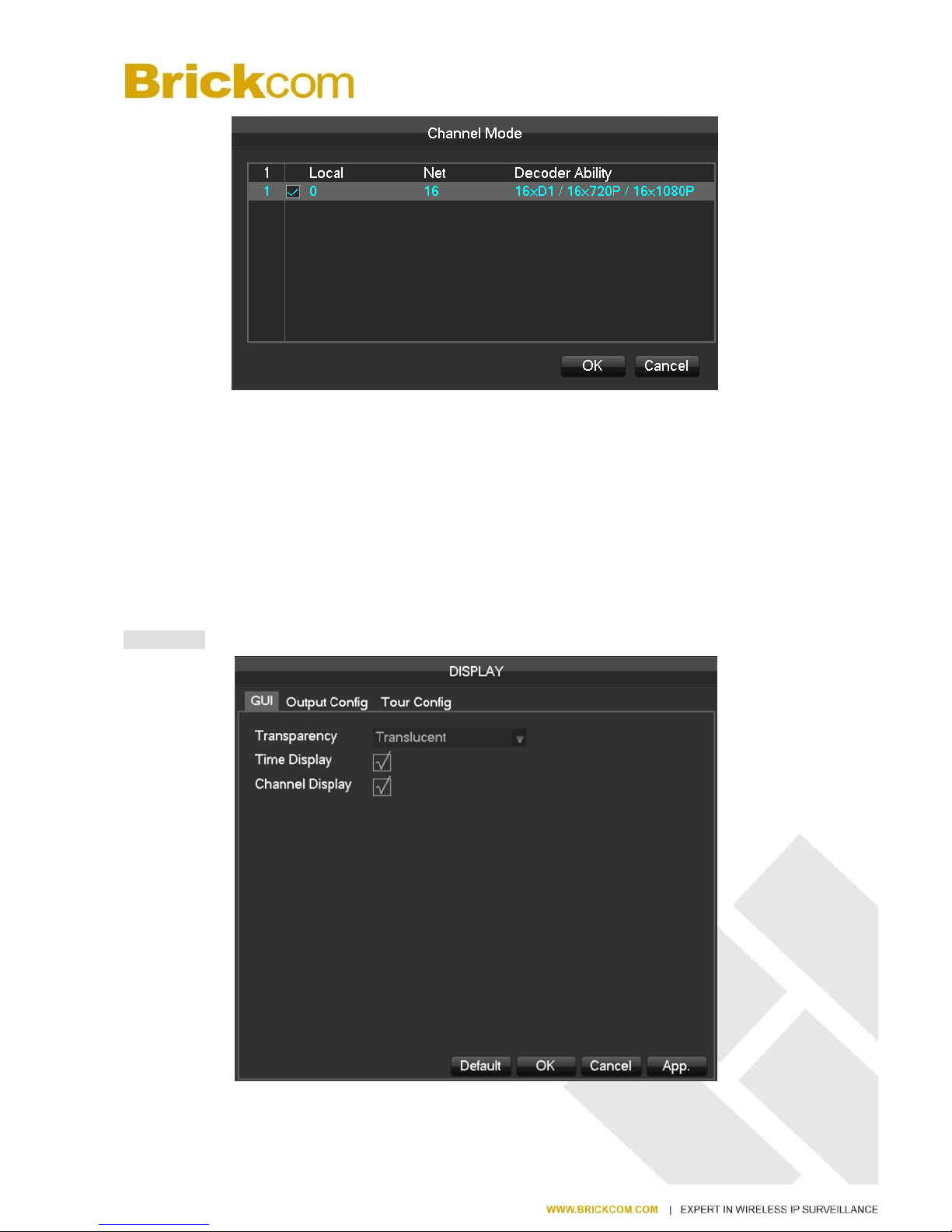

Select hybrid or NVR mode according the menu prompt and save. Reboot the device after channel mode
modification. Channel mode introduces the device recording ability under different modes. Real recording ability
needs refer to the detailed device specification.

7.4.2 Video output

GUI Display

www.brickcom.com.tw

63

【Menu Transparency】adjust menu transparency , four degrees
【time display】enable switch for time displayed in live view
【channel display】enable switch for channel name displayed in live view

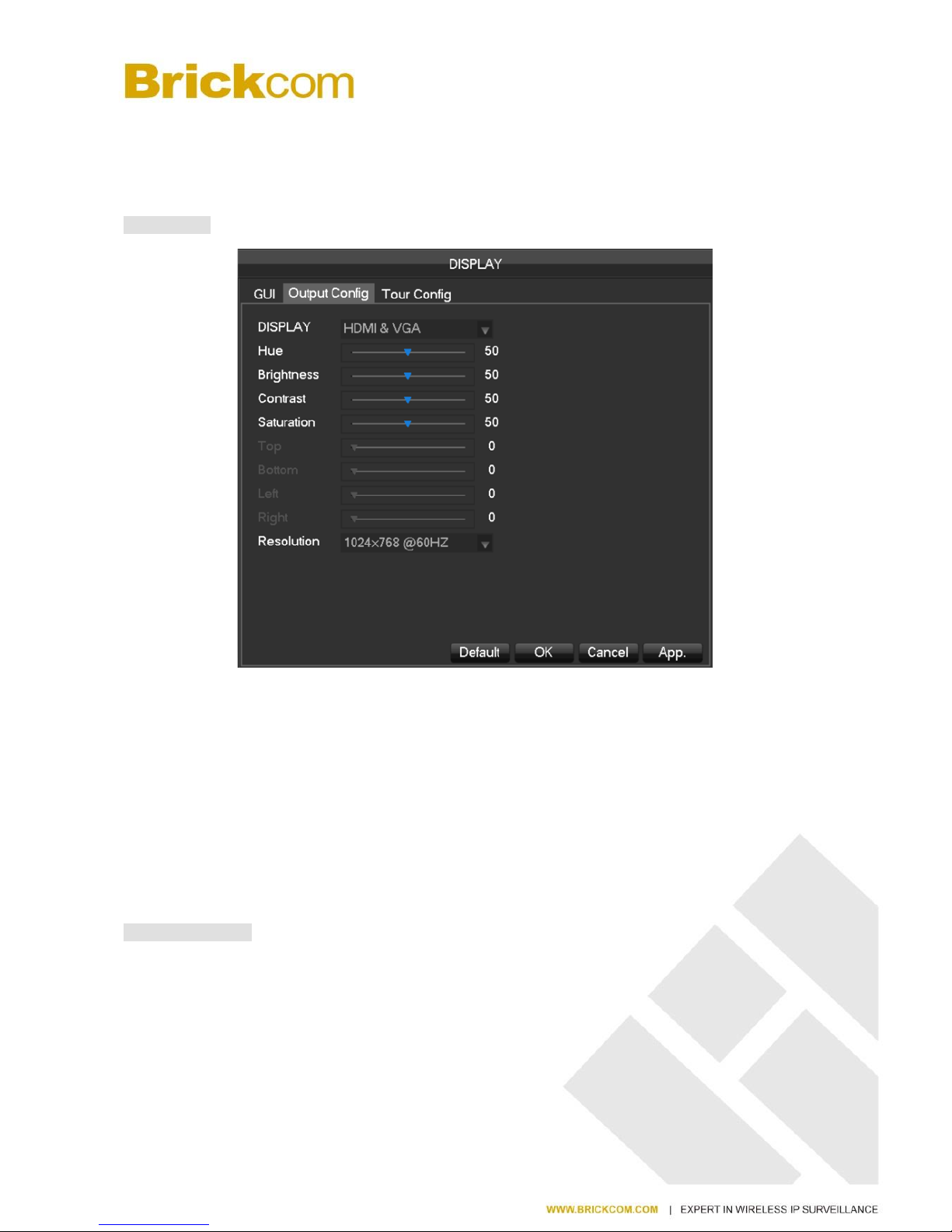

Output mode

【Display】CVBS/HDMI&VGA
Under CVBS mode, user can adjust the monitor or TV hue, brightness, contrast and saturation. You can also adjust
the right TV output area when the displayed image is not full or beyond the scope of the monitor. Under
HDMI&VGA mode, user can only adjust the monitor hue, brightness, contrast and saturation.

【Resolution】select the VGA output resolution and refresh rate, total includes 1024×720@60Hz、1024×768@60Hz、
1280×1024@60Hz、1366×768@60Hz and 1920×1080@60Hz five choices.

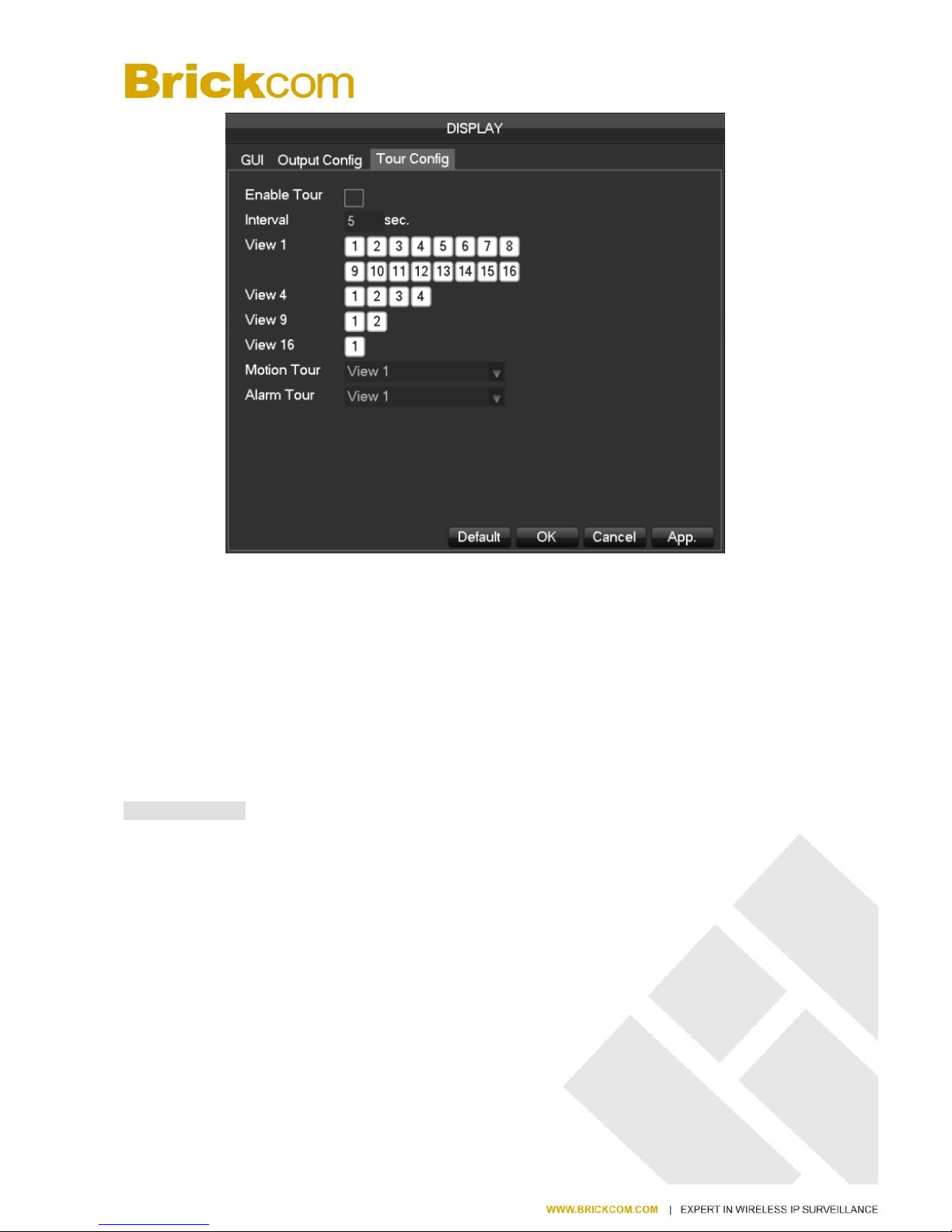

Tour Configuration

www.brickcom.com.tw

64

【Enable Tour】Enable switch
【Interval】Ttour interval time is 5-120s
【View】It includes single screen, four-, nine-, sixteen-screen.

【Motion Tour】Set the motion detection tour mode
【Alarm Tour】Set the alarm tour mode

7.4.3 Storage management

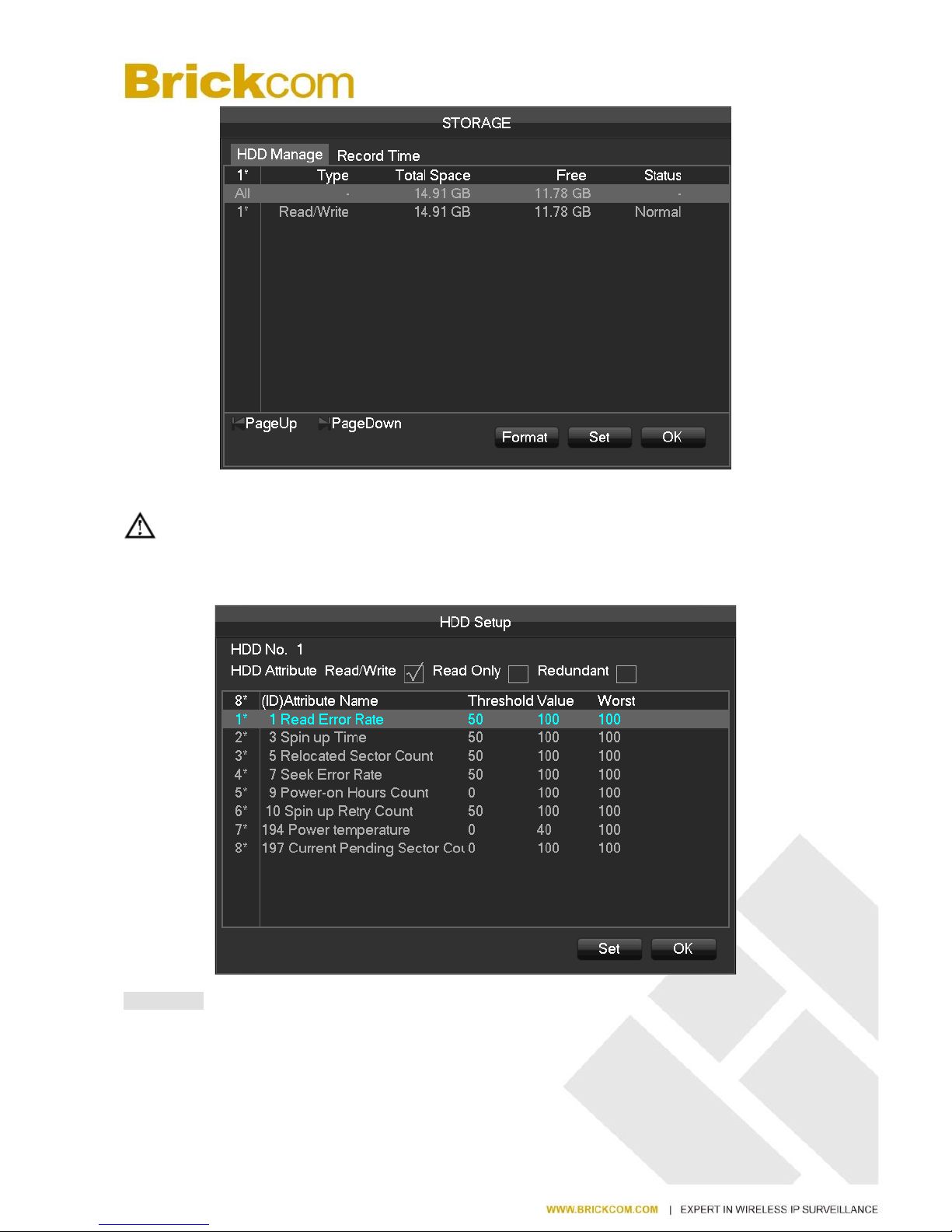

HDD management

Show the current HDD capacity, spare capacity and working status in the NVR

www.brickcom.com.tw

65

【Format】Format one HDD, user must have appropriate permissions

Note: Hard disk format operation results in the loss of video data

【Set】Set HDD as read-write, read only or redundancy mode. Video data can be protected from covering under
read only mode. It supports HDD S.M.A.R.T smart detection at the same time.

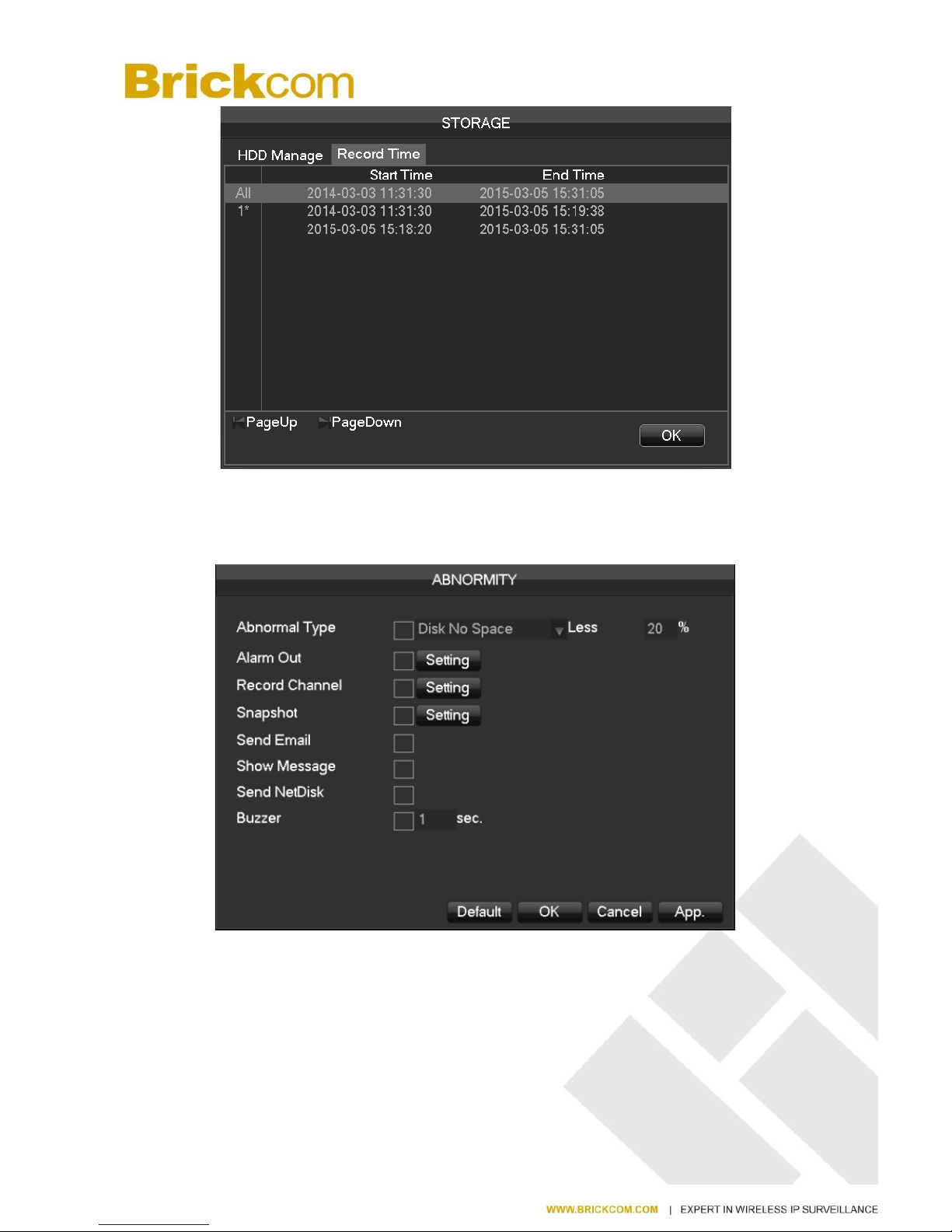

Record time

Show the record starting and ending time in the device HDD

www.brickcom.com.tw

66

7.4.4 ABNORMITY

【Exception type】
【No Disk】Alarm when HDD is not present or cannot be detected.
【Disk low Space】Alarm when hard disk capacity is lower than setting.

【Network Failure】Alarm when network is not connected.
【IP Conflict】Alarm when IP address conflict.

www.brickcom.com.tw

67

【Disk Error】Alarm when there is error in reading and writing hard disk.
Process

【Alarm Output】,【linkage record】,【snapshot】,【Send Email】,【show message】,【Send to network drive】,
【buzzer】

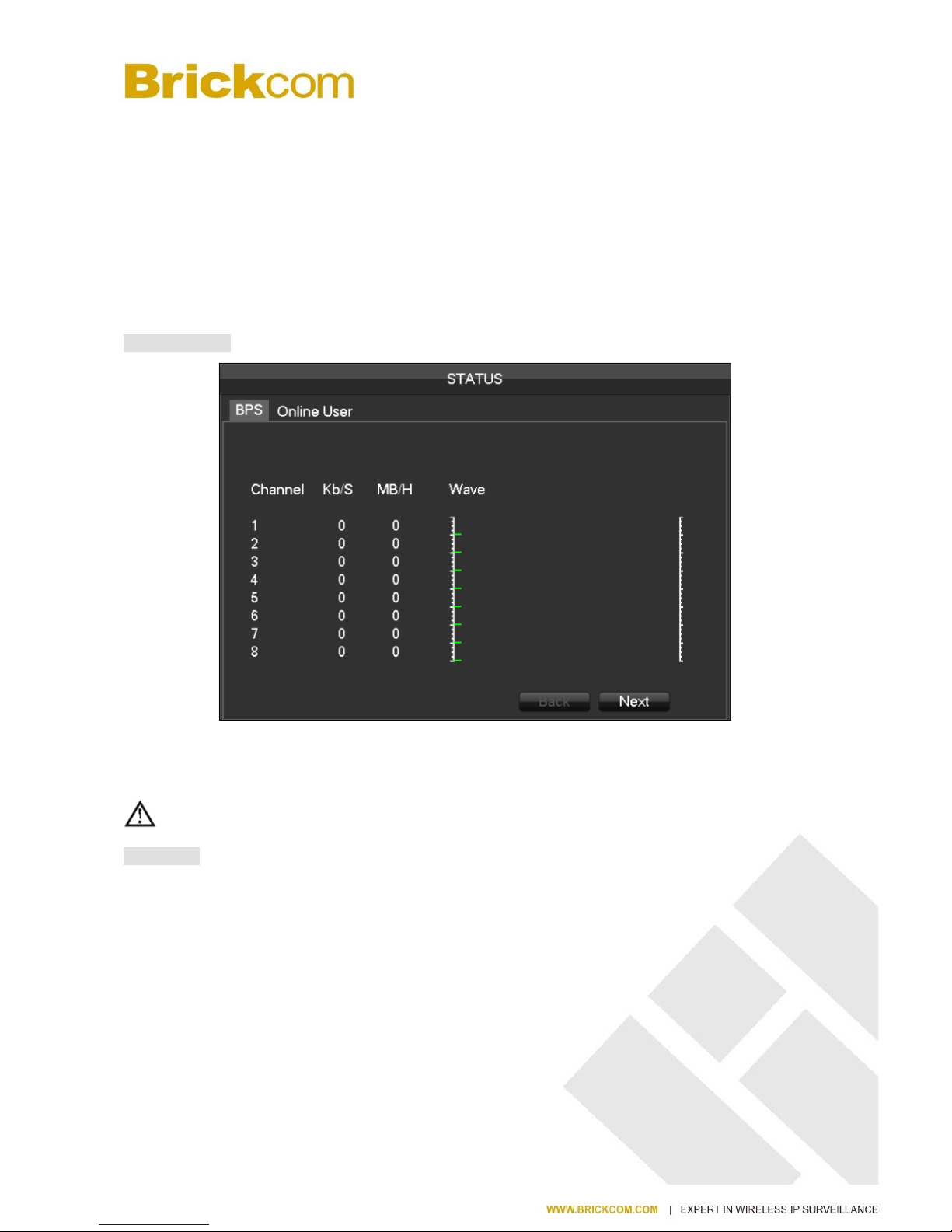

7.4.5 System Status

Stream statistics

【stream statistics】Provide capacity size of video files for reference, stream statistics for each channel, waveform
display.

Note：This statistic is an estimate only for reference

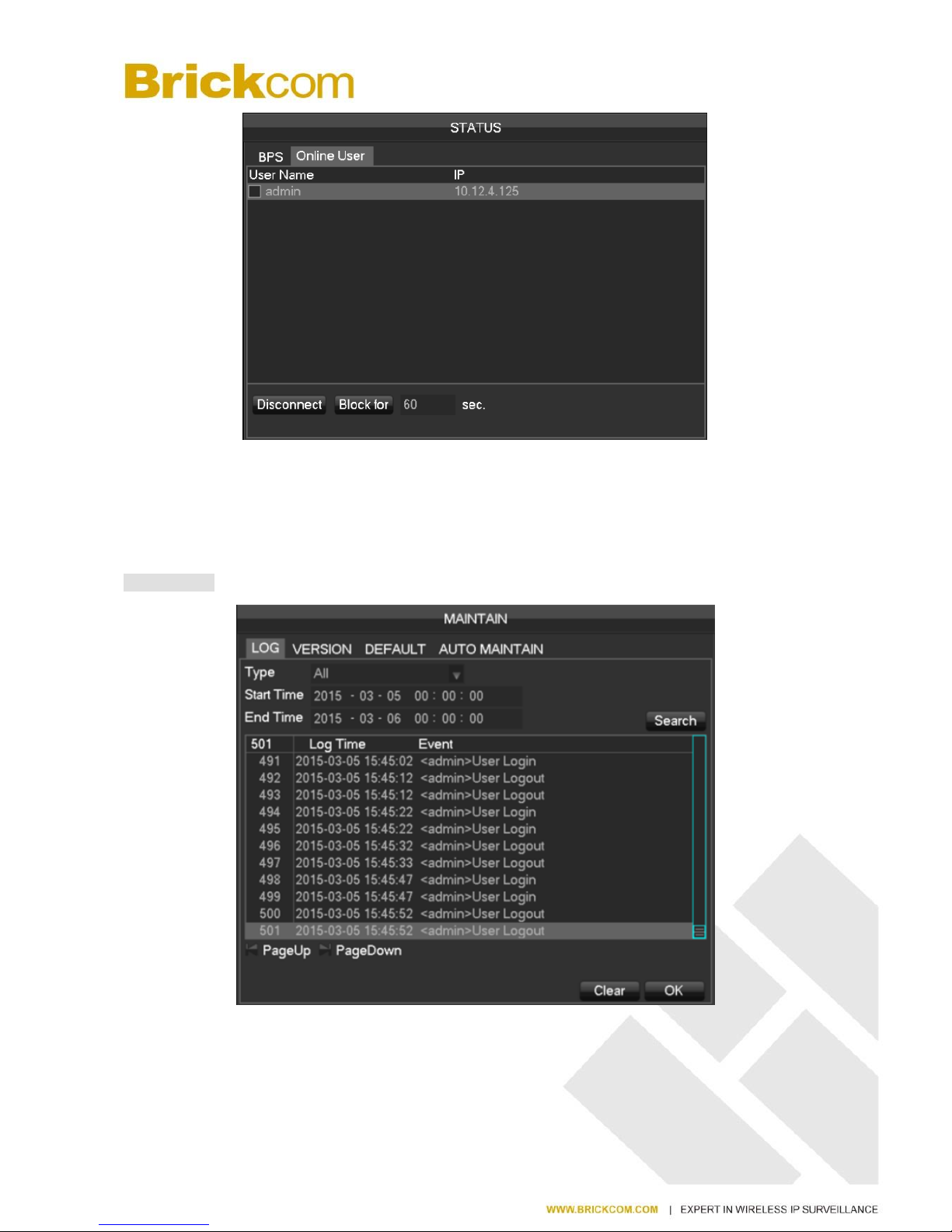

Online user

www.brickcom.com.tw

68

【Online user】Online users can view the current status, disconnect and shielding.

7.4.6 Maintain

System Logs: Display system logs, convenient for users to check.

Log information can be divided into system operation, configuration operation, data management, alarm event,
record operation, user management, log clear, file operations.
Select the type and time of the query, press the Find button, the system displays the log records in a list, and click

www.brickcom.com.tw

69

the Backup button export backup logging onto your computer.
Click the Clear button, the system will remove all types of log files.

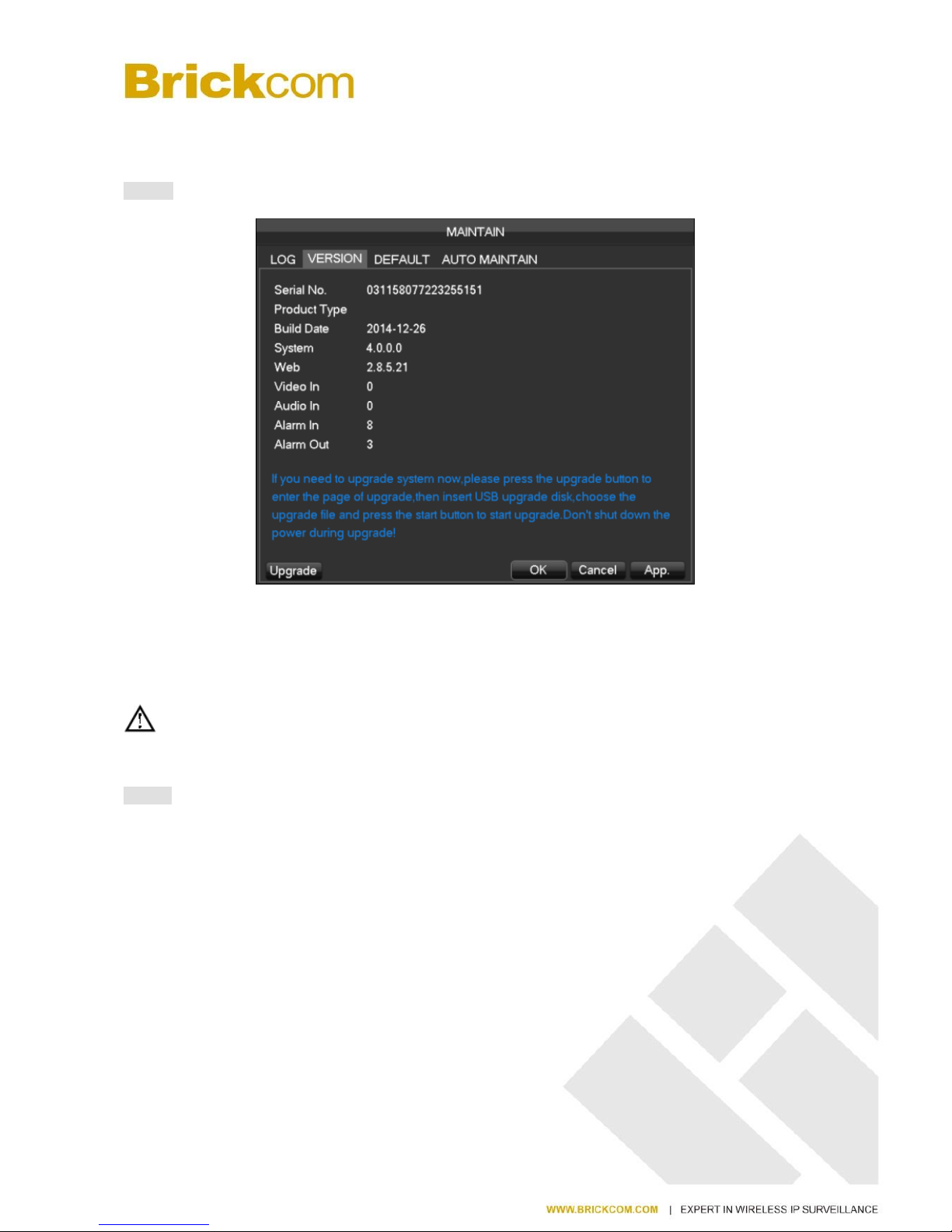

Version

【Version】 Display device serial number, system hardware features, software version and release date information.
【Upgrade】System software can be upgraded: Insert a USB storage device with the system software upgrade, click

Upgrade.

Note：System upgrade may cause the NVR can not start properly, please Operation under the guidance of the

company's technical staff.

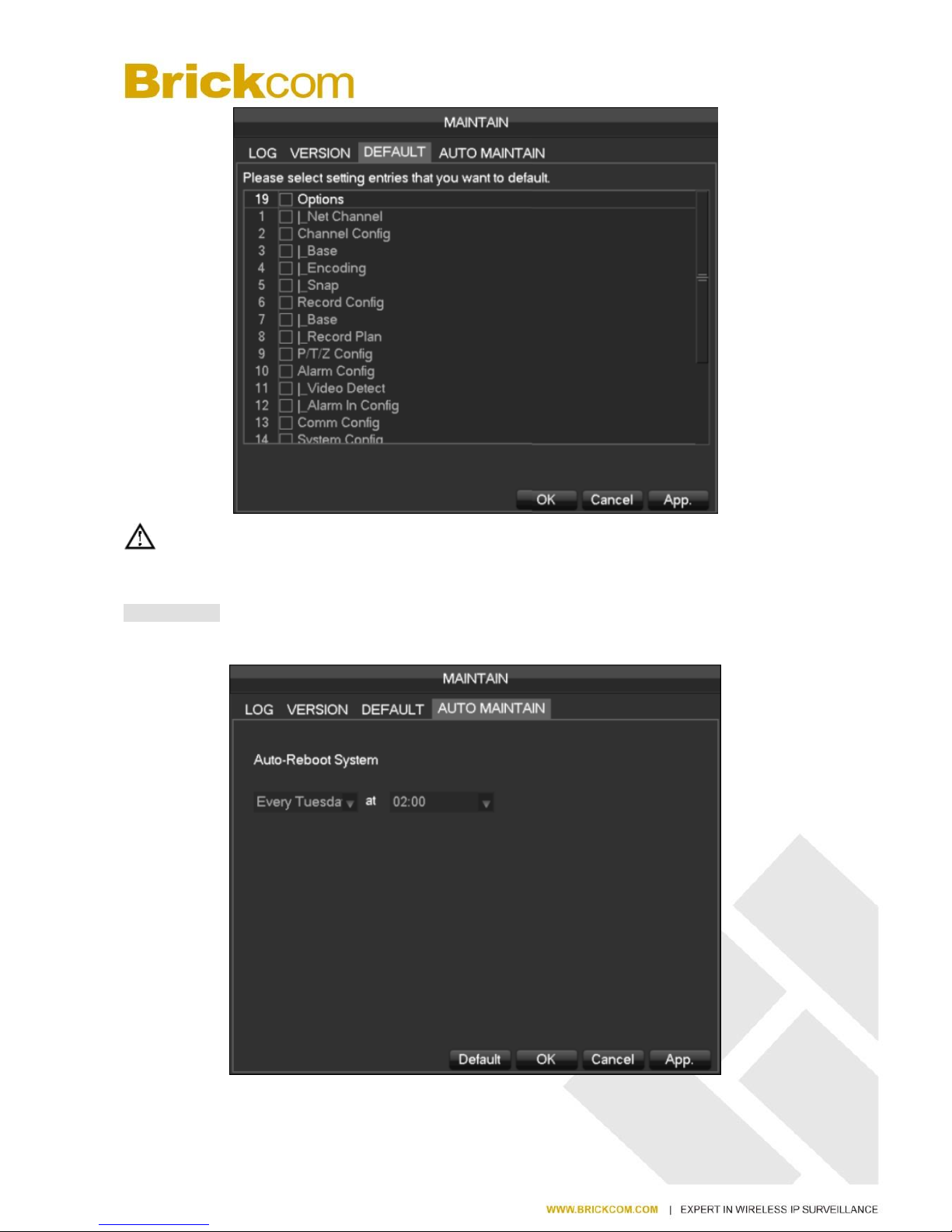

Default

【Default】System back to the default configuration factory state (specific items recovered optional)

www.brickcom.com.tw

70

Note：Menu color, language, time and date format, video format, IP address, user accountsand so on will not

be restored.

Auto Maintain

【Auto maintain】Set the desired the project of automatic maintenance.

www.brickcom.com.tw

71

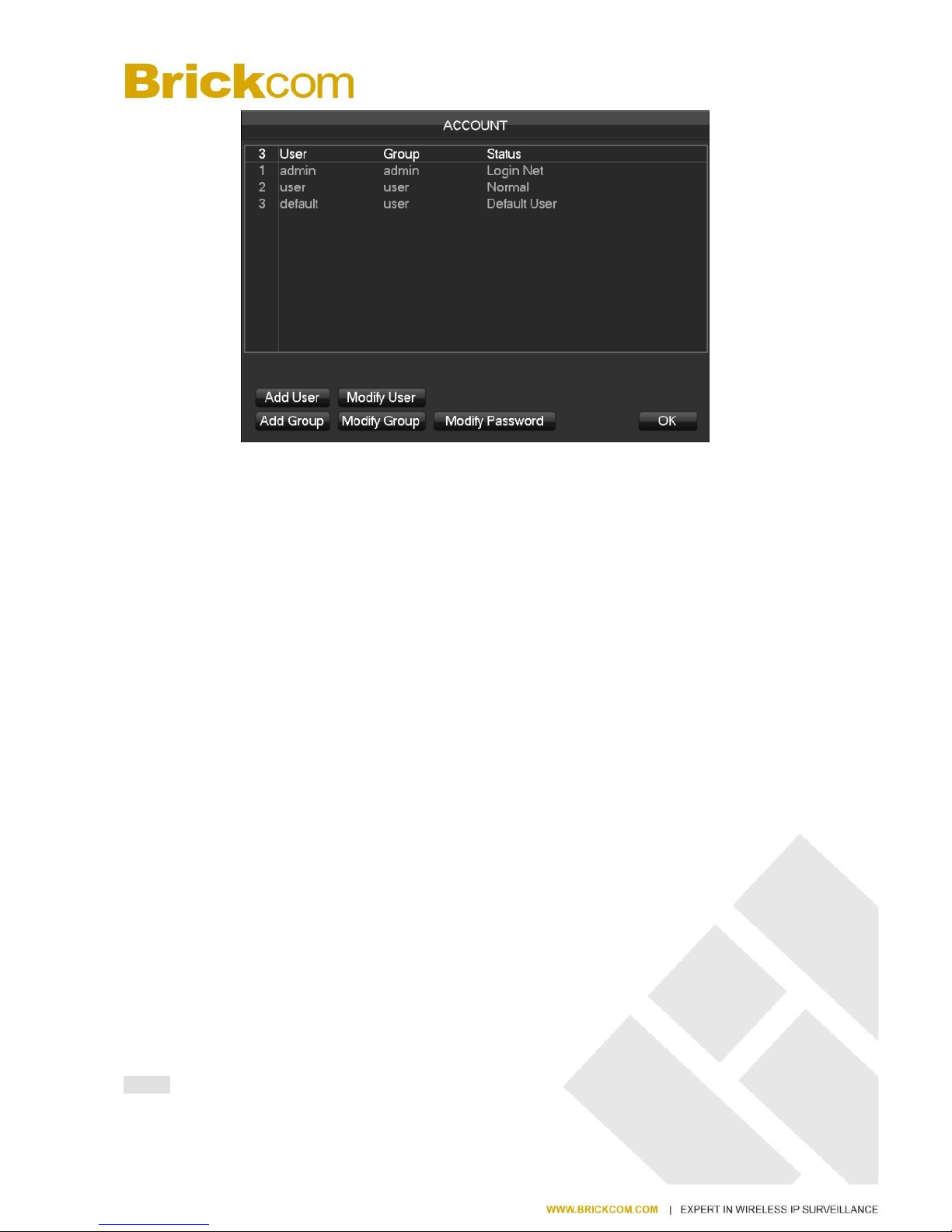

7.4.7 Account

Basic Considerations of User Management：

 The following user names and user group names, etc., character and length consisting up to six bytes, the

invalid string is trailing spaces. Legal characters: letters, numbers, underscores, minus sign, point, other
characters are not allowed to use.

 The number of users and groups is not limited，User Group increased or delete according to user-defined: The

factory settings are user \ admin two groups. Users can set their own related group, the group of users can be
freely re-assign permissions at the group permissions.

 User management using two methods of user and group,，Group name and the user name cannot be repeated,，

each user must belong to a group, a user can belong to only one group.

 There are three users: admin, user, and hidden default initialization. The factory password for first two is

123456. Admin default user permissions are high at the factory, and the factory default user as a low privileged
user, only for monitoring, playback.

 Hidden default: This user system for internal use and cannot be deleted. When local is in "no user is logged"

state, the system will automatically log in with this account. Users can modify this account permission to do
what free login can do.

 Enter to the menu interface of increase user, Enter your user name and password, select belongs to which group,

and select whether to reuse this user. Reuse means that the account can be used simultaneously, multiple clients
can use the account.

Once the group belongs selected, the user's permissions only a subset of the group, not ultra vires the properties of
the group.

www.brickcom.com.tw

72

【Add User】Increases users within the group and settings user access control.
【Modify User】Modify the user and settings user access control.
【Add Group】Add group and settings group access control

Enter into the menu interface of Increase the group, determine the group name, select 83 access control, left click
mouse button to confirm, save the new user group.

【Modify Group】To modify the group attribute which already exists.
【Modify Password】To modify the password of user account.

Select the user，enter old password then enter new password and confirm
Click【confirm】button to make sure modify password.
The password can be set 1-6. Beginning and ending spaces is invalid password, you can have a space in the middle.
Users which has User Account Control permission can change their own passwords, can also modify other users'
passwords.

7.4.8 Network

Network configuration interface can set the NVR network parameters. NVR factory default IP address is

192.168.1.88. The menu contains the network settings of basic setup, advanced settings and network service
application settings.

Basical

www.brickcom.com.tw

73

【Network Card Type】LAN 1、2 can be selected by Dual LAN equipment
【DHCP】Automatic search IP function. When you open the DHCP IP / Mask / Gateway cannot be located, if the

current DHCP in effect, the IP / Mask / Gateway DHCP display values obtained can be found in the network state
【IP Address】Use（）or input numbers to modify IP, then set 【subnet mask】 and 【default gateway】

for this IP.

【First DNS Server】DNS server IP
【Alternate DNS Server】DNS alternate IP
【Physical Address】physical address of current net port

Advanced

www.brickcom.com.tw

74

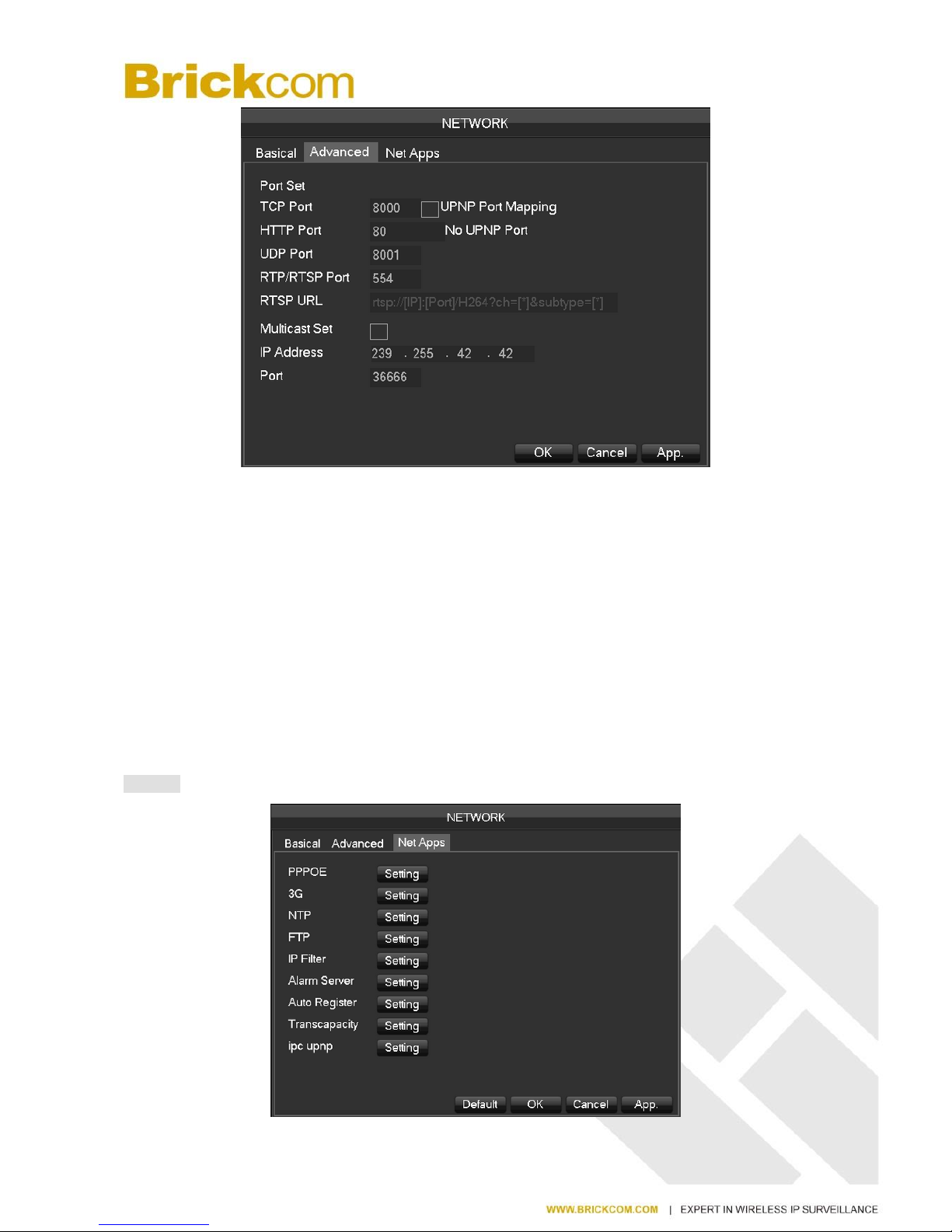

【TCP port】8000 as default, Can set the port according to the actual needs of the user.
【HTTP port】80 as default
【UDP port】8001 as default, Can set the port according to the actual needs of the user.。
【RTP/RPSP port】554 as default
【UPnP】Protocol can turned on port mapping by the router automatically, when using this feature, make sure UPnP

is enabled on the router function

【Multicast】Multicast IP address range restrictions in the following figure, the multicast port number is not
restricted

Network

www.brickcom.com.tw

75

【PPPOE】Select Enable switch to turn on the PPPOE dial-up service of the device.
Enter ISP（Internet service provider）provide the saving of user, password for PPPoE
Operation：Succeed after dialing，check the 【Network Status】IP, then enter the IP address to access the device
after open IE.

【3G】Support 3G card dial-up to provide remote access device features.
【NTP】Select Enable switch to turn on the NTP protocol support, can be with SNTP communication server to

realize automatic calibration function.
Host IP: Enter the IP of NTP service NTP

Port：Supports TCP transport only, port is limited only 123.
Update cycle: interval time is 1 minute or more, the maximum update period is set to 65,535 minutes.

Time zone： London GMT+0 Berlin GMT +1 Cairo GMT +2 Moscow GMT +3 New Delhi GMT +5
Bangkok GMT +7 Hong Kong & Beijing GMT +8 Tokyo GMT +9 Sydney GMT +10 Hawaii GMT-10
Alaska GMT-9 Pacific Time GMT-8 US Mountain Time GMT-7 US Central Time GMT-6 US East Time
GMT-5 Atlantic Time GMT-4 Brazil GMT-3 Atlantic – Central GMT-2

【FTP】Select the Enable box to make the protocol enable，to enter the FTP settings menu
Two kinds of FTP upload file types are video files and pictures, set up an FTP server address, port, remote directories
and so on. When remote directory is empty, the system will automatically create a different folder by IP, time,
channel
User name, password to access the FTP username and password.
Set upload file size, you need to upload the file channel, time, type, etc.
Set upload length which upload to FTP server file length, if less than the set value, the entire video file upload; If
more than the set value, upload take part from the beginning and set the value of consistency, the file later omitted;
setting a value of 0, then upload the entire video file.
Different channels can be set two different time periods, three types of video recording.

【IP Permissions】 for permission to access the NVR IP rights management. When choosing the white list, the list
indicates that only the IP to connect this NVR. The list of supported 64 IP settings. If the selected item is not ticked,
no restrictions on access to the device's IP.

【Alarm Center】 alarm interface for customers to reserve the use of self-development.
【Network transmission capacity】
【Number of network user connections】 number of connections: 0-10, if you set o means the network does not

www.brickcom.com.tw

76

allow users to connect ; the maximum number of connections is 10.

【Number of network Monitoring connections】the number of connections is recommended: 0-32, this need to tick
to start this function. Real-time video over the network for browsing, the number of connections depending on
network bandwidth, the number greater, the larger the network load, will impact of video playback fluency.

【Number of download Internet connections】 the number of connections to download recommendations: 0-8, this
need to tick to start this function

【Network transmission QoS】 smooth network transmission quality priority or image quality priority or adaptive,
depending on the setting, the network adjusts the stream automatically.

7.4.9 Selection

Select the Smart mode of device operation

Select the face or perimeter at in need intelligent channels,.。
Support 1ch. Face detection or 2ch.perimeter intrusion detection

www.brickcom.com.tw

77

8 WEB Access

8.1 WEB Operation

8.1.1 Network Connection

7000 series to check network connection by LCD on front panel, “ ” refers connection error；

8000 Series check B-Lamp on front panel, light indicates connection, otherwise connection error

Set IP, subnet mask and gateway for computer and NVR. Please assign the same segment IP address without router,
need to set the appropriate subnet mask and gateway with router.
The detail of NVR network configuration please see【Configuration】→【Network Setting】

Ensure the IP is correct and check whether the NVR is on the network by using the Windows command “ping”.

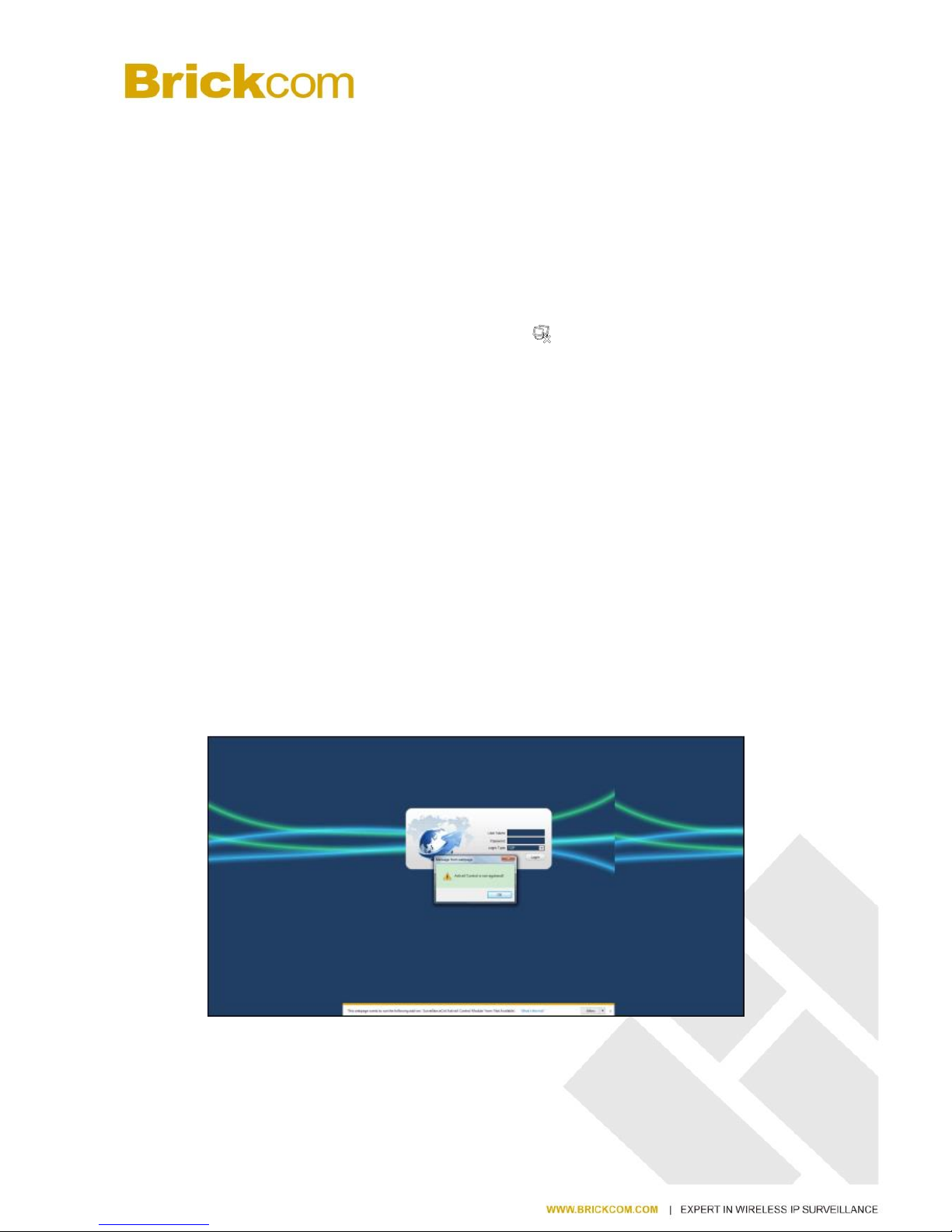

8.1.2 The control installation and the user login logout

Users can remote access to NVR by Internet Explorer, assuming you have a correct network configuration.
The following interface will pop up when you access the IP address in Internet Explorer

Install ActiveX: Right click and choose install. If installation is blocked by Windows, please add the IP as a trusted
site or lower your Internet Explorer security settings to allow this.

The following interface will popup when you input your username, password and click “Login”. Interface like

www.brickcom.com.tw

78

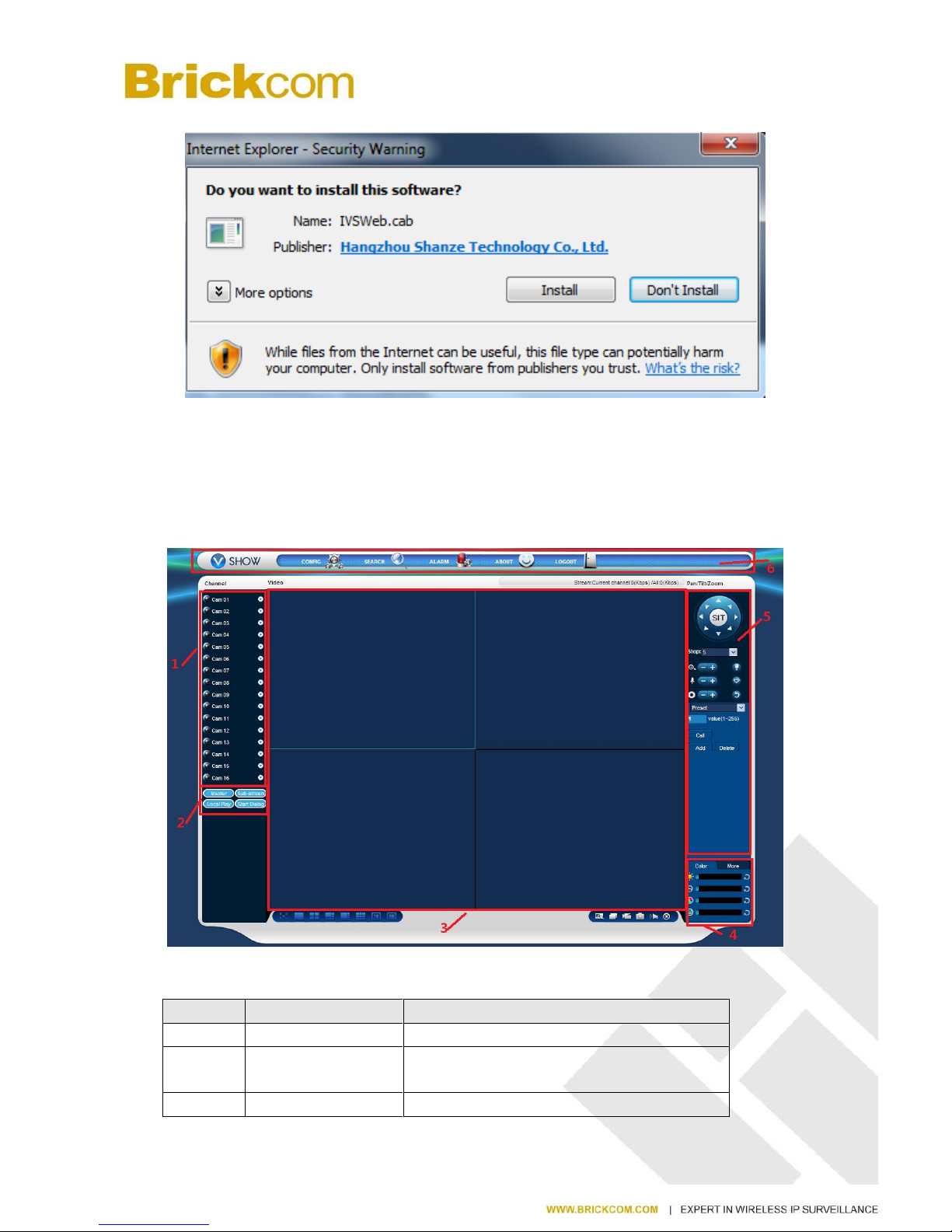

Diagram 5-3 Web Interface when user login successfully. Click “Exit” to quit.

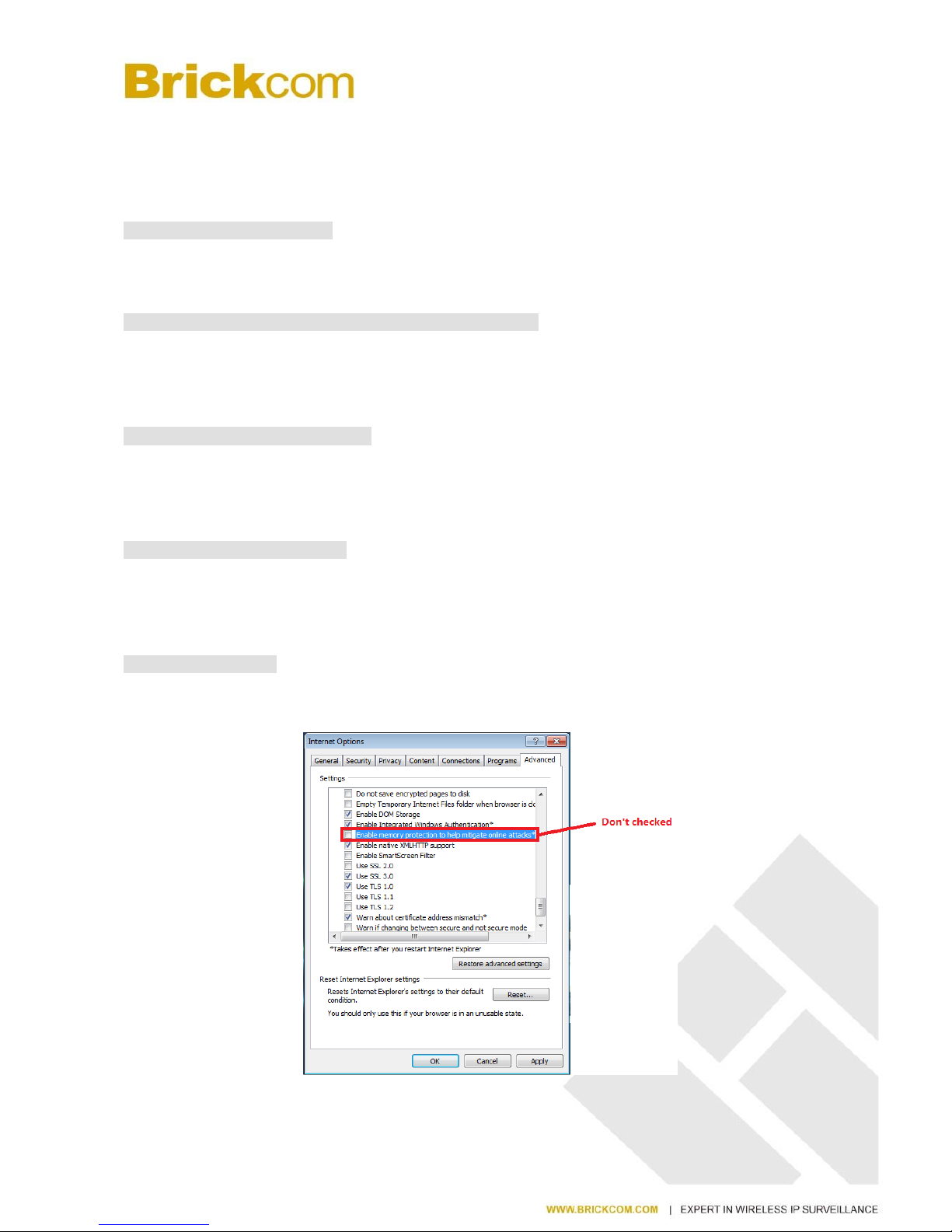

Will be displayed in Compatibility View option is checked on all websites.

8.1.3 The Interface of Web Operations

WEB Interface

Description

Index

Name

Description

1

Channel

Channel selection

2

Function key

Local playback: playback local record
Open all: play live views in surveillance window

3

Surveillance window

Change window layout

www.brickcom.com.tw

79

4

Image color & other
saturation

Image color: modify brightness, contrast and
Other: set capture path, record download path and
reboot

5

PTZ control

PTZ control menu

6

Menu

System configuration, record search, alarm setting,
exit, etc.

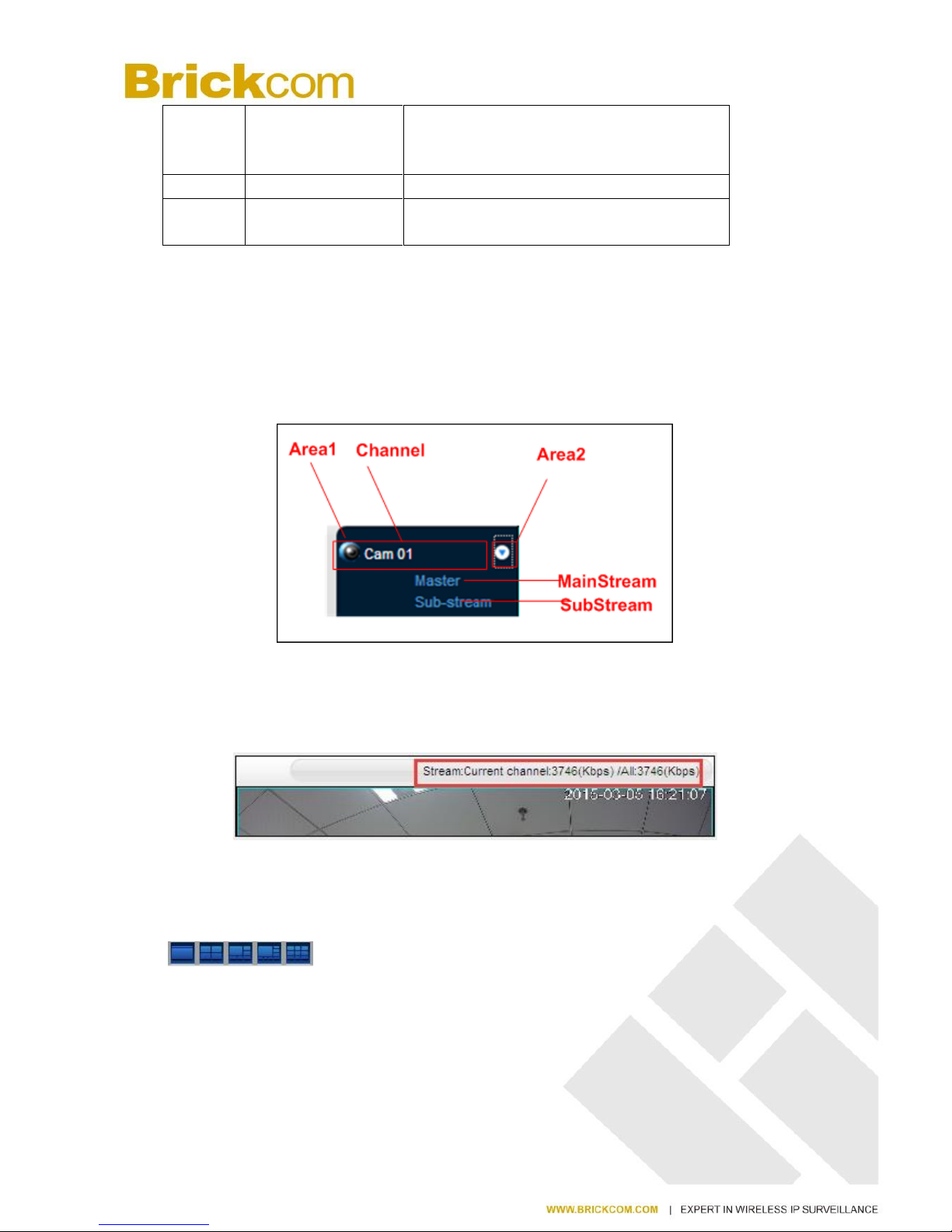

8.1.4 The Real-time Monitoring

Into the WEB interface, select the focus window in live window, the focus window has a light blue border.
From the left channel column select channel, as shown in the following interface

Click on 2 area in upper right corner can choose open / close the channel of the main stream or secondary stream,
shows the current NVR's IP and rate information.

Lower left corner shows the current video channel name.
Upper right corner shows the current video time information.

Click “ ”（Lower left corner of the display window）to switch between single screen and
multi-screen.

Lower right corner of the display window is function keys, as the following interface. Refer to area zoom, switching
multi screens, local records, capturing and so on.

www.brickcom.com.tw

80

Area zoom: Video images can be enlarged。

Multi-screen switch: switch from single screen to multi-screen and vice versa.。

Local record: save and record video to a local HDD while in a live view. Set recording path in configuration.。

Capture: capture of the present channel, set the path in “other.。

Sound: on/off sound.。

Off video: off the focus window video.

8.1.5 PTZ Control

Set protocol（see【Setting】→【PTZ】）
Control PTZ direction, step size, zoom, IRIS, preset, tour, pattern, border scan, light, wiper, auto pan, etc.
Step size controls PTZ direction and speed, e.g. step size 8 is moved faster than step size 1.
Eight direction rotations: up, down, right, left, up-left, up-right, lower left, and lower right.

www.brickcom.com.tw

81

Border scan

Operation: select the camera line scan of the left/right margin by direction button, and click the Settings button in
the left /right margin position to determine the left border.

Preset

Operation: modify preset position by direction button and inputting a preset number, then click “Add” to save.

Tour

Operation: select “Tour”; Point between the first cruise line cruise input box value. And input numbers in “Path”
and “preset”. Click【Add Preset】to add one preset in the cruise path, and repeat to add additional presets. Click

【Clear Preset】to delete a preset, repeat to delete more.

Pattern

Operation: Click “Pattern” in order to record an automated pattern. Then, go back to the PTZ controls in order to
modify the zoom, focus and IRIS, etc. Stop recording in “Pattern” setting to save the pattern.

AUX

On/off one of AUX

Wiper

On/off wiper under protocol

8.1.6 Configuration

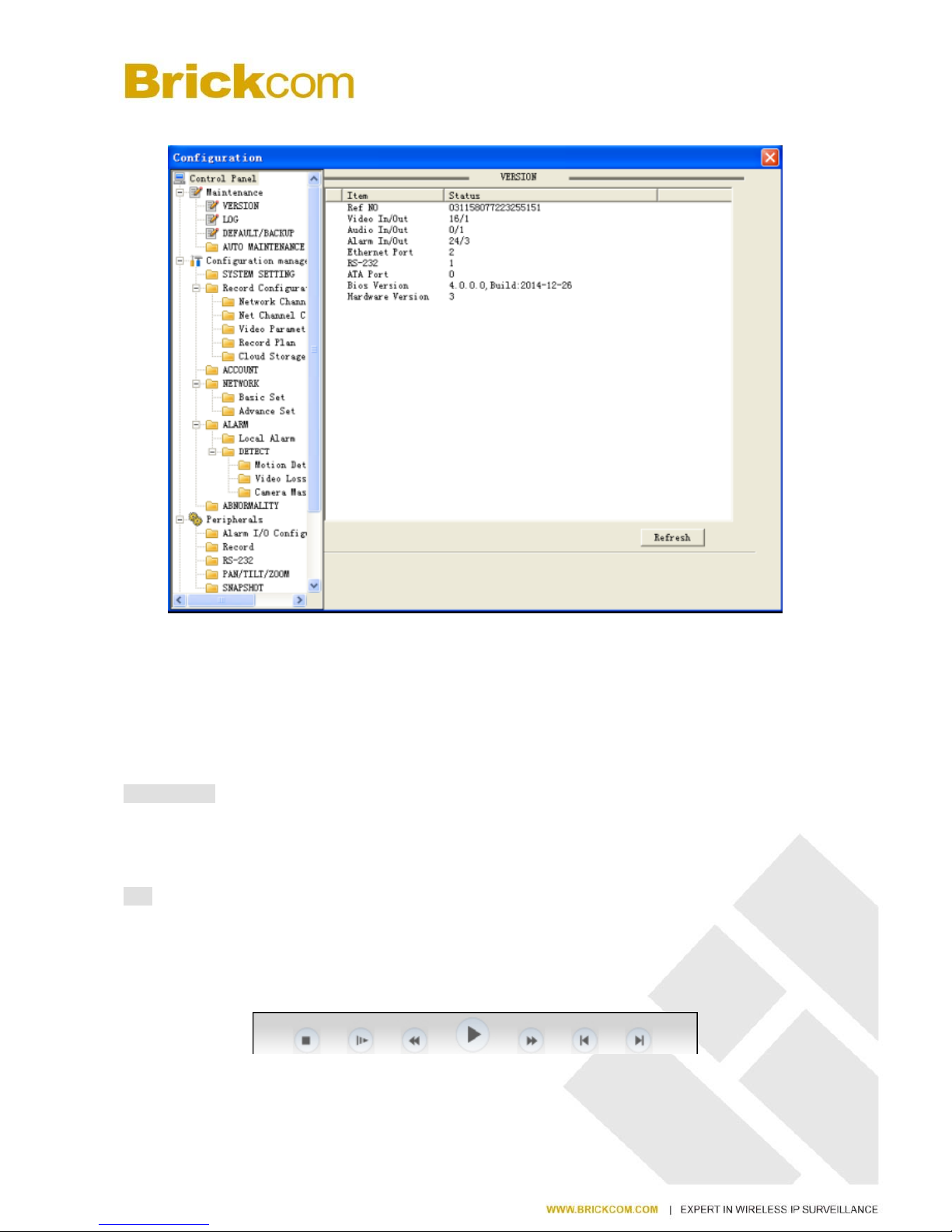

Access NVR local configuration menu by click “System Setting”, the further details please refer.

【Local operation guide】

www.brickcom.com.tw

82

8.1.7 Search Record

Click “Search record” to open the search interface (Error! Reference source not found.), can search and operate
ecord, alarm, motion, local record

Search record

By selecting the record type, start and end times, and click the check button, get a list of files on the NVR. Select
the appropriate file and download can be played

Play

Double click a search result to play in video window. Control the playing video by the control keys on the bottom.
At this point, the bottom of the video window will display the video control buttons, video playback can be
controlled.

Download: select a searched video to download to local. The download speed and percentage are displayed on the
bottom of the screen.

www.brickcom.com.tw

83

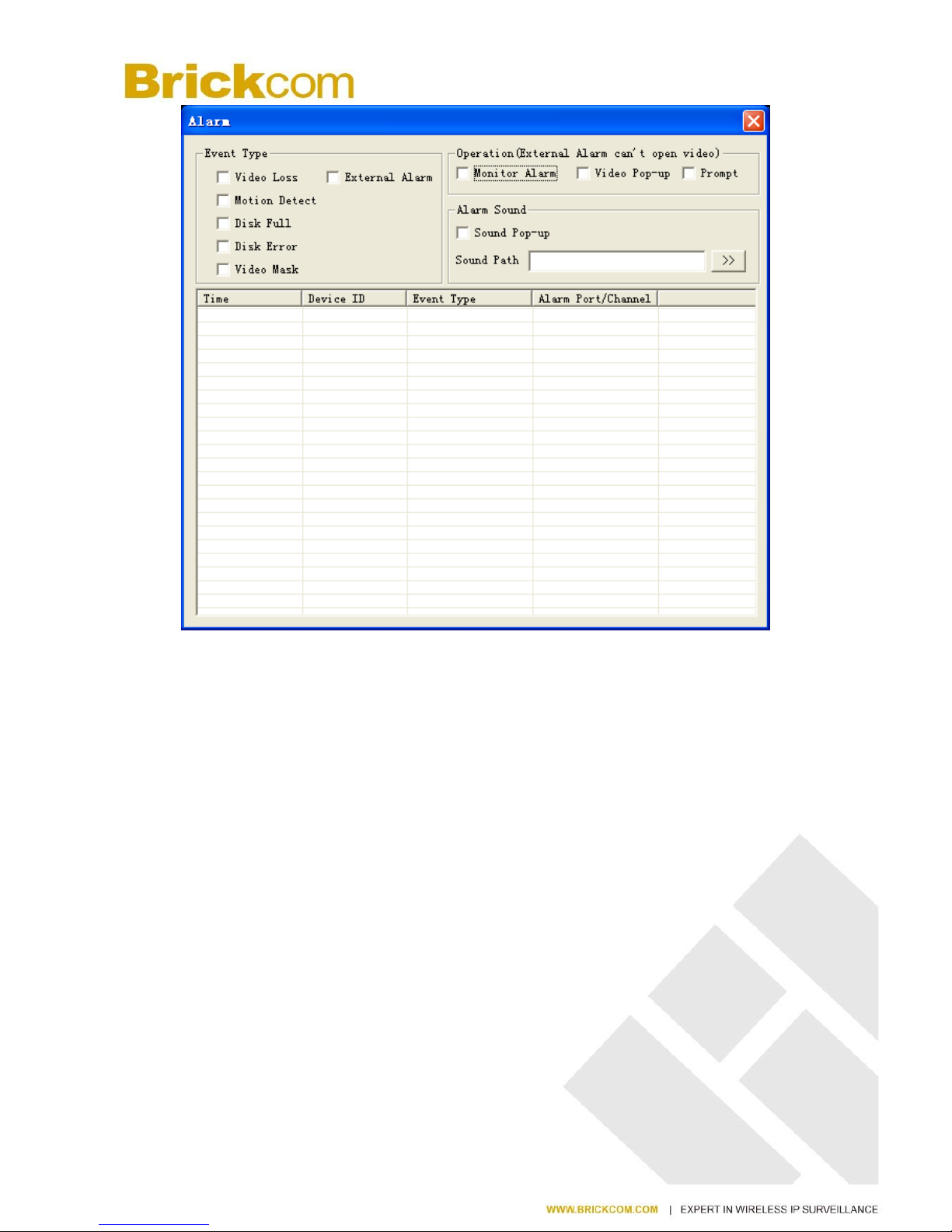

8.1.8 Alarm Configuration

Click the 【Alarm】 to enter the alarm setup menu, users can set up and operate the alarm mode, as show 5-11.
If need warning message displayed and real-time pop up on the WEB interface, open the [monitor alarm], and select

the appropriate type of alarm.
Choose type of alarm on menu, monitor video loss, motion detection, disk full, disk error, video mask, external

alarm.
Click 【Video Pop-up】, open the video loss, motion detection, hard disk full, hard disk failure, video block, video
encoder alarm pop-up linkage.
Click 【prompt】open the prompt: When an alarm occurs in real-time monitoring will popup alarm window menu.
Click 【Sound Pop-up】, you can choose alarm tone pre-recorded on the local hard drive when an alarm occurs,
tone file in WAV format.

www.brickcom.com.tw

84

8.1.9 About

WEB Controls version information show here.

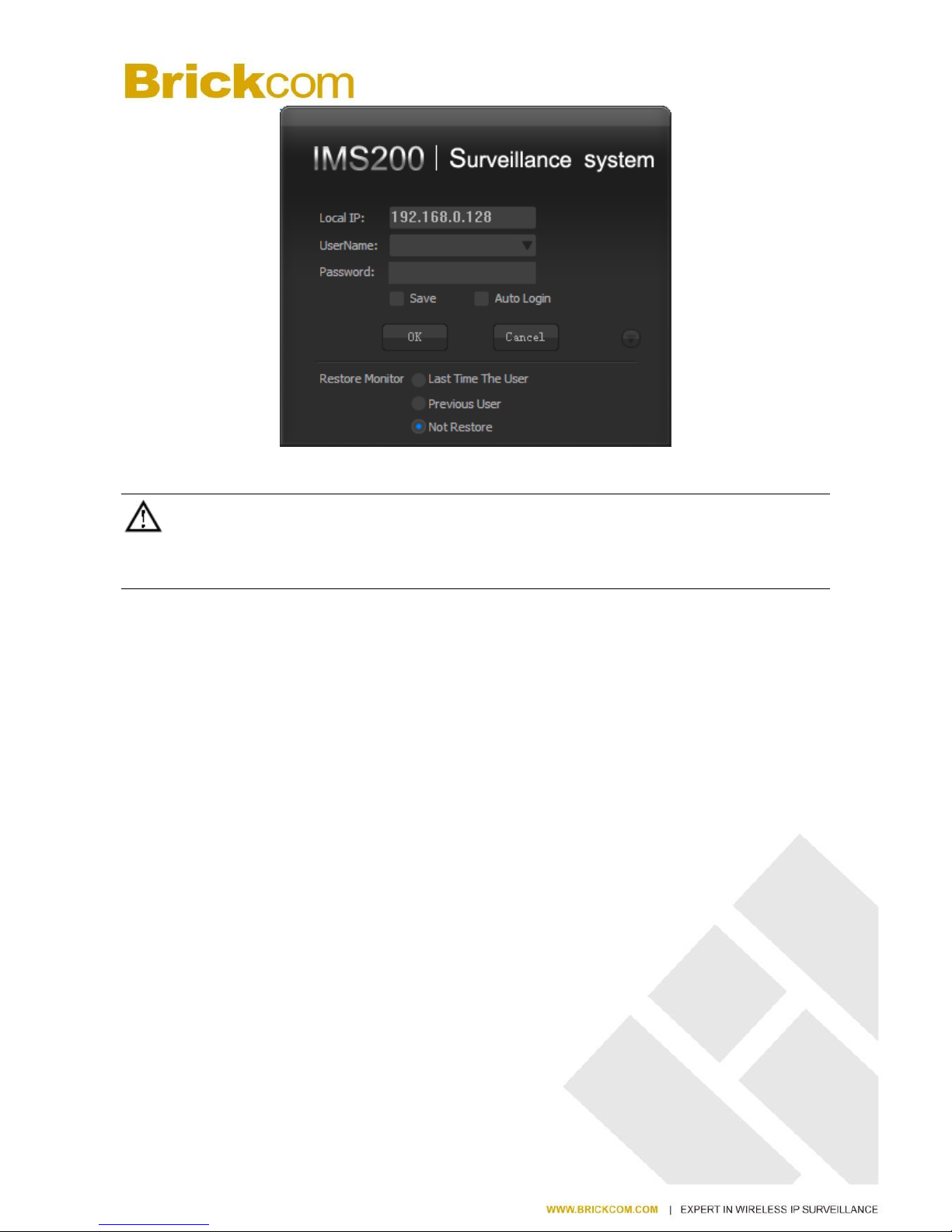

9 PC/Platform Client Access

Pls refer《V2.0 User Manual》

10 Appendix

10.1 Port Mapping

Port mapping is mapping a port of outside web host’s IP address to a machine inside web, and provide the service.

When user connects to the port of the IP, the server will automatically map the request to the corresponding machine
inside LAN. With this function, we can map many ports of a machine’s IP address to different machines’ different

www.brickcom.com.tw

85

ports inside web. The port mapping can also have other special agent functions, like POP, SMTP, Telnet and so on.
Theoretically, it can provide more than sixty thousand ports. For example, if we want to map a web server which
has an IP address of 192.168.111.10, we just need to input the IP address and TCP port 80 into the port mapping
chart of the router. There are two ways to map the port: UPnP function automatically map and modify the router’s
port mapping chart by manual.

10.1.1 UPNP Function

In order to get connection to the Embedded NVR through Public network, we need to set the Router to cross the
NAT of Embedded NVR. UPnP can make the NAT cross automatically by the UPnP agreement of Embedded NVR,
and don’t have to set the Router.

Note: to realize the UPnP Function, there must be Router support and enable the UPnP Function.

The first step

Connect the Router to the network, get to the Menu of the Router, set the Router, and enable the UPnP Function.
Routers made by different manufacturers may have some difference, please refer to the specification carefully before
setting the Router.

The second step

Connect the Embedded NVR to the Router; the configuration will automatically gain the IP address or static IP.
After setting up the IP, click the Advanced. And get to the XXX, ports and multicast etc. choose to open the Enable
at the 【UPnP port mapping】

The third step

Enter into the Router management interface; detect the port if there is already a Port mapping. If there is, it shows
UPnP setting’s finished.

The forth step

Input the IP address in IE, and add port number of the Embedded NVR, for example: 155.157.12.227:81. If you
want to enter by the Client Software, use the TCP port offered by the outer net.

Note: if there are a few embedded NVRs need to set the UPnP function, in order to avoid IP conflict, set the

ports of embedded NVR into different ports numbers. Otherwise, it will choose the embedded NVR port set preceded
as the first choice.

10.1.2 Port mapping manually

The first step

Connect the Embedded NVR to the Router, set the static IP.

The second step

Log in Router, enter into the configuration menu of Router, and set the menu. Then get to port, set the IP distributed
by the Embedded NVR, and set the rule of port mapping, add HTTP and TCP port into mapping list.
Default access ports of Embedded NVR include HTTP port 80 and TCP port 8000, if the ports are occupied by the
other devices, please modify the default port of the Embedded NVR into other vacant ports.

The third step

Input the public net IP address in the IE, and add the port number of the Embedded NVR you want to access after

www.brickcom.com.tw

86

the IP, for example: http://155.157.12.227:81. If you want to access by Client Software, you can use the outer net
TCP port directly.

Notice: for detail configuration setting, please refer to the user manual of Router.

10.2 Voice Intercom

10.2.1 Summarize

Embedded NVR Bidirectional Talk: user can talk to remote client software or Web via NVR audio input and output
ports; user can listen voice from Client Software and WEB via NVR audio output ports.

Two types of bidirectional talk ---- sharing and standalone ----for different models, exact info please refer to
specifications.

10.2.2 Configuration

Local configuration

Connect a microphone to the MIC input port, connect loudspeaker to the audio output port.
If no standalone MIC input port, please connect microphone to the number 1 audio input port

Note: local output needs active audio output device.

Remote PC Configuration

Connect microphone and loudspeaker to computer.
Enable bidirectional talk in IMS software or WEB.

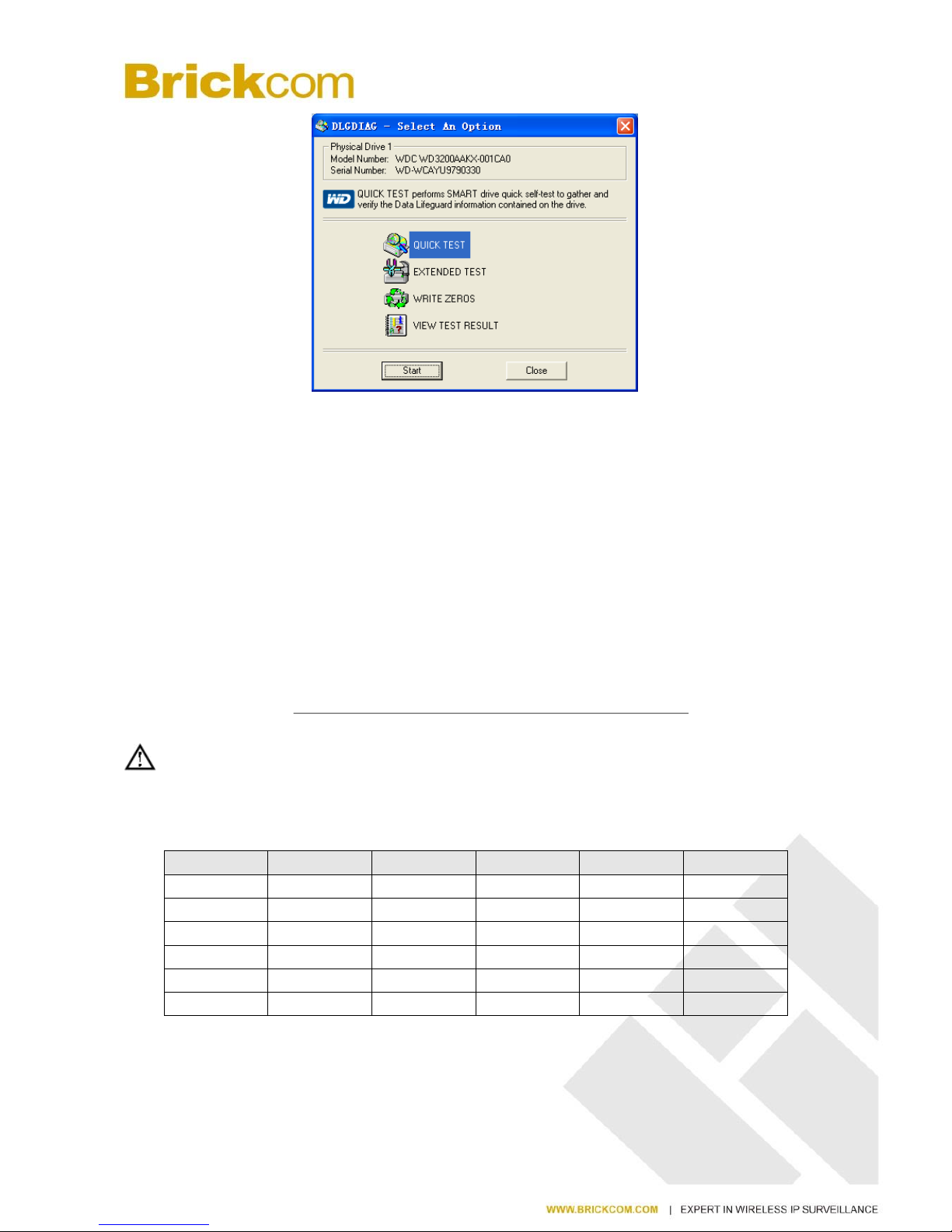

10.3 HDD S.M.A.R.T

S.M.A.R.T: “Self-Monitoring, Analysis and Reporting Technology”

S.M.A.R.T HDD can analysis head, disc, motor, circuit operation, history and default security values via monitor
instruction in HDD and surveillance software in host. Alarm will be sent to user automatically when the value is
outside the scope of the security situation.
Detection parameters of Seagate HDD for example are divided into seven: ID detection code, Attribute Description,
Threshold, Attribute Value, Worst, Date, and Status.

1、ID detection code

ID detection code is not the only; manufacturer can use different ID code or increase or decrease its quantity

according to the detected parameter’s quantity.
For example: the ID detection code of WEASTERN DIGITAL’s product is “04”, parameter is Start/Stop Count, but
the parameter of same code in Fujitsu’s product is “Number of times the spindle motor is activated”.

www.brickcom.com.tw

87

2、Attribute Description

Attribute Description: name of detection item. Manufacturer can increase or decrease。As ATA standard update
constantly, sometimes different models in same brand maybe different ,but must ensure major test items specified
in S.M.A.R.T .(although different manufacturers have specific naming convention ,the essence of monitoring is the
same.)

1 Read Error Rate
2 Spin up Time
4 Start/Stop Count
5 Relocated Sector Count
7 Seek Error Rate
9 Power-on Hours Count
10 Spin up Retry Count
194 Power temperatures
195 ECC on the Fly count
197 Current Pending Sector Count
198 Disconnection beyond repair
199 CRC cyclic redundancy check
200 Write Error Count

Note: Different manufacturers and different models have different attribute description, the user has no need

to know exact meaning, attribute detection values enough for them.

3、Threshold

It is specified by manufacturer calculated through a specific formula. If there is an attribute value lower than
the threshold, which means HDD become unreliable and data stored is very easy to lose. Composition and size of
reliable attribute values is different for different HDD. It should be noted that, ATA standard only provides some
SMART parameters; it does not provide a specific value. "Threshold" value is determined by manufacturers based

on products’ features. Thus, results tested by manufacturer provided detection software is very different from testing

software under Windows (such as AIDA32)

4、Attribute Value

Attribute value is the maximum normal value; the general range is from 1 to 253. Typically, the maximum
attribute value is 100 (for IBM, Quantum, and Fujitsu) or 253 (for Samsung). Of course, there are some exceptions,
for example, some models produced by Western Digital have two different attribute values, and property value is
set 200 when initial production, but after then it is changed into 100.

5、 Worst

Worst value is the largest non-normal value in HDD’s running. It is a value calculate for HDD’s cumulative running,
it is constantly refreshed according to running cycle, and very closed to the threshold. Whether the HDD is normal
by S.M.A.R.T analysis is based on the comparison with threshold. The maximum value appear when new HDD
start to use, which would continue to decrease with the everyday use or error happen. Consequently, larger attribute
values mean better quality and higher reliability; smaller values mean more possibility of failure increases.

6 、Dates

Actual values of HDD’s detection items, many items are cumulative values.

7、Status

It is current statues of HDD’s every attribute after analyzing and comparing above attribute values by S.M.A.R.T,

also is important information to judge HDD healthy or not.

www.brickcom.com.tw

88

There are three statuses: Normal, Alarm and Error----which is closely related with Pre-failure/advisory BIT.

10.4 Hard disk problem

Use Detection Tool provided by the HDD manufacturer to detect the Function of HDD to solve data problem.

We recommend Seagate and Western Digital.

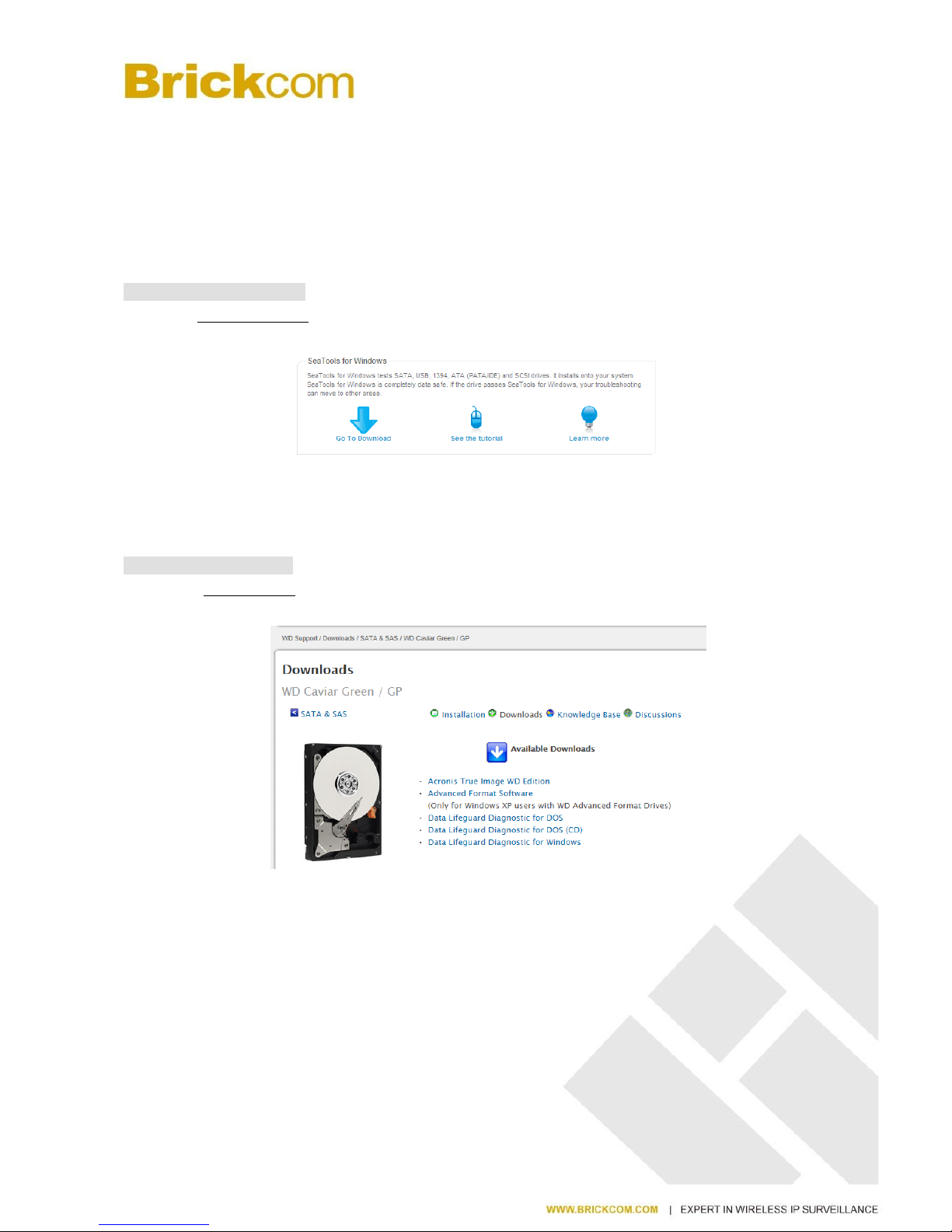

How to detect Seagate HDD

a) Get into www.seagate.com， Click Support & Downloads choose Sea Tools, download tool, as Diagram 7-

1:

Diagram 10-1 Seagate download
b) Double-click to install downloaded file, click installed file to detect the HDD information on PC.
c) Choose the HDD for detection (other manufacturer’s hard disk suitable too).

How to detect WDC HDD

a) Get into www.wdc.com , choose WD support / download / SATA&SAS / WD Caviar / GP, download software

as Diagram 10-2 WD Download

Diagram 10-2 WD Download

b) Click Icon to hard disk detection after downloading.
c) Double click hard desk in device list, as Diagram 10-3 WD Detection:

www.brickcom.com.tw

89

Diagram 10-3 WD Detection

10.5 HDD Capacity Calculation

Reference of HDD Capacity Calculation

The first time install NVR, please check if the HDD has installed.

The capacity of the HDD

There is no limitation of capacity of single HDD to NVR, please choose the HDD according to the saving time.

The choose of the Capacity

Computational formula of HDD Capacity:
Whole HDD Capacity = number of the channels × time in need (hour) × spent of HDD Capacity per hour (MB/hour)
Similarly we can have the formula of recording time:

annelAmountofChhrrHourcupationpeCapacityOc

pacityTotalHDDCa

hourtimeR

）（

）（

）（

MB/

MB

ecording

Note: 1GB=1000MB, not 1GiB=1024MiB, so HDD capacity shown in Base Configuration under HDD

Management less than real marked.
File size per hour (CBR).

Form 10-1 record file size

Bit Rate

File

Bit Rate

File

Bit Rate

File

96k

42M

320k

140M

896k

393M

128k

56M

384k

168M

1.00M

450M

160k

70M

448k

196M

1.25M

562M

192k

84M

512k

225M

1.50M

675M

224k

98M

640k

281M

1.75M

787M

256k

112M

768k

337M

2.00M

900M

File size is more unpredictable when VBR style, please refer to the real size of recording file.

www.brickcom.com.tw

90

10.6 Terms

Dual-stream

Dual-stream: one high bit rate stream for the local HD store, QCIF/CIF/2CIF/DCIF/4CIF coding, other low bit rate
stream for network transmission, such as QCIF / CIF coding,

I Frame

I frame: intra frame image, remove redundant information to compress the transmittal data, also called key frames.

B Frame

B frame: According to time redundant of the source image sequence previously encoded frame and account the
source image after the encoded frame to compress transmittal data, also known as bi-directional prediction frame.

P Frame

P-frame: according to image frame lower than the previous ’time redundant to compress transmittal data, also called
predicted frames.

Wide Dynamic

Bright parts and dark parts in particular can be seen very clearly at the same time. Wide dynamic range is a ratio
between the brightest luminance signal value and the darkest value.

S．M．A．R．T

SMART (Self-Monitoring, Analysis and Reporting Technology): now widely used in hard disk data security
technology, monitoring system analysis Motor, circuit, HDD and disk head when HDD working, warn when
abnormality, sometimes will automatically slow down and back up data.

CVBS

Composite Video Broadcast Signal, consists of luminance and color signal from the composite baseband signal.

BNC

Coaxial cable connector, composite video signals or audio signals, commonly use 75 ohm connectors. BNC welding

and should pay attention to weld strength and remove burrs, or the signal wire and shield’s contact will lead to a

substantial attenuation of signal strength

10.7 FAQ

NVR startup failure or continuously reboot

Possible reasons:

1. The system has been damaged from a bad NVR update.

2. There is a problem with the NVR main board error, please contact supplier.

3. There is an HDD error. Replace faulty HDD.

Remote control does not work

Possible reasons:

1. Check for batteries in remote control, especially positive and Negative.

2. Check for batteries’ power.

3. Check if remote receiver is obscured.
3 Check if NVR address corresponds to the remote address.

NVR cannot control PTZ

www.brickcom.com.tw

91

Possible reasons:

1. RS-485 cable connection error, A, B ports are inversely connected;

2. PTZ decoder, protocol, baud rate, address are incorrect;

3. Parallel connect a 120Ω resistance to resolve signal reflex caused by too many PTZs on the line.

4. The RS-485 on the NVR is defective

Blurred screen in preview mode

Possible reasons:
Please make sure your cameras match your video format selected in the General menu. E.g. camera is NTSC
standard but the NVR is PAL standard, the preview would be blurred.

Blurred screen in playback mode or failure to playback records

Possible reasons:

1. Procedure error, reboot the NVR

2. HDD error, test or change out the HDD

3. NVR hardware failure, contact your local supplier

Fail to connect NVR through network

Possible reasons:
1、check the physical network connection is correct.
2、check the NVR network configuration parameters.
3、check whether IP conflicts exist in network.

Download records can’t be played

Possible reasons:
1 、Player installation error.
2 、The USB or HDD device has an error.
3 、Do not install graphic software later than DX8.1.

Internet Explore Crash

Possible reasons:
Close IE explore, enter into the tool bar

Diagram 10-4 IE tool bar

www.brickcom.com.tw

92

Internet Explorer 9.0

Possible reasons:
Internet Explore9.0 above version visit: Please choose compatible mode.

11 IMS200 INTRODUCTION

11.1 SUMMARY

IMS200 is a professional surveillance system software which support muti-user, multi-window and multilingual
display, voice talk, EMap, alarm and etc. IMS200 is compatible with various access devices. This is a stable, reliable
and easy operation system.

11.2 RUNTIME ENVIRONMENT

 Hardware minimum requirements

 CPU P4/2.0GHz
 Memory 512M
 Resolution 1024*768 and ≥128M memory (support DirectX 8.0 and higher grade)
 Hard Disk 300M free space
 Network transmission 10/100Mbps Ethernet, consistent with TCP/IP or UDP/IP protocal

 Software minimum requirements

 Operation system: Windows XP SP2, Windows 2000, Windows 2003, Windows Vista, win7（run by

“Administrator” in Vista and win7）

 Graphics drive installed

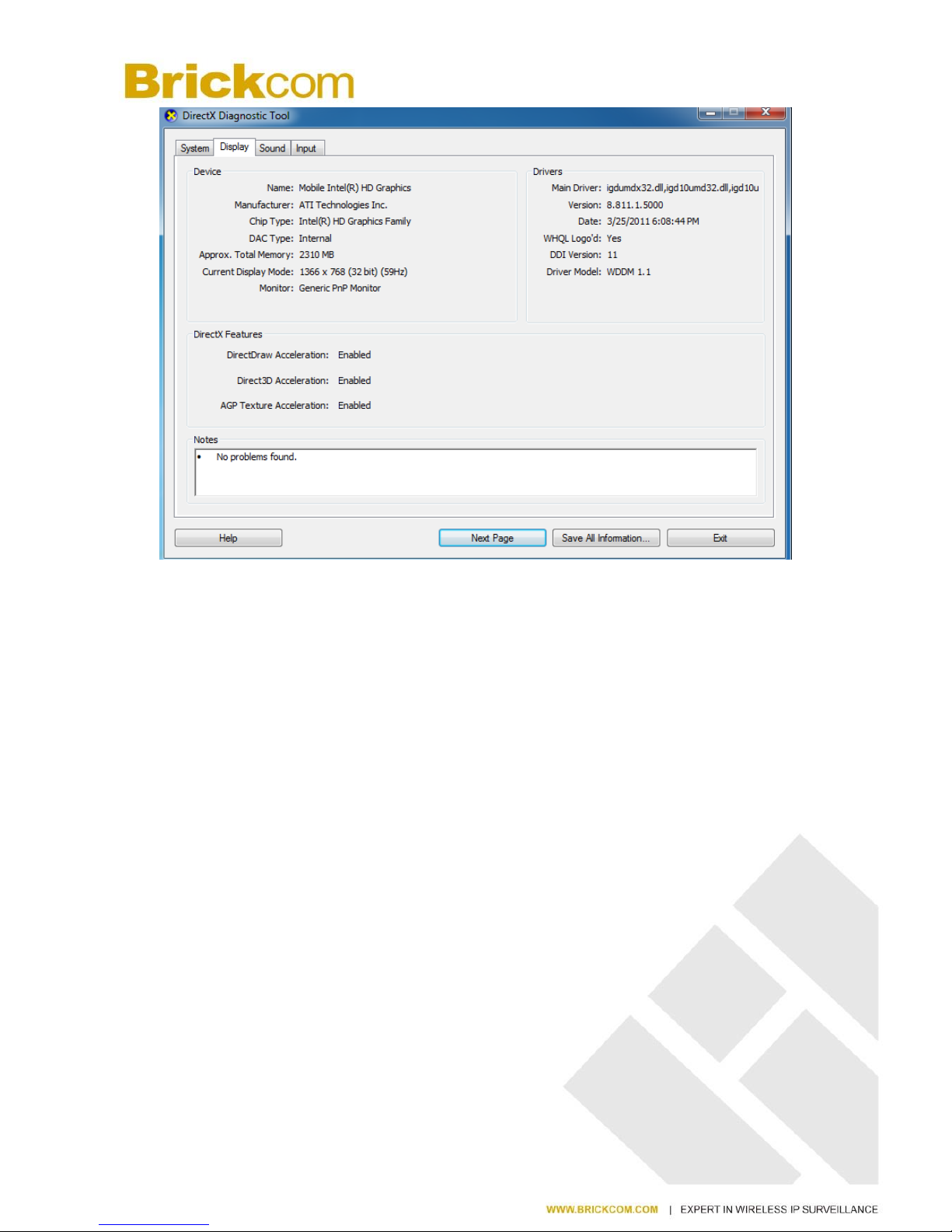

Introduction: enable “DirectX”, set the “hardware speed up” to ‘high’

www.brickcom.com.tw

93

www.brickcom.com.tw

94

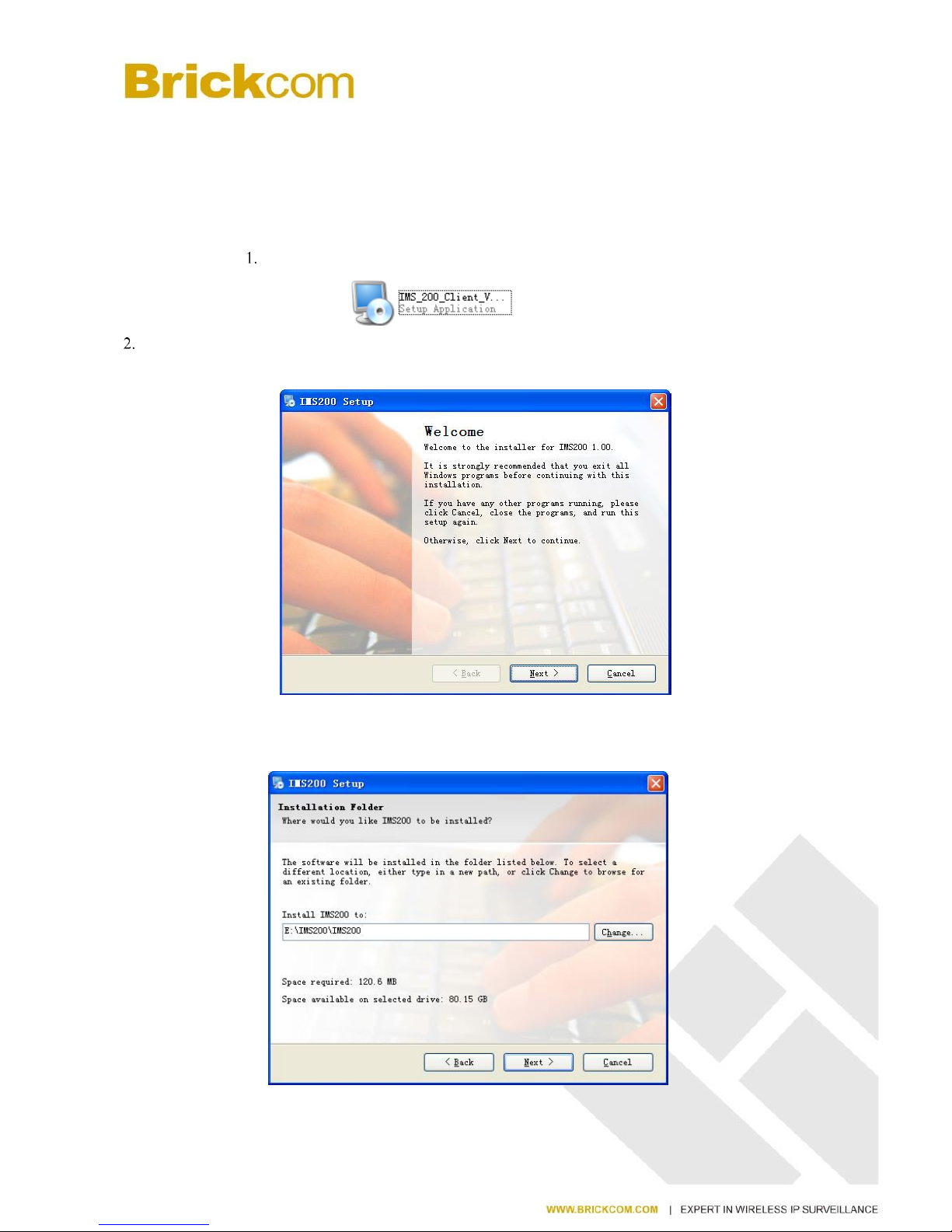

12 INSTALLATION

12.1 Windows Operation system

Double left click “IMS_200_Client_V1.00.exe” to install this program.

Complete the installation following the guide, see “Diagram 12-1” to “Diagram 12-5”

Step1: click “Next (N)”, see “Diagram 12-1 ”

Diagram 12-1

Step2: click “Next (N)”after select a install path, the default installation path is “C:\Program
Files\IMS200”.see”Diagram 12-2”

Diagram 12-2

www.brickcom.com.tw

95

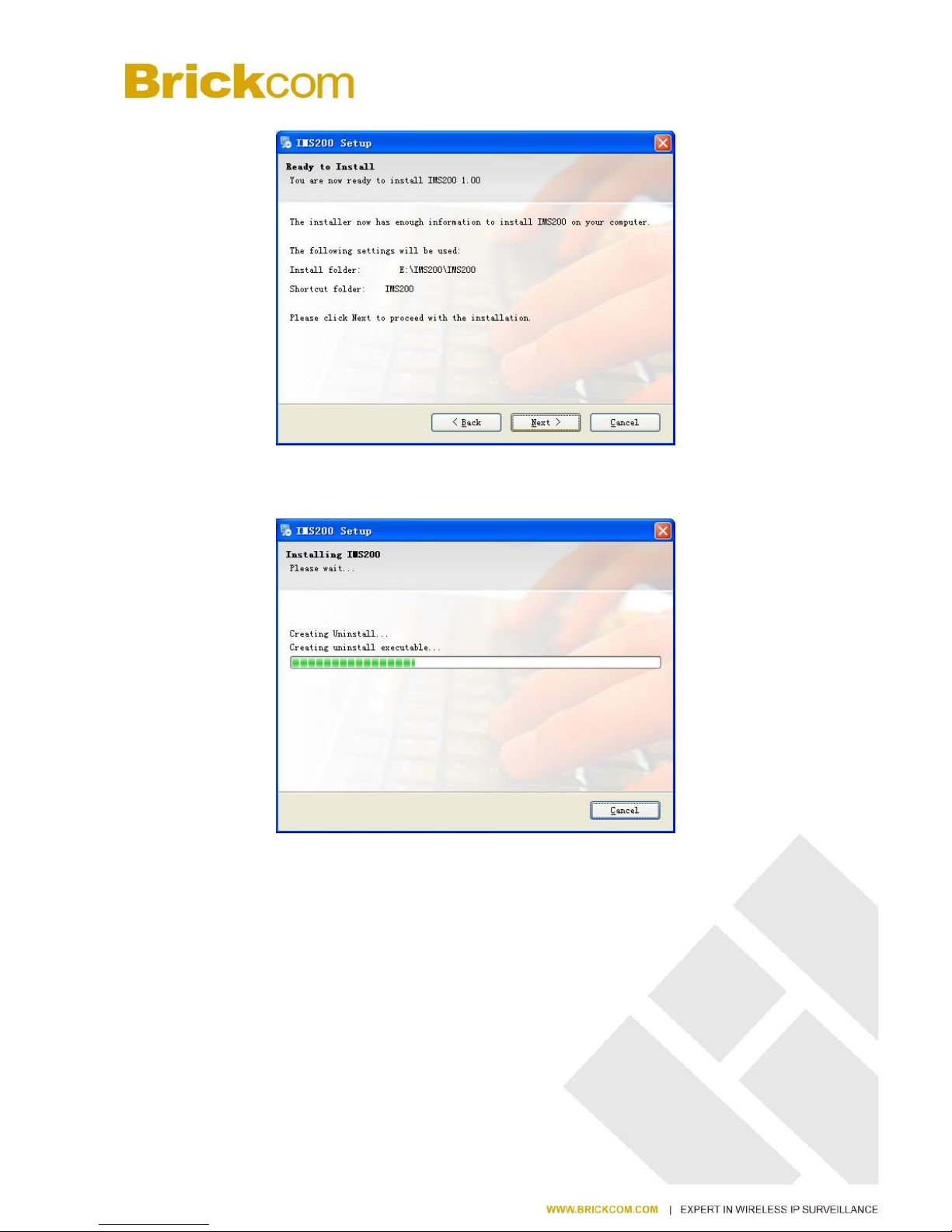

Step3: click “Next (N)”

Diagram 12-3

Step4: install automatically

Diagram 12-4

Step5: click “Finish (F)” to complete the installation process

www.brickcom.com.tw

96

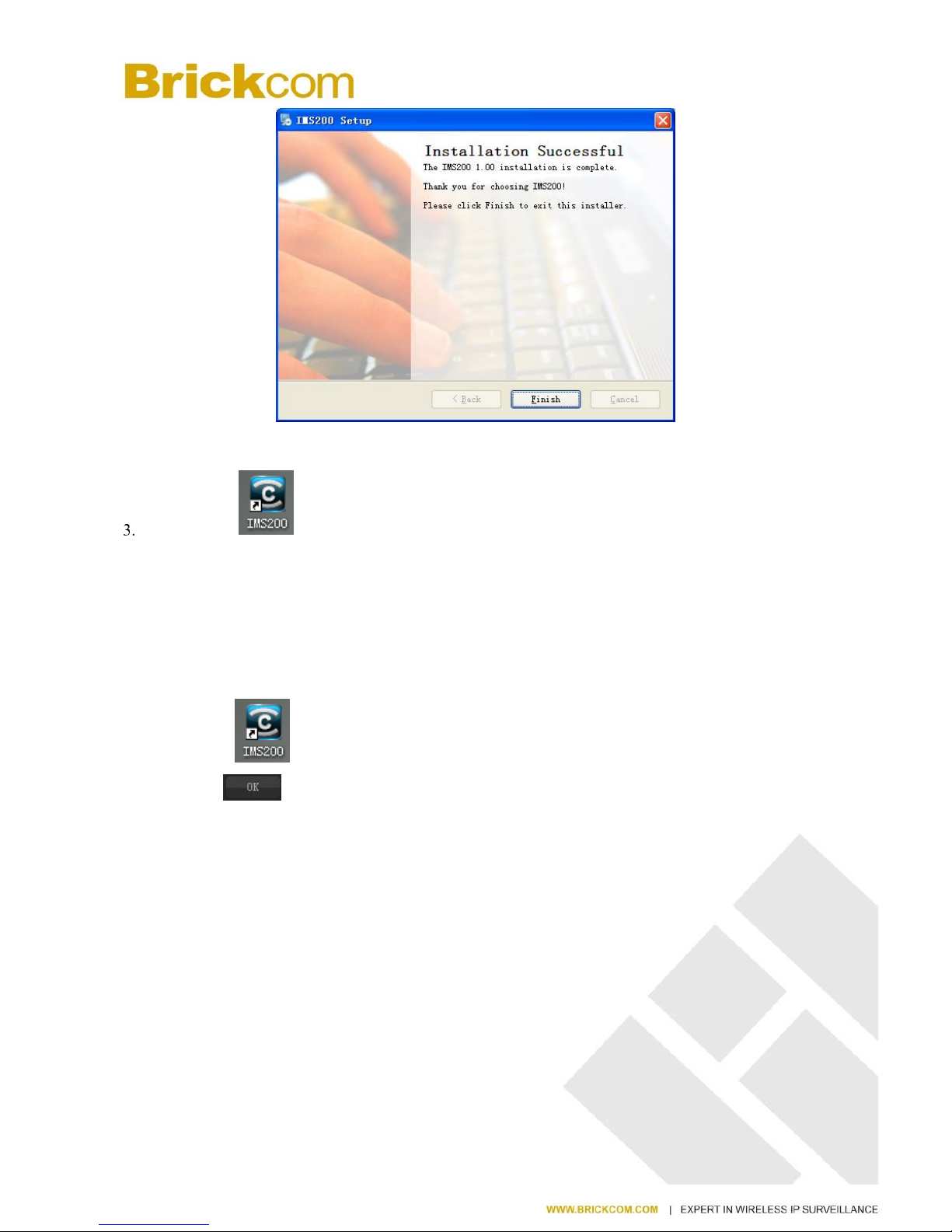

Diagram 12-5

The shortcut will be created on desktop after install the IMS200 system.

13 LOGIN AND INTERFACES

13.1 LOGIN

Double left click to pop up [LOGIN] interface, see “Diagram 13-1”. Input correct user name, password

and click “OK”- -to enter the system.

The default account is “super” which has device management authority（the name and password are “super”）. The
default administration account is “system” which has authority to modify advanced functions like create new users,
rights management and add E-map（the name and password are “system”）. Please refer “15.3” for detail.

www.brickcom.com.tw

97

Diagram 13-1

Note:

1. Modify your password in “Setting->Modify Password” in the first login.

2. Configure the organization, users, device, EMap and etc. Please refer “15.3” for detail.

13.2 INTERFACE

There are screens, menu, functional keys, output mode keys, toolbar, upper right icons, alarm and status show on
the main interface. (See “Diagram 13-2”)

www.brickcom.com.tw

98

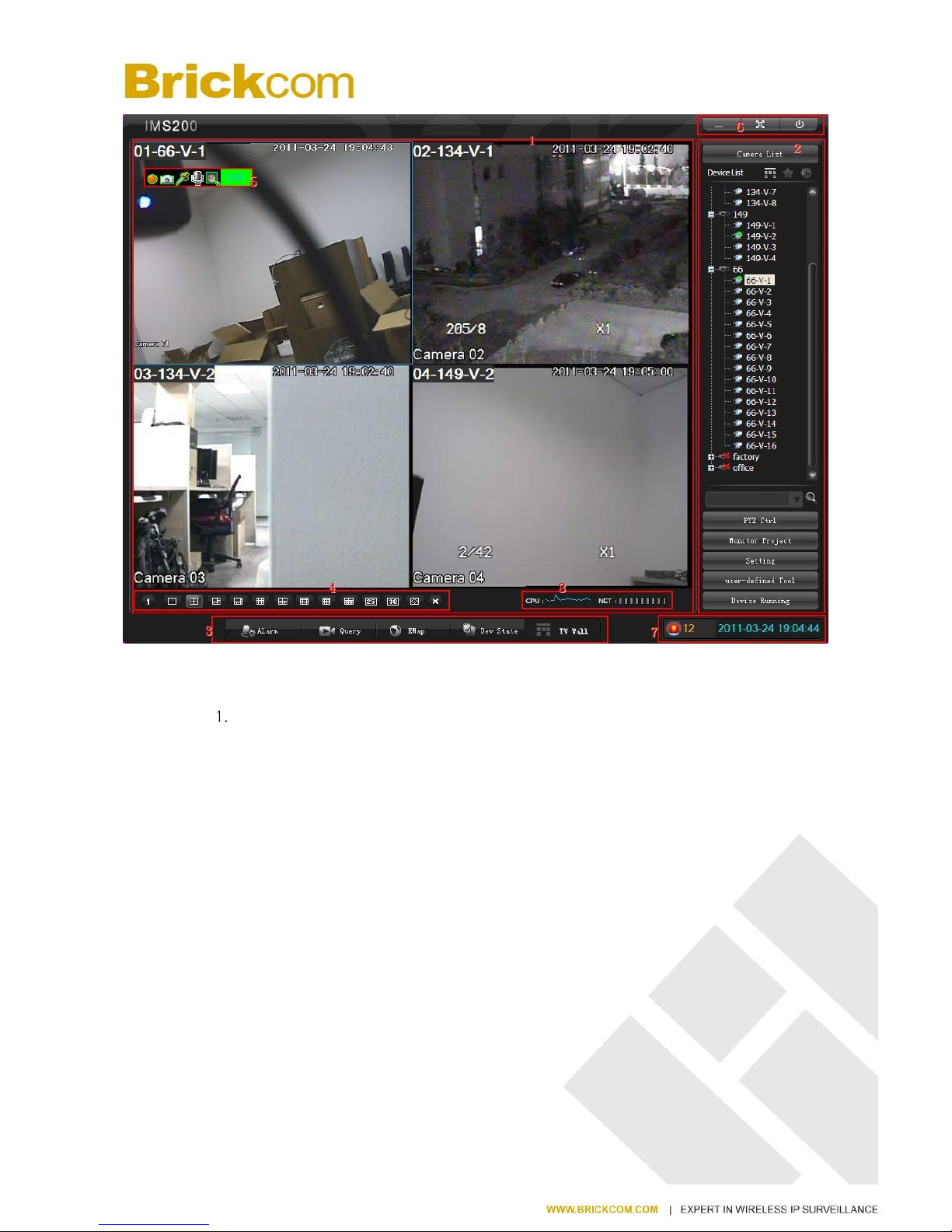

Diagram 13-2

Screens

Display and control the real-time video. Select “voice talk”, “snapshot”, “record”, “output”, “save”, “go to” and
“TVwall” function in a specific window. (See “Diagram 13-3”)

www.brickcom.com.tw

99

Diagram 13-3

Introduction: functions are valid under specific conditions

Menu

Name

Function & Operation

Camera Lis

Shows organizations, devices and channels

Shows device IP, name and model by moving the mouse cursor on a device

Finish the TV wall output and video output in center

Status icorns in record and live view mode

Show the record device status

Take record for talk

Search information of device and channel

Add to “Favorite”

Record review

Position to playback

Timing

Reboot

Log in / Log out （manually）

Configurate control （for hk devices）

PTZ Ctrl

Control

zoom

Eight-direction control

3D positioning, simulated joystick, etc.

Modify step, zoom, focus and Iris

Preset

Auto Tour

Aux

Configurate and execute presets

Configurate and execute auto tour

Light, Aux1, Aux2, etc.
