Brickcom MD-500Ap-A1 Specsheet

Micro SD/SDHC Card
RJ45 Connector (for Ethernet and

PoE:802.3.af)
M12 Connector(*)
DC12V Connector (*)

*Cable Connector Variants*

Profile

Management

POE

Micro

SD/SDHC Card

DDNS Server

5 Megapixel
Mini Dome Network Camera

▪ Most Intelligent and Professional 5M Outdoor Mini Dome Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)

▪ Wide Camera Angle Adjustment with Pan 35°, Tilt 0-90°, Rotation 180°
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Weather-proof (IP67) and Vandal-proof(IK10) with Stylish Design

▪ Wide Angle of View and Easy to Adjust Focus
▪ EN50155 Certify with Anti Vibration and Shock
▪ Built-In Micro SD slot/ TV out Connector Supported

▪ PoE(802.3af) / M12 Connector / DC12V Supported

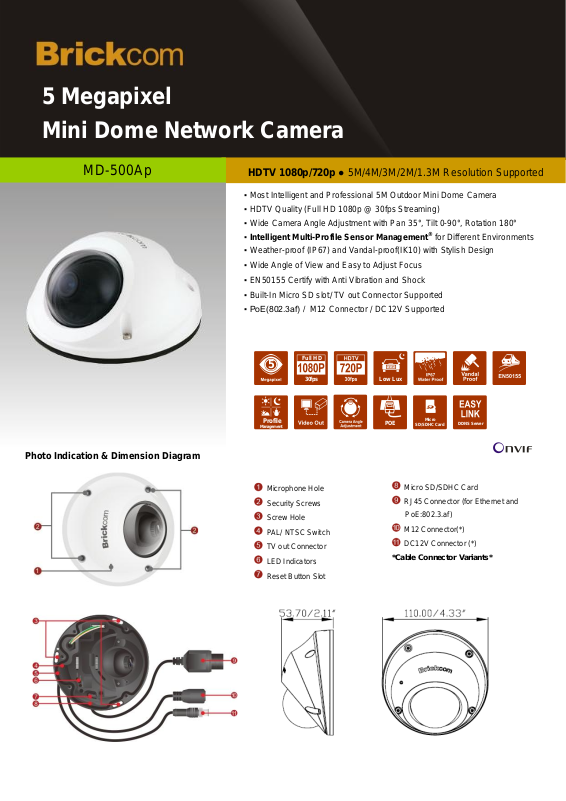

Photo Indication & Dimension Diagram

5

Full HD

30fps

Low Lux

MD-500Ap

HDTV 1080p/720p ● 5M/4M/3M/2M/1.3M Resolution Supported

Microphone Hole
Security Screws
Screw Hole
PAL/ NTSC Switch
TV out Connector
LED Indicators
Reset Button Slot

d

Hardware System

CPU: 533 MHz
Flash: 32M
RAM: 256M DDR

Image Sensor

Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2592 x 1944 pixel

Camera Angle
Adjustment

Pan ± 35°/ Tilt 0-90° / Rotation ± 180°

Minimum
Illumination

1 lux (F1.6 , 1/5s , BW)
2Lux (F1.6 , 1/5s , Color)

Local Storage

Built-in Micro SD/SDHC Memory Card Slot

Audio Streaming

1-way Audio Support

Audio Compression

G.711, AMR (8 kHz, Mono, PCM)

Audio
Input/ Output

Built-in MIC

Communication

Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6

Connectors

Cables with different Options
A. RJ45,DC12V
B. M12

Power Input

PoE 802.3af/ M12/ DC12V

Max. Power
Consumption

5.5 watts

Environment

Operating Temperature

-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%

Dimension

110(L) X110(W) X 53.7(H) mm

Weight

460g/1.02lb

Housing

Weather-proof (IP67)
Vandal-proof (IK10)

Certification

FCC, CE, EN50155, IK10

Viewing System
Requirements

OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC

Warranty

Limited 2-year warranty

Compression
Streaming

H.264 / MPEG4 / MJPEG
Simultaneous multiple streams

Video Setting

Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K

S/N Ratio

38.1dB

Image Resolution

5M : 2592x1944 @ 10fps

(5M supports MJPEG only)

4M : 2304x1728 @ 15fps
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps

Lens Spec

MD-500Ap

f=3.6mm

f=4mm

f=6mm

f=8mm

Lens Type

Board Lens

Board Lens

Board Lens

Board Lens

F Number

F=1.6

F=1.6

F=1.6

F=1.6

FOV(H/V/D)

92°/68°/115°

90°/67°/112°

55°/40°/70°

41°/30°/52

Events

Motion Detection
Schedule
Audio Detection

Alarm

Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification

Camera

General

Audio

Video

Events and Alarm Management
