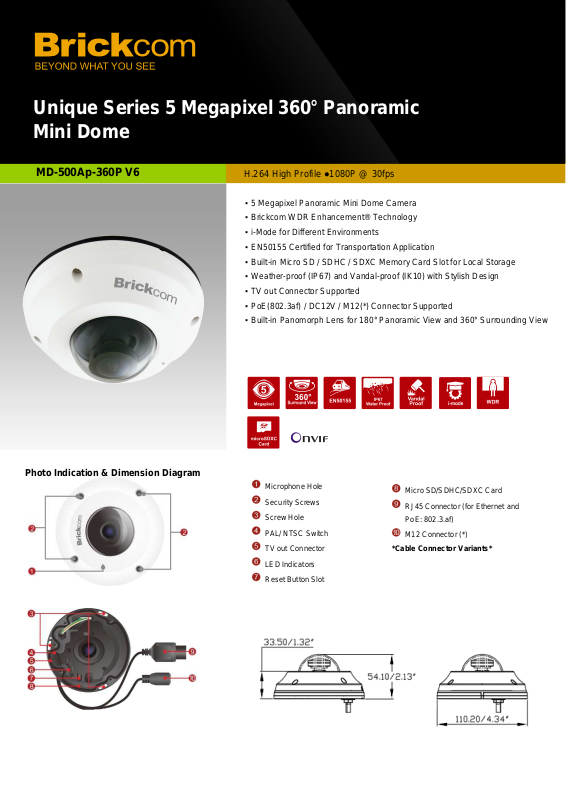

Unique Series 5 Megapixel 360° Panoramic
Mini Dome
MD-500Ap-360P V6
H.264 High Profile ●1080P @ 30fps
▪ 5 Megapixel Panoramic Mini Dome Camera
▪ Brickcom WDR Enhancement® Technology
▪ i-Mode for Different Environments
▪ EN50155 Certified for Transportation Application
▪ Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
▪ Weather-proof (IP67) and Vandal-proof (IK10) with Stylish Design
▪ TV out Connector Supported
▪ PoE(802.3af) / DC12V / M12(*) Connector Supported
▪ Built-in Panomorph Lens for 180° Panoramic View and 360° Surrounding View
Photo Indication & Dimension Diagram
Microphone Hole
Security Screws
Screw Hole
PAL/ NTSC Switch
TV out Connector
LED Indicators
Reset Button Slot
Micro SD/SDHC/SDXC Card
RJ45 Connector (for Ethernet and
PoE: 802.3.af)
M12 Connector (*)
*Cable Connector Variants*
Brickcom
Hardware System
Image Sensor
Lens Spec
Camera Angle
Minimum
Local Storage
Audio
Streaming
Audio Compression
Audio
Communication
Connectors
Power Input
Max. Power
Environment
Dimension
Weight
Housing
Certification
Viewing System
Warranty
Compression
Video Setting
S/N Ratio
Image Resolution
WDR
Events
Alarm
port 10/ 100M High Power PoE+ Web Smart
Camera
Flash: 32M
RAM: 256M DDR
Sensor Type : 1/2.5” CMOS
Sensor Resolution : 5M (2592 x 1944)
Lens Type: Panomorph Lens
Focal Length:1.05mm
F=2.8
Iris: Fixed Iris
View Angle: 182°±2°
Adjustment
Illumination
Video
Streaming
Pan ± 35°/ Tilt 0-90° / Rotation ± 180°
0.5 Lux (F2.8,B/W)
0.6 Lux (F2.8,Color)
Built-in Micro SD / SDHC / SDXC Memory Card
Slot
H.264 / MJPEG
Simultaneous multiple streams
i-Mode Image Management:
Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure /Gain/ White Balance Control
Manual Exposure Control: 1/32000s~1s
Manual Gain Control: 1 ~ 48
Above 50dB
5M (2592 x 1944) ● (13fps)
60dB
Events and Alarm Management
Motion Detection/ Schedule/ Audio Detection/
Digital Input/
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
| BEYOND WHAT YOU SEE
Audio
Input/ Output
General
Consumption
Requirements
1-way Audio Support
G.711, AMR (8 kHz, Mono, PCM)
Built-in MIC
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Cables with different Options
A. RJ45
B. M12
PoE 802.3af / DC12V / M12 (*)
(*) Optional
5.5 watts
Operating Temperature
-25°C ~ 55°C
(-13°F ~131°F)
Operating Humidity :
10% ~ 80%
110(L) X110(W) X 54(H) mm
460g/0.99lb
Weather-proof (IP67)
Vandal-proof (IK10)
FCC / CE / EN50155 / IK10 / IP67
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Limited 36-month warranty
Camera Accessories Options
BNCMD-02
TV out Connector Line
© 2015 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.
Network Equipment Options
PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AT
24Ethernet Switch
