5 Megapixel
Mini Dome Network Camera
▪ Most Intelligent and Professional 5M Outdoor Mini Dome Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Wide Camera Angle Adjustment with Pan 35°, Tilt 0-90°, Rotation 180°
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Weather-proof (IP67) and Vandal-proof(IK10) with Stylish Design
▪ Wide Angle of View and Easy to Adjust Focus
▪ EN50155 Certify with Anti Vibration and Shock
▪ Built-In Micro SD slot/ TV out Connector Supported
▪ PoE(802.3af) /
M12 Connector / DC12V Supported

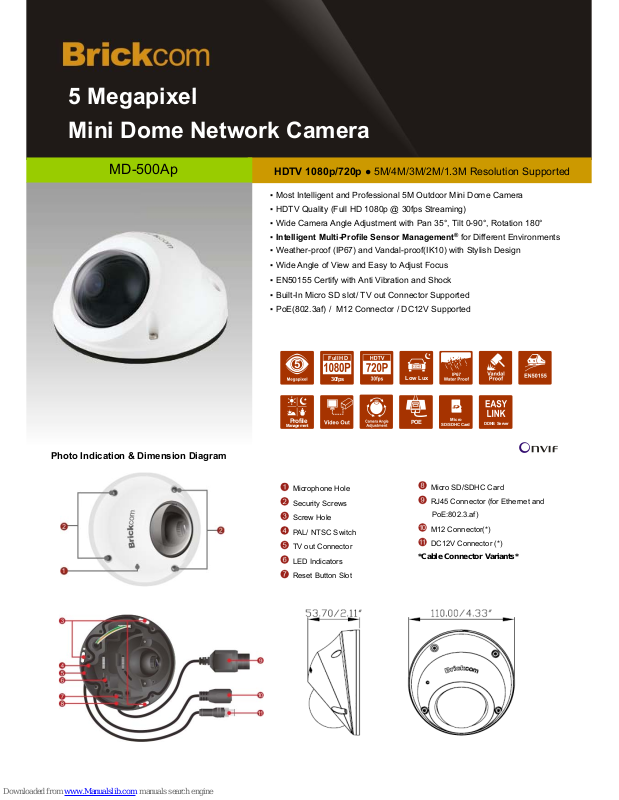

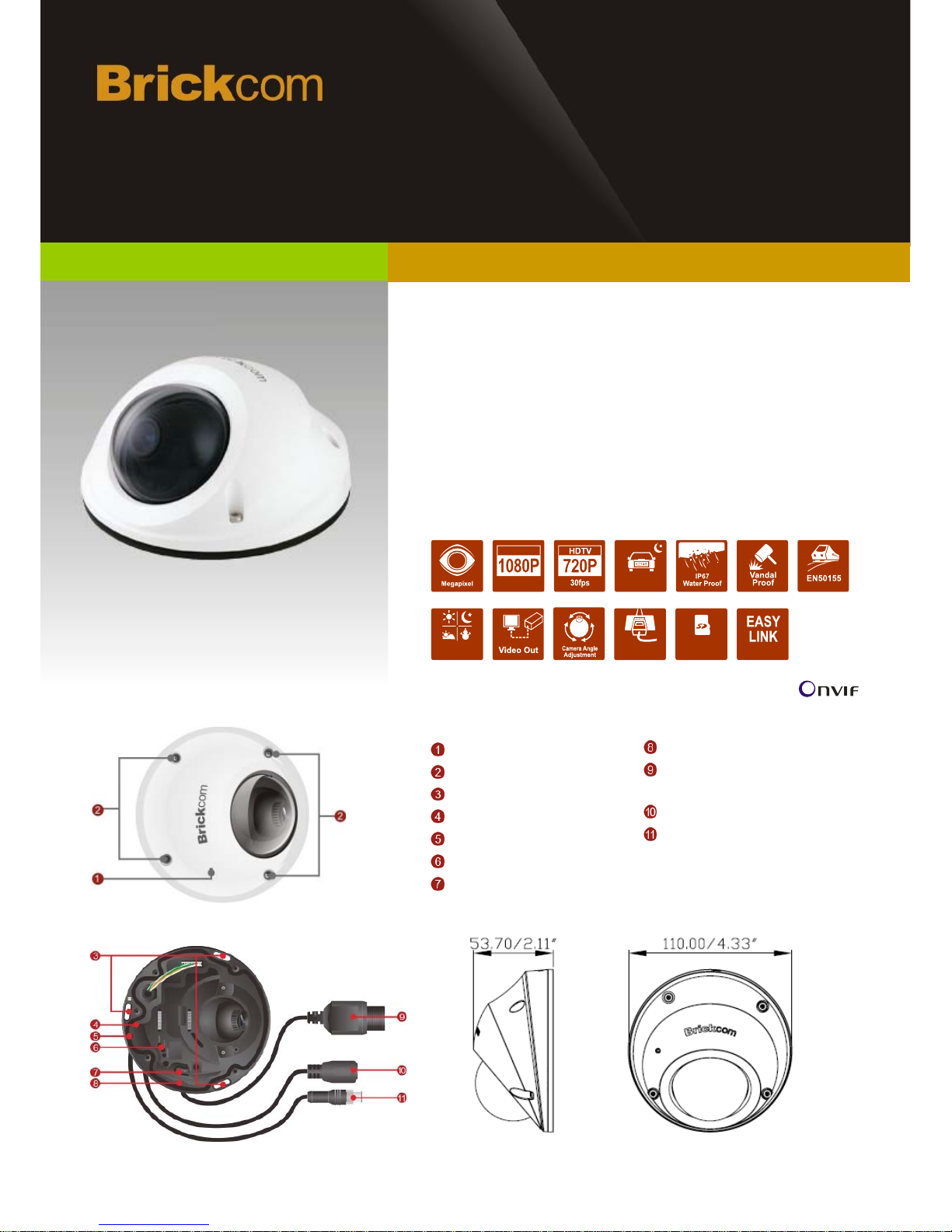

Photo Indication & Dimension Diagram
5
Full H D
30fps
Low Lux
MD-500Ap
HDTV 1080p/720p ● 5M/4M/3M/2M/1.3M Resolution Supported
Microphone Hole
Security Screws
Screw Hole
PAL/ NT SC Swi tc h
TV out Connector
LED Indicators
Reset Button Slot
Page 2
Hardware System CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 2592 x 1944 pixel
Camera Angle
Adjustment
Pan ± 35°/ Tilt 0-90° / Rotation ± 180°
Minimum
Illumination
1 lux (F1.6 , 1/5s , BW)
2Lux (F1.6 , 1/5s , Color)
Local Storage Built-in Micro SD/SDHC Memory Card Slot
Audio Streaming 1-way Audio Support
Audio Compression G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Built-in MIC
Communication Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Connectors
Cables with different Options
A. RJ45,DC12V
B. M12
Power Input PoE 802.3af/ M12/ DC12V
Max. Power
Consumption
5.5 watts
Environment Operating Temperature
-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension 110(L) X110(W) X 53.7(H) mm
Weight 460g/1.02lb
Housing Weather-proof (IP67)
Vandal-proof (IK10)
Certification FCC, CE, EN50155, IK10
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty Limited 2-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
S/N Ratio 38.1dB
Image Resolution 5M : 2592x1944 @ 10fps
(5M supports MJPEG only)
4M : 2304x1728 @ 15fps
3M : 2048x1536 @ 18fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Lens Spec
MD-500Ap f=4mm f=3.6mm
Lens Type Board Lens Board Lens
F Number F=1.6 F=1.6
FOV(H/V/D) 90°/67°/112° 92°/68°/115°
Events Motion Detection
Schedule
Audio Detection
Alarm Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification
Camera
General
Audio
Video
Events and Alarm Management
Product Distinction
Page 3
M12 mount Lens
BNCMD-01
TV out Connector Line
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
Work Best With
Camera Accessories Options
Network Equipment Options
