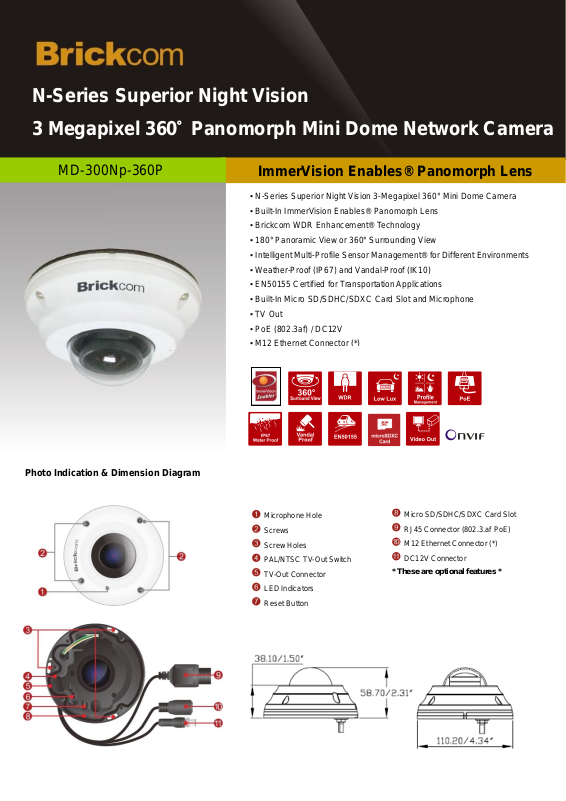

Brickcom MD-300Np-360p Specsheet
Micro SD/SDHC/SDXC Card Slot
RJ45 Connector (802.3.af PoE)
M12 Ethernet Connector (*)
DC12V Connector
* These are optional features *
▪ N-Series Superior Night Vision 3-Megapixel 360° Mini Dome Camera
▪ Built-In ImmerVision Enables® Panomorph Lens
▪ Brickcom WDR Enhancement® Technology
▪ 180° Panoramic View or 360° Surrounding View
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Weather-Proof (IP67) and Vandal-Proof (IK10)
▪ EN50155 Certified for Transportation Applications
▪ Built-In Micro SD/SDHC/SDXC Card Slot and Microphone
▪ TV Out
▪ PoE (802.3af) / DC12V
Photo Indication & Dimension Diagram
ImmerVision Enables® Panomorph Lens
Microphone Hole
Screws
Screw Holes
PAL/NTSC TV-Out Switch
TV-Out Connector
LED Indicators
Reset Button
MD-300Np-360P
N-Series Superior Night Vision
3 Megapixel 360° Panomorph Mini Dome Network Camera
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” Sony Exmor Sensor
Sensor Resolution : 2048 x 1536 pixel
Lens Spec
Lens Type: ImmerVision Enables® Panomorph
Focal Length: 1mm
F=2.0
View Angle:182˚ *182˚ (H* V)
Minimum
Illumination
0.1Lux(B/W)
0.2 Lux (Color)
Local Storage
Built-in Micro SD/SDHC/SDXC Memory Card
Slot
Events
Motion Detection
Schedule
Audio Detection
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification
Audio Streaming
1-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Built-in MIC
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Connectors
Cables with different options
A. RJ45,DC12V
B. M12
Power Input
PoE 802.3af/ M12/ DC12V
Max. Power
Consumption
5.5 watts
Environment
Operating Temperature
-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
110(L) X110(W) X 59(H) mm
Weight
500g/1.1lb
Housing
Weather-Proof (IP67)
Vandal-Proof (IK10)
Certification
FCC, CE, EN50155, IK10, IP67
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure /Gain/ White Balance Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 15X
Manual White Balance Control:2000K~7000K
S/N Ratio
Above 50dB
Image Resolution
3M : 2048x1536 @ 20fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
BNCMD-02
TV-Out Connector Line
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
Camera
General
Audio
Video
Work Best With
Camera Accessories Options
Network Equipment Options
Copyright 2013 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
Events and Alarm Management
Product Distinction
