Brickcom MD-300N User Manual

Hardware User’s Manual
Megapixel Day & Night
Mini Dome Network Camera
Quality Service Group
0
Product name:
Network Camera (MD-100A series)
Release Date:
2012/05
Manual Revision:
V3.0 Web site:
www.brickcom.com
Email:
support@brickcom.com
info@brickcom.com
© 2012 Brickcom Corporation. All Rights Reserved
Review History:
1. Separate User Manual into HW and SW.
2. Merge MD-500Ap/MD-400Ap/MD-300Ap/MD-200Ap/MD-300Np/MD-200Np/MD-130Np
into this User Manual.
- -
Table of Contents
Before You Use This Product ................................................................................ 1
FCC Warning ................................................................................................... 1
Regulatory Information........................................................................................ 2
Package Contents ............................................................................................. 3
Mini Dome Network Camera Overview .................................................................... 4
Device Appearance Description ............................................................................. 7
Installation ...................................................................................................... 8
Hardware Installation ........................................................................................................... 8

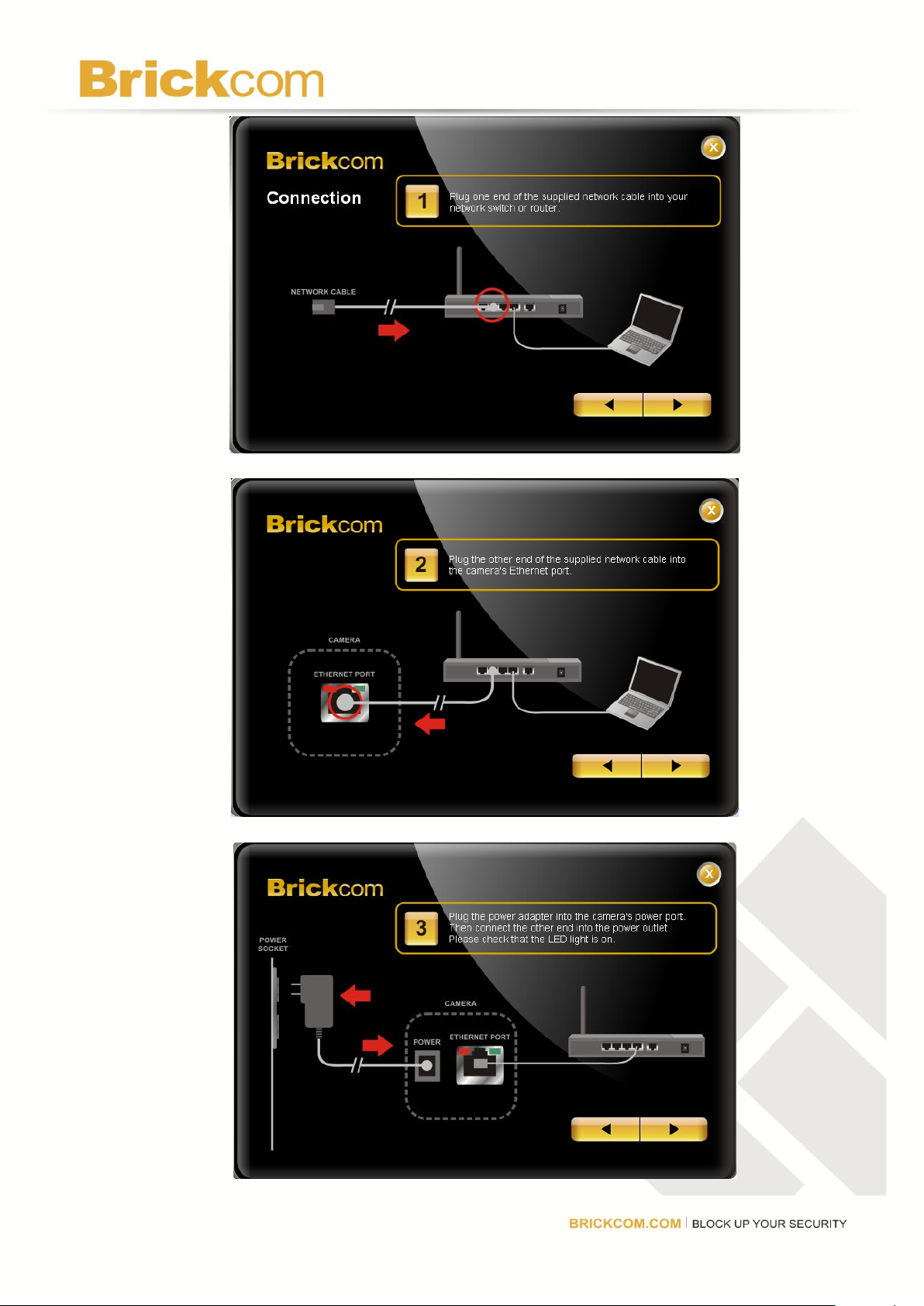

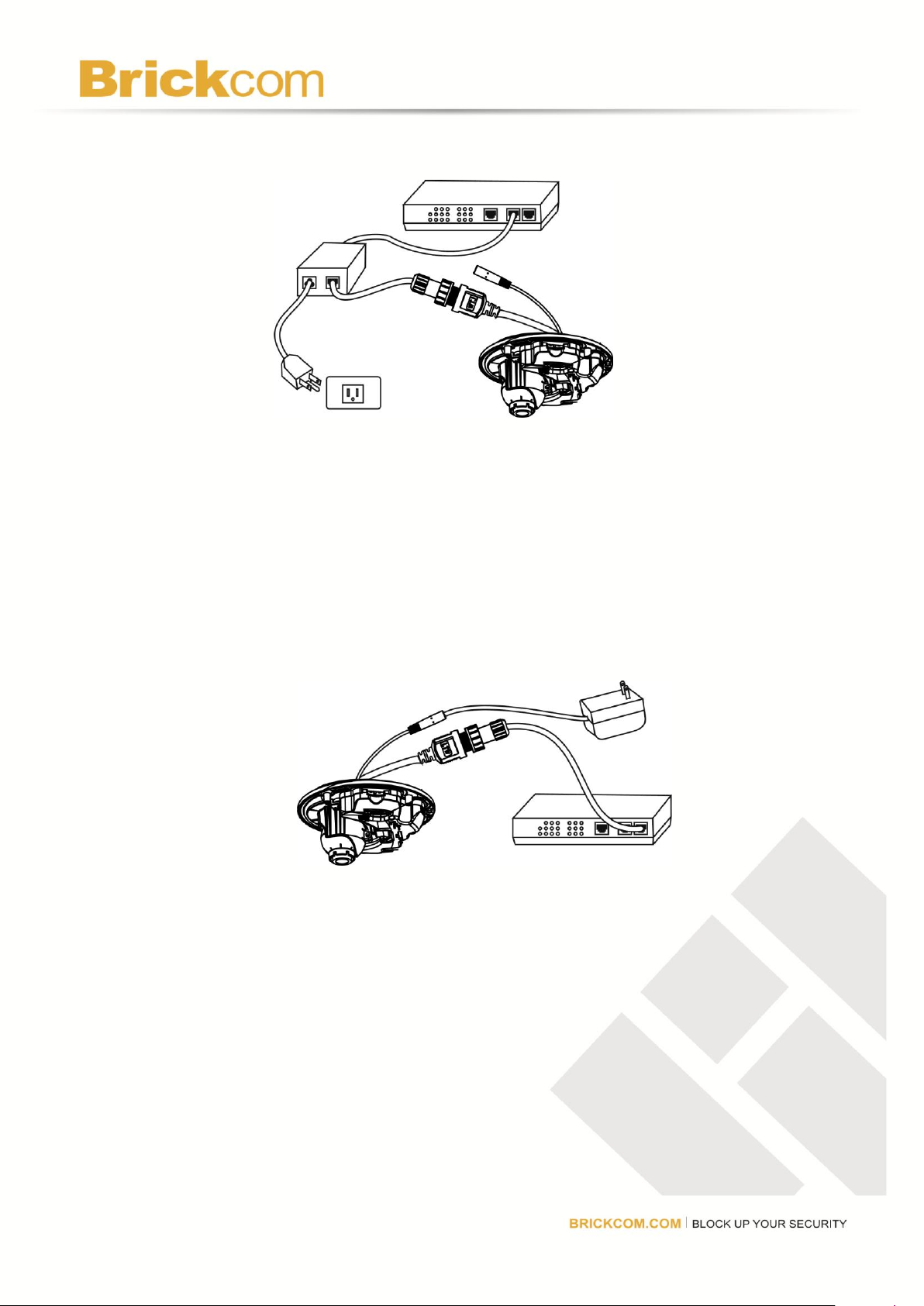

Camera Connection ........................................................................................................... 11

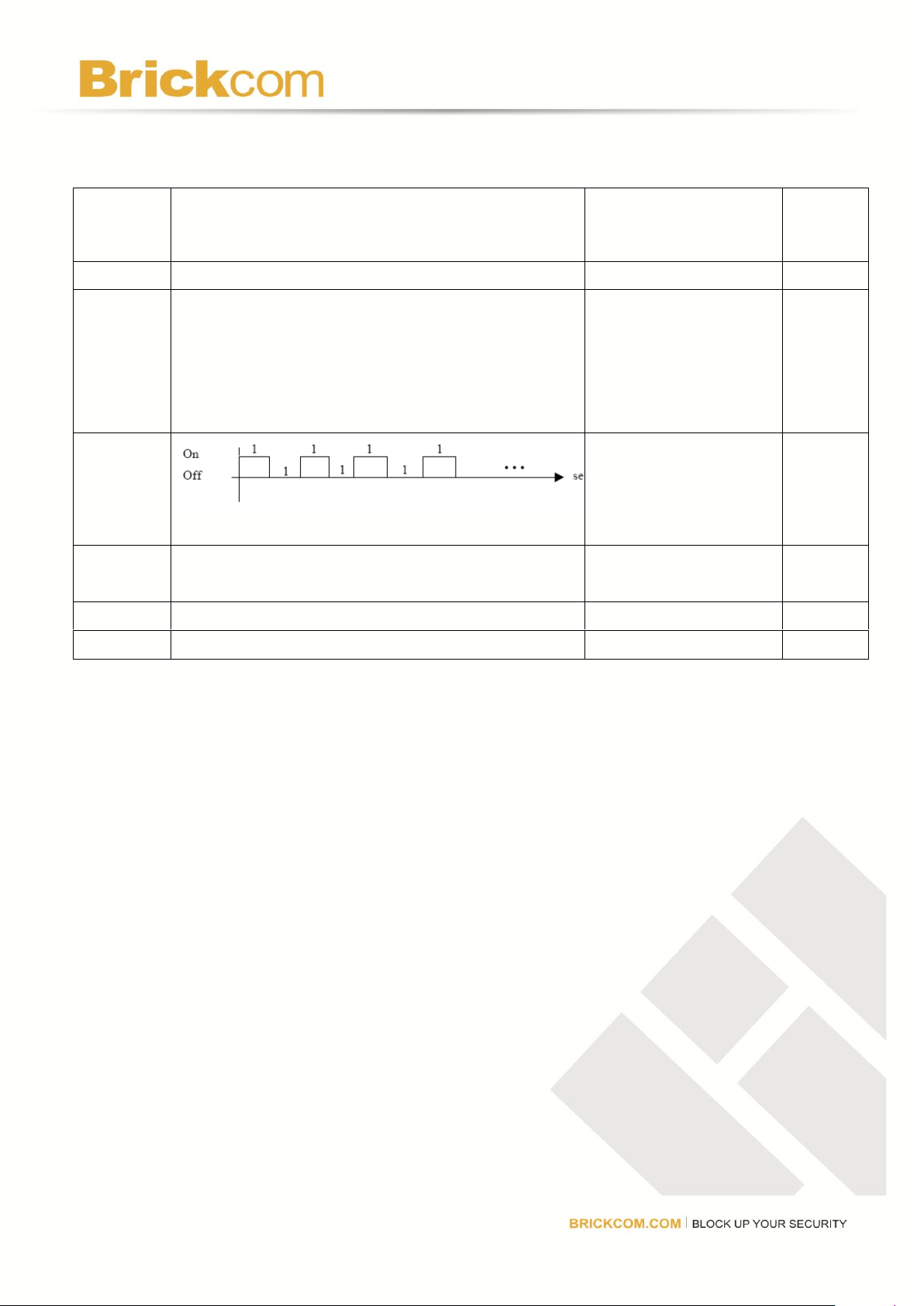

LED Behavior..................................................................................................................... 13
System Requirements ........................................................................................................ 15

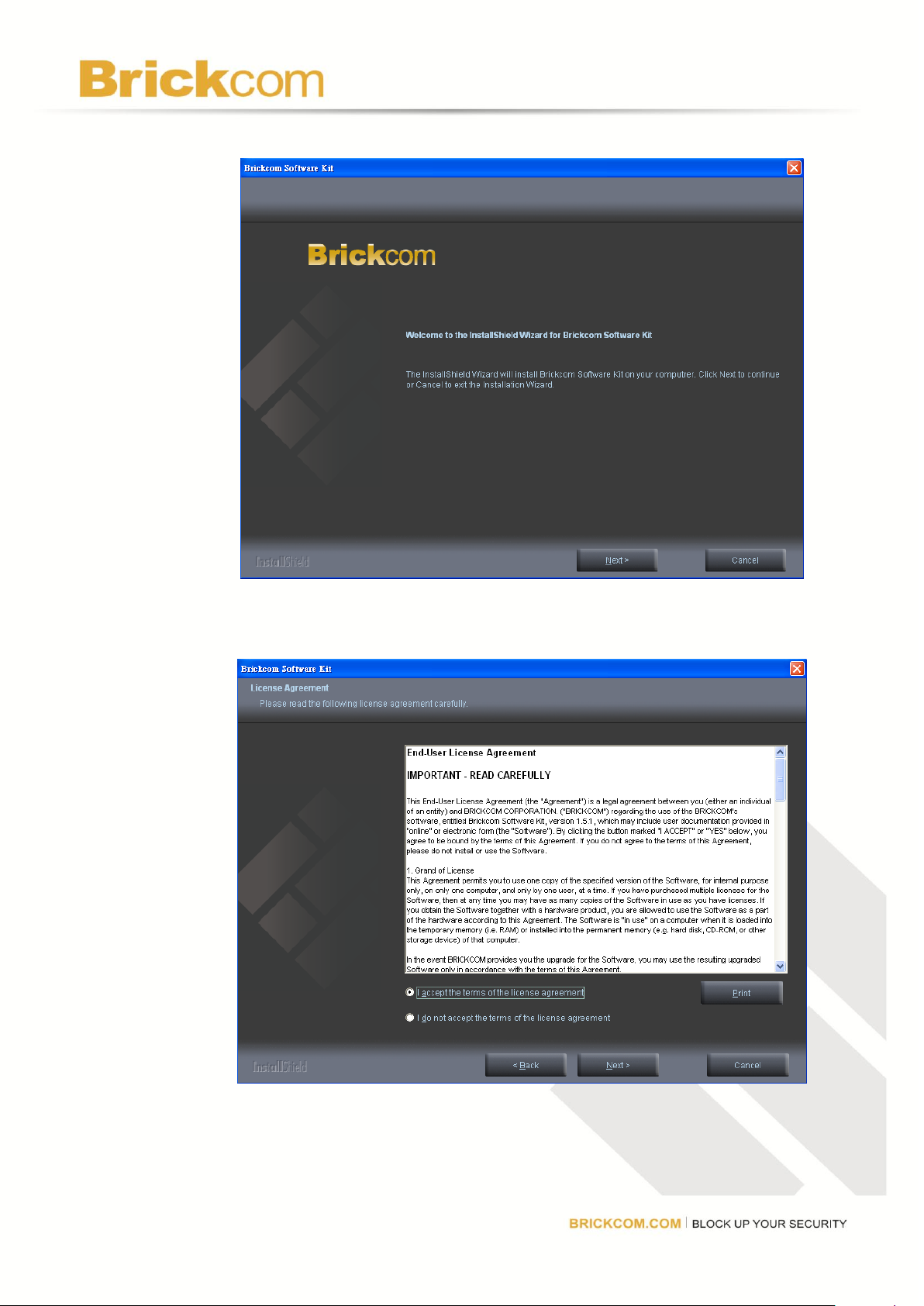

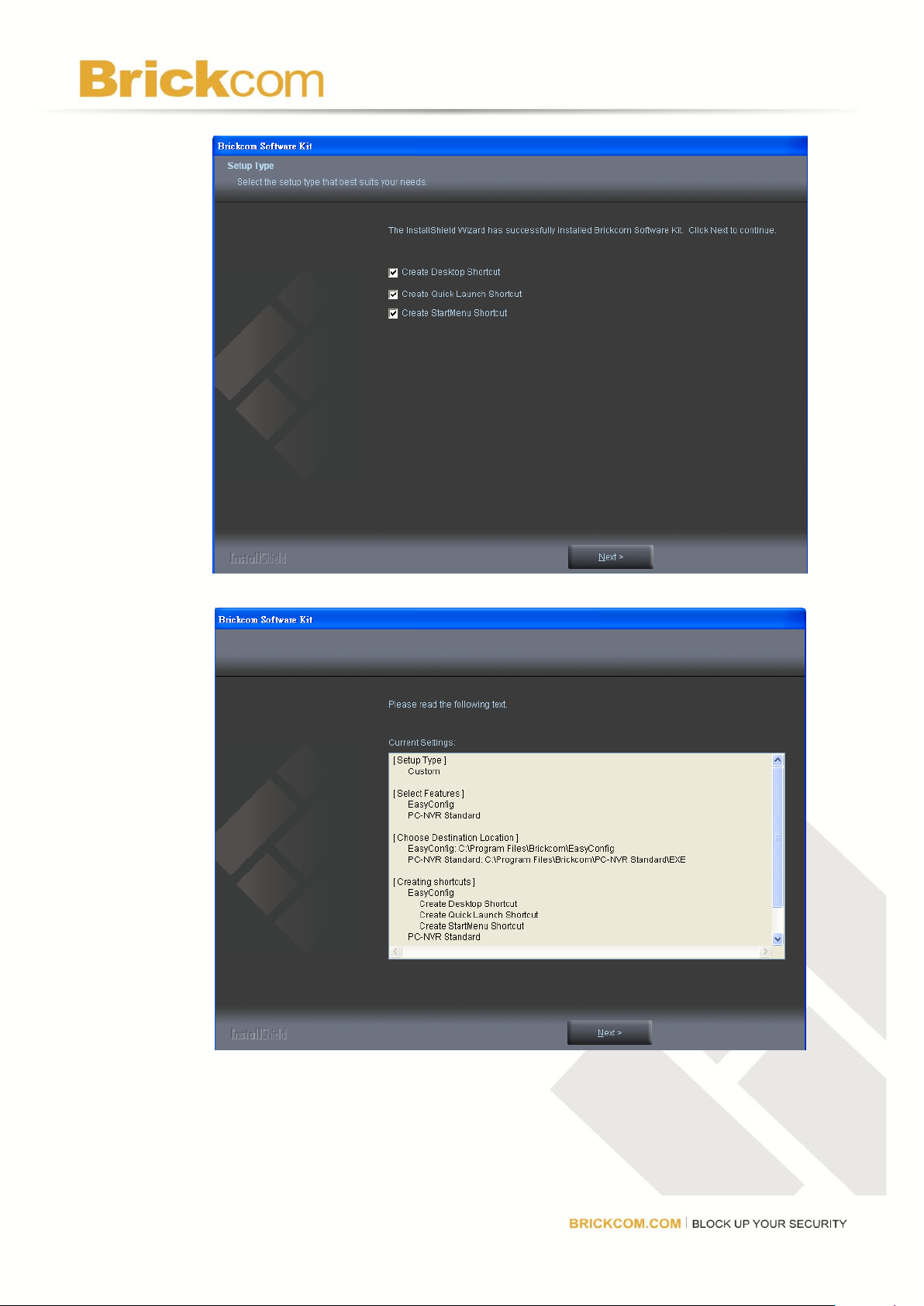

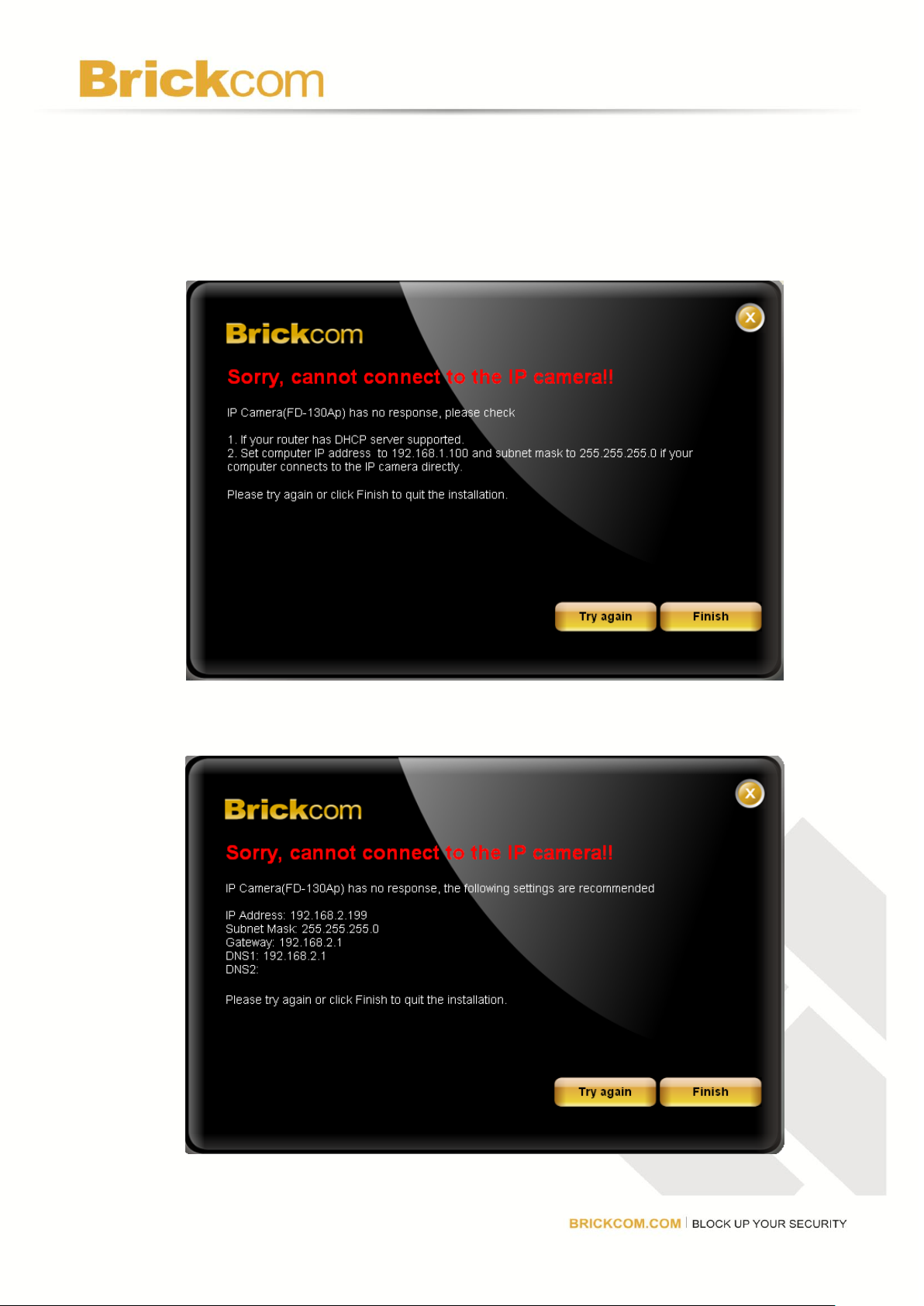

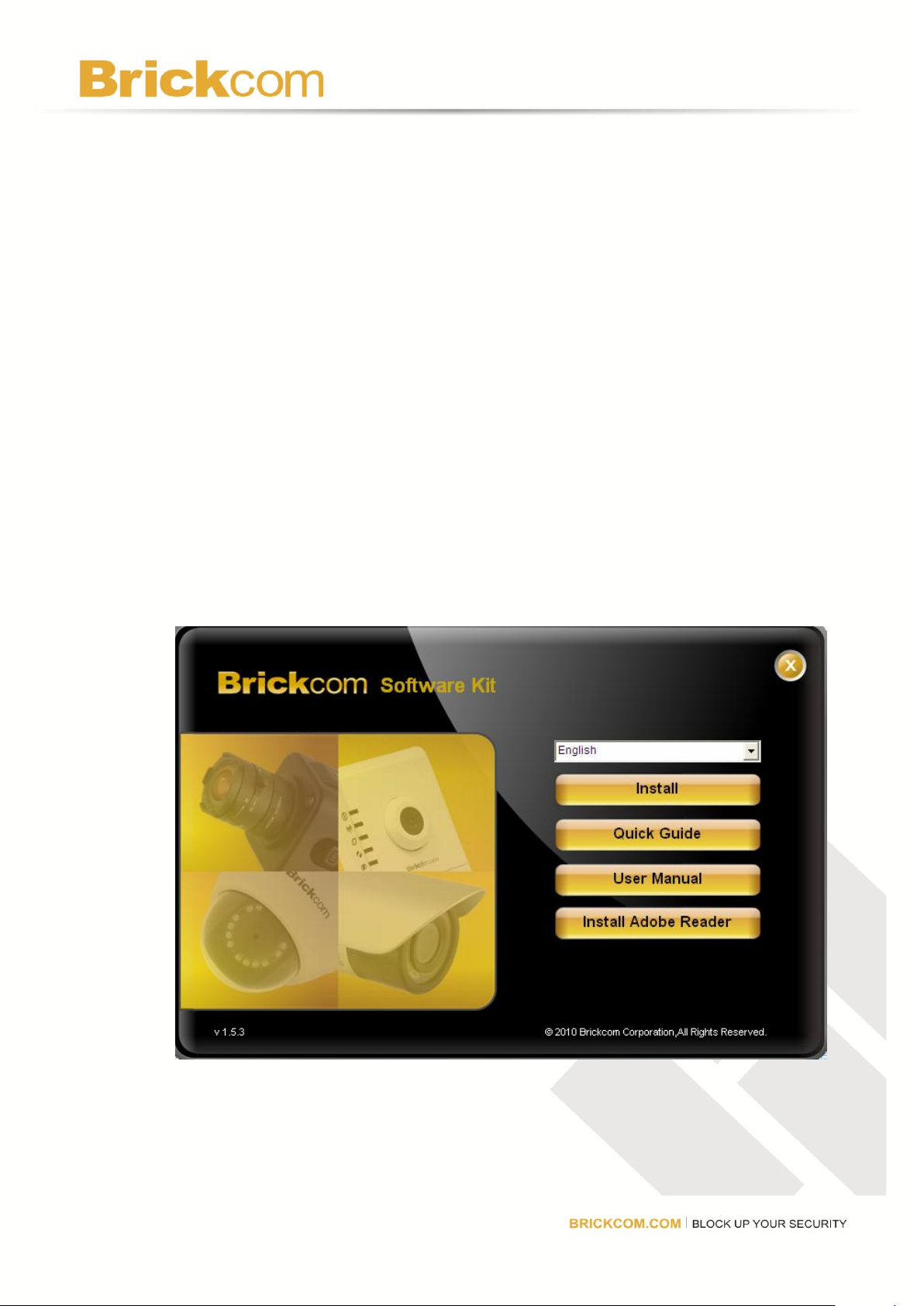

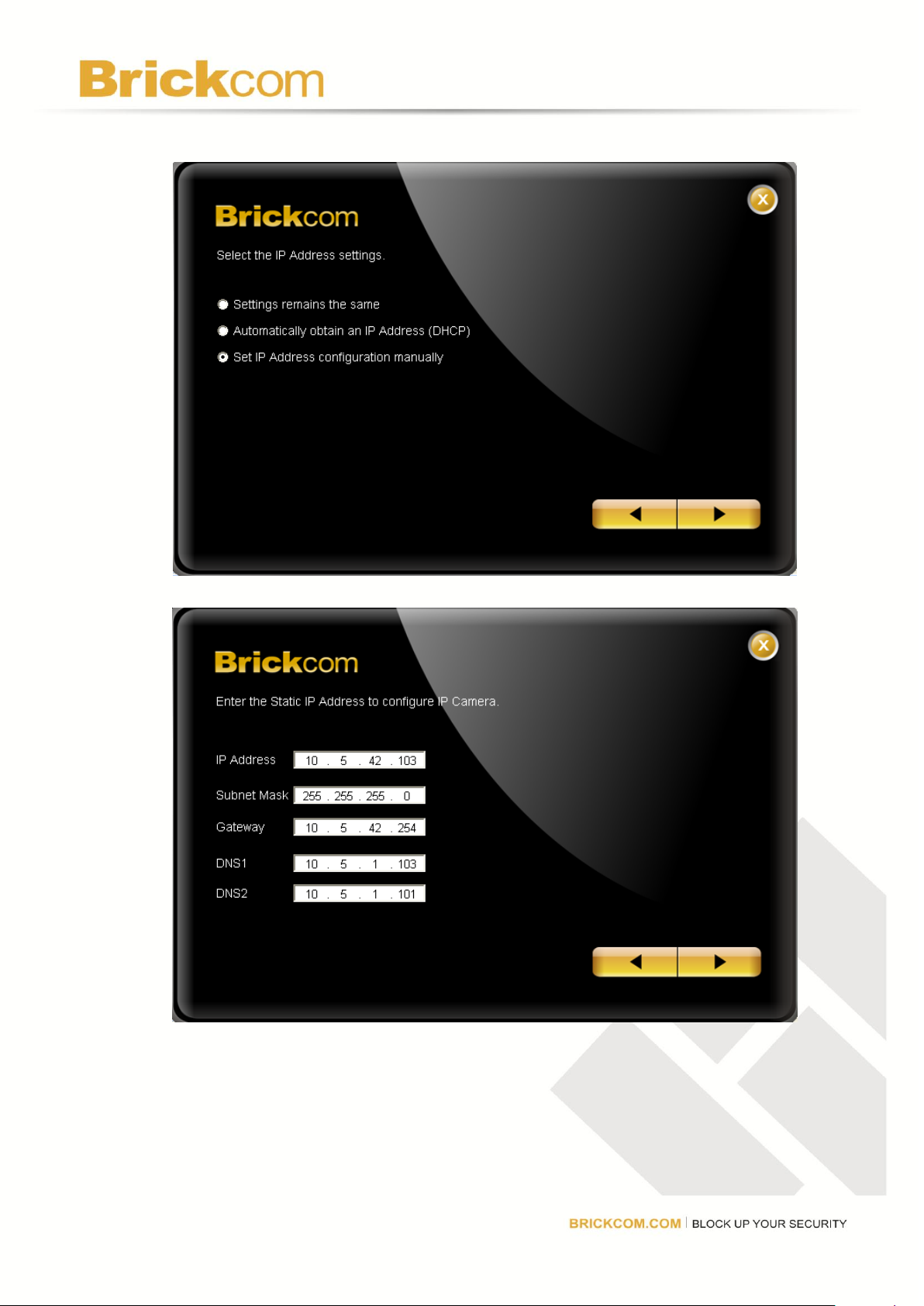

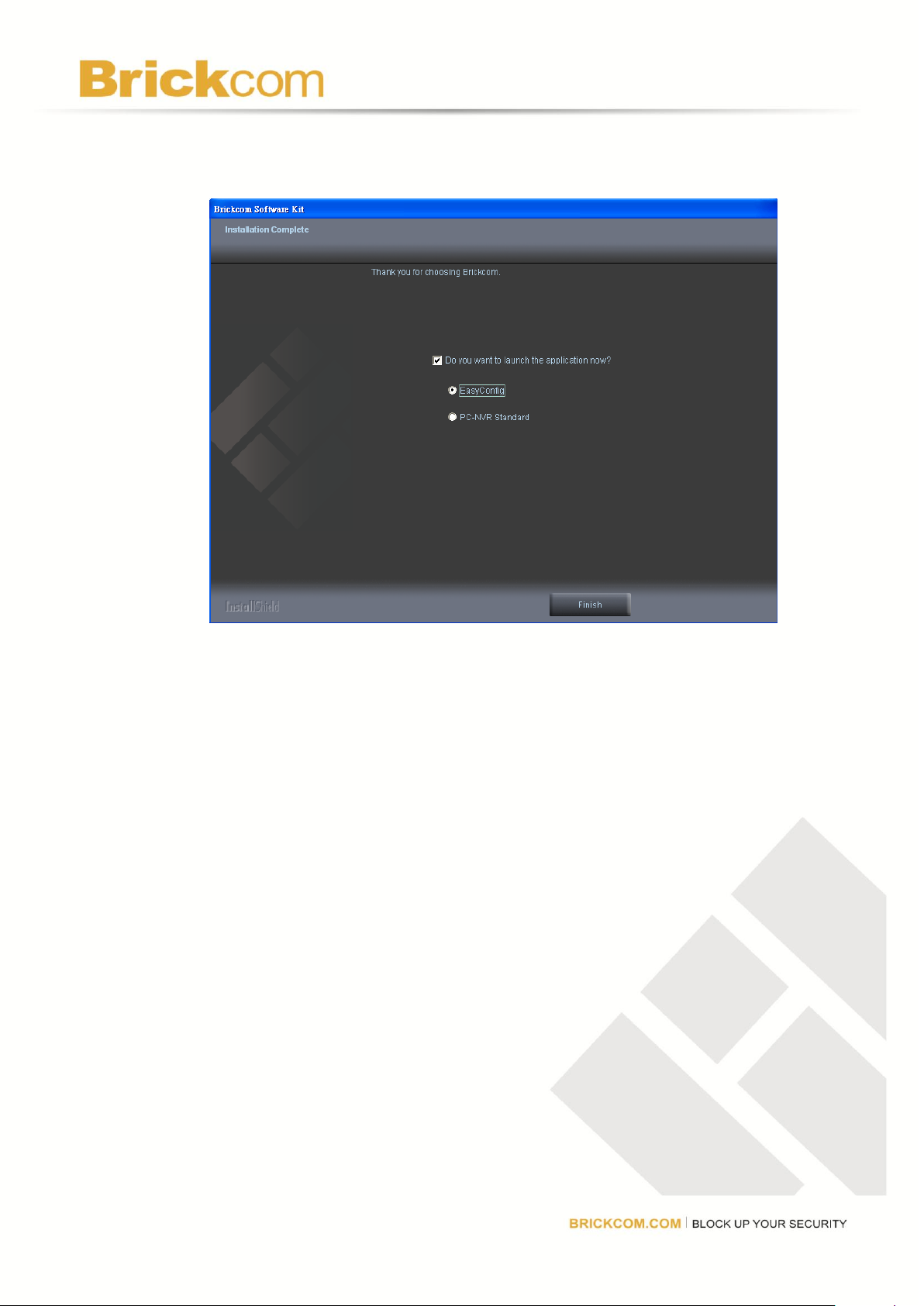

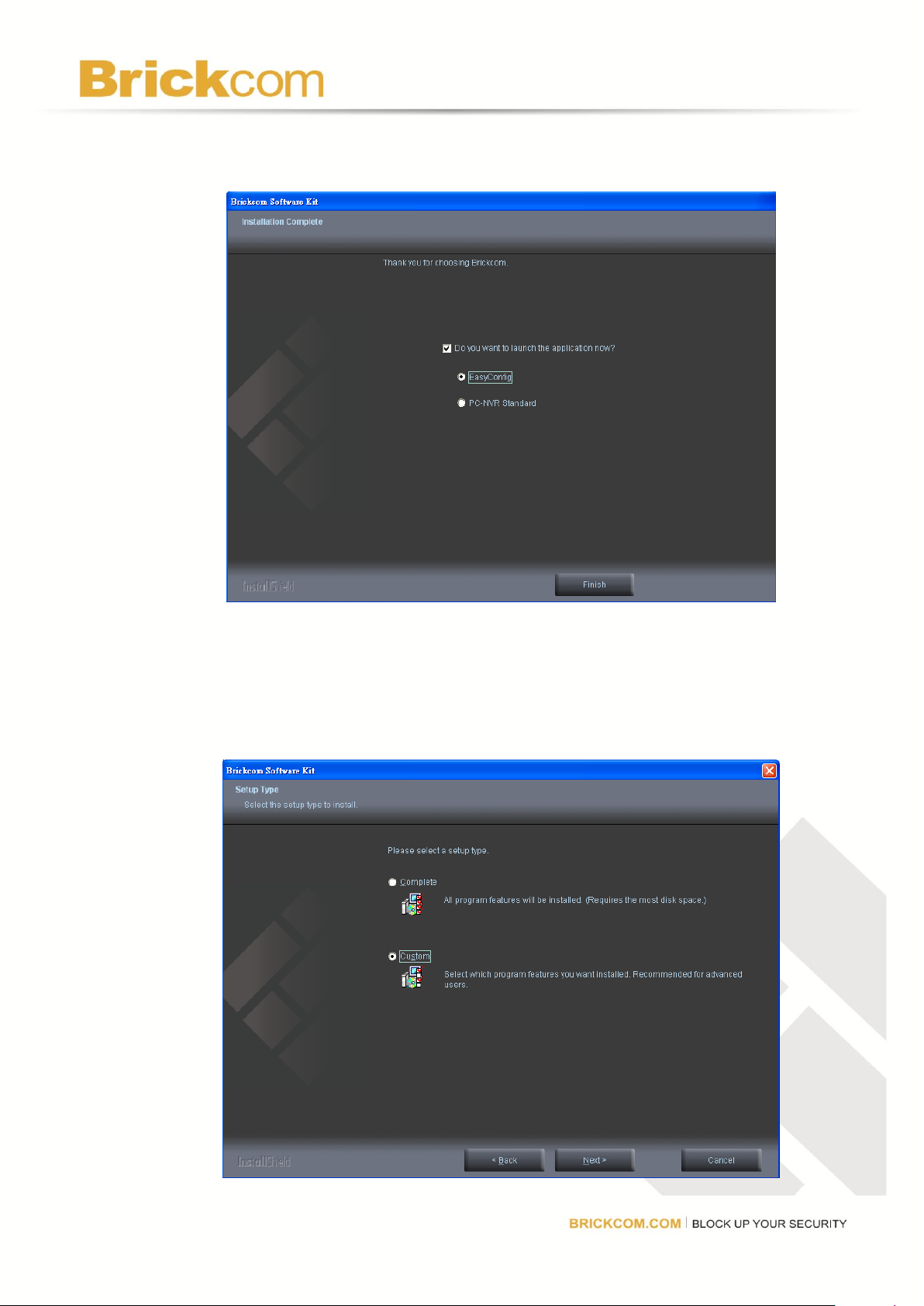

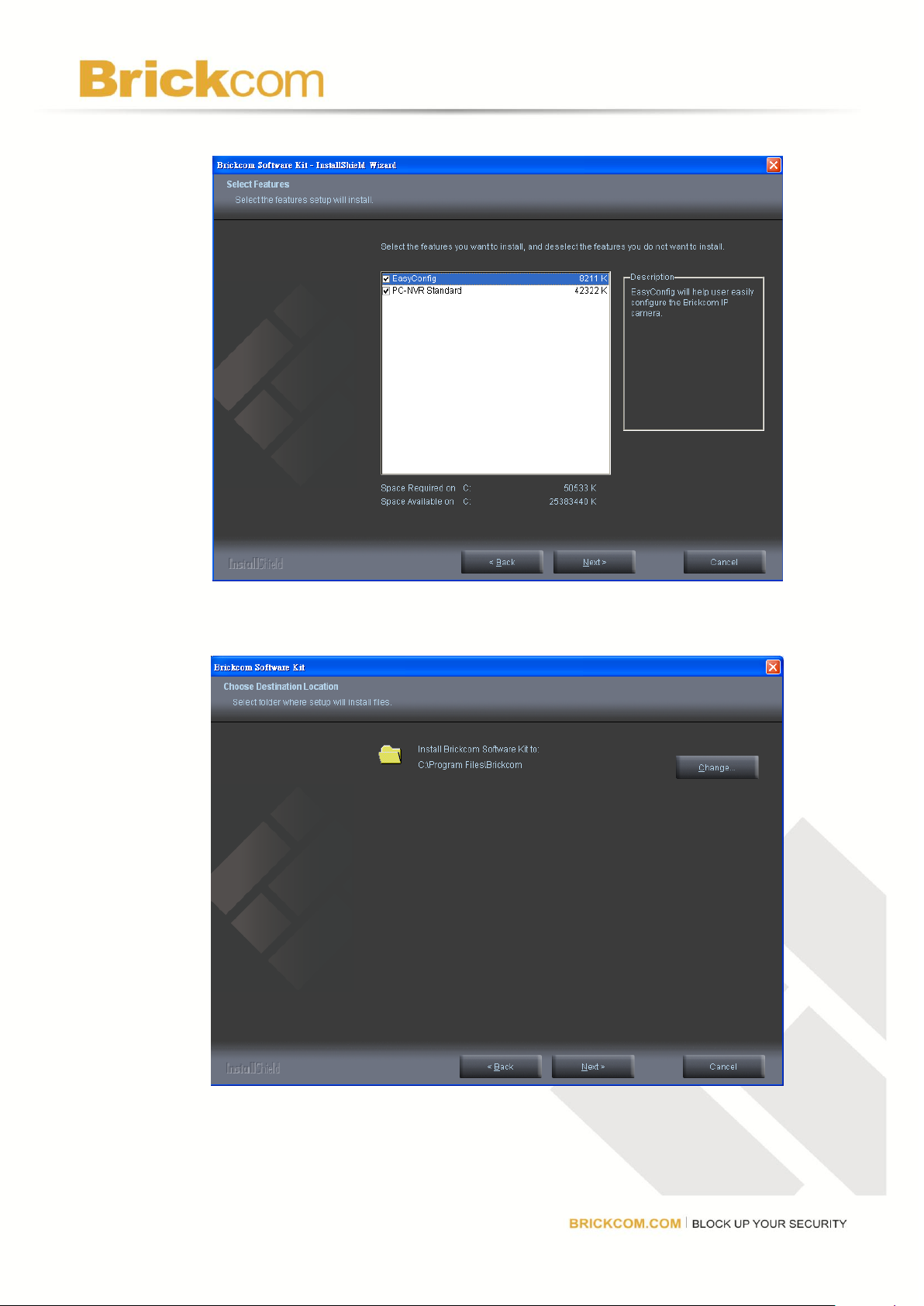

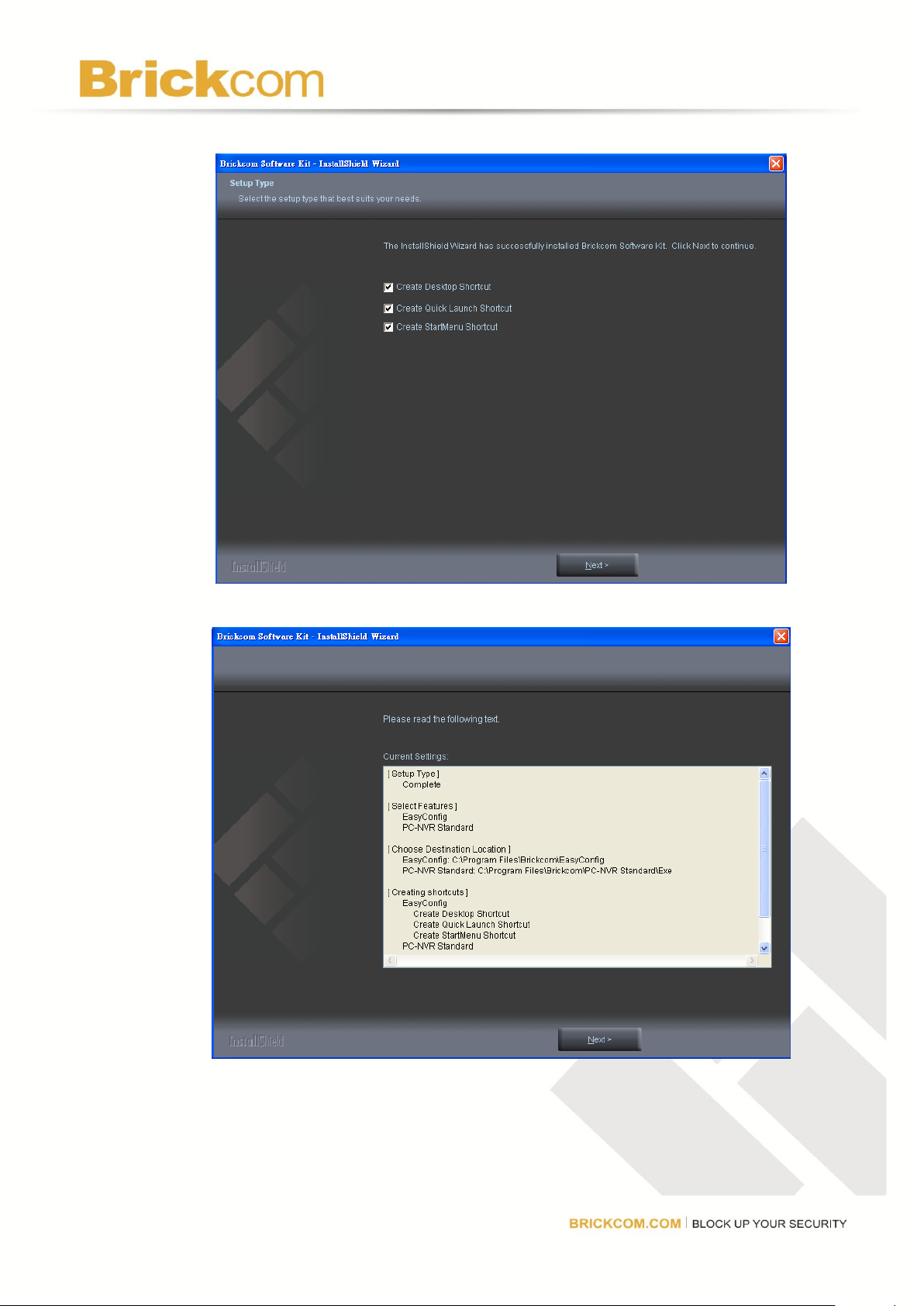

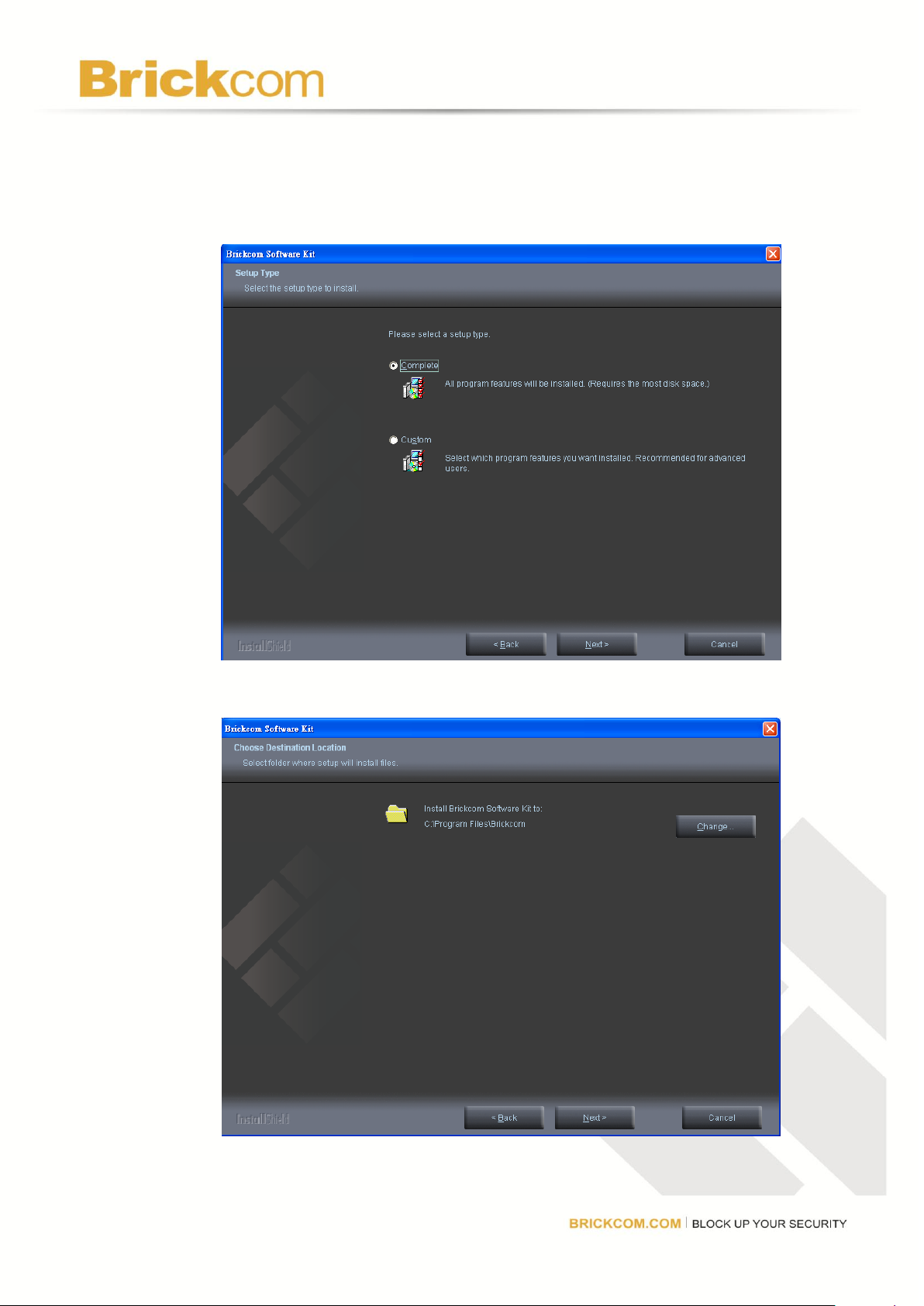

Software Installation ........................................................................................................... 16

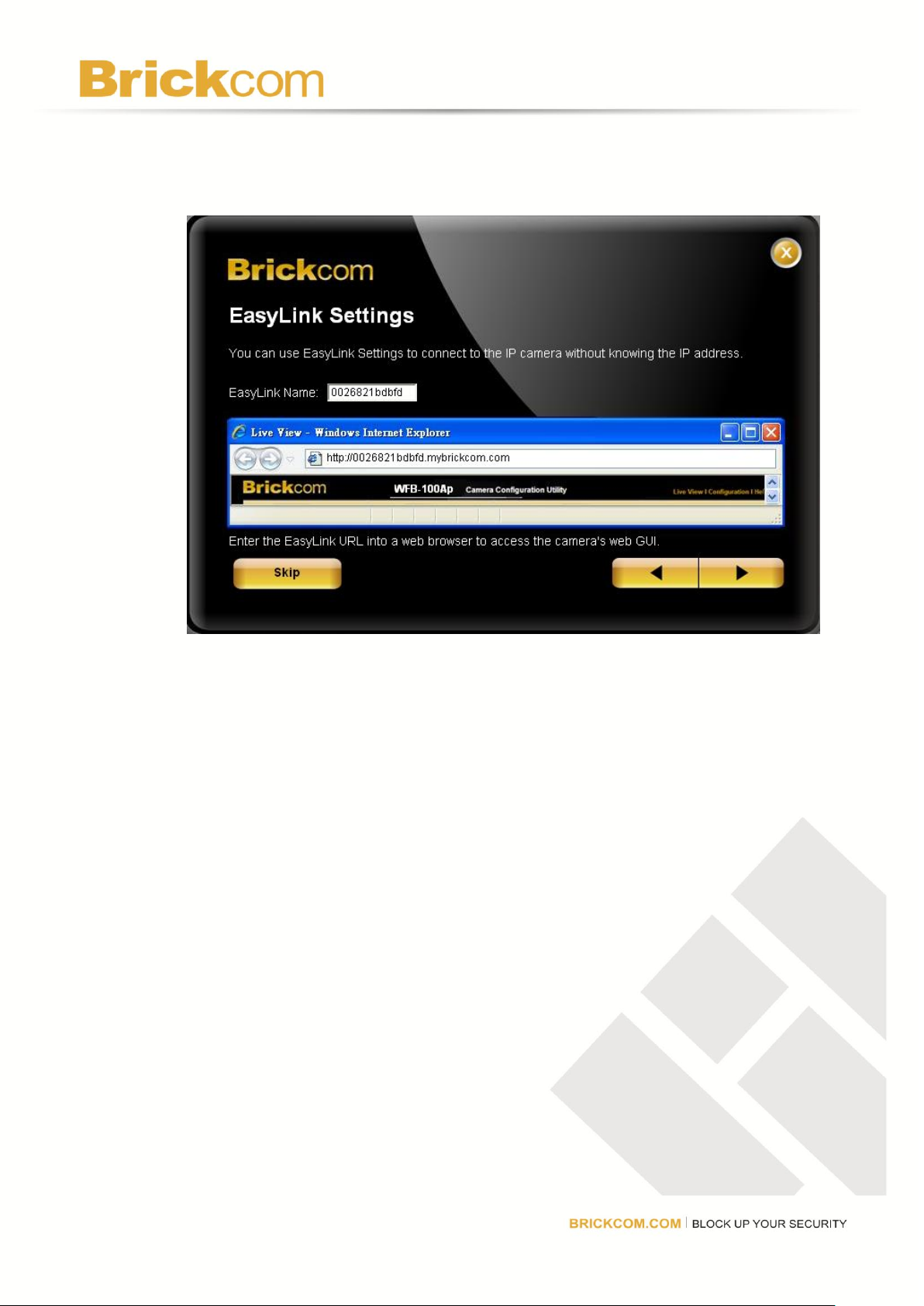

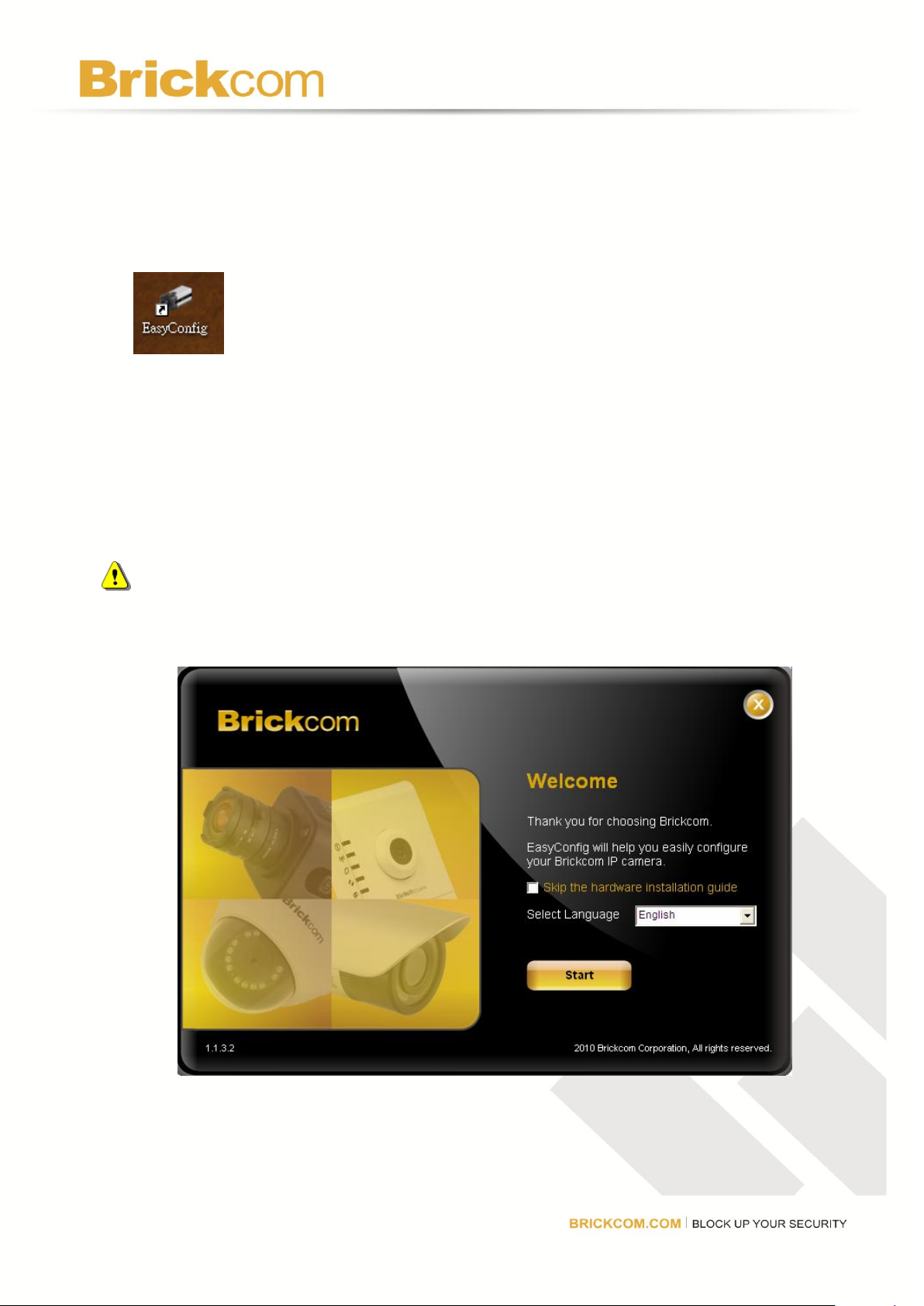

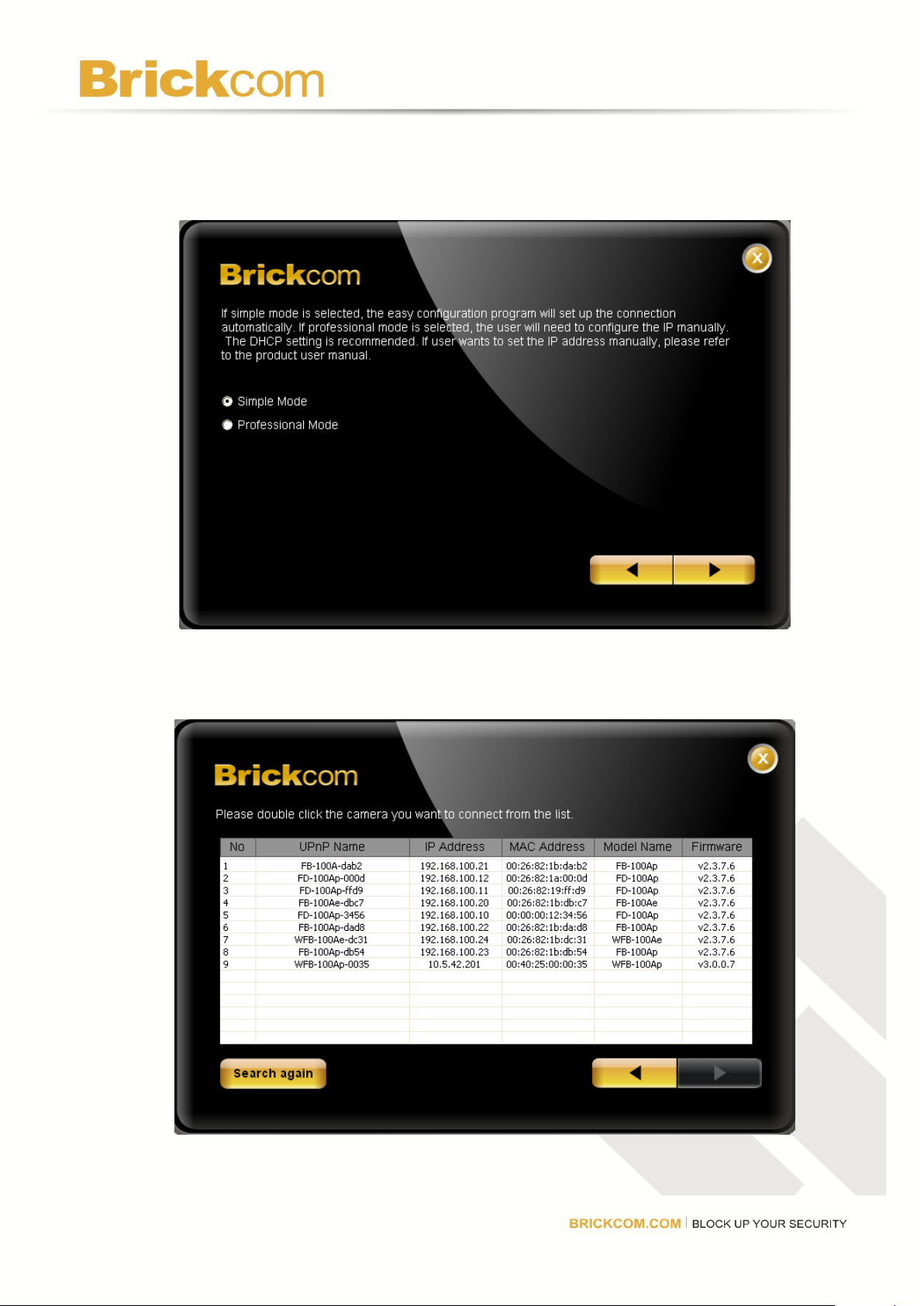

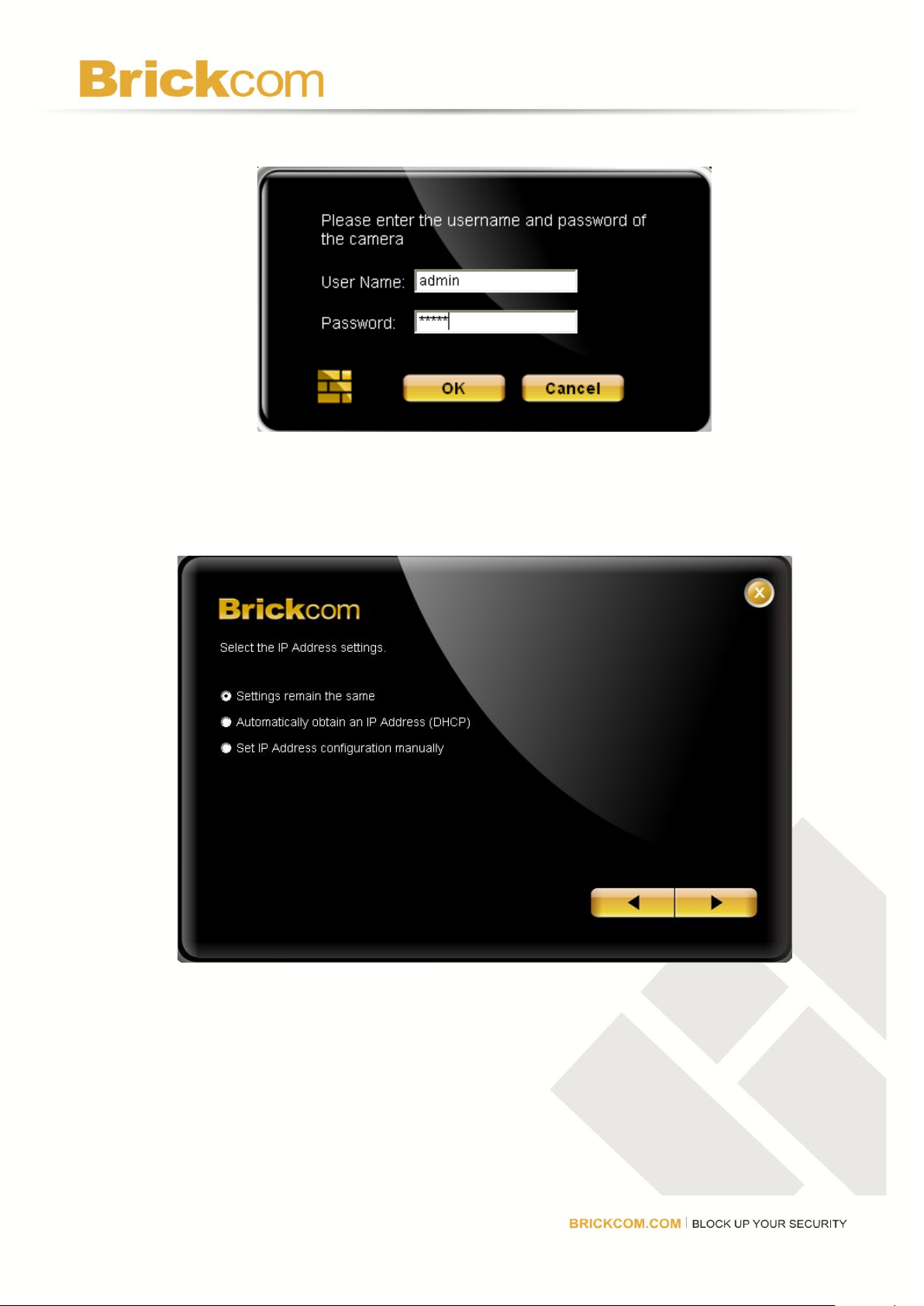

EasyConfig ........................................................................................ 24
- -
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the
Network Camera, carefully read and follow the instructions in the “Installation” chapters
to avoid damages due to faulty assembly or installation.
FCC Warning
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may
cause undesired operations.
1
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
- -
a. MD-500A Series/ MD-300Np Series
b. Product CD
c. Adjusting Lens Tool
d. Allen Key
e. Warranty Card
f. Screw Bags(2pcs)
g. Dry Bag / Double-Sided Tape
h. Alignment Sticker
i. Easy Installation Guide
j. Mounting Adapter
k. TV out Connector Cable (Optional)
l. M12 Connector(Optional)
Package Contents
Please check to make sure that the product package contains all the accessories listed below.
- 3 -
Model Name
Lens
Focal
Length
Cable Type
Power Input
USB port
for 3G/ 4G
DC12V
PoE
802.3af
M12
MD-500A
Series
MD-500Ap-A1
f=4.00mm
RJ45, DC12V
-
-
MD-500Ap-A2
f=3.60mm
RJ45, DC12V
-
-
MD-500Ap-B1
f=4.00mm
M12 Connector
-
-  -
MD-500Ap-B2
f=3.60mm
M12 Connector
-
-  -
MD-500Ap-C1
f=4.00mm
RJ45, USB Connector
-  -
MD-500Ap-C2
f=3.60mm
RJ45, USB Connector
-  -
MD-300N
Series
MD-300Np-A1
f=4.00mm
RJ45, DC12V
-
-
MD-300Np-A2
f=3.60mm
RJ45, DC12V
-
-
MD-300Np-B1
f=4.00mm
M12 Connector
-
-  -
MD-300Np-B2
f=3.60mm
M12 Connector
-
-  -
MD-300Np-C1
f=4.00mm
RJ45, USB Connector
-  -
MD-300Np-C2
f=3.60mm
RJ45, USB Connector
-  -
Product Comparison
*This table compliant with MD-500A Series, MD-400A Series, MD-300A Series, MD-200A Series, MD-130A Series,MD-300N Series, MD-200N Series, MD-130N Series.
- 4 -
Mini Dome Network Camera Overview
The Brickcom MD-500A series/ MD-300N series is a mini dome network camera designed for outdoor use. MD-500A series/ MD-300N series has a compact and stylish design, also provides Full HDTV video (1080p @ 30fps). IP67 certified, IK10 vandal-proof and EN50155 Anti Vibration and Shock, the MD-300A & MD-500A Series is perfect for outdoor surveillance, and surveillance in buses, trains, subway cars and emergency vehicles.
The MD-500A series/ MD-300N series is designed to provide end users with high quality video feed for an easily accessible security system. By offering H.264/M-JPEG/MPEG-4 triple codec compression, it is able to offer a flexible system which does not require high bandwidth and storage capabilities. The internal micro SD/SDHC memory card slot allows for local storage, which prevents data loss if the data connection is lost. The MD-300A & MD-500A Series comes with a wide-angle lens, and Pan 35°/ Tilt 0-90° / Rotation 180° wide angle adjustment, allowing a wide open view for maximum coverage.
Different from other dome cameras, MD-500A series/ MD-300N series supports exchangeable lenses for different conditions. Moreover, MD-500A series/ MD-300N series supports 3G/4G (WiMAX/ LTE) wireless connectivity which allows the camera to transmit video data over wireless networks.
The MD-500A series/ MD-300N series is designed for easy installation. With the BNC TV-Out Connector, the camera can be connected to a monitor which makes it easier for installers to adjust the picture focus while setting up the camera. The MD-500A series/ MD-300N series is
- 5 -
equipped with a special designed mounting adapter and can be installed on a curved surface. The camera supports different power inputs such as PoE 802.3af, M12 and DC12Vs
- 6 -
Device Appearance Description
(*) These are optional features. Please refer to the Product List for the full list of
optional features that are available for this product.
- 7 -
Installation

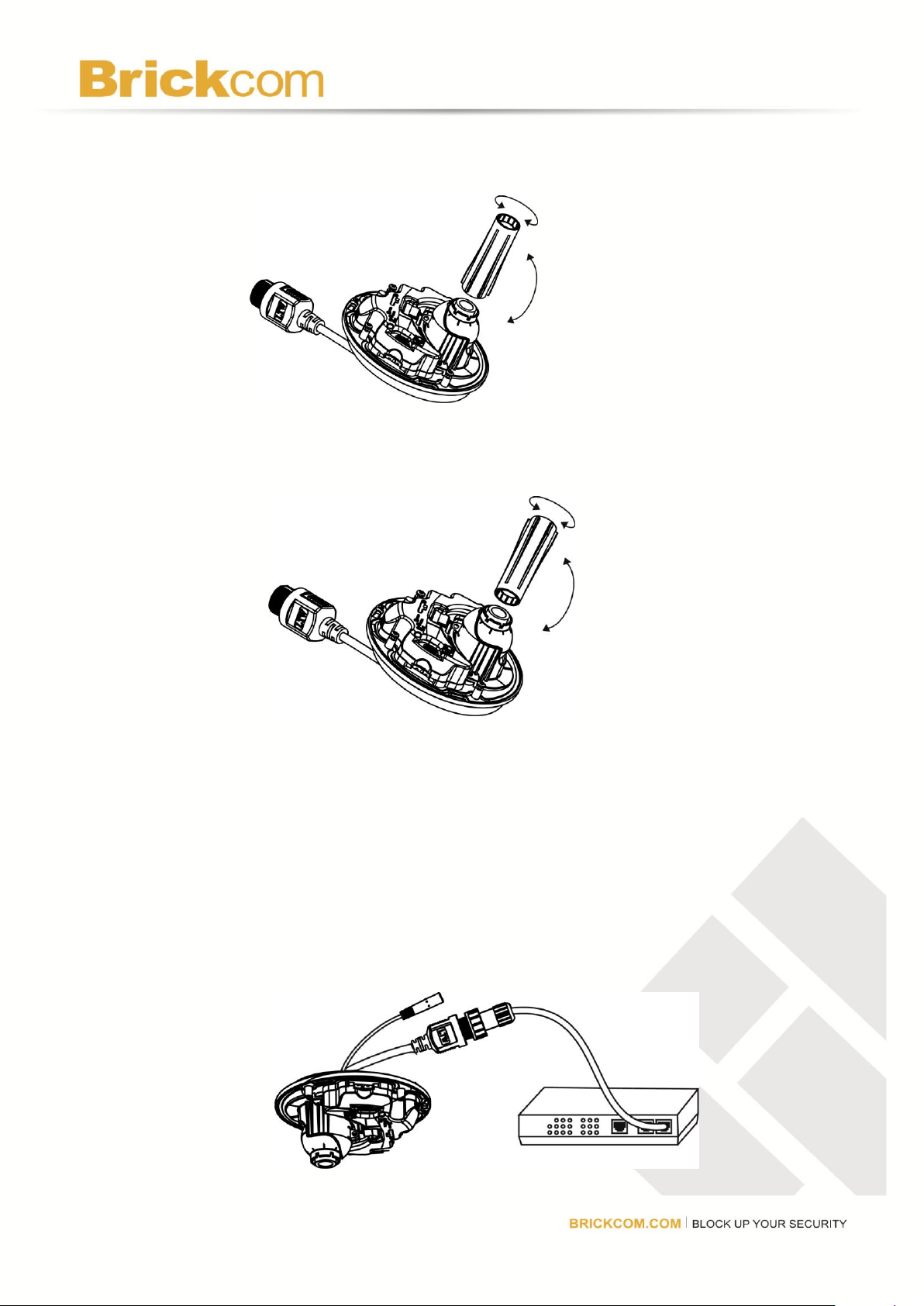

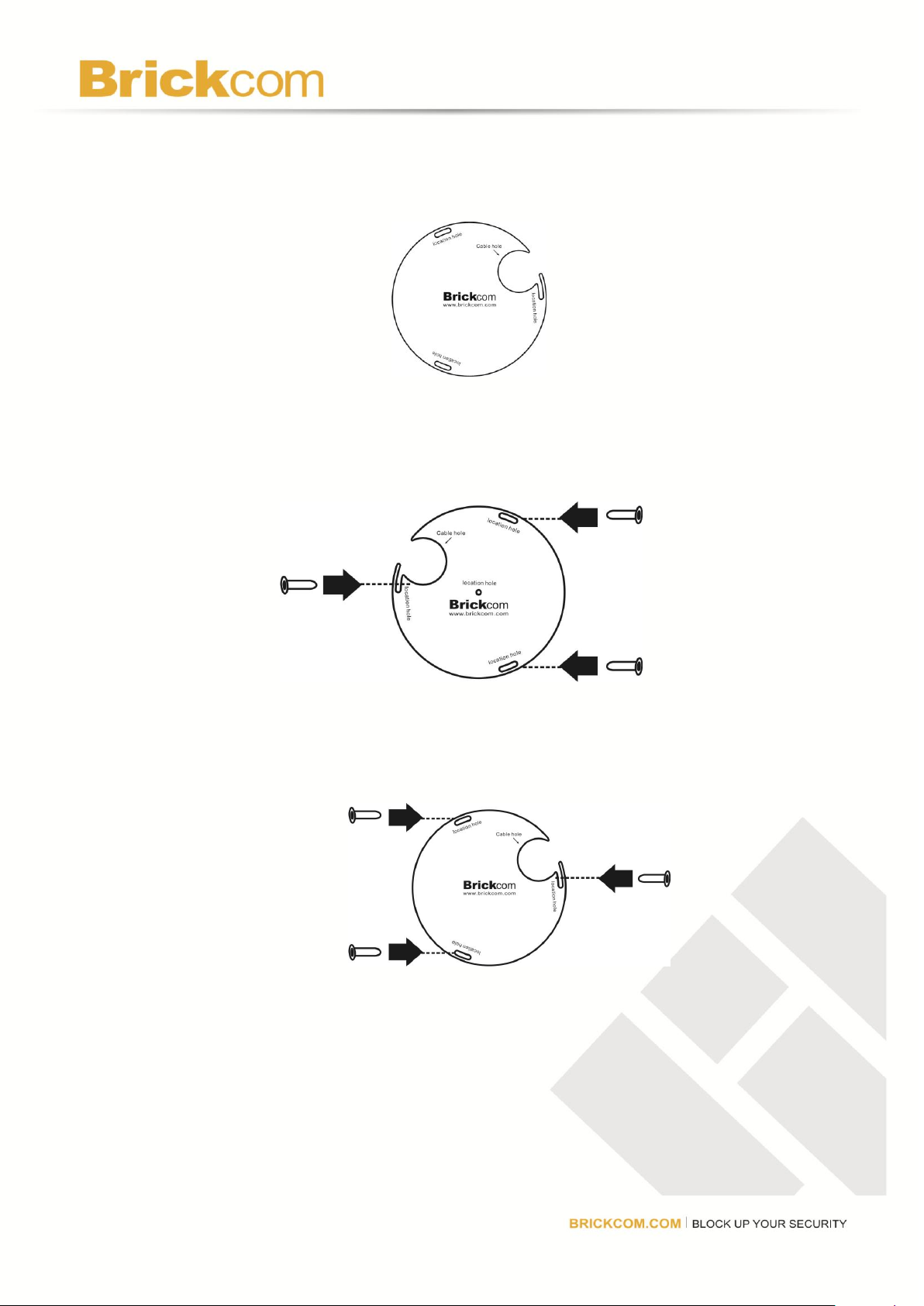

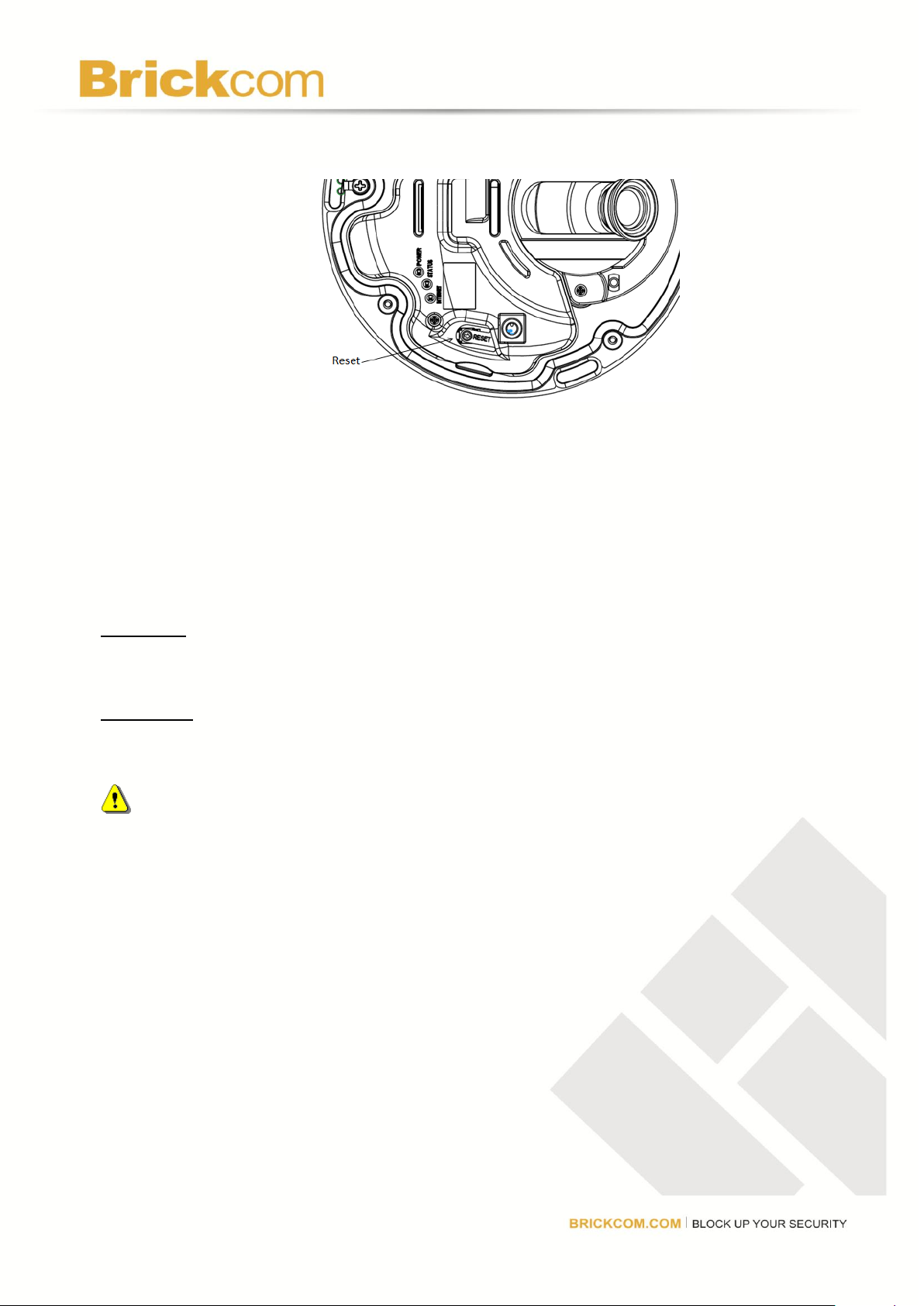

Hardware Installation
WARNING: Do not mount the camera on a soft material. The camera may fall and be
damaged.

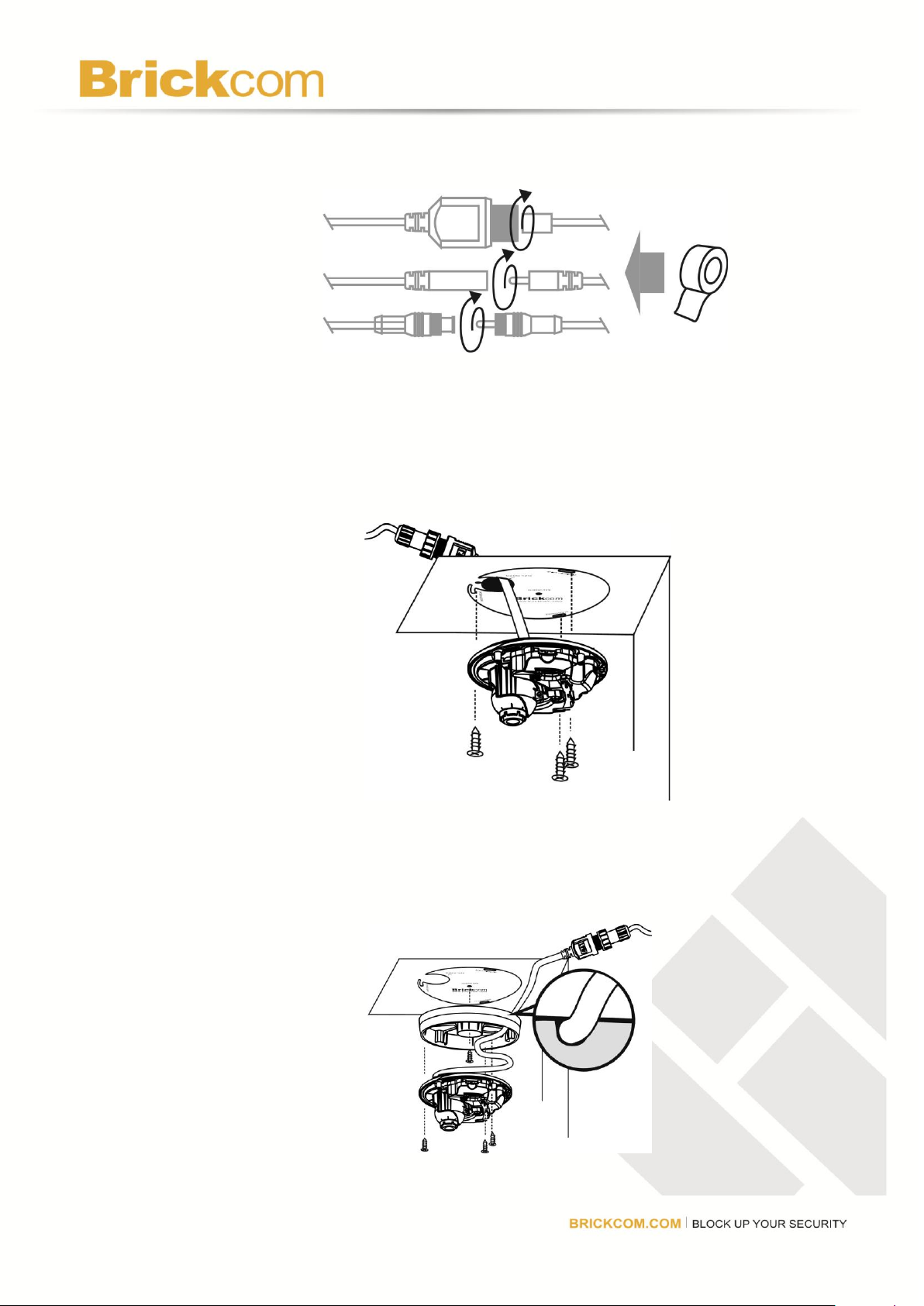

1. Use the enclosed Allen key to detach the dome cover from the camera device.
As remove the cover, please be aware of the Microphone Line.
2. Remove the dry bag from its package. Use the double-sided tape to stick the dry bag onto the designate position inside of the dome cover.
- 8 -
