Micro SD/SDHC Card
RJ45 Connector (for Ethernet and
PoE:802.3.af)
M12 Connector(*)
DC12V Connector
*Cable Connector Variants*

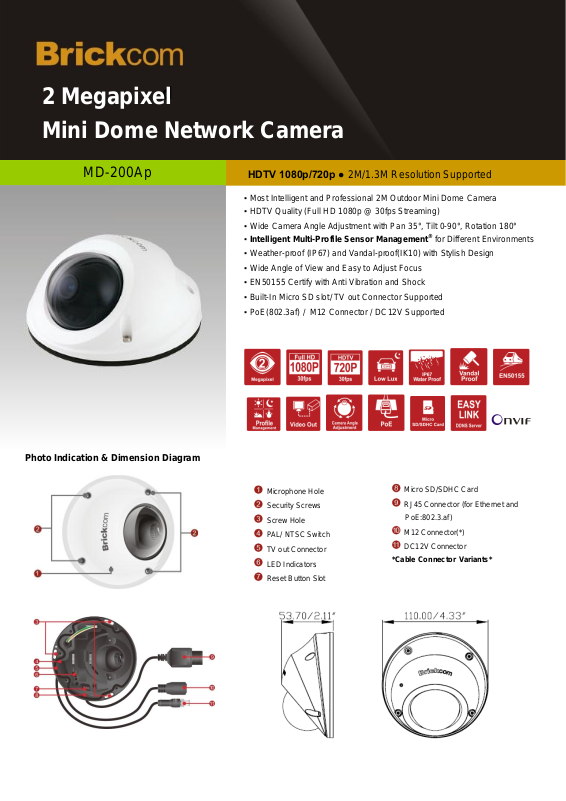

2 Megapixel
Mini Dome Network Camera
▪ Most Intelligent and Professional 2M Outdoor Mini Dome Camera
▪ HDTV Quality (Full HD 1080p @ 30fps Streaming)
▪ Wide Camera Angle Adjustment with Pan 35°, Tilt 0-90°, Rotation 180°
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Weather-proof (IP67) and Vandal-proof(IK10) with Stylish Design
▪ Wide Angle of View and Easy to Adjust Focus
▪ EN50155 Certify with Anti Vibration and Shock
▪ Built-In Micro SD slot/ TV out Connector Supported
▪ PoE(802.3af) / M12 Connector / DC12V Supported
Photo Indication & Dimension Diagram
MD-200Ap
HDTV 1080p/720p ● 2M/1.3M Resolution Supported
Microphone Hole
Security Screws
Screw Hole
PAL/ NTSC Switch
TV out Connector
LED Indicators
Reset Button Slot
d
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution : 1920x1080 pixel
Camera Angle
Adjustment
Pan ± 35°/ Tilt 0-90° / Rotation ± 180°
Minimum
Illumination
0.6 Lux(B/W)
0.8 Lux (Color)
Local Storage
Built-in Micro SD/SDHC Memory Card Slot
Audio Streaming
1-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Built-in MIC
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Connectors
Cables with different Options
A. RJ45,DC12V
B. M12
Power Input
PoE 802.3af/ M12/ DC12V
Max. Power
Consumption
5.5 watts
Environment
Operating Temperature
-20°C ~ 50°C (-4°F ~122°F),
Operating Humidity :
10% ~ 80%
Dimension
110(L) X110(W) X 53.7(H) mm
Weight
460g/1.02lb
Housing
Weather-proof (IP67)
Vandal-proof (IK10)
Certification
FCC, CE, EN50155, IK10
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure/ Gain/ White Balance Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control:2000K~7000K
S/N Ratio
38.1dB
Image Resolution
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Lens Spec
MD-200Ap
f=4mm
f=6mm
f=8mm
f=2.8mm
f=3.6mm
Lens Type
Board Lens
Board Lens
Board Lens
Board Lens
Board Lens
F Number
F=1.6
F=1.6
F=1.6
F=1.6
F=1.6
FOV(H/V/D)
62°/34°/71°
38°/22°/42°
30°/16°/34°
86°/48°/98°
67°/37°/77°
Events
Motion Detection
Schedule
Audio Detection
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card
HTTP/Email Notification
Camera
General
Audio
Video
Product Distinction
Events and Alarm Management
1. f=4mm,F1.6
2. f=6mm,F1.6
3. f=8mm,F1.6
4. f=2.8mm,F1.6
5. f=3.6mm,F1.6
Example: MD-200Ap-A1
MD-200Ap-B5
M12 mount Lens
BNCMD-01
TV out Connector Line
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
Work Best With
Camera Accessories Options
Network Equipment Options
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
