Terminal Block
(For Audio in/out, DIDO)
FocusEasy Button (*)
Terminal Block (For DC 12V 1.5A)
Focus Control Bar (*)
View Angel Control Bar (*)
SD Card Slot
*These are optional features*

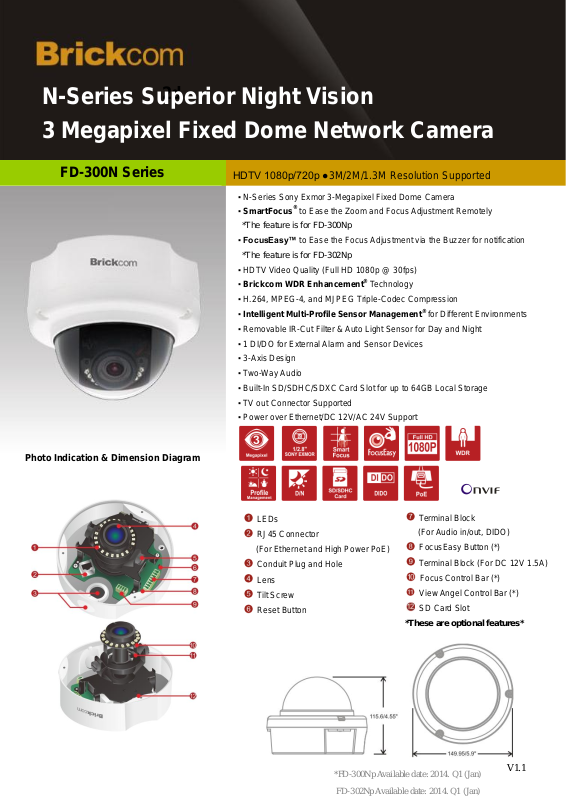

N-Series Superior Night Vision
3 Megapixel Fixed Dome Network Camera
▪ N-Series Sony Exmor 3-Megapixel Fixed Dome Camera
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely
*The feature is for FD-300Np
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification
*The feature is for FD-302Np
▪ HDTV Video Quality (Full HD 1080p @ 30fps)
▪ Brickcom WDR Enhancement® Technology
▪ H.264, MPEG-4, and MJPEG Triple-Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-Cut Filter & Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Devices
▪ 3-Axis Design
▪ Two-Way Audio
▪ Built-In SD/SDHC/SDXC Card Slot for up to 64GB Local Storage
▪ TV out Connector Supported
▪ Power over Ethernet/DC 12V/AC 24V Support
Photo Indication & Dimension Diagram
FD-300N Series
HDTV 1080p/720p ●3M/2M/1.3M Resolution Supported
LEDs
RJ45 Connector
(For Ethernet and High Power PoE)
Conduit Plug and Hole
Lens
Tilt Screw
Reset Button
*FD-300Np Available date: 2014. Q1 (Jan)
FD-302Np Available date: 2014. Q1 (Jan)
2d
V1.1
Models
FD-300Np 3M, Motorized Lens, SmartFocus®
FD-302Np 3M, Vari-Focal Lens FocusEasy™
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” Sony Exmor Sensor
Sensor Resolution : 2048x1536
Minimum
Illumination
FD-300Np
0 lux (IR ON, B/W)
0.008 lux (IR OFF, B/W)
0.01 lux (F1.4, Color)
FD-302Np
0 lux (IR ON, B/W)
0.01 lux (IR OFF, B/W)
0.02 lux (F1.4, Color)
IR Illuminators
Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
Iris: F1.4
FD-300Np f=3mm(W)~10.5mm(T)
View Angle
(H): 98°~32°/ (V): 72°~24°/ (D):120°~40°
FD-302Np f=3.3mm(W)~10.5mm(T)
View Angle
(H): 84°~31°/ (V): 62°~24°/ (D):110°~38°
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Local Storage
Built-in SD/SDHC/SDXC Memory Card Slot
Max. 64G
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
>50 dB
Image Resolution
3M : 2048x1536 @ 20fps
2M (Full HD): 1920x1080 @ 30fps
1M (HDTV): 1280x720 @ 30fps
Events
Motion Detection/ Schedule/ Audio Detection/
Digital Input/ Temperature Alarm/ Auto Focus
Shift for Day & Night(*)
*FD-300Np Only
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card/
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line In/ Out
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Operating
Temperature
DC12V 1A(1.5A)/ AC 24V/ 802.3af PoE
0°C ~ 50°C (32°F ~122°F)
Max. Power
Consumption
DC12V 1.5A/AC 24V
FD-300Np :12.5Watts
DC12V 1A/AC 24V
FD-302Np :10.5 Watts
802.3af PoE
FD-300Np :15 Watts
FD-302Np :12.5 Watts
Environment
Operating Humidity : 10% ~ 80%
Dimension
115.6(D) X 149.95 (H) mm
Weight
509g/1.13lb
Certification
FCC, CE
Viewing System
Requirements
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Camera
General
Audio
Video
Events and Alarm Management
V1.1
L-WM-01
Camera Bracket
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
POE16U *
PoE Injector
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
Copyright 2013 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
