Brickcom FD-300Np-Star, FD-202Ne-V6, FD-200Np-V5, FD-502Ap-V5, FD-500Ap-V6 User Manual

Hardware User’s Manual

Megapixel Day & Night

Fixed Dome Network Camera

Quality Service Group

Fixed Dome Series

Product name:

Network Camera (Fixed Dome series)

Release Date:

2013/01

Manual Revision:

V3.1

Web site:

www.brickcom.com

Email:

[e-mail]

[e-mail]

© 2011 Brickcom Corporation. All Rights Reserved

Review History:

1. Separate User Manual into HW and SW.

2. Merge FD-300Ap/ FD-130N/ FD-132N/ FD-300A/ FD-302A/ FD-500A/ FD-502A
series into this User Manual.

Table of Contents

Before You Use This Product ....................................................................................... 1

Regulatory Information ................................................................................................. 2

Chapter 1 - Package Contents ...................................................................................... 3

Chapter 2 - Fixed Dome Network Camera Overview................................................... 4

Chapter 3 - Device Appearance Description ............................................................... 5

Chapter 4 - LED Behavior ............................................................................................. 7

Chapter 5 - Installation .................................................................................................. 9

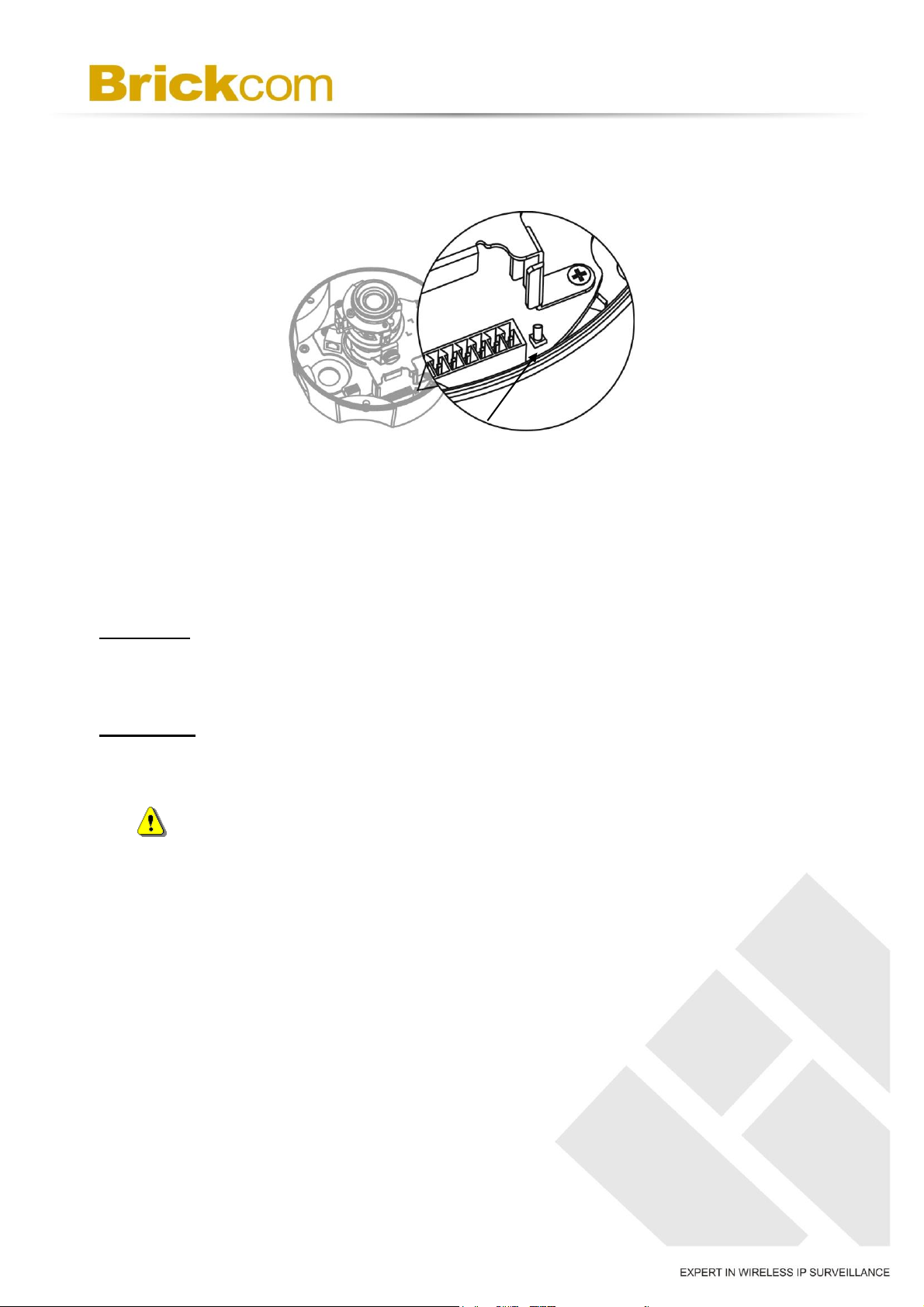

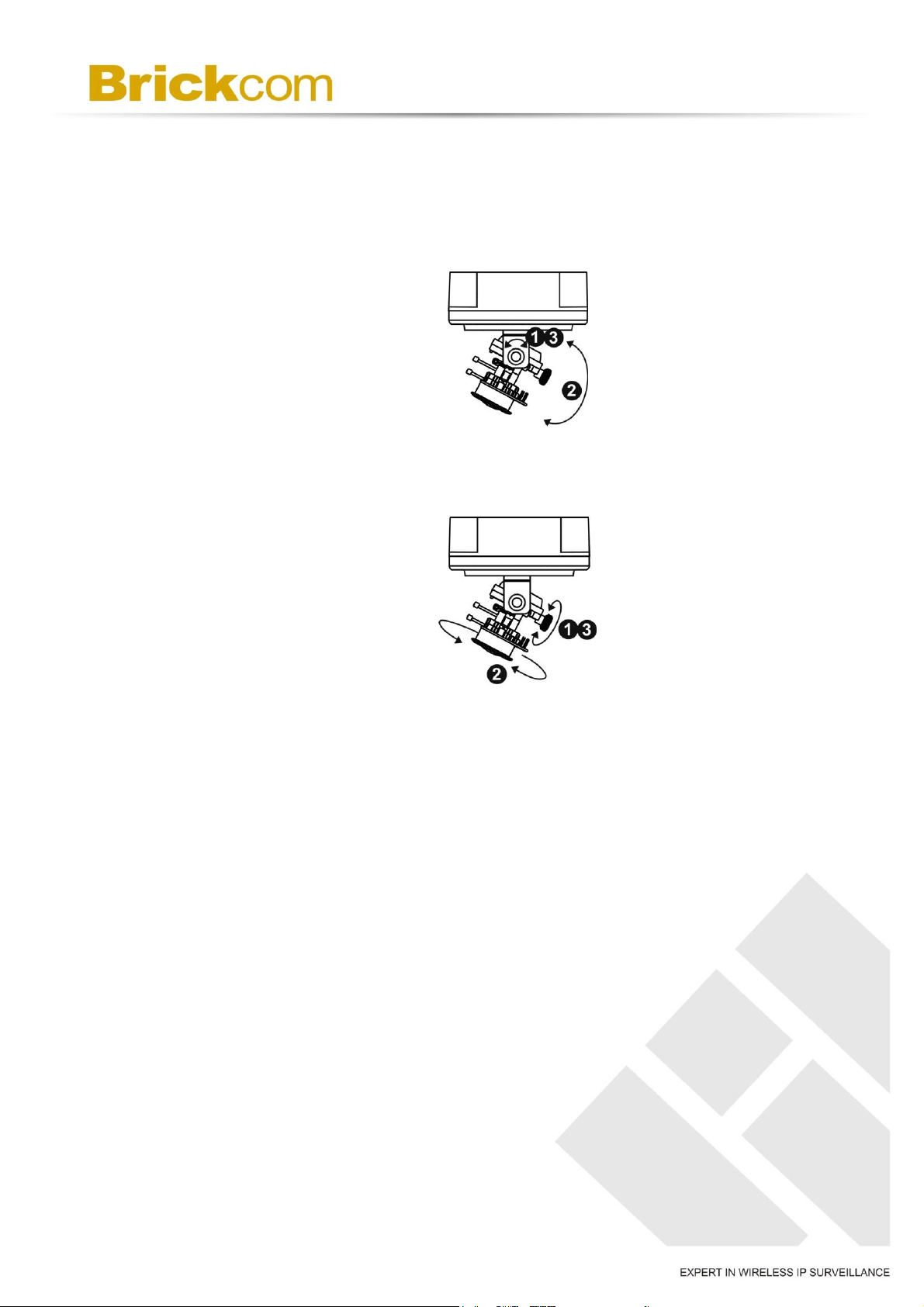

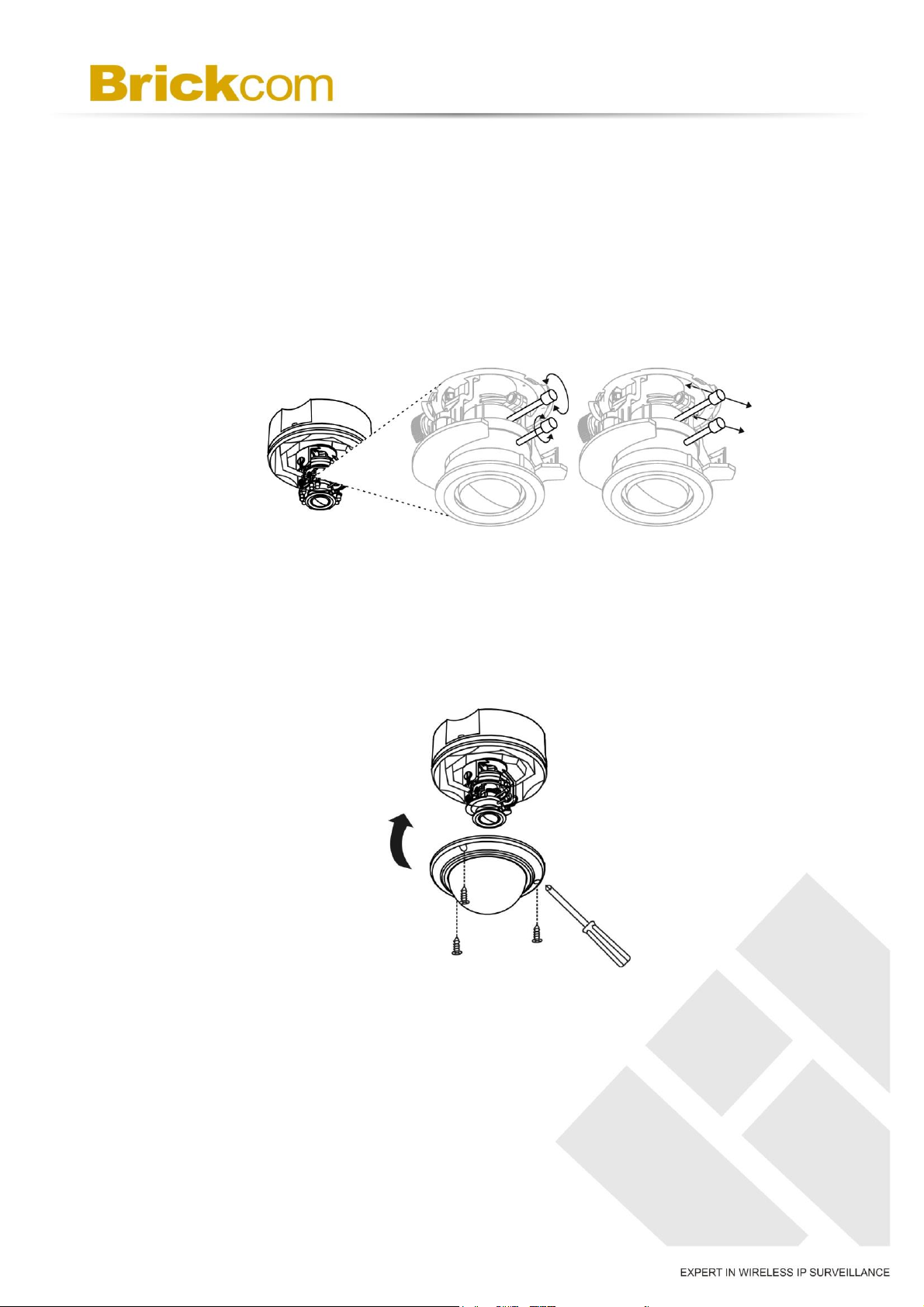

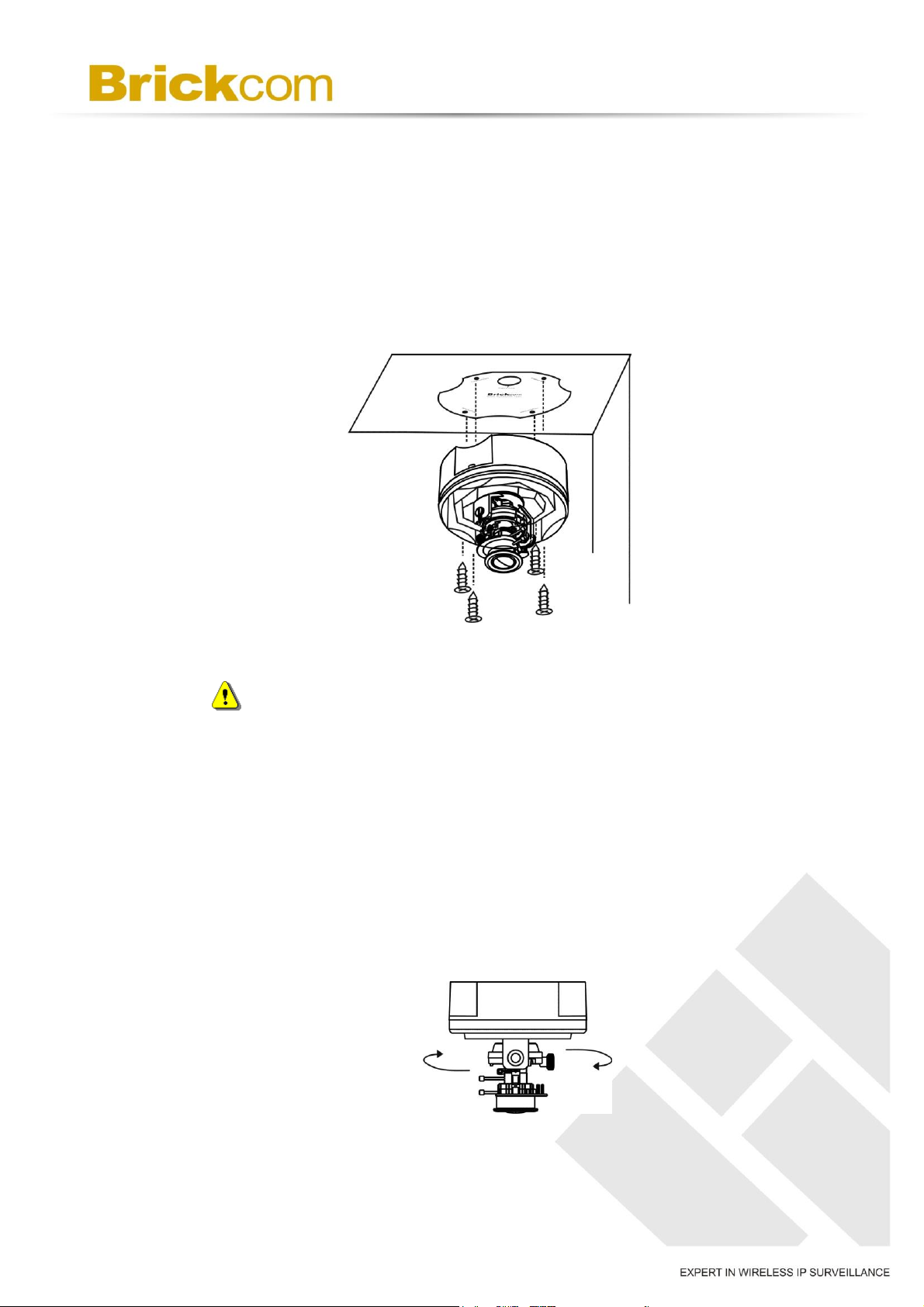

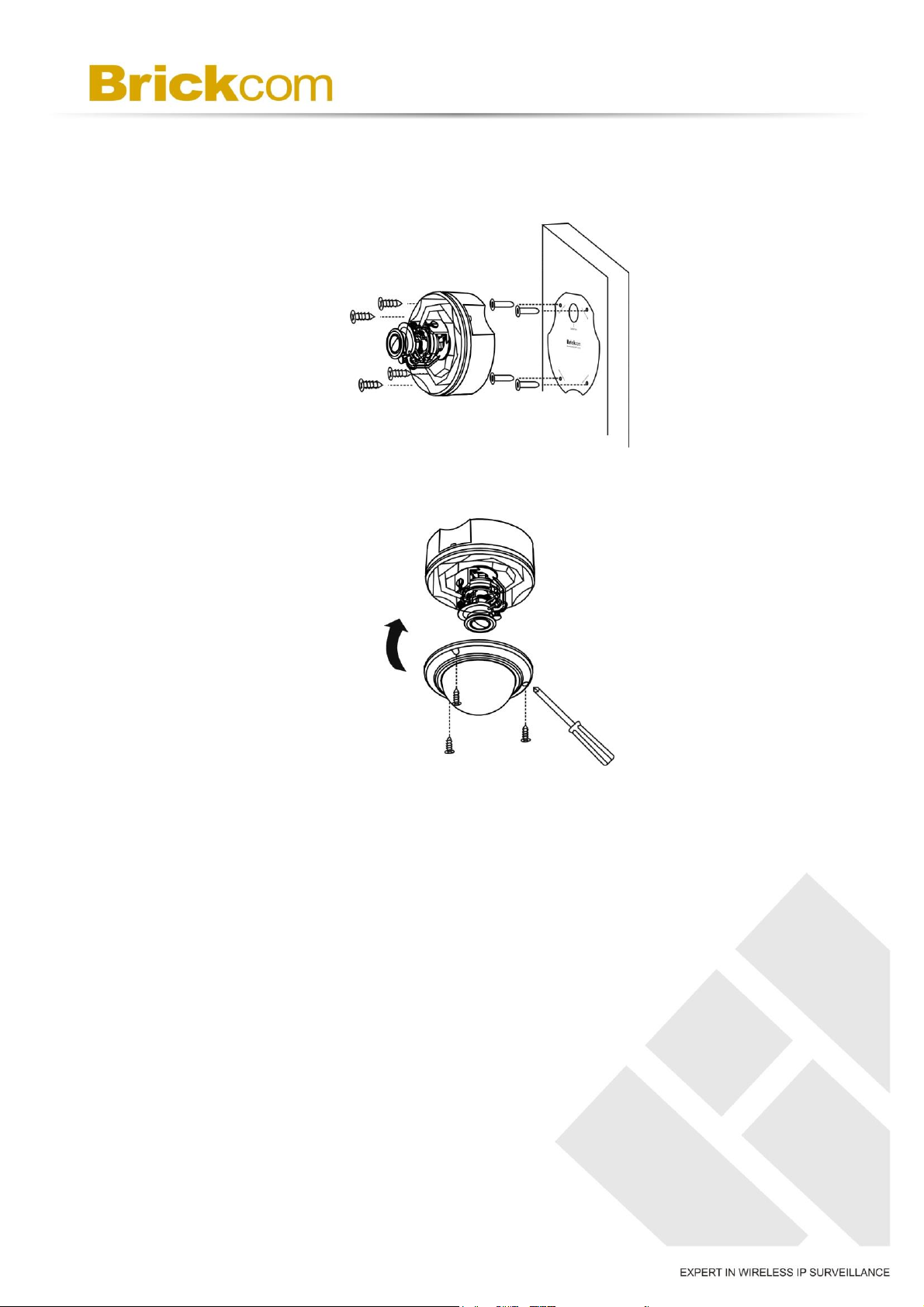

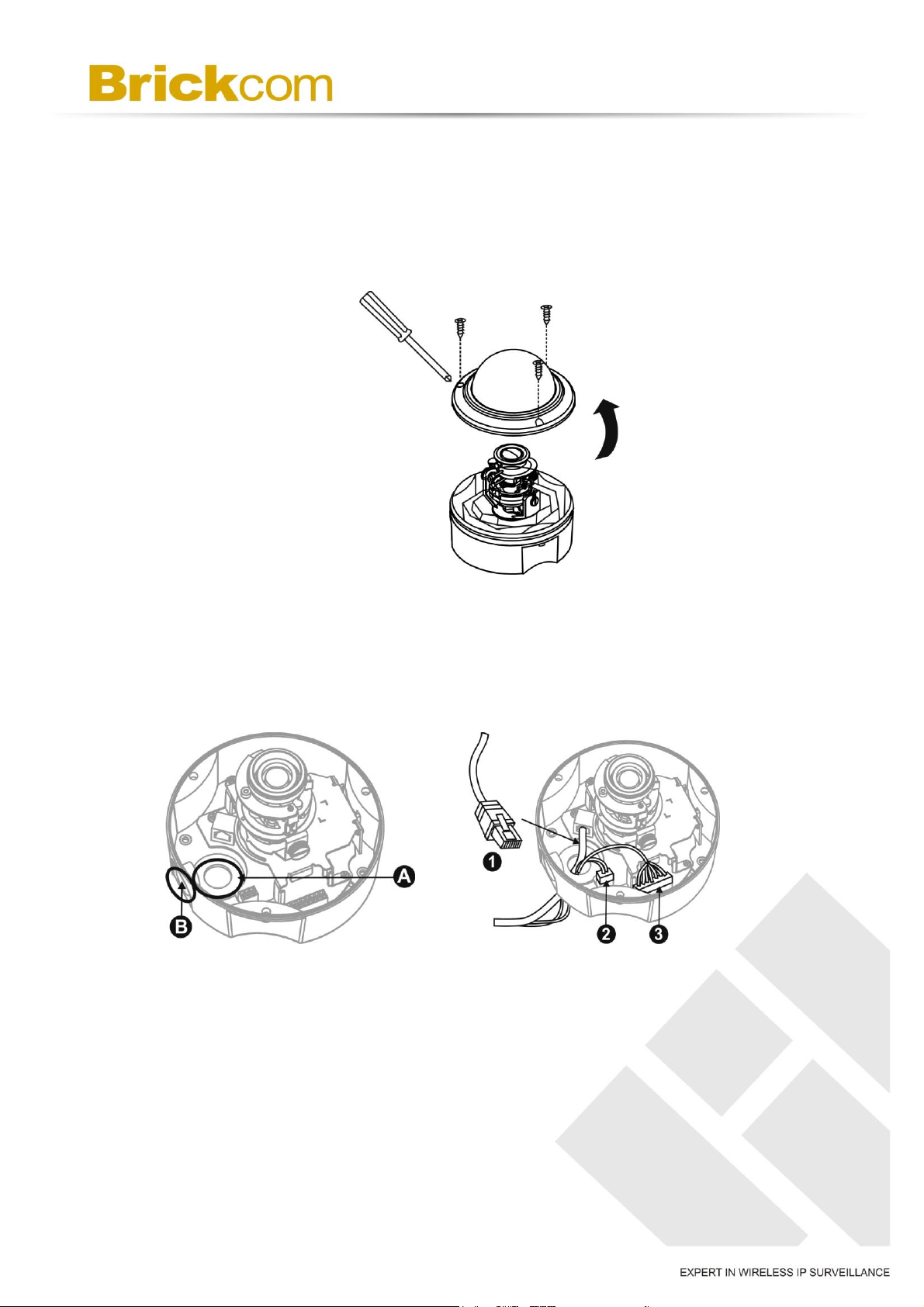

5.1 Hardware Installation....................................................................................... 9

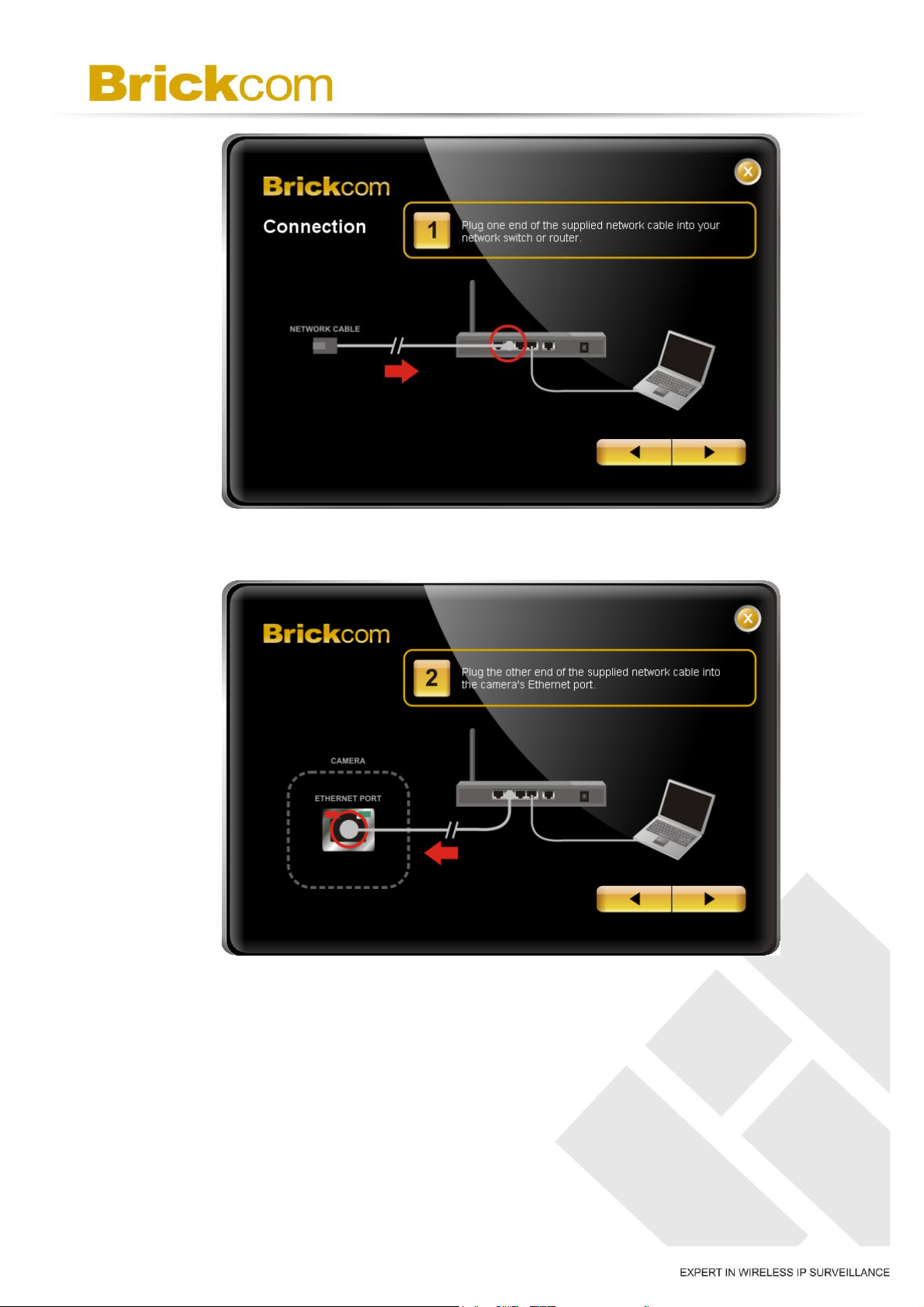

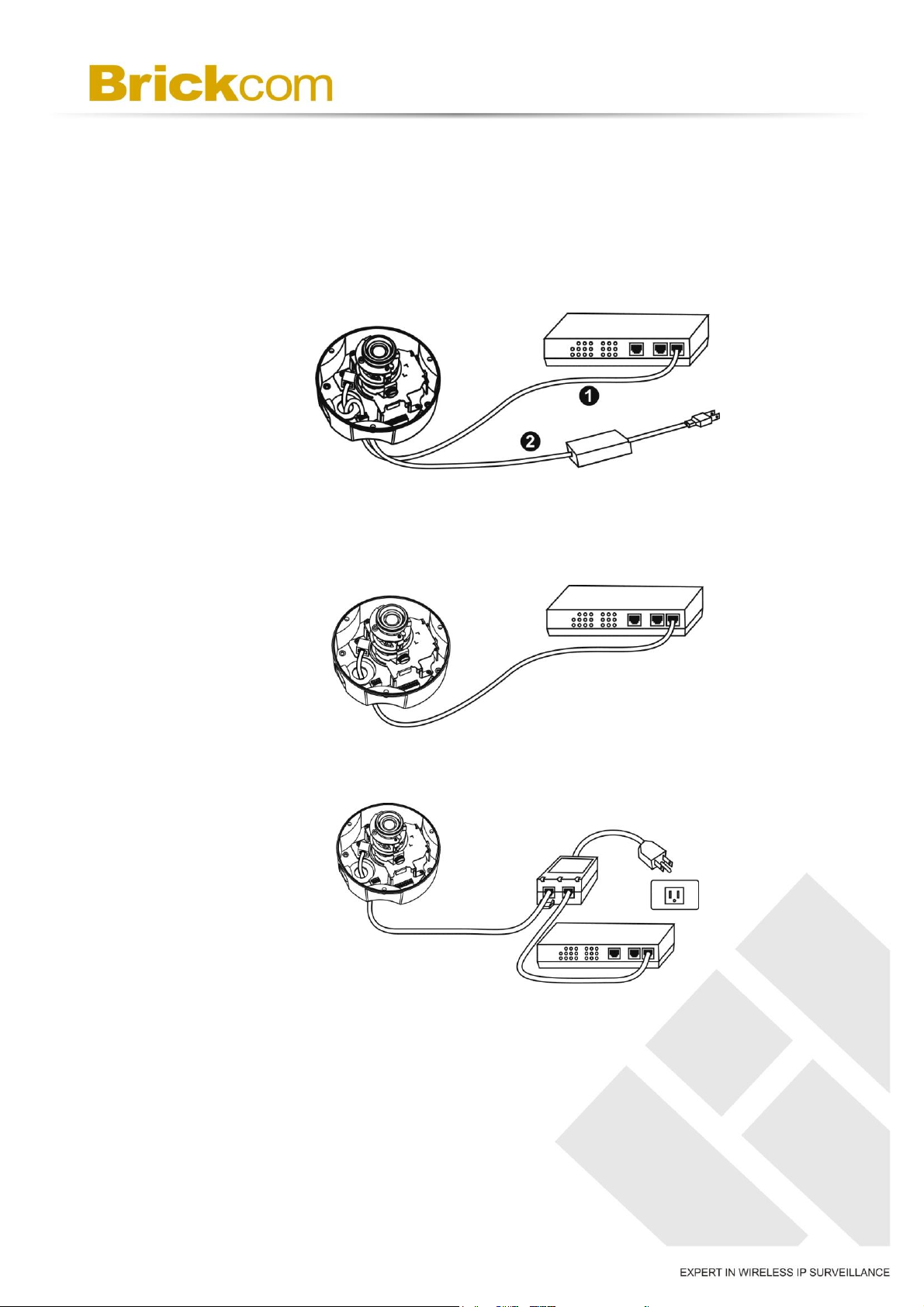

5.2 Camera Connection ....................................................................................... 16

5.3 System Requirements ................................................................................... 17

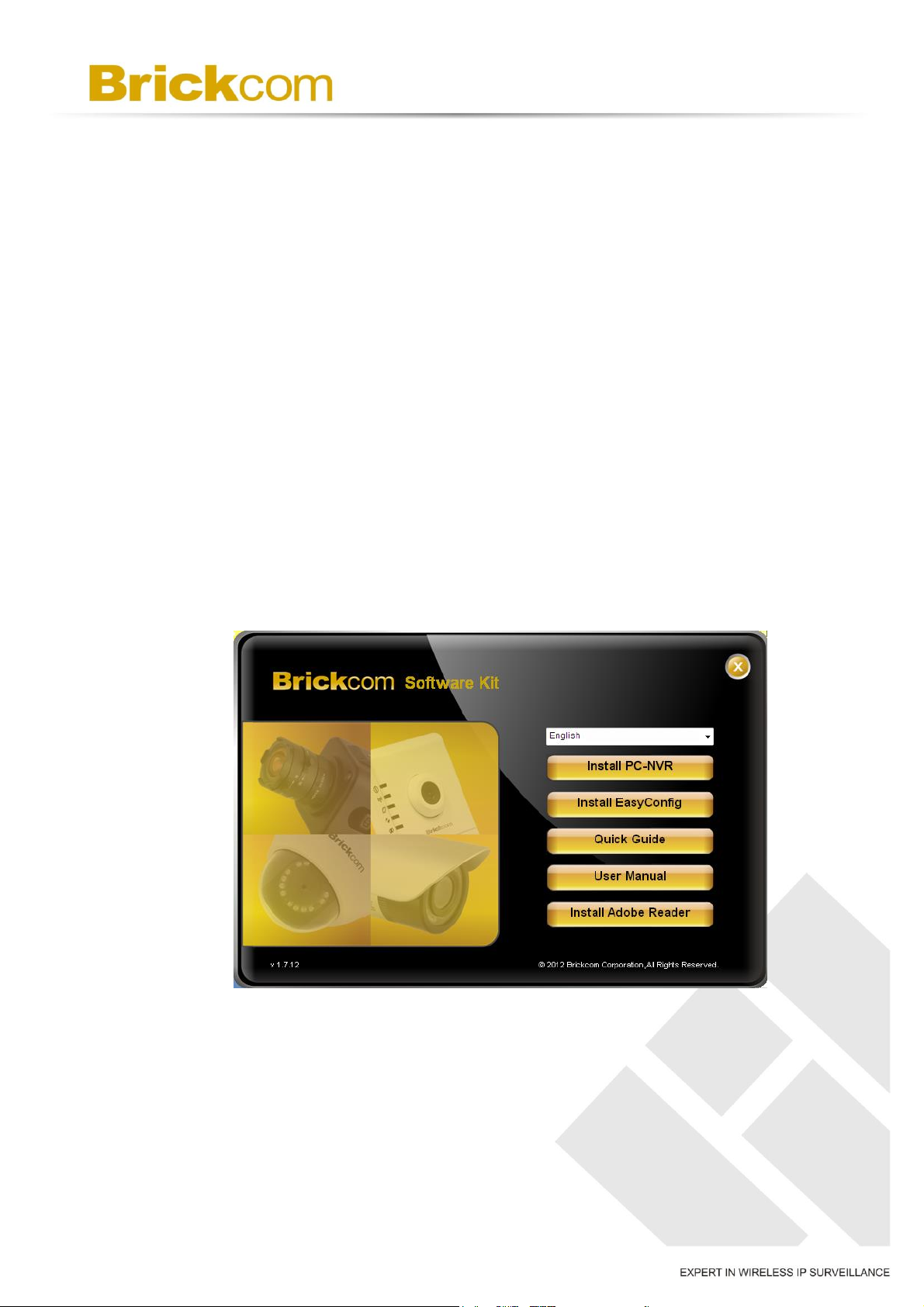

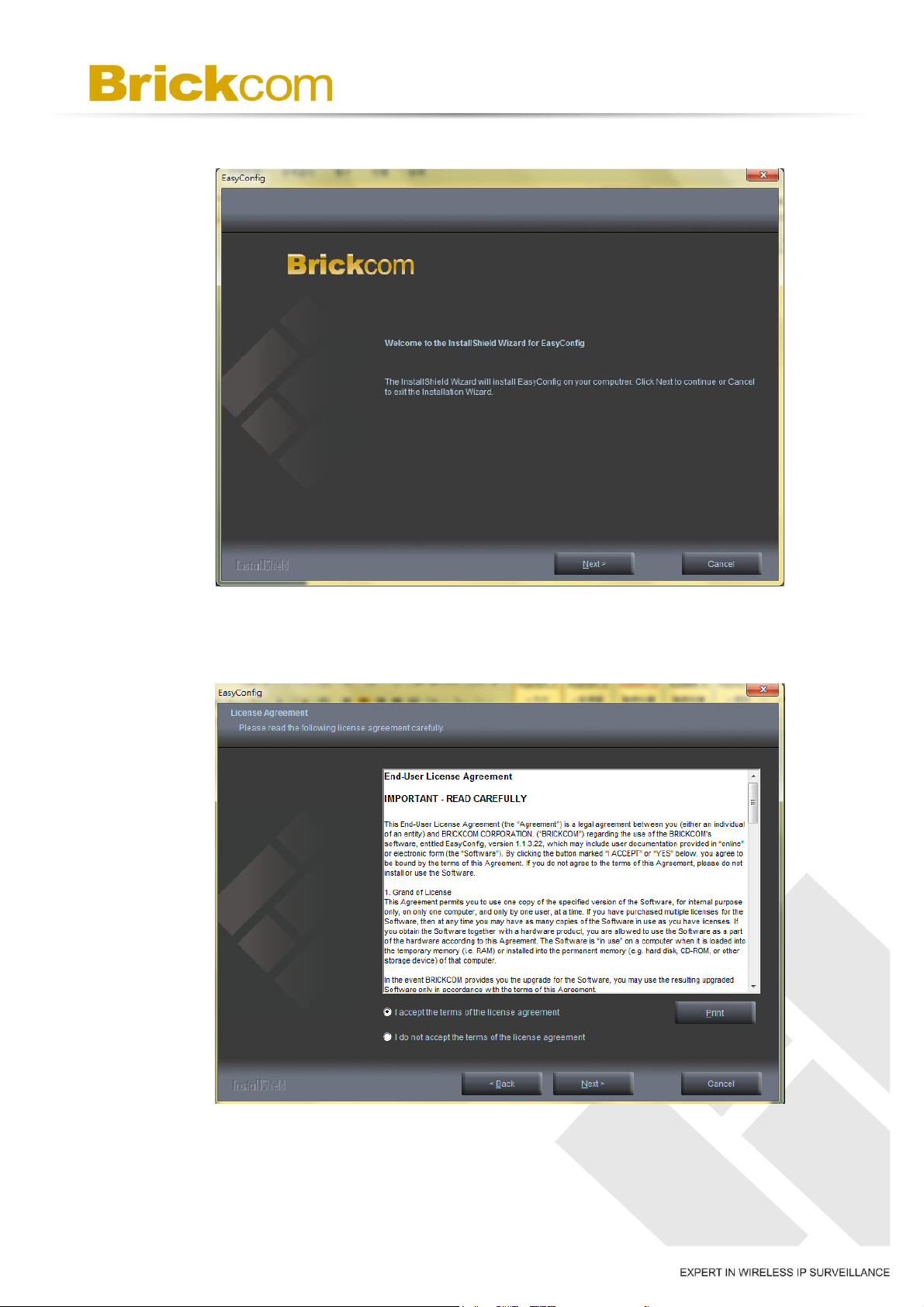

5.4 Software Installation ...................................................................................... 18

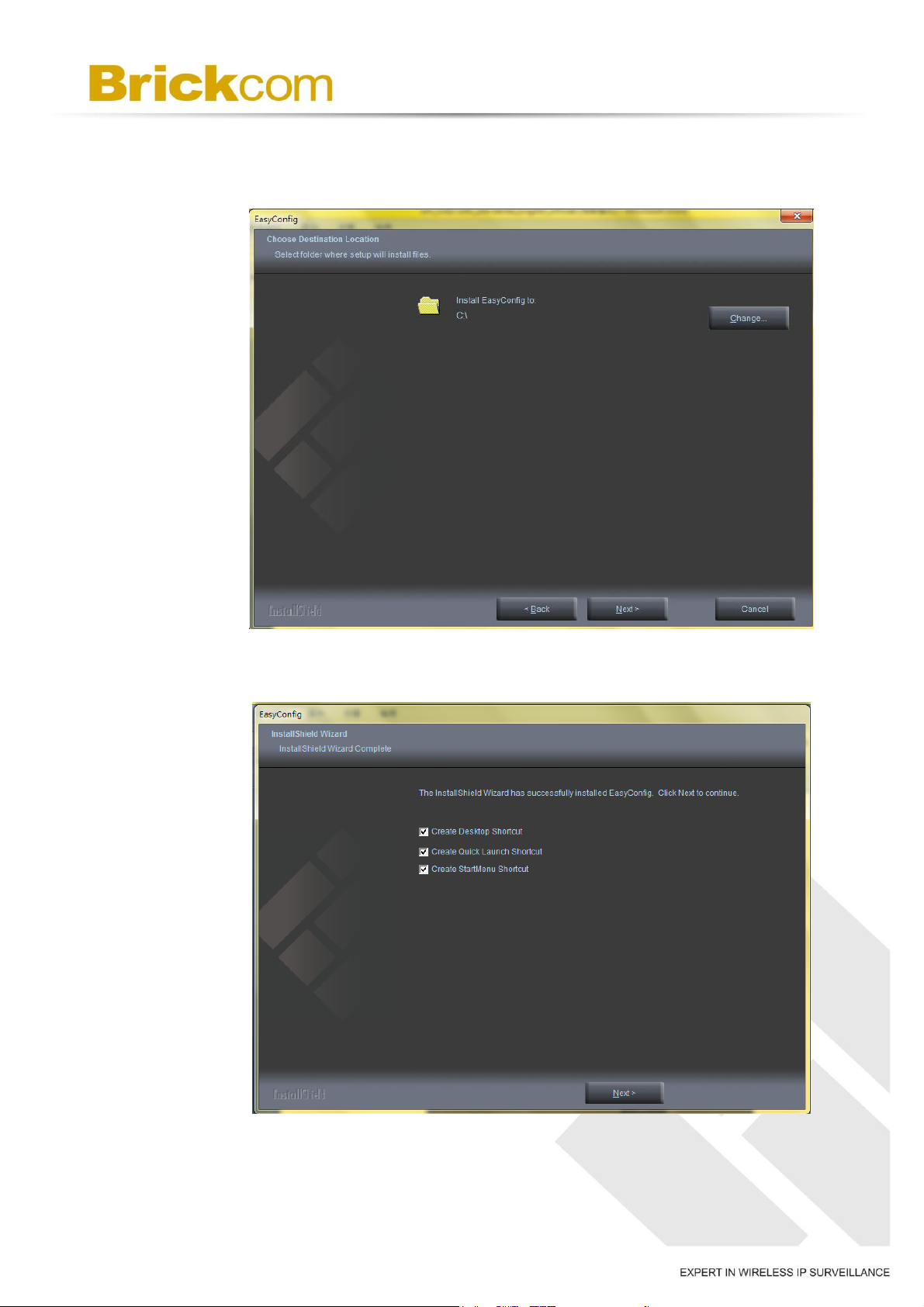

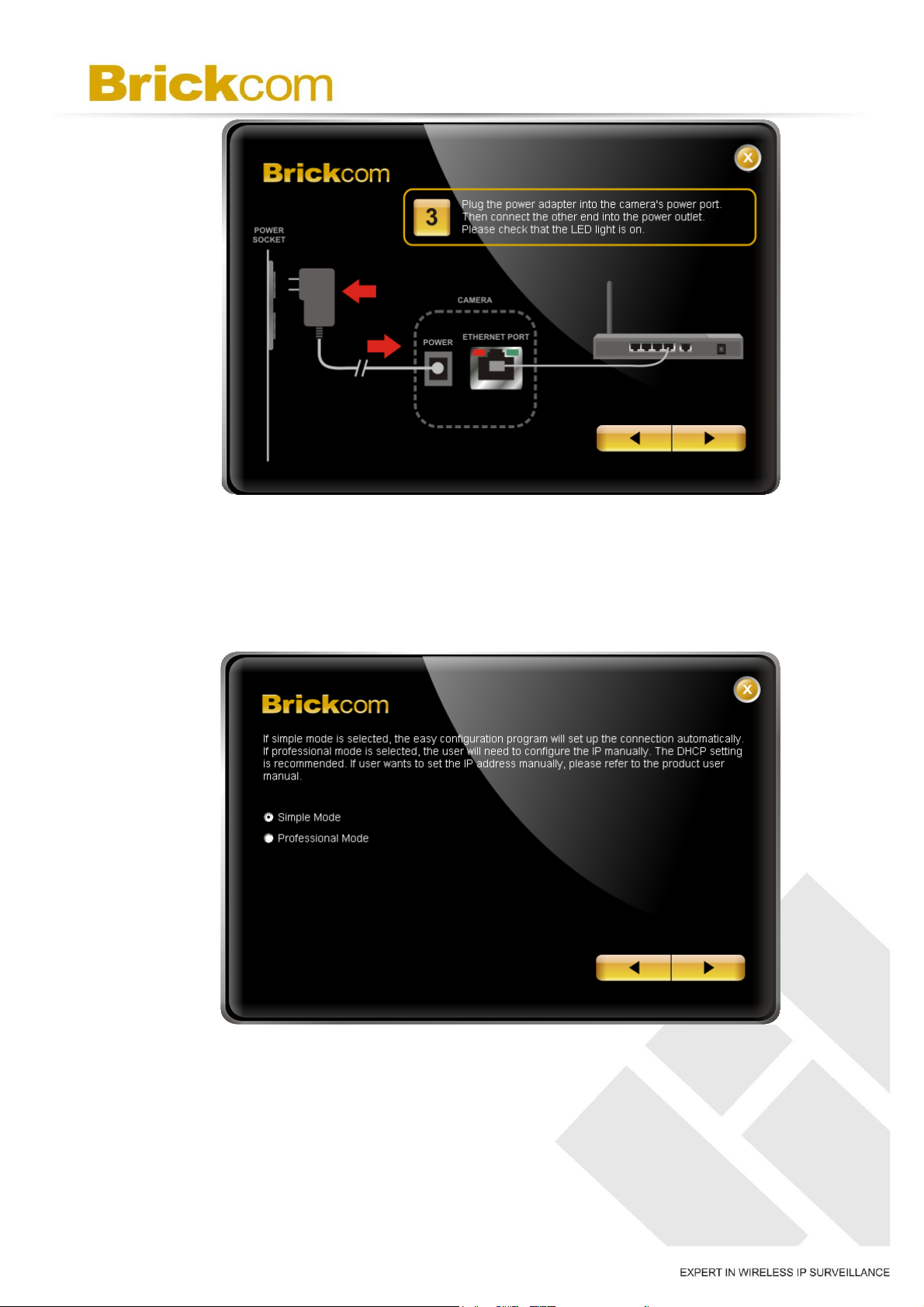

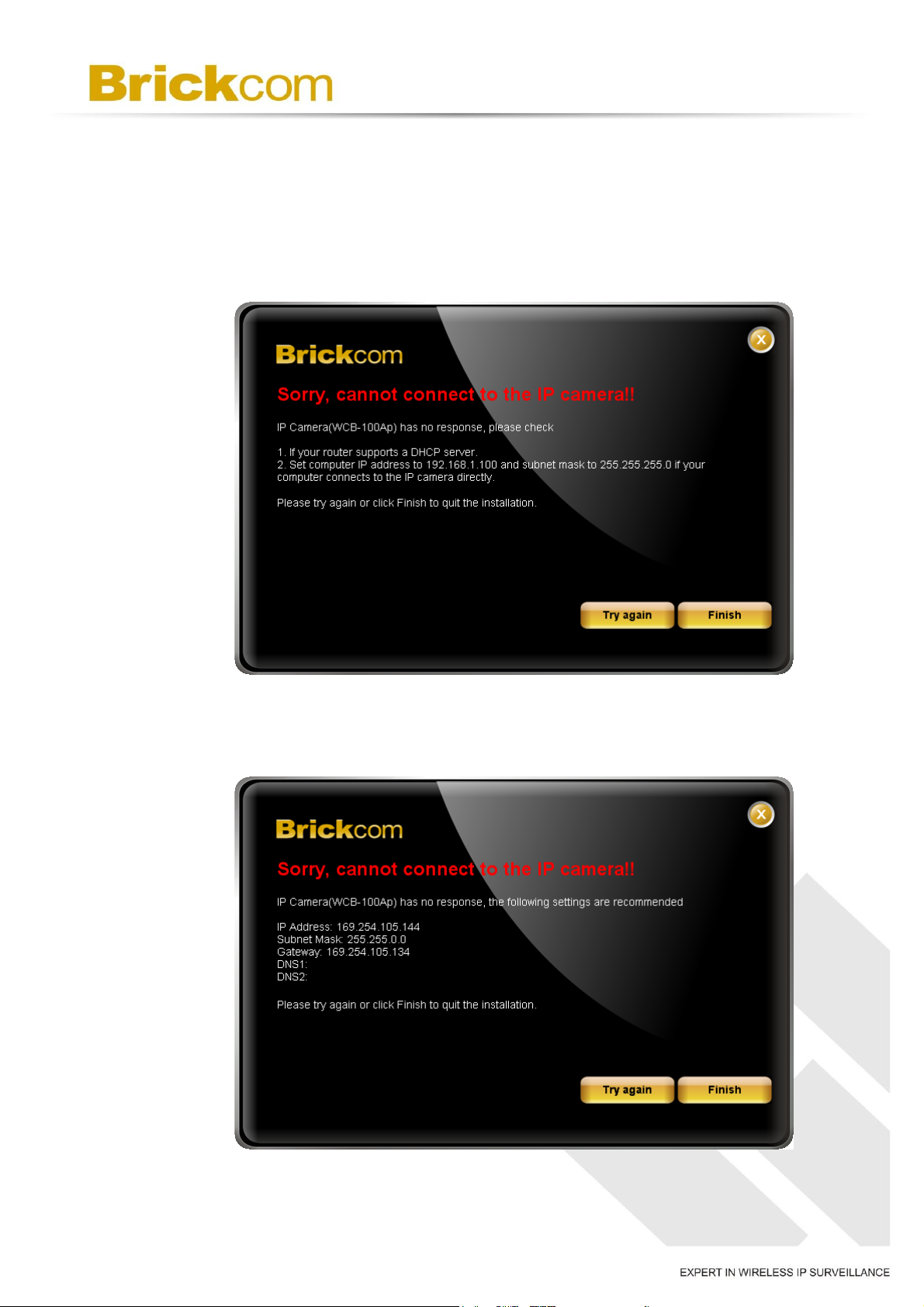

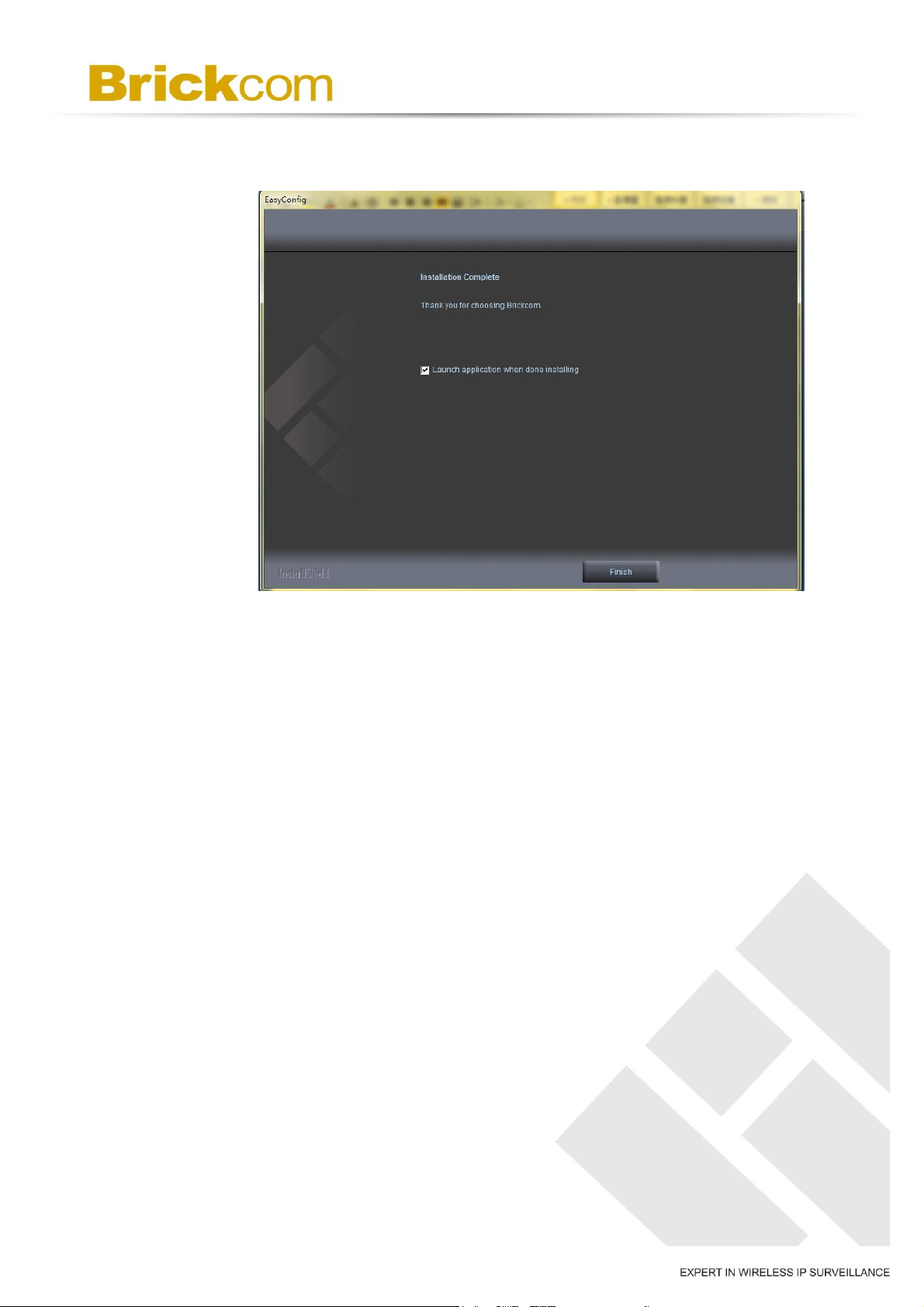

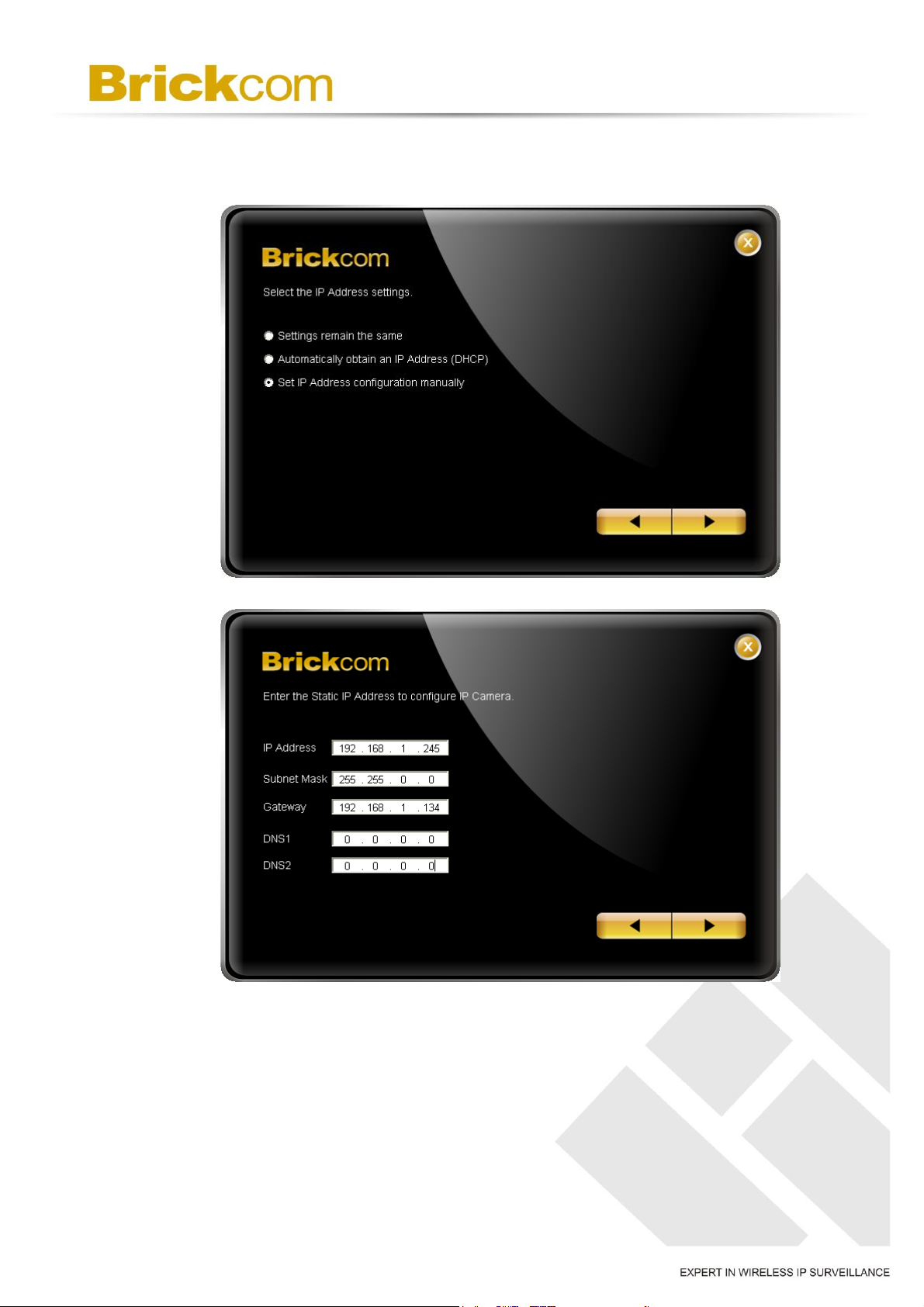

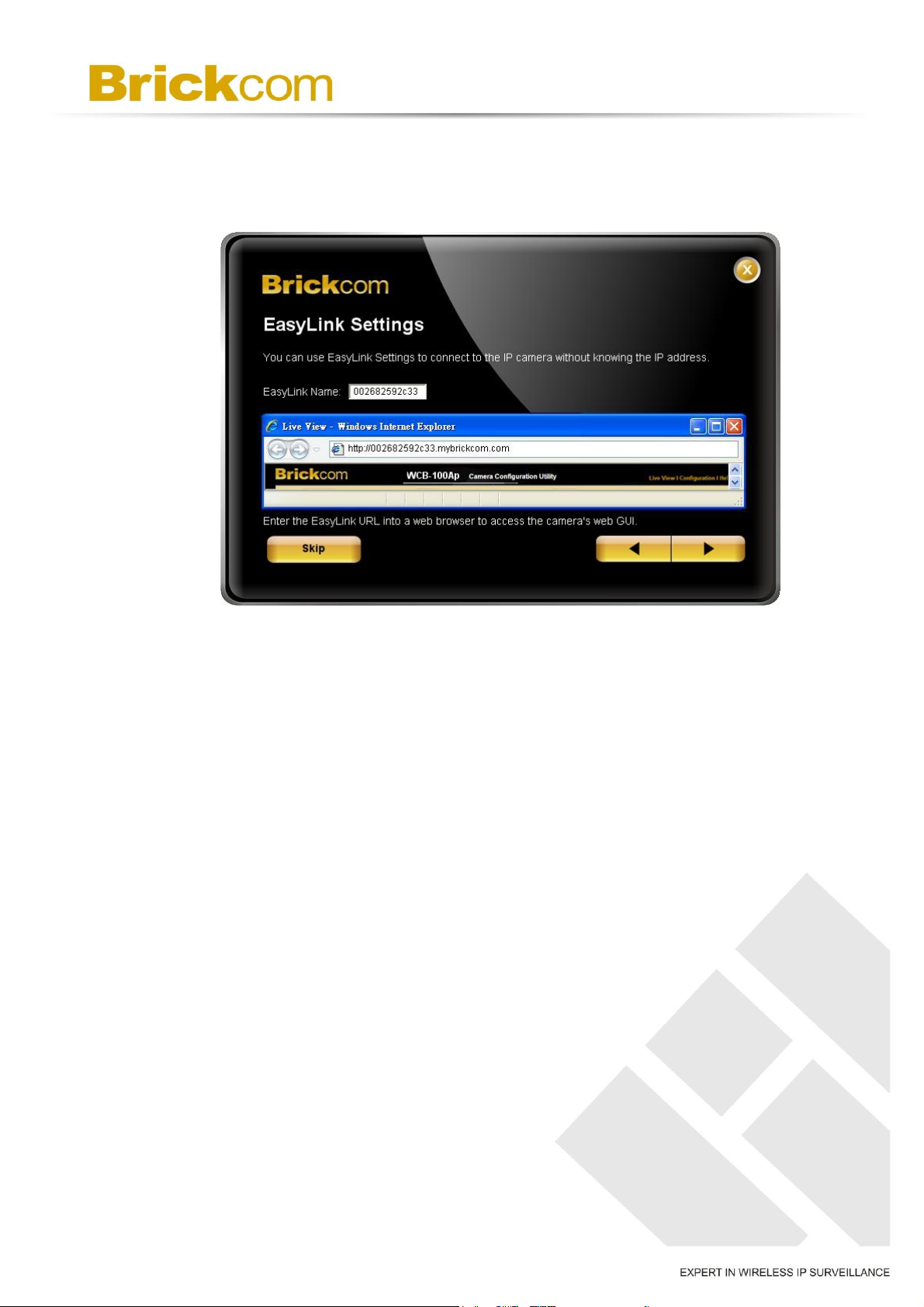

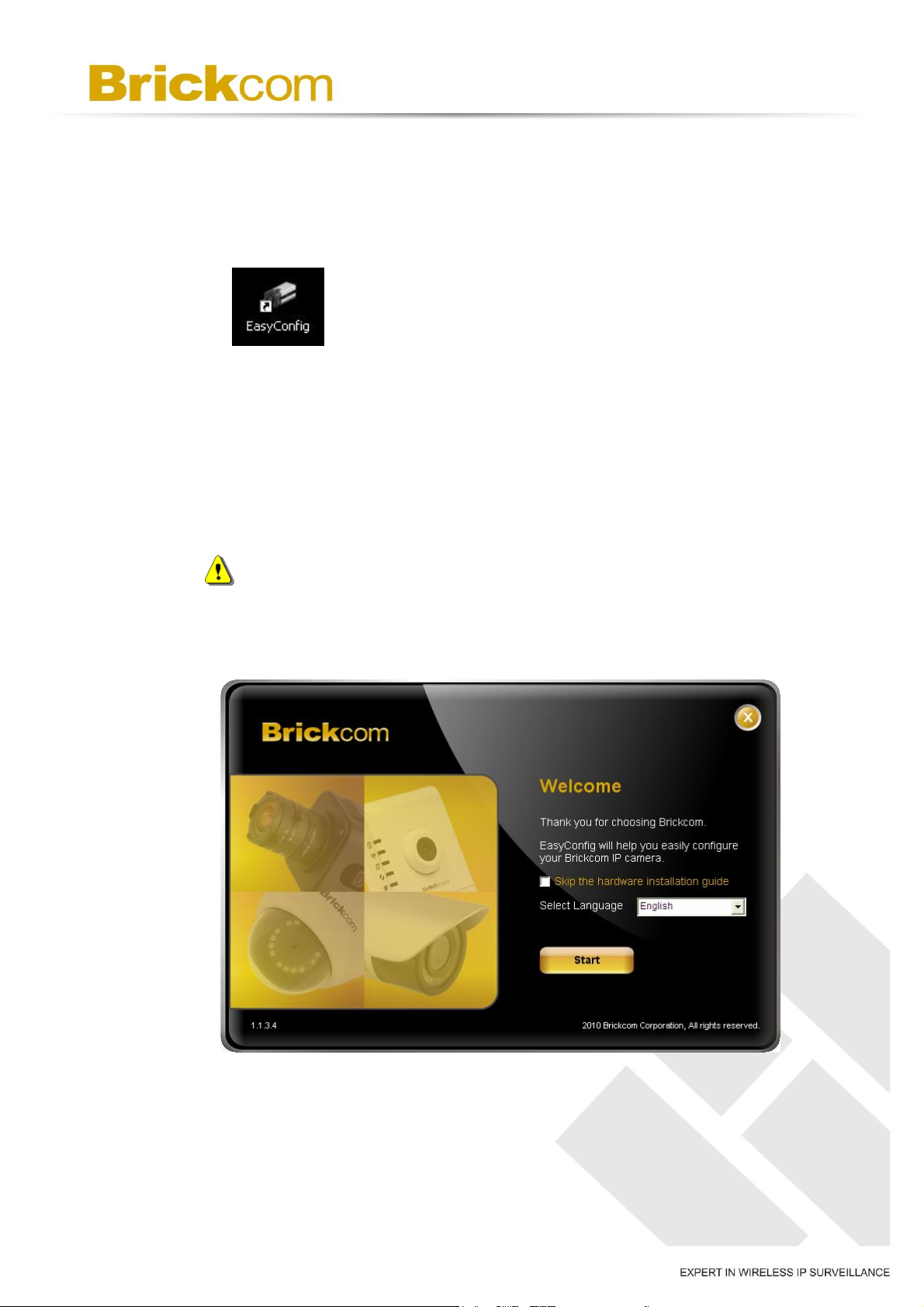

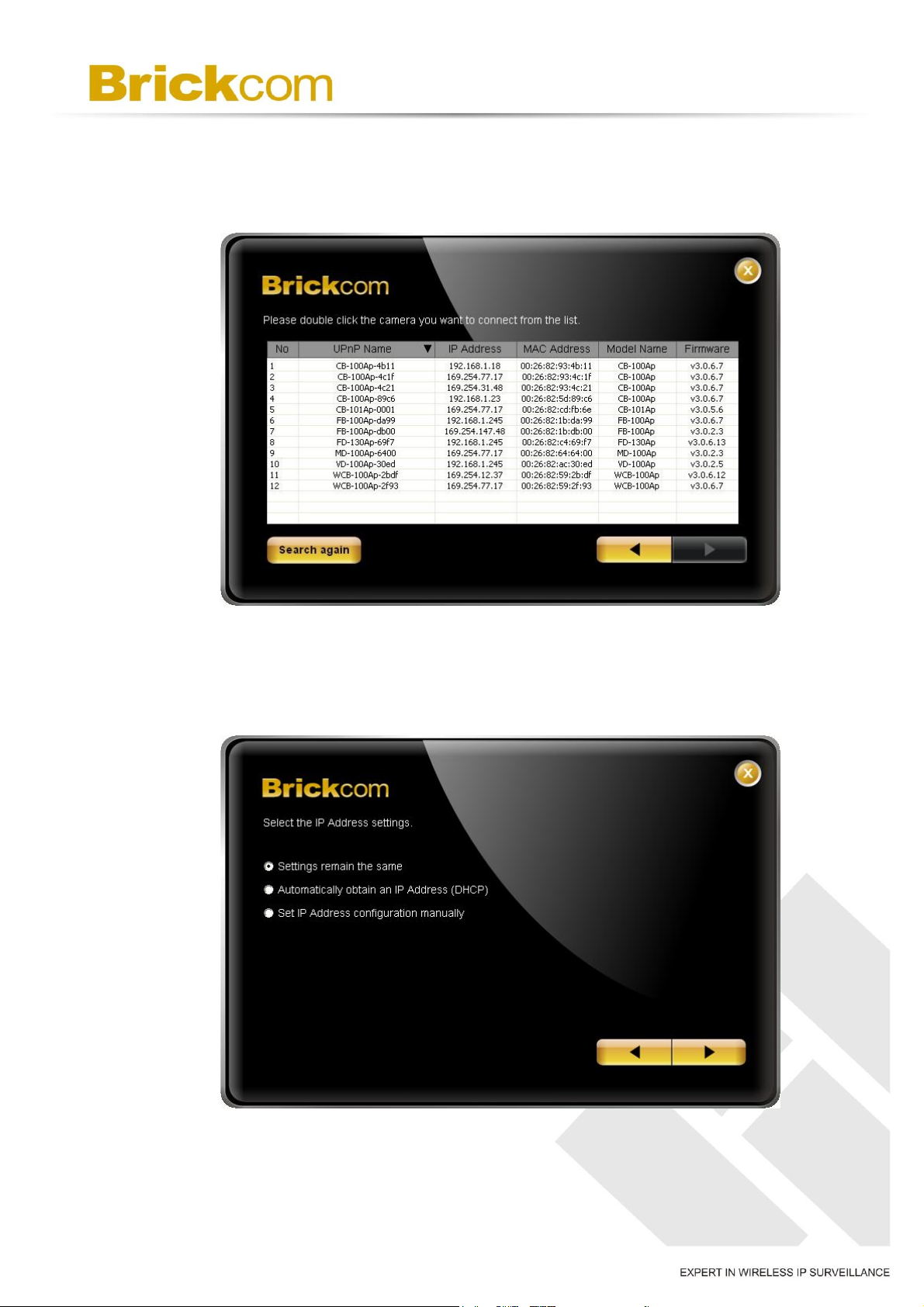

5.3.1 EasyConfig ........................................................................................... 22

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of this camera is legal before installing this unit for its intended use.

Upon opening the product’s package, verify that all the accessories listed on the

“Package Contents” are included. Before installing the Network Camera, read the

warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network

Camera, carefully read and follow the instructions in the “Installation” chapters to avoid

damages due to faulty assembly or installation.

1

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.

2

a. Network Camera

(Fixed Dome series)

b. Terminal Block
c. Product CD

d. Location Sticker

e. Warranty Card

f. Screw Bag

g. Easy Installation Guide

h. L-WM-01(Optional)

Chapter 1 - Package Contents

3

Chapter 2 - Fixed Dome Network Camera
Overview

The FIXED DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera.
With a megapixel progressive sensor and built-in IR-cut filter/ IR illuminator LEDs/
Auto Light sensor, it can provide 24-hour, indoor surveillance. The FIXED DOME
SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of
all angles.

The FIXED DOME SERIES is designed to provide end users with high quality video
feed for an easily accessible security system. The embedded high performance
image sensor and CPU allow for each camera to stream real time, high resolution
video at 30 fps. It can transmit video using many codec compression options,
including MPEG-4/MJPEG/H.264, which reduce bandwidth and storage requirements
without compromising image quality. For easy viewing of the video feed, users can
view the live feed from anywhere through internet browsers or 3G portable devices.

Installation is simplified by the added support for Power over Ethernet which enables
each camera to receive power through the same cable as for data transmission. The
DI/DO function allows users to connect the FIXED DOME SERIES to external alarm
and sensor devices for added security protection.

With the included EasyConfig installation software, this series offers end-users easy
installation without the need for a strong technical background. The 3-axis
mechanical design makes the FIXED DOME SERIES the perfect security camera for
any school, bank, or corporate office surveillance system.

4

RJ45

Connector

Terminal Block
(For Audio in/out, DI/DO)

Terminal Block
(For Power)

Conduit Plug and

Conduit Hole

LENS

IR Leds

Tilt Screw

Reset Button

RJ45 Connector

Reset Button

Terminal Block
(For Audio in/out, DI/DO)

Conduit Plug and
Conduit Hole

LENS

Video Adjustment
Screw

SD Card Slot

Tilt Screw

Terminal Block
(For Power)

Chapter 3 - Device Appearance Description

1. Below “ Device Appearance Description” is for FD-130Np/ FD-132Np/ FD-300Ap
V3/ FD-302Ap/ FD-500Ap/ FD-502A

2. Below “ Device Appearance Description” is for FD-300Ap

5

RJ45 Connector

Reset Button

Terminal Block
(For Audio in/out, DI/DO)

Conduit Plug and
Conduit Hole

LENS

IR Leds

Tilt Screw

Terminal Block
(For Power)

SD/SDHC
Card Slot (*)

Focus Control Bar (*)

View Angle
Control Bar (*)

3. Below “ Device Appearance Description” is for FD-501Af-series

NOTE

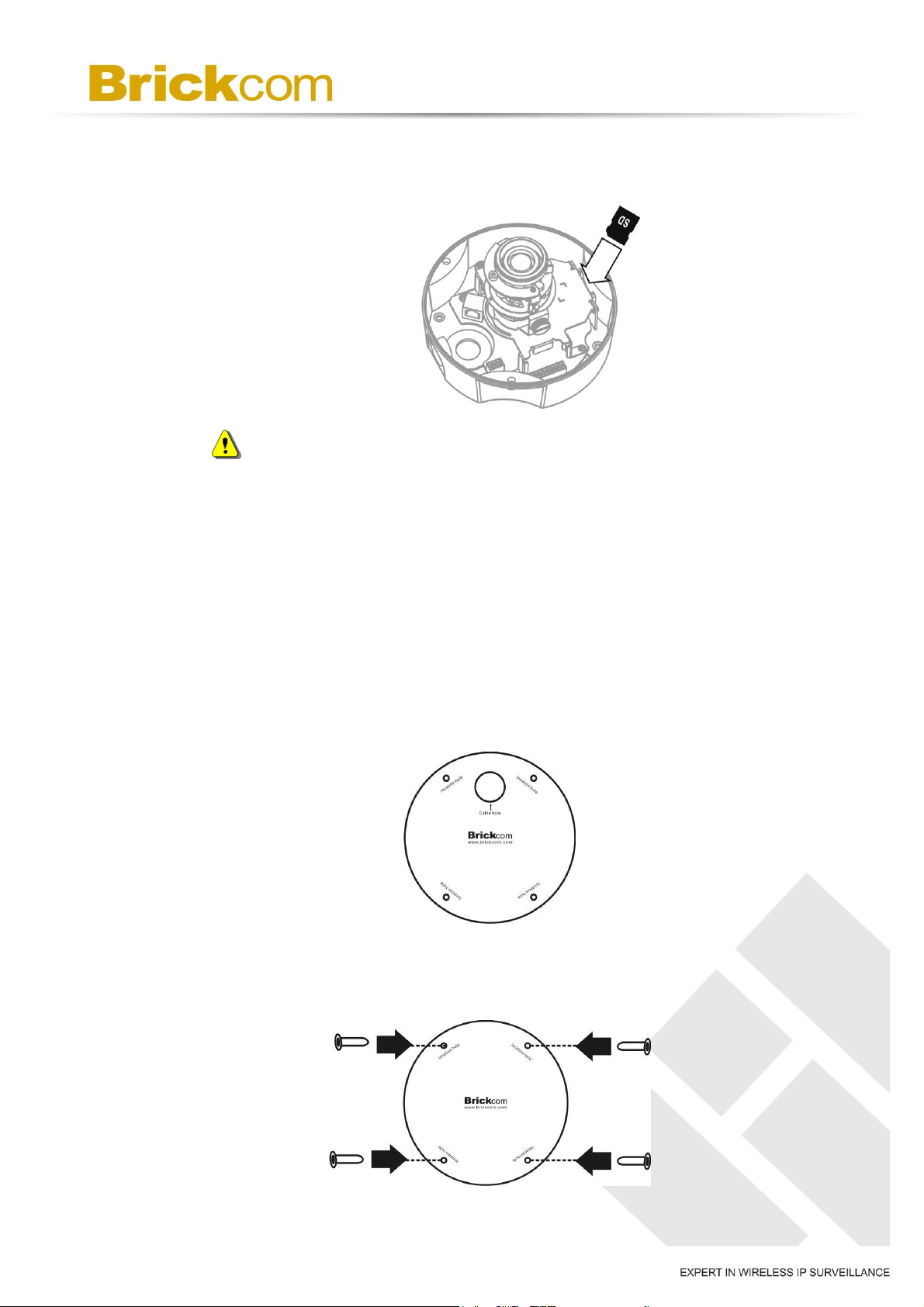

1. SD Card Capacity (*) - The network camera is compatible with SD/SDHC (Maximum
32GB) cards.

2. (*) These are optional features. Please refer to the Product List for the full list of
optional features available for the product.

6

Function

LED Behavior

Description

Power LED

Continuous illumination (Green)

Power on

Power LED

Unit

Power off

Link LED

Continuous illumination (Red)

Link

Link LED

Blinking (Red)

Connecting

Pin

Function

1

Power + 4.5V

2

Digital Output

3

Digital Input

4

Ground

Chapter 4 - LED Behavior

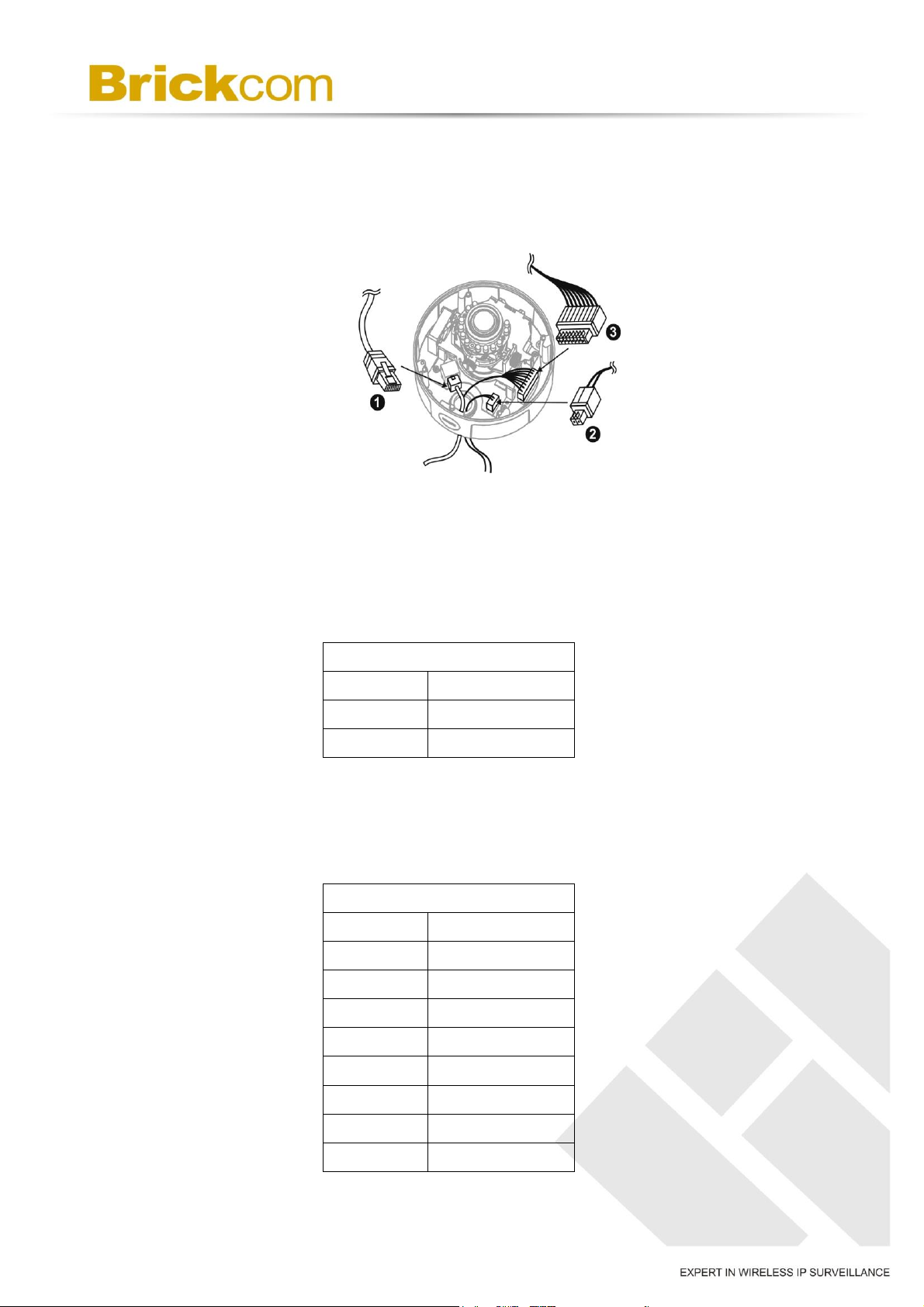

< Extension I/O Terminal Block >

The Network Camera provides an extension I/O terminal block which is used to connect
the camera with external input/output devices. The pin definitions are listed as below.

< DI/DO Diagram >

7
