Terminal Block (For DC 12V)
Focus Control Bar (*)
View Angel Control Bar (*)
SD Card Slot
*These are optional features*
Terminal Block
(For Audio in/out, DIDO)
Terminal Block (For DC12V / AC24V)
Focus Control Bar (*)
View Angel Control Bar (*)
SD Card Slot
*These are optional features*
d
2 Megapixel Day & Night
Fixed Dome Network Camera
▪ 2 Megapixel High Resolution Indoor Fixed Dome Camera
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely (*)
*The feature is for FD-200Ap/FD-200ApV5*
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification (*)
*The feature is for FD-202ApV5 *
▪ HDTV Quality (Full HD 1080p @ 25fps Streaming)
▪ Motorized Lens /Vari-Focal Lens for Variable Needs
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-cut Filter /Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ 3 Axis design
▪ Two-way Audio/Built-in SD/SDHC/SDXC Memory Card Slot for Local Storage
▪ Power over Ethernet/DC 12V/AC 24V Support

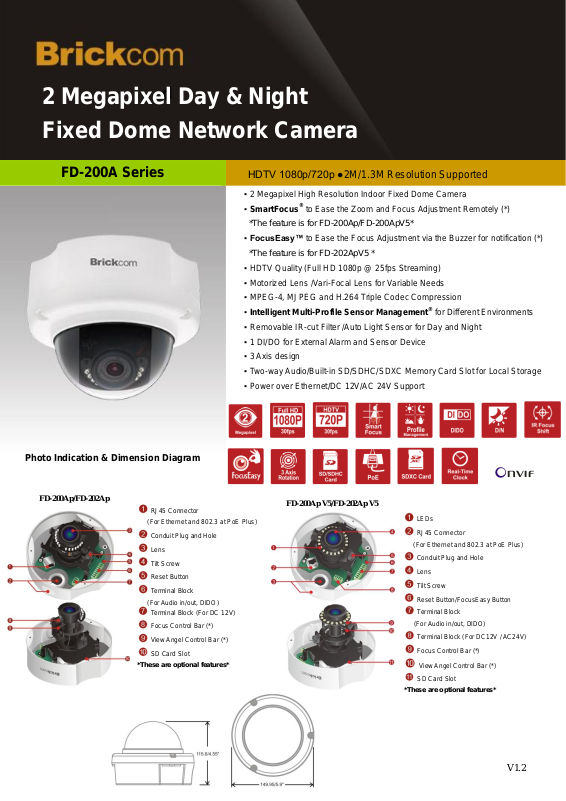

Photo Indication & Dimension Diagram
FD-200A Series
HDTV 1080p/720p ●2M/1.3M Resolution Supported
FD-200Ap/FD-202Ap
FD-200Ap V5/FD-202Ap V5
RJ45 Connector
(For Ethernet and 802.3 at PoE Plus)
Conduit Plug and Hole
Lens
Tilt Screw
Reset Button
Terminal Block
(For Audio in/out, DIDO)
LEDs
RJ45 Connector
(For Ethernet and 802.3 at PoE Plus)
Conduit Plug and Hole
Lens
Tilt Screw
Reset Button/FocusEasy Button
V1.2
Page 2
Models
FD-200Ap/FD-200Ap V5 2M, Motorized Lens,
Smart Focus
FD-202Ap 2M, Vari-Focal Lens
FD-202Ap V5 2M, Vari-Focal Lens, FocusEasy
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.5” CMOS Sensor
Sensor Resolution :1920x1080 pixel
Minimum
Illumination
FD-200Ap
0 lux (IR ON, B/W)
0.008 lux (IR OFF, B/W)
0.01 lux (F1.4, Color)
FD-202Ap/FD-200Ap V5/FD-202Ap V5
0 lux (IR ON, B/W)
0.01 lux (IR OFF, B/W)
0.02 lux (F1.4, Color)
IR Illuminators
FD-200Ap/ FD-202Ap
Built -in IR Illuminators, effective up to 10 meters
IR LED: 12pcs
IR wavelength: 850nm
FD-200Ap V5/ FD-202Ap V5
Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
F No.: 1.4
FD-200Ap
Focal Length: f= 3mm(W)~10.5mm(T)
View Angle(Normal Mode):
(H): 69°~24°/ (V): 41°~14°/ (D):79°~28°
View Angle(Ultra Wide Mode):
(H): 108°~35°/ (V): 55°~19°/ (D):119°~40°
FD-202Ap/FD-200Ap V5/FD-202Ap V5
Focal Length: f= 3.3mm(W)~10.5mm(T)
View Angle(Normal Mode):
(H): 64°~24°/ (V): 36°~14°/ (D):74°~28°
View Angle(Ultra Wide Mode):
(H): 106°~33°/ (V): 77°~22°/ (D):114°~41°
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Local Storage
Built-in SD/SDHC/SDXC Max.64G Memory
Card Slot
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/20000~1/5s
Manual Gain Control: 1X ~ 32X
Manual White Balance Control: 2000K~7000K
S/N Ratio
38.1 dB
Image Resolution
2M (Full HD): 1920x1080 @ 25fps
1M : 1280x720 @ 25fps
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Operating
Temperature
0°C ~ 50°C (32°F ~122°F)
FD-200Ap/FD-202Ap
PoE 802.3 af/ DC12V 1A
FD-200Ap V5
PoE 802.3 af/ DC12V 1.5A/AC 24V
FD-202Ap V5
PoE 802.3 af/ DC12V 1A/AC 24V
Max. Power
Consumption
DC12V 1A
FD-200Ap:10 Watts / FD-202Ap: 8 Watts
DC12V 1.5A/AC 24V
FD-200Ap V5:12.5 Watts
DC12V 1A/AC 24V
FD-202Ap V5:10.5 Watts
802.3 af POE
FD-200Ap: 12.5 Watts / FD-202Ap: 10 Watts
FD-200Ap V5: 15 Watts / FD-202Ap V5: 12.5
Watts
Environment
Operating Humidity : 10% ~ 80%
Dimension
115.6(D) X 149.95 (H) mm
Weight
509g/1.13lb
Certification
FCC, CE
Viewing System
Requirements
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firebox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Events
Motion Detection/ Schedule/ Audio Detection/
Digital Input/ Temperature Alarm(*)/ Auto Focus
Shift for Day & Night(**)
*FD-200Ap V5/FD-202Ap V5 Only
**FD-200Ap V5 Only
Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line In/ Out
Camera
Audio
Events and Alarm Management
Video
General
V1.2
Page 3
L-WM-01
Camera Bracket
POE16U *
PoE Injector
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch

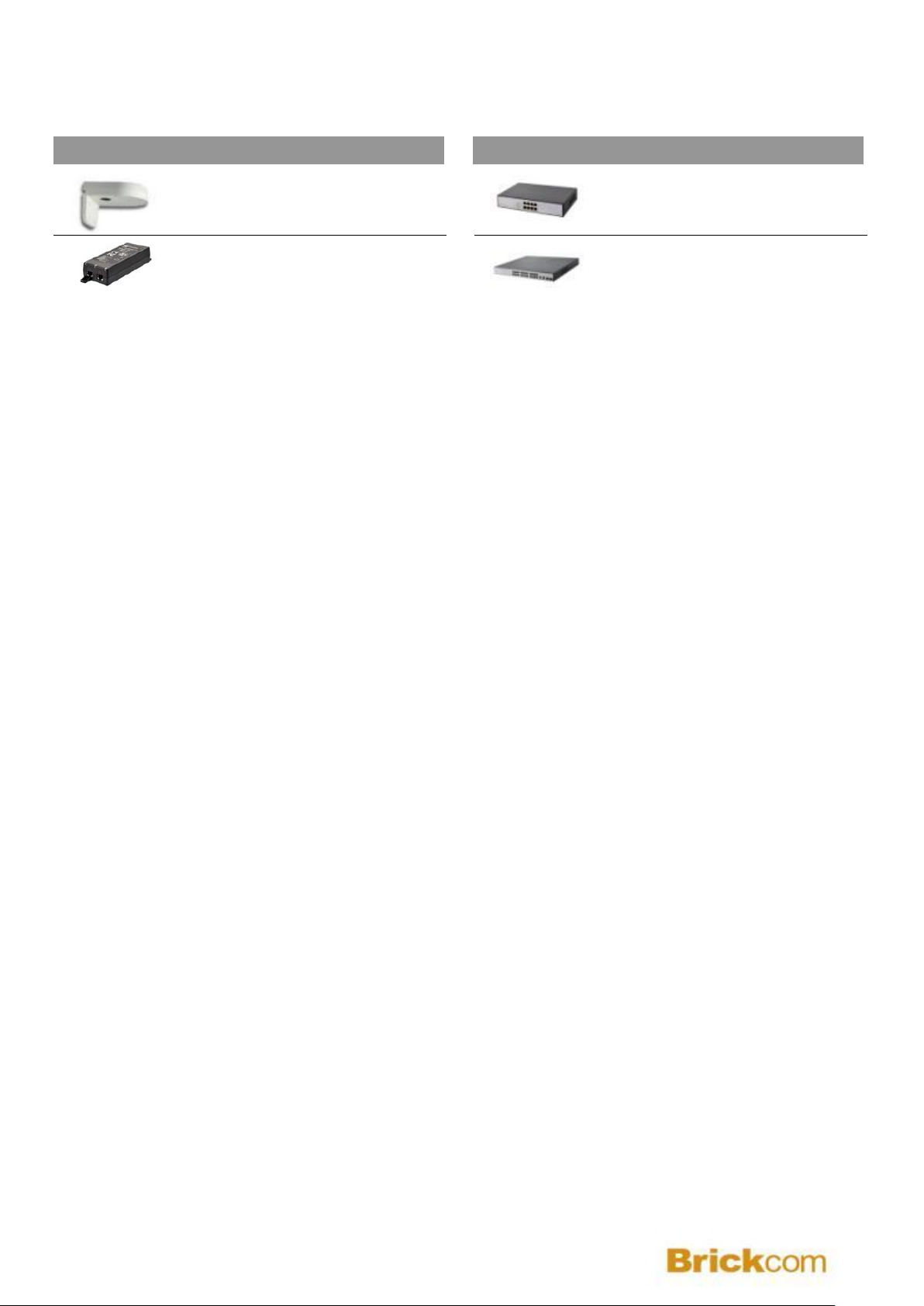

Network Equipment Options
Camera Accessories Options
Copyright 2012 Brickcom Corporation. All rights reserved. All other company
names and products are trademarks or registered trademarks of their respective
companies. We reserve the right to introduce modifications without notice.
