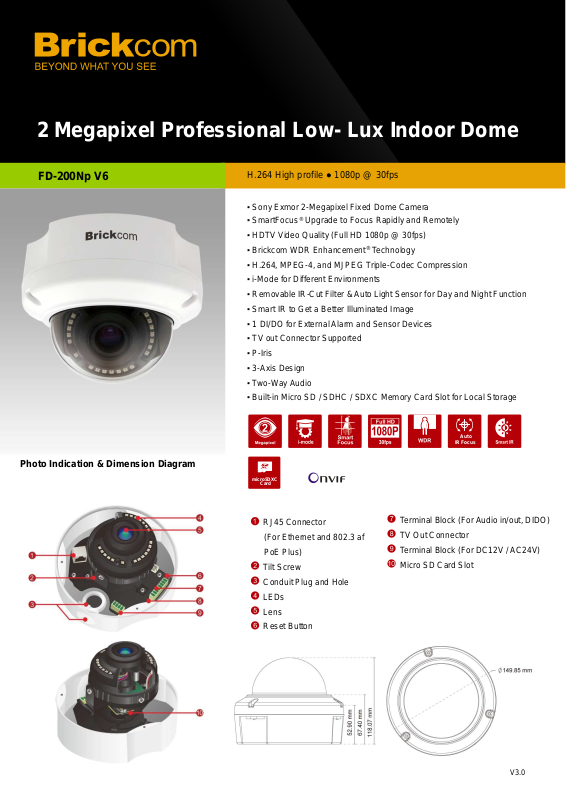

2 Megapixel Professional Low- Lux Indoor Dome
FD-200Np V6
H.264 High profile ● 1080p @ 30fps
▪ Sony Exmor 2-Megapixel Fixed Dome Camera
▪ SmartFocus® Upgrade to Focus Rapidly and Remotely
▪ HDTV Video Quality (Full HD 1080p @ 30fps)
▪ Brickcom WDR Enhancement® Technology
▪ H.264, MPEG-4, and MJPEG Triple-Codec Compression
▪ i-Mode for Different Environments
▪ Removable IR-Cut Filter & Auto Light Sensor for Day and Night Function
▪ Smart IR to Get a Better Illuminated Image
▪ 1 DI/DO for External Alarm and Sensor Devices
▪ TV out Connector Supported
▪ P-Iris
▪ 3-Axis Design
▪ Two-Way Audio
▪ Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage
Auto
IR Focus
Photo Indication & Dimension Diagram
microSDXC
Card
RJ45 Connector
(For Ethernet and 802.3 af
PoE Plus)
Tilt Screw
Conduit Plug and Hole
LEDs
Lens
Reset Button
Terminal Block (For Audio in/out, DIDO)
TV Out Connector
Terminal Block (For DC12V / AC24V)
Micro SD Card Slot
V3.0
Page 2
Brickcom
Events and Alarm Management
Events
Alarm
Audio
Audio Streaming
Audio
Audio
General
Communication
Power Input
Temperature
/
Max. Power
Dimension
Weight
Certification
Viewing System
Warranty
Camera
Models
FD-
200Np V6
Hardware System
Image Sensor
Lens
Local Storage
Day & Night ICR
Minimum
IR Illuminators
Video
Compression
Video Setting
S/N Ratio
Image Resolution
WDR
Flash: 32MB
RAM: 256MB DDR
Sensor Type : 1/2.8" Sony Exmor CMOS Sensor
Sensor Resolution : 2M (1920 x 1080)
Lens Type: Board/Motorized/vari-foca Lens
IRIS: F1.4
Focal Length: f=2.8~12mm
View Angle: (H°/V°/D°)
(H )96°~35° /(V )52°~20° /(D) 106°~40°
Built-in Micro SD/SDHC/SDXC Max.64G Memory
Card Slot
Illumination
Streaming
Triggered by Light sensor, Scheduling,
Digital Input
0 Lux(IR On, B/W)
0.001 Lux(F1.4,B/W)
0.002 Lux(F1.4,Color)
Built –In IR Illuminators,
effective up to 25m
IR LED: 20pcs
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
i-Mode Image Management:
Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/
Schedule/ Digital Input/ Elevator/ Reserved Scene
Auto Exposure Control/Gain/ White Balance Control
Manual Exposure Control: 1/32000 s ~ 1 s
Manual Gain Control: 1 ~ 48
Above 50dB
2M (1920 x 1080) ● (30fps)
60dB
| BEYOND WHAT YOU SEE
Compression
Input/ Output
Environment
Consumption
Requirements
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm/ Auto IR Focus for Day &
Night
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
2-way Audio Support
G.711/AMR
Line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
/ Line output
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
DC12V 1A / 802.3af PoE
AC24V
Operating Temperature:
-20°C ~ 50°C
(-4°F ~ 122°F)
Operating Humidity: 10% ~ 80%
DC12V 1A
8 Watts
AC 24V
10.5 Watts
802.3 af POE
12.5 Watts
149.85 (D) mm X 118.07(H) mm
510g/1.13lb
FCC/CE
OS: Microsoft Windows 8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or
above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Limited 36 months warranty
© 2015 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.
Camera Accessories Options
L-WM-01
Camera Bracket
POE30U V2
High Power PoE Injector
PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch
PS-7242IL-AT
24-port 10/ 100M High Power PoE+
Web Smart Ethernet Switch
