Terminal Block
(For Audio in/out, DIDO)
FocusEasy Button (*)
Terminal Block (For DC 12V 1.5A)
Focus Control Bar (*)
View Angel Control Bar (*)
SD Card Slot
*These are optional features*

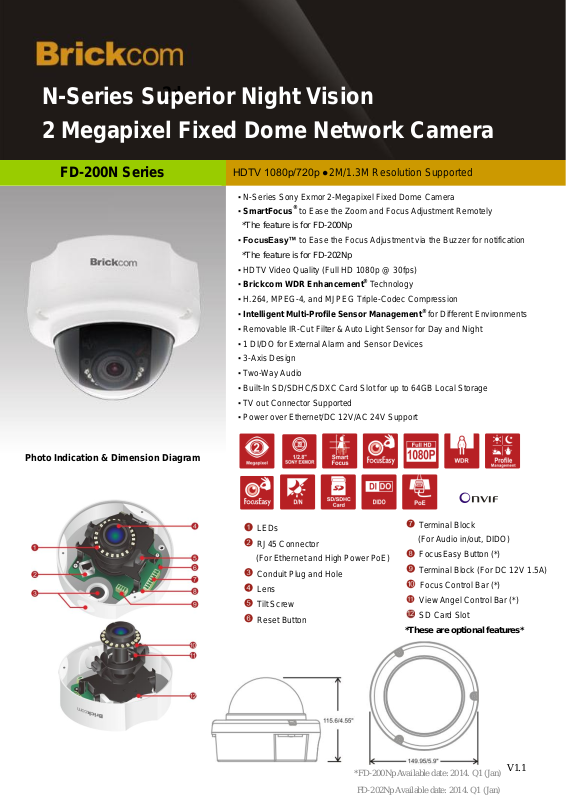

N-Series Superior Night Vision
2 Megapixel Fixed Dome Network Camera
▪ N-Series Sony Exmor 2-Megapixel Fixed Dome Camera
▪ SmartFocus® to Ease the Zoom and Focus Adjustment Remotely
*The feature is for FD-200Np
▪ FocusEasy™ to Ease the Focus Adjustment via the Buzzer for notification
*The feature is for FD-202Np
▪ HDTV Video Quality (Full HD 1080p @ 30fps)
▪ Brickcom WDR Enhancement® Technology
▪ H.264, MPEG-4, and MJPEG Triple-Codec Compression
▪ Intelligent Multi-Profile Sensor Management® for Different Environments
▪ Removable IR-Cut Filter & Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Devices
▪ 3-Axis Design
▪ Two-Way Audio
▪ Built-In SD/SDHC/SDXC Card Slot for up to 64GB Local Storage
▪ TV out Connector Supported
▪ Power over Ethernet/DC 12V/AC 24V Support

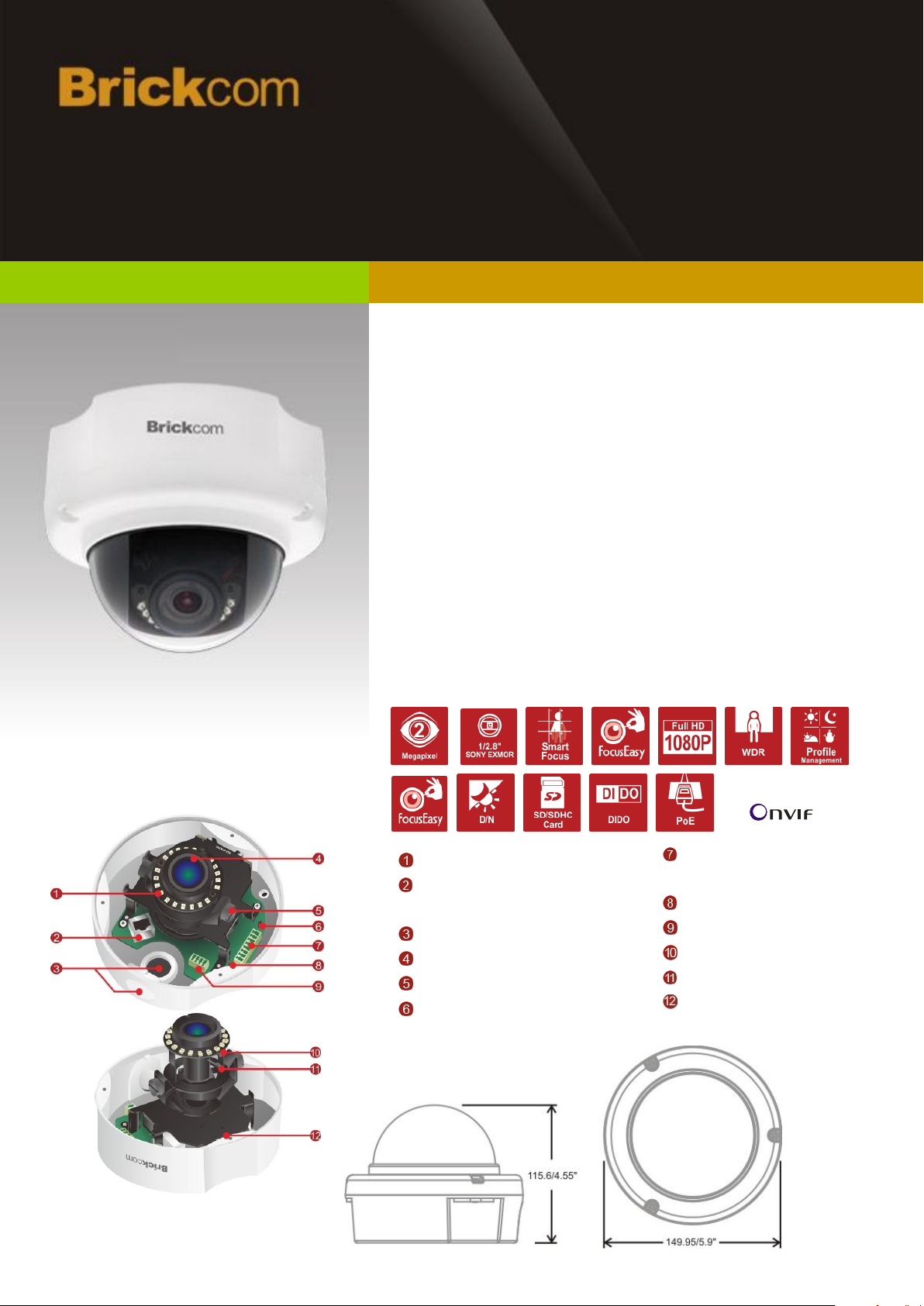

Photo Indication & Dimension Diagram
FD-200N Series
HDTV 1080p/720p ●2M/1.3M Resolution Supported
LEDs
RJ45 Connector
(For Ethernet and High Power PoE)
Conduit Plug and Hole
Lens
Tilt Screw
Reset Button
*FD-200Np Available date: 2014. Q1 (Jan)
FD-202Np Available date: 2014. Q1 (Jan)
2d
V1.1
Page 2
Models
FD-200Np 2M, Motorized Lens, SmartFocus®
FD-202Np 2M, Vari-Focal Lens FocusEasy™
Hardware System
CPU: 533 MHz
Flash: 32M
RAM: 256M DDR
Image Sensor
Sensor Type : 1/2.8” Sony Exmor Sensor
Sensor Resolution : 1920x1080
Minimum
Illumination
FD-200Np
0 lux (IR ON, B/W)
0.008 lux (IR OFF, B/W)
0.01 lux (F1.4, Color)
FD-202Np
0 lux (IR ON, B/W)
0.01 lux (IR OFF, B/W)
0.02 lux (F1.4, Color)
IR Illuminators
FD-200Np /FD-202Np
Built -in IR Illuminators, effective up to 25 meters
IR LED: 20pcs
IR wavelength: 850nm
Lens
Lens Type: Board Lens
Iris: F1.4
FD-200Np
Focal Length: f=3mm(W)~10.5mm(T)
View Angle
(H): 90°~30°/ (V): 50°~17°/ (D):102°~34°
FD-202Np
Focal Length: f=3.3mm(W)~10.5mm(T)
View Angle
(H): 76°~29°/ (V): 42°~17°/ (D):88°~34°
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Local Storage
Built-in SD/SDHC/SDXC Memory Card Slot
Max. 64G
Compression
Streaming
H.264 / MPEG4 / MJPEG
Simultaneous multiple streams
Video Setting
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
Auto Exposure Control
Manual Exposure Control: 1/10000~1/5s
Manual Gain Control: 1X ~ 15X
Manual White Balance Control: 2000K~7000K
S/N Ratio
>50 dB
Image Resolution
2M (Full HD): 1920x1080 @ 30fps
1M : 1280x720 @ 30fps
Events
Motion Detection/ Schedule/ Audio Detection/
Digital Input/ Temperature Alarm/ Auto Focus
Shift for Day & Night(*)
*FD-200Np Only
Alarm
Stream/Snapshot to
FTP/Email/Samba/SD-Card/
HTTP/Email Notification/ Digital Output
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio
Input/ Output
Line In/ Out
Communication
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,
Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input/
Operating
Temperature
DC12V 1A(1.5A)/ AC 24V/ 802.3af PoE
0°C ~ 50°C (32°F ~122°F)
Max. Power
Consumption
DC12V 1.5A/AC 24V
FD-200Np :12.5Watts
DC12V 1A/AC 24V
FD-202Np :10.5 Watts
802.3af PoE
FD-200Np :15 Watts
FD-202Np :12.5 Watts
Environment
Operating Humidity : 10% ~ 80%
Dimension
115.6(D) X 149.95 (H) mm
Weight
509g/1.13lb
Certification
FCC, CE
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 7/8
or above, Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 2-year warranty
Camera
General
Audio
Video
Events and Alarm Management
V1.1
Page 3

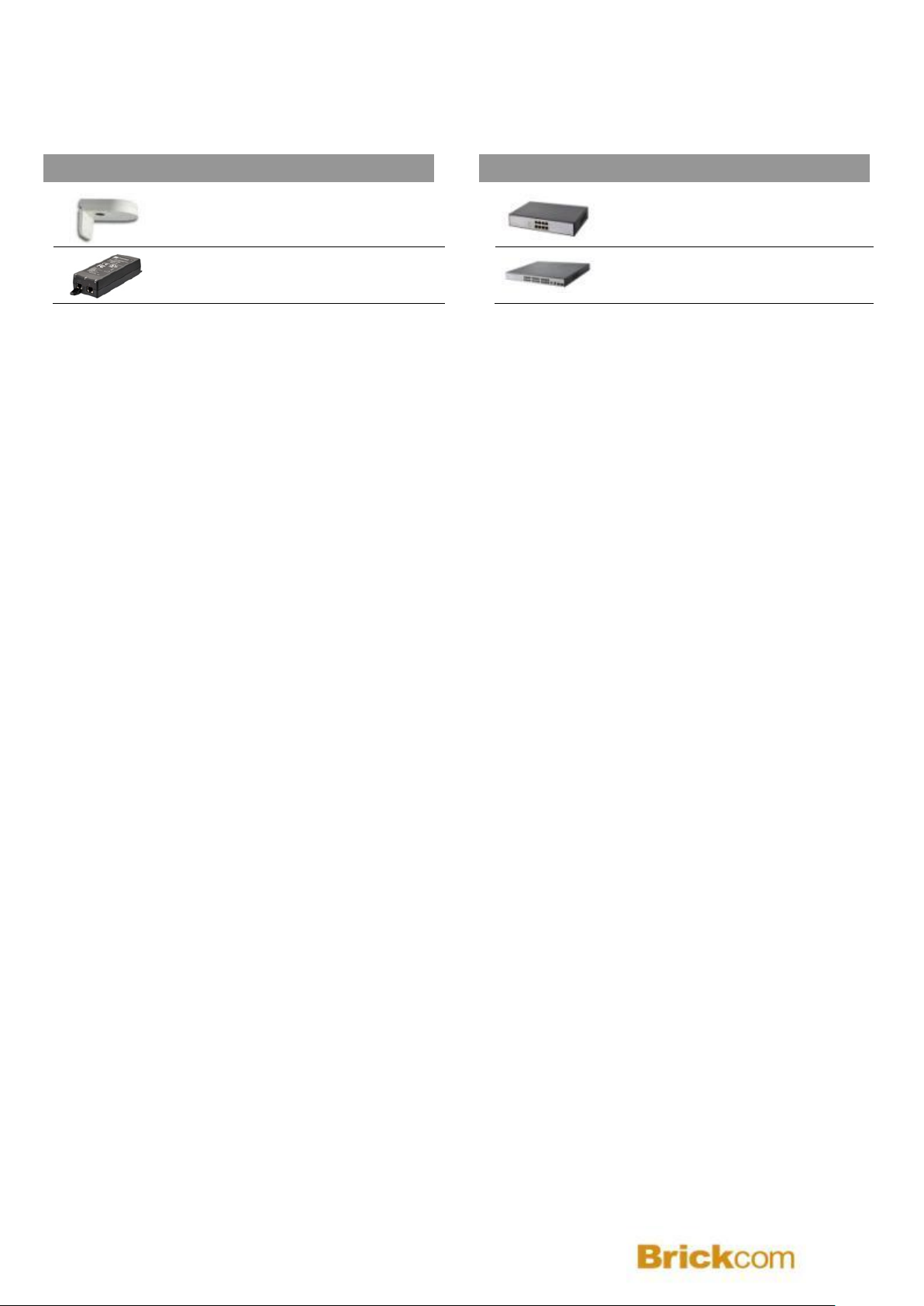

L-WM-01
Camera Bracket
PS-588I
8-port 10/100M PoE Fast Ethernet Switch
POE16U *
PoE Injector
PS-7242IL-AF
24-port 10/100M PoE Web Smart Ethernet
Switch
