Page 1

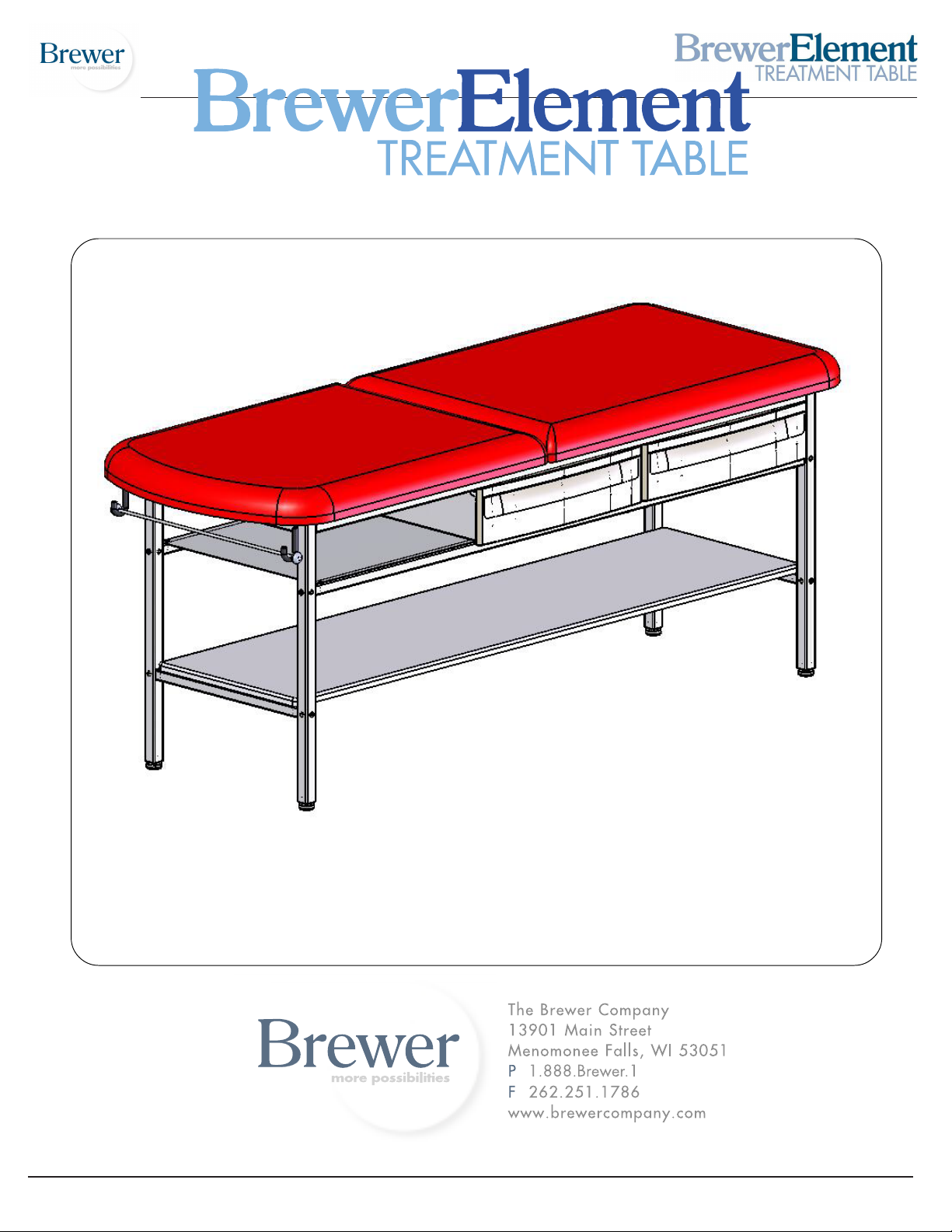

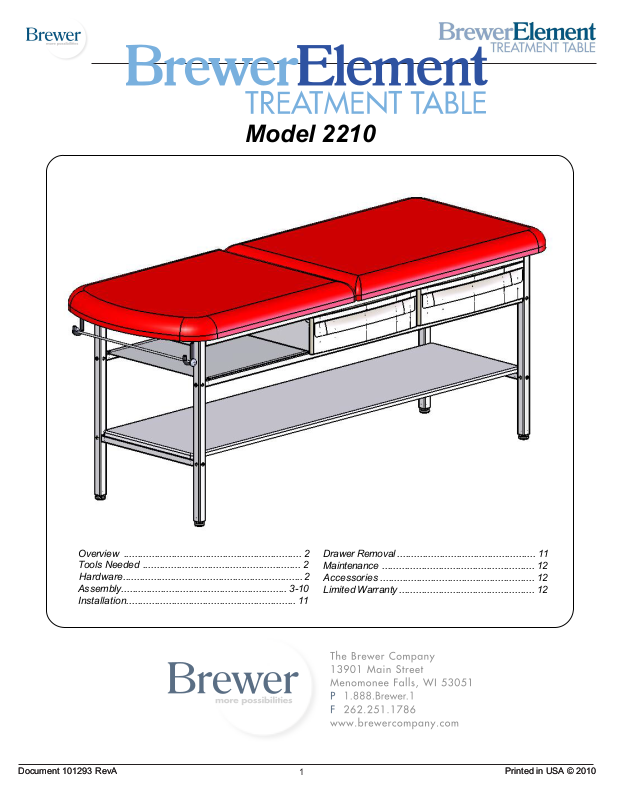

Model 2210

Overview ............................................................... 2

Tools Needed ........................................................ 2

Hardware................................................................2

Assembly........................................................... 3-10

Installation............................................................ 11

Document 101293 RevA

Drawer Removal ................................................. 11

Maintenance ...................................................... 12

Accessories ....................................................... 12

Limited Warranty ................................................ 12

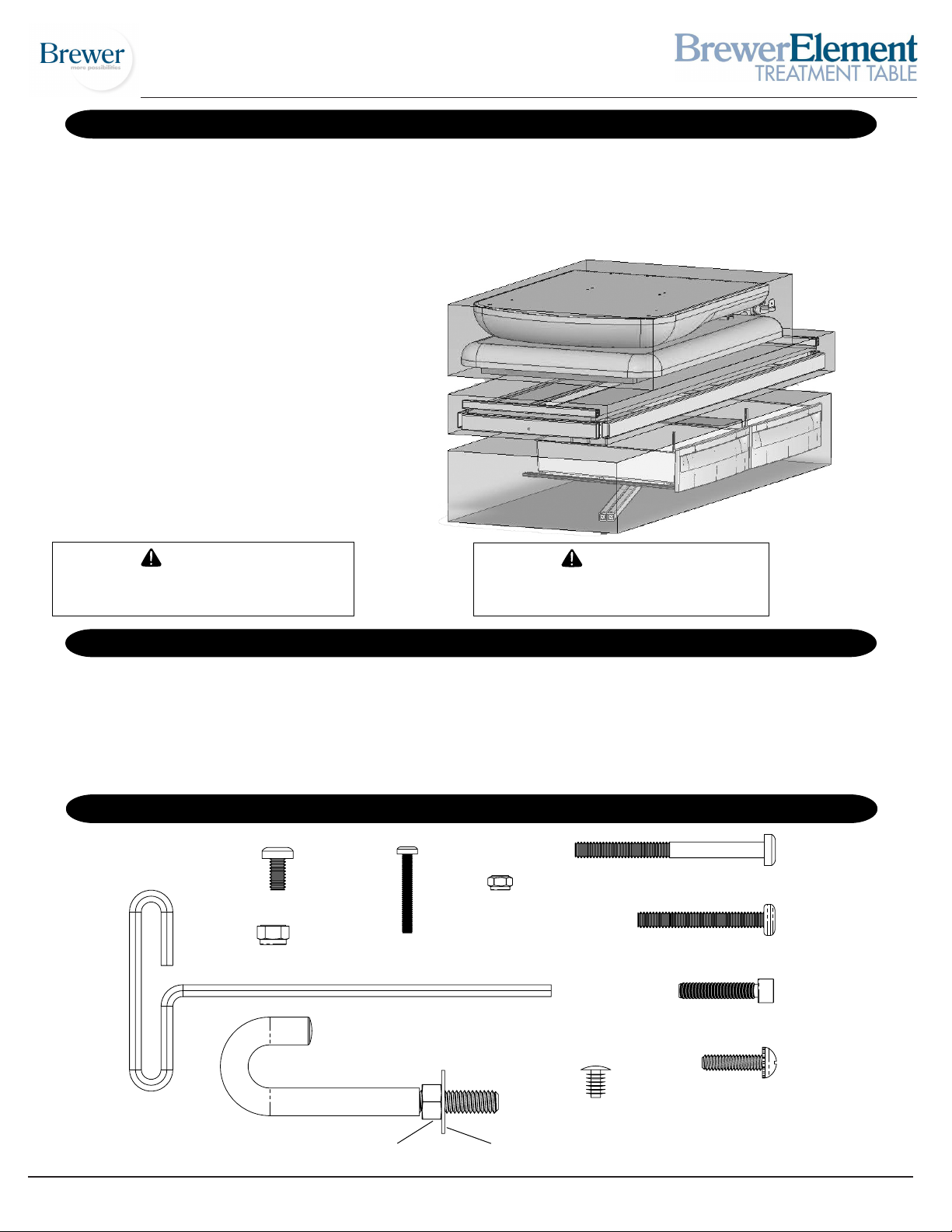

Page 2

COMPONENT IDENTIFICATION

OVERVIEW

Perform the following sequence in order when setting up the table:

- Unpacking

- Assembly

- Leveling the Table

- Installing the Paper Roll

MODEL 2210

For the above model you will receive three separate cartons: a frame & shelf carton, an upholstery carton, and a drawer carton. Inspect all three carefully for shipping incurred damage.

WARNING

Two or more people should assist in moving the table.

Use proper lifting techniques when lifting. Failure to do so could result in serious injury!

NOTE: Save all packaging in case re-shipment is required.

NOTE: Inspect all boxes and contents for damage. Report any damage to the carrier immediately.

CAUTION

To avoid damaging the table’s upholstery or painted surfaces, DO NOT use a knife or any other sharp object to open the packaging.

9/16” Open End Wrench

11/32” Socket or Wrench

Phillips Screw Driver

1/4”-20 x 1/2” Screw G (Qty 1)

1/4”-20 Nut H (Qty 1)

MODEL 2210 TOOLS NEEDED

MODEL 2210 HARDWARE

COMPONENT IDENTIFICATION

8-32 x 1 1/4” Screw E (Qty. 8)

Allen Wrench (Qty. 1)

J-Bolt R (Qty. 2)

3/8” Nut L (Qty. 2)

1/4”-20 x 3” Screw A (Qty. 2)

8-32 Nut K (Qty. 8)

1/4”-20 x 2” Screw B (Qty. 8)

1/4”-20 x 1 1/4” Screw C (Qty. 8)

1/4”-20 x 1” Screw F (Qty. 4)

Snap Rivet (Qty. 32)

Washer M (Qty. 2)

Document 101293 RevA

Page 3

Notch

Screw C

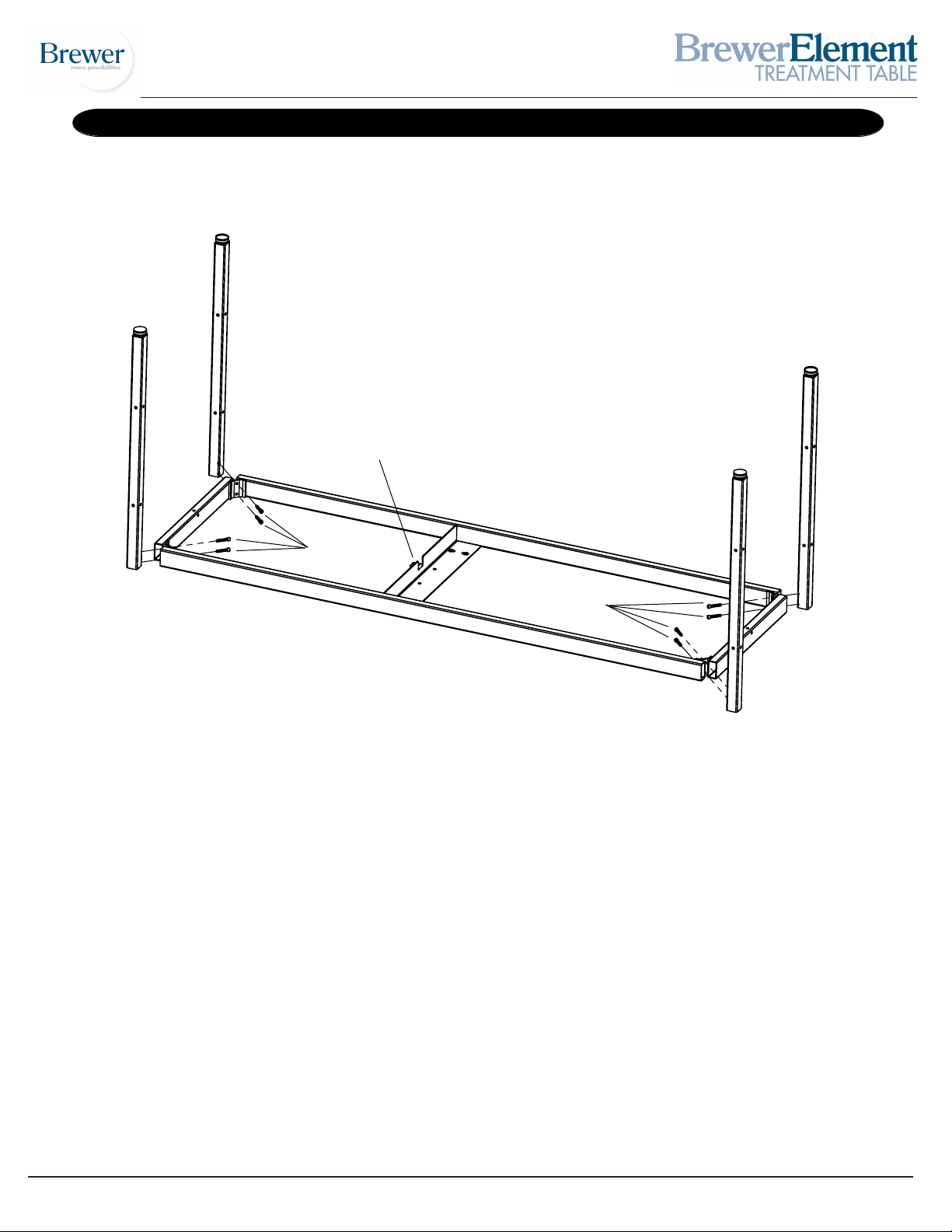

MODEL 2210 STEP 1

Screw C

STEP A: Start with table frame inverted: note the position of the Notch in the drawing above is facing upwards.

STEP B: Positon Legs in corners (see drawing above). Insert Screws C (1/4”-20 x 1 1/4”) and snug up by hand only at this time.

Document 101293 RevA

Page 4

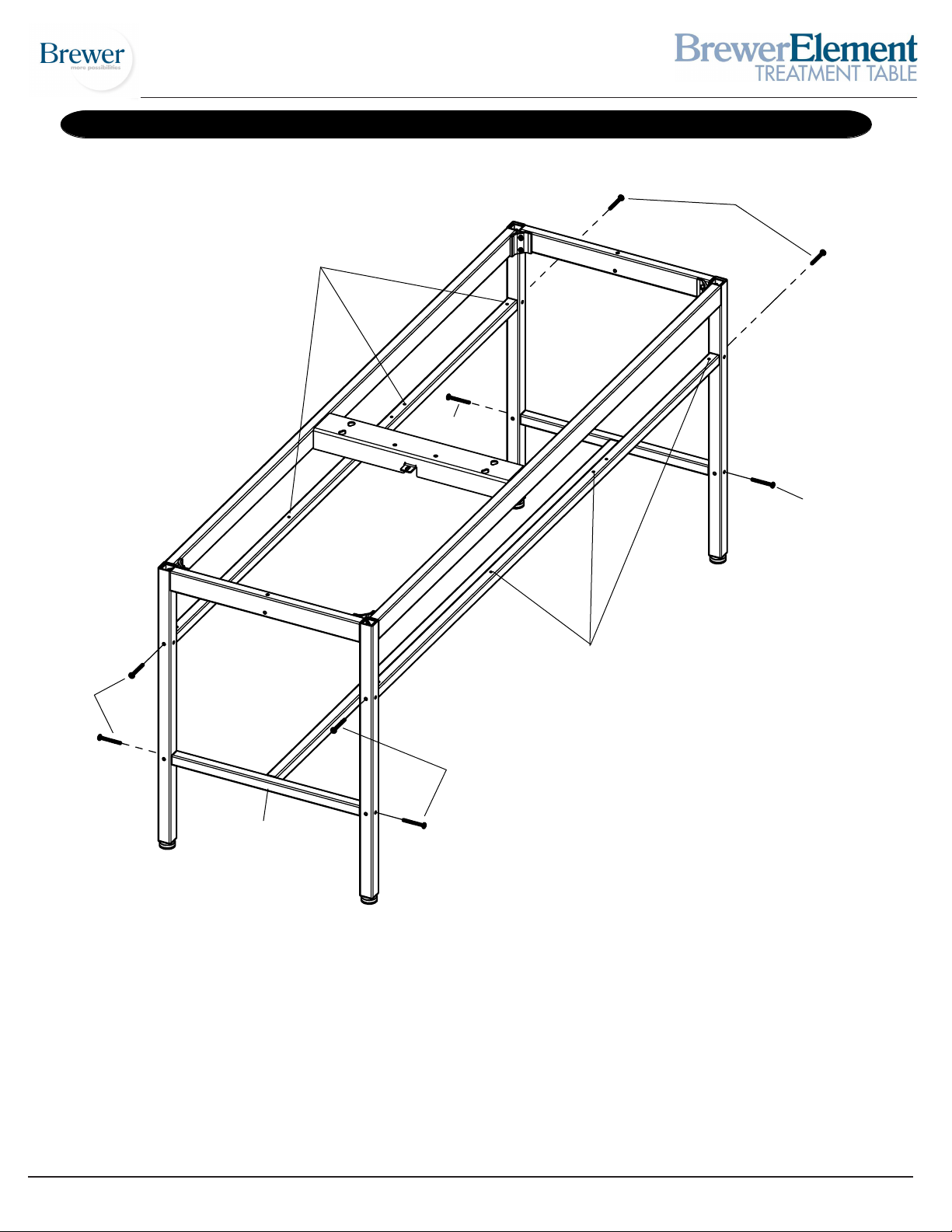

MODEL 2210 STEP 2

Drawer Supports

with holes upward and

toward Foot End

Tab

Screw B

Foot End

Screw B

Drawer Supports

with holes upward and

Screw B

toward Foot End

Screw B

Shelf Support

STEP A: With table in the upright position install Shelf Support using 4 Screws B (1/4”-20 x 2”). Do not tighten at this time.

STEP B: Locate Drawer Supports according to above drawing so that the holes through the tube are facing up, and the holes nearest the ends of the tubes are at the Foot End of the table. Install using 4 Screws B (1/4”-20 x 2”). Do not tighten at this time.

Document 101293 RevA

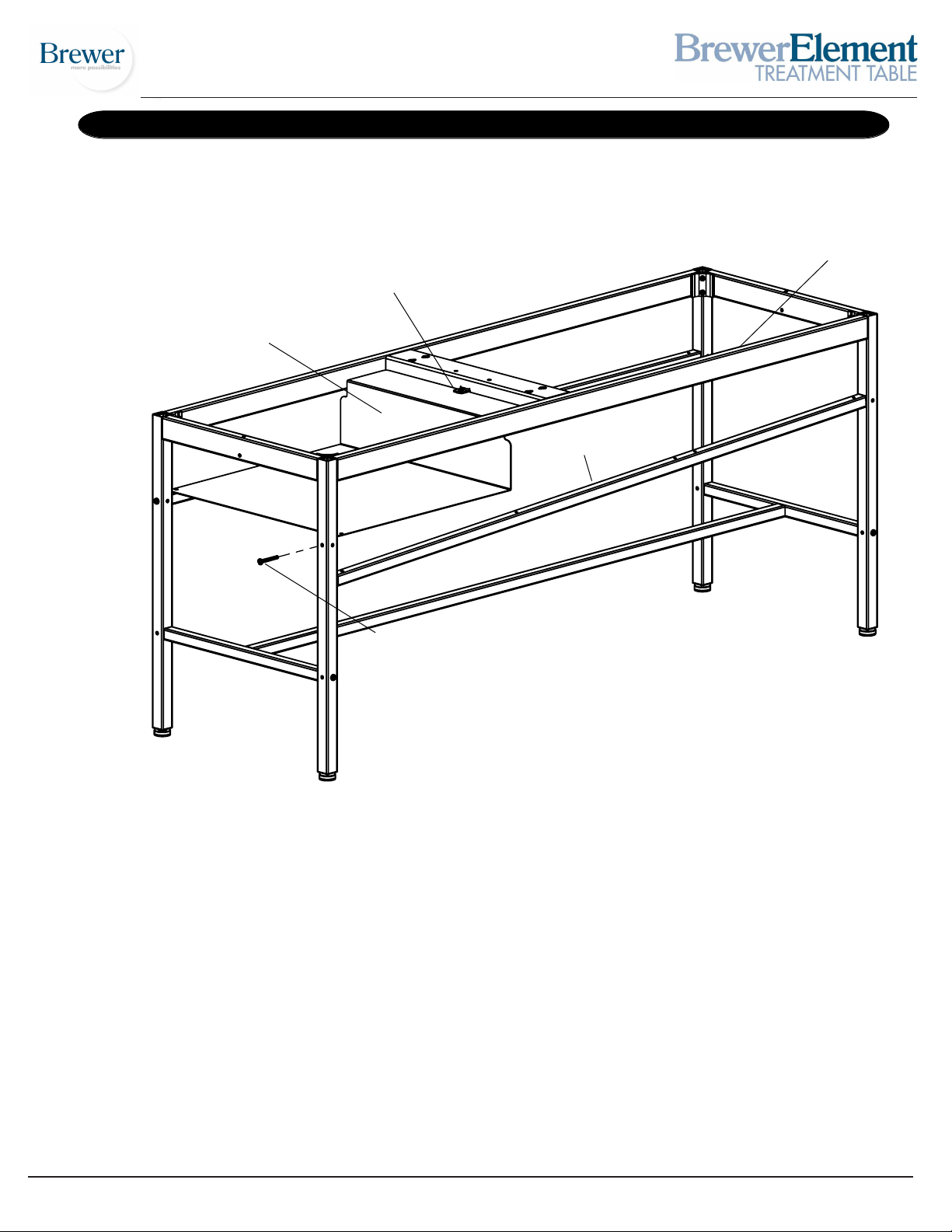

Page 5

Paper Shelf

MODEL 2210 STEP 3

Top Rail

Tab

Head End

Drawer Support

Remove this Screw Only

STEP A: Remove one Drawer Support screw from the Head End of the table as shown.

STEP B: Insert Paper Shelf between the Top Rail and the loose Drawer Support. Make sure the Paper Shelf is mounted below the Tab as shown.

STEP C: Reinstall the Drawer Support and its corresponding screw. Do not tighten at this time.

Document 101293 RevA

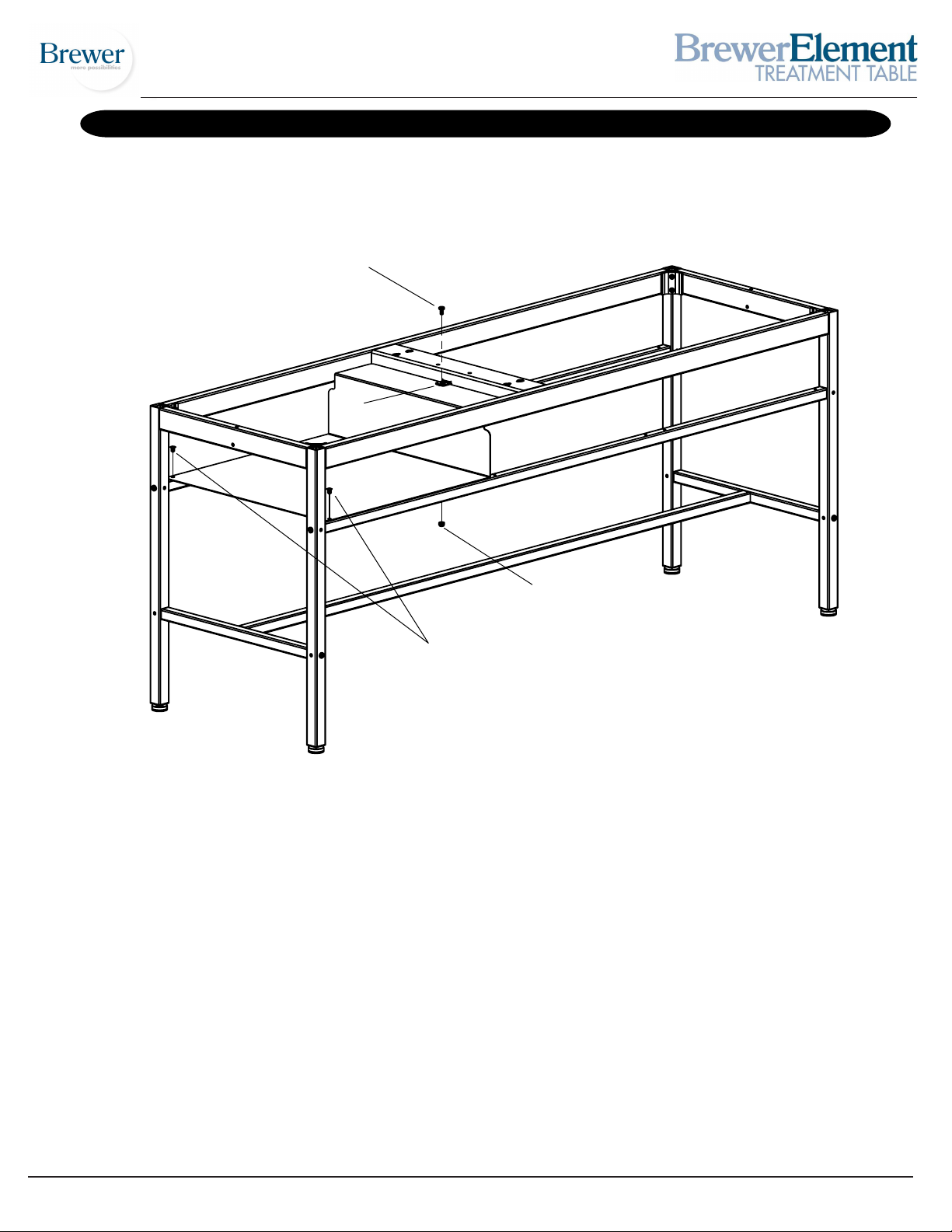

Page 6

MODEL 2210 STEP 4

Screw G

Tab

Paper Shelf

Nut H

Snap Rivets

STEP A: Install Screw G (1/4”-20 x 1/2”) through Tab and Paper Shelf as shown. Tighten Nut H (1/4”-20) onto Screw G. Install 3 Snap Rivets into holes on Paper Shelf and the top of the frame rail.

Document 101293 RevA

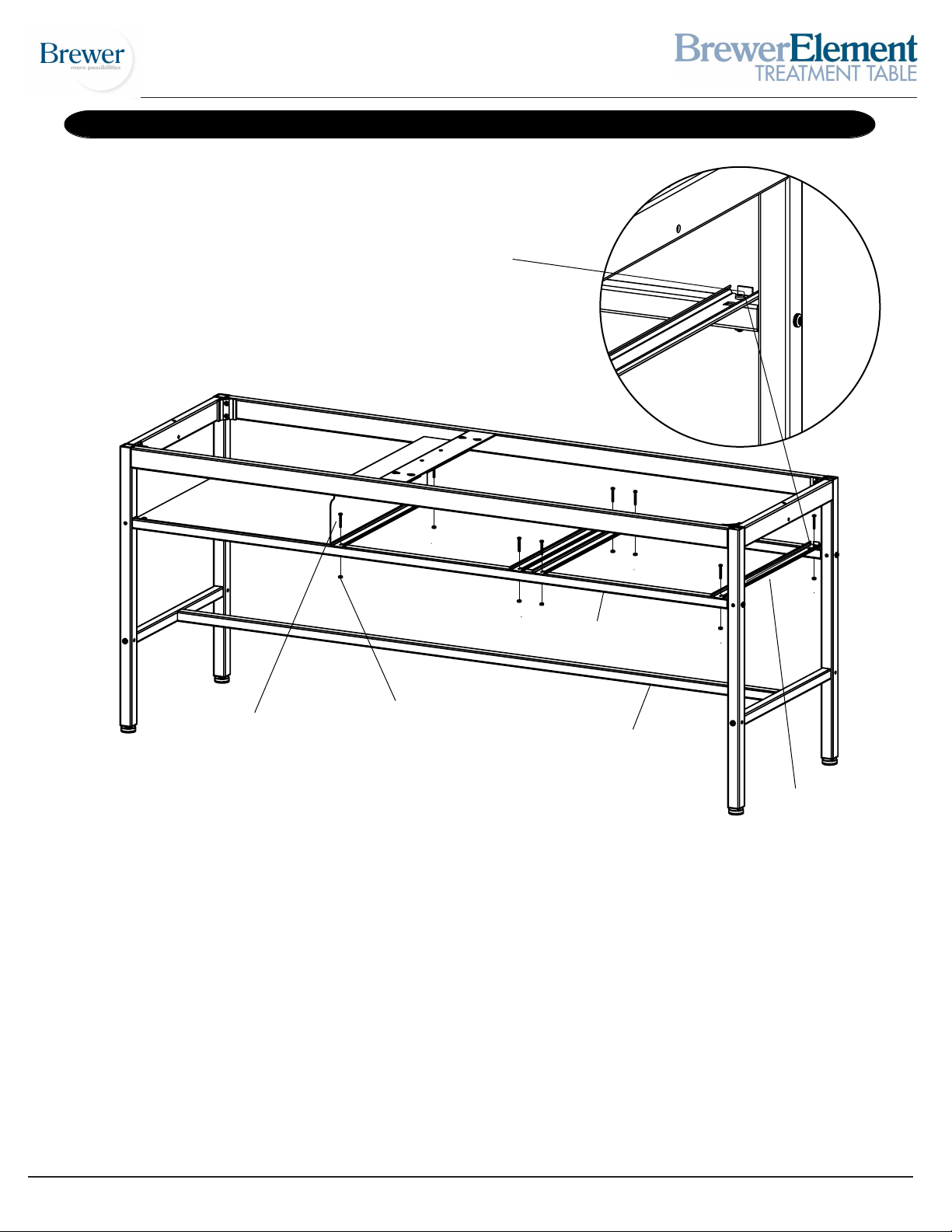

Page 7

RH Side

LH Side

MODEL 2210 STEP 5

Detail of Drawer Slide Bumpers

Drawer Support

Nut K

Screw E

Shelf Support

Drawer Slide

STEP A: The drawers can be installed so they open from the right hand side (RH Side) or the left hand side (LH Side) of the table. The view above and the instructions below are for right hand installation.

STEP B: Position the (4) Drawer Slides on top of the Drawer Support rails. The rubber bumpers should be on the LH Side of the table, facing upward.

STEP C: Tighten Screws E (8-32 x 1 1/4”) into Nuts K (8-32) at 8 locations.

STEP D: Tighten all screws at this time.

-Legs to Frame (8 screws using Allen Wrench provided)

-Drawer Supports to Legs (4 screws)

-Shelf Support to Legs (4 screws)

Document 101293 RevA

Page 8

J-Bolt R

Dowel Rod

Figure A

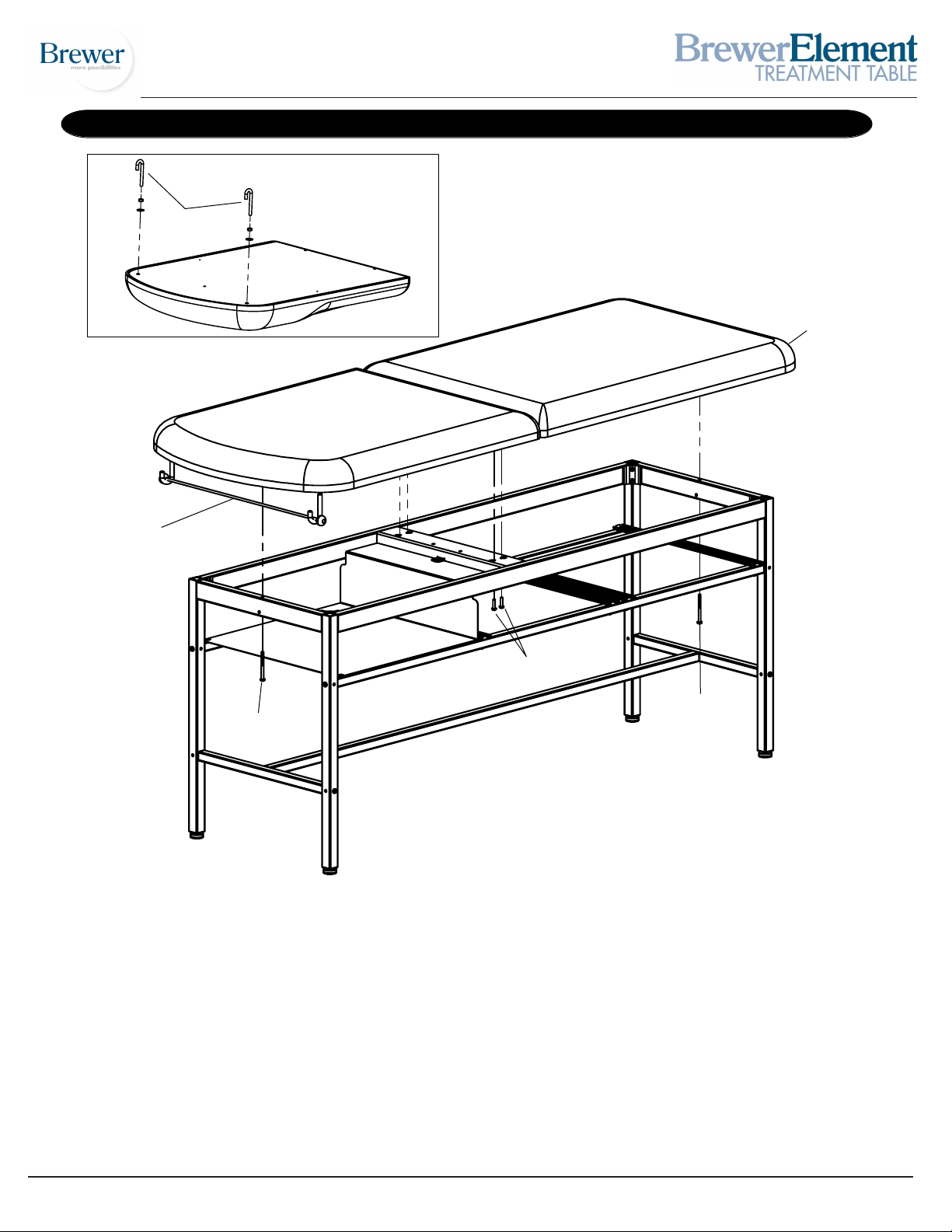

MODEL 2210 STEP 6

Install J-Bolts onto upholstery top

STEP A: Install J-Bolts as shown in Figure A. Thread Nut L (3/8”) completely onto J-Bolt. Place Washer M onto J-Bolt and thread into Backrest as shown in Figure A. Position J-Bolt toward head of table as shown and tighten nut against backrest.

Rounded Corner

Foot End

Screw F

Screw A

STEP B: Set upholstery top and bottom on frame, with Rounded Corners of the upholstery bottom placed at the Foot End of the table.

STEP C: Install 2 Screws A (1/4”-20 x 3”) through frame and into upholstery.

STEP D: Install 4 Screws F (1/4”-20 x 1”) through frame and into upholstery.

STEP E: Tighten Screws.

STEP F: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a secure fit before using the paper roll dispenser.

Document 101293 RevA

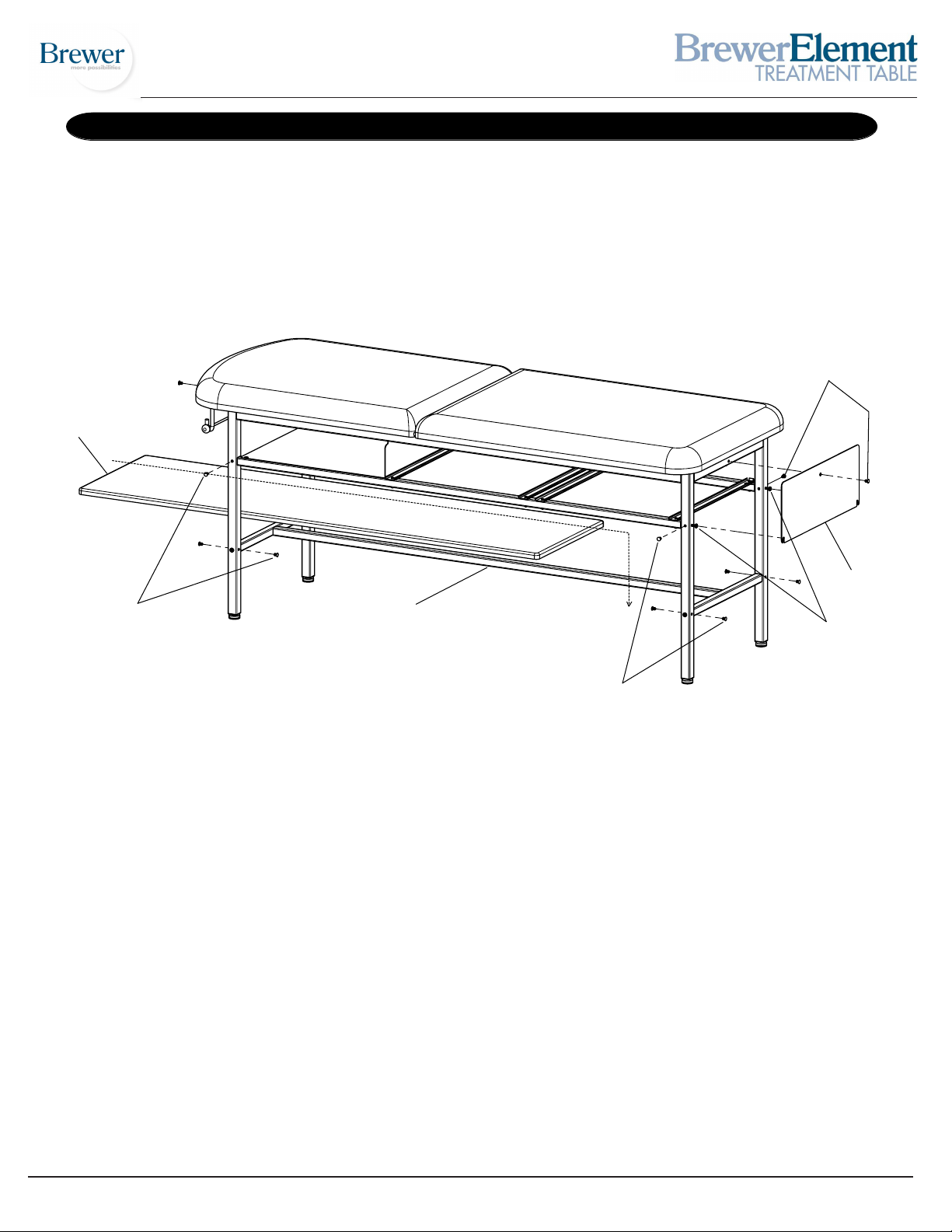

Page 9

Shelf

MODEL 2210 STEP 7

Snap Rivet

Side Plate

Snap Rivet

Lower Shelf Support

Screw B

Snap Rivet

STEP A: Loosen Screws B at the foot of the table where indicated just enough to allow installation of the Side Plate.

STEP B: Mount Side Plate so that the slots of the plate straddle the Screws B that were just loosened.

STEP C: Press the top of the Side Plate up against the frame and align the top hole of the plate with the hole in the frame. Insert Snap Rivet into the aligned holes.

STEP D: Retighten Screws B.

STEP E: Insert the Shelf through either end of the table. Positon the Shelf so that the locating blocks, on the bottom of the Shelf, are straddling the Lower Shelf Support.

STEP F: Install Snap Rivets into unused holes in legs and frame.

Document 101293 RevA

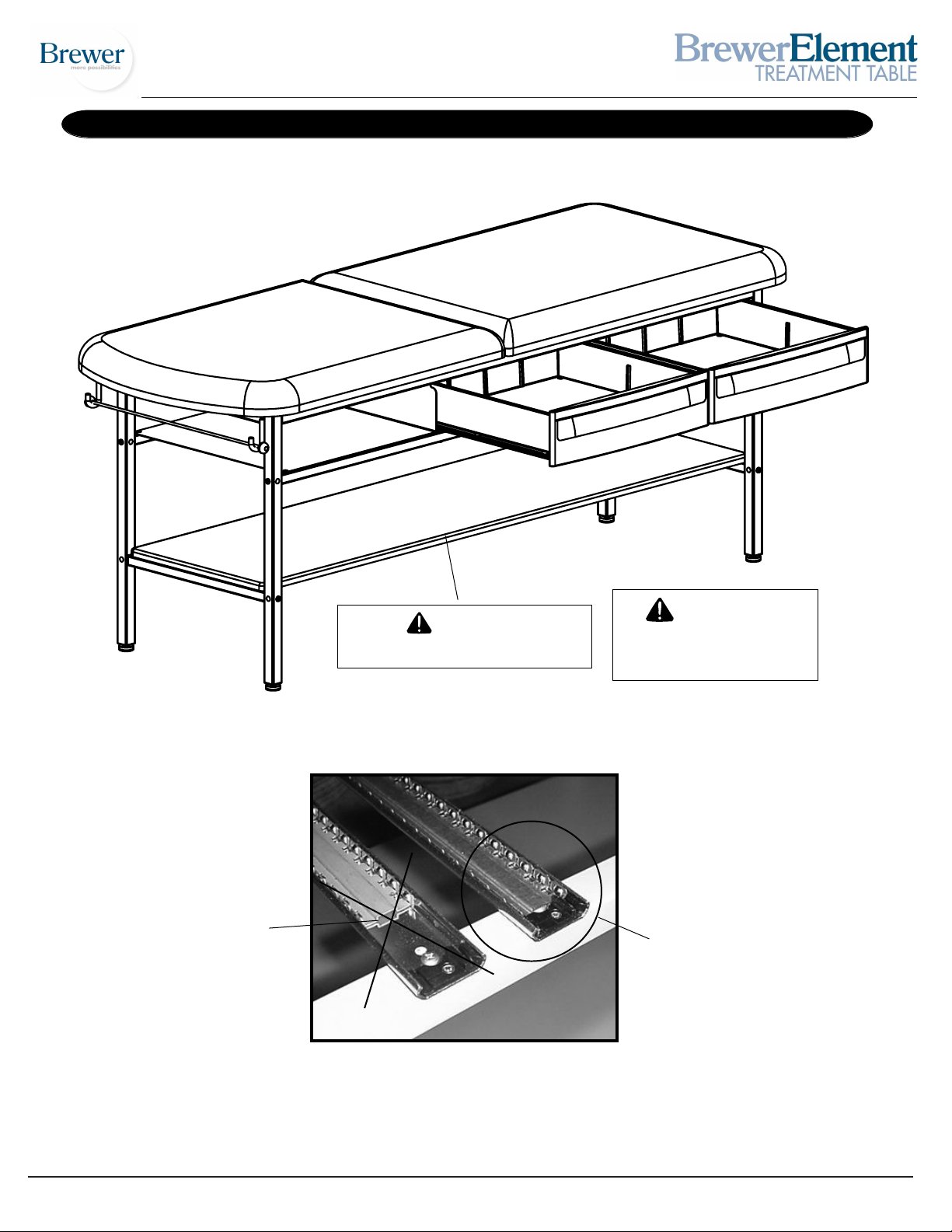

Page 10

MODEL 2210 STEP 8

Incorrect Positioning

CAUTION

DO NOT USE SHELF AS A STEP!

Drawer Slide Positioning

CAUTION

MAXIMUM LOAD 15 LBS. PER DRAWER

Correct Positioning

To install drawers, pull drawer slides forward and align the slots of the drawer-mounted slides to their mate on the frame. Push the drawers inward until they reach their fully-closed position.

Document 101293 RevA

Page 11

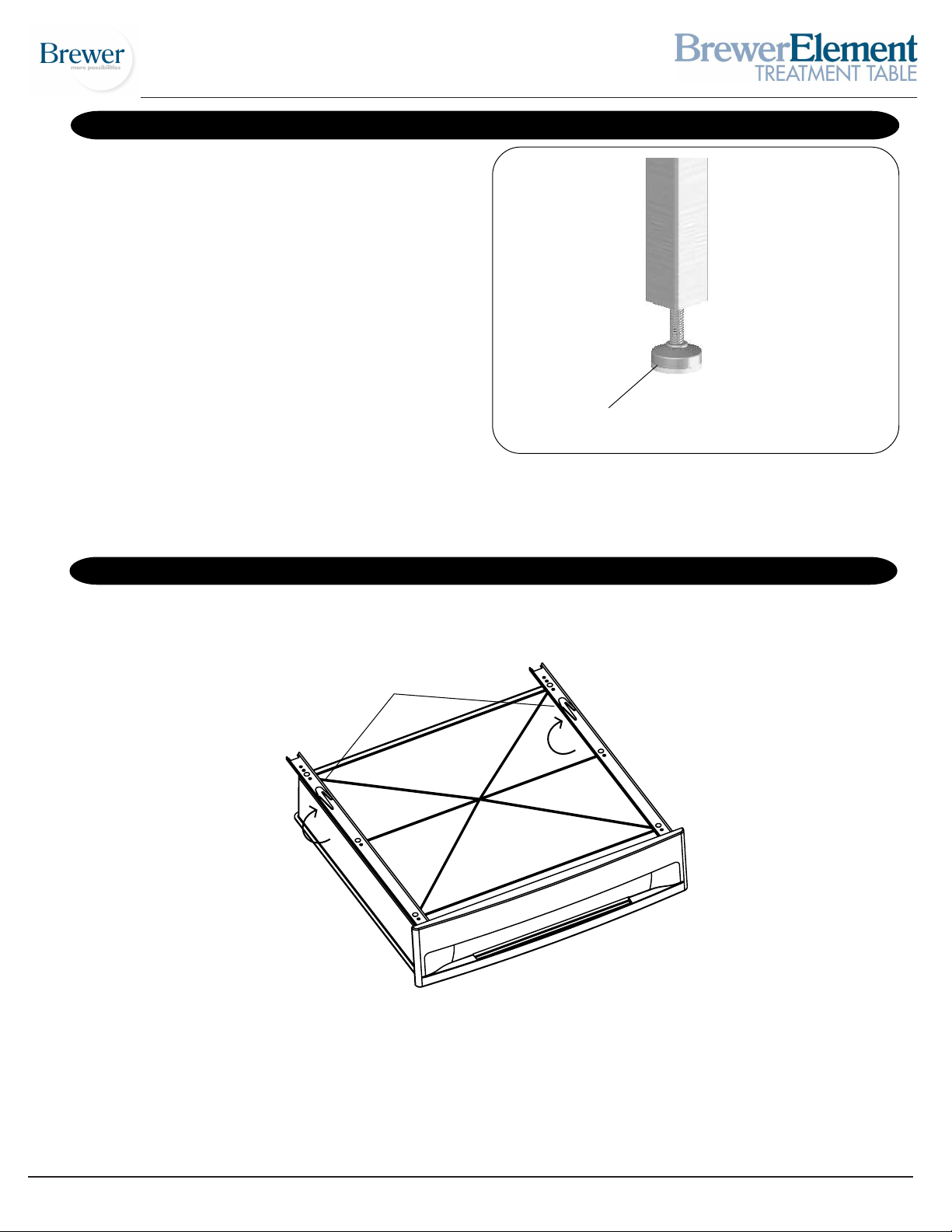

INSTALLATION

Leveling the Table

A Leveling Screw Pad is located at each corner under the table’s base. Adjust the four Leveling Screw Pads, by turning them up or down, to achieve a solid, level installation.

DRAWER REMOVAL

Leveling Screw Pad

Retaining Clips

Drawer

(Bottom View)

To remove Drawer from bottom slide support: Fully extend the Drawer, locate the Retaining Clips and push both clips in a clockwise direction as you pull the Drawer forward and out.

Document 101293 RevA

Page 12

MAINTENANCE

Preventative Maintenance

• Inspect the mechanical functions to ensure satisfactory operation.

• Check fasteners to make sure they are present and secured tightly.

Cleaning

Upholstery

Regular care should be maintained by daily wiping with a damp cloth or sponge and periodic cleaning with a mild soap and water solution. Let air dry before placing anything on top of upholstery.

WARNING

The upholstery material that covers the top of the table is resistant to most medicinal-type stains, but may be damaged by solvents and dyes. Remove any fluids which are spilled on the upholstery immediately. All surfaces should be cleaned within your facilities guidelines concerning antimicrobials and bloodborne pathogens.

Painted Metal Surfaces

Wipe all painted metal surfaces with a clean cloth at least once a week.

Drawers

Wipe out drawers with a damp cloth or sponge on a regular basis, along with periodic cleaning with a mild soap and water solution. The drawers may be removed for cleaning. (See page

11.)

ACCESSORIES

Description

Replacement Upholstery

Special Upholstery 210115-SP Intended Use - Allows the purchase of specialty vinyls in different colors with the

Front Drawer Organizer 100407 Intended Use - Optional front drawer dividers for separation and organization.

Paper Straps 10196 Intended Use - Secures paper in two locations to table.

Reorder No. Use/Restrictions

210115-XX Intended Use - Replacement top with

hardware for 2210 Treatment Tables in 18 standard colors.

model 2210 Treatment Tables. (Additional charges may apply.)

The Brewer Company

GENERAL

arranty: The Brewer Company warrants its products to be free from defects in parts and workmanship under normal use

W and service for a period of three (3) years from date of shipment.

defects in parts and workmanship under normal use and service for a period of three (3) years from date of shipment. The Brewer Company warrants its exam tables to be free from defects in parts and workmanship under normal use and service for a period of three (3) years from date of shipment. The Brewer Company warrants its lighting products to be free from defects in parts and workmanship under normal use and service for a period of one (1) year from date of shipment. The Brewer Company will not be responsible for any Product failure due to abuse, misuse, modification or improper use or for any use which exceeds the published capacity of the Product. Products returned by prepaid freight for inspection and found defective will, at the option of The Brewer Company, be repaired or replaced at no charge, but no claim for outside labor or other charges will be allowed. Products must not be returned without proper written authorization from The Brewer Company. Requests for authorization must be in writing and accompanied by the original purchase order, The Brewer Company invoice number and a copy of the invoice for the Product. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES WHATSOEVER, INCLUDING BUT NO IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. NO AGENT, EMPLOYEE, OR REPRESENTATIVE OF THE BREWER COMPANY HAS ANY AUTHORITY TO MAKE ANY AFFIRMATION, REPRESENTATION, OR WARRANTY NOT SET FORTH IN THESE TERMS AND CONDITIONS CONCERNING ANY PRODUCTS OF THE BREWER COMPANY. THE BREWER COMPANY SHALL HAVE NO LIABILITY WHATSOEVER FOR DAMAGES CAUSED BY TRANSPORTATION, ACCIDENTS, FIRE, UNAUTHORIZED ALTERATION, OR NORMAL WEAR OR ABUSE, NOR SHALL THE BREWER COMPANY HAVE ANY LIABILITY WHATSOEVER FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, including without limitation, lost profits or any such damages arising from (a) the design, manufacture, sale, delivery, installation, repair, operation or use of products of The Brewer Company or any part thereof, (b) any actual or alleged failure or defect in products of The Brewer company or any or (c ) any actual or alleged breach or non-performance by The Brewer Company of this limited warranty.

Freight Claims: Upon receipt, merchandise should be carefully examined to ascertain that proper amount has been received in good condition. Any claim for shortage or damage must be made with delivering carrier within five (5) days from receipt of goods. We do not assume any responsibility for loss or damage in transit, and compensation for such loss must be obtained from the carrier.

LIMITED WARRANTY

TERMS AND CONDITIONS

The Brewer Company warrants its power tables to be free from

T LIMITED TO

part thereof,
