COMPONENT IDENTIFICATION
OVERVIEW
Perform the following sequence in order when setting up
the table:
- Unpacking
- Assembly
- Leveling the Table
- Installing the Paper Roll
NOTE: Save all packaging in case re-shipment is required.
NOTE: Inspect all boxes and contents for damage.
Report any damage to the carrier immediately.
MODELS 2130 & 2140
For the above models you will receive
two separate cartons: a frame carton,
and an upholstery carton. Inspect both
carefully for shipping incurred damage.
WARNING
Two or more people should assist in moving the table.
Use proper lifting techniques when lifting. Failure to
do so could result in serious injury!
To avoid damaging the table’s upholstery or
painted surfaces, DO NOT use a knife or any other
sharp object to open the packaging.
MODELS 2130 and 2140 TOOLS NEEDED
Rubber Mallet 9/16” Open End Wrench
CAUTION
Phillips Screw Driver 7/16” Socket or Wrench

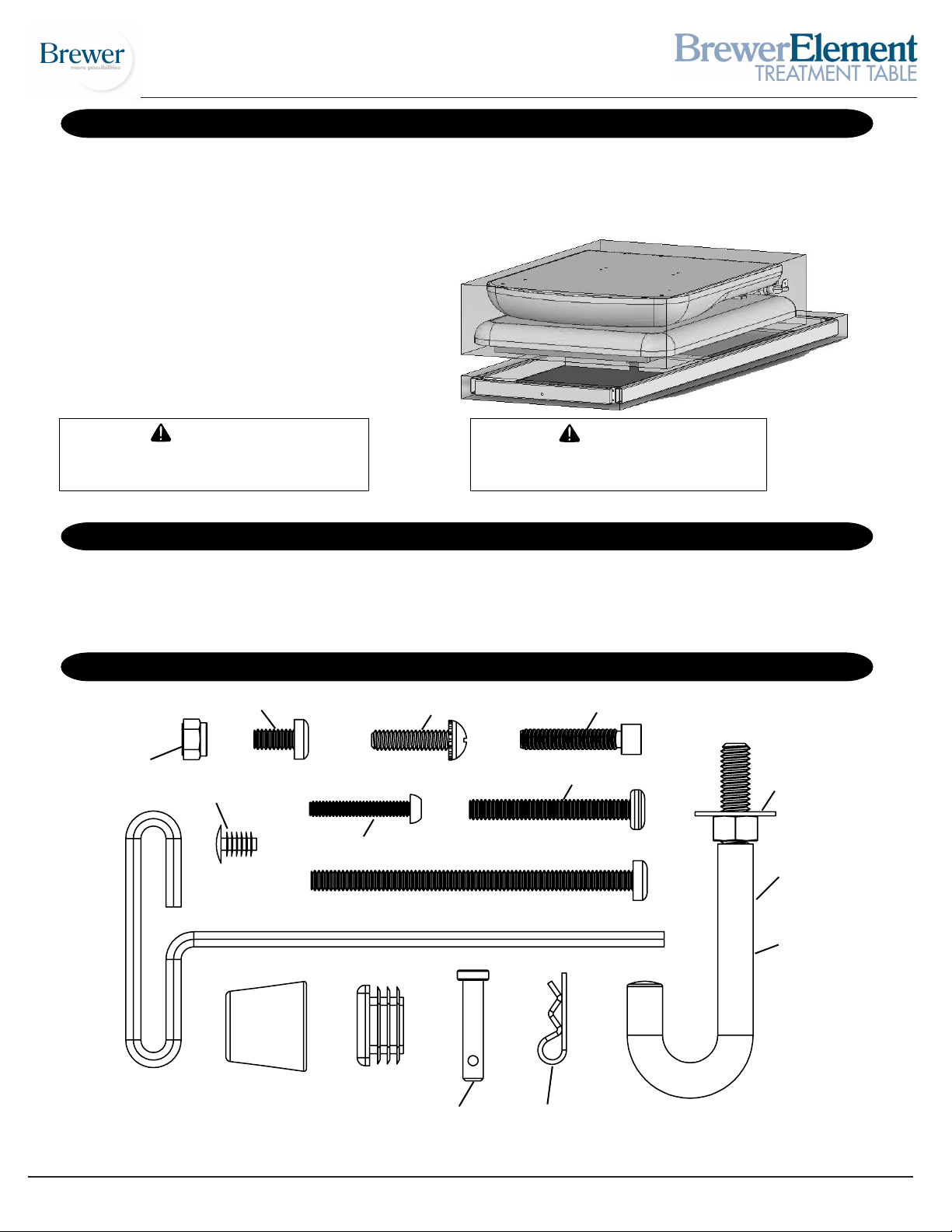

MODELS 2130 and 2140 HARDWARE
COMPONENT IDENTIFICATION
1/4”-20 x 1/2” Screw G (Qty 5)
1/4”-20 x 1” Screw F (Qty 8)
1/4”-20 x 1 1/4” Screw C (Qty 8)
1/4”-20 Nut H
(Qty 6)
1/4”-20 x 2” Screw B (Qty 7)
Snap Rivet (Qty 26)
10-24 x 1 1/4” Screw D (Qty 2)
1/4”-20 x 4” Screw A (Qty 1)
Allen Wrench (Qty. 1)
Washer M (Qty. 2)
3/8” Nut L (Qty. 2)
J-Bolt R (Qty. 2)
Document 101292 RevA
Bumper (Qty 2)
Cap (Qty 2)
Clevis Pin (Qty 2)
Cotter Pin (Qty 2)
2
Printed in USA © 2010
Page 3

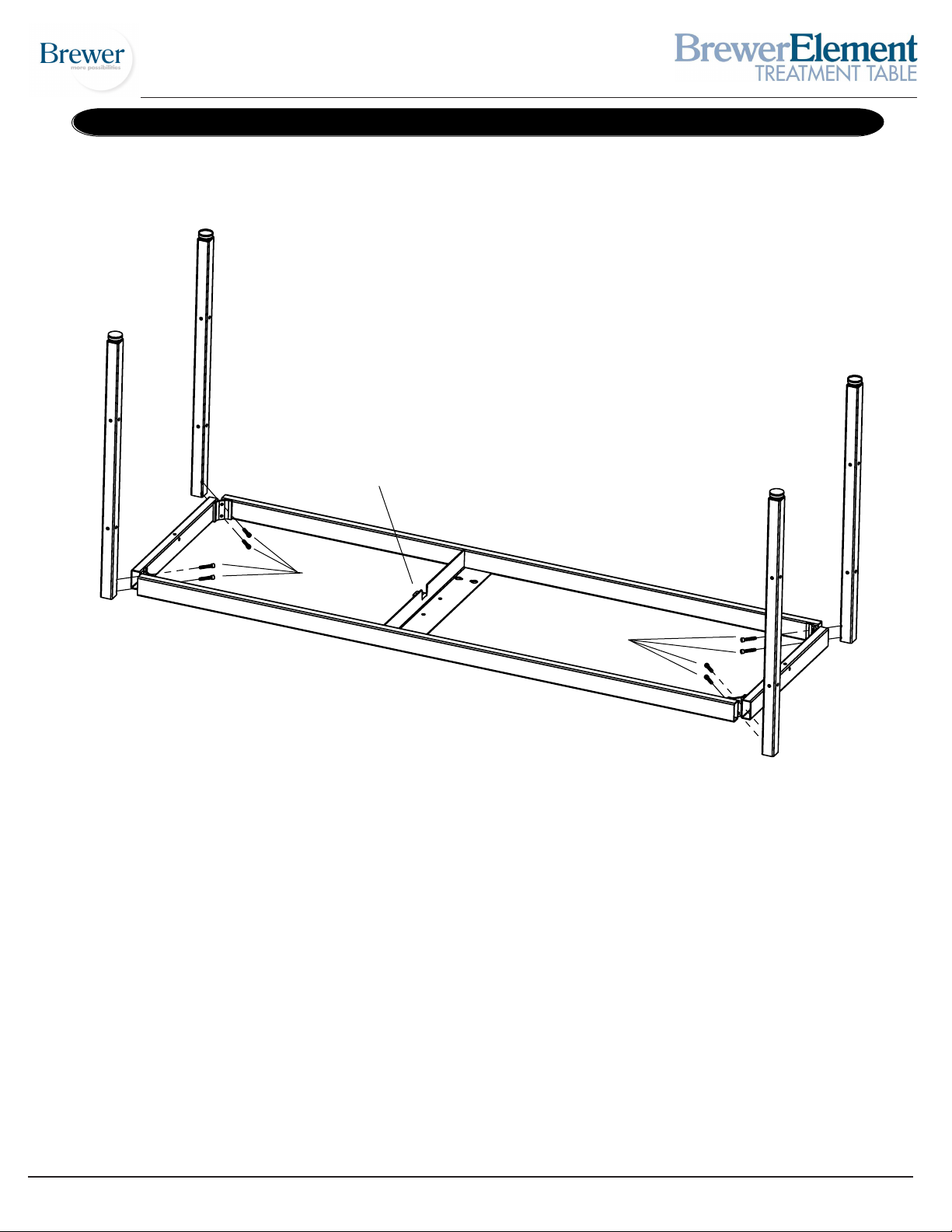

MODELS 2130 and 2140 STEP 1
Notch
Screw C
Screw C

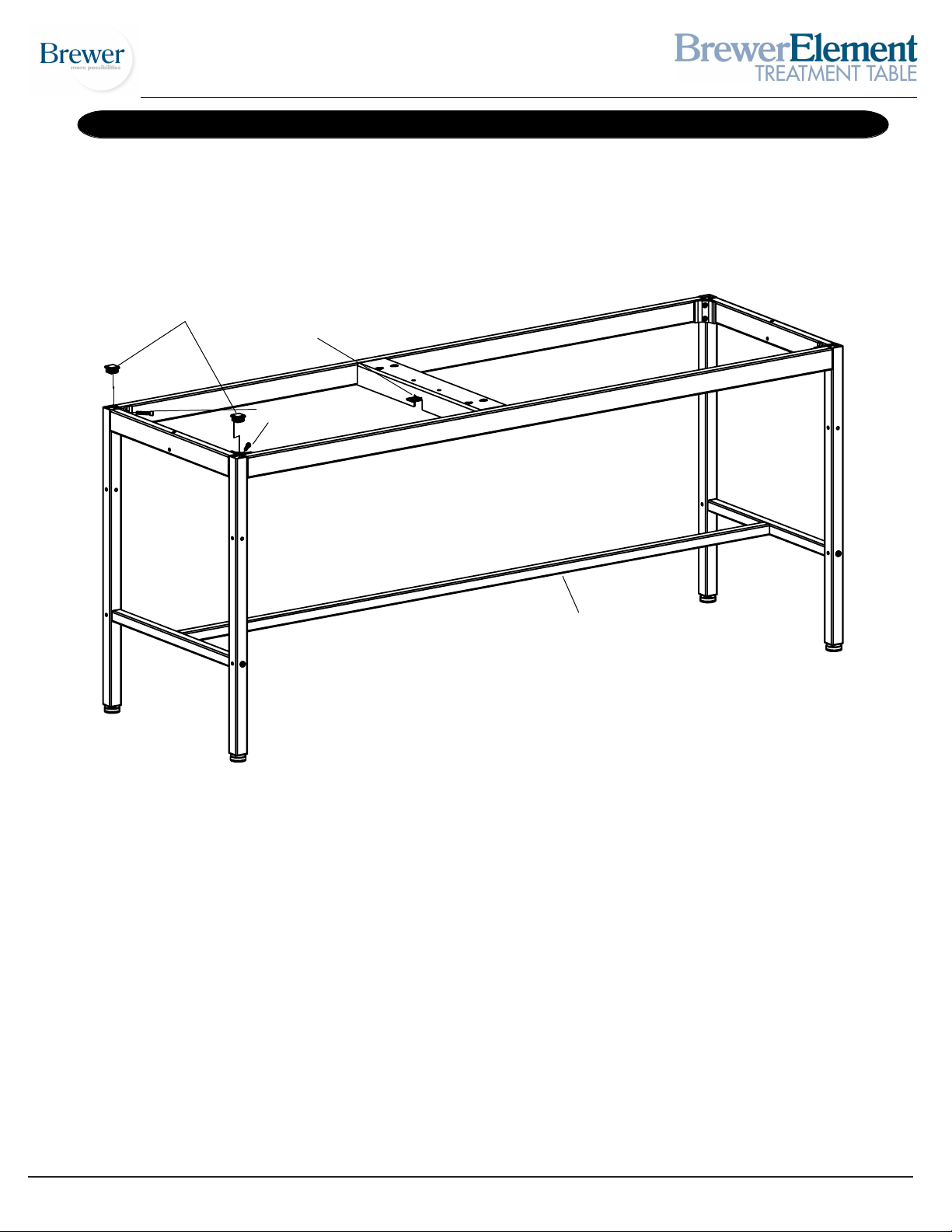

STEP A: Start with table frame inverted: note the position of the Notch in the drawing above is facing
upwards.
STEP B: Positon legs (see drawing above). Insert Screws C (1/4”-20 x 1 1/4”) and snug up by hand only at
this time.
Document 101292 RevA
3
Printed in USA © 2010
Page 4

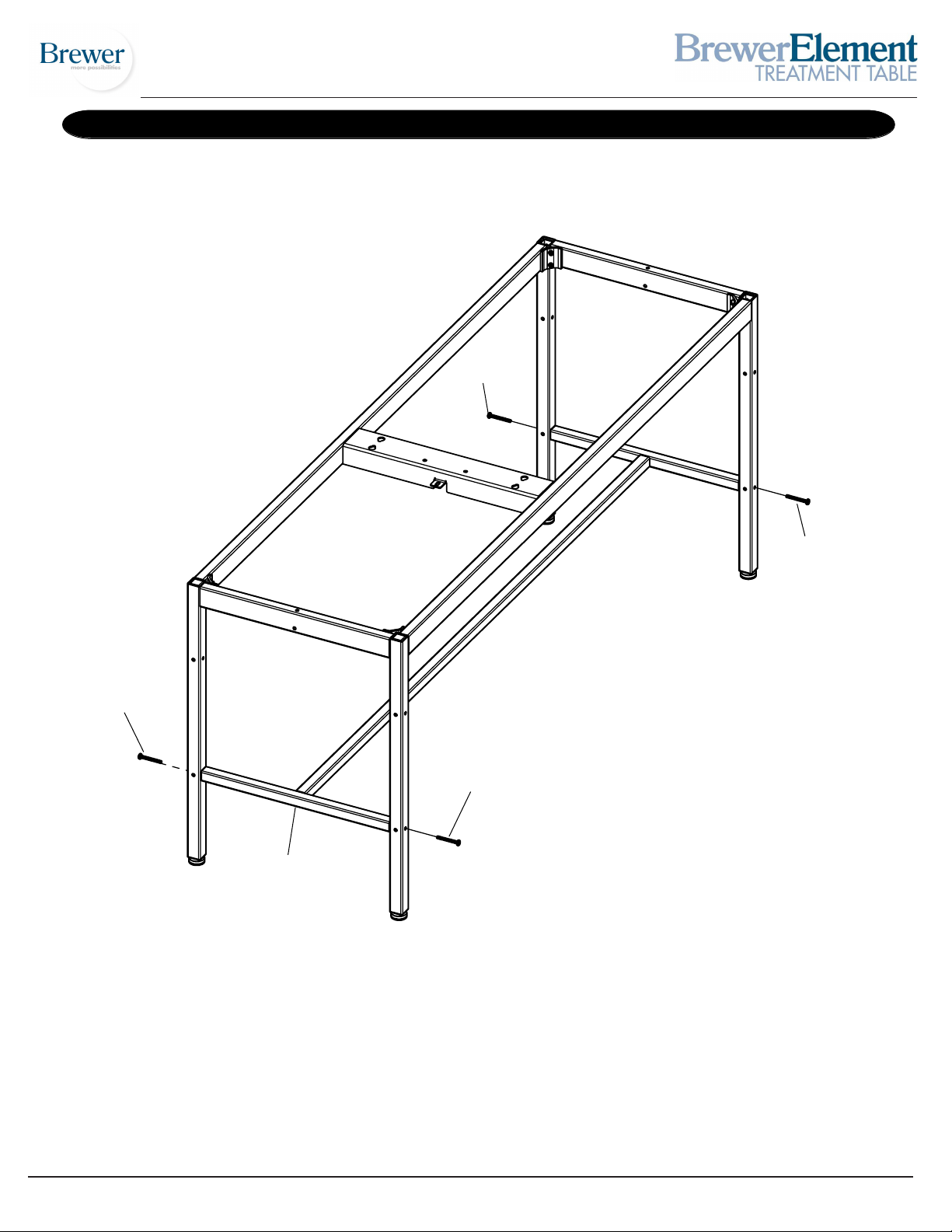

MODEL 2130 and 2140 STEP 2
Screw B
Screw B
Screw B
Screw B
Shelf Support
STEP A : With table in the upright position install Shelf Support using 4 Screws B (1/4”-20 x 2”). Do not
tighten at this time.
Document 101292 RevA
4
Printed in USA © 2010
Page 5
Caps
Head End
MODELS 2130 and 2140 STEP 3
Tab
Upper Leg Screws
Shelf Support
STEP A: Remove 2 Upper Leg Screws at Head End of the Table, one on each of the two legs. (See illustration above.)
STEP B: Insert Caps into two leg tops and seat with a rubber mallet.
STEP C: Install Upper Leg Screws.
STEP D: Tighten all screws at this time.
-Legs to Frame (8 screws using Allen Wrench provided)
-Shelf Support to Legs (4 screws)
Document 101292 RevA
5
Printed in USA © 2010
Page 6

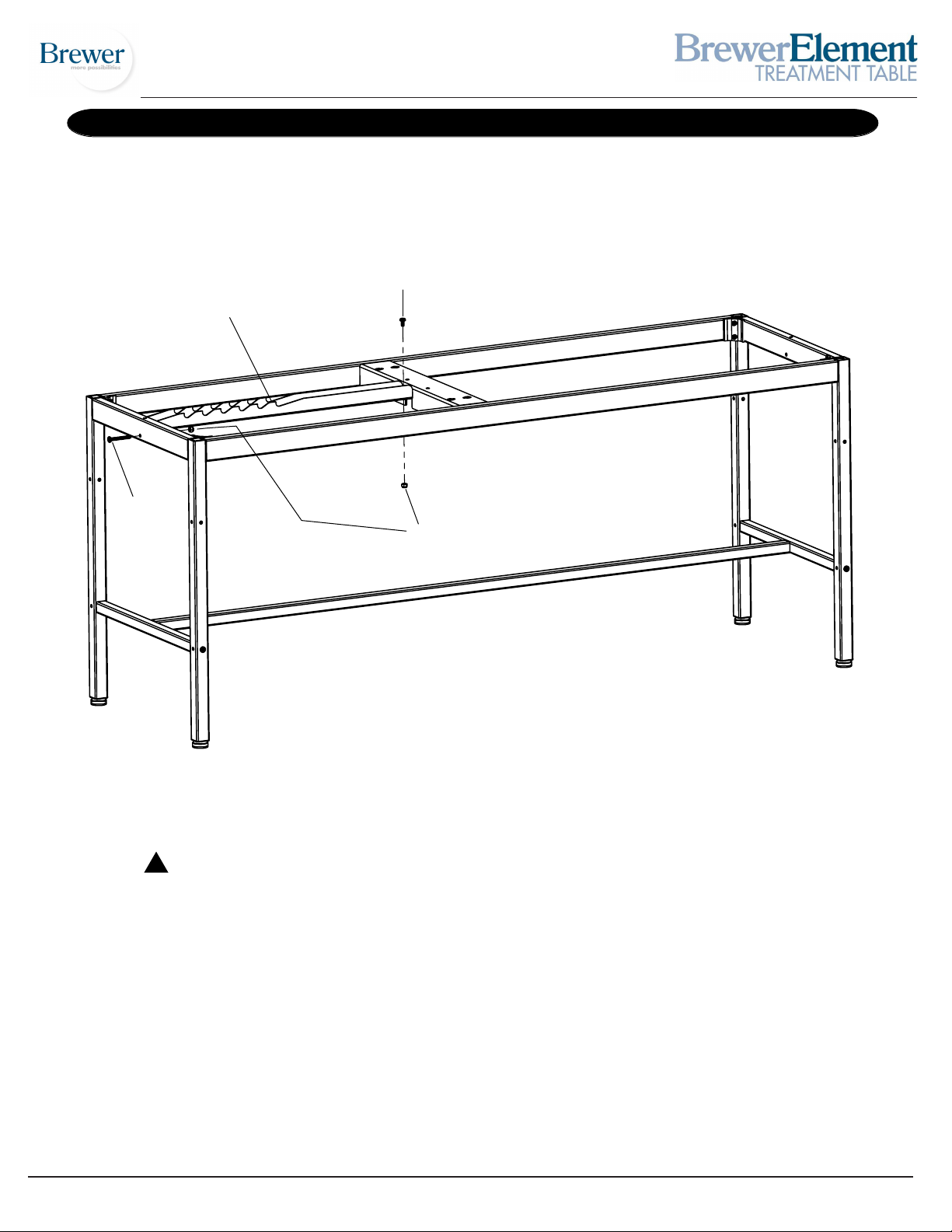

Backrest Catch
Screw B
MODELS 2130 and 2140 STEP 4
Screw G
Nut H
STEP A: Install Backrest Catch as shown in the drawing above.
CAUTION ! The Backrest Catch needs to be positioned on top of the Tab shown in STEP 3.
STEP B: Install Screw B (1/4”-20 x 2”) through frame rail and into Backrest Catch and tighten Nut H
(1/4”-20). Insert Screw G (1/4”-20 x 1/2”) through Backrest Catch and Tab. Tighten Nut H onto Screw G.
Document 101292 RevA
6
Printed in USA © 2010
Page 7
Head End

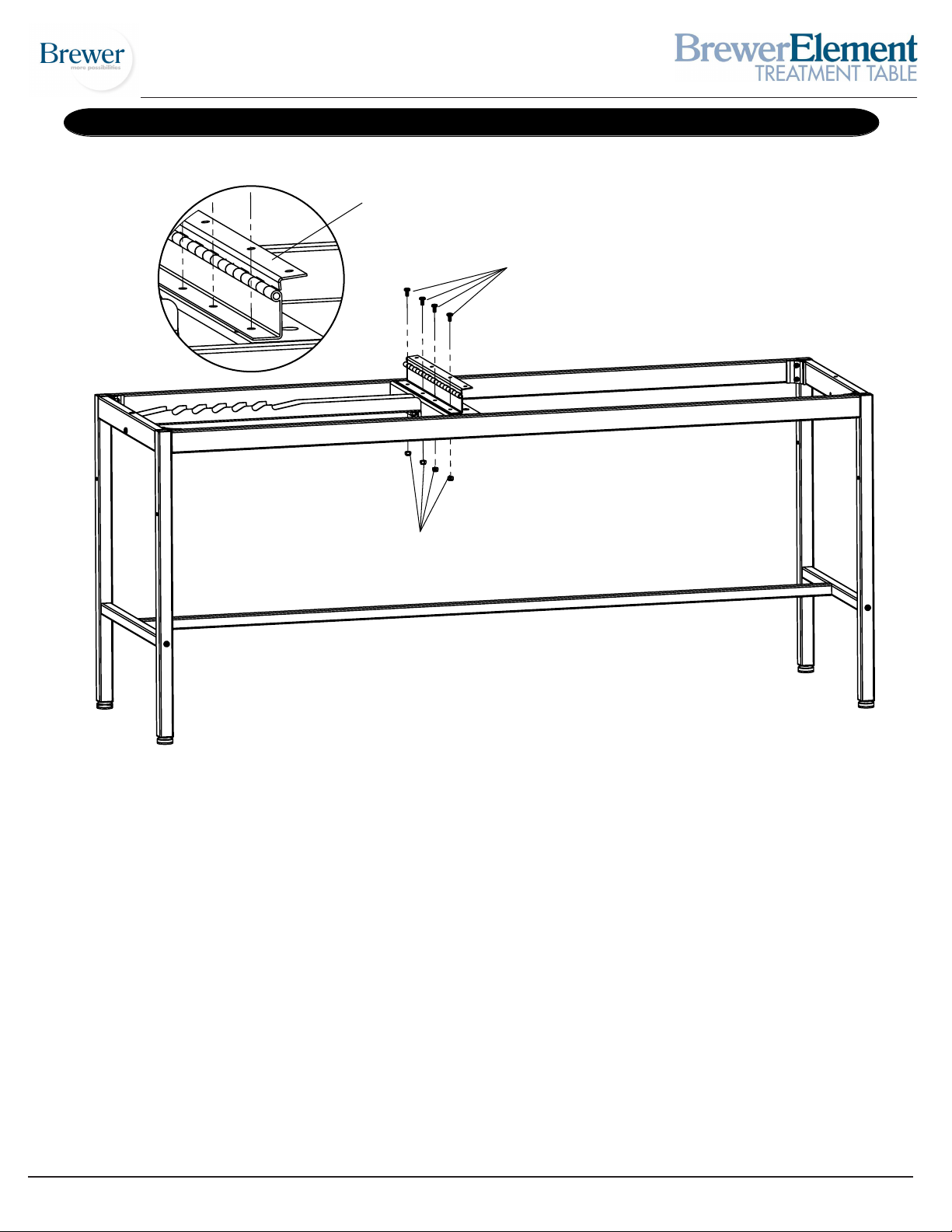

MODELS 2130 and 2140 STEP 5
Detail of Hinge
Assembly
Screw G
Nut H
STEP A: Align holes in Hinge with holes in frame. Hinge must be oriented as shown with Hinge mounting
flange facing the Head End of the table.
STEP B: Install 4 Screws G (1/4”-20 x 1/2”) into the Hinge and through the frame. Fasten with 4 Nuts N
(1/4”-20) and tighten.
Document 101292 RevA
7
Printed in USA © 2010
Page 8

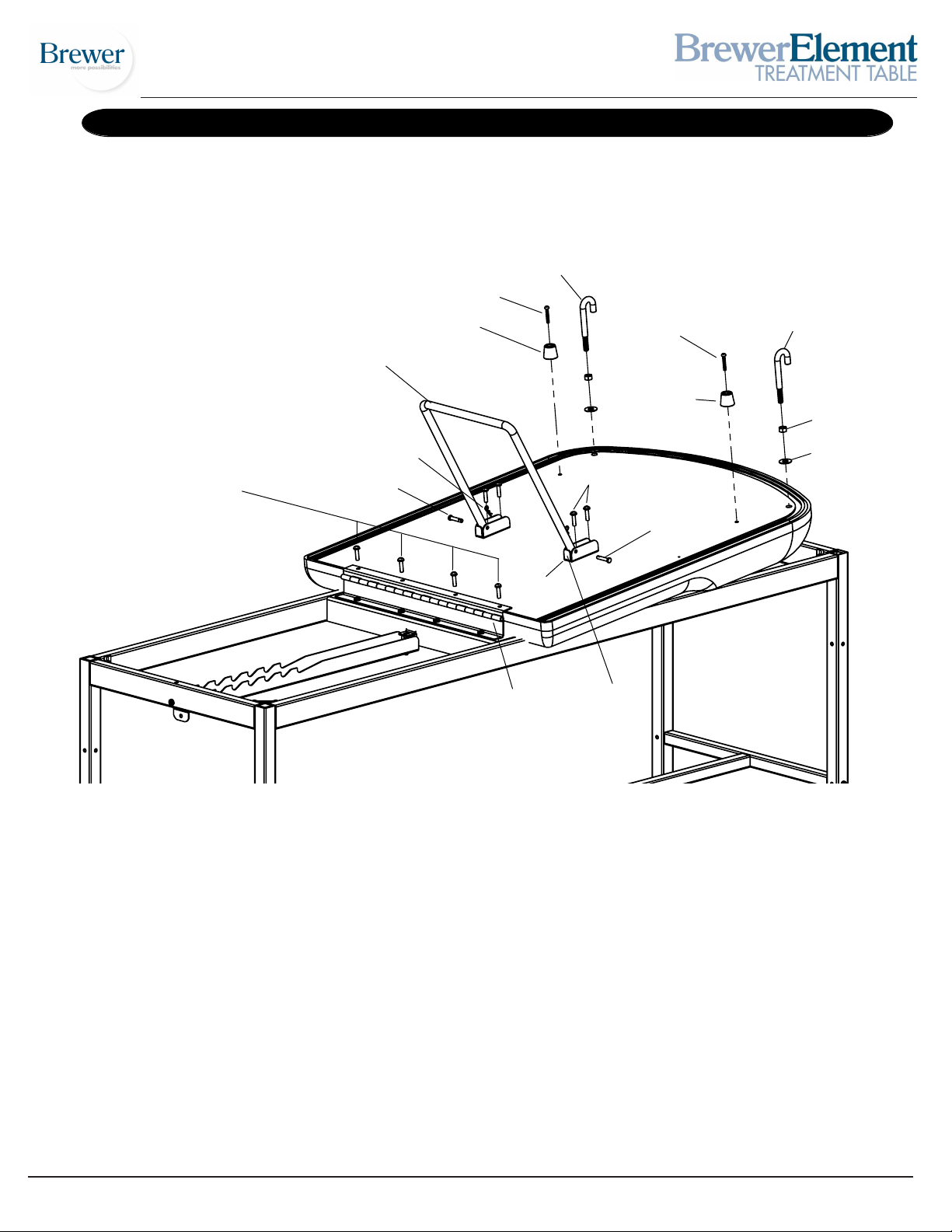

MODELS 2130 and 2140 STEP 6
J-Bolt R
Screw D
Screw F
Bumper
Backrest Support
Cotter Pin
Clevis Pin
Clevis
Hinge
Screw D
Screw F
Clevis Tab
Bumper
Clevis Pin
J-Bolt R
Nut L
Washer M
Foot End
STEP A: Lay upholstered backrest on Foot End of frame as shown.
STEP B: Slide backrest down until it bumps up against Hinge.
STEP C: Insert the four backrest-to-hinge Screws F (1/4”-20 x 1”) and tighten.
STEP D: Insert Screws F (1/4”-20 x 1”) through Clevises and tighten. Note Clevis Tab orientation.
STEP E: Install Backrest Support with Clevis Pins and Cotter Pins.
STEP F: Insert Screws D (10-24 x 1 1/4”) through Bumpers and tighten.
STEP G: Thread Nut L (3/8”) completely onto J-Bolt R. Place Washer M onto J-Bolt and thread into backrest as
shown. Position J-Bolt toward head end of table as shown and tighten nut against backrest.
Document 101292 RevA
8
Printed in USA © 2010
Page 9

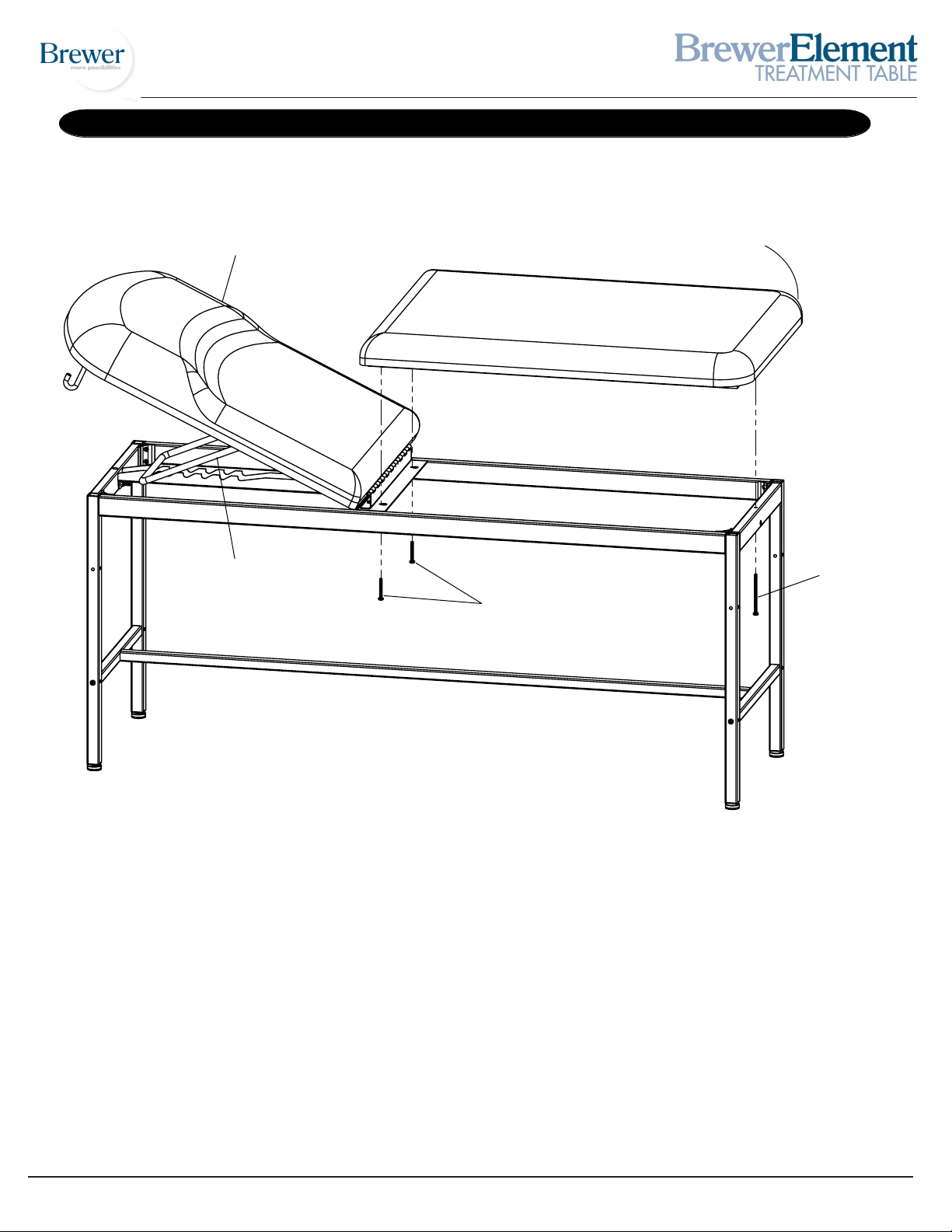

MODELS 2130 and 2140 STEP 7
Back Section
Backrest
Bracket
Rounded
Corner
Foot End
Screw A
Screw B
STEP A: Rotate Back Section until Backrest Bracket is engaged or top is horizontal on frame.
STEP B: Set upholstery bottom on frame, with Rounded Corners placed at the Foot End of the table.
STEP C: Install Screw A (1/4”-20 x 4”) through frame and into upholstery.
STEP D: Install 2 Screws B (1/4”-20 x 2”) through frame and into upholstery.
STEP E: Tighten Screws.
Document 101292 RevA
9
Printed in USA © 2010
Page 10
Dowel Rod
Snap Rivets
Shelf
MODELS 2130 and 2140 STEP 8
Snap Rivets
Lower Shelf Support

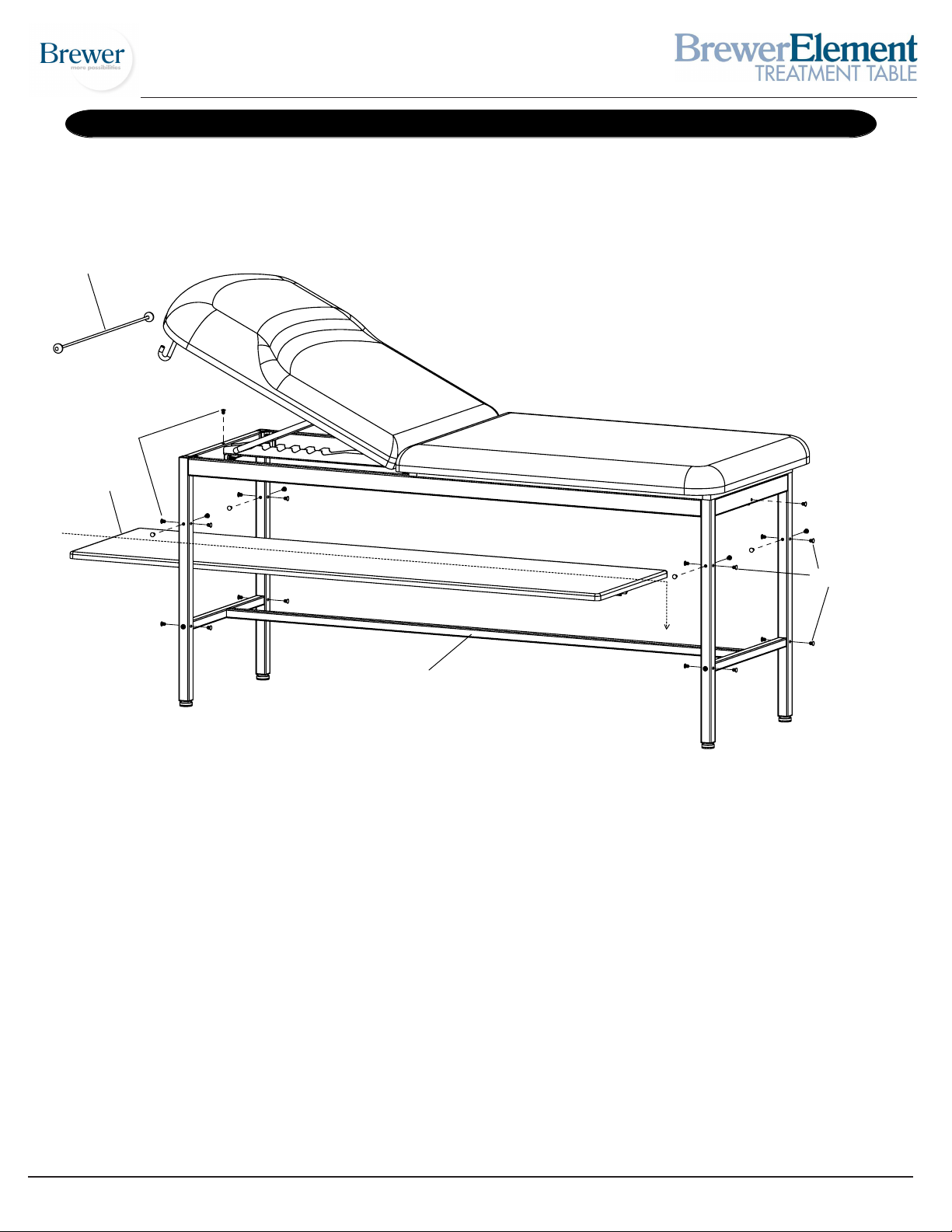

STEP A: Insert the Shelf through either end of the Table. Positon the Shelf so that the locating blocks, on
the bottom of the Shelf, are straddling the Lower Shelf Support.
STEP B: Install Snap Rivets into unused holes in legs and frame (see illustration above).
STEP C: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a
secure fit before using the paper roll dispenser.
Document 101292 RevA
10
Printed in USA © 2010
Page 11
INSTALLATION

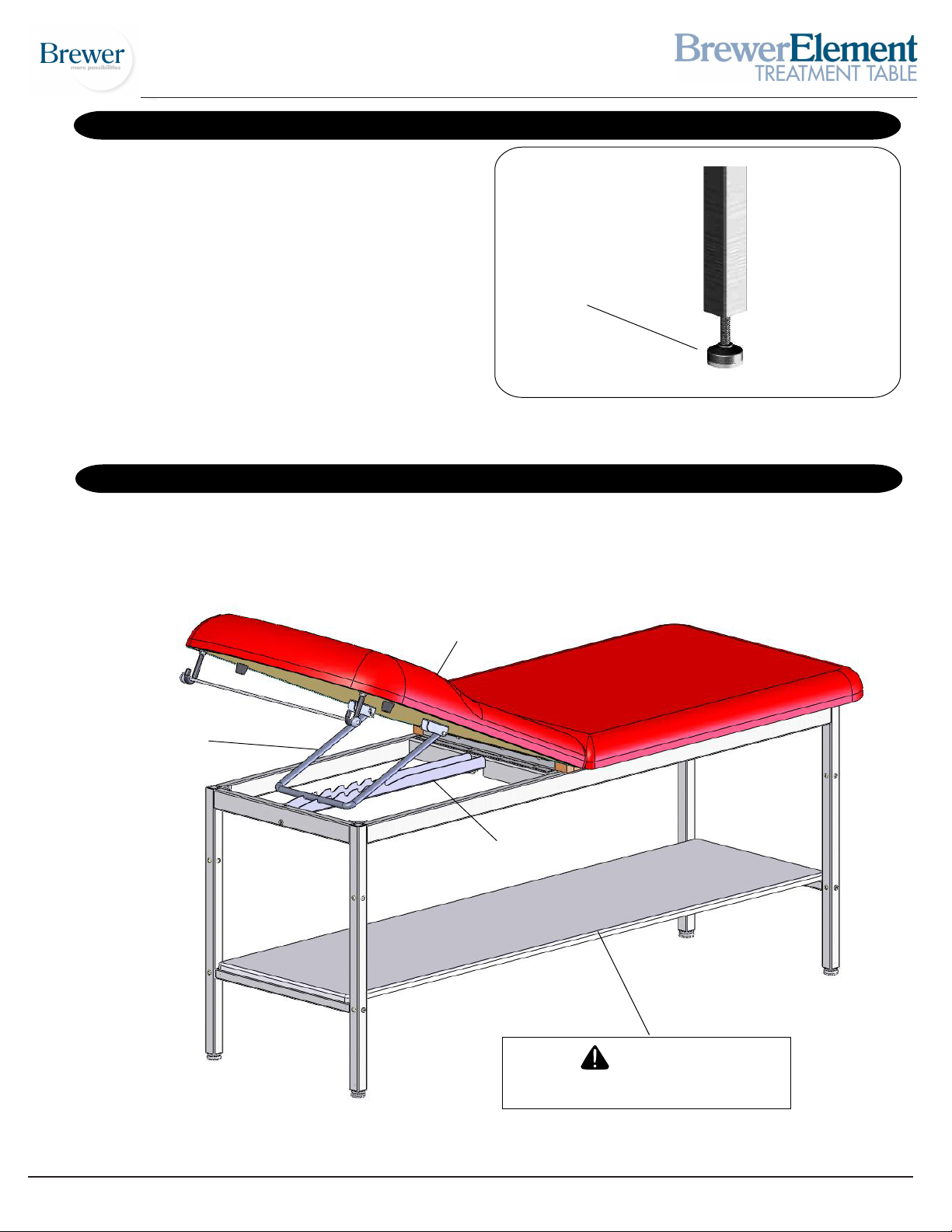

Leveling the Table
A Leveling Screw Pad is located at each corner under the
table’s base. Adjust the four Leveling Screw Pads, by turning
them up or down, to achieve a solid, level installation.
Leveling Screw Pad
OPERATION
Back Section
To Raise Back Section: Lift Back Section of upholstery to desired inclination and secure Backrest Bracket into one
of the six Backrest Catch slots.
To Lower Back Section: Lift Back Section of upholstery and lift Backrest Bracket out of the Backrest Catch while
lowering the Back Section.
Backrest Bracket
Back Section
Backrest Catch
CAUTION
Document 101292 RevA
11
DO NOT USE SHELF AS A STEP!
Printed in USA © 2010
Page 12
MAINTENANCE
Preventative Maintenance
• Inspect the mechanical functions to ensure satisfactory operation.
• Check fasteners to make sure they are present and
secured tightly.
Cleaning
Upholstery
Regular care should be maintained by daily wiping with a
damp cloth or sponge and periodic cleaning with a mild
soap and water solution. Let air dry before placing anything on top of upholstery.
WARNING
The upholstery material that covers the top of the
table is resistant to most medicinal-type stains, but
may be damaged by solvents and dyes. Remove
any fluids which are spilled on the upholstery
immediately. All surfaces should be cleaned within
your facilities guidelines concerning antimicrobials
and bloodborne pathogens.
Painted Metal Surfaces
Wipe all painted metal surfaces with a clean cloth at least
once a week.
ACCESSORIES
Description Reorder No. Use/Restrictions
Replacement Upholstery
Special Upholstery 210115-SP Intended Use - Allows the purchase of
220115-SP specialty vinyls in different colors with the
Front Drawer Organizer 100407 Intended Use - Optional front drawer
dividers for separation and organization.
Paper Straps 10196 Intended Use - Secures paper in two
locations to table.
210115-XX Intended Use - Replacement top with
220115-XX
hardware for 2130 and 2140
Treatment Tables in 18 standard colors.
model 2130 and 2140 Treatment
Tables. (Additional charges may apply.)
LIMITED WARRANTY
The Brewer Company
GENERAL TERMS AND CONDITIONS
Warranty: The Brewer Company warrants its Treatment Tables to be free from defects in parts and workmanship under normal use and
service for a period of (3) years from date of shipment. The Brewer Company will not be responsible for any Product failure due to abuse,
misuse, modification, or improper use or for any use which exceeds the published capacity of the Product. Products returned by prepaid freight for
inspection and found defective will, at the option of The Brewer Company, be repaired or replaced at no charge, but no claim for outside labor
or other charges will be allowed. Products must not be returned without proper written authorization from The Brewer Company. Requests for
authorization must be in writing and accompanied by the original purchase order, The Brewer Company invoice number and a copy of the invoice for the Product. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. NO AGENT,
EMPLOYEE, OR REPRESENTATIVE OF The Brewer Company HAS ANY AUTHORITY TO MAKE ANY AFFIRMATION, REPRESEN
TATION, OR WARRANTY NOT SET FORTH IN THESE TERMS AND CONDITIONS CONCERNING ANY PRODUCTS OF THE BREWER COMPANY.
The Brewer Company SHALL HAVE NO LIABILITY WHATSOEVER FOR DAMAGES CAUSED BY TRANSPORTATION,
ACCIDENTS, FIRE, UNAUTHORIZED ALTERATION, OR NORMAL WEAR OR ABUSE, NOR SHALL The Brewer Company HAVE
ANY LIABILITY WHATSOEVER FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, including without limitation, lost profits, or any such
damages arising from (a) the design, manufacture, sale, delivery, installation, repair, operation, or use of products of The Brewer Company or
any part thereof, (b) any actual or alleged failure or defect in products of The Brewer Company or any part thereof, or (c) any actual or alleged
breach or non-performance by The Brewer Company of this limited warranty.
Freight Claims: Upon receipt, merchandise should be carefully examined to ascertain that proper amount has been received in good condition. Any
claim for shortage or damage must be made with delivering carrier within five (5) days from receipt of goods. The Brewer Company does not
assume any responsibility for loss or damage in transit, and compensation for such loss must be obtained from the carrier.
Document 101292 RevA
12
Printed in USA © 2010
