Page 1
Models 2030 and 2040
Overview ............................................................... 2
Tools Needed ........................................................ 2
Hardware............................................................... 2
Assembly............................................................ 3-8
Installation.............................................................9
Document 101290 RevA Printed in USA © 2010
Document 101290 RevA
Operation ............................................................. 9
Maintenance ...................................................... 10
Accessories ....................................................... 10
Limited Warranty ................................................ 10
1
Printed in USA © 2010
Page 2
COMPONENT IDENTIFICATION
OVERVIEW
Perform the following sequence in order when setting up
the table:
- Unpacking
- Assembly
- Leveling the Table
- Installing the Paper Roll
NOTE: Save all packaging in case re-shipment is required.
NOTE: Inspect all boxes and contents for damage.
Report any damage to the carrier immediately.
MODELS 2030 & 2040
For the above models you will receive
two separate cartons: a frame carton,
and an upholstery carton. Inspect both
carefully for shipping incurred damage.
WARNING
Two or more people should assist in moving the table.
Use proper lifting techniques when lifting. Failure to
do so could result in serious injury!
To avoid damaging the table’s upholstery or
painted surfaces, DO NOT use a knife or any other
sharp object to open the packaging.
MODELS 2030 and 2040 TOOLS NEEDED
Rubber Mallet 9/16” Open End Wrench
CAUTION
Phillips Screw Driver 7/16” Socket or Wrench

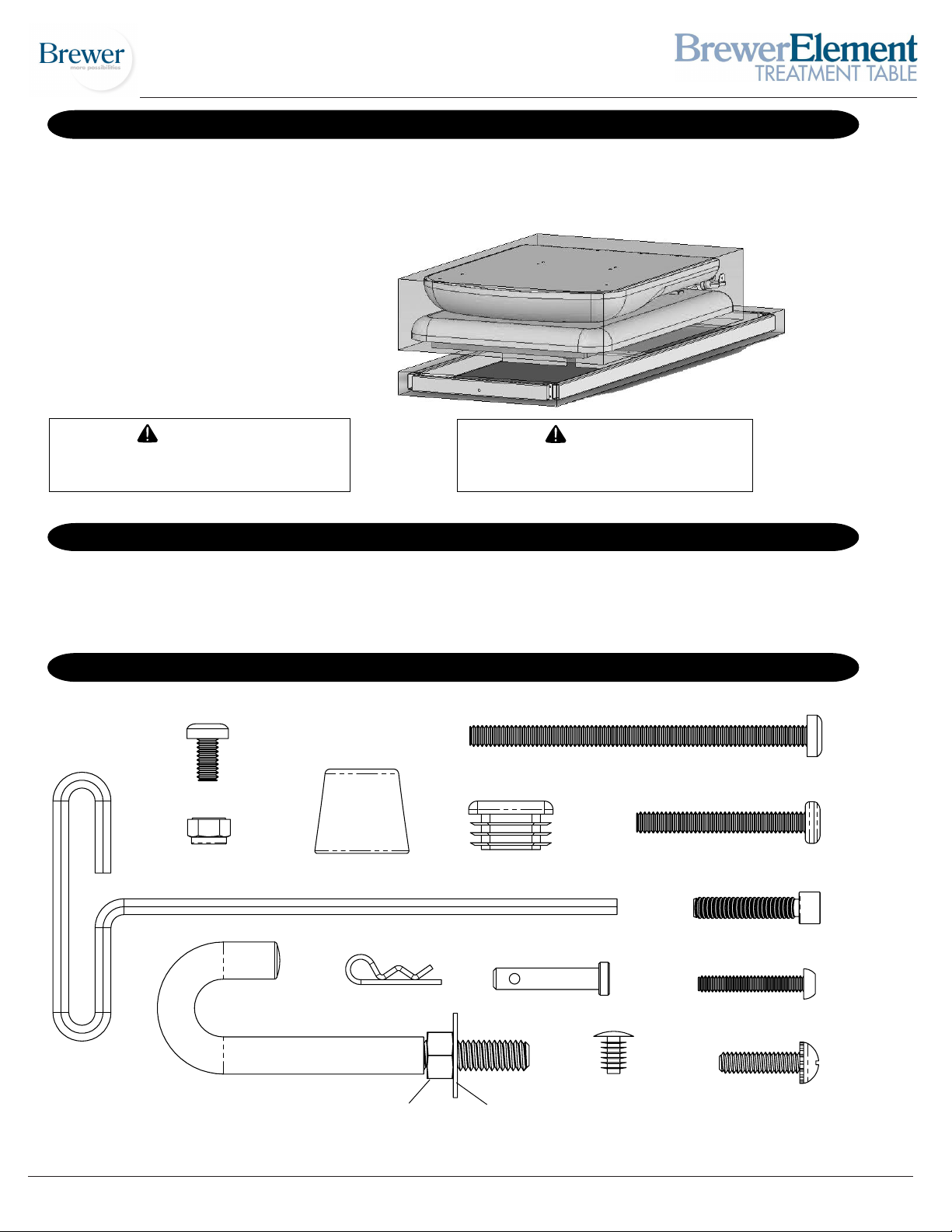

MODELS 2030 and 2040 HARDWARE
COMPONENT IDENTIFICATION
1/4”-20 x 1/2” Screw G (Qty. 5)
1/4”-20 x 4” Screw A (Qty. 1)
Bumper (Qty. 2)
Cap (Qty. 2)
1/4”-20 x 2” Screw B (Qty. 3)
1/4”-20 Nut H (Qty. 6)
Allen Wrench (Qty. 1)
Cotter Pin (Qty. 2)
Clevis Pin (Qty. 2)
1/4”-20 x 1 1/4” Screw C (Qty. 8)
J-Bolt R (Qty. 2)
(Painted)
10-24 x 1 1/4” Screw D (Qty. 2)
1/4”-20 x 1” Screw F (Qty. 8)
Document 101290 RevA
3/8” Nut L (Qty. 2)
Snap Rivet (Qty. 2)
Washer M (Qty. 2)
2
Printed in USA © 2010
Page 3
MODELS 2030 and 2040 STEP 1
NotchNotch
Screw C
Screw C

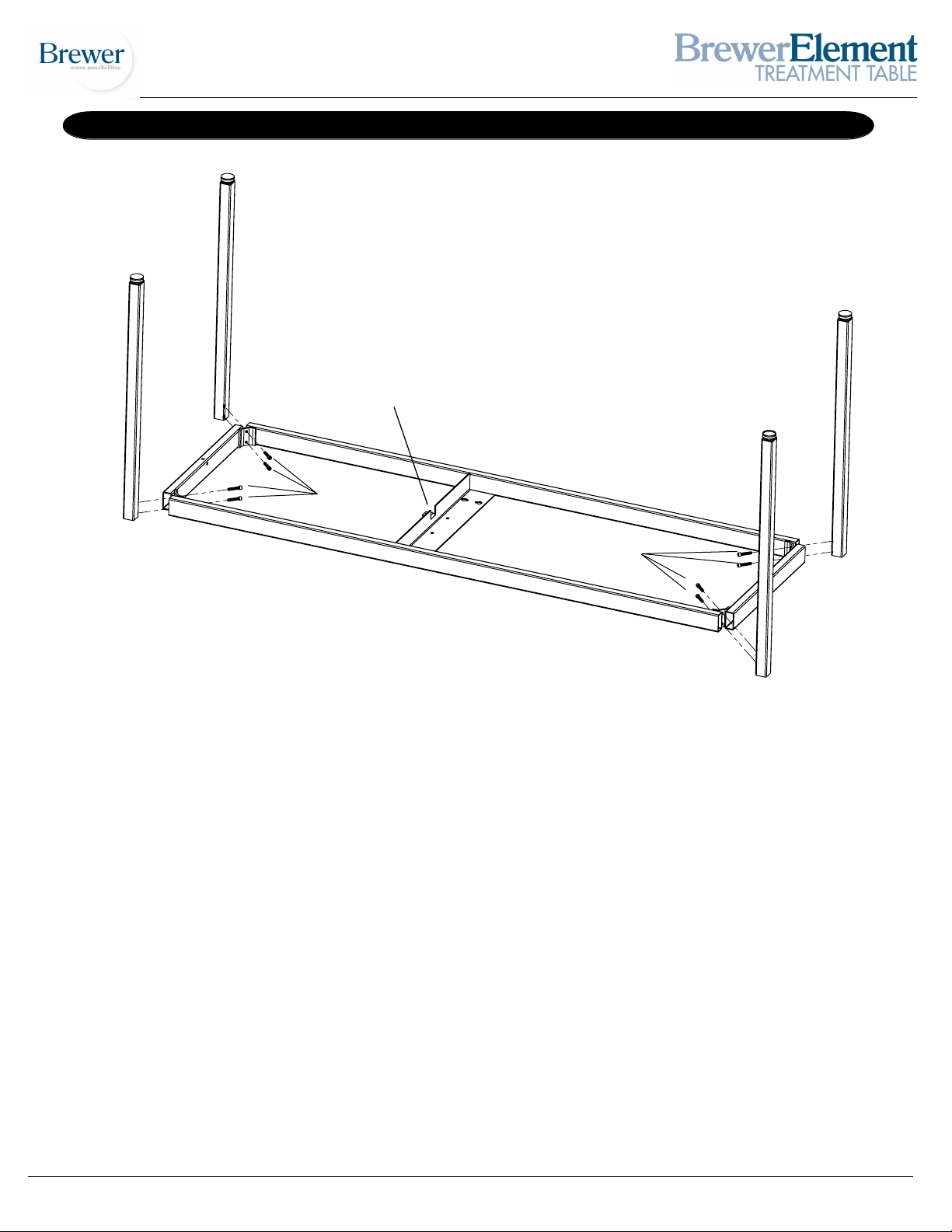

STEP A: Start with table frame inverted: note the position of the Notch in the drawing above is facing
upwards.
STEP B: Positon legs (see drawing above). Insert Screws C (1/4”-20 x 1 1/4”) by hand. Tighten screws using
Allen Wrench provided.
Document 101290 RevA
3
Printed in USA © 2010
Page 4
Head End

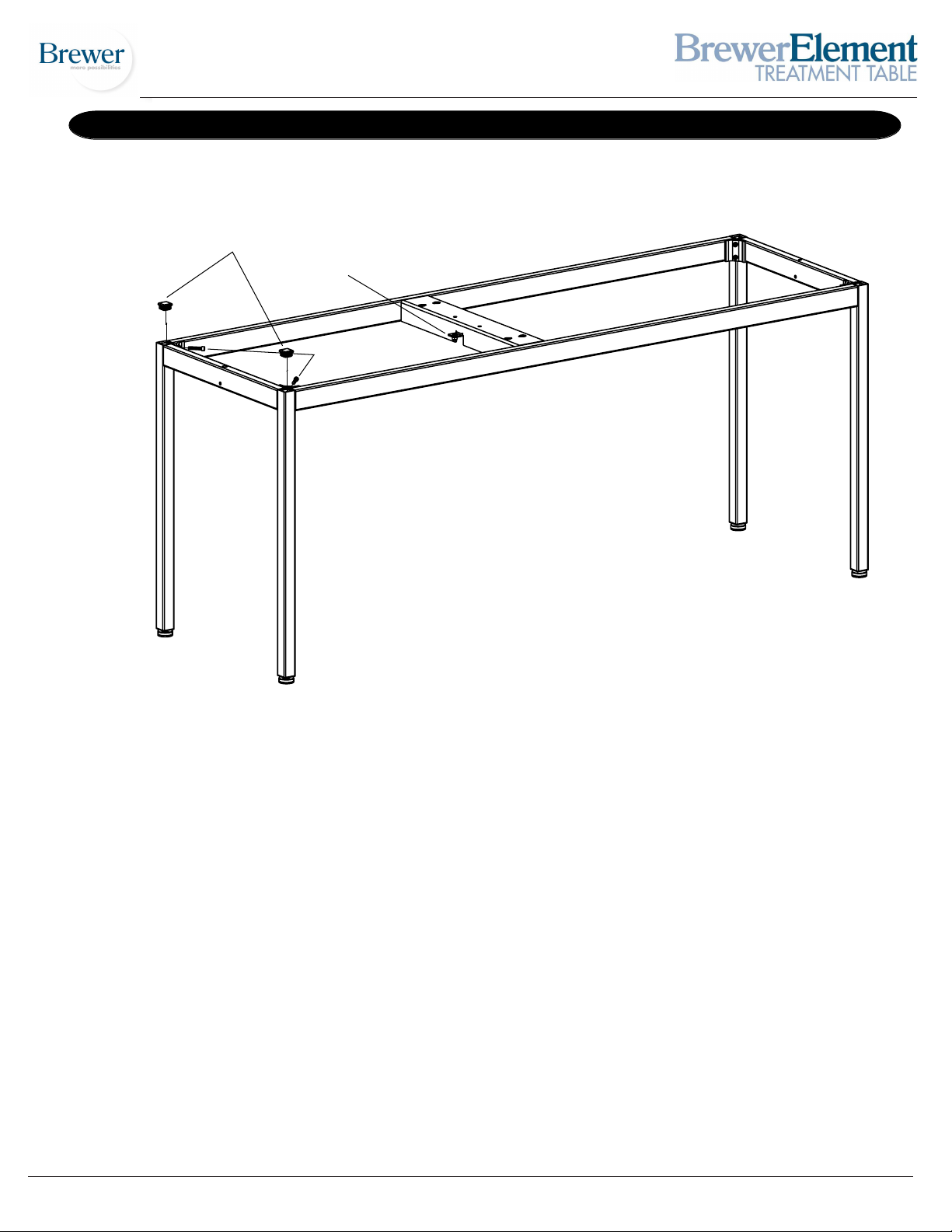

MODELS 2030 and 2040 STEP 2
Caps
Tab
Upper Leg Screws
STEP A: Remove 2 Upper Leg Screws at Head End of the Table, one on each of the two legs. (See illustration above.)
STEP B: Insert Caps into two leg tops and seat with a rubber mallet.
STEP C: Install and tighten Upper Leg Screws.
Document 101290 RevA
4
Printed in USA © 2010
Page 5
Screw B

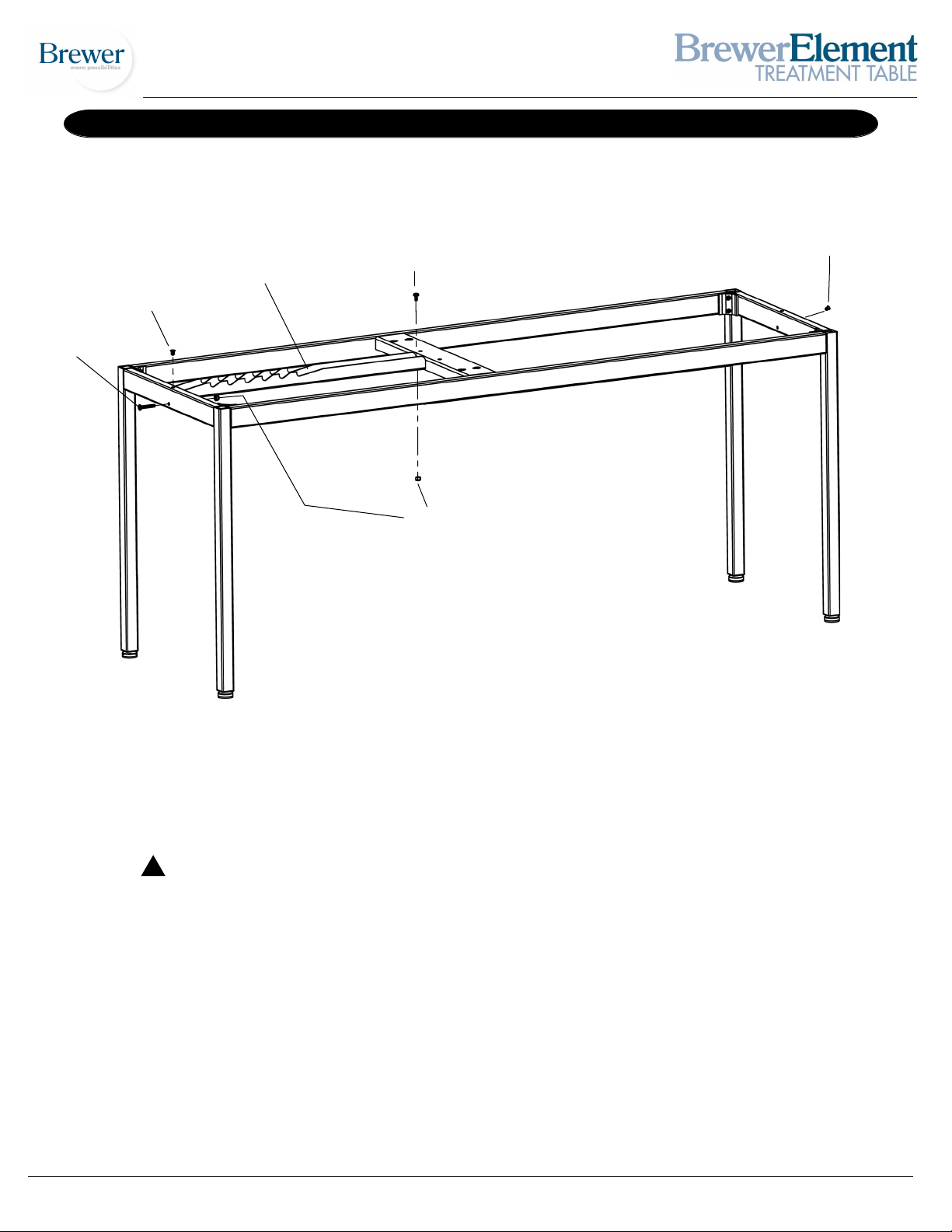

MODELS 2030 and 2040 STEP 3
Snap Rivet
Screw G
Backrest Catch
Snap Rivet
Nut H
STEP A: Install Backrest Catch as shown in the drawing above.
CAUTION ! The Backrest Catch needs to be positioned on top of the Tab shown in STEP 2.
STEP B: STEP B: Install Screw B (1/4”-20 x 2”) through frame rail and into Backrest Catch and tighten Nut H
(1/4”-20). Insert Screw G (1/4”-20 x 1/2”) through Backrest Catch and Tab. Tighten Nut H onto Screw G.
STEP C: Install two Snap Rivets into the frame rail as shown.
Document 101290 RevA
5
Printed in USA © 2010
Page 6
Head End

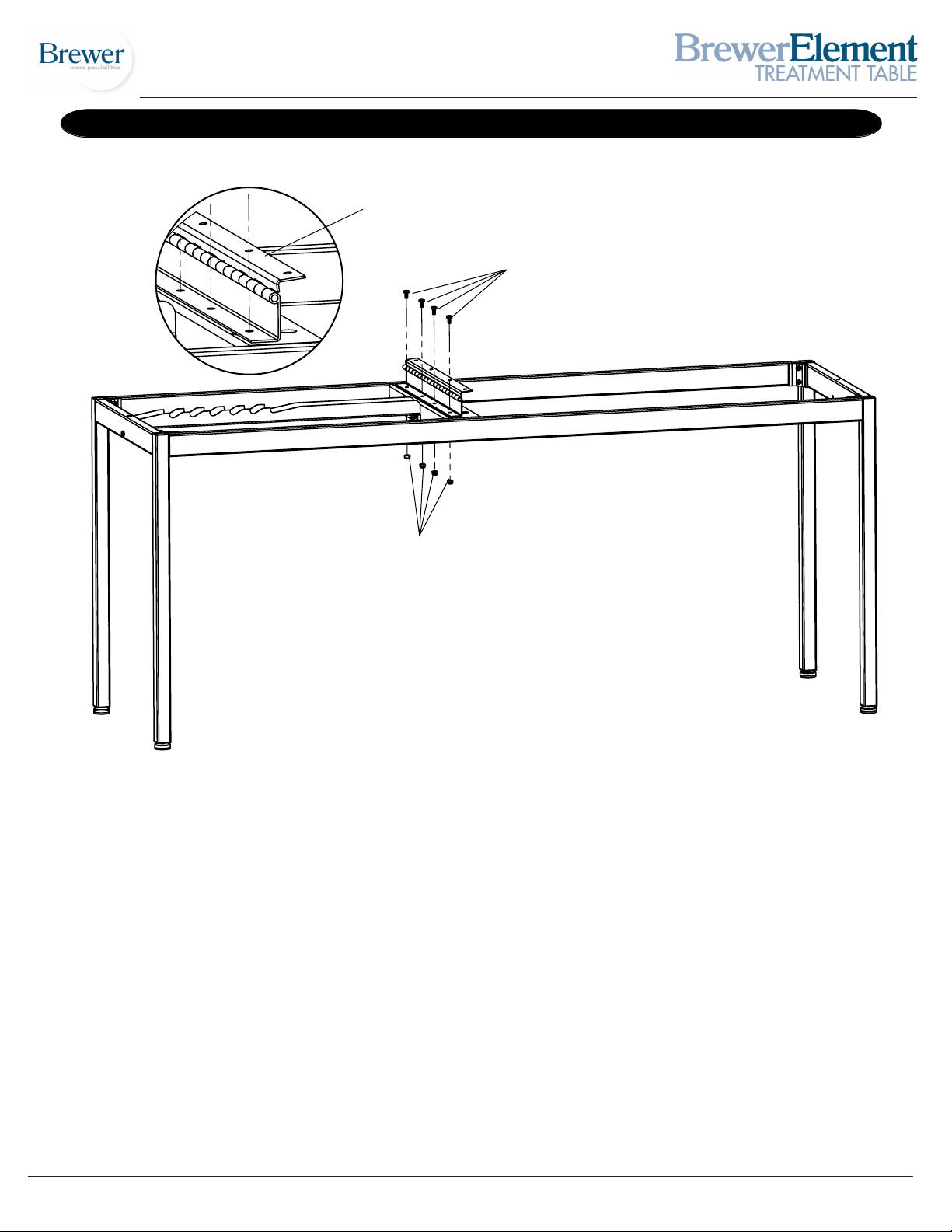

MODELS 2030 and 2040 STEP 4
Detail of Hinge
Assembly
Screw G
Nut H
STEP A: Align holes in Hinge with holes in frame. Hinge must be oriented as shown with Hinge mounting
flange facing the Head End of the table.
STEP B: Install 4 Screws G (1/4”-20 x 1/2”) into the Hinge and through the frame. Fasten with 4 Nuts H
(1/4”-20) and tighten.
Document 101290 RevA
6
Printed in USA © 2010
Page 7

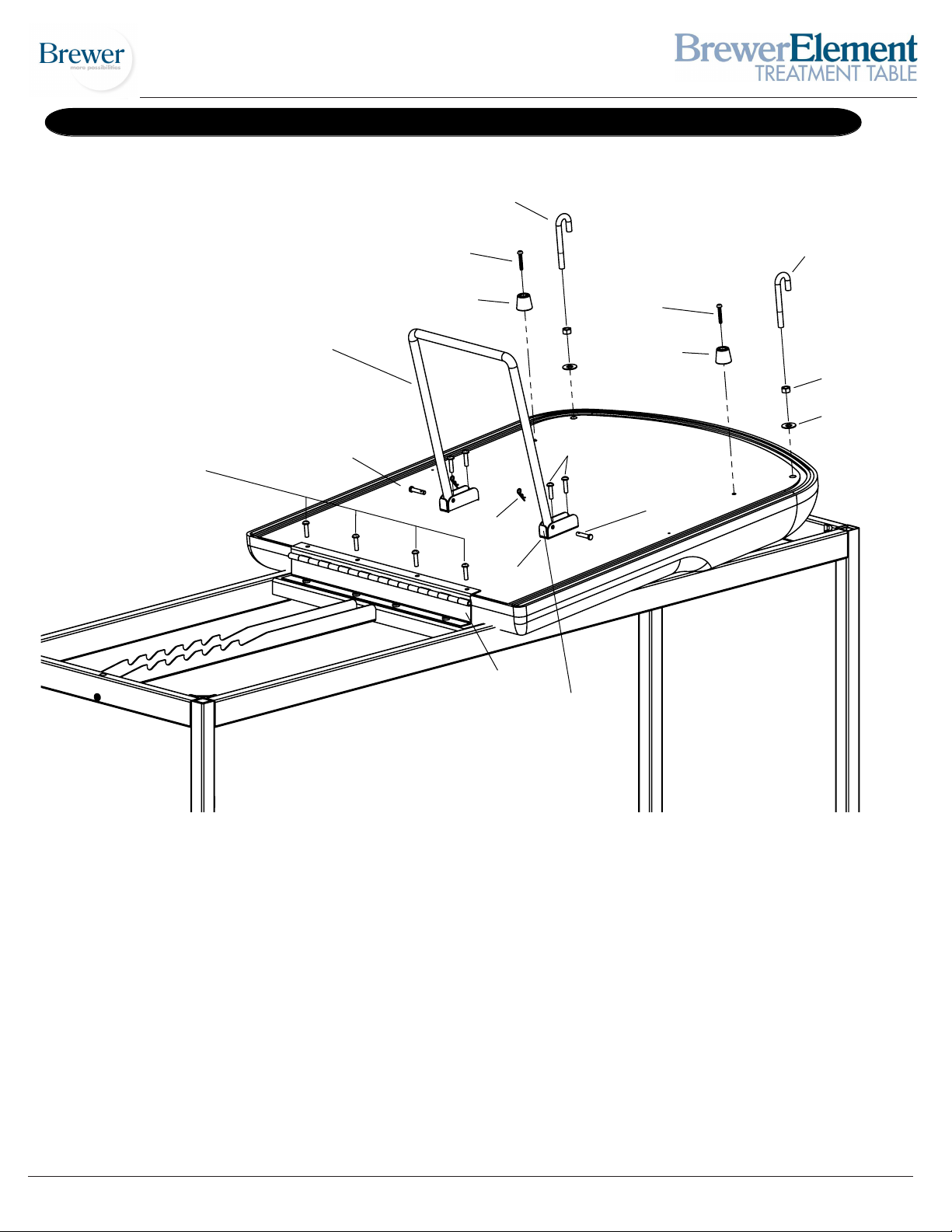

MODELS 2030 and 2040 STEP 5
J-Bolt R
Screw F
Backrest Support
Clevis Pin
Screw D
Bumper
Cotter Pin
Clevis
Hinge
Screw F
Clevis Tab
Screw D
Bumper
Clevis Pin
J-Bolt R
Nut L
Washer M
Foot End
STEP A: Lay upholstered backrest on Foot End of frame as shown.
STEP B: Slide backrest down until it bumps up against Hinge.
STEP C: Insert the four backrest-to-hinge Screws F (1/4”-20 x 1”) and tighten.
STEP D: Insert Screws F (1/4”-20 x 1”) through Clevises and tighten. Note Clevis Tab orientation.
STEP E: Install Backrest Support with Clevis Pins and Cotter Pins.
STEP F: Insert Screws D (10-24 x 1 1/4”) through Bumpers and tighten.
STEP G: Thread Nut L (3/8”) onto J-Bolt R. Place Washer M onto J-Bolt and thread into backrest as shown.
Position J-Bolt toward head end of table as shown and tighten nut against backrest.
Document 101290 RevA
7
Printed in USA © 2010
Page 8

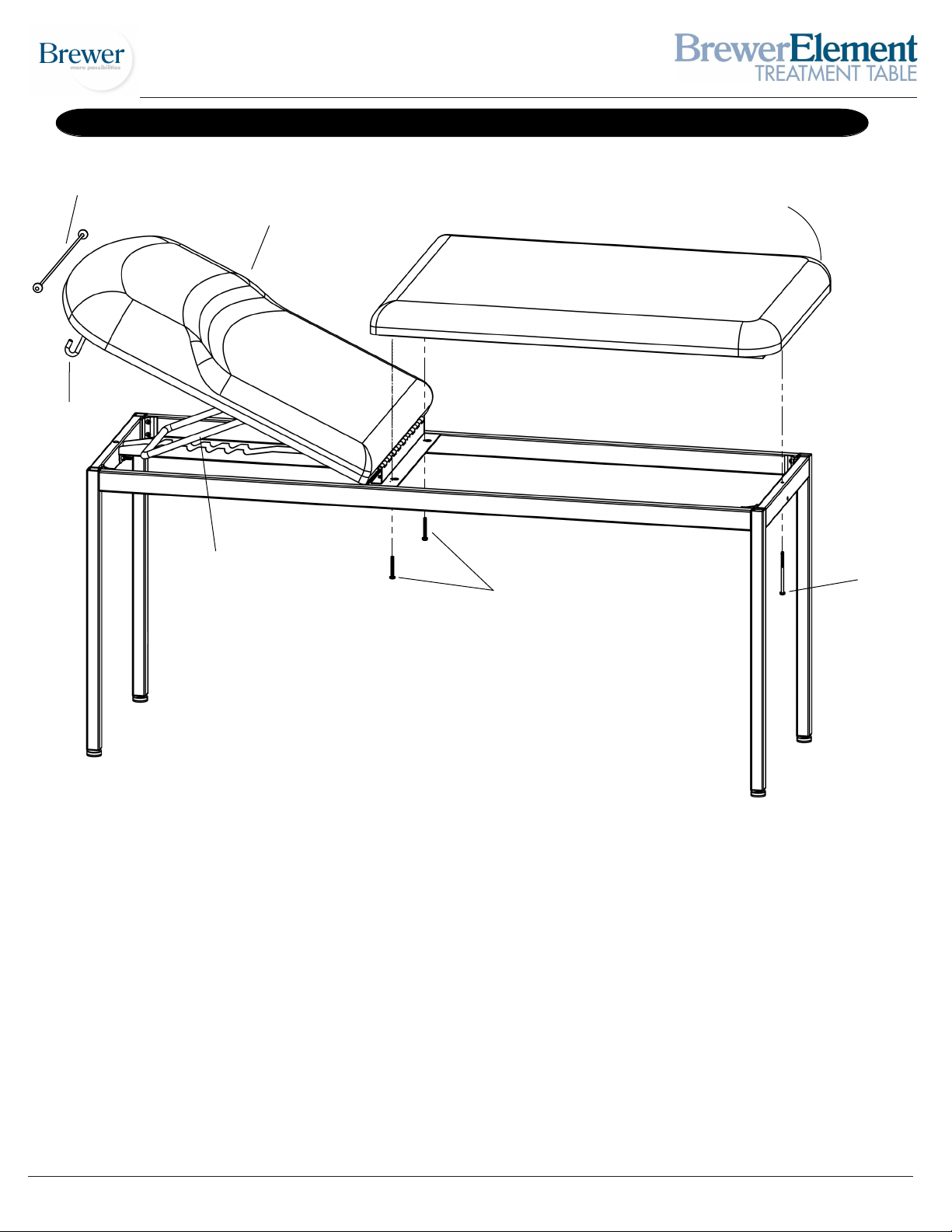

MODELS 2030 and 2040 STEP 6
Dowel Rod
J-Bolt R
Back Section
Backrest
Bracket
Rounded
Corner
Foot End
Screw A
Screw B
STEP A: Rotate Back Section until Backrest Bracket is engaged or top is horizontal on frame.
STEP B: Set upholstery bottom on frame, with Rounded Corners placed at the Foot End of the table.
STEP C: Install Screw A (1/4”-20 x 4”) through frame and into upholstery.
STEP D: Install 2 Screws B (1/4”-20 x 2”) through frame and into upholstery.
STEP E: Tighten Screws.
STEP F: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a
secure fit before using the paper roll dispenser.
Document 101290 RevA
8
Printed in USA © 2010
Page 9

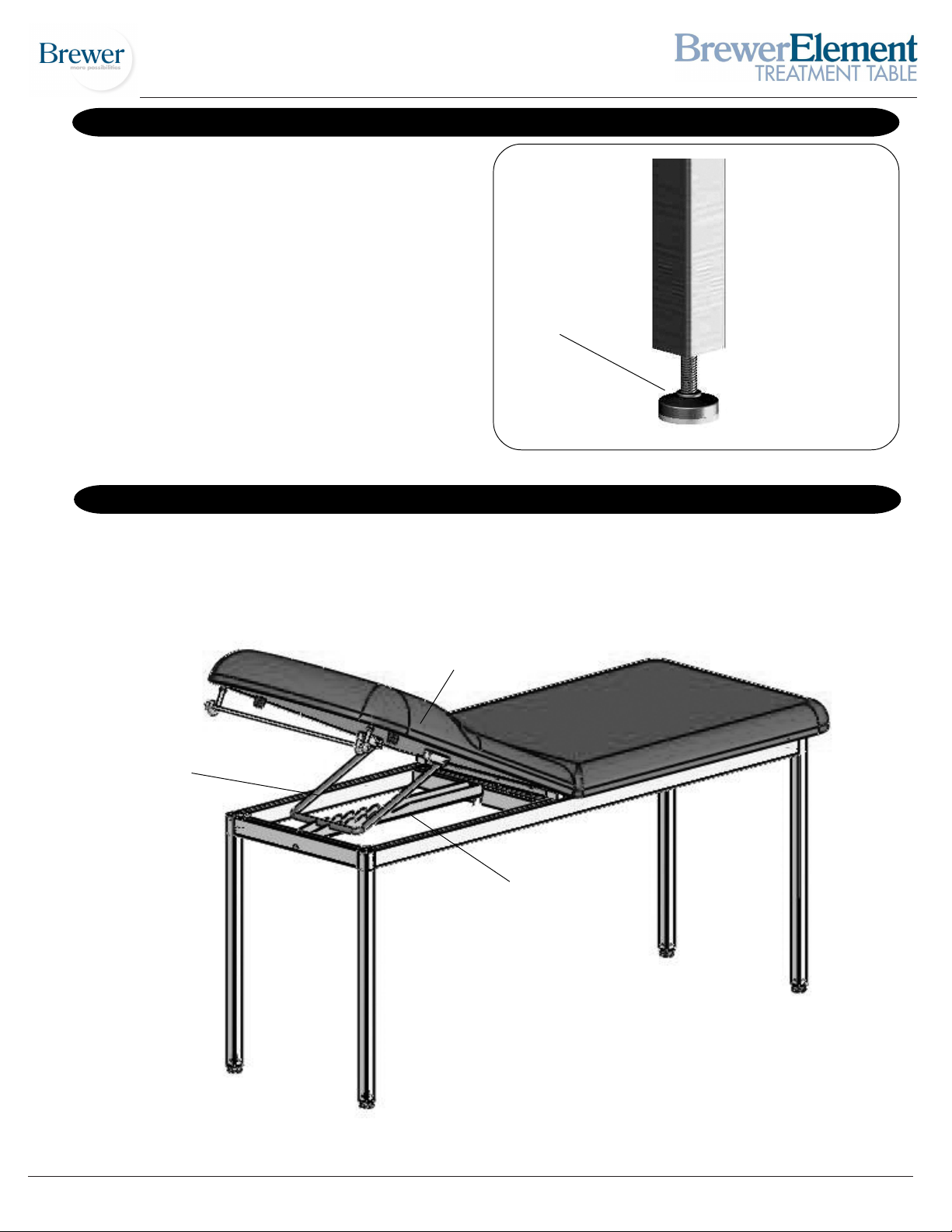

INSTALLATION
Leveling the Table
A Leveling Screw Pad is located at each corner under the
table’s base. Adjust the four Leveling Screw Pads, by turning
them up or down, to achieve a solid, level installation.
Leveling Screw Pad
OPERATION
Back Section
To Raise Back Section: Lift Back Section of upholstery to desired inclination and secure Backrest Bracket into one
of the six Backrest Catch slots.
To Lower Back Section: Lift Back Section of upholstery and lift Backrest Bracket out of the Backrest Catch while
lowering the Back Section.
Backrest Bracket
Back Section
Backrest Catch
Document 101290 RevA
9
Printed in USA © 2010
Page 10
MAINTENANCE
Preventative Maintenance
• Inspect the mechanical functions to ensure satisfactory operation.
• Check fasteners to make sure they are present and
secured tightly.
Cleaning
Upholstery
Regular care should be maintained by daily wiping with a
damp cloth or sponge and periodic cleaning with a mild
soap and water solution. Let air dry before placing anything on top of upholstery.
WARNING
The upholstery material that covers the top of the
table is resistant to most medicinal-type stains, but
may be damaged by solvents and dyes. Remove
any fluids which are spilled on
immediately. All surfaces should be cleaned within
your facilities guidelines concerning antimicrobials
and bloodborne pathogens.
the upholstery
Painted Metal Surfaces
Wipe all painted metal surfaces with a clean cloth at least
once a week.
ACCESSORIES
Description Reorder No. Use/Restrictions
Replacement Upholstery
Special Upholstery 210115-SP Intended Use - Allows the purchase of
220115-SP specialty vinyls in different colors with the
Front Drawer Organizer 100407 Intended Use - Optional front drawer
dividers for separation and organization.
Paper Straps 10196 Intended Use - Secures paper in two
locations to table.
210115-XX Intended Use - Replacement top with
220115-XX
hardware for 2030 and 2040
Treatment Tables in 18 standard colors.
model 2030 and 2040 Treatment
Tables. (Additional charges may apply.)
LIMITED WARRANTY
The Brewer Company
GENERAL TERMS AND CONDITIONS
Warranty: The Brewer Company warrants its products to be free from defects in parts and workmanship under normal use
and service for a period of three (3) years from date of shipment. The Brewer Company warrants its power tables to be free from
defects in parts and workmanship under normal use and service for a period of three (3) years from date of shipment. The Brewer
Company warrants its exam tables to be free from defects in parts and workmanship under normal use and service for a period of
three (3) years from date of shipment. The Brewer Company warrants its lighting products to be free from defects in parts and
workmanship under normal use and service for a period of one (1) year from date of shipment. The Brewer Company will not be
responsible for any Product failure due to abuse, misuse, modification or improper use or for any use which exceeds the published
capacity of the Product. Products returned by prepaid freight for inspection and found defective will, at the option of The Brewer
Company, be repaired or replaced at no charge, but no claim for outside labor or other charges
returned without proper written authorization from The Brewer Company. Requests for authorization must be in writing and accompanied by the original purchase order, The Brewer Company invoice number and a copy of the invoice for the Product. THIS WARRANTY
IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO
IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. NO AGENT, EMPLOYEE, OR
REPRESENTATIVE OF THE BREWER COMPANY HAS ANY AUTHORITY TO MAKE ANY AFFIRMATION, REPRESENTATION, OR
WARRANTY NOT SET FORTH IN THESE TERMS AND CONDITIONS CONCERNING ANY PRODUCTS OF THE BREWER COMPANY. THE BREWER COMPANY SHALL HAVE NO LIABILITY WHATSOEVER FOR DAMAGES CAUSED BY TRANSPORTATION,
ACCIDENTS, FIRE, UNAUTHORIZED ALTERATION, OR NORMAL WEAR OR ABUSE, NOR SHALL THE BREWER COMPANY HAVE
ANY LIABILITY WHATSOEVER FOR
any such damages arising from (a) the design, manufacture, sale, delivery, installation, repair, operation or use of products of The
Brewer Company or any part thereof, (b) any actual or alleged failure or defect in products of The Brewer company or any part thereof,
or (c ) any actual or alleged breach or non-performance by The Brewer Company of this limited warranty.
Freight Claims: Upon receipt, merchandise should be carefully examined to ascertain that proper amount has been received in
good condition. Any claim for shortage or damage must be made with delivering carrier within five (5) days from receipt of goods.
We do not assume any responsibility for loss or damage in transit, and compensation for such loss must be obtained from the
carrier.
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, including without limitation, lost profits or
will be allowed. Products must not be
Document 101290 RevA
10
Printed in USA © 2010
Page 11
NOTES
Document 101290 RevA
11
Printed in USA © 2010
