Brewer 2010 User Manual

Download

Page 1

Model 2010

Overview

Tools Needed......................................................... 2

Hardware............................................................... 2

Assembly............................................................ 3-4

.............................................................. 2

Installation..........................................................5

Maintenance ...................................................... 6

Accessories ...................................................... 6

Limited Warranty ............................................... 6

Page 2

COMPONENT IDENTIFICATION

OVERVIEW

Perform the following sequence in order when setting up the table:

- Unpacking

- Assembly

- Leveling the Table

- Installing the Paper Roll

MODEL 2010

For the above models you will receive two separate cartons: a frame carton, and an upholstery carton. Inspect both carefully for shipping incurred damage.

WARNING

Two or more people should assist in moving the table.

Use proper lifting techniques when lifting. Failure to do so could result in serious injury!

9/16” Open End Wrench

MODELS 2010 TOOLS NEEDED

NOTE: Save all packaging in case re-shipment is required.

NOTE: Inspect all boxes and contents for damage. Report any damage to the carrier immediately.

CAUTION

To avoid damaging the table’s upholstery or painted surfaces, DO NOT use a knife or any other sharp object to open the packaging.

Phillips Screw Driver

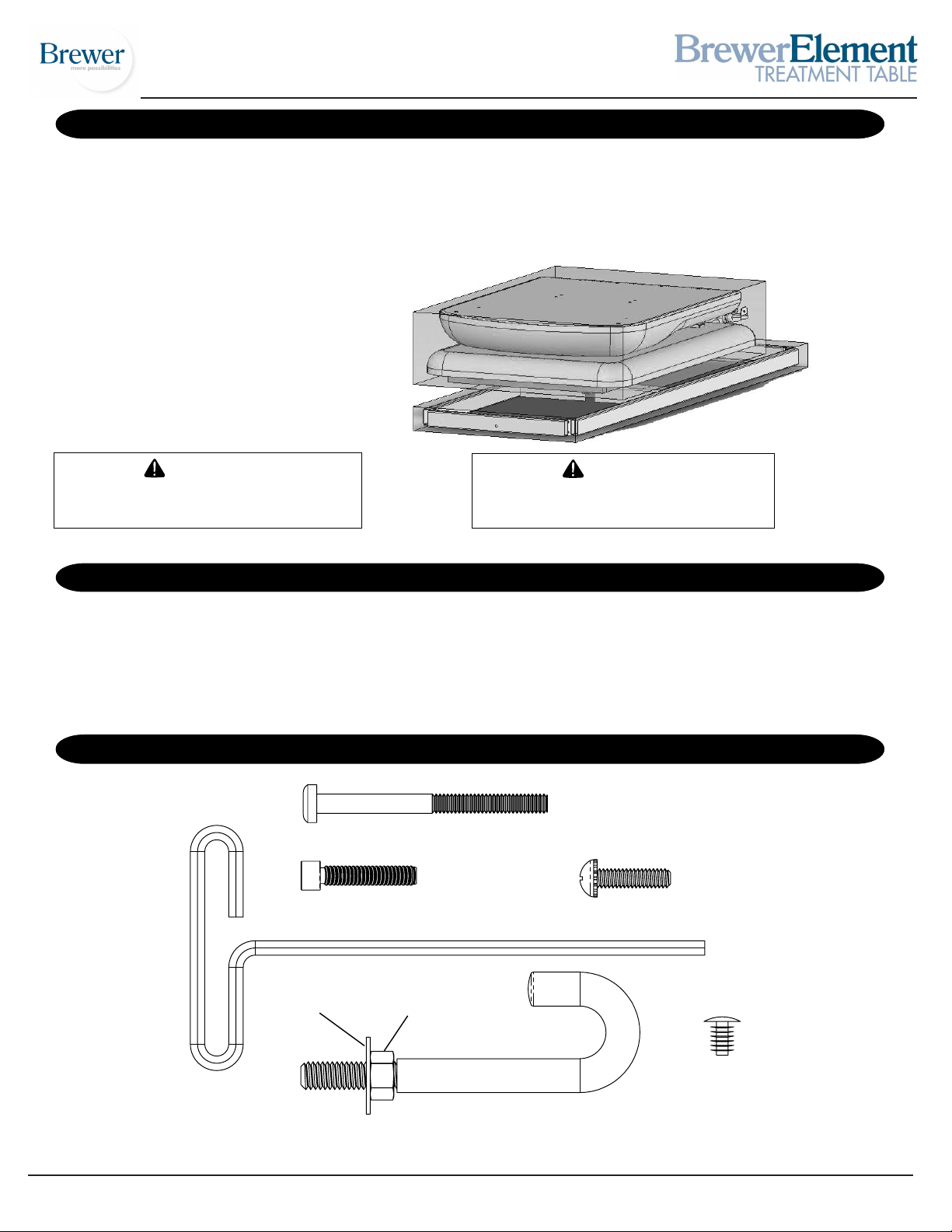

MODELS 2010 HARDWARE

COMPONIF

1/4”-20 x 3” Screw A (Qty. 2)

1/4”-20 x 1 1/4” Screw C (Qty. 8)

Allen Wrench (Qty. 1)

Washer M (Qty. 2)

3/8” Nut L (Qty. 2)

J-Bolt R (Qty. 2)

1/4”-20 x 1” Screw F (Qty. 4)

Snap Rivet (Qty. 2)

Page 3

MODEL 2010 STEP 1

Notch

Screw C

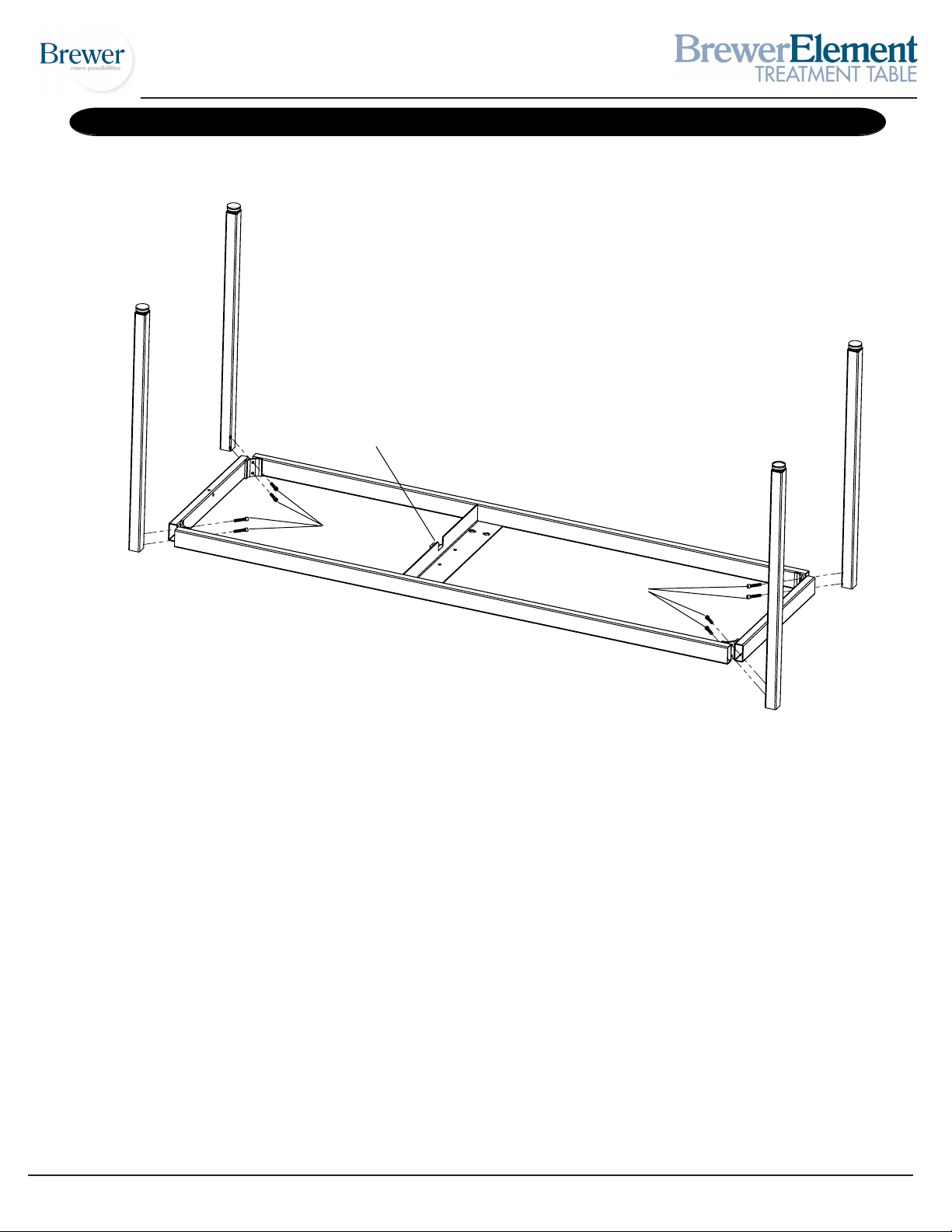

STEP A: Start with table frame inverted: note the position of the Notch in the drawing above is facing upwards.

STEP B: Positon legs (see drawing above). Insert Screws C (1/4”-20 x 1 1/4”) by hand. Tighten screws using Allen Wrench provided.

Page 4

J-Bolt R

Nut L

Figure A

MODEL 2010 STEP 2

STEP A: Install J-Bolts as shown in Figure A. Thread Nut L (3/8”) completely onto J-Bolt. Place Washer M onto J-Bolt and thread

Washer M

into Backrest as shown in Figure A. Position J-Bolt toward head of table as shown and tighten nut against backrest.

Rounded Corner

Snap Rivet

Dowel Rod

Foot End

Screw A

Snap Rivet

Screw F

Screw A

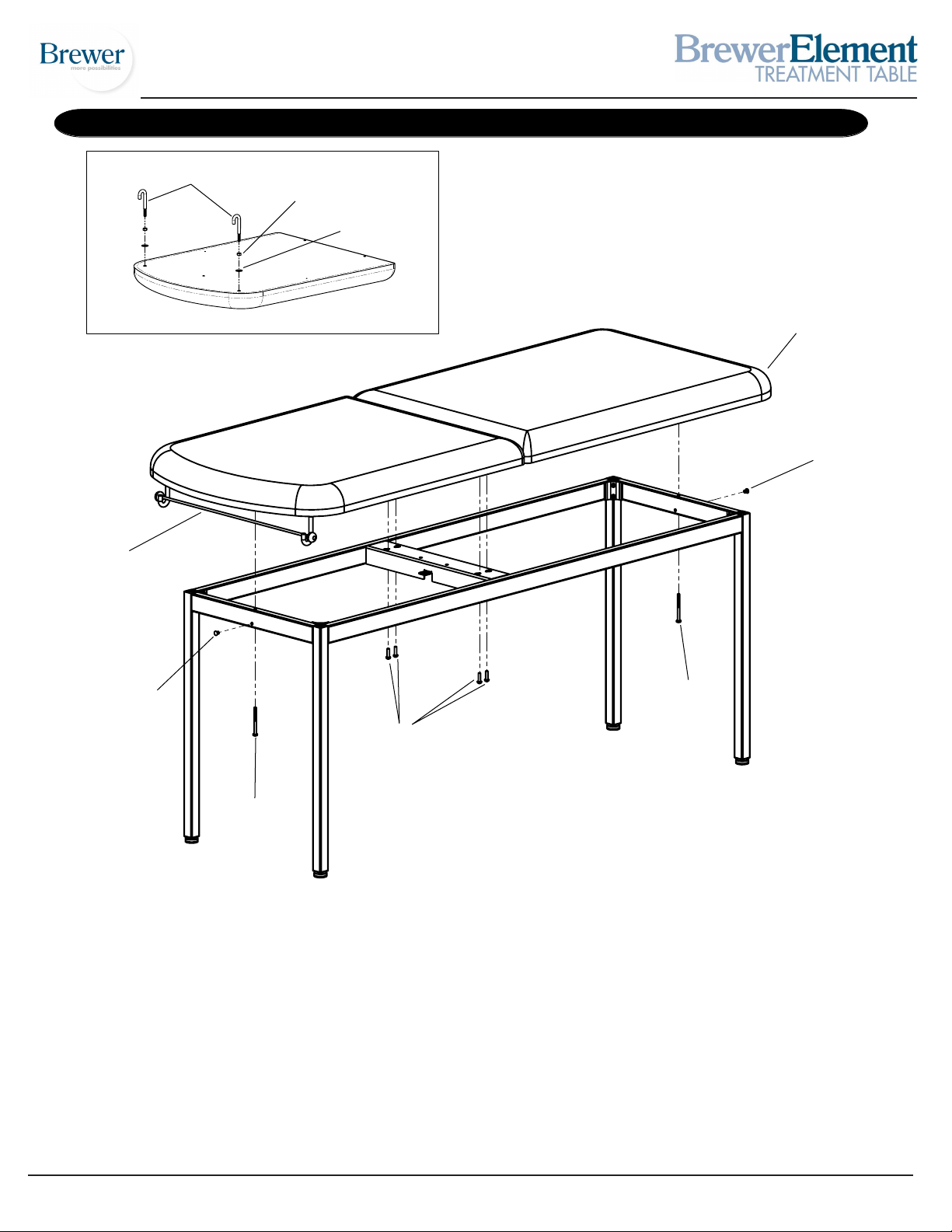

STEP B: Set upholstery top and bottom on frame, with Rounded Corners of the upholstery bottom placed at the Foot End of the table.

STEP C: Install 2 Screws A (1/4”-20 x 3”) through frame and into upholstery.

STEP D: Install 4 Screws F (1/4”-20 x 1”) through frame and into upholstery.

STEP E: Tighten Screws and insert Snap Rivets as shown.

STEP F: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a secure fit before using the paper roll dispenser.

Page 5

INSTALLATION

Leveling the Table

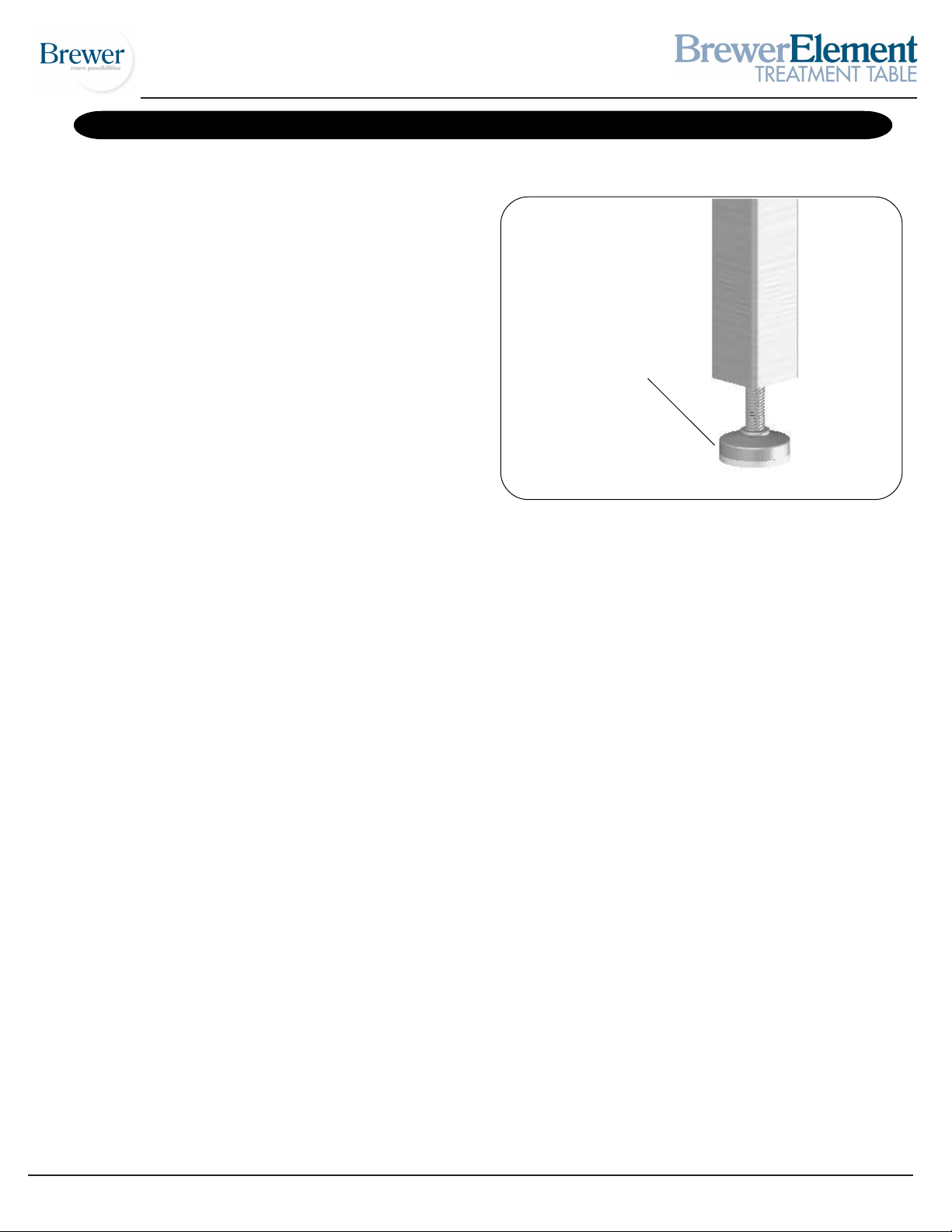

A Leveling Screw Pad is located at each corner under the table’s base. Adjust the four Leveling Screw Pads, by turning them up or down, to achieve a solid, level installation.

Leveling Screw Pad

Page 6

MAINTENANCE

Preventative Maintenance

• Inspect the mechanical functions to ensure satisfactory operation.

• Check fasteners to make sure they are present and secured tightly.

Cleaning

Upholstery

Regular care should be maintained by daily wiping with a damp cloth or sponge and periodic cleaning with a mild soap and water solution. Let air dry before placing anything on top of upholstery.

WARNING

The upholstery material that covers the top of the table is resistant to most medicinal-type stains, but may be damaged by solvents and dyes. Remove any fluids which are spilled on the immediately. All surfaces should be cleaned within your facilities guidelines concerning antimicrobials and bloodborne pathogens.

upholstery

Painted Metal Surfaces

Wipe all painted metal surfaces with a clean cloth at least once a week.

ACCESSORIES

Description Reorder No. Use/Restrictions

Replacement Upholstery

Special Upholstery 210115-SP Intended Use - Allows the purchase of 220115-SP specialty vinyls in different colors with the

Front Drawer Organizer 100407 Intended Use - Optional front drawer dividers for separation and organization.

Paper Straps 10196 Intended Use - Secures paper in two locations to table.

210115-XX Intended Use - Replacement top with 220115-XX

hardware for 2010 and 2020 Treatment Tables in 18 standard colors.

model 2010 Treatment Tables. (Additional charges may apply.)

LIMITED WARRANTY
