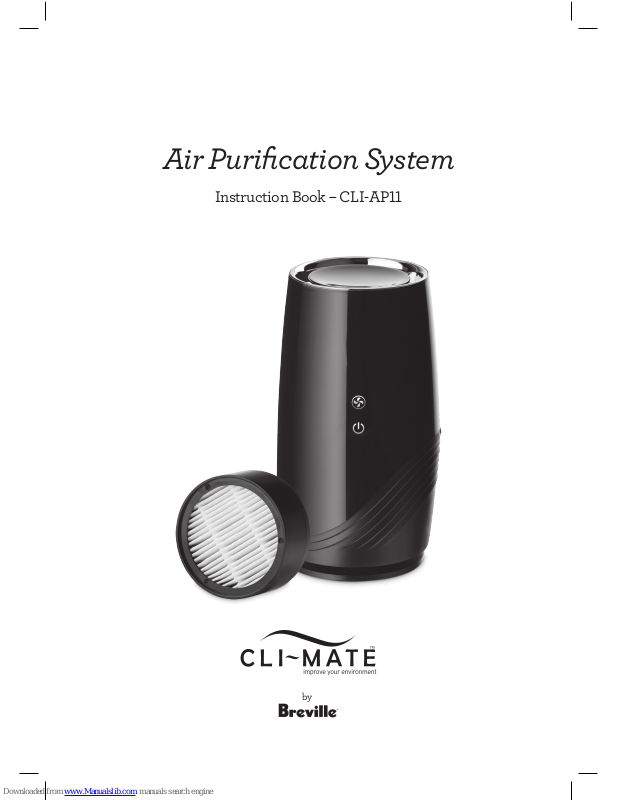

Page 1
Air Purification System
Instruction Book – CLI-AP11
by
Page 2
2
CLI-MATE
RECOMMENDS
SAFETY FIRST
At Cli-Mate we are very
safety conscious. We design
and manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL
INSTRUCTIONS BEFORE
USE AND SAVE FOR
FUTURE REFERENCE
• All components need to
be installed in accordance
with the user manual
instructions for correct
performance of unit.
• This appliance should be
used in conjunction with
a safety switch.
• This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
2 Cli-Mate Recommends Safety First
6 Components
7 Functions
8 Care & Cleaning
9 Troubleshooting
Contents
Page 3
3
• Do not operate any
appliance with a damaged
cord or plug or after the
appliance malfunctions, or
has been damaged in any
manner.
• If the supply cord
is damaged, it must
be replaced by the
manufacturer, its service
agent or similarly
qualified persons in order
to avoid a hazard.
• Children should be
supervised to ensure that
they do not play with the
appliance.
• Do not use appliance for
other than intended use.
• Do not disassemble, repair
or re-form the unit, it may
cause injury, fire or other
malfunctions. A qualified
service agent must make
all service adjustments.
Unauthorised
disassembling of the
product will void
the warranty.
• Unplug from outlet when
not in use and before
cleaning. Never plug in
or unplug unit with wet
hands.
• Do not use unit outdoors
or expose to greasy
or damp environments.
• Keep the rear air inlet
and outlet free from air
blocking materials such
as clothing, plastic bags
or papers. Air flow
is required for the unit
to operate effectively.
• Place unit on a flat
location at least 30cm
from wall or other
appliances.
• When the unit is in
operation, keep all body
parts, jewellery, hair and
loose clothing away from
the openings
• Unit must be placed
on a stable flat surface to
reduce possible excessive
vibration and noise.
Page 4
4
• Keep the unit away
from fire, flammable gas,
combustible products
or vapours, and corrosive
substances.
• Do not operate the unit
without filters.
• When transporting the
air purifier, always hold
the handles on the side
of the unit.
• To protect against
fire, electric shock and
personal injury, do not
immerse cord, plugs,
or appliance in water
or other liquid.
• Do not place on or near
a hot gas, electric burner
or heating appliance.
• Check voltage to be sure
that the voltage indicated
on the nameplate agrees
with your voltage.
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
• Unwind the power cord
fully before use.
• Do not let the power
cord hang over the edge
of a bench or table, touch
hot surfaces, or become
knotted.
• To protect against electric
shock do not immerse
power cord, power plug
or appliance in water
or any other substance.
• This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience or knowledge,
unless they have been
given supervision or
instruction concerning
use of the appliance
by a person responsible
for their safety.
Page 5
5
• Children should be
supervised to ensure
they do not play with
the appliance.
• It is recommended
to regularly inspect the
appliance. Do not use the
appliance if power cord,
power plug or appliance
becomes damaged in
anyway. Return the
entire appliance to
the nearest authorised
Cli-Mate Service Centre
for examination and/
or repair.
• Any maintenance other
than cleaning should
be performed at an
authorised Cli-Mate
Service Centre.
• This appliance is
recommended for
household use only.
Do not use this appliance
for anything other than
its intended use. Do not
use in moving vehicles
or boats. Do not use
outdoors. Misuse may
cause injury.
• The installation of
a residual current
device (safety switch)
is recommended to
provide additional safety
protection when using
electrical appliances.
It is advisable that
a safety switch with
a rated residual operating
current not exceeding
30mA be installed in the
electrical circuit supplying
the appliance. See your
electrician for professional
advice.
WARNING
Fully unwind the cord
before use.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
Page 6
6
Components
B
F
A
C
D
E
A. Air Outlet
B. Fan Speed
C. Power On/Off
D. Filter
E. Filter Cover
F. Power Input
Page 7
7
Functions
SYSTEM SPECIFICATIONS AIR PURIFICATION SYSTEM
MODEL CODE CLI-AP11-B
UNIT POWER SUPPLY RATING 5V 2.5W
AC/DC ADAPTOR R ATING Input: 100–240V 50-60Hz 0.3A
Output: 5V 1A
AIR FLOW 10–20m3/h
PRODUCT DIMENSIONS L115 x W115 x H209 (mm)
FILTER REPLACEMENT CODE CLI-AP11-RF
PRODUCT FEATURES
Filters
The 3-layer filter contains a Pre-filter,
a HEPA filter and an activated carbon filter.
• The Pre-filter traps larger particles such
as dust, pet hair and large-sized allergens.
• The HEPA filter (Grade H12) removes 99.5%
of particles as small as 0.3 microns and
greater from the air. It is capable of removing
smoke, dust, pollen, pet dander, mould spores,
bacteria and allergens in the air.
• The Activated carbon filter absorbs common
household odours, VOCs, cigarette odours,
chemical fumes and smoke.
OPERATION INSTRUCTIONS
1. Locate a flat stable location and plug the
power cord into the appropriate electrical
outlet. The unit can also be powered by
plugging it into a computer USB port.
2. The power icon will illuminate. Touch the
Power icon to turn unit on.
3. The Fan Speed icon will now illuminate and
the fan will start running on low speed. To
change to high speed touch fan icon again.
The icon illuminates blue on high speed.
Page 8
8
Care & Cleaning
EXTERNAL CLEANING OF UNIT
• Do not rinse the unit or immerse the unit
in water.
• Do not use abrasive cleaners or brushes
to clean.
• Clean the outside surface of the unit with
a soft cloth.
CHANGING THE FILTER
The filters used in this unit are not designed
to be washed or otherwise reused. When the life
of the filter reaches its end, the power icon will
flash red indicating that it needs to be changed.
While the length of time between filter changes
will vary based on the amount of use and the
conditions in which the unit is run, it will be
approximately every 6 months.
To replace the filter, turn off unit and disconnect
the power.
Turn the filter cover anti-clockwise and pull
outwards. Remove old filter and discard. Install
the new filter, ensuring that the white side
(HEPA) is facing outwards. Re-instate the filter
cover. To reset the filter timer, hold down the
Power Icon until it stops flashing.
CAUTION: Before carrying out cleaning or
maintenance of the product, always turn off and
unplug the cord from the power socket and unit.
Page 9
9
PROBLEM POSSIBLE CAUSES EASY SOLUTION
No Power.
•
Unit is not plugged into wall
socket.
•
Check connection to wall socket
and USB ports.
Loud fan motor
•
Clogged Filter,
•
Change Filter.
Unit overheating
•
Air ventilation around unit
not sufficient.
•
There must be at least 30cm
between unit and wall or other
appliances.
•
Air inlet or air outlet is being
obstructed or blocked by foreign
objects.
•
Ensure there are no object
obstructing the air inlet or air outlet.
•
Internal malfunction.
•
Call Customer Service.
Troubleshooting
Page 10
10
Notes
Page 11
11
Notes
Page 12
Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.
Copyright Breville Pty. Ltd. 2018.
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
CLI-AP11 ANZ – A18
Web: www.breville.co.nzWeb: www.breville.com.au
Australian Customers
Phone: 1300 139 798
New Zealand Customers
Phone: 0800 273 845
Breville Customer Service Centre
